史密特觸發器為基礎操作在次臨界區以獨立閘極控制

場效鰭狀電晶體之靜態隨機存取記憶體

Independently-Controlled-Gate FinFET Schmitt

Trigger Sub-threshold SRAMs

研究生

:

: 謝建宇

謝建宇

Student : Chien-Yu Hsieh

指導教授

:

: 莊景德

莊景德

教授

Advisor : Prof. Ching-Te Chuang

國立交通大學

電子工程學系電子研究所

碩士論文

A Thesis

Submitted to Department of Electronics Engineering & Institute of Electronics College of Electrical Engineering and Computer Engineering

National Chiao Tung University In partial Fulfillment of the Requirements

For the Degree of Master

In

Electronics Engineering November 2010 Hsinchu, Taiwan, Republic of China

中

(4)

以史密特觸發器為基礎操作在次臨界區以獨立閘極控制場

效鰭狀電晶體之靜態隨機存取記憶體

研究生:謝建宇指導教授:莊景德國立交通大學電子工程學系電子研究所碩士班

摘要

本論文提出了利用獨立閘極操作鰭狀場效電晶體操作在次臨界區以史密特觸發器為基礎的三種新穎的靜態隨機存取記憶體單元。這三種 8T 記憶體單元(IG_STs)利用獨立閘極特性鰭狀場效電晶體，前端閘極當作是推疊的電晶體；後端閘極當作是中間的節點來產生史密特觸發器內建回饋的機制。成功減少了電晶體數目以及縮小了面積，並且得到較佳的靜態雜訊邊界(SNM)值和對製程飄移及本質參數變異-線邊緣粗糙程度(Line Edge Roughness)有更佳的容忍度。

經由 3D mixed-mode 元件模擬器(TCAD)得知 SNM 值、靜止狀態漏電流值，並跟傳統 6T 及過去文獻上(ST1、ST2)的類似記憶體單元做比較。跟 6T 比較操作在 0.4V 時，讀取時靜態雜訊邊界(RSNM)增加了 81%並且操作在更低電壓(0.15V)同時更增加了 110%。根據 32 奈米節點的佈局規則，從實際佈局圖中得知這三種記憶體單元(IG_STs)有著比過去文獻中(ST1，ST2)更好的密度的優勢。另外記憶體單元的讀取、寫入時間、讀取時間因為同一條位元線其它非選取到記憶體細胞在讀取的同時由於其儲存的資料內容經由位元線漏電流造成讀取失敗的效應也都模擬了，此外加上溫度效應去看因漏電流的增加所導致不同的讀取時間。結果顯示出是符合操作在次臨界區域所要求的速度。由於操作在次臨界區必須更關注於記憶體單元的穩定度，於是在本質參數變異部分我們考慮了線邊緣的粗糙程度( Gate – ,and Fin – Line Edge Roughness) 和功函數變異程度(Work Function Variability)並且利用 3D mixed-mode 蒙地卡羅模擬來檢驗其穩定度。此外更加上了考慮製程飄 移(Leff, EOT, Wfin(Tsi,) and Hfin)而導致的變異可更系統性的來看其穩定度，結果可以得知在最差的

(5)

Independently-Controlled-Gate FinFET Schmitt Trigger

Sub-threshold SRAMs

Student : Chien-Yu Hsieh Advisor : Ching-Te Chuang

Department of Electronics Engineering and Institute of Electronics National Chiao Tung University

Abstract

In this paper, we propose three novel Independently-controlled-Gate Schmitt Trigger (IG_ST) FinFET SRAM cells for sub-threshold operation. The proposed IG_ST 8T SRAM cells utilize split-gate FinFET devices with the front-gate devices serving as the stacking devices, and the back-gate devices serving as the intermediate node conditioning devices to provide built-in feedback mechanism for Schmitt Trigger action, thus reducing the cell transistor count/area and achieving improved SNM and better tolerance to process variation and local random variation (LER).

3D mixed-mode simulations are used to evaluate the SNM, and Standby leakage of proposed cells, and results are compared with the standard 6T cells and previously reported 10T Schmitt Trigger sub-threshold SRAM cells (ST1 and ST2). Compared with the conventional tied-gate 6T cell, the proposed IG_ST SRAM cells demonstrate 1.81X and 2.11X higher nominal RSNM at VCS=0.4V and 0.15V, respectively. The cell layouts and areas are assessed based on scaled ground rules from 32 nm node, and the density advantage over previously reported 10T Schmitt Trigger sub-threshold SRAM cells are illustrated. The cell AC performance (Read access time, Write time, and Read access time versus the number of cells per bit-line) and temperature dependence are evaluated, and shown to be adequate for the intended sub-threshold applications.

Stability is a critical concern in sub-threshold region, so we consider Gate –, and Fin – Line Edge Roughness, and Work Function Variability using 3D mixed-mode Monte Carlo simulations to investigate its stability. Moreover, process variations (Leff, EOT, Wfin(Tsi,),

and Hfin) are performed for systematic variation concern. Our results indicate that even at the worst corner (FNSP), two of the proposed cells can provide sufficient margin of µ/σ ratio.

(6)

誌

謝

碩士論文即將完成，回想這兩年的點點滴滴，要感謝的人實在太多了，在研究的路上，一路上有許多貴人的幫忙，首先要感謝我的指導教授莊景德老師。在這兩年中，從老師身上得到許多寶貴的人生經驗及學習到如何獨力解決問題的能力；也讓我對以後的待人處事方面產生很大的影響。此外每當有問題請教老師的時候，老師也會盡全力的幫助學生，讓學生在困惑中找到一個方向前進，還有感謝蘇彬老師每週在會議討論時給予我的指導與幫助。另外，感謝皓義學長、Vita 學姐、銘隆學長，於平日我有疑惑時，給我的鼓勵與幫忙。其次我要感謝實驗室的全體同學，平日大家一起打球、運動、聊天讓我在緊湊的生活找到難得放鬆的時刻。最後感謝我的父親謝國義先生以及母親周寶彩女士從小把我辛苦的拉拔長大，以及感謝我的女朋友以及家人每當我在遭遇困難的時候，成為我的後盾在背後默默的支持我，給我力量克服難關，讓我無後顧之憂的順利完成碩士學業。

(7)

Fiqure Captions

Fig. 1.1 Schematic of conventional 6T (6T)………..5 Fig. 1.2 The stability of 6T deteriorates significantly during Read………..….5 Fig. 1.3 Schematic of various bulk CMOS sub-threshold cells: (a) 10T [4], (b) high density 10T [5], (c)

fully differential 10T [6]………...……….…..6

Fig. 1.4 Schematic of various FinFET cells: (a) Schmitt Trigger 10T (ST1) [3], and (b) Schmitt Trigger

10T (ST2) [9].……….…………...7

Fig. 1.5 Schematic of various independently-controlled-gate FinFET cells: (a) Ying-Yang feedback 6T

[10], (b) improved Ying-Yang feedback 6T [11], (c) double word-line 6T [12], and (d) asymmetrical 6T [13]………...………..….8

Fig. 1.6 Schematic of proposed Schmitt Trigger based Independently-Controlled Gate FinFET cells: (a)

IG_ST1, (b) IG_ST2, and (c) IG_ST3………...9

Fig. 2.1 Active, static, and total energy consumption versus VDD [16]………..16

Fig. 2.2 Schematic of 6T (a) Read, and (b) Write operation………17 Fig. 2.3 Voltage transfer characteristic curves used to calculate SNM: (a) Read and Hold mode, (b)

Write mode, and (c) ST1 in Read mode………...18

Fig. 2.4 (a) FinFET device structure, and (b) tied-gate and independently-controlled-gate

configurations [18]……….19

Fig. 2.5 Framework of TCAD 3D mixed-mode simulations……….………..………20 Fig. 3.1 Comparison of normalized nominal (a) RSNM, (b) WSNM, and (c) HSNM for different

cells………..26

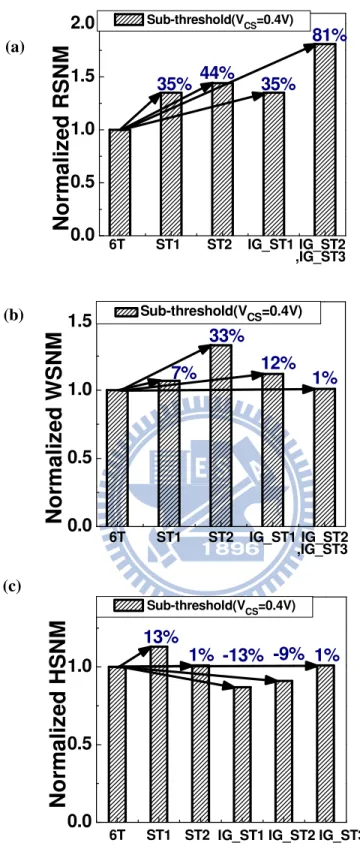

Fig. 3.2 Comparison of nominal (a) RSNM, (b) WSNM, and (c) HSNM in ultra-low voltage

operation………...27

(10)

temperature is set to 300K)………28

Fig. 3.4 Temperature distribution in whole FinFET device (VDD=0.7V)……….28

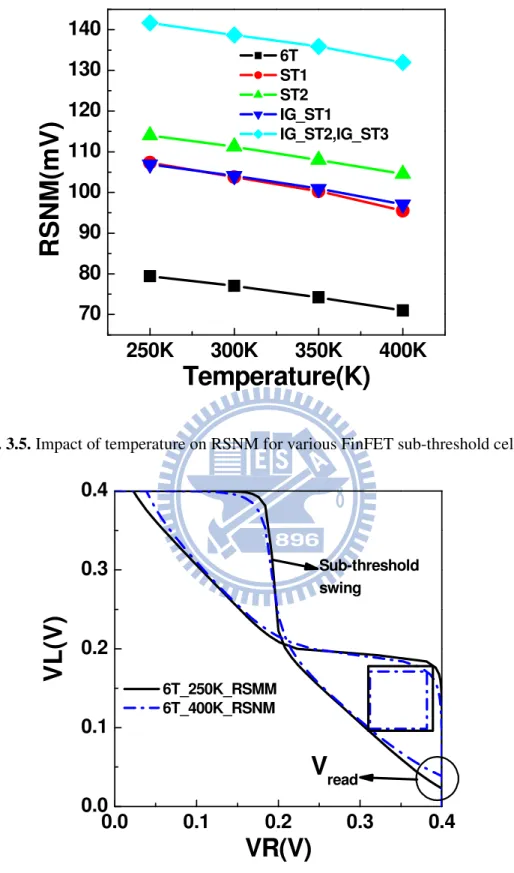

Fig. 3.5 Impact of temperature on RSNM for various FinFET sub-threshold cells………....29

Fig. 3.6 Butterfly curves of 6T degrade at high temperature (400K) which is because of degradation of sub-threshold swing and higher Vread……….29

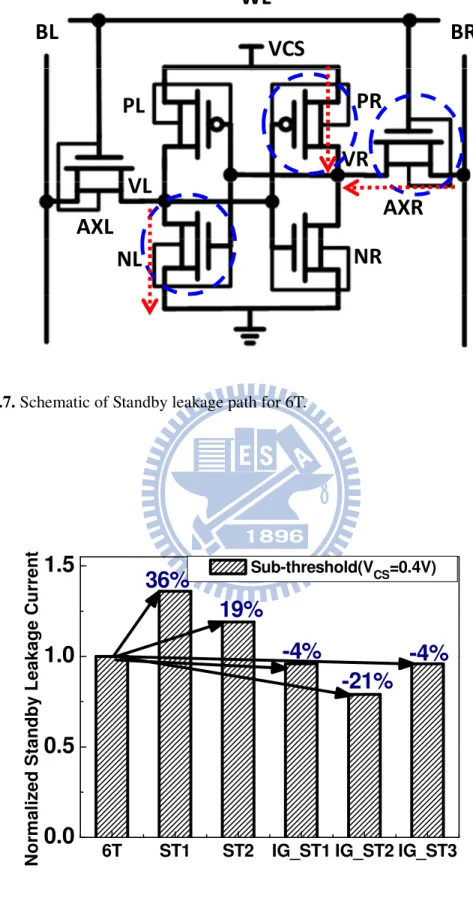

Fig. 3.7 Schematic of Standby leakage path for 6T……….30

Fig. 3.8 Comparison of cell Standby leakage current (at VCS = 0.4V) of various cells………...30

Fig. 3.9 Schematics of Standby leakage path for (a) ST1 and, (b) ST2………..31

Fig. 3.10 Schematics of Standby leakage path for (a) IG_ST1 , (b) IG_ST2, and (c) IG_ST3………..32

Fig. 4.1 “Conventional cell” layout of 6T cell………....39

Fig. 4.2 Various FinFET cell layouts………40-41 Fig. 4.3 Comparison of cell areas of various FinFET cells……….42

Fig. 4.4 Drain side and gate capacitance versus gate voltage (Vg)……….43

Fig. 4.5 (a) The definition of “cell” Read access time, and (b) comparison of “cell” Read access time for different FinFET cells operating at various VCS………...44

Fig. 4.6 (a) The definition of “cell” Write time (Time-to-Write), and (b) comparison of “cell” Write time of different FinFET cells operating at various VCS……….45

Fig. 4.7 (a) Schematics showing the worst-case bit-line data pattern for leakage current affecting Read operation, (b) Read access time considering worst-case bit-line leakage current versus number of cells per bit-line……….46

Fig. 4.8 Comparison of Id versus Vg for 25nm bulk and FinFET devices………..47

Fig. 4.9 Standby leakage current increases with risen temperature……….47

Fig. 4.10 Read access time of 512 cells per column considering worst-case bit-line pattern versus temperatures………....48

Fig. 4.11 Simulated waveform for Read failure operation at 125℃ with 512 cells per column of IG_ST1 cell………..48

(11)

Fig. 5.1 Frequency spectrum which is similar to low pass filter [40]………..………60 Fig. 5.2 Design flow to set up FinFET Fin- and Gate- LER devices………...60 Fig. 5.3 Detected line edge roughness compared with Gaussian and exponential models [36]………..61 Fig. 5.4 Voltage transfer characteristics of various cells considering Gate LER from 3D mixed-mode

Monte Carlo simulations………....62

Fig. 5.5 Voltage transfer characteristics of various cells considering Fin LER from 3D mixed-mode

Monte Carlo simulations………63

Fig. 5.6 Probability distribution of RSNM (at VCS = 0.4V) considering (a) Gate LER, and (b) Fin LER

for different SRAM cell structures from 3D mixed-mode Monte Carlo simulations………....64

Fig. 5.7 Id-Vg curves of independent-gate and tied-gate mode considering Fin LER from 3D Monte

Carlo simulations………...65

Fig. 5.8 (a) Definition of various process corners. (b) Comparison of µ/σ for RSNM of various cells at

different process corners combined with local random variation (Fin LER)……….66

Fig. 5.9 (a) Work function variation in metal gate material from different grain size and the orientation

dependency. (b) Two crystal structures, fcc and bcc, which are different in work function variation on orientation dependency [33]………67

Fig. 5.10 (a) The distribution of metal grains for a metal gate transistor. Different colors represent

different orientations. (b) The effective model for describing the transistor electrical behavior [35]………..68

Fig. 5.11 Work function variability for various number of grains……….………69 Fig. 5.12 Voltage transfer characteristics of various cells considering WFV from 3D mixed-mode

Monte Carlo simulations……….………70

Fig. 5.13 Probability distribution of RSNM (at VCS = 0.4V) considering WFV for different SRAM cell

structures from 3D mixed-mode Monte Carlo simulations……….……….71

Fig. 5.14 (a) RSNM, (b) WSNM, and (c) HSNM sensitivity to process parameter variations such as Leff,

(12)

Table Captions

Table 4.1 Layout design rules………..…42

Table 5.1 Physical properties of TiN, which have been used in this work………..………69 Table 5.2 Various parameter (Lg, Wfin(Tsi,), EOT, and Hfin) of (a) RSNM, (b) WSNM, and (c) HSNM

(13)

Chapter 1 Introduction

1.1 Background

For ultra-low-power applications, such as portable devices, implanted medical instruments, and wireless body sensing networks, operating circuit below threshold voltage is an effective solution [1, 2] to reduce static and dynamic power consumption. However, with the scaling of technology, the stability of conventional 6T SRAM cell (Fig. 1.1) deteriorates significantly, as shown in Fig. 1.2, especially in sub-threshold operation [3-6]. Due to its superior short channel control, steeper sub-threshold swing, reduced leakage current, and immunity to Random Dopant Fluctuation (RDF) [7, 8], FinFET-based SRAM emerges as a promising candidate for future low-voltage operation.

1.2 Literature Review and Motivation

There were more and more various sub-threshold SRAM cells in bulk CMOS have been proposed to improve cell stability. Fig. 1.3 illustrates several bulk CMOS sub-threshold cell structures reported in the literature [4-6]. B. H. Calhoun et al. [4] used 10T bit-cell to decouple Read path that could eliminate Read disturb. Transistors of M7 to M10 reduce the bit-line leakage significantly. The worst-case SNM for this cell is just like Hold SNM, thus butterfly curve is opened during Read operation. Compared with 6T, the area increases 66%, leakage power reduces 2.25X and VCC

min is 0.3V. T.-H. Kim et al. [5] modified previous 10T structure [4] for data-independent bit-line leakage. In this cell structure, the bit-line leakage current

(14)

flow through PMOS (M10) and NMOS (M9) is almost constant instead of relating to storage node data value, so it is more robust for high density sub-threshold SRAM.

VCCmin is 0.2V @ 1024 cells per bit-line. I. J. Chang et al. [6] proposed differential

10T cell. It has double word-line structure, W_WL for column direction and WL for row direction. Without half select problem that provides bit-interleaving structure for solving soft error rate problem, and VCC min is 0.16V with boosting 80mV word-line

voltage.

In particular, Schmitt Trigger based feedback mechanism [3, 9] also has been used to improve the RSNM, Write-ability, and to improve the tolerance to process variation. As shown in Fig. 1.4 (a) [3] and Fig. 1.4 (b) [9], these 10T Schmitt Trigger sub-threshold SRAM cells (designated as ST1 and ST2, respectively) add stacking transistors (NL1 and NR1) and feedback transistors (NFL/NFR in Fig. 1.4(a), and AXL2/AXR2 in Fig. 1.4(b)) to provide the feedback mechanism for conditioning the intermediate node to raise the cell-inverter trip voltage for rising input, thus improving RSNM. These cells have been shown to operate at VCS ~ 0.15V. The

Schmitt Trigger feedback mechanism has also been shown to improve the tolerance to process variations [3, 9].

With the capability of independent gate control in double-gate FinFET devices, a few novel cell structures have been proposed [10-13] (shown in Fig. 1.5). These cells have been investigated in sub-threshold region [14]. In [14], the result shows that because of Write failure, some of these cells are not properly using in sub-threshold region, and all of these cells do not have immunity to process variation. Therefore, there is still a need for using independently-controlled-gate FinFET devices to find new SRAM cell structure, solving the stability problem in sub-threshold region.

(15)

In this work, we propose 3 novel FinFET Independently-controlled-Gate Schmitt Trigger (IG_ST) SRAM cells (shown as IG_ST1, IG_ST2, and IG_ST3 in Fig. 1.6 (a), 1.6 (b), and 1.6 (c), respectively). These cells utilize split-gate FinFET devices with the front-gate devices serving as the stacking devices, and the back-gate devices serving as the intermediate node conditioning devices to provide built-in feedback mechanism for Schmitt Trigger action, thus reducing the cell transistor count/area and achieving improved SNM and better tolerance to process variations and random variations. In this work, we evaluate and compare the cell stability, leakage, area, performance, and tolerance to process variations and random variations of the proposed cells with conventional 6T SRAM cell and previously reported 10T Schmitt Trigger SRAM cells for sub-threshold operation using TCAD 3D mixed-mode simulations [15].

1.3 Organization

In chapter 2, the basic operations of conventional 6T, the previous 10T Schmitt Trigger sub-threshold SRAM cells and proposed 8T Schmitt Trigger sub-threshold SRAM cells are described. Chapter 3 investigates the cell RSNM, WSNM, HSNM and with considering self-heating and temperature dependence, and cell leakage in sub-threshold region. The cell layouts, areas, and cell AC performance (such as cell Read access time, cell Write time (Time-to-Write), Read access time versus the number of cells per bit-line considering worst-case data pattern for bit-line leakage, and temperatures dependence) are assessed based on scaled ground rules from 32 nm node in Chapter 4. In Chapter 5, describe the methodologies of LER (Line Edge Roughness), and then 3D mixed-mode Monte Carlo simulations are performed to

(16)

evaluate the impacts of local random variations, notably the Gate LER and Fin LER on FinFET SRAM stability. The combined effects with main process variations (Leff

and Wfin(Tsi,)) are then strictly examined for more robustness of cell stability. For overall robustness of cell stability, the sensitivity of process (Leff, EOT, Wfin(Tsi,), and

Hfin) is also discussed. In the end of chapter 5, introduce another probability of local

random variation – work function variability (WFV). The conclusion of the paper is given in Chapter 6.

(17)

0.0

0.2

0.4

0.6

0.8

1.0

0.0

0.2

0.4

0.6

0.8

1.0 V

L

(V

)

VR(V)

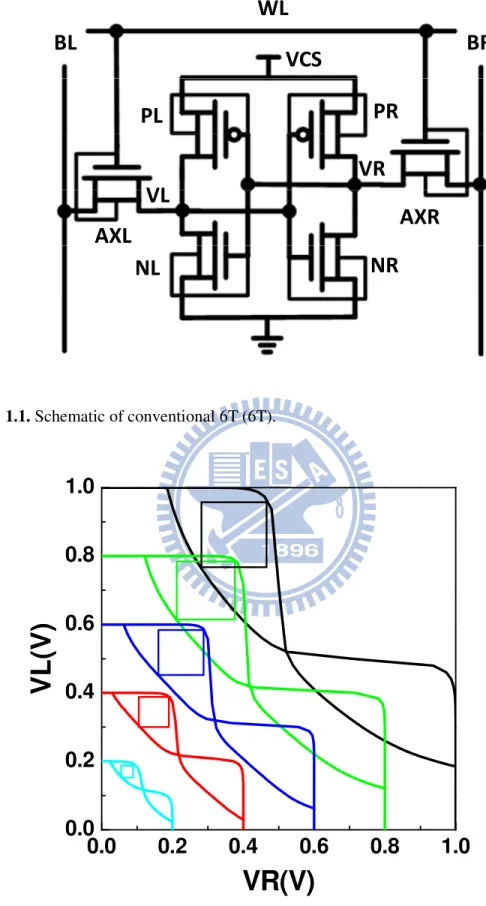

Fig. 1.1. Schematic of conventional 6T (6T).

Fig. 1.2. The stability of 6T deteriorates significantly.

WL

BL

BR

VCS

PL

PR

NL

NR

AXL

AXR

VL

VR

(18)

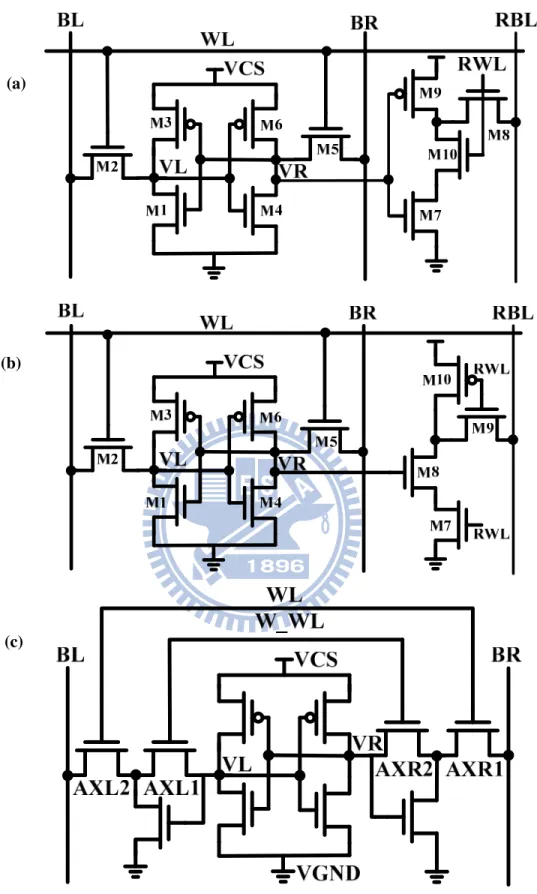

Fig. 1.3. Schematic of various bulk CMOS sub-threshold cells: (a) 10T [4], (b)

high-density 10T [5], (c) fully differential 10T [6].

(a)

(b)

(19)

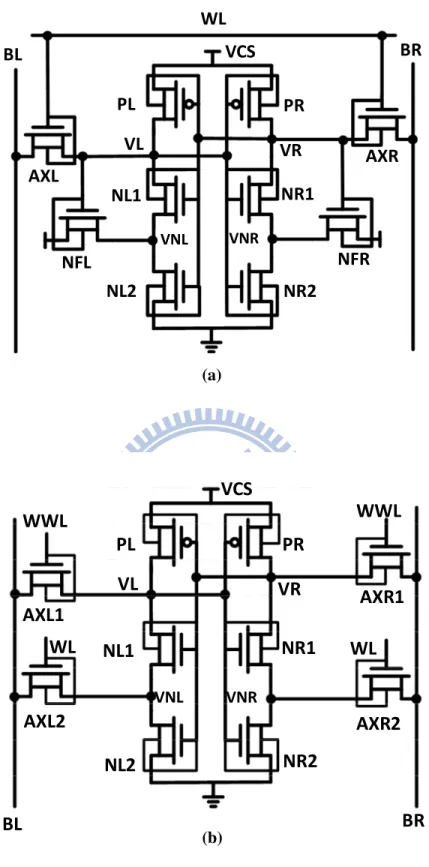

Fig. 1.4. Schematic of various FinFET cells: (a) Schmitt Trigger 10T (ST1) [3], and (b) Schmitt Trigger 10T (ST2) [9].

VCS

BL

WL

BR

PL

PR

NR2

NL2

NR1

NL1

VR

VL

VNL VNR

AXL

AXR

NFL

NFR

VCS

BL

BR

PL

PR

NL1

NL2

NR2

NR1

VL

_VR

AXL1

AXR1

AXL2

AXR2

VNL VNR

WWL

WL

(a) (b)

(20)

WL BL BR AXL AXR PL PR NL NR VCS VL _VR WWL BL BR AXL AXR PL PR NL NR VCS VL _VR R/WWL

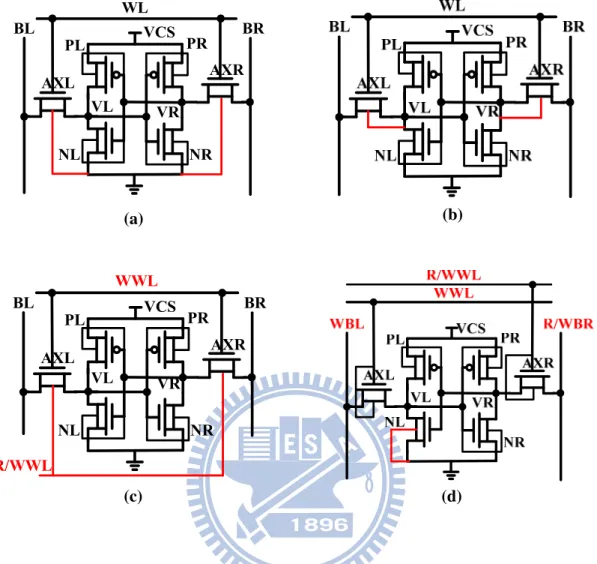

Fig. 1.5. Schematic of various independently-controlled-gate FinFET cells: (a)

Ying-Yang feedback 6T [10], (b) improved Ying-Yang feedback 6T [11], (c) double word-line 6T [12], and (d) asymmetrical 6T [13].

(a) (b)

(21)

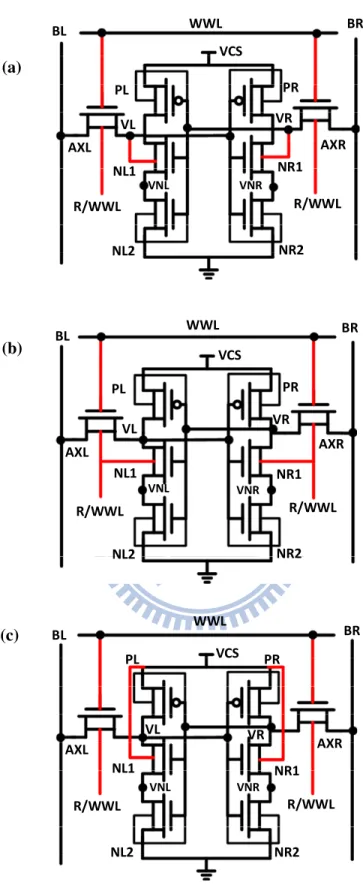

Fig. 1.6. Schematic of proposed Schmitt Trigger based Independently-Controlled Gate

FinFET cells: (a) IG_ST1, (b) IG_ST2, and (c) IG_ST3.

WWL BR BL R/WWL R/WWL AXL VR VL VNR VNL PL PR NL1 NR1 NL2 NR2 AXR VCS WWL BL BR R/WWL R/WWL AXL VL VR VNL VNR PL PR NL1 NR1 NL2 NR2 AXR VCS WWL BR BL R/WWL R/WWL AXL VR VL VNR VNL PL PR NL1 _NR1 NL2 NR2 AXR VCS (a) (b) (c)

(22)

Chapter 2 Schmitt Trigger Based FinFET SRAMs

2.1 Introduction

With aggressive scaling of transistor dimensions, the density of transistor in integration circuit is increased more and more today. So that the power consumption will be a significant concern especially in SRAM design. Fig 2.1 shows the effective way to reduce the power consumption by reducing the VCS which can reduce active

power quadratically and static leakage power linearly [16]. Therefore, circuit operate in low voltage is important for today SRAM design. However, as supply voltage decreased into sub-threshold region, the sensitivity/stability is severe to process and local random variation [17]. To overcome this problem, some different SRAM cells have been proposed, though none of them have a built-in feedback mechanism to improve the stability under the process variation.

In previous works [3, 9], ST1 and ST2 have been proposed to improve the stability under the process variation. However, the bigger cell area would be another disadvantage factor in SRAM design. In this work, our initial idea is to remain the advantage of Schmitt Trigger action, and also reduces the cell area. Based on this idea, we use the capability of independent gate control in double-gate FinFET devices to create three new cells, thus successfully reduce the cell area. In the following section, we will basically introduce the operation of conventional 6T, ST1 and ST2 cells, and clearly introduce the operation (Read, Write, and Hold mode) of our new cells.

(23)

2.2 Conventional 6T SRAM

Fig. 1.1(a) shows conventional 6T cell structure in common SRAM design. This cell has two complementary bit-lines which are used to sensing data or writing data. There is one word-line which controls access transistors (AXR and AXL) to access the cell for Read or Write operation. In Hold mode, The cell consists of a pair of cross-coupled inverters to store the data.

For Read operation, bit-lines are precharged to VDD initially and word-line turns

on. Thus, one of the bit-lines will be discharged by pull-down transistor (NL or NR). For an example, assume VL=0 VR=VCS, BL will be discharged by AXL and NL from

VDD to 0. In order to accelerate the discharge velocity, sense amplifier (SA) is also one

of the important part in SRAM design, which can detect the small differential voltage and transforms into full swing quickly. For Write operation, in order to Write 0 or Write 1, there is one of the bit-lines will first be pulled down by write driver, and then word-line turns on. Thus, data of storage node will be flipped. For an example, assume VL=0, VR=VCS, BL=VDD, and BR=0, VR is going to be pulled to low, and VL

will rise to high. Fig. 2.2 shows the schematic of Read/Write operating behavior.

2.3 Previous 10T Schmitt Trigger Cells

In previous works [3, 8], ST1 and ST2 use Schmitt Trigger characteristics to enhance RSNM in low voltage operation. For ST1 (Fig. 1.4(a)), the feedback mechanism from NFR (NFL) that conditions the intermediate stacking node VNR (VNL) is adaptively enabled according to the direction of input transition (1 to 0, or 0

(24)

to 1). During Read operation (assume VL=0 VR=VCS), the voltage of VL would rise to

Vread (Fig. 2.3(a)) due to the voltage divider effect between AXL and pull-down

transistors (NL1-NL2). If Vread is higher than the switching threshold Vtrip (Fig. 2.3(a))

of the opposite cell inverter (PR-NR1-NR2), the data in cell storage nodes would be flipped, thus causing Read failure. With the Schmitt Trigger feedback mechanism, the

Vtrip of the inverter (PR-NR1-NR2) is increased due to (1) higher VNR node voltage,

which is conditioned to one VT below VR (= VCS) by the feedback transistor NFR, and

(2) higher VT of NR1 owing to its reverse body-to-source bias. As such, the RSNM

improves and the stored data in VL and VR is preserved. The detailed Voltage Transfer Characteristics (VTC) is shown in Fig. 2.3 (c), where the improved RSNM due to higher Vtripcan be seen. During Write operation (again assume VL=0 VR=VCS),

the feedback transistor NFL turns off. Due to series combination of pull-down transistors NL1 and NL2, the Vtrip of the inverter (PL-NL1-NL2) is raised to higher

voltage, resulting in better Write margin and Write-ability.

The ST2 cell uses AXR2 (AXL2) to adaptively control cell inverter switching threshold. The gates of the feedback transistors AXR2 (AXL2) are connected to word-line to provide a firmer/stronger intermediate node conditioning action than that in ST1 where the gates of NFL (NFR) are connected to cell storage nodes. Moreover, during Write operation, AXR2 (AXL2) provides extra path to discharge the cell internal nodes to improve the Write margin and performance. Therefore, both RSNM and Write-ability are further enhanced compared with ST1.

(25)

Due to the flexibility of Independently-controlled-Gate (IG) operation in FinFET structure, the role of the Schmitt Trigger feedback transistor could be realized from the existing transistor NR1 (NL1). By splitting the front- and back-gate of NR1 (NL1), one can use the front-gate as the stacking device, and the back-gate as the intermediate node conditioning device to provide built-in feedback mechanism for Schmitt Trigger action, thus reducing the cell transistor count/area.

Three novel SRAM cell structures are proposed in this work. IG_ST1 (Fig. 1.6(a)) forms Schmitt Trigger feedback path by connecting the back-gate of NR1 (NL1) to cell storage node VR (VL). During Read operation (assume VL=0 VR=VCS),

the feedback mechanism is enabled with the node voltage VNR conditioned to one diode drop (VT) below VR by the back-gate of NR1, thus increasing Vtrip of the cell

inverter (PR-NR1-NR2) and improving the RSNM. Notice that as VL rises and VR falls, the feedback (intermediate node conditioning) mechanism becomes weaker and the switching slope (steepness) of IG_ST1 cell would degrade. Notice also that split-gate configuration is used for the access pass-transistor AXL (AXR), so only one gate is enabled during Read to reduce Read disturb, while both gates are enabled during Write to improve Write-ability and performance. During Write operation (assume VL=0 VR=VCS), due to reduced NL1 strength with its back-gate connected to

VL (= 0), and the series NL1-NL2 pull-down configuration, the trip voltage of the left cell inverter (PL-NL1-NL2) is raised, thus further improving the Write-ability.

In IG_ST2 (Fig. 1.6(b)), the back-gates of NR1 (NL1) and AXR (AXL) are connected to the R/WWL. The connection of the back-gates of NR1 (NL1) to R/WWL provides a firmer/stronger intermediate node conditioning action, and a steeper switching transition (since the back-gate of NR1 is always “High” during

(26)

Read) than IG_ST1. Furthermore, during Write operation (VL=0 VR=VCS), due to

stronger NL1 with its back-gate always at “High”, its Write-ability is slightly degraded with respect to IG_ST1 cell.

In IG_ST3 cell (Fig. 1.6(c)), the back-gates of NR1 (NL1) are connected to VCS.

Therefore, the cell would preserve the Schmitt Trigger feedback mechanism even when the R/WWL and WWL are turned off (i.e. Hold mode). In Read and Write mode, IG_ST3 cell has the same Schmitt Trigger feedback mechanism as IG_ST2 cell. Hence, IG_ST3 would have better HSNM, and the same RSNM and WSNM compared with IG_ST2 cell.

Fig. 2.4(a) shows the FinFET device structure studied in this paper and Fig. 2.4(b) shows the tied-gate and independently-controlled-gate configurations [10]. Our analyses are based on FinFET device with Na=1×1017cm-3, Leff=25nm, Wfin(Tsi,)=7nm,

Hfin=20nm and EOT=0.65nm, consistent with the ITRS Roadmap projection. The

threshold voltage of the devices are VTN ~ 0.43 V and VTP~ 0.45 V. The Framework of

following TCAD 3D mixed-mode simulations including DC (SNM) and AC (Read and Write time) metrics are illustrated in Fig. 2.5, using individual transistors for various SRAM cells, and our simulations are based on drift-diffusion equations.

2.5 Summary

In this chapter, we introduce basic conventional 6T Read/Write operation, and then introduce the characteristic of Schmitt Trigger Based 10T cells (ST1 and ST2). The main advantage of ST1 is increasing Read stability and has built-in process

(27)

variation tolerance. The improved version ST2 gain lower Read disturb and better Write margin at the cost of two word-lines structure.

In this work, we reduced two transistors to create FinFET Schmitt Trigger cells. IG_ST1 use storage node connecting to back-gate of feedback transistor for Schmitt Trigger action, IG_ST2 use R/WWL connecting to back-gate of feedback transistor for Schmitt Trigger action, and IG_ST3 use supply voltage connecting to back-gate of feedback transistor for Schmitt Trigger action. It is detailed to explain the operation of three proposed new cells, including Read, Write and Hold mode.

(28)

(29)

Fig. 2.2. Schematic of 6T (a) Read, and (b) Write operation.

WL

BL

BR

VCS

PL

PR

NL

NR

AXL

AXR

VL

VR

WL

BL

BR

VCS

PL

PR

NL

NR

AXL

AXR

VL

VR

= 0

1=

=1

= 0

₁

1 ₀₌

=1

=0

(a) (b)

(30)

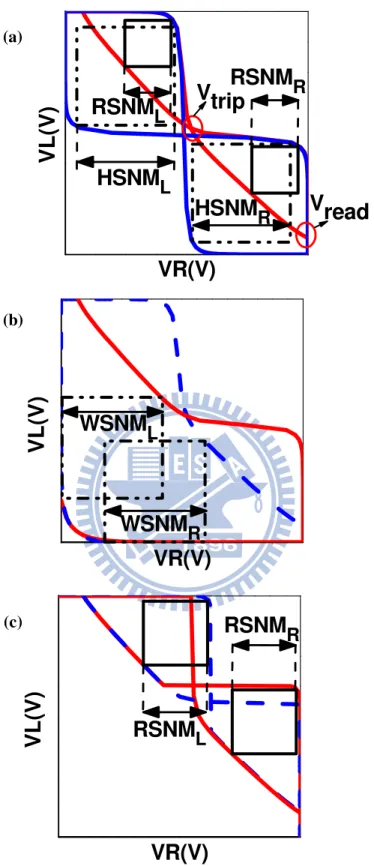

Fig. 2.3. Voltage transfer characteristic curves used to calculate SNM: (a) Read and

Hold mode, (b) Write mode, and (c) ST1 in Read mode.

RSNM

_R

V

L

(V

)

VR(V)

RSNM

_L

Vtrip

HSNM

_R

HSNM

_L

V

_read

WSNM

_L

WSNM

_R

V

L

(V

)

VR(V)

RSNM

_R

RSNM

_L

V

L

(V

)

VR(V)

(a) (b) (c)

(31)

G

S/D

Insulator

BOX

L

_eff

W

_fin

(T

_si

)

H

_fin

Fig. 2.4. (a) FinFET device structure, and (b) tied-gate and independently-controlled-gate configurations [18].

(a)

(32)

(33)

Chapter 3 SNM and Standby Leakage Current Analysis

3.1 Introduction

Static Noise Margin (SNM) is a common criterion to investigate SRAM cell stability in DC mode, which is including Read, Write, and Hold mode. The RSNM is defined as the length of a side of maximum square that can fit inside the butterfly curves in Read mode [19], and the minimum of RSNML and RSNMR is chosen as the cell RSNM (Fig. 2.3(a)). The HSNM is defined similar to RSNM with the cell in Standby (Hold) mode. The WSNM is defined as the minimum square spanning between the curves in Write mode (Fig. 2.3(b)), and the smaller of WSNML and WSNMR is chosen as the cell WSNM. Due to the asymmetrical Voltage Transfer Curves (VTC) for ST1 cell (the direction of input transition (1 to 0, or 0 to 1)), the corresponding RSNM is as shown in Fig. 2.3(c). In this chapter we will comprehensively compare RSNM, WSNM, and HSNM with these sub-threshold SRAM cells.

Previous section has mentioned that static power consumption would be a critical concern when SRAM operates in sub-threshold region. In [3], this paper indicated that as the same Read failure probability, ST1 cell can save 18% static leakage power than 6T cell. But under this condition, ST1 operates at 175 mV lower supply voltage than 6T cell. In this chapter, for the fair comparison, we set the same supply voltage (VCS=0.4V) to compare all the cells’ static leakage current.

(34)

3.2 Comparison of Read, Write and Hold SNM

In Fig. 3.1 (a), the normalized nominal RSNM of different cells are compared in sub-threshold region (VCS = 0.4V). With the help of feedback mechanism, Schmitt

Trigger based cells show significantly better nominal RSNM (35% - 81%) than the conventional 6T cell. In particular, IG_ST2 and IG_ST3 have the most significant improvement in nominal RSNM (~81%) due to their steeper switching characteristics. In Write mode (Fig. 3.1(b)), Schmitt Trigger based cells also show better nominal WSNM (1% to 33%). The improvement is most significant for ST2 cell due to its two parallel discharging paths for cell internal nodes and tied-gate pass-transistor configuration. In Hold mode (Fig. 3.1(c)), IG_ST1 and IG_ST2 have slightly lower nominal HSNM due to the split-gate configuration of NL1 (NR1) which slightly degrades the switching slope (steepness). Notice that IG_ST1 maintains the feedback mechanism even in Hold mode, as the intermediate node VNL (or VNR) is still conditioned by the back-gate of NL1 (or NR1) to one VT drop below the “High” cell

storage node. Also the VT of the front-gate of NL1 (or NR1) will be lower due to

gate-to-gate coupling. The switching transition also tends to be soft as the feedback mechanism weakens and eventual diminishes with the switching transition.

For IG_ST2 in Hold mode, the back-gates of NL1 (and NR1) are at “Low”, hence there is no feedback mechanism. The VT of the front-gates of NL1 and NR1

will be a little bit higher due to gate-to-gate coupling, thus Vtrip tends to be a little

higher. The HSNM, however, does not constitute a limitation on SRAM stability, while RSNM does. IG_ST3 exhibits HSNM comparable to (1% better) 6T cell since it preserves the Schmitt Trigger feedback mechanism in Hold mode. The stability of the

(35)

cells operating at ultra-low-voltage is assessed in Fig. 3.2. It can be seen that RSNM is most critical for the supply voltage range from 0.4V down to 0.15V. Furthermore, the improvements of RSNM of the proposed cells over 6T cell become more significant as the supply voltage decreases. For IG_ST2 and IG_ST3 cell, the improvement increases from 81% to 110% as VCS scales from 0.4V to 0.15V.

Notice that during Write operation, both R/WWL and WWL are turned on, so both the front- and back-gate of the access pass-transistor AXL (AXR) are enabled. As such, the half-select disturb along the selected WL is more serious than the half-select disturb during Read operation. Notice also that other sub-threshold SRAM cells, like those in [4, 5], and previously reported 10T Schmitt Trigger sub-threshold SRAM cells [3, 9] have similar Write half-select disturb constraint. Therefore, non-bit-interleaving architecture or Byte Writing architecture should be used to best exploit the improved RSNM of these sub-threshold SRAM cells.

3.3 Self-Heating and Temperature Dependence on

Sub-threshold SRAM Stability

Compared with bulk device, due to lower thermal conductivity (κ) in thin-film

silicon layer on insulator devices (PDSOI, FDSOI, and FinFET), these devices have self-heating problem [20]. With the calibrated thermal conductivity data [21], thermal conductivity (κ) of thin-film is 15 W m-1K-1. Fig. 3.3 shows device temperature versus various VDD. As can be seen, in sub-threshold region (VDD=0.4V),

device temperature keeps as ambient temperature. Therefore, it seems that self-heating can negligible in sub-threshold region. The lattice temperature

(36)

distribution of our simulation devices at VDD=0.4V and VDD=1V is shown in Fig. 3.4.

Fig. 3.5 shows RSNM comparison of various cells at VDD=0.4V versus

temperature. We accessed with and without self-heating for RSNM comparison. Because cell operates in sub-threshold region (VDD=0.4V), no matter considering

self-heating or not, RSNM comparison of various cells are the same. It can be seen, RSNM of all cells slightly degrade ~10 mV as increasing temperature from 250K to 400K. This is because at 400K that sub-threshold swing is degraded [22] and operates in super-threshold region resulting higher Vread [23]. For an example, In Fig. 3.6, 6T

butterfly curves of 250K and 400K are shown to explain this phenomenon.

3.4 Comparison of Standby Leakage Current

In sub-threshold region, static leakage power is a dominant source for power consumption. When SRAM operates in Standby mode, the schematic for leakage current path for 6T is shown in the Fig. 3.7. The conditions of cell storage nodes are VR=”Low” and VL=”High”.

Fig. 3.8 compares the Standby leakage current of different cells. The conditions of cell storage nodes are VR=”Low” and VL=”High”. Compared with 6T cell, Fig. 3.9 illustrates that ST1 and ST2 have extra leakage path through NFR and AXR2, and therefore exhibit 36% and 19% higher Standby leakage current, respectively. The proposed cells leakage path illustrate in Fig. 3.10. Without extra cell leakage path, IG_ST1 and IG_ST3 show slightly lower leakage (4%) compared with 6T cell. Moreover, IG_ST2 cell, with the back-gate of the stacking transistor (NL1/NR1) off

(37)

in Standby, reduces up to 21% cell leakage current compared with 6T cell.

3.5 Summary

We have analyzed overall SRAM stability, including Read, Write, and Hold mode. Schmitt Trigger based cells could significantly have better nominal RSNM (35% - 81%) than the conventional 6T cell. In particular, IG_ST2 and IG_ST3 have the most significant improvement in nominal RSNM (~81%). Write ability of Schmitt Trigger based cells are slightly improved due to stacked pulled-down NMOS transistors. In Standby mode, stability is more robust than Read mode. In particular, As VCS scales

from 0.4V to 0.15V, for IG_ST2 and IG_ST3, the RSNM improvement increases from 81% to 110%.

With considering self-heating in FinFET devices, device temperature is not impacted by self-heating effect in sub-threshold region (VDD=0.4V). Furthermore, in

SRAM level simulations, increasing temperature from 250K to 400K, RSNM is slightly degraded 10 mV for each cells.

In the second part, cell leakage analysis has been investigated. At VCS=0.4V, due

to extra leakage path through feed-back transistors, ST1 and ST2 cells exhibit 36% and 19% higher Standby leakage current, respectively. Our proposed cells can save 20% to 50% cell leakage current than previously reported ST1 and ST2 cells, because of the stacking transistors.

(38)

Fig. 3.1. Comparison of normalized nominal (a) RSNM, (b) WSNM, and (c) HSNM

for different cells.

6T ST1 ST2 IG_ST1 IG_ST2 0.0 0.5 1.0 1.5 2.0 Sub-threshold(V_CS=0.4V) 81% 35% 44%

N

o

rm

a

li

z

e

d

R

S

N

M

35% ,IG_ST3 6T ST1 ST2 IG_ST1 IG_ST2

0.0

0.5

1.0

1.5

,IG_ST3

33%

1%

12%

N

o

rm

a

li

z

e

d

W

S

N

M

Sub-threshold(V_CS=0.4V)

7%

6T ST1 ST2 IG_ST1IG_ST2IG_ST3

0.0

0.5

1.0 1% -13%

-9%

1%

N

or

m

a

li

z

e

d

H

S

N

M

13%

IG_ST1 IG_ST2 IG_ST3 ST2

(a)

(b)

(39)

Fig. 3.2. Comparison of nominal (a) RSNM, (b) WSNM, and (c) HSNM in ultra-low voltage operation.

0.15 0.20 0.25 0.30 0.35 0.40

30

60

90

120

150 R

S

N

M

(m

V

)

V

_CS

(V)

6T ST1 ST2 IG_ST1 IG_ST2,IG_ST3

110%

81%

0.15 0.20 0.25 0.30 0.35 0.40

50

100

150

200 W

S

N

M(

m

V

)

V

CS

(V)

0.15 0.20 0.25 0.30 0.35 0.40

50

100

150

200 H

S

N

M

(m

V

)

V

CS

(V)

6T ST1 ST2 IG_ST1 IG_ST2 IG_ST3 (a) (b) (c)

(40)

0.4

0.5

0.6

0.7

0.8

0.9

1.0

300

350

400

450

500 D

e

v

ic

e

T

e

m

p

e

ra

tu

re

(K

)

V

_DD

(V)

Ambient Temperature=300K FinFET Average Temperature FinFET Maximum Temperature

κ κκ

κ=15 (W/mK)

Fig. 3.3. Impact of VDDon the device average and maximum temperature FinFET SOI

device (ambient temperature is set to 300K).

Fig. 3.4. Temperature distribution in whole FinFET device at (a) VDD=0.4V, and (b)

1V respectively.

(41)

250K

300K

350K

400K

70

80

90

100

110

120

130

140 R

S

N

M

(m

V

)

Temperature(K)

0.0

0.1

0.2

0.3

0.4

0.0

0.1

0.2

0.3

0.4 V

_read

V

L

(V

)

VR(V)

6T_250K_RSMM 6T_400K_RSNM Sub-threshold swing

Fig. 3.5. Impact of temperature on RSNM for various FinFET sub-threshold cells.

Fig. 3.6. Butterfly curves of 6T degrade at high temperature (400K) which is because

(42)

Fig. 3.7. Schematic of Standby leakage path for 6T.

Fig. 3.8. Comparison of cell Standby leakage current (at VCS = 0.4V) of various cells. 6T ST1 ST2 IG_ST1 IG_ST2 IG_ST3

0.0

0.5

1.0

1.5 -4%

-21%

-4%

19%

N o rm a li ze d S ta n d b y L e a k a g e C u rr e n t

36%

WL

BL

BR

VCS

PL

PR

NL

NR

AXL

AXR

VL

VR

(43)

Fig. 3.9. Schematics of Standby leakage path for (a) ST1 and, (b) ST2.

VCS

BL

WL

BR

PL

PR

NR2

NL2

NR1

NL1

VR

VL

VNL VNR

AXL

AXR

NFL

NFR

VCS

BL

BR

PL

PR

NL1

NL2

NR2

NR1

VL

_VR

AXL1

AXR1

AXL2

AXR2

VNL

VNR

WWL

WL

(a) (b)

(44)

Fig. 3.10. Schematics of Standby leakage path for (a) IG_ST1 , (b) IG_ST2, and (c) IG_ST3. WWL BR BL R/WWL R/WWL AXL VR VL VNR VNL PL PR NL1 NR1 NL2 NR2 AXR VCS WWL BL BR R/WWL R/WWL AXL VL VR VNL VNR PL PR NL1 NR1 NL2 NR2 AXR VCS WWL BR BL R/WWL R/WWL AXL VR VL VNR VNL PL PR NL1 _NR1 NL2 NR2 AXR VCS (a) (b) (c)

(45)

Chapter 4 Cell Area and AC performance

4.1 Introduction

Area of SRAM is usually the biggest part in whole chip area today ~ 90% [24].

Schmitt Trigger based cells use adding extra transistors to gain better stability, but at the expense of increased area. Due to various cell structures, the layouts are in different way. In this chapter, we will illustrate one possible “thin cell” layout for various cells, and estimate the corresponding area overhead.

We have investigated various SRAM cells stability in DC mode. On the other hand, transient (AC) analysis is a need to show the timing information in Read and Write mode. In the following section, we can get a capacitive load onto each bit-line from estimated cell height and then evaluate Read time and Write time (Time-to-Write). In order to make sure successful Read in the worst SRAM bit-line pattern, the worst-case bit-line leakage current has been considered. In addition, increased leakage current caused by temperature also has been considered with worst-case bit-line leakage current.

4.2 Area Comparison

M. Khare et al. [25] claimed that the “thin-cell” layout is a better type for SRAM cell layout compared to “conventional-cell” layout. The 6T “conventional-cell” layout

(46)

is shown in Fig. 4.1. It can be seen, height of this type cell layout (bit-line track direction) is longer than width (word-line track direction) and metal (polysilicon) lines are not in the same direction. “Thin-cell” represents the length to width ratio, and the shape is just like elongated rectangle. All metal (polysilicon) lines are in the same direction in “thin cell” which is friendly in lithography and offers better process window. Another advantage is “thin-call” layout reduces bit-line capacitance load for performance.

Based on published design rules of 32 nm technologies [26-28] and scaling factor from ITRS Roadmap, the cell area of various FinFET SRAM cells are estimated and compared. Table 1 summarizes the pertinent layout design rules used in this work. In Fig. 4.2, we illustrate the layouts of different cells and estimate the corresponding area overhead. We establish a standard 6T thin-cell layout [29] which requires 4.5 fin pitch in horizontal dimension and 2 contacted gate pitch in vertical dimension, and the area is 0.09 µm2. For ST1 and ST2 cells, extra feedback (NFL (NFR) and AXL2 (AXR2)) and stacking (NL1 (NR1)) transistors result in increase of 69% and 50% in horizontal and vertical dimension, respectively. Furthermore, extra Metal-2 track is required to connect the internal nodes. In contrast, our proposed cells could reduce the areas occupied by the two feedback transistors (horizontal dimension) and the contacts at NL2 (NR2) drain side (vertical dimension). As shown in Fig. 4.3, the proposed cells (IG_ST1, IG_ST2 and IG_ST3) can save 30% - 39% area compared with ST1 and ST2 cells.

(47)

In this section, the cell Read access time and Write time (Time-to-Write) are assessed by 3D TCAD mixed-mode transient simulations. A capacitive load is added onto each bit-line to account for the capacitance of wires and connected devices. The bit-line wire length and capacitance for various cells are calculated from the heights of cell layouts described in Section 4.2. Capacitance from the drain side of connected devices is simulated from AC TCAD simulation. As shown in Fig 4.4, the drain side capacitance (~5e-18F) can be negligible to bit-line wire loading (~e-14F).

4.3.1 Read/Write cell performance

Fig. 4.5(a) shows the definition of “cell” Read access time, which is measured as the time required for developing 50 mV bit-line differential voltage after the word-line turns on. The “cell” Read access time strongly depends on the Read current through the access and pull-down transistors. In Fig. 4.5(b), we compare “cell” Read access time of various FinFET SRAM cells for operating voltages (VCS) ranging from

0.40V down to 0.20V. For IG_ST1, IG_ST2 and IG_ST3 cells, the reduced strength of access transistor (with only one-gate on during Read) benefits the RSNM, but severely degrades the cell Read access time as compared with 6T cell in tied-gate configuration (93X slower). However, with the scaling of VCS to 0.2V, the difference

decreases to 20X. This is because the current driving capability of the access transistor depends exponentially on the gate voltage (VCS) in sub-threshold region and

the effect of device sizing (device width of single-gate mode versus tied-gate mode) becomes less significant at lower voltage. Notice that sub-threshold SRAMs typically aim for applications such as implantable devices, medical instruments, and wireless sensor networks with operating frequency ranging from several hundred Hz to several

(48)

hundred KHz, and power dissipation from µW to tens of µWs. Thus, the Read access times for the proposed cells appear adequate for the intended application.

For Write operation, the “cell” Write time is defined as the time it takes for the voltages of two cell storage nodes to cross over after the word-line turns on (Fig. 4.6(a)). Fig. 4.6(b) compares the Write time of different cells operating at various VCS.

As can be seen, the Write time of these cells are comparable due to the similar configuration of access and pull-up transistors during Write. The Write times of cell ST1 and ST2 are slightly larger than other cells at VCS=0.2V due to their increased

node capacitances. Also notice that compared with cell Read access time, the cell Write time is significantly shorter.

4.3.2 Read Access Time with Worst-Case Bit-Line Leakage

Current

In this section, the impact of bit-line leakage, due to the Standby leakage currents from un-selected cells on the selected bit-line pair, on “cell” Read access time is investigated. Fig. 4.7(a) illustrates the worst-case data pattern for bit-line leakage. All un-selected cells have the same data which is opposite to the selected cell. The solid arrow line symbolizes the Read current in the selected cell, while the dashed arrow lines represent the leakage currents from the unselected cells which rival the Read current. The leakage currents would charge up the low-going bit-line while discharge the bit-line which is supposed to be held at “High”. Thus, the bit-line differential voltage is reduced, resulting in degradation of sensing margin and speed. Fig. 4.7(b) shows the dependence of “cell” Read access time on the number of cells per bit-line.

(49)

Due to the better gate control and lower leakage current of FinFET devices (compared with bulk devices, which is shown in Fig.4.8), increasing the number of cells per bit-line from 32 to 256 degrades the cell Read access time by about 5-6X. Thus, the proposed cells can support adequate number of cells per bit-line to meet the density requirement with adequate performance (several hundred Hz to several hundred KHz) for the intended applications.

4.3.3 Temperature Dependence on Read Access Time with

Worst-Case Bit-Line Leakage Current

It is important to point out that the temperature significantly affects transistor leakage current (two orders difference from 27℃ to 125℃), as shown in Fig. 4.9. Fig. 4.10 shows the Read access time of 512 cells per bit-line for the worst-case bit-line data pattern versus temperature. It can be seen that except for IG_ST1 cell at 125℃, other cells can successfully perform Read operation across the temperature range. The failure of IG_ST1 cell is mainly due to its slower sense signal development (longer Read access time), rendering it more susceptible to bit-line leakage. The failure case of IG_ST1 is shown in Fig. 4.11.

4.4 Summary

Based on 32nm layout design rule, we have estimated area of various cells from popular “thin cell” layout style. Our proposed cells can save 30% - 39% area compared with ST1 and ST2 cells. In our transient simulations, due to the reduced

(50)

strength of access transistor (only one gate is opened in Read mode), Read time is severely degraded compared with other cells at VCS=0.4V. However, our cells still adequate for sub-threshold SRAM applications, the frequency is from several hundred Hz to several hundred KHz. Write time of various cells are comparable because of the same configuration of access and pull-up transistors.

Despite of “cell” Read time, we evaluated the Read access time with worst-case

bit-line leakage current. As can be seen, increasing the number of cells per bit-line from 32 to 256 only degrades the cell Read access time by about 5-6X. Thus, our cells can meet the density requirement with adequate performance. Temperature affects on device leakage has also been considered to the Read access time with worst-case bit-line leakage current. Most of temperature range can be tolerated except for IG_ST1 cell at 125℃.

(51)

(52)

(6T)

(ST1)

(53)

Fig. 4.2. Various FinFET cell layouts.

(IG_ST1)

(IG_ST2)

(54)

Table 4.1. Layout design rules.

Leff=25nm node scale

x=contacted gate pitch 100nm

y=fin pitch 100nm

z=contact to contact pitch 80nm

M1 pitch 80nm

M2 pitch 80nm

Fig. 4.3. Comparison of cell areas of various FinFET cells.

6T

ST1

IG_ST2

IG_ST1

0.00

0.05

0.10

0.15

0.20 ,IG_ST3

-30%

1.78X

1.56X

A

re

a

(u

m

2 )

2.53X

-39%

,ST2

(55)

1.00E-18 1.00E-17 1.00E-16 -1.5 -1 -0.5 0 0.5 1 1.5 2

Ca

p

a

c

it

a

n

c

e

(F

)

Vg

NMOS Capacitance

Cgg

Cdd

(56)

Fig. 4.5. (a) The definition of “cell” Read access time, and (b) comparison of “cell”

Read access time for different FinFET cells operating at various VCS.

V

BR

V

BL

V

o

lt

ag

e

(V

)

Time(s)

V

WL

50 mv bit-line

differential voltage

0.20 0.25 0.30 0.35 0.40

1E-9

1E-8

1E-7

1E-6

1E-5

1E-4

20X

(IG_ST1)

_{(IG_ST2}

,IG_ST3)

(ST1)

(ST2)

A

c

e

s

Ti

m

e

(s

)

V

_CS

(V)

(6T)

93X

(a) (b)
