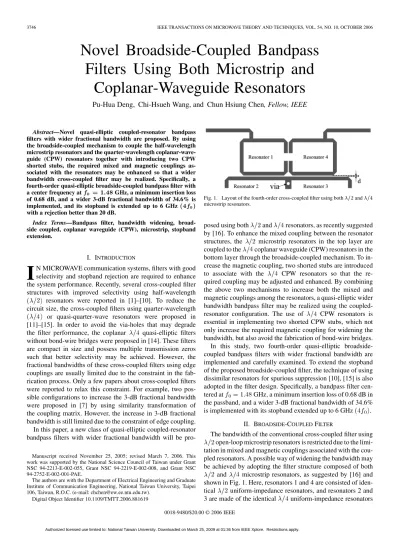

Novel Broadside-Coupled Bandpass
Filters Using Both Microstrip and
Coplanar-Waveguide Resonators
Pu-Hua Deng, Chi-Hsueh Wang, and Chun Hsiung Chen, Fellow, IEEE
Abstract—Novel quasi-elliptic coupled-resonator bandpass filters with wider fractional bandwidth are proposed. By using the broadside-coupled mechanism to couple the half-wavelength microstrip resonators and the quarter-wavelength coplanar-wave-guide (CPW) resonators together with introducing two CPW shorted stubs, the required mixed and magnetic couplings as-sociated with the resonators may be enhanced so that a wider bandwidth cross-coupled filter may be realized. Specifically, a fourth-order quasi-elliptic broadside-coupled bandpass filter with a center frequency at 0 = 1 48 GHz, a minimum insertion loss of 0.68 dB, and a wider 3-dB fractional bandwidth of 34.6% is implemented, and its stopband is extended up to 6 GHz (4 0) with a rejection better than 20 dB.
Index Terms—Bandpass filter, bandwidth widening, broad-side coupled, coplanar waveguide (CPW), microstrip, stopband extension.
I. INTRODUCTION
I
N MICROWAVE communication systems, filters with good selectivity and stopband rejection are required to enhance the system performance. Recently, several cross-coupled filter structures with improved selectivity using half-wavelength resonators were reported in [1]–[10]. To reduce the circuit size, the cross-coupled filters using quarter-wavelength or quasi-quarter-wave resonators were proposed in [11]–[15]. In order to avoid the via-holes that may degrade the filter performance, the coplanar quasi-elliptic filters without bond-wire bridges were proposed in [14]. These filters are compact in size and possess multiple transmission zeros such that better selectivity may be achieved. However, the fractional bandwidths of these cross-coupled filters using edge couplings are usually limited due to the constraint in the fab-rication process. Only a few papers about cross-coupled filters were reported to relax this constraint. For example, two pos-sible configurations to increase the 3-dB fractional bandwidth were proposed in [7] by using similarity transformation of the coupling matrix. However, the increase in 3-dB fractional bandwidth is still limited due to the constraint of edge coupling. In this paper, a new class of quasi-elliptic coupled-resonator bandpass filters with wider fractional bandwidth will bepro-Manuscript received November 25, 2005; revised March 7, 2006. This work was supported by the National Science Council of Taiwan under Grant NSC 94-2213-E-002-055, Grant NSC 94-2219-E-002-008, and Grant NSC 94-2752-E-002-001-PAE.
The authors are with the Department of Electrical Engineering and Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/TMTT.2006.881619
Fig. 1. Layout of the fourth-order cross-coupled filter using both=2 and =4 microstrip resonators.
posed using both and resonators, as recently suggested by [16]. To enhance the mixed coupling between the resonator structures, the microstrip resonators in the top layer are coupled to the coplanar waveguide (CPW) resonators in the bottom layer through the broadside-coupled mechanism. To in-crease the magnetic coupling, two shorted stubs are introduced to associate with the CPW resonators so that the re-quired coupling may be adjusted and enhanced. By combining the above two mechanisms to increase both the mixed and magnetic couplings among the resonators, a quasi-elliptic wider bandwidth bandpass filter may be realized using the coupled-resonator configuration. The use of CPW resonators is essential in implementing two shorted CPW stubs, which not only increase the required magnetic coupling for widening the bandwidth, but also avoid the fabrication of bond-wire bridges. In this study, two fourth-order quasi-elliptic broadside-coupled bandpass filters with wider fractional bandwidth are implemented and carefully examined. To extend the stopband of the proposed broadside-coupled filter, the technique of using dissimilar resonators for spurious suppression [10], [15] is also adopted in the filter design. Specifically, a bandpass filter cen-tered at GHz, a minimum insertion loss of 0.68 dB in the passband, and a wider 3-dB fractional bandwidth of 34.6% is implemented with its stopband extended up to 6 GHz .
II. BROADSIDE-COUPLEDFILTER
The bandwidth of the conventional cross-coupled filter using open-loop microstrip resonators is restricted due to the limi-tation in mixed and magnetic couplings associated with the cou-pled resonators. A possible way of widening the bandwidth may be achieved by adopting the filter structure composed of both and microstrip resonators, as suggested by [16] and shown in Fig. 1. Here, resonators 1 and 4 are consisted of iden-tical uniform-impedance resonators, and resonators 2 and 3 are made of the identical uniform-impedance resonators
Fig. 2. Proposed fourth-order broadside-coupled filter composed of=2 mi-crostrip and=4 CPW resonators. (a) Side view. (b) Top-/bottom-layer circuit layouts to show the relative location between top microstrip layer and bottom CPW layer.
in which a shorted circuit is introduced and implemented by the grounding via.
In Fig. 1, cross electric coupling is obtained across the gap between the ends of open-loop resonators 1 and 4, while the metallic via connecting to ground shared by resonators 2 and 3 produces the magnetic coupling required between these two resonators. In addition, the coupling between resonators 1 and 2 is of mixed form. Basically, stronger magnetic and mixed cou-plings are required for widening the 3-dB fractional bandwidth. A stronger magnetic coupling may be achieved by increasing the length of the shorted stub between resonators 2 and 3 (Fig. 1). However, the level of the mixed couplings between resonators 1 and 2, as well as 3 and 4, is limited by the spacing associated with the edge coupling, thereby becoming the bottleneck of the design. For example, the fourth-order quasi-elliptic microstrip filter shown in Fig. 1 and designed on an RO4003C substrate needs a small spacing of 0.05 mm to produce the required mixed coupling for a 3-dB fractional bandwidth of 16% with a center frequency at 1.98 GHz. This spacing is too small to be imple-mented by the usual fabrication process.
To widen the bandwidth, a novel broadside-coupled band-pass filter structure shown in Fig. 2 is proposed. Here, the microstrip uniform-impedance resonators in the top layer are coupled, in the broadside mechanism, to the CPW stepped-impedance resonators in the bottom layer so that the required mixed couplings between resonators 1 and 2, as well as 3 and 4, may be enhanced. The relative location be-tween the top microstrip layer (two microstrip uniform-impedance resonators) and the bottom CPW layer (two CPW stepped-impedance resonators) is shown in Fig. 2(b). In order to achieve a filter with wider 3-dB fractional bandwidth in
the passband, stronger mixed and magnetic couplings should be realized. The bottom CPW layer has two stepped-impedance resonators in which two shorted stubs connecting to the ground planes are implemented to produce the required magnetic cou-pling. This magnetic coupling may be enhanced by increasing the lengths of two shorted stubs. The via-hole in Fig. 1 is now replaced by the shorted stubs without bond-wire bridges in Fig. 2. In addition, the design also avoids the bond-wire bridges associated with the CPW structures. Note that the effective in-ductances of the shorted stubs may be extracted by constructing a single CPW resonator made of such stubs and then measuring its loaded quality factor, as detailed in [17].
The design procedures for the proposed filter in Fig. 2 may be described in [1]. To facilitate the design, the three basic coupling structures, associated with the filter in Fig. 2 and shown in the inset of Fig. 3, need to be characterized. Fig. 3(a) shows the elec-tric coupling structure and the corresponding design curve for the coupling coefficient between microstrip resonators 1 and 4. The magnetic coupling structure, mainly consisting of induc-tive shorted stubs connected to CPW ground planes between resonators 2 and 3, is shown in the inset of Fig. 3(b). The de-sign curve for this magnetic coupling coefficient is depicted in Fig. 3(b), indicating that the magnetic coupling coefficient ranges from 0.246 to 0.0734 when the distance changes from 0.05 to 4 mm.
The coupling structure in Fig. 3(c) provides the required mixed coupling. To obtain larger mixed coupling, the broad-side-coupled mechanism is introduced between the top microstrip resonator 1 and the bottom CPW resonator 2. The design curve for the mixed-coupling coefficient is also shown in Fig. 3(c), which implies that the strength of the coupling coefficient is enhanced when the overlap area between the microstrip and CPW resonators is increased. All the design curves in Fig. 3 may be obtained by an electromagnetic simu-lation of the coupling structures shown in the insets of Fig. 3.
In this study, all the circuits are fabricated on a Rogers
RO4003C substrate ( , , and thickness
mm). The proposed broadside-coupled filter struc-ture (Fig. 2) has a wider 3-dB fractional bandwidth than the one in Fig. 1 with the larger mixed couplings realized by the broadside-coupled structure. The proposed filter is designed according to the fourth-order quasi-elliptic response with a center frequency of 1.5 GHz and a 3-dB bandwidth of 24.6%.
The design parameters associated with the above specifica-tions are given as follows:
Here, ’s are the coupling coefficients between resonators and and are the quality factors at the input and output [1]. The dimensions of each part in Fig. 2(b) are given in Table I for fur-ther reference. The implemented filter has a size of
(47.2 mm 34.7 mm), where is the guided wave-length of the microstrip structure at the center frequency.
Fig. 3. Coupling structures and design curves for: (a) electric coupling, (b) magnetic coupling, and (c) mixed coupling.
TABLE I
DIMENSIONS(INMILLIMETERS)OFEACHPART INFIG. 2(b)
Fig. 4. Measured and simulated results of the proposed fourth-order broad-side-coupled filter (Fig. 2) using both=2 microstrip and =4 CPW resonators. (a) Narrowband and (b) wideband frequency responses.
Note that the proposed filter (Fig. 2) is designed based on the formulas in [1], which are suitable for narrowband filters. By designing the proposed filter with a fractional bandwidth of 24.6%, for instance, according to the procedure in [1], it may end up with a developed filter, which, after full-wave simula-tion, would possess a bandwidth of 22% only, a consequence of using the narrowband formulas. Therefore, after the first design phase, the developed filter should be fine tuned so as to bring the fractional bandwidth back to the specification of 24.6%.
The measured and simulated results of the implemented broadside-coupled filter (Fig. 2) are shown in Fig. 4. The measured center frequency is at 1.47 GHz, the minimum in-sertion loss is 1.6 dB, and the 3-dB bandwidth is 22.4%. The deviation of the measured bandwidth from the specified value for the design may be resulted from the misalignment between the top microstrip and bottom CPW layers during the filter implementation.
III. STOPBAND-EXTENDEDBROADSIDE-COUPLEDFILTER
The filter structure shown in Fig. 2 has its bandwidth widened due to the use of a broadside-coupled structure between mi-crostrip and CPW resonators. However, the filter shows several
spurious passbands around , which
are created by the higher order resonances of the resonators associated with the proposed filter. These spurious passbands
Fig. 5. Top-/bottom-layer circuit layouts of the proposed stopband-extended wider bandwidth broadside-coupled filter composed of=2 microstrip and =4 CPW resonators.
may be suppressed by properly designing the resonators so as to possess different impedance ratios, as suggested by [10] and [15].
In this study, a stopband-extended bandpass filter (Fig. 5) modified from the wider bandwidth broadside-coupled structure (Fig. 2) is proposed by applying the technique of dissimilar res-onators for stopband extension [10], [15]. Specifically, different types of stepped-impedance resonators are adopted for the microstrip and CPW resonators. In this design, four res-onators are made completely dissimilar and their higher order resonance frequencies are separated so that the spurious sup-pression may be achieved for stopband extension.
The proposed fourth-order stopband-extended broadside-coupled filter structure (Fig. 5) has a wider passband bandwidth and better stopband rejection than the one in Fig. 2. The filter is designed according to the fourth-order quasi-elliptic response with a center frequency of 1.5 GHz and a 3-dB bandwidth of 34.6%, and the corresponding parameters are given by
The implemented filter has a size of (52.1 mm 31.75 mm). The dimensions of each part in Fig. 5 are also given in Table II.
The measured and simulated results of the stopband-extended filter (Fig. 5) are shown in Fig. 6. The measured center fre-quency is at 1.48 GHz, the minimum insertion loss is 0.68 dB, and the 3-dB bandwidth is 34.6%. The shift in the center fre-quency is less than 2%.
For the filter in Fig. 5, the spurious passband especially around is suppressed, and its stopband is extended up to 6 GHz with a rejection better than 20 dB. By using different impedance ratios for the four stepped-impedance res-onators, their higher order resonance frequencies are separated and also made different from the frequency . Therefore, the signals go through the main path (from resonators 1 to 2

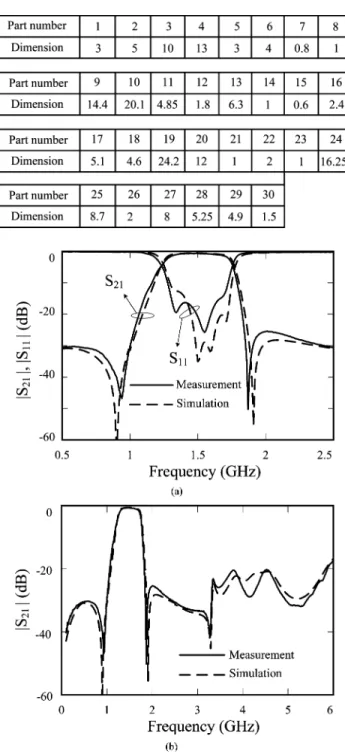

TABLE II
DIMENSIONS(INMILLIMETERS)OFEACHPART INFIG. 5
Fig. 6. Measured and simulated results of the stopextended wider band-width broadside-coupled filter shown in Fig. 5. (a) Narrowband and (b) wide-band frequency responses.
to 3 to 4) and the cross-coupled path (from resonators 1 to 4) are largely suppressed due to the mutual cancellation effects among the resonators [10], [15]. This explains why the spurious response around is effectively suppressed.
The measured frequency response for the filter in Fig. 5 is also compared with that for the filter in Fig. 2, as shown in Fig. 7. With completely different impedance ratios for the four stepped-impedance resonators, the filter in Fig. 5 has much better rejec-tion around when compared with the one in Fig. 2.

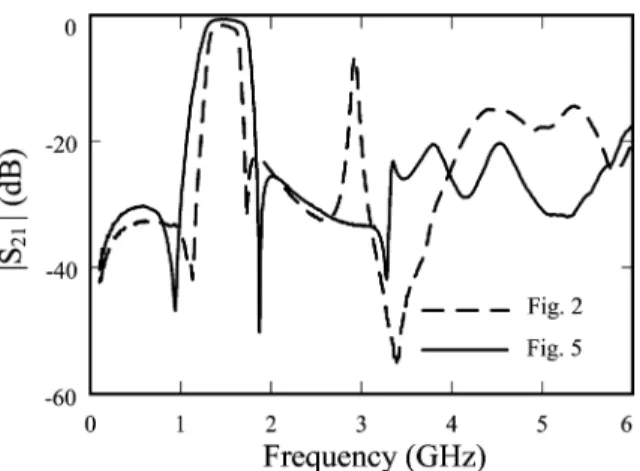

Fig. 7. Comparison of the measured responses for the filters in Figs. 2 and 5.
IV. CONCLUSION
In this paper, novel quasi-elliptic broadside-coupled bandpass filters with wider fractional bandwidth have been proposed. By using the broadside-coupled mechanism to couple the mi-crostrip resonators and the CPW resonators together with in-troducing two CPW shorted stubs, the required mixed and mag-netic couplings associated with the resonators may be enhanced so that the wider bandwidth cross-coupled filters may be realized. The use of CPW resonators is essential in implementing the two shorted CPW stubs for increasing the magnetic coupling for widening the bandwidth. The technique of using dissimilar res-onators for spurious suppression has also been utilized for stop-band extension. Specifically, a fourth-order stop-bandpass filter cen-tered at GHz with a wider 3-dB bandwidth of 34.6% has been implemented, and its stopband has been extended up to 6 GHz with a rejection better than 20 dB.
REFERENCES
[1] J. S. Hong and J. Lancaster, “Couplings of microstrip square open-loop resonators for cross-coupled planar microwave filters,” IEEE Trans.
Microw. Theory Tech., vol. 44, no. 11, pp. 2099–2109, Nov. 1996.
[2] J. S. Hong and M. J. Lancaster, “Theory and experiment of novel mi-crostrip slow-wave open-loop resonator filters,” IEEE Trans. Microw.
Theory Tech., vol. 45, no. 12, pp. 2358–2365, Dec. 1997.
[3] ——, “Cross-coupled microstrip hairpin-resonator filters,” IEEE
Trans. Microw. Theory Tech., vol. 46, no. 1, pp. 118–122, Jan. 1998.
[4] S. Y. Lee and C. M. Tsai, “New cross-coupled filter design using im-proved hairpin resonators,” IEEE Trans. Microw. Theory Tech., vol. 48, no. 12, pp. 2482–2490, Dec. 2000.
[5] K. S. K. Yeo, M. J. Lancaster, and J. S. Hong, “The design of microstrip six-pole quasi-elliptic filter with linear phase response using extracted-pole technique,” IEEE Trans. Microw. Theory Tech., vol. 49, no. 2, pp. 321–327, Feb. 2001.
[6] C. M. Tsai, S. Y. Lee, and C. C. Tsai, “Performance of a planar filter using a 0feed structure,” IEEE Trans. Microw. Theory Tech., vol. 50, no. 10, pp. 2362–2367, Oct. 2002.
[7] C. S. Ahn, J. Lee, and Y. S. Kim, “Design flexibility of an open-loop res-onator filter using similarity transformation of coupling matrix,” IEEE
Microw. Wireless Compon. Lett., vol. 15, no. 4, pp. 262–264, Apr. 2005.
[8] C. K. Liao and C. Y. Chang, “Design of microstrip quadruplet filters with source–load coupling,” IEEE Trans. Microw. Theory Tech., vol. 53, no. 7, pp. 2302–2308, Jul. 2005.
[9] C. F. Chen, T. Y. Huang, C. H. Tseng, R. B. Wu, and T. W. Chen, “A miniaturized multilayer quasi-elliptic bandpass filter with aperture-coupled microstrip resonators,” IEEE Trans. Microw. Theory Tech., vol. 53, no. 9, pp. 2688–2692, Sep. 2005.
[10] P. H. Deng, S. C. Lin, Y. S. Lin, C. H. Wang, and C. H. Chen, “Microstrip bandpass filters with dissimilar resonators for suppression of spurious responses,” in Proc. 35th Eur. Microw. Conf., 2005, pp. 1263–1266.
[11] C. C. Chen, Y. R. Chen, and C. Y. Chang, “Miniaturized microstrip cross-coupled filters using quarter-wave or quasi-quarter-wave res-onators,” IEEE Trans. Microw. Theory Tech., vol. 51, no. 1, pp. 120–131, Jan. 2003.
[12] C. Y. Chang and C. C. Chen, “A novel coupling structure suitable for cross-coupled filters with folded quarter-wave resonators,” IEEE
Mi-crow. Wireless Compon. Lett., vol. 13, no. 12, pp. 517–519, Dec. 2003.
[13] S. C. Lin, Y. S. Lin, and C. H. Chen, “Compact microstrip bandpass fil-ters with quarter-wavelength stepped-impedance resonators,” in Proc.
35th Eur. Microw. Conf., 2005, pp. 931–934.
[14] J. M. Zhou, J. Lancaster, and F. Huang, “Coplanar quarter-wavelength quasi-elliptic filters without bond-wire bridges,” IEEE Trans. Microw.
Theory Tech., vol. 52, no. 4, pp. 1150–1156, Apr. 2004.
[15] S. C. Lin, P. H. Deng, Y. S. Lin, C. H. Wang, and C. H. Chen, “Wide-stopband microstrip bandpass filters using dissimilar quarter-wavelength stepped-impedance resonators,” IEEE Trans.
Microw. Theory Tech., vol. 54, no. 3, pp. 1011–1018, Mar. 2006.
[16] S. C. Lin, Y. S. Lin, and C. H. Chen, “Extended-stopband bandpass filters using both half- and quarter- wavelength resonators,” IEEE
Mi-crow. Wireless Compon. Lett., vol. 16, no. 1, pp. 43–45, Jan. 2006.
[17] J. K. A. Everard and K. K. M. Cheng, “High performance direct cou-pled bandpass filters on coplanar waveguide,” IEEE Trans. Microw.
Theory Tech., vol. 41, no. 9, pp. 1568–1573, Sep. 1993.
