Improvement mechanism of resistance random access memory with supercritical CO2 fluid treatment

(1)

ContentslistsavailableatScienceDirect

The

Journal

of

Supercritical

Fluids

j o ur na l h o me p a g e :w w w . e l s e v i e r . c o m / l o c a t e / s u p f l u

Improvement

mechanism

of

resistance

random

access

memory

with

supercritical

CO

2

ﬂuid

treatment

Kuan-Chang

Chang

a

_,

_Jung-Hui

_Chen

b

_,

_Tsung-Ming

_Tsai

a

_,

_Ting-Chang

_Chang

c,i,∗

_,

Syuan-Yong

Huang

a

_,

_Rui

_Zhang

d

_,

_Kai-Huang

_Chen

e

_,

_Yong-En

_Syu

c

_,

_Geng-Wei

_Chang

f

_,

Tian-Jian

Chu

a

_,

_Guan-Ru

_Liu

c

_,

_Yu-Ting

_Su

c

_,

_Min-Chen

_Chen

c

_,

_Jhih-Hong

_Pan

a

_,

Kuo-Hsiao

Liao

a

_,

_Ya-Hsiang

_Tai

f

_,

_Tai-Fa

_Young

g

_,

_Simon

_M.

_Sze

c,h

_,

_Chi-Fong

_Ai

j

_,

Min-Chuan

Wang

j

_,

_Jen-Wei

_Huang

k

a_Department_of_Materials_and_{Optoelectronic}_Science,_National_Sun_Yat-Sen_University,₇₀_Lien-hai_Road,_Kaohsiung_804,_Taiwan b_Department_of_Chemistry,_National_Kaohsiung_Normal_University,_Kaohsiung,_Taiwan

c_Department_of_Physics,_National_Sun_Yat-Sen_University,₇₀_Lien-hai_Road,_Kaohsiung_804,_Taiwan d_School_of_Software_and_{Microelectronics,}_Peking_University,_Beijing_100871,_People’s_Republic_of_China e_Department_of_Electronics_Engineering_and_Computer_Science,_Tung-Fang_Design_Institute,_Kaohsiung,_Taiwan

f_Department_of_Photonics_and_the_Institute_of_{Electro-Optical}_Engineering,_National_Chiao_Tung_University,_Hsinchu_300,_Taiwan g_Department_of_Mechanical_and_{Electro-Mechanical}_Engineering,_Kaohsiung_804,_Taiwan

h_Department_of_Electronics_Engineering_and_Institute_of_Electronics,_National_Chiao_Tung_University,_Hsinchu_300,_Taiwan i_Advanced_{Optoelectronics}_Technology_Center,_National_Cheng_Kung_University,_Taiwan

j_Physics_Division,_Institute_of_Nuclear_Energy_Research,_Taoyuan,_Taiwan k_Department_of_Physics,_ROC_Military_Academy,_Kaohsiung_83055,_Taiwan

a

r

t

i

c

l

e

i

n

f

o

Articlehistory: Received22August2012

Receivedinrevisedform30August2013 Accepted4September2013 Keywords: Supercriticalﬂuid RRAM Hydration–dehydrationreaction Tindoping

a

b

s

t

r

a

c

t

WedemonstratedthatthesupercriticalCO2ﬂuidtreatmentwasanewconcepttoefﬁcientlyreducethe

operationcurrentofresistancerandomaccessmemory.Thedanglingbondsoftin-dopedsiliconoxide (Sn:SiOx)thinﬁlmwerepassivatedbythehydration–dehydrationreactionthroughsupercriticalCO2ﬂuid

treatment,whichwasveriﬁedbytheXPSandFTIRanalyses.Thecurrentconductionmechanismoflow

resistancestateinpost-treatedSn:SiOxthinﬁlmwastransferredtohoppingconductionfromOhmic

con-duction.Furthermore,thecurrentconductionmechanismofhighresistancestateinthememorydevice wastransferredtoSchottkyemissionfromFrenkel–Pooleconduction.Thephenomenawereattributedto thediscontinuousmetalﬁlamentformedbyhydration–dehydrationreactioninSn:SiOxthinﬁlmthrough

supercriticalfluidtreatment.Finally,areactionmodelwasproposedtoexplainthemechanismofcurrent reductioninSn:SiOxthinfilmwithsupercriticalCO2fluidtreatment.

1. Introduction

Fortheincreasingdemands forportable electronicproducts, nonvolatilememoryhasbeenwidelyappliedasinformation stor-agedeviceduetoitslowpowerconsumptionproperties.Modern semiconductor nonvolatile memories are scaled constantly to achievelargecapacitywhiledevicefeaturesapproachthe sub-100-nmregime.However,theincreasingdemandfordevicedensities byscalingdimensionisexpectedtobeamajorchallengedueto thetechnicalandphysicallimitation.Tosurmountthetechnical andphysicallimitationissuesofconventionalchargestorage-based ∗ Correspondingauthorat:DepartmentofPhysics,NationalSunYat-Sen Univer-sity,70Lien-haiRoad,Kaohsiung804,Taiwan.Tel.:+86675252000x3708; fax:+8867.

E-mailaddress:[email protected](T.-C.Chang).

memories[1–8],theresistancerandomaccessmemory(RRAM) constructedofaninsulatinglayersandwichedbytwoelectrodes iswidelyinvestigatedbyindustriesandacademics.TheRRAMisa greatpotentialcandidatefornext-generationnonvolatilememory due to their superior characteristics such as lesser cost, sim-plestructure,high-speedoperation,andnon-destructivereadout [9,10].Variousmaterialshavebeenreportedtopossessresistive switchingbehaviors,suchassolid-electrolyte-basedRRAM[11,12], transitionmetaloxides(MnOx,ZrOx,HfOx)[13–15,9,16,17],and

organicmaterial[18].Inaddition,manyswitchingmechanismof RRAM have been proposedto explain resistive switching phe-nomenon,suchasconductiveﬁlaments[19],valencechange[20], and Schottkybarrier [21]. However,theunderlyingmechanism ofresistiveswitchingbehaviorisstillnotyetunderstoodclearly. Silicon-basedoxideisapromisingmaterialforRRAMapplications becauseofitsgreatcompatibilityinintegratedcircuit(IC)process. 0896-8446/$–seefrontmatter.Crown Copyright © 2013 Published by Elsevier B.V. All rights reserved.

(2)

184 K.-C.Changetal./J.ofSupercriticalFluids85 (2014) 183–189 Therefore,theresearchusingsilicon-basedoxideasthe

resistance-switchinglayerwasworthyofinvestigation.

In our preceding research, supercritical CO2 (SCCO2) ﬂuid

technology was used to improve the dielectric properties and performance of various thin film transistors (TFTs), such as hydrogenated amorphous-silicon TFTs and ZnO TFTs [22–30]. Supercriticalphaseispeculiarwithitscharacteristicsofhigh pen-etrationof gas and solubility of liquid. The supercritical water fluidhastremendousoxidationproperty[31].However,high crit-icaltemperatureandhighcriticalpressureareessentialcondition toachieve supercriticalwater fluid, which isdifficult torealize throughmodernfacilities.Byaddingalittlewaterinto supercriti-calCO2fluids,theliquidwatercanattaintothesupercriticalfluid

phaseduetothephaseclosetoideasolution.

Inthiswork,tinmetaldopedintosiliconoxidebyco-sputtering atroomtemperaturewastakenastheresistanceswitchinglayer of RRAM.To evaluatethe resistiveswitching properties of tin-dopedsiliconoxide(Sn:SiOx)layer,thePt/Sn:SiOx/TiNdevicewas

fabricatedatcleanroom.Moreover,thematerialandconduction mechanism analyseswereexecuted toexplain theinﬂuence of Snmetaldopedinsiliconoxideonresistiveswitchingbehaviors. Inaddition,thePt/SCCO2-treatedSn:SiOx/TiNsandwicheddevices

were fabricatedto investigate the effect of SCCO2 on resistive

switchingpropertiesofSn:SiOxthinﬁlm.TheeffectsofSCCO2

treat-mentonresistiveswitchingbehaviorsofSn:SiOxthinﬁlmwasalso

evaluatedbymaterialandcarrierconductionmechanism analy-ses.Furthermore,thereactionmechanism inRRAMwithSCCO2

ﬂuidwasalsodiscussedtoexplainthereasonofelectricalproperty improvementonSn:SiOxRRAM.

2. Experimental

Theexperimentalspecimenswerepreparedasfollows:Inthe ﬁrstgroup,theSn:SiOxthinﬁlm(about30nm)wasdepositedon

theTiN/Ti/SiO2/Sisubstratebyco-sputtering withthepureSiO2

andSntargets.ThesputteringpowerwasﬁxedatRFpower200W and3Wfor SiO2 and Sntargetsrespectively.Theco-sputtering

wasexecutedinargonambient(Ar=30sccm)withaworking pres-sureof 0.789Paat roomtemperature. Inthesecondgroup,the Sn:SiOxthinﬁlmswereputintothereactivechamberof

supercrit-icalﬂuidsystem,andthentheSCCO2ﬂuidmixedwith0.5mlwater

weresyringedintothereactivechambertotreatthespecimens. Thepassivationefﬁciencyincreaseswiththerisingoftemperature andCO2pressureaslongasexceedingthecriticalpoint,whichare

31◦Cwith7.3MPaCO2.Butowingtothelimitationofour

exper-imentequipment,thewater-mixedsupercriticalCO2ﬂuidswere

heatedandpressuredto120◦Cand20.4MPainthestainlesssteel chamberofsupercriticalﬂuidsystemfor1h.Finally,thePttop elec-trodeof200nmthicknesswasdepositedonSn:SiOxthinﬁlmto

formelectricaldeviceswithPt/Sn:SiOx/TiNsandwichstructuresby

DCmagnetronsputtering.Bycontrast,thePt/SiO2/TiNsandwich

structuresweremade bysame process procedurewitha sput-teredSiO2layerinsteadofaSn:SiOxlayerascontrolsamples.The

entireelectricalmeasurementsofdeviceswiththePtelectrodeof 250␮mdiameterwereperformedusingAgilentB1500 semicon-ductorparameteranalyzer.Besides,theFouriertransforminfrared spectroscopy(FTIR)measuredbyBrukerVERTEX70v spectrom-eterinfarinfraredregionandX-rayphotoelectronspectroscopy (XPS)wereusedtoanalyzethechemicalcompositionandbonding oftheseinsulatormaterials,respectively.

3. Resultsanddiscussion

The“formingprocess”isrequiredtoactivatealloftheSn:SiOx

RRAM devices, using dc voltage sweeping with a compliance

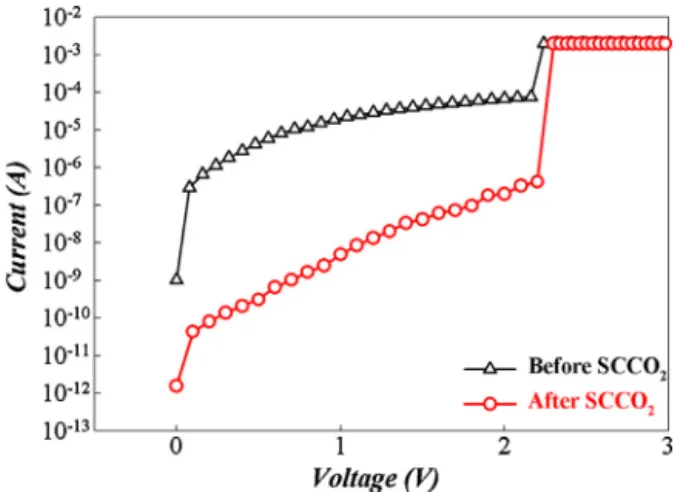

Fig.1. TheformingcurrentcurvesoftheSn:SiOxRRAMdevicesbeforeandafter SCCO2treatment.

currentof2mA.TheleakagecurrentoftheSn:SiOxRRAMdevices

after SCCO2 treatment was lower than that of pre-treatment

devices(Fig.1).Thisphenomenonisattributedtotheimprovement ondielectricpropertiesthroughSCCO2treatment,whichhasbeen

reportedbyourpreviousstudy[23].Thevoltagesweepbiaswas appliedonTiNelectrodewiththegroundedPtelectrodeasshown inthebottomleftinsetofFig.2.Aftertheformingprocess,a grad-ualdecreaseincurrentwasobservedwherethecellswitchesfrom lowresistancestate(LRS)tohighresistancestate(HRS),calledas “resetprocess”,bysweepingthevoltagefrom0to−1.8Vwithout currentcompliance.Oncontrast,asthevoltagewassweptfrom0to 1.2Vwitha5mAcurrentcompliance,theresistanceswitchedfrom HRStoLRS,calledas“setprocess”.InthePt/Sn:SiOx/TiNdevice,

theresistanceratioofHRSandLRSisabout102_times_at_a

read-ingvoltageof 0.1V. Theelectrical current-voltage propertiesof theSn:SiOxdeviceswerecomparedbeforeandafterSCCO2

treat-ment(Fig.2).ThecurrentofSn:SiOxdevicesisreduced at0.1V

readingvoltageafterSCCO2treatment.Toinvestigatethe

interest-ingphenomena,weanalyzedthecurrentconductionmechanism ofSn:SiOxthinﬁlmwithandwithoutSCCO2treatmentasshown

inFig.3.ThecarriertransportinLRSstateofSn:SiOxdevicewas

dominatedbyOhmicconductionintheSn:SiOxlayer.AfterSCCO2

treatment,thecurrentconductionmechanismwilltransferto hop-pingconductionbecauseofthechangeofmaterialproperties.In addition,wealsoanalyzedthecurrentconductionmechanismin HRSof Sn:SiOx withand withoutSCCO2 treatmentasshownin

Fig.4.Therelationshipinthecurveofln(I/V)versusthesquareroot

Fig.2.TheblackandredcurvesaretheresistiveswitchingcharacteristicsofSn:SiOx ﬁlmbeforeandafterSCCO2treatment,respectively.Thecurrentinhighresistance stateofpost-treatedSn:SiOxﬁlmisreducedabout15timesfrom9␮Ato0.6␮A.

(3)

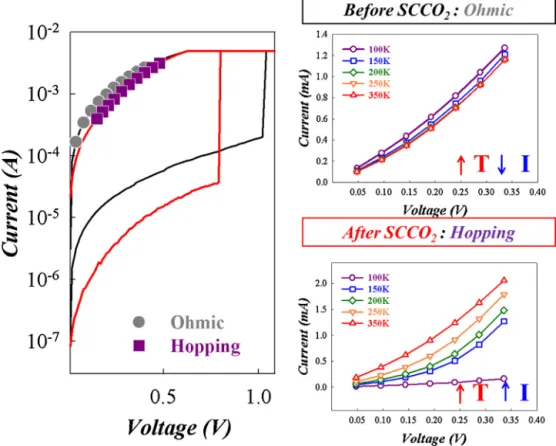

Fig.3. ThecurrentconductioncurvesintheLRSofSn:SiOxdevicesbeforeandafterSCCO2treatment.Thecurrentvs.voltagediagramsweremeasuredatdifferenttemperature environmentsintheSn:SiOxﬁlmbeforeandafterSCCO2treatment.

Fig.4.ThecurrentconductioncurvesintheHRSofSn:SiOxdevicesbeforeandafterSCCO2treatment.Theﬁttingofcurrentvs.voltagecurvesintheHRSofthedevicesbefore andafterSCCO2treatmentwasdrawninrightside.

(4)

186 K.-C.Changetal./J.ofSupercriticalFluids85 (2014) 183–189

Fig.5.ThecomparisonofFTIRspectraofSn:SiOxﬁlmbeforeandafterSCCO2 treat-ment.BothintensityofSn OandSi O SibondsareincreasedinSn:SiOxﬁlmafter SCCO2treatment.

oftheappliedvoltage(V1/2₎_is_linear._According_to_the

relation-shipofFrenkel–Pooleconduction,I∝Vexp[(q/kT)(2a√V−Bt)],

whereais

q/4εid,Btisthetrapbarrierheight,anddisthe

insu-latorthickness.TheFrenkel–Pooleconductionisduetoemissionof trappedelectronsintoconductionband. Thesupplyofelectrons fromthetrapsisthroughthermalexcitation.Thebarrier reduc-tionis largerthanin thecase ofSchottky emissionby a factor of2,which canbeobtainedascompared withtheslopeofthe plotofln(I)versus(V1/2₎_based_on_the_formula_of_Schottky

emis-sion,I∝I2_exp[(q/kT)(a√_V₋

B)],whereBistheSchottkybarrier

height.TheresultsrevealedthatthecarriertransportofSn:SiOxﬁlm

wasdominatedbyFrenkel–Pooleconductionduetothetrapinthe ﬁlm.AfterSCCO2 treatment,thecurrent conductionmechanism

willtransfertoSchottkyemissionbecauseoftheimprovementof dielectricproperties.Therefore,weutilized thematerial spectra analysestoﬁndoutthereasonofdifferentelectricaltransfer mech-anismsinconductioncurrentbeforeandafterSCCO2 treatment.

ComparedtheFTIRspectraofSn:SiOxﬁlmwithandwithoutSCCO2

treatment(Fig. 5), we foundthat the absorption peak of Sn-O bondat586cm−1wasincreasedafterSCCO2treatment.Theresult

impliesthatthedensityofSn ObondwasincreasedintheSn:SiOx

ﬁlmafterSCCO2treatment.Inaddition,theabsorptionofSi O Si

stretchbondat 450cm−1 wasalsoincreasedafterSCCO2

treat-ment,illustratingthecontentofsiliconoxidebondingintheﬁlm alsoincreased [32,33].To analyzethe chemical composition of Sn:SiOxﬁlminthisstudy,X-rayphotoelectronspectroscopy(XPS)

of Sn3d5/2,Si 2p and O1s peakswere performed.After

com-paredwiththepeakareaofSn,SiandOXPSspectra,themole fractionofSn: Si:Oin theco-sputteredSn:SiOx ﬁlmwas0.3%:

29.5%:70.2%.AccordingtoXPSspectraanalysesforSn3d5/2core

level(Fig.6),themolefractionofSn Obondwasobviouslyrisen butthatofSnelementwasdecreasedinSn:SiOxﬁlmafterSCCO2

treatment.Besides,themolefractionofSi Obondwas substan-tiallyincreasedincontrastwiththatofSi OHbondafterSCCO2

treatmentintermsoftheXPSspectraanalysesofSi2pcorelevel asshowninFig.6.Table1showsthecomparisonoftheareasof deconvolutionpeaksofSn3d5/2andSi2pcorelevels.Wefoundthe

molefraction(SnO2:Sn=50.6%:49.4%)inSn:SiOxﬁlmischanged

tothat(SnO2:Sn=70.6%:29.4%) afterSCCO2 treatment.Also,the

molefraction(SiOH:SiO2=18.9%:81.1%)inSn:SiOxﬁlmischanged

tothat(SiOH:SiO2=66.4%:33.6%)inthepost-treatedSn:SiOxﬁlm.

Therefore,weinferthatthelevelofoxidationwouldincreaseand

Fig.6. XPSspectraofSn3d5/2andSi2pcorelevelsinSn:SiOxﬁlmbeforeandafterSCCO2treatment.ThemolefractionofmetallictinandSi OHbondsinSn:SiOxﬁlmare reducedobviouslybutthatoftinoxideandsiliconoxidebondsareincreasedafterSCCO2treatment.

(5)

Fig.7. Theschematicdiagramofhydration–dehydrationreactionmechanismonSn:SiOxﬁlmtoillustratedefectpassivationthroughSCCO2treatment.

Table1

ComparisonoftheareasofdeconvolutionpeaksofSn3d5/2andSi2pcorelevels beforeandafterSCCO2treatment.

SnO2 Sn SiOH SiO2

BeforeSCCO2 50.6% 49.4% 66.4% 33.6%

AfterSCCO2 70.6%↑ 29.4%↓ 18.9%↓ 81.1%↑

accompanywithdehydrationinthepost-treatedﬁlm.Theseresults

wereconsistentwiththeabove-mentionedFTIRanalyses.

Basedontheelectricalandmaterialanalyses, weproposeda

reactionmodetoexplainreactionmechanismofSn:SiOxﬁlmwith

SCCO2 treatmentasshowninFig.7.Asthesamplewasputinto

thewater-mixedSCCO2ﬂuidenvironment,theH2Omoleculewas

carriedinto thegrainboundaryof Sn:SiOx ﬁlm bySCCO2 ﬂuid,

whichisattributedtothehighpenetrationabilityofSCCO2ﬂuid.

AstheH2Omoleculeapproachedtograinboundaryoftheﬁlm,the

hydrationreactionoccurredintheSn:SiOxﬁlm.Then,

monomolec-ularCO2insupercriticalﬂuidsinducesthedehydrationofneighbor

hydroxylgroupssoastoformSi O SiandSn O Sinetwork-like bondinginthefilm.Themechanismiscallhydration–dehydration reactionofSCCO2fluidsinSn:SiOxfilm.AsfortheLRSofSn:SiOx

ﬁlm,theconductiveﬁlamentwillbeformedinpre-treatedSn:SiOx

filmaftertheformingprocess.Theconductivefilamentwillbe con-nectedwithdanglingbondintheswitchingregionofthefilm.The carriersweretransportedthroughthesedanglingbonds,leading tothecurrentconductiondominatedbyOhmicconduction.Ifthe Sn:SiOxfilmwasputintotheSCCO2fluidenvironment,theH2O

moleculewascarriedintothegrainboundaryoftheﬁlmbySCCO2

ﬂuid,whichisattributedtothehighpenetrationabilityofSCCO2

ﬂuid.Hence,thetinmetalinSn:SiOxthinﬁlmwillbeisolateddue

tohydration–dehydrationreaction bySCCO2 treatment.Onlyif

theconductive ﬁlamentformed in theSn:SiOxﬁlm, thecarrier

willhopthroughtheisolated tinmetalintheswitchingregion ofthepost-treatedﬁlm.Thisphenomenawillmaketheelectrical

currentconductioninLRSofSn:SiOxﬁlmtransferredfromOhmic

conductiontohoppingconductionasshownin Fig.8.Owingto thetrapofSn:SiOx ﬁlmcanbepassivated bySCCO2 treatment,

theelectrical currentconduction inHRSofSn:SiOxﬁlm willbe

transferredtoSchottkyemissionfromFrenkel–Pooleconduction asshowninFig.9.Thisphenomenonwillcausetheimprovementof dielectricpropertiesofthinﬁlm,leadingtodecreasetheoperation currentandthepowerconsumptionofRRAM.

Fig.8. TheschematicdiagramofcarrierhoppingmodelinSn:SiOxﬁlmafterSCCO2 treatment.

(6)

188 K.-C.Changetal./J.ofSupercriticalFluids85 (2014) 183–189

Fig.9.TheschematicdiagramofthetransferoncarrierconductionmechanisminSn:SiOxﬁlmafterSCCO2treatment.

4. Conclusion

Insummary,theoperationcurrentofSn-dopedsiliconoxide RRAMdevicewasreducedbysupercriticalfluidtreatmentinthis study.Thewatermolecularcanbebroughtintothefilmto pas-sivatethedanglingbondofgrainboundaryinresistiveswitching layerbysupercriticalCO2 fluid.Invirtueofthephenomena,the

discontinuousconductiveﬁlamentinSn:SiOxﬁlmwasformedby

hydration–dehydrationreactionthroughSCCO2ﬂuids.The

opera-tioncurrentofRRAMcanbereducedduetothedecreaseofdefect inthelayer,which resultsin lowpowerconsumption. Besides, theeffectofjouleheatingcanalsobeimprovedforthedevice. Therefore,supercriticalﬂuidtreatmentcanenhancethe proper-tiesofresistiveswitchinglayerofRRAMdevice.Webelievethat thetechnologyisbeneﬁcialtothedevelopmentofRRAMforthe nextgenerationnonvolatileapplications.

Acknowledgments

ThisworkwasperformedattheNationalScienceCouncilCore Facilities Laboratory for Nano-Science and Nano-Technology in theKaohsiung-PingtungareaandwassupportedbytheNational ScienceCounciloftheRepublicofChinaunderContractNos. NSC-102-2120-M-110-001,andNSC101-2221-E-110-044-MY3.

References

[1]T.C.Chang,F.Y.Jian,S.C.Chen,Y.T.Tsai,Developmentsinnanocrystalmemory, MaterialsToday14(12)(2011)608–615.

[2]D.Jiang,M.Zhang,Z.Huo,Q.Wang,J.Liu,Z.Yu,X.Yang,Y.Wang,B.Zhang, J.Chen,M.Liu,AstudyofcyclinginduceddegradationmechanismsinSi nanocrystalmemorydevices,Nanotechnology22(2011)254009.

[3]F.M.Yang,T.C.Chang,P.T.Liu,P.H.Yeh,Y.C.Yu,J.Y.Lin,S.M.Sze,J.C.Lou,Memory characteristicsofConanocrystalmemorydevicewithHfO2asblockingoxide,

AppliedPhysicsLetters90(2007)132102.

[4]J.Liu,Q.Wang,S.Long,M.Zhang,M.Liu,Metal/Al2O3/ZrO2/SiO2/Si(MAZOS)

structureforhigh-performancenon-volatilememoryapplication, Semicon-ductorScienceandTechnology25(2010)055013.

[5]C.H.Liu,Y.Kuo,Nanocrystallinerutheniumoxideembeddedzirconium-doped hafniumoxidehigh-knonvolatilememories,J.AppliedPhysics110(2011) 024101.

[6]C.Zhu,Z.Huo,Z.Xu,M.Zhang,Q.Wang,J.Liu,S.Long,M.Liu,Performance enhancementofmulti-levelcellnonvolatilememorybyusingabandgap engi-neeredhigh-ktrappinglayer,AppliedPhysicsLetters97(2010)253503. [7]F.M.Yang,T.C.Chang,P.T.Liu,U.S.Chen,P.H.Yeh,Y.C.Yu,J.Y.Lin,S.M.Sze,

J.C.Lou,NickelnanocrystalswithHfO2blockingoxidefornonvolatilememory

application,AppliedPhysicsLetters90(2007)222104.

[8]C.Zhu,Z.Xu,Z.Huo,R.Yang,Z.Zheng,Y.Cui,J.Liu,Y.Wang,D.Shi,G.Zhang,F. Li,M.Liu,Investigationoninterfacerelatedchargetrapandlosscharacteristics ofhigh-kbasedtrappingstructuresbyelectrostaticforcemicroscopy,Applied PhysicsLetters99(2011)223504.

[9]S.Zhang,S.Long,W.Guan,Q.Liu,Q.Wang,M.Liu,Resistiveswitching charac-teristicsofMnOx-basedReRAM,J.PhysicsD:AppliedPhysics42(2009)055112.

[10]Y.E.Syu,T.C.Chang,T.M.Tsai,Y.C.Hung,K.C.Chang,M.J.Tsai,M.J.Kao,S.M. Sze,RedoxreactionswitchingmechanisminRRAMdevicewithPt/CoSiOX/TiN structure,IEEEElectronDeviceLetters32(2011)545–547.

[11]Q.Liu,S.Long,H.Lv,W.Wang,J.Niu,Z.Huo,J.Chen,M.Liu,Controllablegrowth ofnanoscaleconductiveﬁlamentsinsolid-electrolyte-basedReRAMbyusing metalnanocrystalcoverbottomelectrode,ACSNano4(10)(2010)6162–6168. [12]Q.Liu,J.Sun,H.Lv,S.Long,K.Yin,N.Wan,Y.Li,L.Sun,M.Liu,Real-time observationondynamicgrowth/dissolutionofconductiveﬁlamentsin oxide-electrolyte-basedReRAM,AdvancedMaterials24(14)(2012)1844–1849. [13]Q.Liu,C.Dou,Y.Wang,S.Long,W.Wang,M.Liu,M.Zhang,J.Chen,Formation

ofmultipleconductiveﬁlamentsintheCu/ZrO2:Cu/Ptdevice,AppliedPhysics

Letters95(2009)023501.

[14]Q.Liu,S.Long,W.Wang,Q.Zuo,S.Zhang,J.Chen,M.Liu,Improvementof resistiveswitchingpropertiesinZrO2-basedReRAMwithimplantedTiions,

IEEEElectronDeviceLetters30(12)(2009)1335–1337.

[15]M.Liu,Z.Abid,W.Wang,X.He,Q.Liu,W.Guan,Multilevelresistiveswitching withionicandmetallicﬁlaments,AppliedPhysicsLetters94(2009)233106. [16]Y.Wang,Q.Liu,S.Long,W.Wang,Q.Wang,M.Zhang,S.Zhang,Y.Li,Q.Zuo,

J.Yang,M.Liu,InvestigationofresistiveswitchinginCu-dopedHfO2thinﬁlm

formultilevelnon-volatilememoryapplications,Nanotechnology21(2010) 045202.

[17]Y.Li,S.Long,M.Zhang,Q.Liu,S.Zhang,Y.Wang,Q.Zuo,S.Liu,M.Liu, Resis-tiveswitchingpropertiesofAu/ZrO2/Agstructureforlowvoltagenonvolatile

memoryapplications,IEEEElectronDeviceLetters31(2)(2010)117–119. [18]X.Liu,Z.Ji,D.Tu,L.Shang,J.Liu,M.Liu,C.Xie,Organicnonpolarnonvolatile

resistive switching in poly(3,4-ethylene-dioxythiophene): polystyrenesul-fonatethinﬁlm,OrganicElectronics10(6)(2009)1191–1194.

[19]J.Y.Son,Y.H.Shin,Directobservationofconductingﬁlamentsonresistive switchingofNiOthinﬁlms,AppliedPhysicsLetters92(2008)222106. [20]A.Beck,J.G.Bednorz,C.Gerber,C.Rossel,D.Widmer,Reproducibleswitching

effectinthinoxideﬁlmsformemoryapplications,AppliedPhysicsLetters77 (2000)139–141.

[21]T.Fujii,M.Kawasaki,A.Sawa,H.Akoh,Y.Kawazoe,Y.Tokura,Hysteretic current–voltagecharacteristicsandresistanceswitchingatanepitaxialoxide SchottkyjunctionSrRuO3/SrTi0.99Nb0.01O3,AppliedPhysicsLetters86(2005)

012107.

[22]C.T.Tsai,T.C.Chang,P.T.Liu,P.Y.Yang,Y.C.Kuo,K.T.Kin,P.L.Chang,F.S.Huang, Low-temperaturemethodforenhancingsputter-depositedHfO2ﬁlmswith

(7)

[23]C.T.Tsai,T.C.Chang,K.T.Kin,P.T.Liu,P.Y.Yang,C.F.Weng,F.S.Huang,Alow temperaturefabricationofHfO2ﬁlmswithsupercriticalCO2ﬂuidtreatment,J.

AppliedPhysics103(7)(2008)074108.

[24]M.C.Chen,T.C.Chang,S.Y.Huang,K.C.Chang,H.W.Li,S.C.Chen,J.Lu,Y.Shi,A low-temperaturemethodforimprovingtheperformanceofsputter-deposited ZnOthin-ﬁlm-transistorswithsupercriticalﬂuid,AppliedPhysicsLetters94 (2009)162111.

[25]C.T.Tsai,P.T.Liu,T.C.Chang,C.W.Wang,P.Y.Yang,F.S.Yeh,Low-temperature passivationofamorphous-siliconthin-ﬁlmtransistorswithsupercriticalﬂuids, IEEEElectronDeviceLetters28(2007)584–586.

[26]C.T.Tsai,T.C.Chang,P.T.Liu,Y.L.Cheng,K.T.Kin,F.S.Huang,Applicationof supercriticalCO2ﬂuidfordielectricimprovementofSiOxﬁlm,Electrochemical

andSolid-StateLetters12(2009)H35–H37.

[27]M.C. Chen, T.C. Chang, S.Y. Huang, K.C. Chang, H.C. Huang, S.C. Chen, J. Liu, D.S. Gan,N.J. Ho, T.F. Young,G.W. Jhang, Y.H. Tai, Improvement of the performance of ZnO TFTsby low-temperature supercritical ﬂuid technology treatment, Surface & Coatings Technology204 (2009) 1112– 1115.

[28]K.C.Chang,T.M.Tsai,T.C.Chang,Y.E.Syu,H.C.Hung,Y.C.Hung,T.F.Young,D.S. Gan,N.J.Ho,Low-temperaturesynthesisofZnOnanotubesbysupercriticalCO2

ﬂuidtreatment,ElectrochemicalandSolid-StateLetters14(2011)K47–K50. [29]K.C.Chang,T.M.Tsai,T.C.Chang,Y.E.Syu,C.C.Wang,S.L.Chuang,C.H.Li,D.S.

Gan,S.M.Sze,ReducingoperationcurrentofNi-dopedsiliconoxideresistance randomaccessmemorybysupercriticalCO2ﬂuidtreatment,AppliedPhysics

Letters99(2011)263501.

[30]K.C.Chang,T.M.Tsai,T.C.Chang,Y.E.Syu,S.L.Chuang,C.H.Li,D.S.Gan,S.M.Sze, TheeffectofsiliconoxidebasedRRAMwithtindoping,Electrochemicaland Solid-StateLetters15(2012)H65–H68.

[31]Y.Kikuchi,K.Kurata,J.Nakatani,M.Hirao,Y.Oshima,Analysisofsupercritical wateroxidationfordetoxiﬁcationofwasteorganicsolventinuniversitybased onlifecycleassessment,J.HazardousMaterials194(2011)283–289. [32]R.K.Singh,A.Srinivasan,BioactivityofferrimagneticMgO-CaO-SiO2-P2O5

-Fe2O3glass-ceramics,CeramicsInternational36(2010)283–290.

[33]R.Rai,T.D.Senguttuvan,S.T.Lakshmikumar,Studyoftheelectronicandoptical bondingpropertiesofdopedSnO2,ComputationMaterialsScience37(2006)
