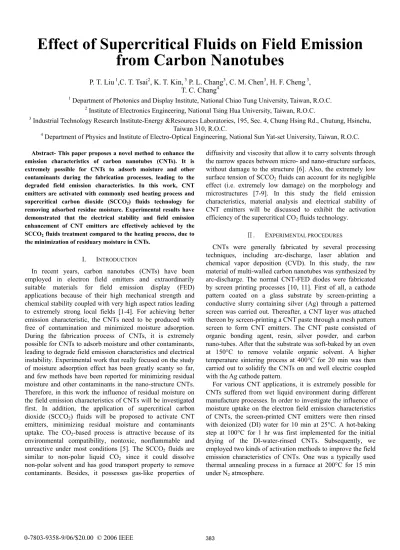

Effect of Supercritical Fluids on Field Emission
from Carbon Nanotubes
P. T. Liu 1,C. T. Tsai2, K. T. Kin, 3 P. L. Chang3, C. M. Chen3, H. F. Cheng 3, T. C. Chang4
1Department of Photonics and Display Institute, National Chiao Tung University, Taiwan, R.O.C.
2 Institute of Electronics Engineering, National Tsing Hua University, Taiwan, R.O.C.
3 Industrial Technology Research Institute-Energy &Resources Laboratories, 195, Sec. 4, Chung Hsing Rd., Chutung, Hsinchu, Taiwan 310, R.O.C.
4 Department of Physics and Institute of Electro-Optical Engineering, National Sun Yat-set University, Taiwan, R.O.C.
Abstract- This paper proposes a novel method to enhance the emission characteristics of carbon nanotubes (CNTs). It is extremely possible for CNTs to adsorb moisture and other contaminants during the fabrication processes, leading to the degraded field emission characteristics. In this work, CNT emitters are activated with commonly used heating process and supercritical carbon dioxide (SCCO2) fluids technology for
removing adsorbed residue moisture. Experimental results have demonstrated that the electrical stability and field emission enhancement of CNT emitters are effectively achieved by the SCCO2 fluids treatment compared to the heating process, due to
the minimization of residuary moisture in CNTs.
I. INTRODUCTION
In recent years, carbon nanotubes (CNTs) have been employed in electron field emitters and extraordinarily suitable materials for field emission display (FED) applications because of their high mechanical strength and chemical stability coupled with very high aspect ratios leading to extremely strong local fields [1-4]. For achieving better emission characteristic, the CNTs need to be produced with free of contamination and minimized moisture adsorption. During the fabrication process of CNTs, it is extremely possible for CNTs to adsorb moisture and other contaminants, leading to degrade field emission characteristics and electrical instability. Experimental work that really focused on the study of moisture adsorption effect has been greatly scanty so far, and few methods have been reported for minimizing residual moisture and other contaminants in the nano-structure CNTs. Therefore, in this work the influence of residual moisture on the field emission characteristics of CNTs will be investigated first. In addition, the application of supercritical carbon
dioxide (SCCO2) fluids will be proposed to activate CNT
emitters, minimizing residual moisture and contaminants
uptake. The CO2-based process is attractive because of its
environmental compatibility, nontoxic, nonflammable and
unreactive under most conditions [5]. The SCCO2 fluids are
similar to non-polar liquid CO2 since it could dissolve
non-polar solvent and has good transport property to remove contaminants. Besides, it possesses gas-like properties of
diffusivity and viscosity that allow it to carry solvents through the narrow spaces between micro- and nano-structure surfaces, without damage to the structure [6]. Also, the extremely low surface tension of SCCO2 fluids can account for its negligible effect (i.e. extremely low damage) on the morphology and microstructures [7-9]. In this study the field emission characteristics, material analysis and electrical stability of CNT emitters will be discussed to exhibit the activation efficiency of the supercritical CO2 fluids technology.
Ӡ. EXPERIMENTAL PROCEDURES
CNTs were generally fabricated by several processing techniques, including arc-discharge, laser ablation and chemical vapor deposition (CVD). In this study, the raw material of multi-walled carbon nanotubes was synthesized by arc-discharge. The normal CNT-FED diodes were fabricated by screen printing processes [10, 11]. First of all, a cathode pattern coated on a glass substrate by screen-printing a conductive slurry containing silver (Ag) through a patterned screen was carried out. Thereafter, a CNT layer was attached thereon by screen-printing a CNT paste through a mesh pattern screen to form CNT emitters. The CNT paste consisted of organic bonding agent, resin, silver powder, and carbon nano-tubes. After that the substrate was soft-baked by an oven at 150°C to remove volatile organic solvent. A higher temperature sintering process at 400°C for 20 min was then carried out to solidify the CNTs on and well electric coupled with the Ag cathode pattern.
For various CNT applications, it is extremely possible for CNTs suffered from wet liquid environment during different manufacture processes. In order to investigate the influence of moisture uptake on the electron field emission characteristics of CNTs, the screen-printed CNT emitters were then rinsed with deionized (DI) water for 10 min at 25°C. A hot-baking step at 100°C for 1 hr was first implemented for the initial drying of the DI-water-rinsed CNTs. Subsequently, we employed two kinds of activation methods to improve the field emission characteristics of CNTs. One was a typically used thermal annealing process in a furnace at 200°C for 15 min under N2 atmosphere.
High-pressure Syringe Pump B (co-solvent) Co-solvent CO2Syringe Reaction Chamber Vent Valve High-pressure Syringe Pump A (CO2) Valve B Valve A SCCO2 + Co-solvent Electric field (V/Pm) 0 2 4 6 8 Current den sity ( P A/cm 2 ) 0 2000 4000 6000 8000 10000 DI water rinsed SCCO2 treated furnace annealed SCCO2+ 5 vol.% propyl alcohol

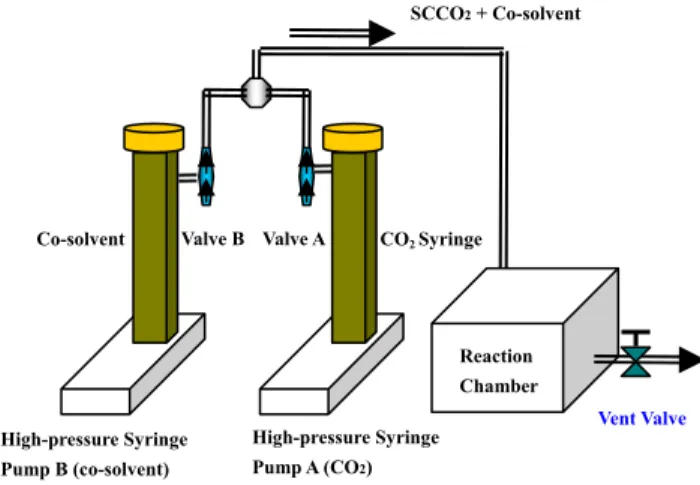

Fig. 1. Schematically showing the configuration of an SCCO2 system.
The second proposed technology was that processing the
DI-water-rinsed CNTs at a SCCO2 system for only 5 min to
minimize residual moisture. Moreover, a chemical additive, propyl alcohol, was studied to incorporate into SCCO2 fluids for enhancing the CNT activation efficiency.
Fig. 1 shows basic components of an SCCO2 system.
SCCO2 was compressed under 1100~3000 psi, mixed with
0~7 vol.% propyl alcohol and heating batch processing chamber at 50°C. The batch processing chamber included an
impeller for turbulence. Besides, SCCO2 fluids carrying
contaminants was bled off to a separator and decompressed to
remove them, and then CO2 may be chilled for reuse. After
different activating processes, the material analysis was characterized with thermal desorption spectroscopy (TDS). The field emission characteristic and stability of CNT were
measured in a vacuum chamber with 5×10-6 Torr at room
temperature. The measured field emission area was 1 cm2 with the parallel-plate geometry, and emission current was characterized with Keithley 237 measurement instrument in the range of 0-1100 V by a dc mode.
҉. RESULTS AND DISCUSSION
Fig. 2 shows the field emission current of CNT emitters as a function of the applied electric field under different activation treatments. From the results, it is found among various activation treatments the DI-water-rinsed CNTs after only an initial 100°C-baking step exhibits the poorest field emission performance (applied at ~5 V/Pm, the current density reaching 50 PA/cm2). The inferior field emission is inferentially due to residual moisture in the CNT emitters. Moisture adsorption in
CNTs would form a blanket of H2O capping layer. The
moisture passivation layer speculatively results in a field emission barrier, thereby causing the degraded filed emission of the CNT emitters. The further improvement in the field emission current (applied at ~4.6 V/Pm, the current density
reaching 50 PA/cm2) is observed for the CNT emitters
activated by a furnace annealing step at a higher temperature
Fig. 2. Field emission current of DI-water-rinsed CNT emitters activated by different treatments, including initial 100°C-hot-baking (denoted by DI water rinsed), 200°C-furnace-annealing (denoted by furnace annealed), pure SCCO2
fluid and SCCO2 with 5 vol.% propyl alcohol.
of 200°C. This suggests that the activation of DI-water-rinsed CNTs can be enhanced with increasing activation temperatures from 100°C to 200°C, due to the further elimination of residual moisture. The supercritically activated CNT emitters treated with pure SCCO2 fluids, in contrast, is not exhibiting expectedly good field emission properties. In contrast, the enhancement in the field emission current and the decrease in the onset field emission voltage (~ 4 V/Pm,
defined by emission current reaching 50 PA/cm2) can be
achieved by incorporating a trace of co-solvent propyl alcohol into the SCCO2 fluids.
The field emission current of CNTs was determined by the Fowler-Nordheim (F-N) equation:
2exp( 3/ 2/ )
I aV bI EV (1) where I, V, I ,E are the emission current, applied voltage, work function and field enhancement factor. The larger E expresses the larger field concentration, and the lower effective threshold voltage for emission. Therefore, the lower work function and larger field enhancement factor are required for obtaining higher field emission current [12]. The Fowler-Nordheim (F-N)
plot and the slope of ln(J/E2) versus 1/E plot of the CNT
emitters with different activating process are shown in Fig. 3 and Table I, respectively. It can be observed that field emission current corresponds to the F-N tunneling characteristic. A superior emission characteristic will exhibit the larger E and lower I, expectedly showing a relatively gradual slope in the plot of ln(J/E2) v.s 1/E by Eqn. (1). Form Table ǿ, we can find that the CNT emitter has the best
emission characteristic after activation treatment in SCCO2
with 5 vol.% of propyl alcohol, while the DI-water-rinsed CNTs after only an initial 100°C-baking shows the poorest emission characteristic. This also indicates that the absorbed
Temperature (0C) 80 100 120 140 160 180 200 Intensity (ar b . units) 0 1x10-9 2x10-9 3x10-9 4x10-9 5x10-9 6x10-9 7x10-9 DI water rinsed SCCO2 treated furnace annealed SCCO2+ 5vol.% propyl alcohol 1/E 0.15 0.16 0.17 0.18 0.19 0.20 ln(J/E 2 ) -14 -13 -12 -11 -10 -9 -8 DI water rinsed SCCO2 treated furnace annealed SCCO2+ 5 vol.% propyl alcohol
Fig. 3. The ln(J/E2) vs 1/E plots of the CNT emitters, where J (A/cm2) is the current density and E (V/ȝm) is the applied electric field.
Table I
The slope of ln(J/E2) versus 1/E, the efficient emission is obtained by reducing the moisture in
carbon nanotubes.
DI water rinsed SCCO2 treated Furnace annealed SCCO2 + 5 vol.%
propyl alcohol Slope -59.785 -55.127 -48.12 -44.879
moisture will seriously degrade the field enhancement factor and cause a barrier to the field emission, leading to an inferior field emission characteristic.
To reasonably verify the inference that the field emission enhancement correlates with the decrease of residual moisture content, it was monitored the evolution of moisture desorption in CNTs after different activation treatments. Thermal desorption spectroscopy (TDS), as shown in Fig. 4, was
carried out upon heating these activated CNTs from 80 oC to
200 oC at a heating rate of 10 oC/s in vacuum (10-5 Pa.). In the TDS analysis, M/e (mass-to-charge ratio) =18 peak that is
attributed to H2O was monitored to evaluate the residual
moisture of the CNTs. The desorption distribution at 100-200 oC is attributed to moisture adsorbed at the surface [13]. From Fig. 4, the highest residual moisture content is observed in the initial 100 oC-hot-baked CNTs, shown inferior electron field emission previously. The residual moisture content is decreased further at a raised annealing temperature (200oC). Furthermore, the minimized residual moisture content is
detected in the CO2 supercritically activated CNT with 5
vol.% propyl alcohol. This indicates the addition of a trace of
co-solvent into the SCCO2 fluid can effectively minimize
residual moisture adsorption in the nano-structure CNTs, increasing activation efficiency. The role of co-solvent propyl alcohol can be deduced further as sketched in Fig. 5.
In this work propyl alcohol acts as a surfactant between hydrophobic supercritical CO2 fluids and polar H2O molecules,
capable of enhancing the polarization of SCCO2fluids. The
propyl alcohol has a hydrophilic hydroxyl group, easily
Fig. 4. Thermal desorption spectroscopy (TDS) of DI-water-rinsed CNT emitters with different activation treatments, including initial
100°C-hot-baking (denoted by DI water rinsed), 200°C-furnace-annealing (denoted by furnace annealed), pure SCCO2
fluid and SCCO2 with 5 vol.% propyl alcohol.

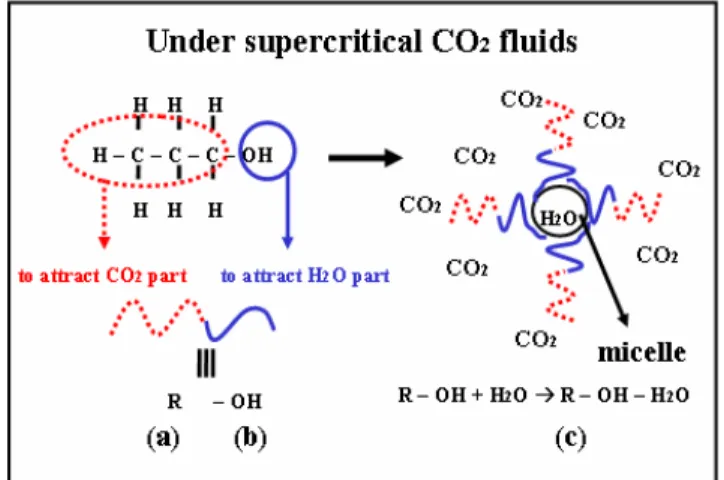

Fig. 5. The formation process of water nanodroplet in a supercritical carbon dioxide solution with the surfactant of propyl alcohol. (a): hydrophobic
hydrocarbon group, (b): hydrophilic hydroxyl group, and (c): micelle.
attracting with H2O molecules and associates in SCCO2
solution with hydrophobic hydrocarbon group to form a micelle. At certain temperatures, pressures, and co-solvent concentrations, such micelles spontaneously self assemble in
SCCO2 solution. Water will be incorporated into the core of
the micelle [14], generating a nanodroplet of water in the carbon dioxide solution, and be easily carried away from CNTs by the enhanced polarization SCCO2 fluids. It is critical
to enhance the polarization of SCCO2 fluids for minimizing
residual moisture in CNTs by micelles self-assembled in the
SCCO2 solution. It is thereby required to develop an
optimization process condition for maximizing the solubility
of co-solvent in the SCCO2 fluids. However, it is challenge
due to the fact that supercritical fluids behave different properties under different pressures and temperatures, causing
Electric field (V/Pm) 0 2 4 6 8 Cur rent dens ity (P A/ cm 2 ) 0 2000 4000 6000 8000 10000 1100 psi 1500 psi 2000 psi 2500 psi 3000 psi Electric field (V/Pm) 0 2 4 6 8 Current density(A/cm 2) 0.000 0.002 0.004 0.006 0.008 0.010 DI water rinsed DI water rinsed SCCO2 treated SCCO2 treated Furnace annealed Furnace annealed SCCO2 + 5 vol.% propyl alcohol SCCO2 + 5 vol.% propyl alcohol
Fig. 6. Field emission characteristics of CNT emitters activated by SCCO2 fluids under different pressure, mixed with 5 vol.% propyl alcohol and heating
at 50°C
varied solubility of co-solvents [15]. Fig. 6 shows the field emission current of CNT emitters which were activated in SCCO2fluids at 50°C under different pressure, and mixed with 5 vol.% propyl alcohol. The greatest activation efficiency was
obtained when SCCO2 fluids were compressed under 3000psi.
This result points out that propyl alcohol has sufficient solubility and efficiently form nanodroplet of water in SCCO2 fluids at 50°C under 3000 psi. As shown in Fig. 6, the field
emission of CNTs activated with SCCO2 fluids under
1100~2000psi is inferior. Hence, the sufficient solubility of
co-solvent propyl alcohol is critical for a successful SCCO2
activating process.
The stability of emission performance was evaluated by monitoring the emission current after a high electric field stress. Fig. 7 shows the field emission current of CNT emitters before and after the high electric field stress of 11 V/Pm for 30 min. In this result, the emission performance of CNTs obviously degrade after the bias stress, resulting in threshold voltage shifts for the DI-water-rinsed and the pure SCCO2-treated CNTs especially. The electrical instability of bias-stressed CNTs can be attributed to the damage from joule heating and a trace of ion-bombardment damage. As a result of local joule heating along the carbon tube, the emission current may burn the CNTs [16, 17]. Besides, the adsorbed containments could outgas from the CNTs by joule heating, and sequentially be ionized under the stress of high electrical field. These resultant ions easily bombard the carbon nanotubes and cause to the field emission degradation [12]. Therefore, emission current of CNTs decays and higher threshold voltage is required, after the electric field stress for the moisture-absorbed CNT emitters. From Fig. 7, the emission performance of CNTs activated in SCCO2 fluids with 5 vol.% propyl alcohol is almost intact because of minimizing residue absorbates. Also, it represents the superior electrical stability of CNT emitters, while residuary moisture in CNTs is minimized.
Fig. 7. The field emission characteristics of different activated CNT emitters before(the full dots)/after(the empty dots) high electric field (11
Voltage/ Micro-meter) stressing for 30 minutes.
Ҋ. CONCLUSION
In this paper, we have experimentally disclosed that the field emission characteristics of CNT emitters will suffer from
residue moisture adsorption. The SCCO2 fluids have high
mass transfer rates, zero surface tension, and applicable to removing contaminants in microstructure. An optimization activation of CNT emitters has been obtained by the addition
of co-solvent propyl alcohol into SCCO2 fluids. Compared to
typically used heating process, TDS analysis also
demonstrated SCCO2 fluids with propyl alcohol can minimize
residual moisture in CNTs. The SCCO2-activated CNT
emitters, thereby, possess superior electron field emission characteristics and electrical stability. Also, it is observed that the solubility of co-solvent in SCCO2 fluids plays a critical role in the activation efficiency. Experimental results suggest the SCCO2 technology will be promising for the activation of CNT emitters and applicable in a variety of industrial
processes, due to CO2 being inert, nontoxic, abundantly
available at low cost, and environmentally benign. ACKNOWLEDGEMENT
This work was performed at Industrial Technology Research Institute-Energy & Resources Laboratories and National Nano Device Laboratories, Taiwan, R.O.C. The authors would like to acknowledge the financial support of the National Science Council (NSC) under Contract No, NSC 93-2218-E-009-067.
