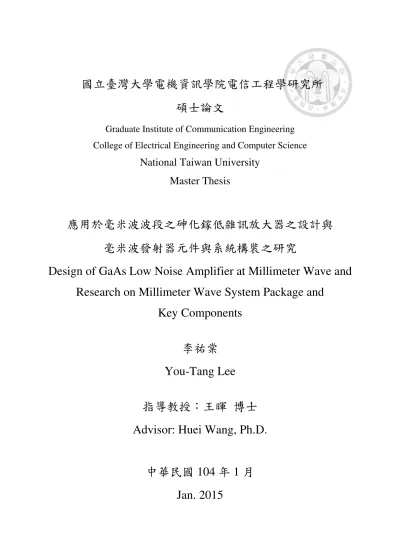

國立臺灣大學電機資訊學院電信工程學研究所 碩士論文
Graduate Institute of Communication Engineering College of Electrical Engineering and Computer Science
National Taiwan University Master Thesis
應用於毫米波波段之砷化鎵低雜訊放大器之設計與 毫米波發射器元件與系統構裝之研究
Design of GaAs Low Noise Amplifier at Millimeter Wave and Research on Millimeter Wave System Package and
Key Components
李祐棠 You-Tang Lee
指導教授：王暉 博士 Advisor: Huei Wang, Ph.D.
中華民國 104 年 1 月
Jan. 2015
i
誌謝 誌謝 誌謝 誌謝
這本論文的完成，要感謝我的指導教授王暉教授，若沒有教授提供的實驗室 資源，這本論文絕無可能完成；雖然我大部分的時間都不務正業一直玩一直玩一 直玩，教授還是很自由的讓我做自己想做的事，也讓我有機會參與學校外暑期實 習計畫，在這裡謝謝教授的寬容大量。也要感謝我的父母支持我在碩士班期間的 生活，讓我能夠無後顧之憂的完成碩士班的研究。
論文的改進，感謝口試委員們的建議；論文內的晶片製作，感謝晶片設計中 心和中研院天文所提供的下線機會；也要感謝奈米元件實驗室和中科院牛道智工 程師的量測協助。
感謝博士班的蕭元鴻，有關三倍頻器的設計與量測；林毓軒學長提供寬頻兩 倍頻器的點子，雖然最後無法寫到論文中；還有林煒恆學長給我完成系統整合電 路板設計與量測的機會；高瑞智學長和陳君朋學長在網路管理、電路設計及做人 處事方面的指導。
感謝碩士班的陳柏翰學長在軟體設計方面的啟發；何柄翰、姜博瀚、葉光聖、
謝佳霖學長在電路設計上的指點；另外還要謝謝我的同學：林建安、張任鋒、陳 信全、曾奕恩、黃梓原、蔡秉璋、鄭為中、鄭創元；及學弟陳柏羽、周正峯、張 育銓；還有許多其他人，這本論文的完成，有賴每一個人各方面的助力，在此靜 默十秒：十…九…八…七…六…五…四…三…二…一…謝謝大家。
李祐棠 2015 年 1 月
ii
中文摘要 中文摘要 中文摘要 中文摘要
在這本論文中，展示一個 E-band 低雜訊放大器和一個 W-band 寬頻三倍頻器 晶片的設計與量測成果，以及 60 GHz 發射器系統的整合與量測。
首先是預計應用在天文觀測 E-band 頻段接收機上，利用高速電子遷移率電晶 體設計的低雜訊放大器，設計工作範圍為 60 至 77 GHz，設計過程中使用自建的小 訊號模型進行模擬，模擬結果與量測結果相當符合，證實小訊號模型的準確性。
接著是預計作為 W-band 訊號源的寬頻三倍頻器，使用的製程為 65 奈米金氧 半場效電晶體，此三倍頻器透過變壓器進行極間阻抗匹配，量測的結果與模擬也 相當符合，最高的轉換增益可達到 1 dB，3 dB 頻寬輸出範圍為 57 至 78 GHz，達 到 31 % 的比例頻寬。
最後則是 60 GHz 發射器系統的系統整合與量測，系統內電路使用 65 奈米金 氧半場效電晶體製作，透過低溫共燒多層陶瓷(LTCC)組裝，與被動元件如天線、
偏壓電路整合在一起；發射器的量測結果展示 28 dB 的小訊號增益，輸出飽和功率
大於 7 dBm 和大於 3 dBm 的 1 dB 增益壓縮時的輸出功率(OP1dB)。
關鍵字：低雜訊放大器、高速電子遷移率電晶體、寬頻、三倍頻器、發射器、V 頻段、金氧半場效電晶體
iii
ABSTRACT
In this thesis, we demonstrate the design and measurement results of an E-band low noise amplifier (LNA) and a W-band wideband tripler. Furthermore, the integration and measurements result of a 60 GHz transmitter system are also demonstrated.
First part is the low noise amplifier used in the application of radio astronomical telescope E-band receiver. The LNA is designed and fabricated in high electron mobility transistor using small-signal model. Targeted working range is 62 to 77 GHz. The measurement result and simulation result are in good agreement with each other, prov- ing the accuracy of the model.
The next is a frequency tripler, which will be used as a W-band signal source, fab- ricated in 65-nm advanced CMOS technology. Transformer is used in this tripler to achieve impedance matching between stages. The measured performance fit well with simulation. Peak conversion gain of the tripler is larger than 1 dB, with 3 dB bandwidth from 57 to 78 GHz, which is 31 % of fractional bandwidth.
The last part is integration and measurement of a 60 GHz transmitter system. Sys- tem circuits are fabricated in 65-nm CMOS technology. System is packaged in low temperature co-fired ceramic (LTCC), and integrated with passive components such as antennas and bias network. It shows small signal gain of 28 dB, saturation power larger than 7 dBm and output power at 1 dB compression over 3 dBm.
Index Terms – Low Noise Amplifier (LNA), HEMT, Broadband, Frequency Tripler, Transmitter, V-band, CMOS
iv
CONTENTS
誌謝 ... i
中文摘要 ... ii
ABSTRACT ... iii
CONTENTS ... iv
LIST OF FIGURES ... vii
LIST OF TABLES ... xiii
Chapter 1 Introduction ... 1
1.1 Background and Motivation ... 1
1.2 Literature Survey ... 2
1.2.1 LNAs around E-band and W-band ... 2
1.2.2 The W-band Tripler ... 4
1.2.3 V-band Transmitter System ... 6
1.3 Contributions ... 8
1.4 Thesis Organization ... 9
Chapter 2 Design of an E-band LNA in GaAs 0.1-µm Low Noise pHEMT process ... 10
2.1 Circuit Design of the E-band LNA ... 10
2.1.1 Device Selection ... 10
2.1.2 Device Modeling ... 15
2.1.3 Circuit Design ... 23
2.2 Experimental Results ... 29
2.3 Summary ... 32
v
Chapter 3 Design of an W-band Tripler in 65-nm CMOS process ... 34
3.1 Circuit Design of the W-band Tripler ... 34
3.1.1 Structure of Frequency Multiplier ... 34
3.1.2 Design of W-band Tripler ... 36
3.1.3 Transformers Design ... 39
3.1.4 Full Circuit Simulation ... 42
3.2 Experiment Results ... 47
3.2.1 Measurement Setup ... 47
3.2.2 Measurement Result ... 48
3.3 Summary ... 54
Chapter 4 Evaluation of a V-band transmitter module using CMOS integrated circuits in LTCC package... 56
4.1 Introduction ... 56
4.2 Transmitter Architecture ... 57
4.3 Description of Circuit Components ... 59
4.3.1 First Stage Mixer and Variable Gain Amplifier ... 59
4.3.2 Second Stage Mixer, Buffer Amplifier, and Power Amplifier ... 63
4.4 Description of Low Temperature Co-Fired Ceramic (LTCC) Package and Antenna ... 69
4.4.1 Description of Low Temperature Co-Fired Ceramic (LTCC) Package ... 69
4.4.2 Description of Low Temperature Co-Fired Ceramic (LTCC) Antenna ... 72
4.5 Experiment results ... 74
vi
4.5.1 Measurement Setup ... 74
4.5.2 Measurement Results ... 79
4.6 Summary ... 82
Chapter 5 Conclusions ... 84
References ... 85
vii
LIST OF FIGURES
Fig. 2.1. Maximum gain and minimum noise figure of 0.1-µm device and 0.15-µm device under identical drain current. ... 12 Fig. 2.2. The dc-IV curves of device size 2f50. ... 12 Fig. 2.3. Drain current versus Vg of device size 2f50... 13 Fig. 2.4. Transconductance of the device size 2 × 25 µm under different drain bias. 13 Fig. 2.5. Maximum gain and minimum noise figure of the device size 2 × 25 µm under different gate bias. ... 14 Fig. 2.6. The maximum gain and minimum noise figure of the devices size 2 × 25 µm, 2 × 50 µm, 4 × 25 µm, and 4 × 50 µm. ... 14 Fig. 2.7. The small signal model including extrinsic and intrinsic model. ... 16 Fig. 2.8. The S-parameters from 1 to 110 GHz, (a) S11, (b) S22, (c) S12, (d) S21 of 2f50 device with Vd of 1 V and Vg of -0.6 V. ... 19 Fig. 2.9. The maximum gain of 2f50 device with Vd of 1 V and Vg of -0.6 V. ... 19 Fig. 2.10. The S-parameters from 1 to 110 GHz, (a) S11, (b) S22, (c) S12, (d) S21 of 2f50 device with Vd of 1 V and Vg of -0.35 V. ... 21 Fig. 2.11. The maximum gain of 2f50 device with Vd of 1 V and Vg of -0.35 V. ... 22 Fig. 2.12. The NFmin of 2f50 device model when Vd is 1 V and Vg are -0.35 V and -0.6 V, respectively. ... 22 Fig. 2.13. Schematic of the E-band LNA. ... 24 Fig. 2.14. Schematic of the bypass circuit. ... 24 Fig. 2.15. The bypass structure of the matching network between 3rd and 4th stages in EM simulation. ... 24
viii
Fig. 2.16. Reflection coefficients of the bypass circuit with test line. ... 25
Fig. 2.17. S21 of the bypass circuit, simulated with testline. ... 25
Fig. 2.18. Simulation result of the S-parameters. ... 26
Fig. 2.19. Simulation result of the noise figure. ... 26
Fig. 2.20. The interstage stability of (a) the 1st stage with last 3 stages, (b) the first 2 stages with last 2 stages, and (c) the first 3 stages and last stage. ... 28
Fig. 2.21. Layout of the E-band LNA. ... 29
Fig. 2.22. Chip photo of the E-band LNA. ... 30
Fig. 2.23. The simulated and measured S-parameter from 10-110 GHz of the E-band LNA. ... 31
Fig. 2.24. Simulated and measured noise figure from 75-90 GHz of the E-band LNA at 297 K ambient temperature. ... 31
Fig. 3.1. Topology of the typical frequency multiplier. ... 34
Fig. 3.2. Schematic of the complete W-band tripler. ... 37
Fig. 3.3. Sweep third harmonic output power with device size 3 × 32 µm under different voltage bias. ... 38
Fig. 3.4. Result of load pull on third harmonic output with device size 3 × 32 µm. Each circle means the loadsthat generate constant third harmonic output power. From inside out: 0.1dB, 0.5 dB 1 dB lower then simulated maximum output power ... 38
Fig. 3.5. Third harmonic load pull result and the input/output impedance of the transformer TR3. The input impedance is matching the load pull result impedance, and the output impedance of the transformer is easy to match to 50 Ω. ... 40
ix
Fig. 3.6. Three-dimensional illustrations and simplified equivalent circuits of the transformers: (a) TR1, (b) TR2, and (c) TR3... 41 Fig. 3.7. Simulated conversion gain versus input power at input frequency of 20 GHz.
... 43 Fig. 3.8. Simulated conversion gain versus input power at input frequency of 25 GHz.
... 43 Fig. 3.9. Simulated conversion gain versus input frequency with input power of -5 dBm... 44 Fig. 3.10. Simulated fundamental and second harmonic rejection versus input frequency with input power of -5 dBm... 44 Fig. 3.11. Layout of the W-band tripler. ... 45 Fig. 3.12. The interstage stability between the buffer and the tripler... 46 Fig. 3.13. Simulated output spectrum with input signal of 25 GHz, -5 dBm input power. The spectrum is generated by applying fast Fourier transform on transient simulation outputs signals. ... 46 Fig. 3.14. Chip photograph of the tripler with chip size of 0.905 × 0.5 mm2. ... 47 Fig. 3.15. Simulated and measured output power versus input power of the W-band tripler at input frequency of 20 GHz... 49 Fig. 3.16. Simulated and measured output power versus input power of the W-band tripler at input frequency of 25 GHz. Output power with input power lower than -15 dBm is beyond the sensitivity limitation of power meter. ... 49 Fig. 3.17. Simulated and measured conversion gain versus input power of the W-band tripler at input frequency of 20 GHz... 50
x
Fig. 3.18. Simulated and measured conversion gain versus input power of the W-band tripler at input frequency of 25 GHz... 50 Fig. 3.19. Spectrum screenshot of tripler output at input frequency of 26 GHz, input power of -5 dBm. ... 51 Fig. 3.20. Simulated and measured conversion gain versus input frequency of the W-band tripler at input power of -5 dBm. ... 52 Fig. 3.21. Measurement, simulation and re-simulation of conversion gain versus input frequency of the W-band tripler at input power of -5 dBm. ... 53 Fig. 3.22. Simulated and measured fundamental rejection of the tripler versus input frequency at input power of -5 dBm. ... 53 Fig. 3.23. Simulated and measured second harmonic rejection of the tripler versus input frequency at input power of -5 dBm... 54 Fig. 4.1. Transceiver architecture of the National Network Communication Program.57 Fig. 4.2. Frequency planning and spectrum utilization. ... 58 Fig. 4.3. The gain budget of the V-band transmitter. ... 58 Fig. 4.4. Specification of the building block in V-band transmitter. ... 58 Fig. 4.5. Layout of IQ mixer (right) and variable gain amplifier (left). Chip size is 1.1
× 0.95 mm2. ... 60 Fig. 4.6. Schematic of the IQ mixer. ... 60 Fig. 4.7. Schematic of the variable gain amplifier. ... 61 Fig. 4.8. Measured conversion gain of chip mixer-VGA versus LO power. The IF frequency, IF power, LO frequency are 1 GHz, -7 dBm, 4.32 GHz, respectively. ... 62
xi
Fig. 4.9. Measured conversion gain of chip mixer-VGA versus IF power. The IF frequency, LO frequency, LO power are 1 GHz, 4.32 GHz, 5 dBm,
respectively. ... 62
Fig. 4.10. Layout of 2nd stage mixer (right), buffer amplifier (middle), and power amplifier (left) with the size of 1.92 × 0.92 mm2. ... 64
Fig. 4.11. Schematic of the V-band up-conversion mixer. ... 64
Fig. 4.12. Schematic of the buffer amplifier. ... 64
Fig. 4.13. Schematic of the power amplifier. ... 65
Fig. 4.14. Simulated and measured S-parameters of the buffer amplifier. ... 65
Fig. 4.15. Simulated and measured S-parameters of the power amplifier. ... 66
Fig. 4.16. Measured and simulated conversion gain versus IF frequency, with LO power 5 dBm at 52.92 GHz. The simulation and measurement data are taken from [38]. ... 67
Fig. 4.17. Measured and simulated conversion gain versus IF frequency, with LO power 5 dBm at 57.24GHz. The simulation and measurement data are taken from [38]. ... 67
Fig. 4.18. Measured and simulated conversion gain versus RF output frequency. The simulation and measurement data are taken from [38]. ... 68
Fig. 4.19. Measured large-signal performance with IF input signal at 4.32 GHz and 5 dBm LO signal at 52.92 GHz. The simulation and measurement data are taken from [38]. ... 68
Fig. 4.20. LTCC layout of the transmitter module with size of 9.6 × 9.6 mm2. ... 72
Fig. 4.21. (a) cross view. (b) top view of the dual-polarization patch antenna. ... 73
xii
Fig. 4.22. Photograph of the LTCC with chips mounted on it, with size of 9.6 × 9.6 mm2. ... 75 Fig. 4.23. Cross view of measurement setup of the Tx module. ... 75 Fig. 4.24. Photograph of the PCB for dc supplying, bypass, and IF SMA connector with size of 13.5 × 10 cm2. ... 76 Fig. 4.25. Photograph of the PCB baluns of 4.32 GHz (left) and 6.48 GHz (right). .... 77 Fig. 4.26. The TX measurement environment setup of conversion gain. ... 78 Fig. 4.27. The TX measurement environment setup of large-signal response. ... 78 Fig. 4.28. Measured conversion gain versus IF frequency. The first LO and second LO are at 4.32 GHz, 53 GHz, respectively. ... 80 Fig. 4.29. Measured conversion gain, output power versus input power of the transmitter. The first LO, second LO, and IF are at 4.32 GHz, 53 GHz, and 100 MHz, respectively. ... 80 Fig. 4.30. Measured conversion gain, output power versus input power of the transmitter. The first LO, second LO, and IF are at 4.32 GHz, 53 GHz, and 200 MHz, respectively. ... 81 Fig. 4.31. Measured conversion gain, output power versus input power of the transmitter. The first LO, second LO, and IF are at 4.32 GHz, 53 GHz, and 500 MHz, respectively. ... 81 Fig. 4.32. Measured conversion gain, output power versus input power of the transmitter. The first LO, second LO, and IF are at 4.32 GHz, 53 GHz, and 1 GHz, respectively. ... 82
xiii
LIST OF TABLES
Table 1.1. Published HEMT based LNAs in E-band and W-band. ... 3
Table 1.2. Published W-band frequency multipliers. ... 5
Table 1.3. Summary of the previously published V-band transmitter systems... 7
Table 2.1. Drain bias and drain current of each stage... 15
Table 2.2. The parameters in small signal model of 2f50 device. ... 17
Table 2.3. Comparison of this work and previously reported LNAs ... 33
Table 3.1. Simulated characteristics of transformers ... 42
Table 3.2. List of measurement equipments ... 48
Table 3.3. Comparison of this work and other published W-band multipliers ... 55
Table 4.1. Layers of the DT LTCC Process ... 71
Table 4.2. Design parameters and dimensions of the dual-polarization antenna. ... 74
Table 4.3. DC condition of the Tx component ... 76
Table 4.4. Comparison of this work and other published V-band transmitter ... 83
1
Chapter 1 Introduction
1.1 Background and Motivation
In radio astronomical applications, receiver with high sensitivity is required. At E-band, which is relatively unexplored in the past in radio astronomy, the receivers are traditionally built by using superconducting mixers or hybrid amplifiers as the core components. However, SIS mixer usually has narrow instantaneous frequency (IF) bandwidth and small saturation power [1], whereas hybrid or MIC (microwave inte- grated circuit) amplifier is not suitable for mass-production at this frequency regime.
For the next generation large array receivers like Atacama large millime- ter/submillimeter array (ALMA) [2], MMIC-based receiver is an attractive alternative to SIS- and MIC-based receivers.
ALMA Band 2 covers the frequency range of 67 to 90 GHz [3]. Since the noise figure of the first LNA dominates the overall signal-to-noise ratio of the receiver, high performance LNA is required in radio astronomical receiver system with high sensitivi- ty.
On the other hand, the demand on high data rate wireless communication grows rapidly in last decade. With low frequency band congested with mobile device like cell phone, researchers now look for higher frequency band to satisfy the demand of data transfer. At higher frequency, due to the parasitic effect and loss of the passive structure, the difficulty to implement an oscillator with low phase noise and high output power will also increase. It will be easier to cascade an oscillator with a frequency multiplier as
2
the high frequency source. Therefore, frequency multiplier becomes an important com- ponent in high frequency wireless communication systems.
Also, the IEEE 802.11ad standard utilized 57-64 GHz unlicensed industrial, scien- tific and medical (ISM) band [4] has been published for the demand of short-range communication capability. The millimeter circuits around this 9-GHz spectrum will be- come significant components. Owing to the advance in CMOS process, it is now possi- ble to implement whole 60 GHz system-in-package (SIP) transceiver in CMOS process, lowering the cost and simplifying integration with digital circuits. The design tech- niques to overcome the weakness of CMOS process become an important challenge in the near future.
1.2 Literature Survey
1.2.1 LNAs around E-band and W-band
The previously LNAs published around E-band and W-band are listed in Table 1.1.
Most LNAs are fabricated in HEMT devices due to their high gain and low noise char- acteristic over general silicon based devices. Well-known HEMT materials in research include InP [10], InAs/AlSb [13], and GaAs [15]. InP based HEMT device shows supe- rior performance to the other process due to its high saturation velocity in the channel, but the high cost of mass-production is its main drawback. The InAs/AlSb device shows very low power consumption but available in experiment and research rather than commercial product. Though GaAs HEMT has lower saturation velocity in the channel compared with InP based HEMT device, and higher power consumption compared to
3
InAs/AlSb device, circuit using GaAs HEMT device is able to achieve comparable per- formance as the gate length shrink to 0.1 µm [15]. It is a mature MMIC process provid- ing a balanced choice between circuit performance and fabrication cost.
Table 1.1. Published HEMT based LNAs in E-band and W-band.
*: simulation result
**: ABCS: antimonide-based compound semiconductor
Ref. Technology
BW
(GHz)
BW (%)
Gain (dB)
Pdc
(mW)
Noise Figure
(dB)
Chip Area (mm2)
FOM
[10]
2009
NGST’s 35-nm InP HEMT
70-92 27 26 16.8 3.1 2.1 × 0.8 500.4
[11]
2010
80-nm InP HEMT 68-110 42 18 12 3.5 0.55 × 0.75 178.3
[12]
2008
70-nm GaAs mHEMT 70-105 40 25 35 2.7* 2.8 × 1.8 366.8
[13]
2005
ABCS** 0.2-µm InAs/AlSb HEMT
85-102 18 18 6 3.9 1.75 × 0.7 122.9
[14]
2006
ABCS 0.2-µm InAs/AlSb HEMT
65-105 47 5.6 2 2.5 1.1 × 1.1 93.3
[15]
2012
0.1-µm GaAs mHEMT
60-90 40 19 56 2.5 3.5 × 1 54.7
[16]
2012
UMS 0.1-µm GaAs pHEMT
68-88 25.6 20 262 4.1 - 4.9
4
1.2.2 The W-band Tripler
Frequency multiplier is one of the basic components in millimeter wave applica- tion, and many literatures have published their multiplier designs in CMOS or HEMT process. Table 1.2 summarizes some published frequency multipliers with output around W-Band. In order to achieve high conversion gain and high output power, the multiplier usually need buffer to boost the performance. However this also increases the dc power consumption [26] [30] [31], otherwise it suffers from a low conversion gain and low saturation power [27] [28] [29]. Special type of multiplier uses injection lock mecha- nism to achieve high conversion gain and large output power, however the working range of this type multiplier is usually very narrow. [32]
5
Table 1.2. Published W-band frequency multipliers.
*: Simulation Result.
**: Bandwidth of rejection larger than 10 dB.
Technology Type
Output BW (3-dB BW)
CG/Reject (dB/dBc)
Psat/Pin
(dBm)
Pdc
(mW) Vd
(V)
Size
(mm2) [26]
2007 0.1-µm HEMT X6 78-104
(28.6 %) 6/25 7/4 286 2 8
[27]
2010
0.15-µm
mHEMT X6 72-114
(45.2%) >-17.9/40 -3.4/14.5 120 - 3.3 [28]
2012
0.18-µm SiGe
BiCMOS X3 80-100
(22 %) -10.5/20 -10.5/0 75 2.5 -
[29]
2012 65-nm CMOS X4 75-110
(-) -24.3/30* -14.3/10 16 1.5 0.342
[30]
2012 65-nm CMOS X9 88-99.5
(12.2%) -5.7/>31 8.5/13 438 2.4 0.45
[31]
2014
0.13-µm SiGe
BiCMOS X3 36-83
(79 %**) 0/10 -10/18 362 2.4 0.52
[32]
2014 65-nm CMOS
Injection Lock (X10)
77.8-78.9
(1.4%) -/59(spur) >8.8/- 265 1.8 0.53
6
1.2.3 V-band Transmitter System
There are many published full V-band (40-75 GHz) transmitter circuits chain, some of the most representative are surveyed and listed in Table 1.3. The [44] demonstrates a fully integrated phased-array transmitter with highest gain and highest output power by excellent performance of SiGe BiCMOS process, however it dissipates large dc power and great chip area. Ref. [45] fabricated in GaAs pHEMT process shows relative low gain and very large chip area.
Recently, silicon-based CMOS process has obtained many attentions with its low dc power consumption, compact layout and easily integration with baseband circuit [46]-[48]. Though electronic characteristic of silicon are inferior to other semiconductor materials, the rapidly progression in device geometry shrinkage compensates the disad- vantage. Transmitter system using CMOS 65-nm process [48] exhibits a good perfor- mance comparable to [44], showing that advanced CMOS now has competitive perfor- mance to SiGe BiCMOS devices.
7
Table 1.3. Summary of the previously published V-band transmitter systems.
*: including frequency synthesizer
Ref [44] [45] [46] [47] [48]
Topology
Super hetero- dyne
Direct conversion + LO multiplier
Direct con- version
heterodyne with sub-harmonic mixer
Super Het- erodyne
System Package
Integrated circuit
Integrated circuit
Integrated circuit
Integrated circuit
Integrated circuit
Process
0.12-µm SiGe BiCMOS
0.15-µm GaAs mHEMT
0.13-µm CMOS
90-nm CMOS
65-nm CMOS
Freq (GHz) 51-65
1.25-2.75 → 54-61
0.5 →57-65 0.1-20→57-62 53-62
Gain (dB) 35 5.2 - 13.1 20
LO Power (dBm)
- -3 4 - -
OP1dB (dBm) 9-13.5 0 4 -1.3 6
PSAT (dBm) 15 3.7±1.5 5±1.5 4.6 11
Image Rejection (dB)
- - - - 25-28
LO Rejection (dB)
>20 - >27 - 20
Area (mm2) 6.5 × 6.75 5.7 × 5 8.4 1.2* 4.06
Power Con- sumption (mW)
3800-6400 820 - 113 590
8
1.3 Contributions
In this thesis, an LNA from 62 to 77 GHz in WIN 0.1-µm pHEMT process is de- signed and measured. To design the circuit, small-signal models on specific bias are first generated from measured devices results in our lab. The LNA measured results show consistency with simulation, indicating the accuracy of the models. This work exhibits an FOM of 180.9 (GHz/mW), which is highest compared to most published LNAs in this band. The measured performance is not wide enough but applicable in the ALMA project [2].
In the second part, a W-band tripler is designed. It utilizes transformers to achieve impedance matching and fundamental output suppression. Along with differential structure to eliminate even harmonic signal, no additional frequency filter needed in this tripler design. The tripler shows output ranges from 57 to 78 GHz with measured peak conversion gain of 1.3 dB in a compact chip size.
In the last part, a V-band heterodyne transmitter packaged on LTCC is measured. It demonstrates a full transmitter circuit chain from baseband to transmitting antenna, and also the potential ability of V-band system in package (SiP) in LTCC module. The transmitter is measured with conversion gain of 28 ± 1 dB, and saturation power and linear output power of 7 dBm and 3 dBm. Due to the image and harmonic terms gener- ated by the up-conversion mixer and IQ mixer, the saturation power and linear output power of the transmitter do not agree with output power of the PA. However, the meas- urement proves the functionality of whole transmitter system integration.
9
1.4 Thesis Organization
The thesis organization is as follows.
In chapter 2, an E-band LNA in GaAs 0.1-µm low noise pHEMT process with high small signal gain is designed and measured. Step by step design procedures and model fitting are described in this chapter. Measurement results and simulation results are compared and discussed.
In chapter 3, a 57-78 GHz W-band tripler in 65-nm CMOS process is designed and measured. The detail design of transformer matching and full circuit is presented. The measurement result of this tripler is discussed and compared with other published fre- quency multipliers at W-band.
In chapter 4, a V-band super-heterodyne transmitter using 65-nm CMOS process is presented. The transmitter system is packaged with bias circuit and dual-polarization antenna in LTCC package. The chapter goes through brief introduction to each circuit component and the LTCC package design first. After that, the measurement results of transmitter are shown.
Conclusion of this thesis is given in chapter 5.
10
Chapter 2 Design of an E-band LNA in GaAs 0.1-µm Low Noise pHEMT process
The applications of E-band ranges from 60 to 90 GHz include high data rate point-to-point wireless communications [5], satellite communications, and astronomy observations.
In this chapter, we present an E-band MMIC low noise amplifier (LNA) using 0.1-µm GaAs pHEMT technology operating in 1 V and 2 V drain voltage. The E-band LNA shows small signal gain of 28 dB from 62 to 77 GHz with DC power consumption 44 mW. Noise measurement conducts in the package shows average noise figure about 4.5 dB from 75 to 90 GHz [6].
2.1 Circuit Design of the E-band LNA 2.1.1 Device Selection
The design goal is providing a LNA covering lower E-band from 60 to 75 GHz.
Targeted gain is larger than 15 dB and noise figure as low as possible. Since the cryo- genic operation might be needed, the dc power consumption is limited to 50 mW in or- der to minimize the impact of heat dissipation on cryogenic system.
The LNA is designed using 0.1-µm gate length GaAs based pHEMT devices pro- vided by WIN technology. Fig. 2.1 shows the maximum gain and minimum noise of a 0.1-µm device and a 0.15-µm one. Device size and drain bias are both 2 × 25 µm and 4 V. Gate bias of 0.1-µm device and 0.15-µm device are -0.35 V and -0.02 V, respectively.
11
With drain current both 15.2 mA, 0.1-µm device provides 3 dB higher maximum gain, and lower noise figure at E-band.
There are two commonly used device configuration for amplifiers: common source (CS), and cascode. In this circuit, common source topology is chosen because of its simplicity in layout. Fig. 2.2 shows the dc-IV curves of the device with 2 finger and to- tal gate width 50 µm (abbreviated as 2f50 in the rest of the thesis). It shows that transis- tor enters saturation region when drain voltage is higher than 1 V. To limit the power consumption, drain voltage is set to 1 V, rather than the normal bias 4 V. Drain current versus gate voltage is shown in Fig. 2.3. By setting gate voltage lower than -0.3 V, the drain current of each stage will not exceed 15 mA thus allowing at least three stages to- pology. Finally, the transconductance gm, which directly affects the small-signal gain of the transistor, is swept by gate voltage in Fig. 2.4. Since the transconductance gm shows little difference when Vd biases above 1 V, the low drain voltages save dc consumption without degrading the small signal gain.
In order to achieve the largest gain performance, gate voltage is chosen at -0.35 V with the highest gm. However, in order to have good noise performance, gate voltage of the front stages is biased at 50 %-70 % Idsp (current at peak gm). Fig. 2.5 shows the maximum gain and minimum noise figure simulation of device size 2 × 25 µm under different gate bias. Biasing at peak transconductance shows maximum gain about 3 dB higher at E-band, but the noise figure is also higher. In order to have lower noise, the gate bias of first two stages is set to -0.6 V.
To decide device size, the maximum gain and minimum noise figure of the devices size 2 × 25 µm, 2 × 50 µm, 4 × 25 µm, and 4 × 50 µm biased at Vd = 1 V and Vg = -0.35 V are shown in Fig. 2.6. The maximum gain shows little difference from 60 to 75 GHz.
12
In order to minimize the noise figure and power consumption of the LNA in E-band, the devices size of 2 × 25 µm is chosen.
Fig. 2.1. Maximum gain and minimum noise figure of 0.1-µm device and 0.15-µm device under identical drain current.
Fig. 2.2. The dc-IV curves of device size 2f50.
13
Fig. 2.3. Drain current versus Vg of device size 2f50.
Fig. 2.4. Transconductance of the device size 2 × 25 µm under different drain bias.
14
Fig. 2.5. Maximum gain and minimum noise figure of the device size 2 × 25 µm un- der different gate bias.
Fig. 2.6. The maximum gain and minimum noise figure of the devices size 2 × 25 µm, 2 × 50 µm, 4 × 25 µm, and 4 × 50 µm.
15
The gate bias of the 1st and 2nd stages is Vg = -0.6 V, generating less noise while providing enough small signal gain. The 3rd and 4th stages are biased at maximum gm
Vg= -0.35 V in order to boost up the gain. The bias voltage and current of each stage are summarized in Table 2.1. Drain bias of first two stages are set to 2 V due to stability is- sue.
Table 2.1. Drain bias and drain current of each stage
2.1.2 Device Modeling
Because the device model of foundry does not cover drain bias at 1 V, device mod- eling of 1 V drain bias is fitted at the desired gate bias of -0.6 V and -0.35 V. For sim- plicity, only small signal model [7] is fitted, rather than complete non-linear model.
Fig. 2.7 shows the small-signal model of the transistor including extrinsic compo- nents and intrinsic components. By the small signal measurement result, the value of each component can be estimated initially. Each value is then tuned to fit S-parameters of model to the measurement result. The detailed step by step model parameter extrac- tion can be found in [8].
Table 2.2 shows the parameter values of the small signal models, including gate bias at -0.6 V and -0.35 V. Fig. 2.8-2.9 show the comparisons of modeled and measured S-parameter and maximum gain from 1 to 110 GHz of 2f50 device with Vg of -0.6 V.
Stage 1 Stage 2 Stage 3 Stage 4
Vd 2 V 2 V 1 V 1 V
Id 4 mA 4 mA 14 mA 14 mA
16
Except S12 shows larger difference, other parameters basically fit to measured results reasonably. The discontinuity of S22 at high frequency, which caused by measurement variance, is ignored. Fig. 2.10-2.11 show the comparisons of modeled and measured S-parameter and maximum gain from 1 to 110 GHz of 2f50 device with Vg of -0.35 V.
Also, except larger difference of S12, the modeled results agree with measurement re- sults.
Noisy temperatures Ti and Tds of the resistors Ri and Rds are included in the noise model [9]. The measured noise performance of the 2f50 device is not available during this model work. The noise model is fit to foundry noise model and estimated by the 2f100 device measurement result. The fitting results of the NFmin of two different bias are shown in Fig. 2.12.
Fig. 2.7. The small signal model including extrinsic and intrinsic model.
17
Table 2.2. The parameters in small signal model of 2f50 device.
(a)
Parameter Vg = -0.6 V Vg = -0.35 V Parameter Vg = -0.6 V Vg = -0.35 V
Rs (Ω) 2.94 2.94 gm (mS) 38 44.4
Rg (Ω) 1.28 1.28 τ (pSec) 0.184 0.184
Rd (Ω) 2 2 Rds (Ω) 335.22 289.82
Ls (pH) 1.82 1.82 Ri (Ω) 6 6
Lg (pH) 0 0 Td (°C) 2487 10000
Ld (pH) 0 0 Ti (°C) 925 925
Cgs (fF) 39.1 34.6
Cgd (fF) 15.9 12.9
Cds (fF) 18.6 18.6
18
(b)
(c)
19
(d)
Fig. 2.8. The S-parameters from 1 to 110 GHz, (a) S11, (b) S22, (c) S12, (d) S21 of 2f50 device with Vd of 1 V and Vg of -0.6 V.
Fig. 2.9. The maximum gain of 2f50 device with Vd of 1 V and Vg of -0.6 V.
20
(a)
(b)
21
(c)
(d)
Fig. 2.10. The S-parameters from 1 to 110 GHz, (a) S11, (b) S22, (c) S12, (d) S21 of 2f50 device with Vd of 1 V and Vg of -0.35 V.
22
Fig. 2.11. The maximum gain of 2f50 device with Vd of 1 V and Vg of -0.35 V.
Fig. 2.12. The NFmin of 2f50 device model when Vd is 1 V and Vg are -0.35 V and -0.6 V, respectively.
23
2.1.3 Circuit Design
The overall schematic of the E-band LNA is shown in Fig. 2.13. The matching networks are realized by using microstrip line with M1-M2 connecting together and us- ing backside metal as reference ground. Source of the transistors are directly short to ground through back side via. In the 50 µm substrate of this process, back side via shows about 6 pH inductances acted as source degeneration inductances. Along with the loss of the matching network, the circuits can be stabilized without other special tech- niques.
Gate voltage is fed through a large resistor because of low current at gate bias. A short stub is included into the matching network to feed the drain current. The dc blockings implemented by metal-insulator-metal (MIM) capacitor are also considered.
On-chip bypass provides a good RF short at the end of short stubs. The basic schematic of the bypass circuit is shown in Fig. 2.14. The bypass is composed of a 0.19 pF capacitor as in-band bypass. Out-band bypass is provided by a 0.4 pF and a 1.5 pF capacitors with 10 Ω resistors to ground. Top view of structure of EM simulation is shown in Fig. 2.15. Larger capacitor with size 100 µm × 100 µm is added if layout space is allowed. The simulated reflection coefficient of the bypass circuit is shown in Fig. 2.16. The reflection coefficient close to RF short near 60 to 80 GHz. Also, the S21 is shown in Fig. 2.17, it provides an RF short circuit starting from 20 GHz. The simulation results of S-parameters are shown in Fig. 2.18, and the noise figure is shown in Fig.
2.19.
24
Fig. 2.13. Schematic of the E-band LNA.
Fig. 2.14. Schematic of the bypass circuit.
Fig. 2.15. The bypass structure of the matching network between 3rd and 4th stages in EM simulation.
25
Fig. 2.16. Reflection coefficients of the bypass circuit with test line.
Fig. 2.17. S21 of the bypass circuit, simulated with testline.
26
Fig. 2.18. Simulation result of the S-parameters.
Fig. 2.19. Simulation result of the noise figure.
27
Bypass circuits, blocking capacitors, and matching networks are further simulated and optimized by Sonnet EM solver [16].
The simulations of interstage stability are shown in Fig. 2.20 (a), (b), and (c) below.
Swept from 0 to 110 GHz, each plot is checked carefully that two circles do not inter- sect with each other at the same frequency. Fig. 2.21 shows the final layout of the E-band LNA with size 2 × 1 mm2.
(a)
28
(b)
(c)
Fig. 2.20. The interstage stability of (a) the 1st stage with last 3 stages, (b) the first 2 stages with last 2 stages, and (c) the first 3 stages and last stage.
29
Fig. 2.21. Layout of the E-band LNA.
2.2 Experimental Results
The chip photo mounted on PCB with size of 2 × 1 mm2 is shown in Fig. 2.22.
Small signal data is measured via on-wafer probing, with bond wire to dc pad to supply dc power. Each stage is biased same at the voltage and current as described in Table 2.1.
The circuit consumes 44 mW dc powers.
The S-parameters are measured from 10 to 110 GHz by Agilent E7350A vector network analyzer. Fig. 2.23 shows the S-parameters simulation and measurement results under the bias condition listed in Table 2.1. Measured gain is 1-2 dB higher than simu- lated gain, which is caused by the slight difference in gm between model and device.
The average small signal gain is 28 dB from 62 to 77 GHz. Input and output return loss is better than 10 dB from 63 to 72 GHz. Reverse isolation is better than 40 dB over the measured frequency.
The noise figure is measured by Agilent N8975 noise figure analyzer with K88 down converter module. The measurement is performed only from 75 to 90 GHz due to our instrumentation constraints.
The E-band LNA exhibits a minimum noise figure of 3 dB at 80 GHz, and average 4.5 dB noise figure across the measured frequenc
simulation reasonably at low frequency, and about 1
Fig. 2.22. Chip photo of the E
30
The noise figure is measured by Agilent N8975 noise figure analyzer with K88 down converter module. The measurement is performed only from 75 to 90 GHz due to our instrumentation constraints. Simulated and measured noises are shown in
band LNA exhibits a minimum noise figure of 3 dB at 80 GHz, and average 4.5 dB noise figure across the measured frequency band. The measured noise agree simulation reasonably at low frequency, and about 1 – 2 dB better at high frequency.
of the E-band LNA.
The noise figure is measured by Agilent N8975 noise figure analyzer with K88 down converter module. The measurement is performed only from 75 to 90 GHz due to measured noises are shown in Fig. 2.24.
band LNA exhibits a minimum noise figure of 3 dB at 80 GHz, and average 4.5 The measured noise agrees with 2 dB better at high frequency.
31
Fig. 2.23. The simulated and measured S-parameter from 10-110 GHz of the E-band LNA.
Fig. 2.24. Simulated and measured noise figure from 75-90 GHz of the E-band LNA at 297 K ambient temperature.
32
2.3 Summary
The performance of LNA can be assessed by the FOM [18] related to gain-bandwidth product (GBP), noise figure and dc consumption. The definition of FOM and GBP are shown below:
[GHz
( 1) [mW]
]
mag dc
FOM NF P
= GBP
− ×
(2.1)
21,mag [GHz]
GBP=S ×Bandwidth (2.2)
where S21,mag, NFmag are the magnitudes of small signal gain and the noise figure, re- spectively, and Pdc is the overall dc power consumption in milliwatt. This E-band LNA exhibits an FOM of 180.9 (GHz/mW).
Table 2.3 summarizes the performance of this LNA and recent published LNAs from 60 to 110 GHz. Ref. [10] and [12] show better FOM due to their process ad- vantages in InP HEMT and GaAs mHEMT process. Ref. [15] is a GaAs mHEMT based LNA, but it consumes higher dc power. Ref. [16] is also a GaAs 0.1-µm pHEMT LNA published recently, and it shows very high power consumption compared to this work.
This LNA demonstrates highest gain at low E-band with low dc consumption compared to other LNAs. Although the noise figure is inferior to those of InP HEMT or mHEMT LNAs, it is sufficient to be used as gain stages in the E-band radio telescope system.
33
Table 2.3. Comparison of this work and previously reported LNAs
Ref. Technology
BW (GHz)
BW (%)
Gain (dB)
Pdc (mW)
Noise Fig- ure (dB)
Chip Area (mm2)
FOM
[10]
2009
35-nm InP HEMT 70-92 27 26 16.8 3.1 2.1 × 0.8 500.4
[11]
2010
80-nm InP HEMT 68-110 42 18 12 3.5 0.55 × 0.75 178.3
[12]
2008
70-nm GaAs mHEMT 70-105 40 25 35 2.7* 2.8 × 1.8 366.8
[13]
2005
ABCS 0.2-µm InAs/AlSb HEMT
85-102 18 18 6 3.9 1.75 × 0.7 122.9
[14]
2006
ABCS 0.2-µm InAs/AlSb HEMT
65-105 47 5.6 2 2.5 1.1 × 1.1 93.3
[15]
2012
0.1-µm GaAs mHEMT
60-90 40 19 56 2.5 3.5 × 1 54.7
[16]
2012
0.1-µm GaAs pHEMT 68-88 25.6 20 262 4.1 - 4.9
This work
0.1-µm GaAs pHEMT 60-77 25 29.3 44 4.5 2 × 1 180.9
*: simulation result
Chapter 3 Design of a CMOS
A wideband frequency multiplier work, a W-band wideband tripler is desig
65-nm process provided by Taiwan Semiconductor Manu
3.1 Circuit Design of the
3.1.1 Structure of Frequency Multiplier
Fig. 3.1 shows the typical topology of a frequency multiplier. The non vice is used to generate harmonic frequency. The output load of the non should match to optimum load of the desired frequency, which can be
load pull at the frequency. The input matching should achieve conjugate matching at fundamental frequency and a good reflector at harmonic frequency.
Fig. 3.1. Topology of the typical frequency
The non-linear device is usually a transistor bias at pinch sive device such as diode [20]
input:
34
Design of a n W-band Tripler in 65 CMOS process
A wideband frequency multiplier can be used in broadband signal source.
band wideband tripler is designed and fabricated and measured using process provided by Taiwan Semiconductor Manufacturing Company (TSMC).
Design of the W-band Tripler Frequency Multiplier
shows the typical topology of a frequency multiplier. The non harmonic frequency. The output load of the non should match to optimum load of the desired frequency, which can be
load pull at the frequency. The input matching should achieve conjugate matching at fundamental frequency and a good reflector at harmonic frequency.
Topology of the typical frequency multiplier.
linear device is usually a transistor bias at pinch-off region
[20]-[21]. We can express the output as a polynomial
65 -nm
can be used in broadband signal source. In this and measured using CMOS facturing Company (TSMC).
shows the typical topology of a frequency multiplier. The non-linear de- harmonic frequency. The output load of the non-linear device should match to optimum load of the desired frequency, which can be determined by load pull at the frequency. The input matching should achieve conjugate matching at
off region [19] or a pas- polynomial of the
35
2 3
0 1 2 3
y= A +A x+A x +A x (3.1)
Without losing generality, we represent input signal as a sine signal:
( ) co s( )
x t =V ωt (3.2)
The output of the non-linear device is:
2 2 3 3
0 1 2 3
2 3 2
0 2 1 3 2
3 3
( ) ) ( ) . .
( )
1
cos( ) cos ( cos
1 3 1
) cos( ) co
cos(3 ) . . 4
2 4 2 s(2
y A AV t A V
A V AV
t V t A V t H O T
A V A V t
A V t
t V
T
A
H O
ω ω ω
ω ω
ω
+ + +
= + +
+ +
= +
+ + (3.3)
The output signal is a combination of fundamental and harmonic signals. By pass- ing the output signal through a filter on desired frequency, the whole structure is a fre- quency multiplier. In the design of tripler, the third harmonic frequency is the desired frequency.
Rejection of other harmonic is one necessary attribute in multiplier design. Some designs add filters at output to suppress the harmonic signal. However, the filter occu- pies more chip area and adds additional insertion loss to the multiplier [22]. In this de- sign, differential structure [23] and transformers are used to suppress harmonic signal.
With differential structure, input signal first splits into two paths in opposite phase, and each feeds into a tripler stage. The outputs of triplers then combine together in op- posite phase. Since the even harmonic signals are in-phase, they cancel each other at combining stage.
To split and combine signal in opposite phase, balun or transformers can be used [24]. Transformer is chosen in this design for the following reasons. Firstly, its in- put/output can be designed to desired impedance rather than 50 Ω in balun. Because of this flexibility, chip size using transformer is usually more compact than using balun
36
since the latter requires additional matching circuit. Second, transformer provides a path to ground in low frequency, thus naturally increasing the harmonic rejection. Compare to other frequency multiplier, this design eliminates the need of additional filters to in- crease the harmonic rejection. Finally, in differential structure, the virtual RF ground enables biasing at the center point of the symmetry transformer coil. No additional short stub or λ/4 stub in matching circuit is needed, and chip size can be further minimized.
3.1.2 Design of W-band Tripler
The schematic of this tripler is shown in Fig. 3.2. The single-ended input signal is divided into differential signal by transformers. The differential signals are then passed to a buffer stage and a tripler stage, generating the desired third harmonic signal. Output signal is produced by combining the differential signal with transformer, cancelling the even harmonic signal.
The size of the tripler devices is 32 fingers with total width 96 µm. Fig. 3.3 shows the plot of third harmonic output power under different voltage bias. In order to maxim- ize the output power of third harmonic signals, device bias of Vd and Vg are 1.0 V and 0.5 V, respectively. Rather than bias at pinch-off region, the bias close to saturation can achieve larger saturated power when input power is large. The drawback is consuming more dc power. Due to the effect of load impedance to the output power of transistors [25], the load pull simulation is adopted to find optimal load of third harmonic. The re- sult of load pull is shown in Fig. 3.4. In ideal devices simulation, under high input pow- er, the device in load pull shows better output power than that of the conjugated matched. Also, the load pull results from 20-25 GHz input are close to same impedance,
37
indicating that if presenting constant impedance across 20-25 GHz to the tripler output, the tripler can achieve wideband performance.
A buffer stage using a common source transistor is added to compensate the con- version loss of the tripler. The buffer is also biased at Vd of 1.0 V and Vg of 0.5 V, which provides enough transconductance gm with low drain current. Because of higher gain at low frequency, the buffer is connected before the tripler. The larger signal from buffer also drives tripler stage more non-linear, increasing the conversion efficiency. A 30-Ω resistor is added at the gate of buffer stage to stabilize the buffer transistor.
Fig. 3.2. Schematic of the complete W-band tripler.
38
Fig. 3.3. Sweep third harmonic output power with device size 3 × 32 µm under dif- ferent voltage bias.
Fig. 3.4. Result of load pull on third harmonic output with device size 3 × 32 µm.
Each circle means the loadsthat generate constant third harmonic output power. From inside out: 0.1dB, 0.5 dB 1 dB lower then simulated maximum output power
39
3.1.3 Transformers Design
In this design, three transformers TR1, TR2, and TR3 are used to achieve imped- ance matching between stages. TR1 and TR3 also serve as signal splitter and signal combiner. All three transformers are first simulated using ideal inductors with practical mutual inductance and coupling factor. The TR2 is chosen that transfers conjugate matching of buffer stage output to the input impedance of tripler. TR1 and TR3 are se- lected that transfers impedances to a value that is easy match to 50 Ω. Taking output transformer TR3 as example, Fig. 3.5 shows the third harmonic load pull result at 75 GHz and the impedance transformation of the ideal transformer. The transformer con- verts the load pull impedance to impedance that is easy to match to 50 Ω.
Based on the result, more accurate EM simulation is carried out using Sonnet EM software. The transformer coils are made of top two metal layers with line width and line spacing of both 4 µm. Ground metal is slotted to decrease insertion loss. The in- ductance value is achieved by adjusting the size of transformer and the number of turns.
The geometry of each transformer is adjusted subtly considering the parasitic effect. Fig.
3.6 shows the three-dimension view of three transformers in simulator, and the simpli- fied topology of each transformer. Table 3.1 summarizes the characteristics, including inductance, Q factor, and actual turn number of these transformers after EM simulation.
40
Fig. 3.5. Third harmonic load pull result and the input/output impedance of the trans- former TR3. The input impedance is matching the load pull result impedance, and the output impedance of the transformer is easy to match to 50 Ω.
(a)
41
(b)
(c)
Fig. 3.6. Three-dimensional illustrations and simplified equivalent circuits of the transformers: (a) TR1, (b) TR2, and (c) TR3.
42
Table 3.1. Simulated characteristics of transformers
3.1.4 Full Circuit Simulation
Since the transformers have transferred the impedance for easy matching, the rest matching work is simple. The input matching is done by an open stub and dc blocking capacitor implemented by metal-insulator-metal (MIM). Output matching is made of a short transmission line and a small series capacitor implemented by top two layers met- al.
All the dc voltage is biased through the virtual ground point of the transformer.
Though the virtual ground provides isolation of RF noise in dc bias network, on-chip bypass capacitors are added for stability concern. The drain bypass is composed of a 1.3 pF capacitors as in-band bypass, which is simulated along with transformer. A 2.5 pF MIM capacitor and a 25 pF MOSCAP are used as out-band bypass.
The simulation results of conversion gain versus input power of 20 GHz and 25 GHz are shown in Fig. 3.7 and Fig. 3.8. The conversion gain shows peak value at input power is -5 dBm. Fig. 3.9 shows the simulated conversion gain versus input frequency with input power of -5 dBm. The simulated peak conversion gain is 1.7 dB, with 3-dB L1(pH) Q1 Actual Turn Number L2(pH) Q2 Actual Turn Number
TR1 240 8.3 1 280 8.4 2
TR2 240 6.5 1 504 3 2
TR3 65 7.8 1 104 10 1
43
bandwidth from 20 to 28 GHz. Fundamental and second harmonic rejection are simu- lated and illustrated in Fig. 3.10.
Fig. 3.7. Simulated conversion gain versus input power at input frequency of 20 GHz.
Fig. 3.8. Simulated conversion gain versus input power at input frequency of 25 GHz.
44
Fig. 3.9. Simulated conversion gain versus input frequency with input power of -5 dBm.
Fig. 3.10. Simulated fundamental and second harmonic rejection versus input fre- quency with input power of -5 dBm.
45
The circuit is designed in TSMC CMOS 65-nm process. The layout of the W-band tripler is shown in Fig. 3.11. Including the pad, total size of the tripler is 0.905 × 0.5 mm2. Pad size is 80 × 80 µm2 due to the limitation of system package requirement. Chip size can be further minimized if using standard 50 × 50 µm2 pad. The transformers and capacitors are simulated and verified by Sonnet EM solver [17]. The small-signal in- ter-stage stability is checked between buffer stage and tripler stage, and the result is shown in Fig. 3.12. To further verify the stability, transient simulation is simulated with 25 GHz, -5 dBm input signal. The frequency domain output signal is transformed from time domain by fast Fourier transform. The result is shown in Fig. 3.13, which shows no oscillations except the desired output signal and its harmonic.
Fig. 3.11. Layout of the W-band tripler.
46
Fig. 3.12. The interstage stability between the buffer and the tripler.
Fig. 3.13. Simulated output spectrum with input signal of 25 GHz, -5 dBm input power.
The frequency domain spectrum is generated by applying fast Fourier transform on transient simulation time-domain output.
47
3.2 Experiment Results 3.2.1 Measurement Setup
This chip is measured via on-wafer probing, with bond wire to dc pad to supply dc power. The chip photo is shown in Fig. 3.14. To measure performance of fundamental rejection, second harmonic rejection and output signal, different equipments are applied.
Agilent E8267D vector signal generator is used to generate the input signal around 15 to 30 GHz. The output signal is measured by Agilent E4448A spectrum analyzer and Ag- ilent E4419B power meter. The following Table 3.2 shows the accessories along with the spectrum analyzer and power meter.
Fig. 3.14. Chip photograph of the tripler with chip size of 0.905 × 0.5 mm2.
48
Table 3.2. List of measurement equipments
3.2.2 Measurement Result
The supply voltage and gate voltage is set to 1 V and 0.5 V like in simulation. The drain current of buffer stage and tripler stage are both 30 mA, together consuming 60 mW quiescent power. When the input power increases to 0 dBm, the dynamic current of tripler and buffer will increase to 90 and 40 mA, respectively.
Fig. 3.15-3.16 show the simulated and measured result of output power versus in- put power at input frequency of 20 and 25 GHz. Saturated output power can achieve -2.5 dBm with 20 GHz, -4 dBm input signal. The simulated and measured conversion gains versus input power are shown in Fig. 3.17-3.18. The conversion gain is higher than simulation at 20 GHz. At input power of -5 dBm, the tripler shows best conversion gain. Fig. 3.19 is the screenshot of measured spectrum at input power of -5 dBm, input
0-50 GHz
V-band Signal (50-75 GHz)
W-band Signal (75-110 GHz)
Measured data
Fundamental Rejection Second Harmonic Re-
jection
Third harmonic output signal
Third harmonic output signal
Spectrum analyzer
-
11974V preselected mil- limeter mixer
1197W W-band Mixer Power me-
ter
-
V8486A V-band power sensor
W8486A W-band power sensor
49
frequency of 26 GHz. After adding the loss of -69.9 dB, the output power of the tripler at 78 GHz is -5.32 dBm.
Fig. 3.15. Simulated and measured output power versus input power of the W-band tripler at input frequency of 20 GHz.
Fig. 3.16. Simulated and measured output power versus input power of the W-band tripler at input frequency of 25 GHz. Output power with input power lower than -15 dBm is beyond the sensitivity limitation of power meter.
50
Fig. 3.17. Simulated and measured conversion gain versus input power of the W-band tripler at input frequency of 20 GHz.
Fig. 3.18. Simulated and measured conversion gain versus input power of the W-band tripler at input frequency of 25 GHz.
Fig. 3.19. Spectrum screenshot of tripler output at input frequency of 26 GHz, input power of -5 dBm.
The measurement result dBm is shown in Fig. 3.20
to simulation with peak conversion of 1.
conversion gain ranges from input frequency of 19 to 26 GHz, or 31 width.
The reason that conversion gain
inaccuracy in simulation. In the EM simulation lated by “planar resistor”, which
tween metal layers a little.
capacitors to ground beside the transformer EM simulation. The re with measurement.
51
Spectrum screenshot of tripler output at input frequency of 26 GHz, input
The measurement results of conversion gain versus frequency at input power of 20. The conversion gain extends to lower frequency compared to simulation with peak conversion of 1.3 dB near 20-21 GHz. The 3-dB bandwidth of
s from input frequency of 19 to 26 GHz, or 31% fractional ban
The reason that conversion gain shifted to lower frequency is because of the In the EM simulation of transformers, ground metal is sim , which sacrifices the accuracy of parasitic
. Fig. 3.21 shows the re-simulation result after adding 15 fF capacitors to ground beside the transformer EM simulation. The re-simulation agree
Spectrum screenshot of tripler output at input frequency of 26 GHz, input
of conversion gain versus frequency at input power of -5 The conversion gain extends to lower frequency compared dB bandwidth of
% fractional band-
shifted to lower frequency is because of the slight , ground metal is simu-
capacitance be- simulation result after adding 15 fF
simulation agrees
52
The measured fundamental signal and second harmonic rejection versus input fre- quency is shown in Fig. 3.22-3.23 Measured fundamental rejection and measured se- cond harmonic rejection in measured range are larger than 25 dB and 20 dB, respec- tively.
Fig. 3.20. Simulated and measured conversion gain versus input frequency of the W-band tripler at input power of -5 dBm.
53
Fig. 3.21. Measurement, simulation and re-simulation of conversion gain versus input frequency of the W-band tripler at input power of -5 dBm.
Fig. 3.22. Simulated and measured fundamental rejection of the tripler versus input frequency at input power of -5 dBm.
54
Fig. 3.23. Simulated and measured second harmonic rejection of the tripler versus in- put frequency at input power of -5 dBm.
3.3 Summary
In this chapter, a broadband tripler with W-band output frequency is designed and measured. Table 3.3 summarizes the performances of the published frequency multiplier with output frequency at W-band. Using active device biased at pinch-off region, though consumes more power, this tripler shows 1.3 dB conversion gain, which is largest ex- cept [26]. However, the dc power consumption is only one quarter of [26], and better to other active type multiplier. The differential structure and rejection of transformers to- gether achieves 20 dB rejections without any supplementary filter. Take advantage of broadband characteristic of transformers, this tripler has 3-dB bandwidth of 31.3 percent, which is the best among other CMOS multiplier works. This tripler achieves wide
