SAFETY PRECAUTIONS

(Be sure to read these instructions before using the product.)

Before using this product, read this manual and the relevant manuals introduced in this manual carefully and handle the product correctly with full attention to safety.

Note that these precautions apply only to this product.

In this manual, the safety instructions are ranked as "DANGER" and "CAUTION".

Note that failure to observe the CAUTION level instructions may also lead to serious results according to the circumstances.

Be sure to observe the instructions of both levels to ensure personal safety.

Please keep this manual in accessible place and be sure to forward it to the end user.

[DESIGN PRECAUTIONS]

DANGER

Output may remain ON or OFF due to failure of the GOT, communication board or cable.

For the output signals that may cause a serious accident, create an external fail safe circuit.

Faulty output or malfunctions may result in an accident.

When a communication error (including cable disconnection) occurs during monitoring by GOT, communication between GOT and PLC will be interrupted and GOT operation will be disabled.

In the case of bus connection: CPU goes down and GOT is disabled.

In the system configuration including a GOT, an external circuit that controls the critical operation of the system such as an emergency stop switch needs to be included in case a communication failure with the GOT occurs.

Faulty output or malfunctions may result in an accident.

CAUTION

Do not install the control or communication cables together with the main circuit or power cable or do not bring them close to each other. The distance of 100mm (3.9inch) or more should be ensured.

Failure to do so may cause malfunctions due to noise.

DANGER

Indicates that incorrect handling may cause hazardous conditions, resulting in death or severe injury.

CAUTION

Indicates that incorrect handling may cause hazardous conditions, resulting in minor or moderate injury or property damage.

(4)

A - 2

[INSTALLATION PRECAUTIONS]

[WIRING PRECAUTIONS]

DANGER

Be sure to shut off all phases of the external power supply before installing or removing GOT to/from the panel.

Failure to do so may cause failure or malfunctions of the module.

Be sure to shut off all phases of the external power supply before installing or removing the communication board to/from GOT.

CAUTION

Use the GOT in the environment specified in the user’s manual of the GOT.

Failure to do so may cause electric shock, fire, malfunctions or product deterioration or damage.

Tighten the mounting screws within the specified torque range when installing the GOT to the panel.

Loose tightening may cause a fall, short circuits or malfunctions.

Overtightening may damage the screws and/or the module, resulting in a fall of the module, short circuits or malfunctions.

Tighten the mounting screws within the specified torque range when installing the communication board to the GOT.

Loose tightening may cause a fall, failure or malfunctions.

Overtightening may damage the screws and/or the module, resulting in a fall of the module, failure or malfunctions

DANGER

Be sure to shut off all phases of the external power supply before wiring.

Failure to do so may cause electric shock, product damage or malfunctions.

(5)

A - 3

[TESTING PRECAUTIONS]

CAUTION

Always ground the FG, LG and protective ground terminals of the GOT power supply area to the protective ground conductor.

Failure to do so may cause electric shock or malfunctions.

Confirm the rated voltage and terminal layout and connect the GOT to the power module correctly.

Connecting to a power supply with incorrect rated voltage or faulty wiring may cause a fire or failure.

Tighten the terminal screws of the GOT power supply area within the specified torque range.

Loose tightening may cause short circuits or malfunctions.

Overtightening may damage the screws and/or the module, resulting in short circuits or malfunctions.

Be careful not to let foreign matter such as dust or wire chips get inside the module.

This may cause a fire, failure or malfunctions

For the bus connection cable, insert it to the connector of the module until a click sound can be heard.

Make sure of proper connection after installation.

Improper connection may cause malfunctions.

For the communication cable, install it to the connector of the module and tighten the mounting screws or terminal screws within the specified range.

DANGER

When testing the operation of the user-created monitor screen (e.g. bit device ON/OFF or change of the word device current value, the timer/counter current or set value, the buffer memory current value), thoroughly read the relevant manual to fully understand the operating procedures.

In the test operation, never change the data of the device which operation is critical to the system.

Doing so may cause an accident due to faulty output or malfunctions.

(6)

A - 4

[START-UP/MAINTENANCE PRECAUTIONS]

[DISPOSAL PRECAUTIONS]

DANGER

Do not touch any terminal while the module is energized.

Doing so may cause electric shock or malfunctions.

Be sure to shut off all phases of the external power supply before cleaning or retightening the terminal screws.

CAUTION

Do not disassemble or remodel the module.

Doing so may result in failure, malfunction, personal injury or a fire.

Do not directly touch a conducting part or electronic parts of the module.

Doing so may cause malfunctions or failure of the module.

Be sure to secure communication cables and power cables connected to the module by ducts or clamps. Failure to do so may cause damage of the module or the cables due to accidental pull of dangling cables, or malfunctions due to poor cable connection.

Do not hold the communication cable part by hand when pulling it out from the module.

Pulling the cable connected to the module may cause damage to the module or cable, or malfunctions due to poor cable connection.

Always make sure to touch the grounded metal to discharge the electricity charged in the body, etc., before touching the module.

Failure to do so may cause a failure or malfunctions of the module.

CAUTION

When disposing the product, treat it as an industrial waste.

(7)

A - 5 CAUTIONS FOR USING THIS SOFTWARE

1. Required PC memory

The processing may be terminated by Windows on a personal computer of which main memory capacity is less than 64M bytes. Make sure to secure the capacity of 64 M bytes or more.

2. Free capacity of hard disk (virtual memory)

At least 100M bytes of free capacity of virtual memory should be secured within hard disk to run this software.

The processing may be terminated by Windows if 100M bytes or more of free space cannot be secured within hard disk while running GT Designer2.

Secure enough free capacity of virtual memory within hard disk space in order to run the software.

When enough free capacity cannot be secured, make sure to save projects frequently.

3. Error messages displayed while starting and editing

"Operation will be terminated because of insufficient memory. Would you like to stop?"

If the above message appears, close other running application software or reboot Windows in order to secure at least 50M bytes of free hard disk space.

4. GT Designer2 and GOT display

(a) Cautions for displaying straight line other than full line (dotted line, for example) in Bold.

When straight line other than full line is drawn in bold, the line may not be displayed with its actual line width on a personal computer.

However, it will be displayed correctly on GOT. This phenomenon does not mean data problem.

(b) Display of end points of straight line/line freeform/polygon

As shown below, the end points of straight line/line freeform/polygon are displayed differently between GT Designer2 and GOT.

(c) Start position for filling patterns

Some filling patterns may be differently displayed.

For example, the start position may be different between GT Desginer2 and GOT.

(d) Drawing of different type lines

The length of the dots varies in different dotted lines (for example: the chain lines).

(e) Display of object

The display position of the memory data display in graph function is different between GT Designer2 and GOT.

Even if the display-start-line of a comment has been set, the comment will be displayed from the first line on GT Designer2.

(f) Display magnification

When display magnification is changed, the connected lines or figures may be separated or the filled-paint may be out of outline of the figure.

However, if they are displayed correctly on the preview screen, they will appear correctly on GOT as well.

(Example): When filled-paint is out of the outline.

On GT Designer 2 On GOT

Display magnification: 200% Display magnification: 100%

Position of Paint mark may be shifted and the filled-paint may be out of the figure outline.

(8)

A - 6

5. Restrictions when the color setting is changed to the setting of less colors in the system environment (256 colors 2 colors)

The color palette for setting color will be changed according to the updated settings.

The color on the drawing screen will be kept the same as prior to the change.

If the color setting for a [red] rectangle-figure is changed to the 2 colors (B/W), the [red] color will remain.

The colors of the image data (for example: BMP files) will be reduced when the project is saved.

6. Object function and device type

The object (bit lamp or word lamp), for which bit device setting and word device setting are separated, cannot be converted between bit device and word device.

7. When device type is changed

Confirm the device type when the set bit device is changed from bit device into word device.

The device flag may be represented as "??", depending on the settings.

(Example) D0. b0 D0 D0.b5 ??

8. OS setting

Set the font size as "Small Font" when setting OS (Windows ) screen.

The GT Designer2 dialog box cannot be displayed correctly if the font size is set as "Large font".

9. When the toolbar icon appears in smaller size after startup of GT Desinger2 The toolbar icon may appear in smaller size right after GT Deseiger2 is started up.

To correctly display the icon, initialize it as instructed below.

(Click on [Project] [References] from the menu, and select the toolbar tab. Click on button in that tab.)

10. When using GT Designer2 in the PC in which the OS other than Japanese version

The text may not be displayed correctly depending on the OS versions; some version include the fonts incompatible with GT Designer2 or GOT.

11. When using Microsoft Narrator

GT Designer2 cannot be used with Microsoft Narrator.

When using GT Designer2, do not use Microsoft Narrator.

Reset All

(9)

A - 7

REVISIONS

* The manual number is given on the left bottom of the back cover.

Japanese Manual Version SH-080513-N

Print Date Manual Number Revision

Oct., 2004 SH (NA)-080520ENG-A First edition Mar., 2005 SH (NA)-080520ENG-B

How to Use This Manual, Section 1.1, Section 2.1, Section 2.2, Section 3.1, Section 3.2, Section 4.1, Section 4.2, Section 4.2.2, Section 4.4, Section 7.2, Section 8.3

Oct., 2005 SH (NA)-080520ENG-C

Section 2.2, Section 4.2, Section 5.3, Section 7.2.2, Section 7.2.3, Section 7.4.1, Section 7.4.2, Section 7.4.3, Section 7.4.4, Section 7.4.5, Section 7.4.6, Section 7.6, Section 8.1.2

Change of Section 7.1 to 7.2 Change of Section 7.2 to 7.1 Change of Section 7.2.1 to 7.1.1 Janu., 2006 SH (NA)-080520ENG-D

Section 4.1, Section 4.2

Section 2.1 Jun., 2006 SH (NA)-080520ENG-E

Section 2.1, Section 3.2, Section 7.2.1 Nov., 2006 SH (NA)-080520ENG-F

Section 2.1, Section 4.2, Section 7.2 Dec., 2006 SH (NA)-080520ENG-G

Section 2.1, Section 4.2.1 Aug., 2007 SH (NA)-080520ENG-H

Section 3.1, 7.21, 8.3 Dec., 2007 SH (NA)-080520ENG-I

Section 2.1, 3.1, 3.2, 4.2.1, 4.2.2, 4.3, 4.4, 7.4.1 Jun., 2008 SH (NA) -080520ENG-J

Sections 2.1, 3.2, 4.2, 4.2.1, 4.2.2, 4.4, 5.3 Oct., 2008 SH (NA) -080520ENG-K

Sections 2.1, 3.1, 4.1, 4.2, 5.1, 5.3, 7.4, 7.6

This manual confers no industrial property rights or any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

Partial corrections

Partial additions

Partial corrections

(10)

A - 8

SOFTWARE USER REGISTRATION

After agreeing to the terms of the Software License Agreement included in the package, please access the MELFANSweb Home Page (http://www.MitsubishiElectric.co.jp/melfansweb) and make a software user registration. (User registration is free of charge.)

(1) Software Registration

You can make a software registration by accessing the MELFANSweb Home Page or faxing or mailing the "Software Registration Card" packed with the product.

After you have made a software registration, we will register the user and send the

"Software registration confirmation" together with the user ID.

We will also provide the latest information, such as the new product release, version upgrade information and event information, by direct mail.

(2) Notes on Contact

Please ask questions concretely and clearly using terms listed in the manual.

When requesting us to solve a problem, provide us with detailed information for reproducing the problem.

In addition, contact the respective manufacturers when asking questions about the operating system (OS) or the other vender's software products.

User registration is valid only in Japan.

(11)

A - 9 SAFETY PRECAUTIONS ...A - 1 Cautions for using this software ...A - 5 REVISIONS...A - 7 SOFTWARE USER REGISTRATION...A - 8 INTRODUCTION...A - 9 CONTENTS ...A - 9 Function Quick Reference...A - 11 Manuals...A - 19 ABBREVIATIONS AND GENERIC TERMS IN THIS MANUAL...A - 20 How to Use This Manual ...A - 23 Product List ...A - 24

1. OVERVIEW...1 - 1 to 1 - 2

1.1 When Conventional Software Is Used... 1 - 1 1.2 About Manuals ... 1 - 2

2. SOFTWARE PACKAGE CONFIGURATION ....2 - 1 to 2 - 3

2.1 Software ... 2 - 1 2.2 Other Included Data ... 2 - 2

3. SYSTEM CONFIGURATION ...3 - 1 to 3 - 6

3.1 System Configuration ... 3 - 1 3.2 Operating Environment ... 3 - 1

4. INSTALLATION AND UNINSTALLATION ...4 - 1 to 4 - 13

4.1 Starting the Menu Screen... 4 - 1 4.2 Installing the Software Programs ... 4 - 2

4.2.1 Software installing procedure ...4 - 4 4.2.2 Installing the manual data...4 - 9

4.3 Uninstalling the Software Programs ... 4 - 11

4.3.1 Software uninstalling procedure ...4 - 11

4.4 Starting the Software... 4 - 13

INTRODUCTION

Thank you for choosing Mitsubishi Graphic Operation Terminal (Mitsubishi GOT).

Read this manual and make sure you understand the functions and performance of the GOT thoroughly in advance to ensure correct use.

5. HOW TO USE THE ONLINE MANUAL AND

HELP... 5 - 1 to 5 - 5

5.1 How to Use the Online Manual ...5 - 1 5.2 How to Use Help...5 - 3 5.3 How to View the Product Information ...5 - 5

6. WHAT IS THE GOT? ... 6 - 1 to 6 - 3

6.1 About the GOT...6 - 1 6.2 About GOT Operation...6 - 2

7. CREATING THE MONITOR DATA... 7 - 1 to 7 - 25

7.1 Creating Screens ...7 - 1

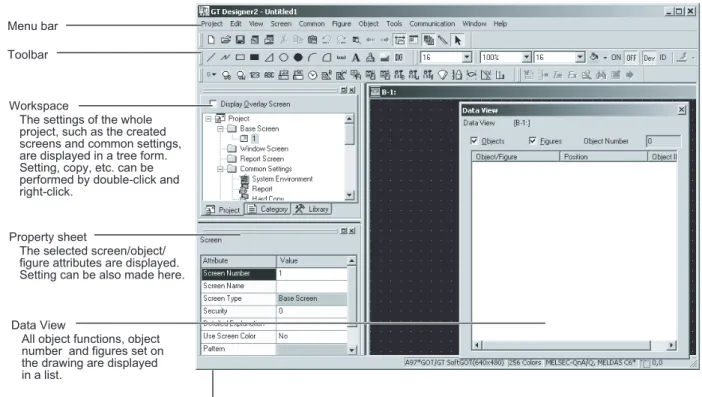

7.1.1 Screen configuration of GT Designer2 ...7 - 2

7.2 Setting before Screen Creation ...7 - 3

7.2.1 Creating a project ...7 - 3 7.2.2 Creating the second screen...7 - 6 7.2.3 Setting the screen switching device...7 - 6 7.2.4 How to switch between the created screens ...7 - 7

7.3 Drawing Figures and Inputting Texts ...7 - 8 7.4 Setting the Object Function ...7 - 10

7.4.1 Numerical Display/Numerical Input setting method ...7 - 11 7.4.2 Lamp setting method ...7 - 13 7.4.3 Touch Switch (Bit Switch) setting method ...7 - 15 7.4.4 Touch Switch (GO TO Screen Switch) setting method...7 - 18 7.4.5 Alarm List (System Alarm) setting method ...7 - 20 7.4.6 Alarm List (User Alarm) setting method...7 - 21

7.5 Saving the Created Monitor Data ...7 - 24 7.6 Previewing the created project data ...7 - 25

8. EXECUTING MONITOR ON THE GOT... 8 - 1 to 8 - 9

8.1 Transferring Monitor Data from Personal Computer to GOT...8 - 1

8.1.1 Connecting the personal computer and GOT ...8 - 1 8.1.2 Installing the Standard monitor OS and Communication driver...8 - 2 8.1.3 Downloading the monitor data ...8 - 3

8.2 Connecting with the PLC CPU...8 - 4

8.3 Uploading...8 - 8

(13)

A - 11

Function Quick Reference

Edit Operation (GT Designer2 Version Operating Manual)

Image Function Page

Show the preview of screen image of GOT.. Page 4-43

Aligns objects or images Page 8-22

Sets same attributes to objects or images in the same

screen Page 9-1

Displays lines to align figures and objects when arranging

a placed figure or object. Page 8-25

Changes the color(s) of the objects and figures arranged

on plural screens at the same time Page 9-12

Changes the switch/lamp figures at the same time Page 9-12

Changes the preset devices at the same time Page 9-12

Overlapping images or objects Page 9-16

Display the set device in list Page 9-17

Preview

Align

Property sheet

Guidelines

Replace colors

Base 3 Base 2

Base 1

Base 3 Base 2

Base 1

Replace shapes Base 3 Base 2

Base 1

Base 3 Base 2

Base 1

Replace devices

M10 M11 M12 M100 M101 M102

Data View

Select

Base 3 Device list

Base 2

Base 1

D100 Numerical display D200 ASCII display D300 Panel meter display

(14)

A - 12

Image Function Page

Displays the direct input texts in a list. Page 9-19

Input characters or comments in other language. Page 9-24

Imports BMP/DXF files Page 8-13

Utilizes other project data Page 9-33

Text list

Run Bit Switch

Word Lamp Base 2

Base 3

Base 1

Stop Error

Bit Switch

Multiple language input

English

Man. Auto

Chinese

DXF file Import BMP/DXF file

Import BMP file

Import Project

Import

(15)

A - 13

Object Functions (GT Designer2 Version Reference Manual)

1 Lamp, Touch Switch

Image Function Page

Displays device value via lamp color changing Page 6-1

Touch it to switch device ON/OFF Page 6-19

Touch it to change bit device value Page 6-36

Touch it to switch to the extended function screen Page 6-41

Touchitto switch between the base and window screen Page 6-49

Touch it to switch the monitored PLC station No. Page 6-59

Used as the key for inputting numerical value/ASCII Page 6-65 Lamp

RUN

Red

STOP

Blue

Bit Switch

MO : ON OFF

Data Set Switch

D100 : 200 350

Special Function Switch

MOV 2 D2K MOV 1 D1K

RST V MOV 90 D162K MOV 110 D167K MOV 100 D172K

GO TO Screen Switch

Base 1 Base 2

Operation

Stop

Change Station Switch

Change monitor destination

Key Code Switch

A A B C D E F G H

(16)

A - 14

2 Digit/Font Display

3 Alarm

Image Function Page

Displays device value in numerical value Page 7-1

Write value on device Page 7-1

Display multipledevice value in list Page 7-28

Displays device value in text Page 7-44

Inputs text code device Page 7-44

Displays hour/minutes, year/month/date Page 7-57

Displays command Page 7-63

Image Function Page

Displays message at alarm occurence Page 8-1

Displays alarm history Page 8-31

Displays alarm in floating Page 8-67

Numerical Display

D100 : 334 D100 ³³⁴

Numerical Input

D100 45

D100 : 45

Data List

D100 55 D101 122 D102 34 D100 : 55

D101 : 122 D102 : 34

ASCII Display

ABCD

D10 : 4241H D11 : 4443H

(BA) (DC)

ASCII Input

A B C D D10 : 4241H

D11 : 4443H

(BA) (DC)

Clock Display

15:27

02/03/18

Comment Display

RUN STOP

Alarm List

02/04/18 13:25:40 RUN STOP

Alarm History

13:25 RUN A STOP 13:05 Hight limit over 13:03 Motor trip

Time message

Floating Alarm

Alarm occur Alarm

(17)

A - 15

4 Parts

5 Graph, Meter

Image Function Page

Display entered device Page 9-1

Displays moving parts Page 9-28

Image Function Page

Displays device data on panel meter Page 10-1

Displays device data in proportional level Page 10-14

Displays device data in trend graph Page 10-28

Displays device data in line graph Page 10-44

Displays device data in bar graph Page 10-59

Displays device data in statistics graph Page 10-71

Displays device data in scatter grap Page 10-81

Collect the device value and edit collected data on PC Page 10-102 Parts Display

Part1 Part2

Parts Movement

Panel meter

Level

Trend Graph

Line Graph

Bar Graph

Statistics Graph

Pie Graph Bar Graph

Scatter Graph

Sampling

(18)

A - 16

6 Trigger action

7 External input/output

Image Function Page

Monitors status of device and write value to device or

operates GOT when condition meets Page 11-1

Monitors status of device and write/read device data

when condition meets Page 11-12

Outputs the device writing and sound at specified time. Page 11-22

Image Function Page

Collects numerical data when condition meets and prints

the numerical data and corresponding code. Page 12-1

Outputs the GOT monitor screen to printer or memory

card Page 12-25

Uses operation panel to execute device writing Page 12-31

Writes data read by barcode reader to device Page 12-39

Outputs sounds Page 12-46

Displays video Page 12-50

Displays PC screens Page 12-68

Status observation function

Write D100 : 0 150

Recipe functioin

Write /Read

D100 : 150 D101 : 300 D102 : 208

Time action function

Report

Hardcopy

Operation panel

X0

Bar code

1350

Sound

Video

RGB display

(19)

A - 17

8 Others

9 Script function

10 Object setting

Image Function Page

Set overlay screen from other screens Page 13-1

Changes device value via test window in monitor screen Page 13-10

Image Function Page

Controls GOT display by scripts Page 14-1

Image Function Page

Operates device values by expression and enables

objects using the operated value Page 5-45

Accumulates the offset device value in monitor device

address and monitor Page 5-52

Restricts the password users Page 5-56

Set overlay screen

Base 1

Base 2 Base 3

Menu

Test

Script if(([b:X1]==OFF)&&([b:X2]==OFF)&&([b:X3]==OFF)) {[w:D10]=1;}

if(([b:X1]==ON)&&([b:X2]==OFF)&&([b:X3]==OFF)) {[w:D10]=2;}

if(([b:X1]==OFF)&&([b:X2]==ON)&&([b:X3]==OFF)) {[w:D10]=3;}

if(([b:X1]==OFF)&&([b:X2]==OFF)&&([b:X3]==ON)) {[w:D10]=4;}

Data operation

D100 D100 : 45

180

Offset

Write to D110

Numerical value input: D100

Offset device: D200 200

10

Security

*****

(20)

A - 18

Data Transmission (GT Designer2 Version Operating Manual)

Print3 (GT Designer2 Version Operating Manual)

Image Function Page

Transimits monitor screen data from PC to GOT Page 5-1

Transmits monitor screen data from GOT to PC Page 5-20

Image Function Page

Print base/window/report screen Page 6-1

Download

Upload

Print screen

(21)

A - 19

Manuals

For relevant manual, refer to the PDF manual stored within the drawing software.

Relevant Manual

(22)

A - 20

ABBREVIATIONS AND GENERIC TERMS IN THIS MANUAL

Abbreviations and generic terms used in this manual are as follows:

GOT

Communication board/communication module

Abbreviations and generic terms Description

GOT-A900 series

A985GOT-V A985GOT-TBA-V, A985GOT-TBD-V

A985GOT A985GOT-TBA, A985GOT-TBD, A985GOT-TBA-EU

A975GOT A975GOT-TBA-B, A975GOT-TBD-B, A975GOT-TBA, A975GOT-TBD,

A975GOT-TBA-EU

A970GOT

A970GOT-TBA-B, A970GOT-TBD-B, A970GOT-TBA, A970GOT-TBD, A970GOT-SBA, A970GOT-SBD, A970GOT-LBA, A970GOT-LBD, A970GOT-TBA-EU, A970GOT-SBA-EU, A970GOT-LBA-EU

A97*GOT A975GOT, A970GOT

A960GOT A960GOT-EBA, A960GOT-EBD, A960GOT-EBA-EU

A956WGOT A956WGOT-TBD

A956GOT A956GOT-TBD, A956GOT-SBD, A956GOT-LBD, A956GOT-TBD-M3,

A956GOT-SBD-M3, A956GOT-LBD-M3, A956GOT-SBD-B, A956GOT-SBD-M3-B

A953GOT-SBD-M3, A953GOT-LBD-M3, A953GOT-SBD-B, A953GOT-SBD-M3-B

A951GOT-SBD-M3, A951GOT-LBD-M3, A951GOT-SBD-B, A951GOT-SBD-M3-B A951GOT-Q A951GOT-QTBD, A951GOT-QSBD, A951GOT-QLBD, A951GOT-QTBD-M3, A951GOT-QSBD-M3, A951GOT-QLBD-M3, A951GOT-QSBD-B, A951GOT-QSBD-M3-B

A950GOT-SBD-M3, A950GOT-LBD-M3, A950GOT-SBD-B, A950GOT-SBD-M3-B A95*handy GOT A950GOT-SBD-M3-H, A950GOT-LBD-M3-H, A953GOT-SBD-M3-H, A953GOT-LBD-M3-H

A95*GOT A956GOT, A953GOT, A951GOT, A951GOT-Q,

A950GOT

GOT-F900 series

F940GOT F940GOT-SWD, F940GOT-LWD, ET-940BH(-L), ET-940PH(-L)

F930GOT-K F930GOT-BBD-K

F930GOT F930GOT-BWD, F933GOT-BWD,

F920GOT-K F920GOT-BBD5-K, F920GOT-BBD-K

F940 handy GOT F940GOT-SBD-H, F940GOT-LBD-H, F940GOT-SBD-RH, F940GOT-LBD-RH, F943GOT-SBD-H, F943GOT-LBD-H, F943GOT-SBD-RH, F943GOT-LBD-RH

F940WGOT F940WGOT-TWD

GOT1000 series Generic name of GOT1000 series

Communication board

Bus connection board

A9GT-QBUSS, A9GT-QBUS2S, A9GT-BUSS, A9GT-BUS2S, A9GT-50WQBUSS, A9GT-50WBUSS

Serial communication board

A9GT-RS4, A9GT-RS2, A9GT-RS2T, A9GT-50WRS2, A9GT-50WRS4

Communication module

Bus connection module

A9GT-QBUS2SU, A9GT-BUSSU, A9GT-BUS2SU, A7GT-BUSS,

A7GT-BUS2S

Data link module A7GT-J71AP23, A7GT-J71AR23, A7GT-J71AT23B

Network module A9GT-QJ71LP23, A9GT-QJ71BR13, A7GT-J71LP23, A7GT-J71BR13 CC-Link

communication module

A8GT-J61BT13, A8GT-J61BT15

Ethernet communication module

A9GT-J71E71-T

(23)

A - 21

Option Module

Option

Software

Option Module

External I/O

module A9GT-70KBF, A8GT-50KBF

Printer interface

module A9GT-50PRF type Memory card

interface module A1SD59J-MIF Video/RGB mixed

input interface module

A9GT-80V4R1

Video input

interface module A9GT-80V4 RGB input

interface module A9GT-80R1

Option

Backlight A9GT-80LTT, A9GT-70LTTB, A9GT-70LTT, A9GT-70LTS,

A9GT-50LT, F9GT-40LTS, F9GT-30LTB

Debug stand A9GT-80STAND, A9GT-70STAND, A9GT-50WSTAND, A9GT-50STAND

Memory board

A9GT-FNB, A9GT-FNB1M, A9GT-FNB2M, A9GT-FNB4M,

A9GT-FNB8M, A9GT-QFNB, A9GT-QFNB4M, A9GT-QFNB8M,

F9GT-40FMB, F9GT-40UMB Ten-key panel A8GT-TK

Bus connector

conversion box A7GT-CNB Bus distance

connector box A9GT-QCNB

Protective sheet A9GT-80PSC, A9GT-70PSC, A9GT-60PSC, A9GT-50WPSC,

A9GT-50PSC, F9WGT-40PSC, F9GT-40PSC, F9GT-30PSC

Attachment A77GT-96ATT, A85GT-95ATT, A87GT-96ATT, A87GT-97ATT

Memory card Flash PC card/Commercially available flash PC card/SRAM type PC card Flash PC card A9GTMEM-10MF, A9GTMEM-20MF, A9GTMEM-40MF Compact Flash

PC card Commercially available flash PC card Connector

conversion box F9GT-HCNB

Software

GT Works2

Version SW D5C-GTWK2-E, SW D5C-GTWK2-EV GT Designer2

Version Abbreviation of SW D5C-GTD2-E

GT Designer2 Abbreviation of GOT900 series graphic software-GT Designer2 GT SoftGOT2 Abbreviation of monitoring software-GT SoftGOT2

GT Converter2 Abbreviation of GOT900 series data conversion software-GT Converter

GX Developer Abbreviation of SW D5C-GPPW(-V)/SW D5F-GPPW(-V) type software package GX Simulator Abbreviation of SW D5C-LLT(-V) type download test tool function software package

(SW5D5C-LLT(-V) or later)

(24)

A - 22

License (for GT SoftGOT, GT SoftGOT2)

CPU

License A9GTSOFT-LKEY-P (for DOS/VPC)

License FD SW5D5F-SGLKEY-J (for PC CPU module)

QCPU

QCPU (Q Mode)

Q00JCPU, Q00CPU, Q01CPU, Q02CPU, Q02HCPU, Q06HCPU, Q12HCPU, Q25HCPU,

Q12PHCPU, Q25PHCPU, Q12PRHCPU, Q25PRHCPU

QCPU (A Mode) Q02CPU-A, Q02HCPU-A, Q06HCPU-A

Remote I/O station

Network module for MELSECNET/H network system remote I/O station (QJ72LP25-25, QJ72LP25G, QJ72BR15)

QnACPU QnACPU type Q2ACPU, Q2ACPU-S1, Q2AHCPU, Q2AHCPU-S1,

Q3ACPU, Q4ACPU, Q4ARCPU

QnASCPU type Q2ASCPU, Q2ASCPU-S1, Q2ASHCPU, Q2ASHCPU-S1

ACPU

AnUCPU A2UCPU, A2UCPU-S1, A3UCPU, A4UCPU

AnACPU A2ACPU, A2ACPU-S1, A3ACPU

AnNCPU A1NCPU, A2NCPU, A2NCPU-S1, A3NCPU

AnCPU type AnUCPU, AnACPU, AnNCPU

AnUS(H)CPU A2USCPU, A2USCPU-S1, A2USHCPU-S1, A3USCPU

AnS(H)CPU A1SCPU, A1SCPUC24-R2, A2SCPU, A2SCPU-S1,

A1SHCPU, A2SHCPU, A2SHCPU-S1

A1SJ(H)CPU A1SJCPU, A1SJCPU-S3, A1SJHCPU

AnSCPU type AnUS(H)CPU, AnS(H)CPU, A1SJ(H)CPU

A1FXCPU A1FXCPU

A0J2HCPU, A2CCPU, A2CCPUC24, A2CJCPU

FXCPU

FX⁰ series, FX^0N series, FX^0S series, FX¹ series, FX^1N series, FX^1NC series, FX^1S series, FX² series, FX^2C series, FX^2N series, FX^2NC series,

FX^(2N)-10GM/20GM series, FX^3UC series FX^3U series

Motion controller CPU

Motion controller

CPU (Q series) Q172CPU, Q173CPU, Q172CPUN, Q173CPUN

Motion controller CPU (A series)

A273UCPU, A273UHCPU, A273UHCPU-S3, A373CPU,

A373UCPU, A373UCPU-S3, A171SCPU, A171SCPU-S3,

A171SCPU-S3N, A171SHCPU, A171SHCPUN, A172SHCPU,

A172SHCPUN, A173UHCPU, A173UHCPU-S1

FA controller LM610, LM7600, LM8000

MELDAS C6/C64 FCA C6, FCA C64

(25)

A - 23

How to Use This Manual

Specification of symbols used in this manual

Indicates the operation steps.

Point Refers to information required for operation.

Refers to information useful for operation.

Refers to supplementary explanations

Shows the items including detailed explanation (manual and the chapter, section, item).

Brackets used for the menu and items differ.

[ ] : Refers to menu in menu bar Refers to dialog box item or GOT utility menu

: Refers to dialog box buttons or PC keyboard.

Remark

(26)

A - 24

Product List

The following shows the product list of GT Works2 or GT Designer2.

SW2D5C-GTWK2-E(V) or

SW2D5C-GTD2-E(V)

About installation method of GT Works2/GT Designer2

End-user software license agreement

Software registration

form License agreement

NOTICES

We don't guarantee the commercially-available Microsoft Windows Operating System-based software products that have been introduced in this manual.

We hold the copyrights of this software package.

No part of this manual may be transcribed or duplicated in any form without prior permission by Mitsubishi Electric Corporation.

We have attempted to cover all the revisions of software and hardware, but this manual may not contain the latest revisions.

The software of this product requires one license to be purchased per computer.

We permit the user to use this software package (including this manual) based on the Software License Agreement.

We are not liable for consequences or influences due to this software package (including this manual).

The specifications of this software package and the descriptions in this manual may be altered in future without prior notice.

End-user software license agreement

Software registration form

License agreement

(27)

1.1 When Conventional Software Is Used 1 - 1

1

OVERVIEW

2

SOFTWARE PACKAGE CONFIGURATION

3

SYSTEM CONFIGURATION

4

INSTALLATION AND UNINSTALLATION

5

HOW TO USE THE ONLINE MANUAL AND HELP

6

WHAT IS THE GOT?

7

CREATING THE MONITOR DATA

8

EXECUTING MONITOR ON THE GOT

1. OVERVIEW

This manual explains the system configuration, installation method and PDF manual viewing method of the GOT900 series drawing software package (GT Works2 Version2, GT Designer2 Version2).

In and after Chapter 7 of this manual, an example of creating simple screens using GT Designer2 will be explained.

For those who uses the GOT for the first time, it is recommended to operate the GOT and GT Designer2 actually in the procedures given in and after Chapter 7 to learn the operation method.

When applying the following program examples to the actual system, make sure to examine the applicability and confirm that it will not cause system control problems.

Remark

About the data created in and after Chapter 7

The monitor data and sequence program created in and after Chapter 7 of this manual are packed with GT Designer2.

Use them as necessary for confirming the set data, etc.

1.1 When Conventional Software Is Used

GT Works2 Version2, GT Designer2 Version2 may not be installed when the conventional GOT900 series software has been installed in the personal computer.

The following describes whether each software can be installed or not when the conventional software has been installed.

1 GT Designer

If GT Designer has been installed in the personal computer, GT Designer2 can be installed.

2 GT SoftGOT

If GT SoftGOT has been installed in the personal computer, GT SoftGOT2 cannot be installed. Before installing GT SoftGOT2, uninstall GT SoftGOT.

3 GT Converter

GT Works2 Version2, GT Designer2 Version2 store latest GT Converter.

When using GT Converter, it is recommended to use GT Converter that is stored in GT Works2 Version2, GT Designer2 Version2.

If GT Converter of GT Designer has been installed in the personal computer, GT Designer2 Version1 can be installed.

(28)

1 - 2 1.2 About Manuals

1.2 About Manuals

Including this manual, there are three different manuals that are related to GT Designer2.

Refer to the corresponding manual according to the purpose of use.

The following manuals are stored in the product in a PDF format.

Startup•Introductory Manual

Describes the installation method of the product.

Also gives an example of creating simple screens and using them on the GOT.

Reference Manual

Describes the object, figure and screen specifications, object setting methods, etc.

Operating Manual

Describes the GT Designer2 screen configuration, screen customizing method, and project creation and data transfer methods.

Purpose Startup•Introductory

Manual Reference Manual Operating Manual

Install the product into the personal computer

Create a project

Create screens

Draw figures

Make common settings

Arrange/set objects

Transfer data to the GOT

Details

Overview Details

(29)

2.1 Software 2 - 1

1

OVERVIEW

2

3

4

5

6

WHAT IS THE GOT?

7

8

2. SOFTWARE PACKAGE CONFIGURATION

This chapter explains the software and data stored in the CD-ROMs of GT Works2 Version2 and GT Designer2 Version2.

2.1 Software

GT Works2 Version2 and GT Designer2 Version2 store the following software programs.

The stored software programs differ between GT Works2 Version2 and GT Designer2 Version2.

: Available — : N/A

Software Name Description GT Works2 GT

Designer2

GOT-1000 series, GOT-900 series software

Creates screens for the GOT1000 series and GOT-900 series.

Enables a PC to operate as the GOT-1000 series.

The license key or license key FD is required to use this software.

Enables a PC to operate as the GOT-A900 series.

The license key or license key FD is required to use this software.

(Operates for about 10 minutes without license key/license key FD.) For the license key or license key FD, please contact your local Mitsubishi service center or representative.

Software that allows the GOT operation to be simulated on a

personal computer connected with GX Simulator or PLC CPU. —

Converts the project data for GOT-800 series or Digital's package data into a GT Designer2 format file.

GT Converter2 is not required to convert the project data for GOT- 900 series to those for GOT1000 series.

Software for the GOT1000 series.

MES interface function on GOT can be used by installing this software on a PC for server.

Creates the data for the GT Designer2 document display function for the GOT-1000 series.

Software for the GOT1000, GOT900, and GOT800 series.

Enables downloading data from a PC and uploading data to a GOT with the PC that GT Designer2 or GOT800 series software is not installed.

GOT-1000 series software

Automatically transfers the recorded files via Ethernet from the GOT with a multimedia unit installed to a personal computer, and displays them as a list.

GT Designer2

GT SoftGOT1000

GT SoftGOT2

GT Simulator2

GT Converter2

MES DB Connection Service

Document Converter

Data Transfer Tool

GT MMData Connector

(30)

2 - 2 2.2 Other Included Data

2.2 Other Included Data

In addition to the software in Section 2.1, GT Works2 Version2 and GT Designer2 Version 2 includes the following data.

The following data are installed into the PC together with GT Designer2, GT Manual 1000 and GT Manual 900.

GOT series Data Description

GOT1000 series

GT15 specific function

sample data Sample screen data for specific function of GT15 . Microcomputer connection

sample data Sample screen data and sample program (C language) for microcomputer connection.

Introduction data

Screen data used for explanation in Chapter 4 of the GT Designer2 Version2 Basic Operation/

Data Transfer Manual.

To operate the screen data actually, write the sequence program stored in the "Ladder" folder to the PLC CPU with GX Developer.

Online manual Online manual related to the GOT1000 series.

It is stored in PDF data format.

GOT900 series

Function-specific sample data for A975GOT

Sample screen data for specific function of A975GOT.

Sample data for F940GOT/

F940WGOT Sample screen data for F940GOT/F940WGOT.

Sample data for

microcomputer connection Sample screen data and sample program (C language) for microcomputer connection.

Introduction data

Screen data used for explanation in Chapter 7 and later of this Manual.

256-color test data Data for checking the color display of the screen data with 256-color pattern settings.

Online manual Online manual related to the GOT900 series.

It is stored in PDF data format.

(31)

2.2 Other Included Data 2 - 3

1

OVERVIEW

2

3

4

5

6

WHAT IS THE GOT?

7

8

After GT Designer2, GT Manual 1000 and GT Manual 900 have been installed, the data are stored into the following folders.

SysLibA900

MELSEC Installation destination folder (Default: *:\MELSEC) GTD2

Example1000 Sample screen data for GOT1000 series Example900 Sample screen data for GOT900 series

Fonts Fonts for GOT1000 series Gmdp Special data for GOT900 series

OS OS for GOT900 series

OS1000 OS for GOT1000 series

Do not delete the folder or touch the folder data.

MANUAL

GT MANUAL

IndexGTM1000-E.pdf INDEX MENU for GOT1000 series related manual IndexGTM900-E.pdf INDEX MENU for GOT900 series related manual GTM1000 GOT1000 series related manual

GTM900 GOT900 series related manual Gmdp1000 Special data for GOT1000 series

SysLib1000 System library data for GOT1000 series System library data for GOT-A900 System library data for GOT-F900 SysLibF900

1 1

1

Library data disclosed on the MELFANS Web page LibraryData

(32)

3 - 1 3.1 System Configuration

3. SYSTEM CONFIGURATION

3.1 System Configuration

The system configuration is shown below.

3.2 Operating Environment

The following tables indicate the operating environment of the GOT900 series software stored in GT Works2 Version2 and GT Designer2 Version2.

1 GT Designer2

The following table indicates the operating environment of GT Designer2.

Item Description

Personal computer PC/AT compatible personal computer that Windows^® runs on

Operating system

Microsoft^® Windows^® 98 Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions) Microsoft^® Windows^® Millennium Edition Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions) Microsoft^® Windows NT^® Workstation 4.0 Operating System Service Pack 3 or later (English, Simplified Chinese, Traditional Chinese, Korean, German versions)^*1 Microsoft^® Windows^® 2000 Professional Operating System Service Pack 4 or later (English, Simplified Chinese, Traditional Chinese, Korean, German versions)^*1 Microsoft^® Windows^® XP Professional Operating System Service Pack 2 or later (English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*2 *4 *5} Microsoft^® Windows^® XP Home Edition Operating System Service Pack 2 or later (English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*2 *4 *5} Microsoft^® Windows Vista^® Ultimate Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*3 *4 *5} Microsoft^® Windows Vista^® Enterprise Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*3 *4 *5} Microsoft^® Windows Vista^® Business Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*3 *4 *5} Microsoft^® Windows Vista^® Home Premium Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*3 *4 *5} Microsoft^® Windows Vista^® Home Basic Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)^{*3 *4 *5} Computer

Refer to "Applicable operating system and performance required for personal computer" on the next page.

CPU Memory

Hard disk space For installation: 1.1GB or more^*7 For execution: 100MB or more

Disk drive CD-ROM drive

GT Works2 Version2 or

GT Designer2 Version2 IBM-PC/AT-compatible

personal computer

(33)

3.2 Operating Environment 3 - 2

1

OVERVIEW

2

3

4

5

6

WHAT IS THE GOT?

7

8

*1: Administrator authority is required for installing GT Designer2.

*2: Administrator authority is required for installing and using GT Designer2.

*3: Administrator authority is required for installing GT Designer2.

A standard user or Administrator account is required for using GT Designer2.

For interactions between GT Designer2 and the other MELSOFT applications, use GT Designer2 under Administrator authority when the other applications are used under Administrator authority.

*4: The following functions are not supported.

y "Compatibility mode" y "Fast user switching"

y "Change your desktop themes (fonts)" y "Remote desktop"

*5: Only the 32-bit OS is available.

*6: For using the MES interface function, a display resolution of 1024 768 dots or more is required.

*7: 800MB or more when using Windows^® 98, Windows^® Millennium Edition or Windows NT^®.

Applicable operating system and performance required for personal computer

Display color High Color (16 bits) or more Display^*6 Resolution 800 600 dots or more

Others Internet Explorer 5.0 or later must be installed.

The mouse, keyboard, printer, and CD-ROM drive must be compatible with the above OS.

Operating system Performance required for personal computer

CPU Memory

Microsoft^® Windows^® 98 Operating System

(English, Simplified Chinese, Traditional Chinese, Korean, German versions)

Pentium^® 200MHz or more 64MB or more

Microsoft^® Windows^® Millennium Edition Operating System (English, Simplified Chinese, Traditional Chinese, Korean, German versions)

Microsoft^® Windows NT^® Workstation 4.0 Operating System Service Pack3 or later

Microsoft^® Windows^® 2000 Professional Operating System Service Pack4 or later

Microsoft^® Windows^® XP Professional Operating System Service Pack2 or later

Microsoft^® Windows^® XP Home Edition Operating System Service Pack2 or later

Pentium II^® 300MHz or more 128MB or more

Microsoft^® Windows Vista^® Ultimate Operating System

Microsoft^® Windows Vista^® Enterprise Operating System

Microsoft^® Windows Vista^® Business Operating System

Microsoft^® Windows Vista^® Home Premium Operating System (English, Simplified Chinese, Traditional Chinese, Korean, German versions)

Microsoft^® Windows Vista^® Home Basic Operating System (English, Simplified Chinese, Traditional Chinese, Korean, German versions)

800MHz or more (Recommended: 1GHz or

more)

512MB or more (Recommended: 1GB or

more)

Item Description
