Polymer photovoltaic devices with highly transparent cathodes

(1)

Letter

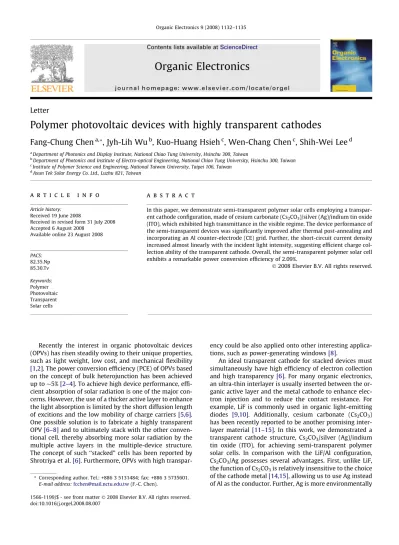

Polymer photovoltaic devices with highly transparent cathodes

Fang-Chung Chen

a,*

_{, Jyh-Lih Wu}

b

_{, Kuo-Huang Hsieh}

c

_{, Wen-Chang Chen}

c

_{, Shih-Wei Lee}

d

a

Department of Photonics and Display Institute, National Chiao Tung University, Hsinchu 300, Taiwan

b

Department of Photonics and Institute of Electro-optical Engineering, National Chiao Tung University, Hsinchu 300, Taiwan

c

Institute of Polymer Science and Engineering, National Taiwan University, Taipei 106, Taiwan

d

Axun Tek Solar Energy Co. Ltd., Luzhu 821, Taiwan

a r t i c l e

i n f o

Article history: Received 19 June 2008

Received in revised form 31 July 2008 Accepted 6 August 2008

Available online 23 August 2008

PACS: 82.35.Np 85.30.Tv Keywords: Polymer Photovoltaic Transparent Solar cells

a b s t r a c t

In this paper, we demonstrate semi-transparent polymer solar cells employing a transpar-ent cathode configuration, made of cesium carbonate (Cs2CO3)/silver (Ag)/indium tin oxide (ITO), which exhibited high transmittance in the visible regime. The device performance of the semi-transparent devices was significantly improved after thermal post-annealing and incorporating an Al counter-electrode (CE) grid. Further, the short-circuit current density increased almost linearly with the incident light intensity, suggesting efficient charge col-lection ability of the transparent cathode. Overall, the semi-transparent polymer solar cell exhibits a remarkable power conversion efficiency of 2.09%.

Recently the interest in organic photovoltaic devices (OPVs) has risen steadily owing to their unique properties, such as light weight, low cost, and mechanical ﬂexibility

[1,2]. The power conversion efﬁciency (PCE) of OPVs based

on the concept of bulk heterojunction has been achieved up to 5%[2–4]. To achieve high device performance, efﬁ-cient absorption of solar radiation is one of the major con-cerns. However, the use of a thicker active layer to enhance the light absorption is limited by the short diffusion length of excitions and the low mobility of charge carriers[5,6]. One possible solution is to fabricate a highly transparent

OPV[6–8]and to ultimately stack with the other

conven-tional cell, thereby absorbing more solar radiation by the multiple active layers in the multiple-device structure. The concept of such ‘‘stacked” cells has been reported by Shrotriya et al.[6]. Furthermore, OPVs with high

transpar-ency could be also applied onto other interesting applica-tions, such as power-generating windows[8].

An ideal transparent cathode for stacked devices must simultaneously have high efﬁciency of electron collection and high transparency[6]. For many organic electronics, an ultra-thin interlayer is usually inserted between the or-ganic active layer and the metal cathode to enhance elec-tron injection and to reduce the contact resistance. For example, LiF is commonly used in organic light-emitting diodes [9,10]. Additionally, cesium carbonate (Cs2CO3)

has been recently reported to be another promising inter-layer material [11–15]. In this work, we demonstrated a transparent cathode structure, Cs2CO3/silver (Ag)/indium

tin oxide (ITO), for achieving semi-transparent polymer solar cells. In comparison with the LiF/Al conﬁguration, Cs2CO3/Ag possesses several advantages. First, unlike LiF,

the function of Cs2CO3is relatively insensitive to the choice

of the cathode metal[14,15], allowing us to use Ag instead of Al as the conductor. Further, Ag is more environmentally

* Corresponding author. Tel.: +886 3 5131484; fax: +886 3 5735601. E-mail address:[email protected](F.-C. Chen).

Organic Electronics 9 (2008) 1132–1135

Contents lists available atScienceDirect

Organic Electronics

(2)

stable than Al. From the other view point of optical proper-ties, the skin depth of Ag (13 nm) is longer than that of Al (7 nm) in the visible range. As a result, a thicker Ag film can be deposited to reduce the sheet resistance without compromising the light transmittance. In addition, the thicker Ag film can also provide more effective protection of the polymer films from the damage caused by ITO sputtering.

The devices were fabricated on patterned indium tin oxide (ITO)-glass substrates. After cleaning, the ITO glass was dried in an oven and then treated with UV-ozone. By spin coating, the substrates were covered with a thin layer of poly(3,4-ethylenedioxythiophene):poly(styrenesulfo-nate) (PEDOT:PSS), and were subsequently baked at 120 °C for 1 h. The active layer, consisting of poly(3-hexyl thiophene) (P3HT) and [6,6]-phenyl-C61-butyric acid

methyl ester (PCBM) dissolved in 1,2-dichlorobenzene (DCB) with a weight ratio of 1:1, was spin-coated on the top of PEDOT:PSS. The polymer blend was thermally an-nealed at 110 °C for 15 min. To complete the device, an ul-tra-thin interlayer of Cs2CO3 (1 nm) and Ag were

thermally evaporated under a vacuum of 6 106_torr,

sequentially, and ﬁnally capped by rf sputtered ITO. The ITO sputtering was conducted at a power of 50 W under Ar atmosphere (3 103_{torr). The optimization of the}

thicknesses of Ag and ITO is quite crucial, since there was a trade-off between the sheet resistance and the transmit-tance of the electrode. After trying various thicknesses of Ag and ITO, it was found that the optimum thicknesses for Ag and ITO were 7 nm and 100 nm, respectively. In or-der to reduce the sheet resistance of the transparent cath-ode, a 60-nm thick Al counter-electrode (CE) grid was incorporated by thermal evaporation. The areas of the CE grid and the overall device deﬁned through various sha-dow masks were 0.6 mm2_{(0.12 mm5 mm) and 12 mm}2

(2 mm6 mm), respectively. The detailed schematic illus-tration for the device structure is presented inFig. 1. For some devices, the thermal post-annealing at 140 °C for 5 min was further performed in the glove box. The current density–voltage (J–V) characteristics of the devices were measured utilizing a Keithley 2400 source-measure unit. The photocurrent was obtained under illumination from

a 150 W Thermal Oriel solar simulator (AM 1.5G). The illu-mination intensity was calibrated using a standard Si pho-todiode with a KG-5 ﬁlter (Hamamatsu, Inc.) [16]. The transmittance of the transparent cathode was measured using a Perkin Elmer Lamda 950 ultraviolet/visible/near infrared spectrometer.

Fig. 2shows the J–V characteristics of the polymer solar cells under illumination in this work. The open-circuit voltage (Voc), short-circuit current density (Jsc) and ﬁll

factor (FF) of the as-made semi-transparent OPV (Device I) with a structure of ITO/PEDOT:PSS/P3HT:PCBM/Cs2CO3/

Ag(7 nm)/ITO(100 nm) were 0.45 V, 3.72 mA/cm2_{, and}

23.24%, respectively, resulting in a PCE of 0.39%. The poor performance of the semi-transparent device was probably due to the physical damage of the polymer blends caused by ITO sputtering as well as the relatively high sheet resis-tance of the cathode (Ag/ITO). Nevertheless, after Device I was post-annealed at 140 °C for 5 min, the device perfor-mance was dramatically improved (Device II inFig. 2). In fact, post-annealing has been proposed to enhance the de-vice performance of OPVs by several research groups

[3,17–19]. Since no obvious variation in absorption was

observed after the post-annealing treatment, we also attri-bute the enhanced PCE to the improvement of the organ-ics/cathode interface as well as the increased charge mobility[3,17–19].

To understand the nature of charge transport in OPVs, the Jsc dependence on the incident light intensity (Pin)

was further studied.Fig. 3a clearly shows that the Jsc

fol-lowed a power-law dependence, Jsc/ (Pin)s. After the

post-annealing treatment, the exponential factor (s) de-duced from the linear ﬁt to the experimental data rose from 0.71 to 0.86. However, this value is still a little lower than that of the device with Cs2CO3/Ag(100 nm) cathode

(s = 0.95, not shown here). This is probably due to the rel-atively higher sheet resistance of the cathode (Ag/ITO). In

Fig. 1. (a) Device structure of the transparent polymer solar cells incorporating the Al counter-electrode (CE) grid in this study. (b) Detailed schematic illustration for the Al CE grid.

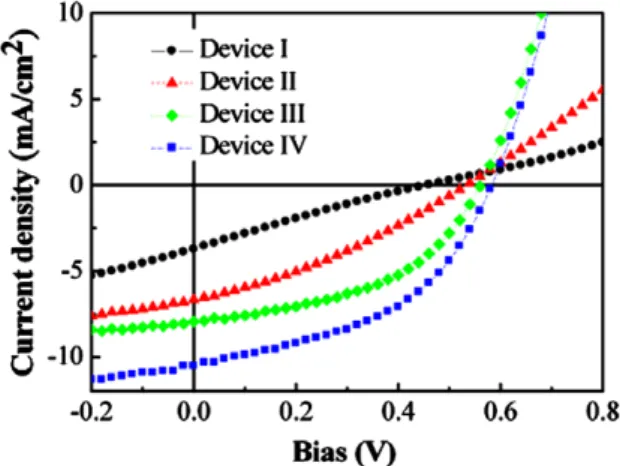

Fig. 2. J–V characteristics of semi-transparent polymer solar cells in this study under 100 mW/cm2

illumination (AM 1.5G). Device I: the as-made device (d); Device II: Device I with post-annealing treatment (N); Device III: Device II incorporating an Al CE grid (); Device IV: Device III with an Ag mirror underneath when illuminating (j). Note that the photoactive layers for all the devices were thermally annealed at 110 °C for 15 min and post-annealing was performed at 140 °C for 5 min for Device II, III, and IV.

(3)

order to overcome this problem, an Al counter-electrode (CE) grid with 5% shadow fraction was utilized to reduce the sheet resistance of the cathode. After incorporating the CE grid (Device III), the FF of the semi-transparent OPV was notably improved, yielding a PCE of 2.09% (Device III inFig. 2). Furthermore, the exponential factor was also raised to 0.94, indicating the absence of space charges in the devices[20,21]. This assumption can be further con-ﬁrmed from the dependence of the efﬁciency on the illumi-nation intensity (Fig. 3b). Unlike Device I or Device II, which showed a negative correlation once the intensity was larger than 30 mW/cm2_{, Device III exhibited rather}

stable efﬁciencies at higher intensities. The incident photo-to-electron conversion efﬁciency (IPCE) curves for the four devices are also depicted inFig. 4. Device III, as ex-pected, exhibited higher IPCE than Device I or II. It is worth noticing that the PCE of Device III can be further improved to 2.83% by placing an Ag mirror behind the device while illuminating (Device IV). The improved PCE is believed to be attributed to the reduced photo loss through the trans-parent cathode. This somehow explained why the semi-transparent OPVs are typically inferior to conventional de-vices with thick metals as the cathodes. All the photovol-taic characteristics are summarized inTable 1.

Fig. 5 displays the transmittance spectrum of the

Cs2CO3/Ag(7 nm)/ITO(100 nm) transparent cathode. As

shown in Fig. 5, the transparent cathode exhibited high transmittance (70%) in the visible regime. Further, we noted that the incorporation of a 5% CE grid did not signif-icantly diminish the transparency. Assuming that the CE grid is completely opaque, the simulated transmittance spectrum for the transparent cathode with an Al CE grid (Tsimu.) can be obtained by the following relationship:

Tsimu.= Tmea. (1

s

s), where

s

sis the area fraction of the

CE grid (

s

s= 0.05 in our case). As a consequence, with the

help of the CE grid, the PCE of semi-transparent OPVs can

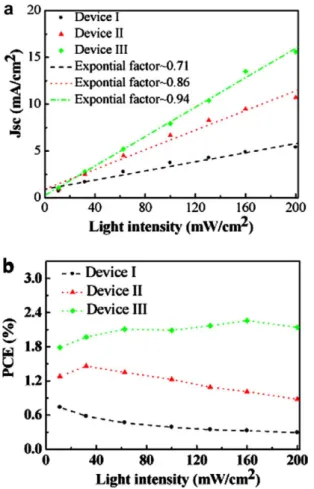

Fig. 3. (a) Short-circuit current density (Jsc), and (b) power conversion

efﬁciency (PCE) as a function of incident light intensity (Pin).

Fig. 4. The incident photo-to-electron conversion efﬁciency (IPCE) curves.

Table 1

The photovoltaic characteristics of the polymer solar cells in this study Voc(V) Jsc(mA/cm2) FF (%) PCE (%)

Device I 0.45 3.72 23.24 0.39 Device II 0.55 6.66 33.50 1.23 Device III 0.57 7.93 46.24 2.09 Device IV 0.59 10.50 45.68 2.83

Fig. 5. The transmittance spectrum of the Cs2CO3/Ag(7 nm)/ITO(100 nm)

transparent cathode and the simulated transmittance spectrum of transparent cathode with a 5% Al CE grid. The inset shows the picture of the semi-transparent device.

(4)

be signiﬁcantly enhanced without dramatically sacriﬁcing the overall transmittance. This is of much importance for some applications, such as stacked cells or tandem cells.

In conclusion, we demonstrated semi-transparent poly-mer solar cells comprising a Cs2CO3/Ag/ITO structure as the

transparent cathode. We also found that the device perfor-mance of the semi-transparent OPVs can be signiﬁcantly improved through the post-annealing treatment. Further, with the help of the Al CE grid, the semi-transparent OPV exhibited a power conversion efﬁciency of 2.09%.
