Fast query evaluation through document identiﬁer

assignment for inverted ﬁle-based

information retrieval systems

Cher-Sheng Cheng

*

_{, Chung-Ping Chung, Jean Jyh-Jiun Shann}

Department of Computer Science and Information Engineering, National Chiao Tung University, Hsinchu 30050, Taiwan, ROC Received 8 December 2004

Available online 28 June 2005

Abstract

Compressing an inverted file can greatly improve query performance of an information retrieval system (IRS) by reducing disk I/Os. We observe that a good document identifier assignment (DIA) can make the document identifiers in the posting lists more clustered, and result in better compression as well as shorter query processing time. In this paper, we tackle the NP-complete problem of finding an optimal DIA to minimize the average query processing time in an IRS when the probability distribution of query terms is given. We indicate that the greedy nearest neighbor (Greedy-NN) algorithm can provide excellent performance for this problem. However, the Greedy-NN algorithm is inappropriate if used in large-scale IRSs, due to its high complexity O(N2· n), where N denotes the number of docu-ments and n denotes the number of distinct terms. In real-world IRSs, the distribution of query terms is skewed. Based on this fact, we propose a fast O(N· n) heuristic, called partition-based document identifier assignment (PBDIA) algo-rithm, which can efficiently assign consecutive document identifiers to those documents containing frequently used query terms, and improve compression efficiency of the posting lists for those terms. This can result in reduced query processing time. The experimental results show that the PBDIA algorithm can yield a competitive performance versus the Greedy-NN for the DIA problem, and that this optimization problem has significant advantages for both long queries and parallel information retrieval (IR).

Keywords: Inverted index; Inverted ﬁle compression; Query evaluation; Document identiﬁer assignment; d-Gap technique

*

Corresponding author. Tel.: +886 3 573 1828; fax: +886 3 572 4176.

E-mail addresses:[email protected](C.-S. Cheng),[email protected](C.-P. Chung),[email protected](J.J.-J. Shann).

(2)

1. Introduction

Information retrieval systems (IRSs) that are wildly used in many applications, such as search engines, digital libraries, genomic sequence analyses, etc. (Kobayashi & Takeda, 2000; Williams & Zobel, 2002), are overwhelmed by the explosion of data. To efficiently search vast amounts of data, an inverted file is used to evaluate queries for modern large-scale IRSs due to its quick response time, high compression effi-ciency, scalability, and support for various search techniques (Witten, Moffat, & Bell, 1999; Zobel, Moffat, & Ramamohanarao, 1998). An inverted file contains, for each distinct term in the collection, a list (called a posting list or synonymously an inverted list) of the identifiers of the documents containing that term. A query consists of keyword terms. To retrieve information, the query evaluation engine reads and decom-presses the posting lists for the terms involved in the query, and then merges (intersection, union, or differ-ence) corresponding posting lists to obtain a candidate set of relevant documents.

Compressing an inverted file can greatly increase query throughput (Williams & Zobel, 1999; Zobel & Moffat, 1995). This is because the total time of transferring a compressed posting list and subsequently decompressing it is potentially much less than that of transferring an uncompressed posting list. The doc-ument identifiers in a posting list are usually stored in ascending order. By using the popular d-gap com-pression approach (Moffat & Zobel, 1992; Witten et al., 1999), efficient compression of an inverted file can be achieved. In addition, we observe that the d-gap compression approach can result in good compres-sion if the document identifiers in the posting lists are clustered.

The query processing time in a large-scale IRS is dominated by the time needed to read and decompress the posting lists for the terms involved in the query (Moﬀat & Zobel, 1996), and we observe that the query processing time grows with the total encoded size of the corresponding posting lists. This is because the disk transfer rate is near constant, and the decoding processes of most encoding methods used in the d-gap com-pression approach are on a bit-by-bit basis. If we can reduce the total encoded size of the corresponding posting lists without increasing decompression times, a shorter query processing time can be obtained.

A document identifier assignment (DIA) can make the document identifiers in the posting lists evenly dis-tributed, or clustered. Clustered document identifiers generally can improve the compression efficiency of the d-gap compression approach without increasing the complexity of decoding process, hence reduce the query processing time. In this paper, we consider the problem of finding an optimal DIA to minimize the average query processing time in an IRS when the probability distribution of query terms is given. The DIA problem, that is known to be NP-complete via a reduction to the rectilinear traveling salesman problem (TSP), is a generalization of the problems solved by Olken and Rotem (1986), Shieh, Chen, Shann, and Chung (2003), andGelbukh, Han, and Sidorov (2003). Their research results showed that this kind of opti-mization problem can be effectively solved by the well-known TSP heuristic algorithms. The greedy nearest neighbor (Greedy-NN) algorithm performs the best on average, but its high complexity discourages its use in modern large-scale IRSs.

In this paper, we propose a fast heuristic, called partition-based document identifier assignment (PBDIA) algorithm, to find a good DIA that can make the document identifiers in the posting lists for frequently used query terms more clustered. This can greatly improve the compression efficiency of the posting lists for frequently used query terms. Where the probability distribution of query terms is skewed, as is the typ-ical case in a real-world IRS, the experimental results show that the PBDIA algorithm can yield a compet-itive performance versus the Greedy-NN for the DIA problem. The experimental results also show that the DIA problem has significant advantages for both long queries and parallel information retrieval (IR).

The remainder of this paper is organized as follows. Section 2 describes the inverted index and explains why a DIA can aﬀect the storage space required and change query performance. Section 3 derives a cost model for the DIA problem, and presents how to use the well-known TSP heuristic algorithms to solve this optimization problem. In Section 4, we propose a fast PBDIA algorithm. We show the experimental results in Section 5. Finally, Section 6 presents our conclusion.

(3)

2. General framework

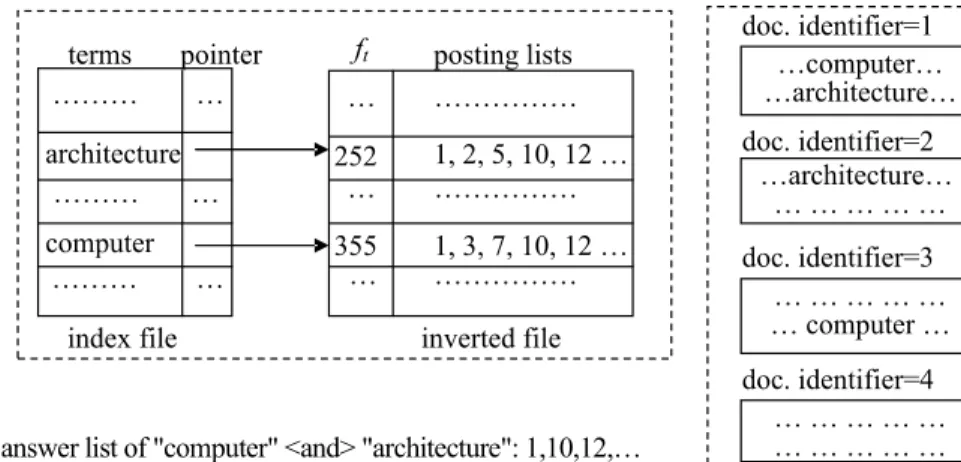

The data structures of an inverted index are depicted inFig. 1. An inverted index consists of an index file and an inverted file. An index file is a set of records, each containing a keyword term t and a pointer to the posting list for term t. An inverted file contains, for each distinct term t in the collection, a posting list of the form

ILt¼ hid1;id2; . . . ;idfti;

where idiis the identiﬁer of the document that contains t, and frequency ftis the number of documents in

which t appears. The document identiﬁers are within the range 1, . . ., N, where N is the number of docu-ments in the indexed collection. In a large document collection, posting lists are usually compressed, and decompression of posting lists is hence required during query processing.

Zipf (1949)observed that the set of frequently used terms is small. According to ZipfÕs law, 95% of words in all documents fall in a vocabulary with no more than 8000 distinct terms. This suggests that it is advis-able to store the index records of frequently used terms in RAM to greatly reduce index search time. Hence, the significant portion of query processing time is to read and decompress the compressed posting list for each query term. This paper restricts attention to inverted file side only and investigates the DIA problem to improve the efficiency of an inverted file and the overall IR performance.

The d-gap compression approach (Moffat & Zobel, 1992; Witten et al., 1999), the most popular ap-proach for inverted file compression, consists of two steps. It first sorts the document identifiers of each posting list in increasing order, and then replaces each document identifier (except the first one) with the distance between itself and its predecessor. For example, the posting listÆ3, 8, 12, 15, 32æ can be represented in d-gaps asÆ3, 5, 4, 3, 17æ. And the second step is to encode (compress) these d-gaps using an appropriate coding method. Many coding methods, such as c coding (Elias, 1975), Golomb coding (Golomb, 1966; Wit-ten et al., 1999), skewed Golomb coding (Teuhola, 1978), and batched LLRUN coding (Fraenkel & Klein, 1985), have been proposed to compress posting lists through the estimates of d-gap probability distribu-tions. The more accurately the estimate, the greater the compression can be achieved.

One common characteristic of coding methods used in the gap compression approach is that small d-gap values can be coded more economically than large ones. If we can shrink the d-d-gap values, the com-pression ratio and query performance can be improved. Consider a document collection of six documents

(4)

shown inFig. 2(a). Each document contains one or more terms. For example, the document d1contains

terms 1 and 2, document d2contains term 2, etc. InFig. 2(b) and (c), the notation di! j in DIAs I and

II denotes that the document identiﬁer j is assigned to the document di. According to the documents in Fig. 2(a) and the DIAs I and II, the obtained posting lists and d-gap lists are shown in Fig. 2(b) and (c). For DIA I, the d-gap values have nine 1s, two 2s, two 3s and one 4; whereas for DIA II, the d-gap values have eleven 1s, one 2 and two 3s. With c coding inTable 1, the compressed inverted ﬁle requires 26 bits for DIA I, whereas it requires 20 bits for DIA II. If every term is queried with equal probability, the query pro-cessing costs for DIA II will be much lower than that of DIA I. This is because DIA II can result in better compression for the given coding method without increasing the complexity of decoding process, hence

(a)

(b)

(c)

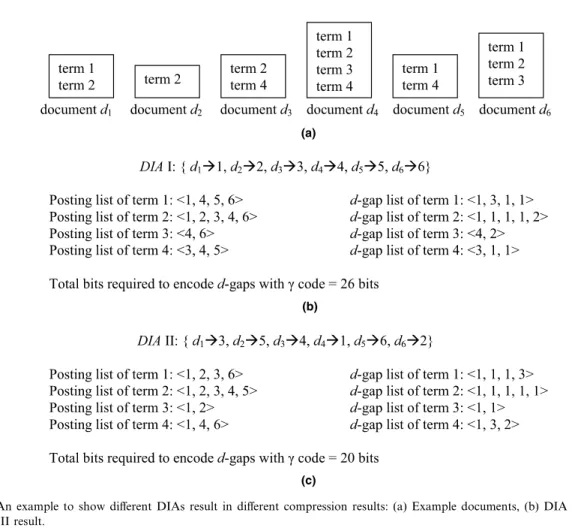

Fig. 2. An example to show diﬀerent DIAs result in diﬀerent compression results: (a) Example documents, (b) DIA I result, and (c) DIA II result.

Table 1

Some example codes for c coding

d-gap value x ccode

1 0

2 10 0

3 10 1

(5)

improve query throughput by reducing both the retrieval and decompression times of posting lists. This example shows that different DIAs can result in different compression results and different query through-puts for a given coding method. In next section, we will introduce a query cost function for the DIA prob-lem, and then derive a method to find a good DIA to shorten average query processing time when the probability distribution of query terms is given.

3. Document identiﬁer assignment problem and its algorithm

The DIA problem is the problem of assigning document identifiers to a set of documents in an inverted file-based IRS in order to minimize the average query processing time when the probability distribution of query terms is given. In this section, we first formalize the problem, and then show how to use the well-known greedy nearest neighbor (Greedy-NN) algorithm to solve this problem.

3.1. Problem mathematical formulation

Let D = {d1, d2, . . ., dN} be a collection of N documents to be indexed, and p : {d1, d2, . . ., dN}!

{1, 2, . . ., N} be a DIA that assigns a unique identiﬁer within the range 1, . . ., N to each document in D. Let ftbe the total number of documents in which term t appears and dtð1Þ; dtð2Þ; . . . ; dtðftÞbe documents

con-taining term t, then the posting list of the term t can be represented as ILt¼

pðdtð1ÞÞ; pðdtð2ÞÞ; . . . ; pðdtðftÞÞ

. Without loss of generality, we assume that pðdtð1ÞÞ < pðdtð2ÞÞ < < pðdtðftÞÞ. Assume a coding method

C which requires C(x) bits to encode a d-gap x. The size of a posting list ILt for term t can then be

expressed as Xft

i¼1

CpðdtðiÞÞ pðdtði1ÞÞ; ð1Þ

where we let dt(0)= 0 and p(dt(0)) = 0 to simplify the expression of Eq.(1). Assume that the probability of a

term t appearing in a query is pt. Let Xtbe a random Boolean variable representing whether term t appears

in a query: Xt= 1 if term t appears in a query and Xt= 0 otherwise. The query processing time TimeQPof

posting list processing includes (1) retrieval time TimeRof posting list ILtfor each query term t, (2)

decom-pression time TimeDof posting list ILtfor each query term t, and (3) document identiﬁer comparison time

TimeComp. Since the document identiﬁer comparison time is relatively small (about 10% of query processing

time) and does not change with diﬀerent DIAs, the query processing time in this paper is deﬁned only as

TimeQP¼

X

t

Xt Timeð RðILtÞ þ TimeDðILtÞÞ. ð2Þ

The average query processing time AvgTimeQPis the expected value of TimeQP. That is,

AvgTime_QP¼X

t

p_t Timeð RðILtÞ þ TimeDðILtÞÞ. ð3Þ

Since the disk transfer rate is near constant and the decoding processes of most coding methods used in d-gap compression approach are on a bit-by-bit basis, the retrieval and decompression times of a posting list ILtfor the term t appearing in a query grows with the size of the posting list ILt. So

TimeRðILtÞ þ TimeDðILtÞ ¼ constant

Xft i¼1

C pðdtðiÞÞ pðdtði1ÞÞ

(6)

Substituting Eq.(4)into Eq.(3), we obtain AvgTime_QP ¼ constant X t p_t X ft i¼1 C pðdtðiÞÞ pðdtði1ÞÞ . ð5Þ

We thus deﬁne the objective function Cost(p) to reﬂect the average query processing time AvgTimeQP:

CostðpÞ ¼X t p_t X ft i¼1 C pðdtðiÞÞ pðdtði1ÞÞ . ð6Þ

The objective of this research is to ﬁnd a DIA p : D! {1, 2, 3, . . ., N} such that Cost(p) is minimal. This opti-mization problem is called the DIA problem, and it is reduced to the simple DIA (SDIA) problem if the value of ptfor each term t is set to 1. The SDIA problem is the problem of ﬁnding a DIA to minimize

the size of inverted ﬁle, and it is known to be NP-complete via a reduction to the rectilinear traveling sales-man problem (Olken & Rotem, 1986). Since the DIA problem is a generalization of the SDIA problem, the DIA problem is also a NP-complete problem.

3.2. Solving DIA problem via the well-known Greedy-NN algorithm

The research works ofShieh et al. (2003) and Gelbukh et al. (2003)indicated that ﬁnding the near-opti-mal solution for the SDIA problem can be recast as the traveling salesman problem (TSP), and also showed that heuristic algorithms for the TSP can be applied to the SDIA problem to ﬁnd a near-optimal DIA. Compared with those well-known TSP heuristic algorithms, such as insertion heuristic algorithm and span-ning tree based algorithm,Shieh et al. (2003)showed that the Greedy-NN algorithm performs better for the SDIA problem on average. In Section 3.2.1, we show how to solve the SDIA problem using the Greedy-NN algorithm. Then, in Section 3.2.2, we show how to transform the DIA problem into the SDIA problem, and explain why the Greedy-NN algorithm can provide better performance than the other TSP heuristic algo-rithms for the DIA problem.

3.2.1. Solving SDIA problem via Greedy-NN algorithm

Shieh et al. (2003) showed that the SDIA problem can be solved by using TSP heuristic algorithms. Given a collection of N documents, a document similarity graph (DSG) can be constructed. In a DSG, each vertex represents a document, and the weight on an edge between two vertices represents the similarity of these two corresponding documents. The similarity Sim(di, dj) between two documents diand djis deﬁned as

Simðdi; djÞ ¼

X

t2ðT ðdiÞ\T ðdjÞÞ

1; ð7Þ

where T(di) and T(dj) denote the set of terms appearing in diand dj, respectively, and\ denotes the

inter-section operator. Hence, the similarity between two documents is the number of common terms appearing in both documents. The DSG for the example documents inFig. 2(a) is shown inFig. 3. A TSP heuristic algorithm can then be used to find a path of the DSG visiting each vertex exactly once with maximal sum of similarities. If we follow the visiting order of vertices on the path to assign document identifiers, the sum of d-gap values for an inverted file can be decreased, and the size of inverted file compressed via the d-gap compression approach can be reduced. Shieh et al. (2003) showed that the Greedy-NN algorithm (Fig. 4) can provide excellent performance for the SDIA problem.

We now show how to obtain a DIA for the DSG described inFig. 3using the Greedy-NN algorithm, where V = {d1, d2, d3, d4, d5, d6}. In Step 1, we pick d4as v1since the sum of similarity values associated with

its adjacent edges is maximal (=10). In Step 2, we have V0_{= {d}

1, d2, d3, d5, d6}. In Step 3, we pick d6as v2

since d6is the vertex v in V0such that the edge (v, v1) has the maximal similarity value. In Step 4, we have

V0_{= {d}

(7)

and d5 as v6. Hence, we have a TSP path: {d4, d6, d1, d3, d2, d5}, and a DIA p = {d1! 3, d2! 5,

d3! 4, d4! 1, d5! 6, d6! 2}.

3.2.2. Transforming DIA problem into SDIA problem

We use a matrix A to represent the input document collection, in which a row corresponds to a term and a column corresponds to a document. The entry Ai,jis a 1 if term i appears in document dj, and 0 otherwise.

The SDIA problem is to determine whether there exists a permutation of the columns of A that results in a matrix B such that

Xn i¼1

Xfi j¼2

C zði; jÞ zði; j 1Þð Þ þ Cðzði; 1ÞÞ !

6_k; _ð8Þ

Fig. 3. DSG for the example documents inFig. 2(a).

(8)

where C is a coding method which requires C(x) bits to encode a d-gap x, n is the number of terms, fiis the

total number of documents in which term i appears, z(i, j) is a function that returns the column index of the jth nonzero entry at row i, and k is a given integer used to determine whether there exists a permutation of columns of A such that the total encoded size of an inverted ﬁle is less than k. The DIA problem is to deter-mine whether there exists a permutation of the columns of A that results in a matrix B such that

Xn i¼1

p_i X

fi

j¼2

C zði; jÞ zði; j 1Þð Þ þ Cðzði; 1ÞÞ !

6_k0_; _ð9Þ

where pi is the probability of a term i appearing in a query and k0 is a given integer used to determine

whether there exists a permutation of columns of A such that the mean encoded size needed to read and decompress a posting list during query processing is less than k0_.

To show how to transform the DIA problem into the SDIA problem, we use the document collection in

Fig. 2(a) as an example instance of the DIA problem, and assume that the probabilities of terms being que-ried are p1= 0.2, p2= 0.3, p3= 0.1, and p4= 0.4.Fig. 5(a) shows the matrix A of Fig. 2(a). Then we

con-struct a new matrix A0 _{for the SDIA problem by duplicating each row of matrix A in a certain number}

of times based on the given probabilities of terms appearing in a query, as shown in Fig. 5(b). In matrix A0_{, the row of matrix A corresponding to term i is duplicated m}

i times, where mi= rows(A0)· pi and

rows(A0_{) denotes the number of rows of matrix A}0_{. The rows(A}0_{) can be any positive integer such that}

mi= rows(A0)· piis an integer for every i. In this example, we let rows(A0) be 10. One can easily show that

the optimal solution of matrix A0 _{for the SDIA problem is also the optimal solution of matrix A for the}

DIA problem when the probabilities p1= 0.2, p2= 0.3, p3= 0.1, and p4= 0.4 are given.

(a)

(b)

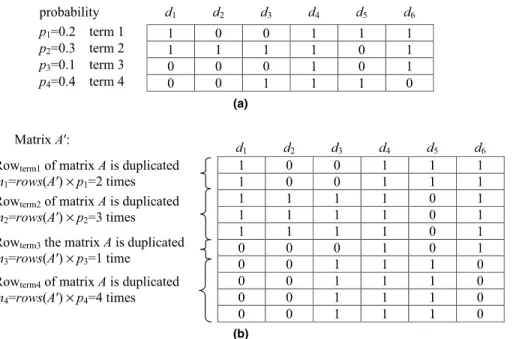

Fig. 5. An example to illustrate how to transform an instance of the DIA problem into an instance of the SDIA problem. (a) An example instance for the DIA problem: Matrix A corresponds to the document collection inFig. 2(a), and the probabilities of terms appearing in a query are p1= 0.2, p2= 0.3, p3= 0.1, and p4= 0.4. (b) (b) Matrix A0is the corresponding instance of (a) for the SDIA problem. In matrix A0_{, Row}

term iof matrix A is duplicated mitimes, where mi= rows(A0)· piand rows(A0) denotes the number of rows of matrix A0_.

(9)

Using the same approach, it is obvious that one can transform any instance A of the DIA problem into an instance A0_{of the SDIA problem such that the optimal solution of matrix A}0_{for the SDIA problem is}

also the optimal solution of matrix A for the DIA problem when the probabilities pifor 1 6 i 6 n are given,

where n denotes the number of distinct terms. Since the research work ofShieh et al. (2003)showed that the NN algorithm performs the best for the SDIA problem on average, one can show that the Greedy-NN algorithm can provide better performance than the other TSP heuristic algorithms for the DIA prob-lem. Therefore, the DIA problem can be solved using the Greedy-NN algorithm described inFig. 4, if the similarity Sim(di, dj) between two documents diand dj in a DSG is redeﬁned as

Simðdi; djÞ ¼

X

t2ðT ðdiÞ\T ðdjÞÞ

p_t; ð10Þ

where the probability of a term t appearing in a query is known to be pt.

Although the Greedy-NN algorithm is very simple to implement, it is not very applicable to large-scale IRSs due to its high complexity. Given a collection of N documents and n distinct terms, the number of comparisons for calculating Sim(di, dj) given ﬁxed i and j is O(n), hence the total number of comparisons

to construct a DSG for the Greedy-NN algorithm is O(N2· n). An algorithm with lower complexity yet still generates satisfactory results should be developed.

4. Partition-based document identiﬁer assignment algorithm

Since the DIA problem is an NP-complete problem, the effort in search for an effective low-complexity method is needed. Although the Greedy-NN algorithm can be used to solve the DIA problem, its complex-ity is too high. In this section, we first present an optimal DIA algorithm for a single query term, and then propose an efficient partition-based document identifier assignment (PBDIA) algorithm for the DIA problem.

4.1. Generating an optimal DIA for a single query term

Consider a posting list ILtfor term t with ftdocument identiﬁers in a collection of N documents. Using

the d-gap technique, we can obtain ftd-gap values: d-gap1; d-gap2; . . . ; d-gapft. Assume a coding method C

which requires C(x) bits to encode a d-gap x. We want to know which d-gap probability distribution can minimize the size of posting list ILtafter compression using method C. That is, we want to know which

d-gap probability distribution can minimize Xft i¼1 Cðd-gapiÞ ð11Þ subject to ft6 Xft i¼1 d-gapi6k ð12Þ and

1 6 d-gap_i6_k _{for all i; 1 6 i 6 k;} _ð13Þ

where k is the largest document identiﬁer in the posting list ILt. It is known that C(x) is approximately

pro-portional to log2(x) for many popular coding methods, such as c coding, skewed Golomb coding, and

(10)

Dreyfus, 1962) and ﬁnd that minimizing Eq.(11)should meet two requirements: (1) maximize the number of d-gap values of 1; and (2) minimize the largest document identiﬁer, i.e., k, in the posting list ILt. If a DIA

for term t can satisfy the above two requirements, the best compression and the fastest query speed for the posting list ILtcan be achieved.

According to the above observation, we propose the simple partition-based document identiﬁer assign-ment (SPBDIA) algorithm to generate optimal DIAs for a given query term t. The SPBDIA algorithm con-sists of a partitioning procedure, an ordering procedure, and a document identiﬁer assignment procedure. The partitioning procedure divides the given documents into two partitions in terms of query term t: one partition P(t) consists of documents containing query term t; the other partition P(t0_{) is made up of the}

documents without t. Then, the ordering procedure sets the order of partitions as P(t) followed by P(t0). Finally, the document identifier assignment procedure generates an appropriate DIA for the ordered par-titions according to query term t: the documents in partition P(t) are assigned smaller consecutive docu-ment identifiers, while the docudocu-ments in partition P(t0_{) assigned larger consecutive document identifiers.}

The SPBDIA algorithm is illustrated in the following example.

Example. There is a collection of 500 documents, among which 300 documents contain query term t. After partitioning, P(t) has 300 documents and P(t0_{) has 200 documents. Then, the ordering procedure sets the}

order of partitions P(t) followed by P(t0). Finally, the document identifier assignment procedure assigns the document identifiers 1–300 to the 300 documents in partition P(t) and assigns the document identifiers 301–500 to the 200 documents in partition P(t0).

Documents in a partition can be arbitrarily assigned identiﬁers within the given range, hence the number of possible DIAs for the above Example is 300!· 200!. Each of the 300! · 200! DIAs satisﬁes the two requirements for minimizing Eq.(11), and hence gives both the best posting list compression and fastest query speed for query term t. The SPBDIA algorithm is simple, and its complexity is O(N).

4.2. Eﬃcient partition-based document identiﬁer assignment algorithm for DIA problem

In a real-world IRS, a few frequently used query terms constitute a large portion of all term occurrences in queries (Janson, Spink, Bateman, & Saracevic, 1998). This fact indicates that a DIA algorithm that al-lows those frequently used query terms to have better posting list compression can result in reduced average query processing time. Based on the SPBDIA algorithm, an eﬃcient partition-based document identiﬁer assignment (PBDIA) algorithm for the DIA problem can be developed.

Like the SPBDIA algorithm, the PBDIA algorithm also partitions the document set, orders these par-titions, and then assigns document identifiers. The flowchart of the PBDIA algorithm is shown in Fig. 6. The partitioning and ordering procedures of the PBDIA algorithm iterate n times given that there are n query terms. Then, the document identifier assignment procedure is performed as the last step of the PBDIA algorithm. Terms that are queried more frequently should take higher priority in document parti-tioning and partition ordering. Let the most frequently queried term be assigned rank 1, the second most frequently queried term rank 2, and so on. We use trank ito represent the ith ranked query term. The

par-titioning and ordering procedures of the PBDIA algorithm should proceed by considering trank 1ﬁrst, then

trank 2, and so on.

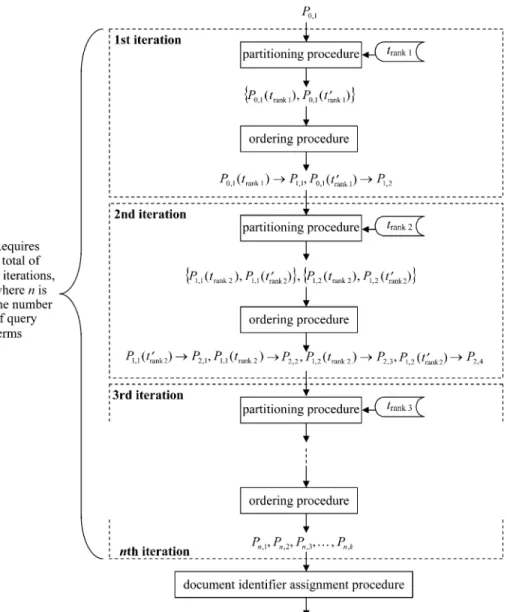

Both the PBDIA partitioning and ordering procedures are invoked once per iteration. The PBDIA par-titioning procedure ﬁrst divides each partition generated in the previous iteration into two partitions using the SPBDIA partitioning procedure. The PBDIA ordering procedure then assigns each newly generated partition a partition order. Each partition P in the PBDIA algorithm hence can be uniquely identiﬁed by an iteration number i and a partition order j, and we use the notation Pi,jto represent the jth ordered

partition of the ith iteration. For example, the notation P2,3represents the third ordered partition of the

(11)

in an input document collection. In the following, we describe in detail the partitioning, ordering, and document identiﬁer assignment procedures of the PBDIA algorithm.

4.2.1. PBDIA partition procedure

Let Pi1,1, Pi1,2, . . ., and Pi1,kbe nonempty partitions generated in iteration i 1. The PBDIA

parti-tioning procedure invoked in the ith iteration divides each partition Pi1,j into a partition pair

fPi1;jðtrank iÞ; Pi1;jðt0rank iÞg for j = 1, 2, . . ., k, where the partition Pi1,j(trank i) consists of the documents in

Pi1,jcontaining the query term trank i, and Pi1;jðt0rank iÞ consists of the documents in Pi1,jwithout the query

term trank i. Since Pi1,jis nonempty, at least one of the two partitions Pi1,j(trank i) and Pi1;jðt0rank iÞ is

non-empty for j = 1, 2, . . ., k.

(12)

4.2.2. PBDIA ordering procedure

Let fPi1;1ðtrank iÞ; Pi1;1ðt0rank iÞg, fPi1;2ðtrank iÞ; Pi1;2ðt0rank iÞg, . . ., and fPi1;kðtrank iÞ; Pi1;kðt0rank iÞg be the

partition pairs generated by PBDIA partitioning procedure in iteration i. Let jPij denote the number of

nonempty partitions of the above partitions. The PBDIA ordering procedure invoked in the ith iteration assigns a unique partition order, fromjPij to 1 and in descending order, to each nonempty partition,

start-ing fromfPi1;kðtrank iÞ; Pi1;kðt0rank iÞg, then fPi1;k1ðtrank iÞ; Pi1;k1ðt0rank iÞg, and so on.

Now let us consider the ordering of partition pair fPi1;kðtrank iÞ; Pi1;kðt0rank iÞg. Three cases exist.

Case 1: Both Pi1,k(trank i) and Pi1;kðt0rank iÞ are nonempty

The ordering procedure assigns jPij to Pi1;kðt0rank iÞ, and jPij 1 to Pi1,k(trank i). Pi1;kðt0rank iÞ is

hereafter denoted as Pi;jPij, and Pi1,k(trank i) as Pi;jPij1.

Case 2: Pi1,k(trank i) is empty, and Pi1;kðt0rank iÞ is nonempty

The ordering procedure assigns jPij to Pi1;kðt0rank iÞ, and ignores Pi1,k(trank i). Pi1;kðt0rank iÞ is

hereafter denoted as Pi;jPij.

Case 3: Pi1,k(trank i) is nonempty, and Pi1;kðt0rank iÞ is empty

The ordering procedure assigns jPij to Pi1,k(trank i), and ignores Pi1;kðt0rank iÞ. Pi1,k(trank i) is

hereafter denoted as Pi;jPij.

Next we consider the ordering of partition pairsfPi1;jðtrank iÞ; Pi1;jðt0rank iÞg, where j = 1, 2, . . ., k 1. Let

the next largest partition order to be assigned be s. Since PBDIA ordering procedure orders

fPi1;jþ1ðtrank iÞ; Pi1;jþ1ðt0rank iÞg before fPi1;jðtrank iÞ; Pi1;jðt0rank iÞg, Pi,s+1 is hence used to denote either

Pi1,j+1(trank i) or Pi1;jþ1ðt0rank iÞ. Again, three cases exist for fPi1;jðtrank iÞ; Pi1;jðt0rank iÞg:

Case 1: Both Pi1,j(trank i) and Pi1;jðt0rank iÞ are nonempty

There exist two subcases.

SubCase 1.a: Pi,s+1is used to denote Pi1,j+1(trank i)

The ordering procedure assigns s to Pi1,j(trank i), and s 1 to Pi1;jðt0rank iÞ. Pi1,j·

(trank i) is hereafter denoted as Pi,s, and Pi1;jðt0rank iÞ as Pi,s1.

SubCase 1.b: Pi,s+1is used to denote Pi1;jþ1ðt0rank iÞ

The ordering procedure assigns s to Pi1;jðt0rank iÞ, and s 1 to Pi1,j(trank i).

P_i1;jðt0

rank iÞ is hereafter denoted as Pi,s, and Pi1,j(trank i) as Pi,s1.

Case 2: Pi1,j(trank i) is empty, and Pi1;jðt0rank iÞ is nonempty

The ordering procedure assigns s to Pi1;jðt0rank iÞ, and ignores Pi1,j(trank i). Pi1;jðt0rank iÞ is hereafter

denoted as Pi,s.

Case 3: Pi1,j(trank i) is nonempty, and Pi1;jðt0rank iÞ is empty

The ordering procedure assigns s to Pi1,j(trank i), and ignores Pi1;jðt0rank iÞ. Pi1,j(trank i) is hereafter

denoted as Pi,s.

4.2.3. PBDIA document identiﬁer assignment procedure

The document identiﬁer assignment procedure, the last step of PBDIA algorithm, is straightforward. Let Pn,1, Pn,2, . . ., and Pn,kbe the generated ordered partitions of the iteration n. This procedure assigns

secutive document identifiers to documents in the same partition, and consecutive identifier groups to con-secutive ordered partitions. The first (smallest) document identifier is assigned to a document in the first ordered partition (Pn,1). And the ordering of documents in a partition is irrelevant and can be arbitrary.

To obtain a good DIA, the partitions must be properly ordered. We explain why the PBDIA ordering procedure is proper: Note that the PBDIA ordering procedure always assigns consecutive partition orders to two nonempty partitions of a partition pair. This makes documents in the same partition in iteration i remain in the same or neighboring partitions in iteration i + 1. According to the PBDIA document

(13)

identiﬁer assignment procedure, documents in the same partition in iteration i will eventually be assigned consecutive or at least adjacent document identiﬁers. That is, once the order of partitions is generated at the end of iteration i, the compression performance for the posting list of trank iis determined. Hence, the

post-ing list of trank 1has the best compression, then that of trank 2, and so on. This is because the PBDIA

algo-rithm considers the trank 1ﬁrst, then trank 2, and so on, in its iterations. Fig. 7. The PBDIA algorithm for the DIA problem.

(14)

The PBDIA algorithm is given inFig. 7. A doubly linked list is used to store the partitions, and the two links of a partition maintain the ordering among these partitions. Given a collection of N documents and n distinct query terms, the number of comparisons for assigning documents to partitions in each iteration is O(N). Since the PBDIA algorithm iterates for n times, the total number of comparisons for the PBDIA algorithm is O(N· n). Compared with the Greedy-NN algorithm, this complexity of PBDIA algorithm is distinctively low. This advantage brings the PBDIA algorithm a dark side, of course. Although the PBDIA algorithm targets on improving the compression eﬃciency for the frequently used query terms, it unavoidably decreases that for the other query terms. In reality, it is often the case that the popularities of the assorted query terms are very unbalanced. And this imbalance nature makes the PBDIA algorithm achieve very good query performance. In Section 5, we compare the search performance of the Greedy-NN and PBDIA algorithms for real-life document collections.

5. Experiments

This section describes our experiments for evaluating the diﬀerent DIA algorithms. Experiments were conducted on real-life document collections, and the average query processing time and the stor-age requirement for each DIA algorithm were measured. We also investigated the DIA problem in parallel IR.

5.1. Document collections and queries

Three document collections were used in the experiments. Their statistics are listed in Table 2. In this table, N denotes the number of documents; n is the number of distinct terms; F is the total number of terms in the collection; and f indicates the number of document identiﬁers that appear in an inverted ﬁle. The collections FBIS (Foreign Broadcast Information Service) and LAT (LA Times) are disk 5 of the TREC-6 collection that is used internationally as a test bed for research in IR techniques (Voorhees & Har-man, 1997). The collection TREC includes the FBIS and LAT.

We followed the method (Moffat & Zobel, 1996) to evaluate performance with random queries. For each document collection, 300 documents were randomly selected to generate a query set. A query was generated by selecting words from the word list of a specific document. To form the word list of a document, words in the document were folded to lower case, and stop words such as ‘‘the’’ and ‘‘this’’ were eliminated. The number of terms per query ranged from 1 to 65. For example, a query containing 5 terms may be ‘‘inverted file document collection built’’. For each query, there existed at least one document in the document col-lection that was relevant to the query. We also made the generated query set for each document colcol-lection have the following characteristics: (1) Query repetition frequencies followed a Zipf distribution PrðqÞ 1

q0.6,

where Pr(q) is the probability of query q appearing in generated query set, and q is the popularity rank of query q; (2) The terms per query distribution followed the shifted negative binomial distribution fðxÞ ¼ x0.8

x2

ð0.85Þ1.2ð0.15Þx1, where f(x) is the probability of a query containing x words. This made the distribution of generated queries closely resemble the distribution of real queries (Wolfram, 1992; Xie & OÕHallaron, 2002).

5.2. Experimental results

In Section 5.2.1, we first present the actual times taken by the Greedy-NN and the PBDIA algorithms. In Section 5.2.2, we then present the query performance of different DIA algorithms. In Section 5.2.3, we pres-ent the compression performance of differpres-ent DIA algorithms. Finally, we study the DIA problem in par-allel IR in Section 5.2.4.

(15)

The inverted files of the three test collections were constructed according to the DIAs generated by dif-ferent DIA algorithms. We tested four different DIA algorithms: ‘‘Random’’, ‘‘Default’’, ‘‘Greedy-NN’’, and ‘‘PBDIA’’. The Random algorithm means that the document in a collection is randomly assigned doc-ument identifier. The Default algorithm means that the docdoc-ument in a collection is assigned docdoc-ument iden-tifier in chronological order. The Greedy-NN and PBDIA algorithms were described in Sections 3.2 and 4.2, respectively. For each DIA algorithm, we also tested five coding methods: c coding (Elias, 1975), Go-lomb coding (Golomb, 1966; Witten et al., 1999), skewed Golomb coding (Teuhola, 1978), batched LLRUN coding (Fraenkel & Klein, 1985), and unique-order interpolative coding method (Cheng, Shann, & Chung, 2004). For the following experiments, the parameter b for each posting list in Golomb coding was calculated using WittenÕs approximation (Witten et al., 1999), and the parameter g for unique-order inter-polative coding was set to 4 (Cheng et al., 2004).

All experiments were run on an Intel P4 2.4 GHz PC with 512 MB DDR memory running Linux operating system 2.4.12. The hard disk was 40 GB, and the data transfer rate was 25 MB/s. Intervening processes and disk activities were minimized during experimentation.

5.2.1. Time taken by Greedy-NN and PBDIA algorithms

InTable 3, the performance in terms of completion time is shown. The times reported are the actual times taken by the algorithms to generate a DIA for the given document collection that has been inverted. Please note that the times presented inTable 3consider neither the time spent in preliminary inversion of the document collection, nor the time needed to rebuild an inverted ﬁle with a new DIA.

Table 3shows that the PBDIA algorithm is much faster than the Greedy-NN algorithm. This fact makes the PBDIA algorithm viable for use in large-scale IRSs. Such a fast DIA algorithm can be very useful for situations such as

1. Dynamically changing probability distribution of query terms, and 2. Dynamically changing document collection.

5.2.2. Query performance of diﬀerent DIA algorithms

InTable 4, the average query processing time (AvgTimeQP) and the speedup relative to the Default

algo-rithm (SP) were measured according to Eq.(3). InTable 5, the average number of bits required to retrieve

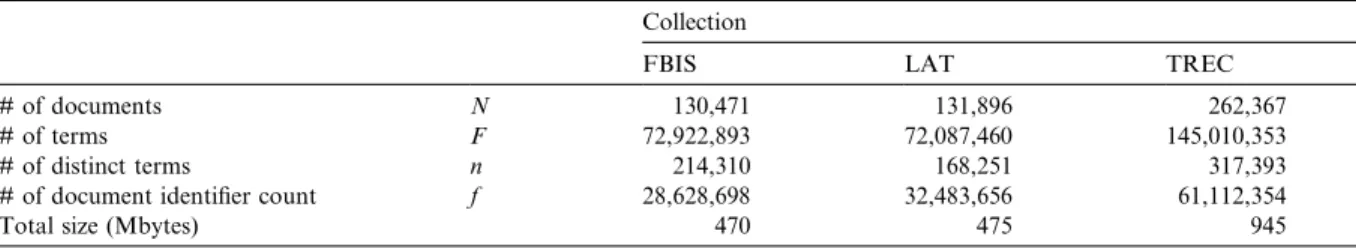

Table 2

Statistics of document collection

Collection

FBIS LAT TREC

# of documents N 130,471 131,896 262,367

# of terms F 72,922,893 72,087,460 145,010,353

# of distinct terms n 214,310 168,251 317,393

# of document identiﬁer count f 28,628,698 32,483,656 61,112,354

Total size (Mbytes) 470 475 945

Table 3

Time consumed by the Greedy-NN and the PBDIA algorithms

DIA algorithm Collection

FBIS LAT TREC

Greedy-NN 23 h 59 min 24 h 37 min 198 h 2 min

(16)

Table 4

Query performance of diﬀerent DIA algorithms (AvgTimeQPis the average query processing time, and SP is the speedup relative to the Default algorithm)

Collection DIA algorithm

Coding methods

ccoding Golomb coding Skewed

Golomb coding Batched LLRUN coding Unique-order interpolative coding AvgTimeQP (ls) SP AvgTimeQP (ls) SP AvgTimeQP (ls) SP AvgTimeQP (ls) SP AvgTimeQP (ls) SP (a) Short queries

FBIS Random 2989 0.93 2858 0.98 3894 0.96 3748 0.97 2746 0.95 Default 2789 1.00 2802 1.00 3754 1.00 3636 1.00 2614 1.00 Greedy-NN 2431 1.15 2790 1.00 3348 1.12 3275 1.11 2315 1.13 PBDIA 2529 1.10 2808 1.00 3427 1.10 3320 1.10 2333 1.12 LAT Random 2829 0.96 2704 0.99 3737 0.98 3654 0.97 2564 0.97 Default 2724 1.00 2688 1.00 3645 1.00 3542 1.00 2476 1.00 Greedy-NN 2268 1.20 2653 1.01 3137 1.16 3143 1.13 2085 1.19 PBDIA 2379 1.15 2644 1.02 3234 1.13 3231 1.10 2150 1.15 TREC Random 5822 0.90 5573 0.97 7556 0.93 7217 0.94 5448 0.91 Default 5244 1.00 5380 1.00 7026 1.00 6781 1.00 4942 1.00 Greedy-NN 4431 1.18 5353 1.01 6139 1.14 6032 1.12 4256 1.16 PBDIA 4606 1.14 5292 1.02 6254 1.12 6171 1.10 4313 1.15 (b) Medium-length queries FBIS Random 9388 0.93 8972 0.98 12,222 0.97 11,749 0.97 8613 0.95 Default 8758 1.00 8795 1.00 11,795 1.00 11,402 1.00 8201 1.00 Greedy-NN 7563 1.16 8746 1.01 10,426 1.13 10,225 1.12 7205 1.14 PBDIA 7838 1.12 8798 1.00 10,650 1.11 10,387 1.10 7223 1.14 LAT Random 8997 0.97 8605 1.00 11,842 0.98 11,562 0.97 8192 0.97 Default 8684 1.00 8564 1.00 11,580 1.00 11,229 1.00 7932 1.00 Greedy-NN 7126 1.22 8407 1.02 9851 1.18 9852 1.14 6607 1.20 PBDIA 7434 1.17 8359 1.02 10,098 1.15 9982 1.12 6755 1.17 TREC Random 18,475 0.92 17,689 0.97 23,936 0.94 22,724 0.95 17,273 0.93 Default 16,935 1.00 17,153 1.00 22,594 1.00 21,666 1.00 16,004 1.00 Greedy-NN 14,069 1.20 16,942 1.01 19,493 1.16 19,058 1.14 13,598 1.18 PBDIA 14,611 1.16 16,713 1.03 19,809 1.14 19,280 1.12 13,722 1.17 (c) Long queries FBIS Random 20,210 0.92 19,399 0.98 26,526 0.95 26,049 0.96 18,423 0.94 Default 18,594 1.00 18,939 1.00 25,316 1.00 24,984 1.00 17,269 1.00 Greedy-NN 15,882 1.17 18,971 1.00 22,131 1.14 21,957 1.14 14,979 1.15 PBDIA 15,871 1.17 18,953 1.00 21,972 1.15 22,143 1.13 14,377 1.20 LAT Random 18,029 0.96 17,116 1.00 23,591 0.98 22,646 0.97 16,477 0.97 Default 17,392 1.00 17,035 1.00 23,011 1.00 22,033 1.00 15,964 1.00 Greedy-NN 13,875 1.25 16,624 1.02 19,173 1.20 18,984 1.16 13,046 1.22 PBDIA 13,996 1.24 16,298 1.05 19,023 1.21 19,212 1.15 12,817 1.25 TREC Random 37,881 0.93 36,023 0.98 49,012 0.95 46,584 0.96 35,266 0.94 Default 35,096 1.00 35,231 1.00 46,547 1.00 44,588 1.00 33,008 1.00 Greedy-NN 28,372 1.24 34,469 1.02 39,489 1.18 38,592 1.16 27,523 1.20 PBDIA 29,152 1.20 33,809 1.04 39,766 1.17 39,089 1.14 27,401 1.20

(17)

Table 5

AvgBPIQPof diﬀerent DIA algorithms (AvgBPIQPis the average number of bits required to retrieve and decode an identiﬁer during query processing, and Imp is the improvement over the Default algorithm)

Collection DIA algorithm

Coding methods

Golomb coding Batched LLRUN coding Unique-order interpolative coding AvgBPIQP Imp (%) AvgBPIQP Imp (%) AvgBPIQP Imp (%) AvgBPIQP Imp (%) AvgBPIQP Imp (%) (a) Short queries

FBIS Random 3.56 10.6 3.21 0.3 3.31 7.1 3.25 5.5 3.15 7.9 Default 3.22 – 3.22 – 3.09 – 3.08 – 2.92 – Greedy-NN 2.78 13.7 3.24 0.6 2.73 11.7 2.69 12.7 2.63 9.9 PBDIA 2.95 8.4 3.23 0.3 2.84 8.1 2.76 10.4 2.69 7.9 LAT Random 3.32 6.8 2.98 0.0 3.05 4.8 3.00 3.8 2.87 4.7 Default 3.11 – 2.98 – 2.91 – 2.89 – 2.74 – Greedy-NN 2.56 17.7 3.00 0.7 2.48 14.8 2.47 14.5 2.35 14.2 PBDIA 2.73 12.2 2.97 0.3 2.59 11.0 2.59 10.4 2.42 11.7 TREC Random 3.75 13.3 3.38 0.3 3.46 9.5 3.40 8.2 3.34 10.6 Default 3.31 – 3.39 – 3.16 – 3.14 – 3.02 – Greedy-NN 2.78 16.0 3.41 0.6 2.72 13.9 2.69 14.3 2.65 12.3 PBDIA 2.94 11.2 3.37 0.6 2.81 11.1 2.81 10.5 2.70 10.6 (b) Medium-length queries FBIS Random 3.57 10.9 3.21 0.3 3.31 6.8 3.25 5.5 3.15 7.9 Default 3.22 – 3.22 – 3.10 – 3.08 – 2.92 – Greedy-NN 2.75 14.6 3.24 0.6 2.70 12.9 2.66 13.6 2.61 10.6 PBDIA 2.92 9.3 3.24 0.6 2.81 9.4 2.75 10.7 2.66 8.9 LAT Random 3.37 6.3 3.03 0.3 3.11 4.4 3.06 3.7 2.94 4.6 Default 3.17 – 3.04 – 2.98 – 2.95 – 2.81 – Greedy-NN 2.58 18.6 3.06 0.7 2.50 16.1 2.48 15.9 2.39 14.9 PBDIA 2.73 13.9 3.02 0.7 2.59 13.1 2.60 11.9 2.44 13.1 TREC Random 3.83 12.0 3.42 0.3 3.53 8.3 3.47 7.1 3.40 9.0 Default 3.42 – 3.43 – 3.26 – 3.24 – 3.12 – Greedy-NN 2.82 17.5 3.45 0.6 2.76 15.3 2.74 15.4 2.71 13.1 PBDIA 2.99 12.6 3.41 0.6 2.85 12.6 2.86 11.7 2.75 11.9 (c) Long queries FBIS Random 3.31 12.2 3.02 0.3 3.09 8.4 3.03 6.7 2.90 9.0 Default 2.95 – 3.03 – 2.85 – 2.84 – 2.66 – Greedy-NN 2.50 15.3 3.06 1.0 2.47 13.3 2.43 14.4 2.37 10.9 PBDIA 2.57 12.9 3.05 0.7 2.47 13.3 2.48 12.7 2.34 12.0 LAT Random 3.58 6.2 3.21 0.3 3.28 4.1 3.23 3.5 3.13 4.3 Default 3.37 – 3.22 – 3.15 – 3.12 – 3.00 – Greedy-NN 2.66 21.1 3.24 0.6 2.58 18.1 2.55 18.2 2.50 16.7 PBDIA 2.73 19.0 3.19 0.9 2.58 18.1 2.63 15.7 2.48 17.3 TREC Random 3.85 10.6 3.43 0.3 3.54 7.3 3.47 6.1 3.41 7.9 Default 3.48 – 3.44 – 3.30 – 3.27 – 3.16 – Greedy-NN 2.78 20.1 3.46 0.6 2.73 17.3 2.70 17.4 2.69 14.9 PBDIA 2.92 16.1 3.41 0.9 2.79 15.5 2.81 14.1 2.71 14.2

(18)

and decode an identiﬁer during query processing (AvgBPIQP) and the improvement over the Default

algo-rithm (Imp) were measured according to Eq.(6). For each document collection, the generated query set was divided into three subsets: the short query set, the medium-length query set, and the long query set. The number of terms per query for the short, medium-length, and long query sets range from 1 to 8, 9 to 20, and 21 to 65, respectively.

All decoding mechanisms were optimized, including: 1. Replaced subroutines with macros.

2. Replaced calls to the log function with fast bit shifts. 3. Careful choice for compiler optimization ﬂags.

4. Implementation used 32-bit integers, as that is the internal register size of the Intel P4 CPU.

Furthermore, the Huffman code of batched LLRUN coding was implemented with canonical prefix codes that can be decoded via a fast table look-up (Turpin, 1998). With these optimizations, decoding of a document identifier only required tens of nanoseconds.

The experimental results are shown inTables 4 and 5. Key ﬁndings are:

1.Table 4shows that the query performance of the Default algorithm can be 10% faster than the Random algorithm. This indicates that the Default algorithm already captures some clustering nature, thus can serve as a rigid baseline in comparison with other ﬁne-tuned algorithms.

2. ComparingTables 4 and 5, one should observe that AvgTimeQPis proportional to AvgBPIQP. This

ver-iﬁes Eq.(4)in Section 3.1, and explains why a good DIA can result in better compression and reduced query processing time.

3. FromTable 5, one should observe that both the Greedy-NN and PBDIA algorithms can result in better compression of posting lists for all tested coding methods except Golomb coding. This indicates that the Greedy-NN and PBDIA algorithms can improve the cache eﬃciency if a posting list cache is implemented.

4.Table 4shows that both the Greedy-NN and PBDIA algorithms can reduce average query processing time for all tested coding methods except Golomb coding. And the query speedup diﬀerences between the Greedy-NN and PBDIA algorithms were only 3% on average. Considering the algorithm complex-ity, the PBDIA algorithm is a good choice for the DIA problem.

5. FromTable 4, one should observe that Golomb coding cannot beneﬁt much from the Greedy-NN and PBDIA algorithms in terms of query performance. This is because Golomb coding assumes that the d-gap values in a posting list following a Bernoulli model (Witten et al., 1999), hence both the compression result and the query processing time of Golomb coding are independent of d-gap distribution.

6. FromTable 4, one should observe that the query speedup obtained by the PBDIA algorithm becomes higher as the query length increases. This is because that, as the number of query terms increases, more frequently used query terms are likely to be included, resulting in more advantage due to the PBDIA algorithm.

7.Table 4shows that both c coding and unique-order interpolative coding are recommended for real-world IRSs due to their fast query throughputs. In addition, compared with the other tested coding methods, these two coding methods beneﬁt more from the PBDIA algorithm. We conclude that the PBDIA algo-rithm is viable for use in real-world IRSs.

8.Table 4shows that the PBDIA algorithm can reduce average query processing time by up to 20% for an inverted file in which the document identifiers in a posting list are sorted in ascending order. To allow extremely fast processing of conjunctive queries and ranked queries using the same index, most IRSs in use today adopt the skipped inverted files (Moffat & Zobel, 1996) or the blocked inverted files (Moffat, Zobel, & Klein, 1995). Both the skipped and blocked inverted files are identifier-ordered arrangement.

(19)

Therefore, the PBDIA algorithm can also be applied to those inverted files, and reduce the time needed to process a query against those inverted files. Since skipped inverted files and blocked inverted files are widely used in modern large-scale IRSs, we believe that the PBDIA algorithm can contribute in real-world IRSs.

5.2.3. Compression performance of diﬀerent DIA algorithms

The compression results are shown inTable 6, and the metric used is the average number of bits per iden-tiﬁer (BPI), deﬁned as follows:

BPI¼The size of the compressed inverted file number of document identfiers f .

To reduce average query processing time, both the Greedy-NN and PBDIA algorithms target on improving the compression efficiency for the frequently used query terms. However, this is at the cost of sacrificing the compression efficiency for the less frequently used query terms. We need to know how much space overhead is needed to trade for this speed advantage. Results inTable 6shows that the Greedy-NN and PBDIA algorithms can speed up query processing with very little or no storage overhead.

5.2.4. DIA in parallel IR

This subsection investigates the DIA problem in an IRS that runs on a cluster of workstations. Assum-ing k workstations, the inverted file is generally partitioned into k disjoint sub-files, each for one worksta-tion. When processing a query, all workstations have to consult only their own sub-files in parallel, and the query processing time is shortened. Ma, Chen, and Chung (2002) indicated that near-ideal speedup on query processing can be obtained if an inverted file is partitioned using the interleaving partitioning scheme. For such a partitioning, DIA plays a crucial role in load balancing. The PDBIA algorithm can be applied to the inverted file to enhance the clustering property of posting lists for frequently used query terms, and can aid the interleaving partitioning scheme to yield better load balancing.

Table 6

Compression performance of different DIA algorithms (BPI is the average bits per identifier of the inverted file for the test collection, and Imp is the improvement over the Default algorithm)

Collection DIA algorithm Coding methods

Golomb coding

Batched LLRUN coding

Unique-order interpolative coding

BPI Imp (%) BPI Imp (%) BPI Imp (%) BPI Imp (%) BPI Imp (%)

FBIS Random 7.06 19.7 5.28 0.0 5.75 10.6 5.38 8.5 5.36 10.3 Default 5.90 – 5.28 – 5.20 – 4.96 – 4.86 – Greedy-NN 5.86 0.7 5.28 0.0 5.33 2.5 4.88 1.6 4.85 0.2 PBDIA 6.17 4.6 5.28 0.0 5.42 4.2 5.06 2.0 4.95 1.9 LAT Random 7.12 6.6 5.33 0.0 5.73 3.2 5.43 2.8 5.42 3.8 Default 6.68 – 5.33 – 5.55 – 5.28 – 5.22 – Greedy-NN 6.06 9.3 5.32 0.2 5.26 5.2 5.00 5.3 4.91 5.9 PBDIA 6.35 4.9 5.32 0.2 5.33 4.0 5.12 3.0 5.01 4.0 TREC Random 7.39 16.7 5.50 0.4 5.92 9.2 5.59 7.5 5.59 9.6 Default 6.33 – 5.48 – 5.42 – 5.20 – 5.10 – Greedy-NN 6.08 3.95 5.49 0.2 5.39 0.6 5.03 3.3 4.99 2.2 PBDIA 6.36 0.5 5.49 0.2 5.45 0.6 5.18 0.4 5.08 0.4

(20)

Table 7shows the performance of parallel query processing using interleaving partitioning scheme with either the Default algorithm or the PBDIA algorithm. The metric is the speedup relative to sequential query processing with Default algorithm. Experiments were conducted on the TREC collection. The sub-ﬁle on each workstation was compressed using the unique-order interpolative coding method. The parallel query processing time was deﬁned as max[T1, T2, . . ., Tk], where Ti(1 6 i 6 k) was the time needed to retrieve and

decompress the (partial) posting lists for the query terms on the ith workstation. Note that Ti did not

include the document identiﬁer comparison time (the reason being the same as described in Section 3.1). The experimental results show that the interleaving partitioning scheme can yield near-ideal speedups, as reported inMa et al. (2002). In addition, using the PBDIA algorithm to enhance the clustering property of posting lists for frequently used query terms, the interleaving partitioning scheme yields super-linear speedups. Hence the DIA problem should deserve much attention in parallel IR.

6. Conclusion

In this paper, we study the DIA-based query optimization techniques for an IRS in which the inverted file is used to evaluate queries. We first define a cost model for query evaluation. Based on this model, we propose an efficient heuristic, called partition-based document identifier assignment (PBDIA) algorithm, for generating a good DIA to reduce average query processing time.

The PBDIA algorithm can eﬃciently assign consecutive document identiﬁers to the documents contain-ing frequently used query terms. This makes the d-gaps of postcontain-ing lists for frequently used query terms very small, and results in better compression for popular coding methods without increasing the complexity of decoding processes. This can result in reduced query processing time.

Experimental results show that the PBDIA algorithm can reduce the average query processing time by up to 20%. We also point out that the DIA problem has vital eﬀects on the performance of long queries and parallel IR. Compared with the well-known Greedy-NN algorithm, the PBDIA algorithm is much faster and yields very competitive performance for the DIA problem. This fact should make the PBDIA algo-rithm viable for use in modern large-scale inverted ﬁle-based IRSs.

Acknowledgements

This work was supported by National Science Council, ROC: NSC93-2213-E-009-025.

References

Bellman, R. E., & Dreyfus, S. E. (1962). Applied dynamic programming. Princeton, NJ: Princeton University Press.

Cheng, C. S., Shann, J. J.-J., & Chung, C. P. (2004). A unique-order interpolative code for fast querying and space-eﬃcient indexing in information retrieval systems. In P. K. Srimani et al. (Eds.). Proceedings of ITCC 2004 international conference on information Table 7

Speedup of parallel query processing

Method The number of workstations

1a ₂ ₄ ₆ ₈ ₁₀

Default algorithm + Interleaving partitioning 1.00 1.90 3.75 5.61 7.44 9.35

PBDIA algorithm + Interleaving partitioning 1.17 2.23 4.41 6.57 8.70 10.93

a

(21)

technology: coding and communications, Las Vegas, Nevada, April (Vol. 2, pp. 229–235). Los Alamitos, CA: IEEE Computer Society Press.

Elias, P. (1975). Universal codeword sets and representations of the integers. IEEE Transactions on Information Theory, IT-21(2), 194–203.

Fraenkel, A. S., & Klein, S. T. (1985). Novel compression of sparse bit-string—preliminary report. In A. Apostolico & Z. Galil (Eds.), Combinatorial algorithms on words. NATO ASI serials F (Vol. 12, pp. 169–183). Berlin: Springer-Verlag.

Gelbukh, A., Han, S. Y., & Sidorov, G. (2003). Compression of Boolean inverted ﬁles by document ordering. In Proceedings of 2003 IEEE international conference on natural language processing and knowledge engineering (IEEE NLPKE-2003), Beijing, China, October (pp. 244–249). Los Alamitos, CA: IEEE Computer Society Press.

Golomb, S. W. (1966). Run length encoding. IEEE Transactions on Information Theory, IT-12(3), 399–401.

Janson, B. J., Spink, A., Bateman, J., & Saracevic, T. (1998). Real life information retrieval: a study of user queries on the web. SIGIR Forum, 32(1), 5–17.

Kobayashi, M., & Takeda, K. (2000). Information retrieval on the web. ACM Computing Surveys, 32(2), 144–173.

Ma, Y. C., Chen, T. F., & Chung, C. P. (2002). Posting ﬁle partitioning and parallel information retrieval. Journal of Systems and Software, 63(2), 113–127.

Moﬀat, A., & Zobel, J. (1992). Parameterised compression for sparse bitmaps. In N. Belkin, P. Ingwersen, & A. M. Pejtersen (Eds.), Proceedings of 15th annual international ACM-SIGIR conference on research and development in information retrieval, Copenhagen, June (pp. 274–285). New York: ACM Press.

Moﬀat, A., & Zobel, J. (1996). Self-indexing inverted ﬁles for fast text retrieval. ACM Transactions on Information Systems, 14(4), 349–379.

Moﬀat, A., Zobel, J., & Klein, S. T. (1995). Improved inverted ﬁle processing for large text databases. In R. Sacks-Davis, & J. Zobel (Eds.), Proceedings of 6th Australasian database conference, Adelaide, Australia, January (pp. 162–171).

Olken, F., & Rotem, D. (1986). Rearranging data to maximize the efficiency of compression. In Proceedings of the fifth ACM SIGACT-SIGMOD symposium on principles of database systems, Cambridge, MA, United States, March (pp. 78–90). New York: ACM Press. Shieh, W. Y., Chen, T. F., Shann, J. J., & Chung, C. P. (2003). Inverted file compression through document identifier reassignment.

Information Processing and Management, 39(1), 117–131.

Teuhola, J. (1978). A compression method for clustered bit-vectors. Information Processing Letters, 7(6), 308–311. Turpin, A. (1998). Eﬃcient preﬁx coding. Ph.D. thesis, University of Melbourne, Melbourne.

Voorhees, E., & Harman, D. (1997). Overview of the sixth text retrieval conference (TREC-6). In E. M. Voorhees & D. K. Harman (Eds.), Proceedings of the sixth text retrieval conference (TREC-6) (pp. 1–24). Gaithersburg, MD: NIST.

Williams, H. E., & Zobel, J. (1999). Compressing integers for fast ﬁle access. The Computer Journal, 42(3), 193–201.

Williams, H. E., & Zobel, J. (2002). Indexing and retrieval for genomic databases. IEEE Transactions on Knowledge and Data Engineering, 14(1), 63–78.

Witten, I. H., Moﬀat, A., & Bell, T. C. (1999). Managing gigabytes: compressing and indexing on documents and images (2nd ed.). San Francisco, CA: Morgan Kaufmann Publishers.

Wolfram, D. (1992). Applying informetric characteristics of databases to IR system ﬁle design, Part I: Informetric models. Information Processing and Management, 28(1), 121–133.

Xie, Y. & OÕHallaron, D. (2002). Locality in search engine queries and its implications for caching. In P. Kermani, F. Bauer, & P. Morreale (Eds.), Proceedings of the 21st Annual Joint Conference of the IEEE Computer and Communications Societies (INFOCOMÕ02), New York, June (pp. 1238–1247).

Zipf, G. (1949). Human behavior and the principle of least eﬀort. New York: Addison-Wesley.

Zobel, J., & Moffat, A. (1995). Adding compression to a full-text retrieval system. Software Practice and Experience, 25(8), 891–903. Zobel, J., Moffat, A., & Ramamohanarao, K. (1998). Inverted files versus signature files for text indexing. ACM Transactions on

Database Systems, 23(4), 453–490.

Cher-Sheng Cheng received the B.S. and M.E. degrees in computer engineering from the Department of Computer Science and Information Engineering, National Chiao Tung University, Taiwan, ROC in 1994 and 1996, respectively. Currently he is pursuing the Ph.D. degree in computer science and information engineering at the National Chiao-Tung University, Hsinchu, Taiwan, Republic of China. His research interests include computer architecture, parallel and distributed systems, and information retrieval.

Chung-Ping Chung received the B.E. degree from the National Cheng-Kung University, Tainan, Taiwan, Republic of China in 1976, and the M.E. and Ph.D. degrees from the Texas A&M University in 1981 and 1986, respectively, all in Electrical Engineering. He was a lecturer in electrical engineering at the Texas A&M University while working towards the Ph.D. degree. Since 1986 he has been with the Department of Computer Science and Information Engineering at the National Chiao-Tung University, Hsinchu, Taiwan, Republic of China, where he is a professor. From 1991 to 1992, he was a visiting associate professor of computer science at the Michigan State University. From 1998, he joined the Computer and Communications Laboratories, Industrial Technology Research Institute, ROC as the Director of the Advanced Technology Center, and then the Consultant to the General Director. He returned to

(22)

his teaching position after this three-year assignment. His research interests include computer architecture, parallel processing, and parallelizing compiler.

Jean Jyh-Jiun Shann received the B.S. degree in Electronic Engineering from Feng-Chia University, Taichung, Taiwan, Republic of China in 1981. She attended the University of Texas at Austin from 1982 to 1985, where she received the M.S.E. degree in Electrical and Computer Engineering in 1984. She was a lecturer in the Department of Computer Science and Information Engineering, National Chiao-Tung University, Hsinchu, Taiwan, ROC, while working towards the Ph.D. degree. She received the degree in 1994 and is currently an Associate Professor in the department. Her current research interests include computer architecture, parallel processing, and information retrieval.
