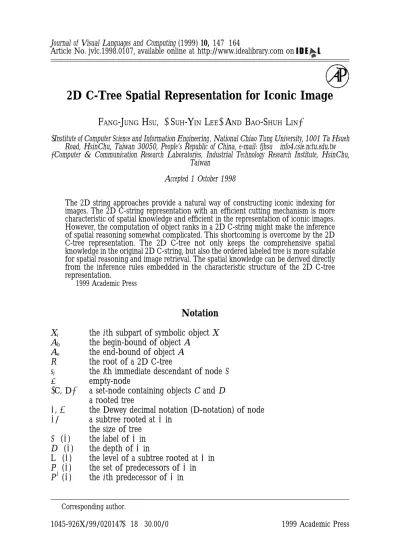

2D C-Tree Spatial Representation for Iconic Image
F
ANG-J
UNGH
SU,*
R S
UH-Y
INL
EER A
NDB
AO-S
HUHL
INS
RInstitute of Computer Science and Information Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, HsinChu, Taiwan 30050, People’s Republic of China, e-mail: [email protected] SComputer & Communication Research Laboratories, Industrial Technology Research Institute, HsinChu,
Taiwan Accepted 1 October 1998
The 2D string approaches provide a natural way of constructing iconic indexing for images. The 2D C-string representation with an efficient cutting mechanism is more characteristic of spatial knowledge and efficient in the representation of iconic images. However, the computation of object ranks in a 2D C-string might make the inference of spatial reasoning somewhat complicated. This shortcoming is overcome by the 2D C-tree representation. The 2D C-tree not only keeps the comprehensive spatial knowledge in the original 2D C-string, but also the ordered labeled tree is more suitable for spatial reasoning and image retrieval. The spatial knowledge can be derived directly from the inference rules embedded in the characteristic structure of the 2D C-tree representation.
1999 Academic Press
Notation
Xi the i th subpart of symbolic object X
Ab the begin-bound of object A
Ae the end-bound of object A
R the root of a 2D C-tree
si the ith immediate descendant of node S
e empty-node
+C, D, a set-node containing objects C and D I a rooted tree
a, b the Dewey decimal notation (D-notation) of node a/I a subtree rooted ata in I
"I" the size of tree I
SI(a) the label ofa in I
DI (a) the depth ofa in I
LI (a) the level of a subtree rooted ata in I
PI(a) the set of predecessors ofa in I
PIi (a) the i th predecessor of a in I
CI(a) the number of immediate descendants ofa in I
pI(a) the set of legitimate descendants ofa in I
piI(a) the i th legitimate descendant ofa in I
qI(a) the set of lateral descendants ofa in I
qIi (a) the i th lateral descendant ofa in I
fI(a) the postfix ordering ofa in I
hI(a) the leading descendant of subtree a/I
1. Introduction
IN IMAGE INFORMATION SYSTEMS, one of the most important methods for discriminating
the images is the perception of objects and the spatial relationships that exist among them in the desired images. Therefore, how images are stored and the capability of assembling queries on objects and their spatial relationships in a database are important design issues of image database systems. The data structure, called 2D string [1], to represent the spatial knowledge in symbolic pictures was introduced by Chang et al. This approach allows a natural way of constructing iconic indexes for images. In order to describe more accurately the spatial relations for images of arbitrary complexity, many extended representations were proposed. 2D G-strings [2, 3] extended the idea of symbolic projection [4] by introducing the cutting mechanism to describe images with overlapping objects. The cuttings are performed at all extreme points of symbolic objects in the image viewing from x- and y-projection, respectively. A more efficient cutting mechanism was introduced in the 2D C-string representation [5]. Basically, the cutting of 2D C-string is performed only at the point of partial overlapping. It preserves all the spatial information of an image by the least possible number of cuttings and the number of subparts generated by this sparse cutting mechanism are reduced significantly.
However, multiple subparts of the same symbolic object within the string might make the inference of spatial reasoning somewhat complicated. For solving the limitations of subpart management in 2D C-strings, a variation of symbolic projections called 2D B-string [6] was suggested using the interval projection method in which no cutting is required. Petraglia et al. [7] defined a mapping between images and indexes that satisfies the property of normalization for more freedom in the filing of images. The indexed 2D C-strings numbers the derived subparts and produces a virtual image with respect to reverse invariance. Petraglia et al. also introduced 2R string [7], using a polar axis system that substitutes the Cartesian one, to achieve rotation invariance. Recently, Jungert and Chang proposed thep-tree [8], for logical description of images, which is a symbolic hierarchical representation of a 2D or 3D space such that spatial reasoning or iconic indexing can be performed.
The various 2D string variants have their respective improvement or advantage in the representation or handling of spatial knowledge over 2D strings. However, solving the problem of image query or similarity retrieval of images based on 2D string subsequence matching is not suitable unless a ranking mechanism is employed. The analogous matching mechanism, as developed in 2D C-string also using a ranking scheme, can be employed for similarity retrieval for 2D string variants. The essence of the ranking mechanism is based on an implicitly implied tree structure. To solve the
Figure 1. A symbolic picture and its corresponding 2D string representation
problem from the root, therefore, in this paper we propose a new spatial representation called 2D C-tree for iconic images. The spatial relationships among symbolic objects are retained and the spatial knowledge is implicitly embedded in the characteristic structure of an ordered labeled tree. The spatial knowledge is derivable from a 2D C-tree simply by the common operations of tree structure. A specific tree matching algorithm can be developed to solve the problem of image retrieval and subpicture query. In the rest of the paper, the 2D C-string approach is briefly recalled in the next section. Then we present the characteristic tree structure and the construction algorithm in Section 3. The spatial reasoning of 2D C-tree is also analyzed in Section 4. In Section 5, we make a brief description and illustration of the use of 2D C-tree for image query and retrieval. Finally, conclusions are given in the last section.
2. Spatial indexing by 2D C-Strings
The original 2D string [1] is point-based for representing symbolic pictures. The basic idea is to project the objects of a picture along the x- and y-coordinates to form two strings representing the relative positions of objects in the x- and y-axis, respectively [4]. Three spatial relation operators ‘(’, ‘"’, and ‘ : ’ are employed in 2D strings. The operator ‘(’ denotes the ‘left-right’ or ‘below-above’ spatial relation. The operator ‘"’ denotes the ‘at the same spatial location as’ relation. The operator ‘ : ’ denotes the ‘in the same set as’ relation. A symbolic picture and its corresponding 2D string representation are shown in Figure 1.
However, the operators of 2D strings are not sufficient to give a complete description of spatial knowledge for images of arbitrary complexity. Chang et al. extended the idea of symbolic projection by introducing the cutting mechanism and proposed the generalized 2D string (2D G-string) [3] for images with overlapping objects. The cuttings are performed at all the extreme points of symbolic objects in the picture, but they are not economic for complex images in terms of storage space and navigation complexity. A more efficient cutting mechanism with a characteristic set of spatial operators as illustrated in Table 1 was introduced in the 2D C-string representation [5]. The notations
Table 1. The definition of spatial operators
Notation Condition Meaning
A(B A(B Adisjoins B
A" B A"B Ais edge to edge with B A"B A"B and A"B Ahas the same projection as B
A[ B A "B and A'B Acontains B and they have the same begin-bound A] B A(B and A"B Acontains B and they have the same end-bound A % B A(B and A'B Acontains B and they do not have the same bound
A/B A(B(A(B Ais partly overlapping with B
Basically, the cutting of 2D C-string is performed only at the point of partial overlapping. The spatial operators are classified into two categories: global operators and local operators. The global operators ‘(’ and ‘"’ handle the cases of non-overlapping. The local operators ‘ [ ’, ‘ % ’, ‘ ] ’, ‘"’ and ‘/’ handle the cases of overlapping. Since transitivity does not hold in the inference of spatial reasoning when the derivation involves the partly overlapping operator ‘/’, there might incur ambiguity. The ‘/’ operator can be expressed in terms of other operators and is dropped from the set of spatial operators for unique representation.
As for the case of two objects that are partly overlapping, a cutting will be performed at the end-bound point of the preceding object.
Definition 1. For two objects A and B, the object A is called the preceding object of
object B when Ab(Bb(the begin-bound of object A is smaller than that of object B ).
On the contrary, the object B is called the following object of object A.
Definition 2. For the case of two objects that are partly overlapping, the preceding object is called the dominating object of the following object.
The cutting mechanism keeps the preceding object intact and partitions the following object. The following object is forced to split into two subparts. The first subpart is terminated at the end-bound of the dominating object, and the remaining subpart is reborn at the same location. For example, B/C can be transformed to B ]C1"C2, where
C1 denotes the first subpart of object C and C2 the second subpart. The cutting
mechanism is also suitable for images with many objects. Consider the example image with three objects B, C, and D, as shown in Figure 2. Only one cutting is performed at the end-bound of the dominating object B, and then the remaining subparts of C and D are now completely overlapping, not partly overlapping. The example image in Figure 2 is represented as B ]C1]D1"D2[C2. Furthermore, the cutting, which is performed
at the end-bound of a dominating object, does not partition the preceding objects of this
dominating object. A simple example is shown in Figure 3. Object B is the dominating object of object C, and object A is the preceding object of object B. Object C is segmented by object B naturally, but object A is not. Thus the example image is represented as
A%(B ] C1" C2).
In the example image f in Figure 4, the object A is partly overlapping with the objects
Figure 2. Object B is a dominating object
Figure 3. Bis a dominating object of C, but A is not segmented by B
x-direction. The objects C and D are each partitioned into two subparts. The 2D C-string representation of the image f along the x-axis is
2D C-string( f ): A ] C1"D% B " D2[(C2(E).
All the spatial information of an image is preserved by the least possible number of cuttings and the number of subparts generated by this sparse cutting mechanism is reduced significantly. Considering the spatial knowledge of 2D C-strings, three kinds of fundamental laws were explored from the algebraic point of view of the 2D C-string [9]. The transitive laws are capable of deriving any binary relationships among three successive objects in a 2D C-string. The distributive laws are used to handle the case of local body [5]. The manipulation laws are for the inference of the segmented objects treating their relationships integrally. It has been proved that all the binary relationships among objects in a picture can be inferred from a 2D C-string.
The problem of how to infer the spatial relations between two symbolic objects from a given 2D C-string representation in spatial reasoning is solved by using the rank mechanism [10]. The rank values of objects stand for the relative sequencing in the 2D C-string representing the relative spatial positioning of the original symbolic image. The rank plays an important role in 2D string subsequence matching [5]. The spatial knowledge is embedded in the ranks of the symbolic objects. In fact, the ranks are representative of the spatial knowledge of the symbolic objects in an image. However,
Figure 4. The image f with the cutting of 2D C-string representation
the computation of the rank values of objects might make the inference of spatial reasoning somewhat complicated due to the transformation of the implicitly hidden tree structure of a 2D C-string. Therefore, we directly explore a tree structure for the 2D C-string representation.
3. 2D C-Tree
3.1. 2D C-Cutting Algorithm
Suppose that the objects are recognized and enclosed by minimum bounding rectangles in a given image. Each minimum bounding rectangle has both begin-bound and end-bound along the x- and y-coordinate axis, respectively. The two orthogonal sets of cutting corresponding to the cuts along the x- and y-direction are independent of each other, and the symbolic picture is constructed into respective 2D C-tree [11] along the
x- and y-axis individually. Since the spatial relationships among many objects in the image are complicated, some objects may be segmented by cutting lines to represent the spatial relationships in good order. Before detecting the cuttings, the values of all the begin-bounds and end-bounds of objects need to be sorted. Then the same-value points are grouped into the same-value sets and will be abbreviated as sets in the following context. The same-value sets are the principals of the algorithm. For the example image
f in Figure 4, there are five objects in the image. After sorting and grouping the values of all bound points, there are nine same-value sets as follows.
+Ab,, +Cb Db,, +Bb,, +Be,, +Ae,, +Ce,, +Eb,, +Ee,, +De,.
For each set, we must check whether there is any end-bound point in the set. The case of partly overlapping occurs only in the condition that the end-bound of a dominating
object exists in the set. From the same end-bound objects in the set, the object which has the smallest begin-bound is chosen to be the candidate of dominating object. If there is any following object that does not end yet, the candidate becomes a dominating object. The
dominatingobject forces all the following objects either to terminate or to split into two subparts. If the end-bound of a following object is also in the set fortunately, the following object terminates naturally. If not, the following object is segmented into two subparts. The detailed cutting algorithm, called 2D C-Cutting, is described as follows.
Algorithm: 2D C-Cutting
Step 1: Sort the values of all the begin-bound and end-bound points of objects. Step 2: For the sorted points, group the same-value points into same-value sets. Step 3: Loop from step 4 to step 8 for each set until no more set, then finish. Step 4: Check whether there is any end-bound in the current set. If all points in the set
are begin-bounds, go back to step 3 for the next set.
Step 5: Find the dominating object selected from the same end-bound objects in the current set. The dominating object has the smallest begin-bound. (A cutting is performed at the location of this set, if the case of partly overlapping occurs.) Step 6: If there is any following object whose begin-bound is in the range of the dominating
object, cut all the following objects and link them. Otherwise, go to step 7. (1) Cut the following objects. If the end-bound of a following object is also in the
current set, the following object ends naturally and does not need to be cut. Otherwise, the following object is segmented into two subparts because the case of partly overlapping objects occurs. The front subpart is to be linked in the next substep and the back subpart will be collected into the current set at step 8.
(2) Link the following objects (or subparts). According to the begin-bound values of the following objects/subparts, the same begin-bound objects/subparts are linked by ‘"’ to constitute an individual same-begin list (abbreviated as list ). Then the lists are linked by ‘ ] ’ together from the largest to the smallest. If the smaller list had linked other objects (or lists) before, two additional actions need to be done. (a) The operator is changed to ‘" ’ when the larger list had been marked the ‘edge’ flag at step 8 previously; otherwise, the operator is changed to ‘(’. (b) If the operator between the smaller list and its first linked object /list is ‘ [ ’ or ‘%’, it is changed to ‘"’ or ‘ ] ’ correspondingly. Step 7: If there is more than one dominating object with same begin- and end-bound in
the current set, link them by ‘"’ into a dominating list. If there is other same begin-bound object that does not end yet, the dominating object"list is linked to this object by ‘[’. Otherwise, the dominating objectılist is linked to its preceding object by ‘%’ operator. If the preceding object had linked other objects before, the operator is changed to ‘"’ when the dominating object/list had been marked the ‘edge’ flag at step 8 previously; otherwise, the operator is changed to ‘(’. Step 8: Remove the end-bound points from the current set and remove the begin-bound points of all the following objects from the previous sets within the range of the dominating object. The remaining subparts of segmented objects in step 6(1) are viewed as new objects with begin-bound being the location of the current set and merged into this set. Then mark this set with an ‘edge’ flag. If the set is empty, de-allocate this set.

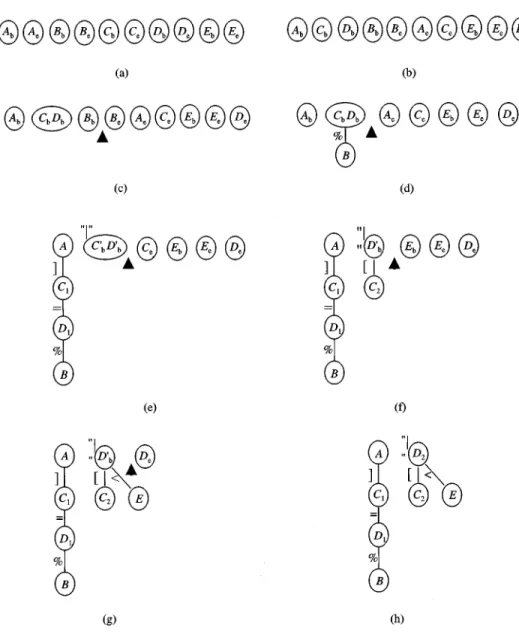

Figure 5. The construction process of 2D C-Cutting Algorithm for image f. (a) The original input data. (b) The sorted value points. (c) Nine same value sets. (d) Object B has ended. (e) Object A is a dominating
object. (f ) Object C has ended. (g) Object E keeps intact. (h) The final result
Obviously, the 2D C-Cutting algorithm takes O(N log N ) time for sorting and O(N2)
time for parsing the objects in an image. The process of 2D C-Cutting algorithm for f in Figure 4 is briefly explained and demonstrated in Figure 5. The original input data, all the begin-bound and end-bound points of objects, are shown in Figure 5(a). After sorting the values of points at step 1, the sorted points are shown in Figure 5(b) and grouped into nine same-value sets at step 2 as shown in Figure 5(c). At step 3, loop from step 4 to step 8 for each set until no more set.
The first three sets are all begin-bound points, so nothing has to be done at step 4. A processing indicator currently passes over the third set as shown in Figure 5(c). The fourth set has one point Bewhich is an end-bound point. Since Beis the only end-bound
point in the current set, B is a dominating object itself (step 5). Because there is no following object in the range of object B (step 6), B has ended and is linked to its preceding object (the second set ) by ‘%’ operator (step 7). The third and fourth sets are de-allocated after removing Bband Beat step 8. The temporary result is shown in Figure 5(d).
The next set has one point Ae, and Ae is also the only end-bound point in this set.
Because there are two begin-bound points Cband Dbin the range of object A, the case
of partly overlapping objects occurs. Object A becomes the dominating object of objects
Cand D (steps 5 and 6). The following object C is segmented into two subparts C1and C .
Object D is also segmented into two subparts D1 and D (step 6(1)). The same
begin-bound subparts C1and D1are linked by ‘"’ to constitute a same-begin list. Then
the list is linked to its preceding object (the first set ) by ‘ ] ’ (step 6(2)). The dominating object A has ended immediately and produces the first portion of the given image because no object is preceding object A (step 7). Three begin points Ab, Cb, Dband an end-bound
point Ae are all removed. The remaining subparts of segmented objects C and D, i.e.
Cb and Db , are collected into the current set, and this set is marked with an ‘edge’ flag
(step 8). The temporary result is shown in Figure 5(e).
The next set has one point Ce. Since there is no following object in the range of the
reborn object C (step 5 and step 6), the object C has ended and becomes the second subpart of C, C2. Then C2is linked to another same begin-bound point Db that does not
end yet by ‘ [ ’ (step 7). Remove two points Cb and Ceand de-allocate the set containing
Ce at step 8. The temporary result is shown in Figure 5(f ).
The next two sets constitute an intact object E. At step 7, similar to object B, object
Ehas to be linked to its preceding object D b. Since the preceding object Db has contained
another object C2, object E is linked to Db by ‘(’ operator because no ‘edge’ flag is
marked in the set containing Eb. The temporary result is shown in Figure 5(g).
Finally, the last point De . Because there is no following object, the object D has ended
naturally and becomes the second subpart of D, D2. The subtree rooted at D2forms the
second portion of the given image. It is noted that the ‘edge’ flag is marked on the object
D2 in the phase of Figure 5(e). The final result is shown in Figure 5(h). Now, the
algorithm 2D C-Cutting is accomplished and we can construct a labeled tree, called the signed 2D C-tree.
3.2. Constructing a 2D C-Tree
We first initialize a root of 2D C-tree, R, which represents the margin or boundary of the area covered by a given image. Then all the portions produced in the process of 2D C-Cutting are sequentially linked to the root R. The first portion is always linked to the root by ‘"’ operator. Other portions are linked by ‘"’ operator if the ‘edge’ flag is marked on the portions; otherwise, by ‘(’ operator. The signed 2D C-tree of f is constructed as shown in Figure 6.
Each node with label represents an object or subpart in the image. The link, called the signed link, connecting two nodes is signed with the relation operator between the
precedingobjectısubpart and the following objectısubpart. For the ordered subtree rooted at node S with n immediate descendants in the ordering s1, s2,2, sn, S being the parent is
Figure 6. The signed 2D C-tree of image f
actually the preceding object of all its immediate child nodes. The relation operator between node S and its first child-node s1is surely a local operator that indicates the
ensemble relationship between S and the block consisting of all its child-nodes s1,
s2,2, sn. For example, in Figure 6, the ‘ [ ’ operator between D2 and its first child
C2 indicates that D2 is the same-begin-bounded overlapping with the local body
consisting of C2and E. The relation operators between node S and other child-nodes
si(24i4n) are definitely global operators that indicate the sibling relation between the
child-node si(24i4n) and the prior child-node si!1of node S. For example, the ‘(’
operator between D2and E, in Figure 6, indicates the sibling relation between C2and E.
However, a tree with signed link is somewhat unusual for general applications. And the specific tree cannot benefit from currently available tree algorithms. Consequently, a variant 2D C-tree is investigated to comply with the general usage of conventional trees.
The empty-node defined below is employed in order to remove the relation operator from the signed link according to the basic definition of the operators.
Definition 3. An empty-node is a pseudo-node which is labeled ‘e’ and can be of various size.
In the following transformation process, the example signed tree for image f in Figure 6 is taken for illustration and the transformed tree is depicted in Figure 7. The relation operators of the signed links can be removed by the transformation rules below. (TR—1) The ‘ ] ’ operator between a node S and its first child-node s1can be removed
by adding an empty-node before the first child-node s1. For example, the ‘ ] ’
operator between A and C1is removed by addinge1.
(TR—2) The ‘%’ operator between a node S and its first child-node s1can be removed
by adding an empty-node before the first child-node s1 and after the last
child-node sn, respectively. For example, the ‘%’ operator between D1 and
B is removed by addinge2ande3.
(TR—3) The ‘ [ ’ operator between a node S and its first child-node s1can be removed
by adding an empty-node after the last child-node sn. For example, the ‘ [ ’
Figure 7. The transformed 2D C-tree with operators removed
(TR—4) The ‘"’ operator between a node S and its first child-node s1 can be
removed unconditionally. For example, the ‘"’ operator between the root
Rand the object A can be removed. Also, the ‘"’ operator between C1and
D1is removed.
(TR—5) The ‘ " ’ operator between a node S and its child-node si(24i4n) can be
removed unconditionally. For example, the ‘"’ operator between R and
D2can be removed.
(TR—6) The ‘(’ operator between a node S and its child-node si(24i4n) can be
removed by inserting an empty-node before this child-node sG. For example, the ‘(’ operator between D2and E is removed by adding e4.
When the relation operators are stripped off from a signed 2D C-tree after employing the above transformation rules, each node of the transformed tree has at least two child-nodes except the node that originally connects to its single child-node by removing the ‘"’ operator. The ‘"’ operator possesses the commutation law, which is different from other relation operators of 2D C-tree. The objects which are connected with the ‘"’ operator have the same begin-bound and end-bound. For example, the ‘"’ operator between C1and D1indicates that these two objects/subparts have the same
begin-bound and end-bound. For the reasoning of relationship among the nodes of 2D C-tree, a special set-node is introduced for treating a set of lineage that each node has single child-node.
Definition 4. A set-node is a multi-label node consisting of objects that have the same
begin-bound and end-bound.
Thus, an additional transformation rule is proposed.
(TR—7) A node S that has single child-node can be merged with its single child-node to form a set-node and the descendants of the child-node become the
Figure 8. The general 2D C-tree of image f
descendants of the set-node. For the example in Figure 7, C1is merged with its
single child-node D1to form a set-node+C1, D1, and the descendants of D1,
e2, B, and e3 become the descendants of the set-node+C1, D1, as shown in
Figure 8.
Additionally, many properties of 2D C-trees are pointed out.
Lemma 3.1. Any two nodes of a 2D C-tree are either completely overlapping or non-overlapping.
Proof. Since the cuts are performed at the cases of partly overlapping objects, any
object or segmented subpart is exempt from partly overlapping with the others. 䊐
Lemma 3.2. An empty-node of a 2D C-tree is a leaf node.
Proof. The empty-node is a pseudo node for removing the relation operator
between nodes. Clearly, it is impossible that any substantial node is a child-node of an
empty-node. 䊐
Lemma 3.3. Each internal node of a 2D C-tree has at least two child-nodes.
Proof. Considering the case that the internal node has only one child-node in a signed
2D C-tree, the internal node is definitely completely overlapping its child-node. Either these two nodes are merged to a set-node by using (TR—4) and (TR—7) for the case that the internal node is originally connected to its child-node with ‘"’ operator, or some
empty-nodesare added by using (TR—1)—(TR—3) for the cases that the internal node is originally connected to its child-node with ‘ ] ’, ‘%’, or ‘ [ ’ operator. The internal node becomes a set-node in the former case. And the internal node has at least two child-nodes in the latter case. 䊐
By employing the transformation rules from (TR—1) to (TR—7), a general 2D C-tree is obtained and is in conformity with the above properties. The sample symbolic image f in Figure 4 is represented in a general 2D C-tree as shown in Figure 8 with subscript of
Figure 9. The D-notation of the 2D C-tree for image f
4. Spatial Reasoning Using 2D C-Tree
The 2D C-tree is an ordered labeled tree in which each node has a label and the left-to-right order of its children (if it has any) is fixed. Before the discussion of spatial reasoning on 2D C-tree, the notations on trees used [12] are briefly described and are listed in the Notation section.
(1) Dewey decimal notation: Let I be a rooted tree. The Dewey decimal notation (abbreviated D-notation) of the root of the tree is ‘0’. Assume that ‘a’ is a D-notation of a node in I, and the node has n immediate descendants. Then a.1, a.2,2,a.n are the D-notations of the n immediate descendants from left to right, respectively. The D-notation of the 2D C-tree for the image f is shown in Figure 9.
(2) Subtree: A subtree that is rooted at a in I is denoted by a/I. (3) Size: The size of I is the number of nodes in I, denoted by"I". (4) Label: For a3I, SI(a) denotes the label of a.
(5) Depth: For a3I, the depth of a, denoted by DI(a), is the number of nodes on
the path from the root of I toa, excluding a.
(6) Level: For a subtree rooted ata3I, LJ(a) denotes the largest depth among all its
descendants.
(7) Predecessor: For a3I, PI(a) denotes the set of predecessors of a. Also, PGI(a)
denotes the i th predecessor of a, where 0(i4DI(a). a is the root of I if
pI(a)".
(8) Cardinal number: Fora3I, the cardinal number of a is the number of immediate descendants of a, denoted by CI(a). a is a leaf node if CI(a)"0.
(9) Legitimate descendants: Fora3I, pI(a) denotes the set of legitimate descendants of
a. Also, pi
I(a) denotes the ith legitimate descendant of a, that is, pI(a) "a.1.
pi
I(a)"piI\1( p1I(a)), where 14i4LI(a). pI(a)" if a is a leaf node.
(10) Lateral descendants: Fora3I, qI(a) denotes the set of lateral descendants of a. Also,
qi
I(a) denotes the ith lateral descendant of a, that is, q1I(a)"a.n, where n"CI(a).
qi
Figure 10. The postfix ordering of the 2D C-tree for image f
(11) Postfix ordering: The postfix ordering of nodes in I is a one-to-one mapping function fI: aP-, where a is a D-notation of a node in I and
-3+1, 2,2,"I",, that satisfies the following conditions: (i) fI(a.i)(fI(a), where 14i4CI(a).
(ii) fI(a.i)(fI(a.j), where 14i( j4CI(a).
(iii) fI(a.i)(fI(a.j.k), where 14i(j4CI(a) for all D-notation k in subtree
a.j/I.
The postfix ordering of the 2D C-tree for the image f is shown in Figure 10. (12) Postfix representation: Leta be a node in tree I for which CI(a)"n. The subtree
a/I can be represented recursively by a/I"a (a.1/I, a.2/I,2,a.n/I), when
n'0, and a/I"a when n"0.
(13) Leading descendant: For a3I, hI(a) denotes the node with smallest postfix
ordering of subtreea/I.
Suppose that X and Y are two objects in a 2D C-tree I. Their nodes in D-notation are a and b, and the labels of these nodes are SI(a) and SI(b), respectively. Assume that the
postfix ordering of a is after that of b, that is, fI(b)4fI(a). Many inference rules are
obtained according to the definition of relation operators.
(IR—1) X and Y are completely overlapping if and only if b is in the subtree rooted at a, i.e. b3a/I. Besides, b3a/I if and only if fI(hI(a))4fI(b)4fI(a).
The four succinct rules below are for the four cases of completely over-lapping.
(IR—2) X"Y if and only if a"b. For example, C1and D1 are contained in the
multi-label set-node +C1, D1, in Figure 8. C1"D1 since they have same
D-notations.
(IR—3) X [ Y if and only if b3pI(a). For example, D2[ C2in Figure 8.
(IR—4) X ] Y if and only if b3qI(a). For example, A ] C1in Figure 8.
(IR—5) X %Y if and only if b3a/I, but not in the above three cases. For example,
Figure 11. A symbolic image f1and a query q1
Ifb is not in the subtree rooted at a, i.e. b,a/I, Y is surely non-overlapping with X. There are two cases of relation between objects Y and X. One is that Y is edge to edge with X, and the other is that Y disjoins X. The first case occurs when b and a are individually contained in two ‘adjacent ’ subtrees.
Definition 5. Two subtrees are adjacent if the root of one subtree is immediately
followed by the leading descendant of the other subtree according to the postfix ordering. These two subtrees are called adjacent subtrees.
Moreover, the case thatb is a lateral descendant of the preceding adjacent subtree and a is a legitimate descendant of the following adjacent subtree, implies that Y is edge to edge with X. Otherwise, Y disjoins X.
(IR—6) Y " X if and only if b,a/I and b3qI( fJ\1( fJ(hI(a))!1)), where f \1is the
reverse function of f. For example, A" D2in Figure 8.
(IR—7) Y(X if and only if b , a/I and not the case of Y " X. For example, A(E in Figure 8.
The above rules can be examined by the tree traversal algorithm taking O(N ) time complexity for N nodes and they are useful for inferring the spatial relationships among objects in a 2D C-tree.
5. Image Retrieval by 2D C-trees Matching
For many applications, we often deal with the problem of ‘finding images with similar spatial relations as a query example’ in image information systems. The target of image retrieval is to retrieve the images that are most similar to the query image. The similarity based upon the minimum-distance criterion has been proposed using the techniques of 2D string matching defined in terms of the longest common subsequence [1]. For example, the symbolic picture f1in Figure 11(a) may be represented as the 2D string
Figure 13. The 2D C-trees of query q2. (a) q2Xon x-coordinate axis. (b) q2Yon y-coordinate axis
Figure 12. A symbolic image f2and a query q2
(A"DE(C, A(B"C(DE ). We may want to retrieve images satisfying a certain query q1 as in Figure 11(b). Also, q1 can be translated into the 2D string
(A"E(C, A(E ). This query string is the sub-string of the 2D string representa-tion of the image f1. The problem of image retrieval then becomes the problem of 2D
string subsequence matching.
Although the 2D C-string is more efficient in representation and manipulation of images, it is not suitable for solving the image query based on 2D string subsequence matching. For example, we use a query q2in order to match the picture f2as in Figure 12.
The 2D C-string representation of the picture f2 and q2 are (A]D[E" B " C,
A" B%C " D%E) and (A % E(C, A(C(E ), respectively. The query q2is also the
sub-picture of the picture f2, but the query string of q2is quite different in the format
from the example string of f2due to the spatial operators. The query string is not the
sub-string of the example string any longer. Unfortunately these operators are needed to handle the global and local relations among symbolic objects in a 2D C-string and cannot be omitted.
A specific tree matching algorithm is required to solve the problem of image retrieval and subpicture query [13]. We use the example picture f2in Figure 12(a) and query q2in
Figure 12(b) to demonstrate the subpicture query. The 2D C-trees of f2and q2along the
x-and y-coordinate axis are in Figures 13 and 14 respectively. Obviously, the 2D C-trees of q2are the subtrees of the 2D C-trees of f2. That is, q2is a subpicture of f2.
Figure 14. The 2D C-trees of image f2. (a) f2Xon x-coordinate axis. (b) f2Yon y-coordinate axis
We apply this new spatial representation and implement an interactive video informa-tion system [14]. The system allows users to draw a sequence of query frames by assembling object icons and computes the tree distances between the query frames and sample image frames. While all the sequences of the database are compared with the query sequence, the sequence with the minimum distance is the most similar sequence for the query.
6. Conclusions
The approach of 2D strings opens a novel area for iconic image indexing and retrieval. Although the 2D C-string is more efficient in representation and manipulation of images, the computation of object ranks in a 2D C-string might make the inference of spatial reasoning somewhat complicated. Moreover, the 2D C-string representation is not suitable for image query based on 2D string subsequence matching. In this paper, we propose a characteristic 2D C-tree representation with the sparse cutting mechanism, 2D C-Cutting. The new representation not only keeps the whole spatial relationships among objects in an original image, but also the spatial knowledge embedded in the characteristic structure of the 2D C-tree can be derived using the inference rules. Owing to the embedded knowledge in the tree structure, the tree matching algorithm for 2D C-tree representation is worthy of exploring to solve the problem of image retrieval in image database systems. We also apply this new spatial representation and implement an interactive video information system for similarity retrieval of video sequence in our further research.
References
1. S. K. Chang, Q. Y. Shi & C. W. Yan (1987) Iconic indexing by 2-D Strings. IEEE Transaction on Pattern Analysis and Machine Intelligent, PAMI-9, 413—428.
2. E. Jungert (1988) Extended Symbolic Projection used in a knowledge structure for spatial reasoning. In: The 4th BPRA Conference on Pattern Recognition. Springer Verlag, Cambridge.
3. S. K. Chang, E. Jungert & Y. Li (1989) Representation and retrieval of symbolic pictures using generalized 2D strings. In: SPIE Prococeedings on Visual Communications and Image Processing, Philadelphia, pp. 1360—1372.
4. S. K. Chang & E. Jungert (1996) Symbolic Projection for Image Information Retrieval and Spatial Reasoning. Academic Press, London, U.K.
5. S. Y. Lee & F. J. Hsu (1990) 2D C-String: a new spatial knowledge representation for image database systems. Pattern Recognition, 23, 1077—1087.
6. S. Y. Lee, M. C. Yang & J. W. Chen (1992) Signature File as Spatial filter for iconic image database. Journal of Visual Language and Computing 3, 373—397.
7. G. Petraglia, M. Sebillo, M. Tucci & G. Tortora (1993) Towards normalized iconic indexing. In: Proceedings of IEEE Sympasium on Visual Languages, Bergen, Norway, pp. 392—394. 8. E. Jungert & S. K. Chang (1992) Thep-tree — a symbolic spatial data model. In: Proceedings of
the 11th International Conference on Pattern Recognition. The Hague, The Netherlands, pp. 461—465.
9. S. Y. Lee & F. J. Hsu (1991) Picture algebra for spatial reasoning of iconic images represented in 2D C-String. Pattern Recognition Letters, 12, 425—435.
10. S. Y. Lee & F. J. Hsu (1992) Spatial reasoning and similarity retrieval of images using 2D C-String knowledge representation. Pattern Recognition, 25, 305—318.
11. F. J. Hsu, S. Y. Lee & P. S. Lin (1997) 2D C-tree spatial representation for iconic image. In: Proceedings of the 2nd International Conference on Visual Information Systems, San Diego, CA, pp. 287—294.
12. S. Y. Lu (1984) A tree-matching algorithm based on node splitting and merging. IEEE Transaction on Pattern Analysis and Machine Intelligent, PAMI-6, 249—256.
13. F. J. Hsu, S. Y. Lee & P. S. Lin (1998) Similarity retrieval by 2D C-Trees matching in image databases. Journal of Visual Communication and Image Representation, 9, 87—100.
14. F. J. Hsu, S. Y. Lee & P. S. Lin (1998) Video data indexing by 2D C-Trees. Journal of Visual Language and Computing, to appear.
15. S. K. Chang, E. Jungert & G. Tortora (1996) Spatial reasoning, image indexing and retrieval using symbolic projections. In: Intelligent Image Database Systems (S. K. Chang, E. Jungert & G. Tortora, (eds.) World Scientific, Singapore, pp. 1—8.
16. M. Flickner, H. Sawhney, W. Niblack J. Ashley, Q. Huang, B. Dom, M. Gorkani, J. Hafner, D. Lee, D. Petkovic, D. Steele & P. Yanker (1995) Query by image and video content: the QBIC system. IEEE Computer 44, 23—32.
17. A. Guttman (1984) R-trees: a dynamic index structure for spatial searching. In Proceedings of the ACM-SIGMOD International Conference on Management of Data, Boston, MA, pp. 47—57. 18. S. Y. Lee, M. K. Shan & W. P. Yang (1989) Similarity retrieval of iconic image database.
Pattern Recognition, 22,675—682.
