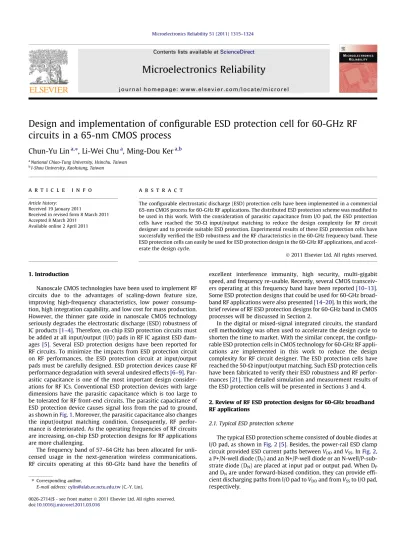

Design and implementation of configurable ESD protection cell for 60-GHz RF circuits in a 65-nm CMOS process

(1)

Chun-Yu Lin

a,⇑

_{, Li-Wei Chu}

a

_{, Ming-Dou Ker}

a,b

a

National Chiao-Tung University, Hsinchu, Taiwan

b

I-Shou University, Kaohsiung, Taiwan

a r t i c l e

i n f o

Article history:

Received 19 January 2011

Received in revised form 8 March 2011 Accepted 8 March 2011

Available online 2 April 2011

a b s t r a c t

The configurable electrostatic discharge (ESD) protection cells have been implemented in a commercial 65-nm CMOS process for 60-GHz RF applications. The distributed ESD protection scheme was modified to be used in this work. With the consideration of parasitic capacitance from I/O pad, the ESD protection cells have reached the 50-X input/output matching to reduce the design complexity for RF circuit designer and to provide suitable ESD protection. Experimental results of these ESD protection cells have successfully verified the ESD robustness and the RF characteristics in the 60-GHz frequency band. These ESD protection cells can easily be used for ESD protection design in the 60-GHz RF applications, and accel-erate the design cycle.

1. Introduction

Nanoscale CMOS technologies have been used to implement RF circuits due to the advantages of scaling-down feature size, improving high-frequency characteristics, low power consump-tion, high integration capability, and low cost for mass production. However, the thinner gate oxide in nanoscale CMOS technology seriously degrades the electrostatic discharge (ESD) robustness of IC products[1–4]. Therefore, on-chip ESD protection circuits must be added at all input/output (I/O) pads in RF IC against ESD dam-ages[5]. Several ESD protection designs have been reported for RF circuits. To minimize the impacts from ESD protection circuit on RF performances, the ESD protection circuit at input/output pads must be carefully designed. ESD protection devices cause RF performance degradation with several undesired effects[6–9]. Par-asitic capacitance is one of the most important design consider-ations for RF ICs. Conventional ESD protection devices with large dimensions have the parasitic capacitance which is too large to be tolerated for RF front-end circuits. The parasitic capacitance of ESD protection device causes signal loss from the pad to ground, as shown inFig. 1. Moreover, the parasitic capacitance also changes the input/output matching condition. Consequently, RF perfor-mance is deteriorated. As the operating frequencies of RF circuits are increasing, on-chip ESD protection designs for RF applications are more challenging.

The frequency band of 57–64 GHz has been allocated for unli-censed usage in the next-generation wireless communications. RF circuits operating at this 60-GHz band have the beneﬁts of

excellent interference immunity, high security, multi-gigabit speed, and frequency re-usable. Recently, several CMOS transceiv-ers operating at this frequency band have been reported[10–13]. Some ESD protection designs that could be used for 60-GHz broad-band RF applications were also presented[14–20]. In this work, the brief review of RF ESD protection designs for 60-GHz band in CMOS processes will be discussed in Section 2.

In the digital or mixed-signal integrated circuits, the standard cell methodology was often used to accelerate the design cycle to shorten the time to market. With the similar concept, the conﬁgu-rable ESD protection cells in CMOS technology for 60-GHz RF appli-cations are implemented in this work to reduce the design complexity for RF circuit designer. The ESD protection cells have reached the 50-Xinput/output matching. Such ESD protection cells have been fabricated to verify their ESD robustness and RF perfor-mances[21]. The detailed simulation and measurement results of the ESD protection cells will be presented in Sections 3 and 4. 2. Review of RF ESD protection designs for 60-GHz broadband RF applications

2.1. Typical ESD protection scheme

The typical ESD protection scheme consisted of double diodes at I/O pad, as shown inFig. 2 [5]. Besides, the power-rail ESD clamp circuit provided ESD current paths between VDDand VSS. InFig. 2,

a P+/N-well diode (DP) and an N+/P-well diode or an

N-well/P-sub-strate diode (DN) are placed at input pad or output pad. When DP

and DNare under forward-biased condition, they can provide

efﬁ-cient discharging paths from I/O pad to VDDand from VSSto I/O pad,

respectively.

⇑ Corresponding author.

(2)

During positive-to-VDD-mode (PD-mode) and negative-to-VSS

-mode (NS--mode) ESD stresses, ESD currents were discharged through the forward-biased DPand DN, respectively. Under

posi-tive-to-VSS-mode (PS-mode) ESD stress, ESD current was

dis-charged from the I/O pad through the forward-biased DPto VDD,

and discharged to the grounded VSSpad through the turn-on

efﬁ-cient power-rail ESD clamp circuit. Similarly, under negative-to-VDD-mode (ND-mode) ESD stresses, ESD current was discharged

from the VDD pad through the turn-on efﬁcient power-rail ESD

clamp circuit and the forward-biased DNto the I/O pad. With the

assistance of power-rail ESD clamp circuit, the ESD diodes pre-vented from being operated under breakdown conditions under PS-mode and ND-mode ESD stresses.

However, this typical ESD protection circuit is only suitable for small ESD protection devices, because the parasitic capacitance of the ESD protection device is directly contributed at the I/O pad. The device dimensions of ESD diodes should be decreased to re-duce the parasitic capacitance at I/O pad, which in turn rere-duces RF performance degradation caused by the parasitic capacitances of the ESD diodes. However, the minimum device dimensions of ESD diodes cannot be shrunk unlimitedly, since the ESD robustness needs to be maintained.

2.2. ESD protection design with series LC resonator

Fig. 3shows the ESD protection design utilizes the series LC res-onator [14]. At frequencies above the resonant frequency of the series LC resonator, the impedance becomes large, which means the signal loss from the ESD protection circuit is reduced. Thus, wideband ESD protection can be achieved by using the series LC

resonator. During ESD stresses, the ESD current can be discharged through the inductor (LP or LN) and the ESD protection device.

However, the transient voltage across the RF circuits under ESD stress is the total voltage drop across the inductor and the ESD pro-tection device. The transient voltage across the RF circuits under ESD stress must be reduced to improve ESD robustness of the RF circuits, especially for the circuits realized in nanoscale CMOS technology.

2.3. ESD protection design with inductor

The ESD protection design with inductor as the ESD protection device for RF circuits had been reported[15]. As shown inFig. 4, the ESD protection inductor (LESD) is placed between the input

pad and VSS. Besides, a dc blocking capacitor (Cblock) is needed in

this design to provide a separated dc bias for the internal circuits. Since inductor exhibited higher impedance at higher frequencies, and the frequency component of the RF signal is much higher than that of ESD events, the inductor can bypass the ESD current while block the RF signal. To efﬁciently bypass the ESD current, the metal width of the ESD protection inductor should be wide enough to en-hance the current handling capability and to reduce the parasitic series resistance. However, inductors realized by very wide metal traces occupy large chip area. This is the main design concern in the inductor-based ESD protection.

Fig. 1. Signal loss at input and output pads of IC with ESD protection devices.

Fig. 2. Typical ESD protection scheme with double diodes at I/O pad.

(3)

2.4. ESD protection design with T-coil

ESD protection design for wideband RF applications by using T-coil had been reported[16]. As shown inFig. 5a, this circuit can provide a purely resistive input impedance of RT under proper

impedance matching design. With proper design, large ESD protec-tion devices can be used without degrading RF performance. An-other T-coil-based ESD protection design had been reported. As

tions and matched by the inductors. The number of ESD protection diodes can be varied to optimize the performance.

2.6. RF-ESD co-design

ESD protection devices can be treated as a part of the imped-ance matching network at the I/O pad. By co-designing the ESD protection circuit and the impedance matching network, large ESD protection devices can be used to achieve high ESD robustness without sacriﬁcing RF performance. The RF circuit co-designed with ESD protection devices had been presented.Fig. 7shows an

Fig. 4. ESD protection design with inductor.

Fig. 5. ESD protection design with (a) T-coil and (b) T-diode.

(4)

example of RF-ESD co-design on the distributed ampliﬁer[19,20]. In this conﬁguration, ESD current can be discharged from the input pad through the ESD diodes to VDDor VSS. Of course, the

ESD devices had been carefully designed to provide ESD current paths.

2.7. Comparison among ESD protection designs

The comparison among ESD protection designs for 60-GHz RF circuits is listed inTable 1, where the items to be compared include the need of dc blocking capacitor (Cblock), signal loss, and ESD level.

Besides the ESD protection design with inductor, the Cblockis not

necessary for the I/O pads, which will not limit the design freedom of RF circuits. For the signal loss, the ESD protection designs with extra inductive components can achieve low signal loss. Besides, the inductor size can be scaled down with the increasing operating frequency.

By using the ESD protection scheme of series LC resonator, inductor, T-coil, or distributed ESD protection, the internal circuits can be clamped to the clamping voltage of ESD protection devices. The series LC resonator existed higher clamping voltage, which consists of one inductor and one ESD protection device. With the higher clamping voltage at internal circuits, the ESD protection de-sign performed lower ESD robustness, especially in nanoscale CMOS processes with gate oxide thickness of 20 Å. The other ESD protection designs are expected to perform good ESD robust-ness. It should be noted that the inductor has large voltage over-shoots during the charged-device model (CDM) ESD stress, which typically has a fast rise time of <1 ns[22]. Therefore, the inductive ESD protection must be carefully designed to prevent from the large voltage overshoots during CDM ESD stress.

3. ESD protection cell design

To reduce the design complexity for RF circuit designer, the con-ﬁgurable ESD protection cells in 65-nm CMOS technology for 60-GHz RF applications are implemented in this work. These ESD pro-tection cells are designed to be directly used in the RF circuits, and they have reached the 50-Xinput/output matching, as shown in Fig. 8.

In the previous design of distributed ESD protection scheme, the parasitic capacitance of I/O pad was not considered. To realize the conﬁgurable ESD protection cells for 60-GHz applications, which the parasitic capacitance of I/O pad is considered, the distributed ESD protection scheme is modiﬁed to be used in this work. The ESD protection cells with different ESD robustness are listed in Ta-ble 2.Fig. 9a shows the circuit diagrams of the cells A and B with 1-stage ESD protection. The 1-1-stage ESD protection is designed with a low-C pad, an on-chip spiral inductor, and a pair of ESD diodes. Similarly, the circuit diagrams of the cells C and D with 2-stage ESD protection are shown inFig. 9b. The 2-stage ESD protection is designed with a low-C pad, two on-chip spiral inductors, and two pairs of ESD diodes. Besides, the power-rail ESD clamp circuit is added beside each ESD protection cells to provide ESD current paths between VDDand VSS.

Although the distributed ESD protection scheme is used in this work, the matching procedures are different. The design proce-dures of ESD protection cells with 1-stage ESD protection and 2-stage ESD protection are shown inFig. 10a and b, respectively. The loci of S11-parameters in Fig. 10 are used to achieve input

matching. The centered point of the Smith chart is normalized to 50X. The serial numbers (1–4) labeled on each nodes of 1-stage ESD protection inFigs. 9a and 10a indicated the design procedure along the ESD diodes (DP1and DN1), inductor (L1), and low-C pad

from the RF core circuit (modeled as 50-Xload) to the external

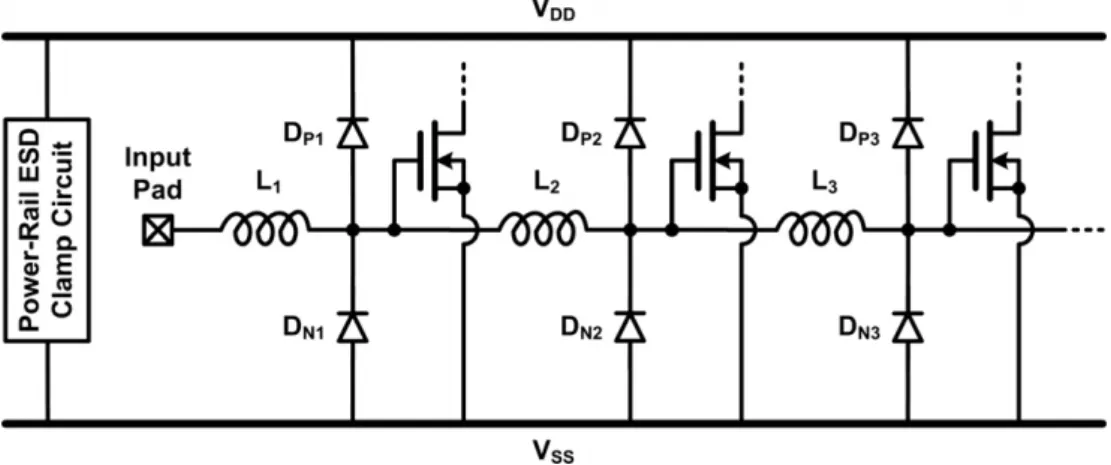

Fig. 7. RF distributed ampliﬁer co-designed with ESD diodes.

Table 1

Comparison among ESD protection designs for 60-GHz RF circuits.

ESD protection design Needing

Cblock

Signal loss ESD level 1. Typical ESD protection scheme No High Good 2. ESD protection design with series

LC resonator

No Low Poor

3. ESD protection design with inductor

Yes Low Good

4. ESD protection design with T-coil No Low Good 5. Distributed ESD protection

scheme

No Low Good

6. RF-ESD co-design Designable Designable Designable Fig. 8. ESD protection design for 60-GHz RF ICs with 50-X-matched ESD protection cell.

(5)

50-Xsource at the input pad. Similarly, the serial numbers (1–6) labeled on each nodes of 2-stage ESD protection inFigs. 9b and

10b indicated the design procedure along the ESD diodes (DP2

and DN2), inductor (L2), ESD diodes (DP1 and DN1), inductor (L1),

PD-mode HBM robustness 1 kV 2 kV 2.75 kV 3.5 kV NS-mode HBM robustness 0.75 kV 1.5 kV 2.25 kV 2.75 kV ND-mode HBM robustness 0.75 kV 1.5 kV 2.25 kV 2.75 kV PS-mode TLP It2 0.42 A 0.74 A 1.09 A 1.37 A PD-mode TLP It2 0.43 A 0.74 A 1.11 A 1.44 A NS-mode TLP It2 0.38 A 0.73 A 1.08 A 1.41 A ND-mode TLP It2 0.37 A 0.71 A 1.08 A 1.40 A PS-mode VF-TLP It2 0.55 A 0.71 A 0.95 A 1.06 A PD-Mode VF-TLP It2 0.66 A 1.10 A 1.53 A 2.02 A NS-mode VF-TLP It2 1.56 A 2.82 A 3.93 A 5.14 A ND-mode VF-TLP It2 1.56 A 2.69 A 3.91 A 5.09 A

Fig. 9. Circuit diagrams of ESD protection cells with (a) 1-stage ESD protection and (b) 2-stage ESD protection.

(6)

and low-C pad from the RF core circuit to the input pad. With the ﬁnal point coming back to the original center point of the Smith chart inFig. 10, these ESD protection schemes have good matching results.

Fig. 11shows the power-rail ESD clamp circuit used in this work, where an RC-inverter-triggered NMOS (MESD) with

2000-l

m width is used. Since the power-rail ESD clamp circuit is placed between VDDand VSS, it does not contribute any parasitic effects to

input/output ports. When the PD-mode (NS-mode) ESD stress oc-curs at the pad, the ESD current can be discharged through the diodes DP(DN) from the pad to VDD (VSS). Under PS-mode

(ND-mode) ESD stress, the ESD current path consists of the diodes DP

(DN) and the power-rail ESD clamp circuit. The ESD protection cells

can provide the corresponding current discharging paths under all ESD stress modes.

The RF characteristics of the ESD protection cells are simulated by using the microwave circuit simulator ADS. A signal source with 50-Ximpedance drives the RFIN-ESDof the cell, and a 50-Xload is

connected to RFIN-Coreto simulate the RF circuit. The device

param-eters of the ESD protection cells are selected by using the afore-mentioned design procedure. The design parameters of ESD protection cells A, B, C, and D with different ESD robustness are listed inTable 2. In these designs, all diodes are implemented by STI diodes, and the spiral inductors are realized by top thick metal with 5-

l

m width. These conﬁgurable ESD protection cells with dif-ferent ESD robustness and signal loss can be chosen by RF circuit designer.

The simulated reﬂection (S11) parameters are shown inFig. 12a.

These ESD protection cells exhibit good input matching (S11

-parameters < 12 dB) among 57–64 GHz. The simulated transmis-sion (S21) parameters are compared inFig. 12b. At 60-GHz

fre-quency, the cells A, B, C, and D have about 0.8-dB, 1.3-dB, 1.6-dB, and 2.2-dB power loss, respectively.

To facilitate the on-wafer RF measurement, one set of these test circuits are arranged with G–S–G style in layout. Besides, another set of the test circuits are implemented with the RF-NMOS emula-tor, as shown inFig. 13. The ESD robustness of the ESD-protected RF circuits can be estimated by the ESD protection cell with the RF-NMOS emulator. All test circuits have been fabricated for RF and ESD veriﬁcations.Fig. 14a and b shows the die photos of the cells B and D on the fabricated chip, respectively.

4. Experimental results 4.1. RF performances

With the on-wafer RF measurement, the S-parameters of these four ESD protection cells have been extracted around 60 GHz. The voltage supply of VDD(VSS) is 1.2 V (0 V), and the input dc bias is

0.6 V. The source and load resistances to the test circuits are kept at 50X. The measured S11-parameters and S21-parameters versus

frequency are shown inFig. 15a and b, respectively. As shown in Fig. 15a, the S11-parameters of these ESD protection cells among

57–64 GHz are all lower than 15 dB. At 60-GHz frequency, the cells A, B, C, and D have about 0.7-dB, 0.9-dB, 1.8-dB, and 2.1-dB power loss, respectively.

The measured input matching (S11-parameters) and output

matching (S22-parameters) expressed in Smith chart of the ESD

protection cells within 57–64 GHz are shown in Fig. 15c and d, respectively. All S11-parameters and S22-parameters of these ESD

protection cells located around the 50-Xcenter point of Smith

Fig. 11. Power-rail ESD clamp circuit used in this work.

Fig. 12. Simulation results of ESD protection cells on (a) S11-parameters and (b) S21-parameters.

Fig. 13. RF-NMOS emulator to verify ESD protection effectiveness of proposed ESD protection cell.

(7)

chart. Therefore, these 50-X-matched ESD protection cells can be directly used in RF circuits.

The parasitic capacitances of the ESD protection cells can be ex-tracted from the measured S-parameters. The exex-tracted parasitic capacitances of the ESD protection cells are shown inFig. 16. At 60-GHz frequency, the cells A, B, C, and D have about 0.4-fF, 0.3-fF, 23.7-0.3-fF, and 29.7-fF parasitic capacitance, which are also listed inTable 2.

4.2. ESD robustness

The human-body-model (HBM) ESD robustness of the fabri-cated ESD protection cells with the RF-NMOS emulators are evalu-ated by the ESD tester. The PS-mode, PD-mode, NS-mode, and ND-mode ESD robustness of all ESD protection cells are listed inTable 2. The cells A, B, C, and D can sustain 0.75-kV, 1.5-kV, 2.25-kV, and

2.5-kV HBM ESD tests, respectively. Besides, the power-rail ESD clamp circuit can sustain over 8-kV HBM ESD tests.

The I–V characteristics of the ESD protection cells in high-cur-rent regions were characterized by using the transmission line pulsing (TLP) system with 10-ns rise time and 100-ns pulse width. Fig. 17a–dshows the TLP-measured I–V curves of the fabricated ESD protection cells under PS-mode, PD-mode, NS-mode, and ND-mode tests, respectively. The secondary breakdown currents (It2) indicated the current-handling ability of ESD protection cells

were obtained from the TLP-measured I–V curves. The secondary breakdown currents of ESD protection cells are listed inTable 2.

Another very fast TLP (VF-TLP) system with 0.2-ns rise time and 1-ns pulse width was also used in this study. The VF-TLP system can be used to capture the transient behavior of ESD protection cells in the time domain of charged-device-model (CDM) ESD event[23]. The VF-TLP-measured It2of ESD protection cells are also Fig. 15. Measurement results of fabricated ESD protection cells on (a) S11-parameters and (b) S21-parameters versus frequency and (c) S11-parameters and (d) S22-parameters

(8)

listed inTable 2. The VF-TLP-measured It2are similar to the peak

currents under CDM ESD tests. Therefore, with these VF-TLP-mea-sured data, the CDM ESD robustness of ﬁnal product can be ex-pected[23].

4.3. Comparison

The HBM ESD robustness and the measured S21-parameters at

60 GHz of ESD protection cells on different DPor DNsize are

com-pared inFig. 18. According to the experimental results, the S21

-parameters/HBM ESD robustness of cells A, B, C, and D are 0.70/0.75, 0.91/1.5, 1.83/2.25, and 2.10/2.5 dB/kV,

respec-tively. The ratios of S21-parameters at 60 GHz to HBM ESD

robust-ness of ESD protection cells are about 1 dB/kV. Although the power losses are increased with the increases of DP or DN size,

the ESD protection cells can effectively protect the RF circuits.

5. Example of ESD protection cells applied to 60-GHz LNA The ESD cells can be easily used to protect the 60-GHz RF cir-cuits.Fig. 19shows the ESD protection cell applied to a 60-GHz low-noise ampliﬁer (LNA)[12]. The RF characteristics of LNA with

Fig. 16. Measurement results of fabricated ESD protection cells on parasitic capacitances.

Fig. 17. TLP-measured I–V characteristics of ESD protection cells under (a) PS-mode, (b) PD-mode, NS-mode, and (d) ND-mode tests.

Fig. 18. Dependence of HBM ESD robustness and measured S21-parameters of ESD

(9)

and without ESD protection cells are simulated in 65-nm CMOS process. The used RF simulator was also ADS.

As simulating the RF performances, the previous measured S-parameters of ESD protection cells are inserted at the ﬁrst stage of the 60-GHz LNA.Fig. 20a and b shows the simulated S11

-param-eters and S21-parameters of 60-GHz LNA with and without ESD

protection cells. As shown inFig. 20a, the LNA without ESD cell achieves good input matching (S11-parameters < 20 dB) at

oper-ating frequency. After adding ESD cell A or D in the LNA, the sim-ulated S11-parameters are still less than 15 dB. The LNA

without ESD cell achieves 13.4-dB power gain (S21-parameters)

at 60 GHz, as shown inFig. 20b. With the ESD protection cell A or D adding in the LNA, the simulated power gain becomes 12.8 dB or 11.5 dB at 60 GHz. Although the ESD protection cells slightly degrade the RF performances of LNA, they can provide suit-able ESD protection.

6. Conclusion

In this work, the ESD protection cells for 60-GHz RF applications are presented. These ESD protection cells have reached the 50-X

input/output matching. These useful ESD protection cells reduce the design complexity for RF circuit designer and provide suitable ESD robustness. These ESD protection cells are developed to

sup-port foundry’s customers for them to easily apply ESD protection in the 60-GHz RF circuits. Veriﬁed in commercial 65-nm CMOS process, the cells A, B, C, and D have about 0.7-dB, 0.9-dB, 1.8-dB, and 2.1-dB power loss, respectively. Besides, they can sustain 0.75-kV, 1.5-kV, 2.25-kV, and 2.5-kV HBM ESD tests, respectively. Acknowledgments

This work was supported by Taiwan Semiconductor Manufac-turing Company (TSMC) and National Science Council (NSC), Tai-wan, under Contract NSC 98-2221-E-009-113-MY2. The authors would like to thank the review meetings of TSMC during circuit de-sign and measurement on the ESD protection cells, where the par-ticipants included Mr. Tse-Hua Lu, Mr. Tsun-Lai Hsu, Mr. Ping-Fang Hung, Ms. Hsiao-Chun Li, Mr. Ming-Hsiang Song, Mr. Jen-Chou Tseng, Mr. Tzu-Heng Chang, Mr. Chewn-Pu Jou, and Mr. Ming-Hsien Tsai. The authors would also like to thank the Editor of Microelectronics Reliability and the reviewers for their valuable suggestions to improve this paper’s manuscript.
