Product Overview
The product overview provides information about
S The role of the ET 200L distributed I/O device within the ET 200 distrib- uted I/O system.
S The components which make up the ET 200L distributed I/O device.
Section Subject Page
1.1 What Is the ET 200 Distributed I/O System? 1-2 1.2 What Is the ET 200L Distributed I/O Device? 1-3 In This Chapter
Contents of the Chapter
1
长沙工控帮教育科技有限公司
1.1 What Is the ET 200 Distributed I/O System?
When a system is installed, the input/output modules are normally installed centrally in the programmable logic controller.
If inputs and outputs are made at long distances from the programmable logic controller, there may be long runs of cabling which are not immediately com- prehensible, and electromagnetic interference may impair reliability.
In such systems, we recommend you to use the ET 200 distributed I/O sys- tem:
S The controller CPU is located centrally.
S The I/O (input/output) system operates locally in a distributed fashion.
S The ET 200 high-performance bus system ensures that the CPU and I/O system communicate with each other without problems owing to its high data transfer rates.
The ET 200 distributed I/O system consists of active (master) and passive (slave) nodes that are interconnected via the PROFIBUS-DP.
DP master
DP slaves PROFIBUS-DP
S7-300M7-300 S7-400M7-400 PU or PC
ET 200L
ET 200S
Other field devices S5-95U
Figure 1-1 A Typical PROFIBUS-DP Installation
PROFIBUS-DP (DP means distributed I/O) is an open bus system conform- ing with IEC 61784-1:2002 Ed1 CP 3/1. The PROFIBUS-DP consists of a DP master and DP slaves.
S DP master: The link between the controller and the distributed I/O sys- tem is the DP master. The DP master exchanges data with the distributed I/O system over the PROFIBUS-DP and monitors the field bus.
S DP slave: The I/O devices are connected as DP slaves. DP slaves process data locally from the sensors and signal control elements in such a man- What Is the
ET 200?
What Does the ET 200 Consist Of?
PROFIBUS-DP
长沙工控帮教育科技有限公司
1.2 What Is the ET 200L Distributed I/O Device?
The ET 200L distributed I/O device is a DP slave within the ET 200 distrib- uted I/O system, its degree of protection being IP 20.
Owing to its compact and flat design, the ET 200L distributed I/O device is particularly suitable for applications in which space is at a premium. The ET 200L distributed I/O device has been designed for the low-end to medium performance ranges.
The ET 200L block I/O device is not expandable.
The ET 200L consists of a terminal block for the wiring, to which an elec- tronics block is connected. The electronics block determines the number of input/output channels.
The ET 200L block I/O device is available with 16 or 32 channels.
Electronics block ET 200L ET 200L
Terminal block TB 16L, TB 16L AC 16 channels
Terminal block TB 32L Definition
Applications
ET 200L Block I/O Device
长沙工控帮教育科技有限公司
A range of components are available for setting up the ET 200L. You will find the components that you require for all versions of the ET 200L in Table 1-1.
You will find other components in Section 1.2.1.
Table 1-1 General Components for the ET 200L
Component Function Illustration
Rail (EN 50022, 3515 or
357.5) ... is the mounting rack for the ET 200L.
Power supply (PS) ... converts the mains voltage
(120/230 VAC) into a 24 V DC operat- ing voltage for supplying the ET 200L.
... is the load current power supply for the 24 V DC load circuits.
PROFIBUS cables with bus connector
... interconnect the nodes of a PROFI- BUS-DP installation.
General Compo- nents for the ET 200L
长沙工控帮教育科技有限公司
The terminal block (TB) is used for mounting the electronics block (EB). It contains the wiring so that if the electronics block is replaced, leads do not have to be loosened.
The terminal block is characterized by the following:
S It can be pre-wired before the electronics block is mounted.
S Depending on the design, wiring can be connected by means of screw- type or spring terminals.
S It has a two-wire termination and can be upgraded to a three- or four-wire termination by using supplementary terminals.
S It does not contain any active electronic components. The terminal block cannot therefore be destroyed electrically.
S You can insert different electronics blocks.
S There are 16-channel (TB 16L) and 32-channel (TB 32L) terminal blocks.
The electronics block contains the logic circuitry and is inserted into the ter- minal block and screwed. It is characterized by the following:
S It defines the number of input/output channels.
S You do not have to loosen the terminal lead to replace the electronics block; you merely have to remove the bus connector.
S The PROFIBUS-DP is connected via a bus connector to the electronics block.
S You can set PROFIBUS addresses 1 to 99.
S There is galvanic isolation between the PROFIBUS-DP and the internal electronics.
S LEDs are used to display: The voltage supply of the electronics block (ON), bus faults (BF), group errors (SF; not for ET 200L), the status of inputs and outputs
S There is a labeling strip in the electronics block for clear identification of inputs and outputs. You can order the labeling strip separately (refer to Appendix A.1).
S A circuit diagram is displayed on the electronics block. The circuit dia- gram is located beneath the labeling strip.
Terminal Block
Electronics Block
长沙工控帮教育科技有限公司
1.2.1 What Is the ET 200L Block I/O Device?
Figure 1-2 shows you a view of the ET 200L distributed I/O device. It con- sists of a terminal block and an electronics block.
Electronics block
Terminal block
Figure 1-2 View of the ET 200L Distributed I/O Device
The modules incorporated in the ET 200L include:
S 24 V DC digital input and/or output modules Features of the
ET 200L
ET 200L Modules
长沙工控帮教育科技有限公司
A whole range of components is available for installing and commissioning the ET 200L. The most important components and their functions are listed in Table 1-2:

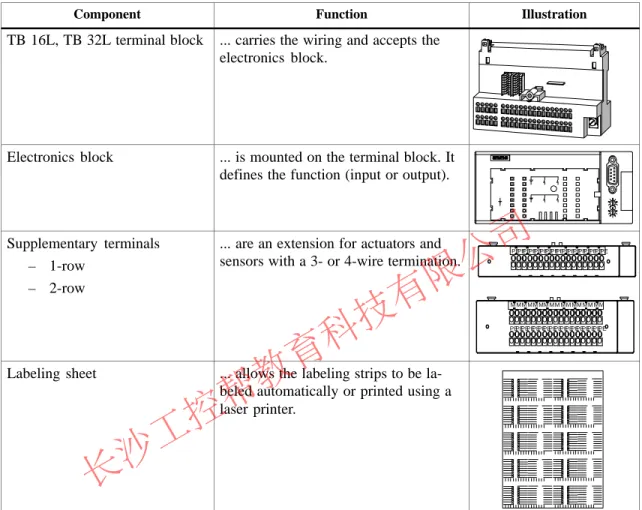

Table 1-2 Components of the ET 200L Distributed I/O Device
Component Function Illustration
TB 16L, TB 32L terminal block ... carries the wiring and accepts the electronics block.
Electronics block ... is mounted on the terminal block. It defines the function (input or output).
Supplementary terminals – 1-row
– 2-row
... are an extension for actuators and sensors with a 3- or 4-wire termination.
M MM MM MM MM MM MM MM MM
PEPEPEPEPEPEPEPEPEPEPEPEPEPEPEPEPE PEPEPEPEPEPEPEPEPEPEPEPEPEPEPEPEPE
Labeling sheet ... allows the labeling strips to be la- beled automatically or printed using a laser printer.
You will find the technical data for the terminal blocks in Sections 7.1 to 7.2 and the technical data for the electronics blocks in Chapter 8.
ET 200L Compo- nents
Technical Data
长沙工控帮教育科技有限公司
长沙工控帮教育科技有限公司
Installation
The ET 200L distributed I/O device has been designed for simple installation and wiring. To this end, the label of the ET 200L distributed I/O device has been made self-explanatory.
In this chapter, you will find additional information on installing and wiring the ET 200L distributed I/O device.
A number of steps are involved in the installation of the ET 200L distributed I/O device. We suggest you adhere to the following sequence:
Procedure Section
Installing the ET 200L
1. Install the ET 200L TB 16L/TB 32L terminal block and supplementary terminal
2.1
2. Install and disassemble the ET 200L electronics block 2.2
3. Set the ET 200L PROFIBUS address 2.3
Section Topic Page
2.1 Installing the ET 200L TB 16L/TB 32L Terminal Block and Supplementary Terminal
2-2
2.2 Installing and Disassembling the ET 200L Electronics Block 2-5
2.3 Setting the ET 200L PROFIBUS Address 2-6
Introduction
Procedure
Contents of the Chapter
2
长沙工控帮教育科技有限公司
2.1 Installing the ET 200L TB 16L/TB 32L Terminal Block and Supplementary Terminal
In this section, we describe how you install the terminal block and the sup- plementary terminal.
Install the terminal block on a rail.
S You install the ET 200L distributed I/O device on a rail conforming with EN 50022 (357.5 or 3515).
S The preferred mounting position is horizontal installation on a vertical wall. All other mounting positions are conceivable.
S You require a free space on a rail of 145 mm (16 channels) or 191 mm (32 channels).
S The minimum installation depth is 82 mm (with an electronics block installed and an MLFB 6ES7 972-0CA30 0XA0 bus connector connected) when using a 357,5 mm rail.
S You require a free space of 35 mm above the terminal block. You require a free space of 20 mm below the terminal block(when using the 42 mm single-tier supplementary terminal or the 57 mm two-tier supplementary terminal).
Introduction
Requirements
长沙工控帮教育科技有限公司
Install the terminal block in the following order:
1. Mount the terminal block on the rail.
2. Tilt the terminal block backwards until you hear both the safety bolts en- gage.
You can now wire the terminal block (refer to Chapter 3) before you install the electronics block. If you are using supplementary terminals, you must install them before you commence wiring.
1
2
Figure 2-1 Installing the Terminal Block
Push the supplementary terminals into the existing guideways on the lower side of the terminal block until you hear the safety bolt engage.
To disassemble supplementary terminals, proceed as follows:
1. Pull the safety bolt downwards as far as the stop.
2. Pull out the supplementary terminals forwards from the guideways.
Installing the Ter- minal Block
Installing and Dis- assembling Sup- plementary Termi-
nals
长沙工控帮教育科技有限公司
Remove the terminal block in the following order (refer also to Figure 2-2):
1. Turn off the power supply.
2. Remove the electronics block.
– Remove the bus connector.
– Loosen the fixing screw.
– Tilt the electronics block forwards.
3. Loosen the wiring.
4. If you are using supplementary terminals, you must remove them before disassembling the terminal block (see above).
5. Press the two safety bolts downwards in succession with a screwdriver.
6. Tilt and remove the terminal block from the rail.
2
5
5 6 5

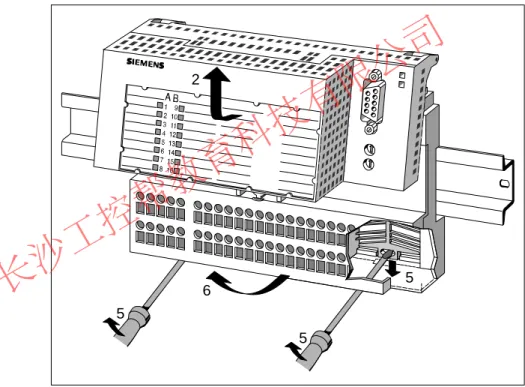

Figure 2-2 Disassembling the Terminal Block Disassembling the
Terminal Block
长沙工控帮教育科技有限公司
2.2 Installing and Disassembling the ET 200L Electronics Block
Attach the electronics block to the terminal block in the following order:
1. Insert the electronics block from above into the guideways on the termi- nal block.
2. Tilt the electronics block backwards as far as the stop.
3. Secure the electronics block on the terminal block by tightening the screw:
2 1
3
1
Figure 2-3 Installing the Electronics Block
To disassemble the electronics block, proceed in the reverse order.
1. Turn off the power supply.
2. Remove the bus connector.
Installing the Elec- tronics Block
Disassembling the Electronics Block
长沙工控帮教育科技有限公司
2.3 Setting the ET 200L PROFIBUS Address
The PROFIBUS address defines the address of the ET 200L distributed I/O device on the PROFIBUS-DP.
The two rotary switches for the PROFIBUS address are located on the elec- tronics block beneath the bus connector.
Tip: You must set the PROFIBUS address before clipping on the bus connec- tor. When clipped on, the bus connector conceals the two rotary switches.
Rotary switches for the PROFI- BUS address
Example PROFIBUS ad- dress 63:
Position 6
Position 3
x1 x10
You modify the PROFIBUS address at the two rotary switches by using a small screwdriver. PROFIBUS addresses 1 to 99 are authorized for the ET 200L distributed I/O device.
PROFIBUS address 0, which is set when the ET 200 distributed I/O system leaves the works, is reserved for a PU or PC. Any change made to the PRO- FIBUS address takes effect when the supply voltage is turned on.
Introduction
Location of Rotary Switches
Modifying the PROFIBUS Ad- dress
长沙工控帮教育科技有限公司
Wiring
The ET 200L distributed I/O device has been designed for simple wiring. To this end, the label of the ET 200L distributed I/O device has been made self- explanatory.
In this chapter, you will find additional information on wiring the ET 200L distributed I/O device.
The wiring of the ET 200L distributed I/O device involves several steps. We suggest you adhere to the following sequence:
Procedure Section
Important infor- mation on wiring
1. General rules and regulations 3.1
mation on wiring
2. Configuring the electrical installation 3.2
3. Wiring rules 3.3
Wiring the ET 200L
1. Wire the ET 200L TB 16L/TB 32L terminal block 3.4
Section Topic Page
3.1 General Rules and Regulations 3-2
3.2 Configuring the Electrical Installation 3-4
3.3 Wiring Rules 3-8
3.4 Wiring the ET 200L TB 16L/TB 32L Terminal Block 3-10 Introduction
Procedure
Contents of the Chapter
3
长沙工控帮教育科技有限公司
3.1 General Rules and Regulations
As a component part of a plant or system, the ET 200L distributed I/O device necessitates observance of special rules and regulations, depending on where it is to be used.
This section provides an overview of the most important rules which you have to observe for integrating the ET 200L distributed I/O device in a plant or system.
Observe the safety and accident prevention regulations – for example, the machine protection guidelines – for specific applications.
EMERGENCY STOP devices conforming with IEC 204 (corresponds to DIN VDE 113) must remain effective in all the operating modes of the plant or system.
The following table shows the points you have to take into account upon start-up of a plant following certain events.
If ... Then ...
Start-up follows a voltage drop or failure Start-up of the ET 200L follows an inter- ruption of bus communications
No hazardous operating states may occur. Force an EMER- GENCY STOP, if necessary.
Start-up follows unlocking of the EMER- GENCY STOP device
ET 200L start-up occurs without the DP master addressing the ET 200L
There must not be an uncon- trolled or undefined start-up.
The following table shows you the items you have to take into account in respect of the supply voltage.
With ... It Is Essential That ...
A permanently installed plant or system not having an all- pole supply isolating switch
A supply isolating switch or a fuse be pres- ent in the building installation
Load current power supplies, power supply modules
The set rated voltage range corresponds to the local supply voltage
Introduction
Specific Applica- tion
EMERGENCY STOP Devices
Plant Start-up Af- ter Certain Events
Supply Voltage
长沙工控帮教育科技有限公司
The following table shows the points that you have to take into account in respect of the 24 VDC supply.
With ... Pay Attention to...
Buildings Outdoor lightning protection
Take lightning protec- tion precautions – for example, lightning 24 VDC supply lines,
signal lines
Indoor lightning protec- tion
tion precautions – for example, lightning conductors
24 VDC supply Safe (electrical) isolation of extra-low voltage
The following table shows you the items you have to take into account in respect of protection against electrical phenomena or faults.
With ... Pay Attention to:
Any plant or system in which the ET 200L is installed
Is the plant or system connected to a protec- tive conductor for diverting electromagnetic interference?
Connecting leads, signal and bus lines
Are the wiring arrangement and installation correct?
Signal and bus lines Any break of a line or conductor must not result in undefined states of the plant or sys- tem.
24 VDC Supply
Protection Against External Electrical Phenomena
长沙工控帮教育科技有限公司
3.2 Configuring the Electrical Installation
In this section, you will find information on the overall installation of an ET 200L distributed I/O device on a grounded supply (TN-S system). The specific topics discussed are:
S Circuit-breaking devices, short-circuit and overload protection in accor- dance with DIN VDE 0100 and DIN VDE 0113
S Load current power supplies and load circuits.
With grounded supplies, the neutral conductor of the system is grounded. A mere ground fault between a live conductor and ground or a grounded section of the plant causes the protective devices to trip.
Different components and protective measures are specified for erecting a complete plant. The types of component and the degree to which the protec- tive measures are binding depend on the DIN VDE regulation that applies to the installation of your plant. The following table refers to Figure 3-1.

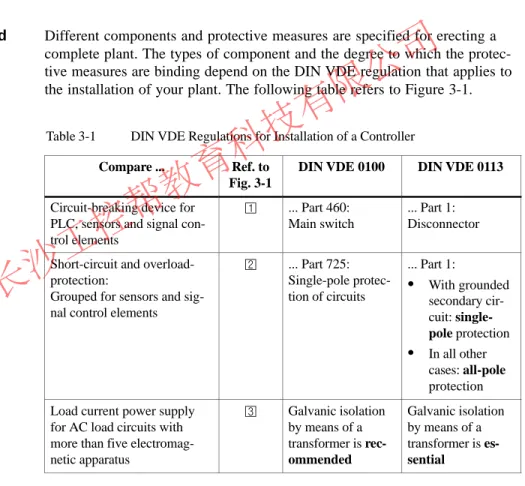

Table 3-1 DIN VDE Regulations for Installation of a Controller Compare ... Ref. to
Fig. 3-1
DIN VDE 0100 DIN VDE 0113
Circuit-breaking device for PLC, sensors and signal con- trol elements
... Part 460:
Main switch
... Part 1:
Disconnector
Short-circuit and overload- protection:
Grouped for sensors and sig- nal control elements
... Part 725:
Single-pole protec- tion of circuits
... Part 1:
S With grounded secondary cir- cuit: single- pole protection
S In all other cases: all-pole protection Load current power supply
for AC load circuits with more than five electromag- netic apparatus
Galvanic isolation by means of a transformer is rec- ommended
Galvanic isolation by means of a transformer is es- sential
Note
The ET 200L cannot be operated with an ungrounded supply.
Introduction
Definition:
Grounded Supply
Components and Protective Mea- sures
长沙工控帮教育科技有限公司
r The load current power supply feeds input and output circuits (load circuits) as well as sensors and actuators. The following table lists the characteristics of load current power supplies that are required in specific applications.
Characteristic of Load Current Power Supply
Required for ... Remarks
Safe (electrical) isola- tion
Modules that have to be supplied with voltages
60 VDC or 25 VAC
Power supply PS 307 and Sie- mens Series 6EP1 load current power supplies have this charac- teristic
24 VDC load circuits Output voltage toler-
ances:
20.4 V to 28.8 V 24 VDC load circuits
If the output tolerances are ex- ceeded, we recommend that you install a back-up capacitor. Rat- ing: 200 mF per 1 A load current (with full-wave rectification).
Load circuits should be grounded.
Fault-free operating reliability is ensured by the common reference potential (ground). Install a detachable connection to the protective conductor on the external power supply (terminal L or M) or on the isolation transformer (Fig- ure 3-1, ). This measure makes it simpler for you to locate ground faults in the power distribution system.
You will find notes on EMC-compatible installation and wiring in the manual for the DP master you are using or for the host system.
Take into account the following notes on EMC-compatible installation of the ET 200L distributed I/O device:
S We recommend that you place the cable shield of the PROFIBUS-DP on both sides of a shield bus.
S The chassis ground and the ground terminal are interconnected in the ET 200L distributed I/O device. Connect the ground terminal of the ET 200L distributed I/O device using a copper cable of at least 2.5 mm2
to the central grounding point in the installation cabinet.
Characteristics of Load Current Power Supplies
Rule: Ground Load Circuits
EMC
长沙工控帮教育科技有限公司
Figure 3-1 shows the location of the ET 200L in the overall system (load cur- rent voltage supply and grounding philosophy) for supply from a TN-S sys- tem.
Remark: The arrangement of the power supply connections shown in the fig- ure does not correspond to the actual arrangement but was chosen for the sake of clarity.
Ground bus in cabinet N
L1 L +
M PS
ET 200L
Electronics L1
L2 L3 N
Load circuit
24 to 230 VAC for AC modules
5 to 60 VDC load circuit for non-iso- lated DC modules
5 to 60 VDC load circuit for floating DC modules
Cabinet
AC AC
AC DC
AC DC
Low-voltage distribution system for example, TN-S system (3 400 V)
PE
Rail

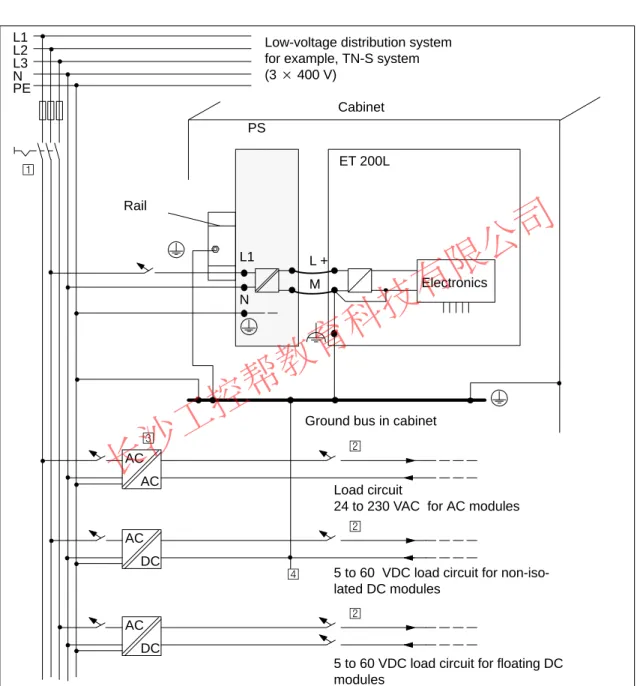

Figure 3-1 Operating the ET 200L from a Grounded Supply ET 200L in Overall
Installation
长沙工控帮教育科技有限公司
In the case of new variants of the following components, the load voltage terminals 1L+, 2L+, and 3L+ used for the sensor power supply of the inputs can be protected using a circuit breaker with a maximum of 6 A (B or C characteristic).
Kapitel Komponente MLFB neue Variante MLFB alte Variante
8.1 ET 200L with 16 DI 6ES7131-1BH01-0XB0 6ES7131-1BH00-0XB0
8.3 ET 200L with 32 DI 6ES7131-1BL01-0XB0 6ES7131-1BL00-0XB0
8.5 ET 200L with 16 DI/DO in
each case
6ES7133-1BL01-0XB0 6ES7133-1BL00-0XB0
!
WarningIn the old variants of the above components, the sensor power supply may only be loaded with 5 A per input byte. The load voltage terminals 1L+, 2L+, and 3L+ should be protected accordingly.Protected by cir- cuit breaker
长沙工控帮教育科技有限公司
3.3 Wiring Rules
The table below shows you what you must observe when wiring the terminal block and the supplementary terminal.

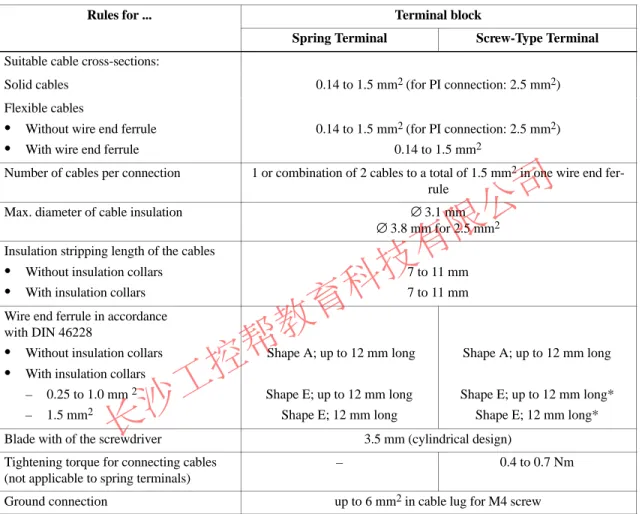

Table 3-2 Pinout of the PROFIBUS-DP Terminal Connection
Rules for ... Terminal block
Spring Terminal Screw-Type Terminal Suitable cable cross-sections:
Solid cables 0.14 to 1.5 mm2 (for PI connection: 2.5 mm2)
Flexible cables
S Without wire end ferrule
S With wire end ferrule
0.14 to 1.5 mm2 (for PI connection: 2.5 mm2) 0.14 to 1.5 mm2
Number of cables per connection 1 or combination of 2 cables to a total of 1.5 mm2 in one wire end fer- rule
Max. diameter of cable insulation ∅3.1 mm
∅3.8 mm for 2.5 mm2
Insulation stripping length of the cables
S Without insulation collars
S With insulation collars
7 to 11 mm 7 to 11 mm Wire end ferrule in accordance
with DIN 46228
S Without insulation collars
S With insulation collars – 0.25 to 1.0 mm 2
– 1.5 mm2
Shape A; up to 12 mm long
Shape E; up to 12 mm long Shape E; 12 mm long
Shape A; up to 12 mm long
Shape E; up to 12 mm long*
Shape E; 12 mm long*
Blade with of the screwdriver 3.5 mm (cylindrical design) Tightening torque for connecting cables
(not applicable to spring terminals)
– 0.4 to 0.7 Nm
Ground connection up to 6 mm2 in cable lug for M4 screw
* Without insulation collars
To wire the terminal block (screw-type terminal), proceed as follows:
1. Strip the insulation of the wires down to 11 mm.
2. Connect the conductors. Begin on the left under the terminal block.
3. Screw the ends of the cables onto the terminal block with a tightening torque of 0.5 Nm. Tighten the screws on the unwired terminals as well.
Rules for Wiring
Terminal Block with Screw-Type Terminal
长沙工控帮教育科技有限公司
To wire the terminal block (spring terminal), proceed as follows:
1. Strip the insulation of the wires down to 11 mm.
Remember to:
S Insert the screwdriver in the lower opening.
S Insert the cable in the upper opening until the stop.
1. Insert the screwdriver
2. Insert the cable into the spring terminal until the stop
3. Remove the screwdriver. The cable is clamped to the contact

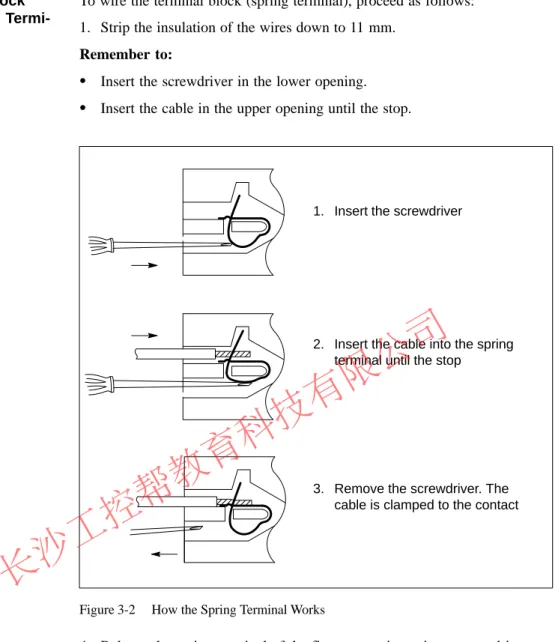

Figure 3-2 How the Spring Terminal Works
4. Release the spring terminal of the first connection using a screwdriver (0.5 x 3.5 mm DIN 5264). Begin at the bottom left of the terminal block.
5. Push the first wire into the released spring terminal and withdraw the screwdriver.
6. Repeat steps 1 to 3 for all other wires.
Terminal Block with Spring Termi- nal
长沙工控帮教育科技有限公司
3.4 Wiring the ET 200L TB 16L/TB 32L Terminal Block
When wiring the ET 200L distributed I/O device, we distinguish between the terminal block with its supplementary terminal and the electronics block.
S The terminal block and, if required, the supplementary terminal carry the wiring.
S The electronics block incorporates the PROFIBUS-DP connection.
All terminal connections on the terminal block and supplementary terminals are located on the front and are clearly marked and readily visible from the front. Assignment of terminal connections to input/output channels is simple to perform, without danger of confusion.
Connect the terminal block and the supplementary terminal in accordance with the configuration. Figure 3-3 shows the terminal connections for termi- nal block TB 16L. Its pinout is described in Chapter 7.
Connection for PE Channel
group A
Channel group B
Electronics
Power supply
1L+ 2L+ 3L+ 4L+ 5L+
1M 2M 3M 4M 5M 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A B
193-1CH00-0XA0 X
4 3
2 TB16L
Sensor supply (DI) or chassis ground (DO) Signal connections for sensors or actuators
Figure 3-3 Terminal Connections on Terminal Block TB 16L Introduction
Wiring the Termi- nal Block
长沙工控帮教育科技有限公司
There are three different ways to connect the voltage supply to the terminal block.
M L+
1st alternative
Shared voltage supply for electronics and groups of channels
M L+
2nd alternative
Shared voltage supply for groups of channels Separate voltage supply for electronics
L+
M L+
3rd alternative
Separate voltage supply for each group of channels Separate voltage supply for electronics
L+
L+
1L+ 2L+ 3L+ 4L+ 5L+
1M 2M 3M 4M 5M
1L+ 2L+ 3L+ 4L+ 5L+
1M 2M 3M 4M 5M
1L+ 2L+ 3L+ 4L+ 5L+
1M 2M 3M 4M 5M
M M M
Figure 3-4 Alternative Ways of Connecting the Voltage Supply
The block diagrams relating to the ET 200L distributed I/O device will be found in Chapter 7.
A labeling strip is located on the front of the electronics block for noting the assignment of inputs and outputs.
A terminal connection model showing the terminal connection assignment and electrical connections is located beneath the labeling strip on the elec- tronics block (refer to Chapter 8).
Clip the bus connector on the electronics block.
1. Clip the bus connector on the PROFIBUS-DP terminal connection after setting the PROFIBUS address of the ET 200L distributed I/O device (re- fer to Section 2.3).
2. Tighten the fastening screws of the bus connector.
Connecting the Voltage Supply
Block Diagram
Label
Terminal Connec- tion Model
Clipping on the Bus Connector
长沙工控帮教育科技有限公司
The table below describes the pinout of the 9-pin PROFIBUS-DP terminal connection.

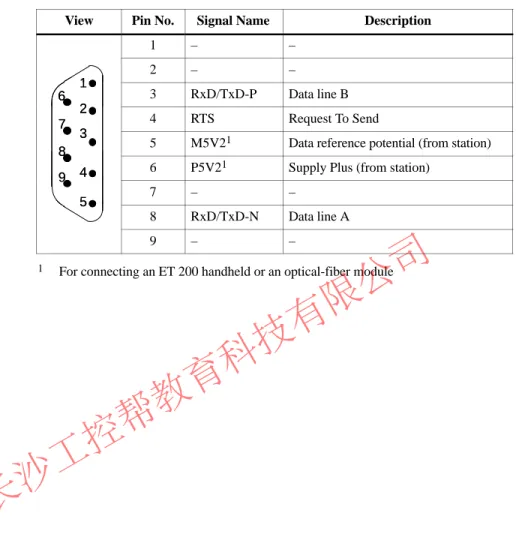

Table 3-3 Pinout of the PROFIBUS-DP Terminal Connection
View Pin No. Signal Name Description
1 – –
1
2 – –
2 1
6 3 RxD/TxD-P Data line B
3 2 7 6
4 RTS Request To Send
3 8 7
5 M5V21 Data reference potential (from station) 9 4
8
6 P5V21 Supply Plus (from station) 9
5 4
7 – –
5
8 RxD/TxD-N Data line A
9 – –
1 For connecting an ET 200 handheld or an optical-fiber module PROFIBUS-DP Ter-
minal Connection
长沙工控帮教育科技有限公司
Commissioning
Section Topic Page
4.1 Configuration Software 4-1
4.2 Commissioning the ET 200L 4-2
4.1 Configuration Software
You configure the ET 200L distributed I/O device and SC using the following configuration software.
S COM ET 200 Windows as of Version 1.0 S COM PROFIBUS as of Version 3.0 S STEP 7 as of Version 2.1
You will find the name of the type file for the various electronics blocks and the contents of the device master file described in Appendix B.
Contents of the Chapter
ET 200L
4
长沙工控帮教育科技有限公司
4.2 Commissioning the ET 200L
Commission the ET 200L distributed I/O device as follows:
Step Activity Explanation
1 Install and wire up the ET 200L. You will find detailed instructions on instal- ling and wiring in Chapters 2 and 3.
2 Set the PROFIBUS address of the ET 200L. The two rotary switches used to set the PROFIBUS address are concealed by the 3 Clip the bus connector on the electronics
block.
PROFIBUS address are concealed by the bus connector (refer to Section 2.3).
4 Turn on the power supply for the ET 200L.
Result:
The ET 200L starts up automatically.
–
Note
Full operational safety of the electronics blocks is not ensured until you have applied the labeling strips to the front of the electronics blocks (electrostatic discharge at the front of the module, LED coverage).
Commissioning the ET 200L
长沙工控帮教育科技有限公司
The ET 200L distributed I/O device starts up automatically when the power supply is turned on. A separate switch is not available.
During start-up, both LEDs (ON and BF =Bus Fault) are on.
The ET 200L distributed I/O device ...
S Sets the outputs to ”0”.
S Applies the PROFIBUS address from the two rotary switches.
S Receives the configuration data from the DP master and evaluates the details contained in the configuration data. If the configuration agrees with the installation, the ET 200L distributed I/O device initiates data exchange, and the BF LED goes off.
After start-up, data exchange is initiated between the DP master and the ET 200L distributed I/O device.
The data exchange is displayed by the ET 200L distributed I/O device as fol- lows:
S The green operating LED (ON) is on.
S The bus fault LED (BF) is off.
S The inputs and outputs are enabled.
S Conductive inputs and outputs are indicated on the status LEDs by the corresponding LED flashing.
Start-up
Data Exchange
长沙工控帮教育科技有限公司
长沙工控帮教育科技有限公司
Diagnostics
The ET 200L distributed I/O device was designed to make working with and commissioning it as simple as possible. If a failure nevertheless occurs, you can find out what it is by means of LEDs and slave diagnostics.
Section Topic Page
5.1 Diagnostics Using the LEDs 5-2
5.2 Slave Diagnostics 5-3
Introduction
Contents of the Chapter
5
长沙工控帮教育科技有限公司
5.1 Diagnostics Using the LEDs
The ET 200L distributed I/O device features the following diagnostic op- tions:
S LEDs
S Slave diagnostics (refer to Section 5.2)
Each input and output of the ET 200L distributed I/O device has a status dis- play. The status display LED lights up when the input or output is active.
The ET 200L distributed I/O device has two LEDs for displaying statuses.

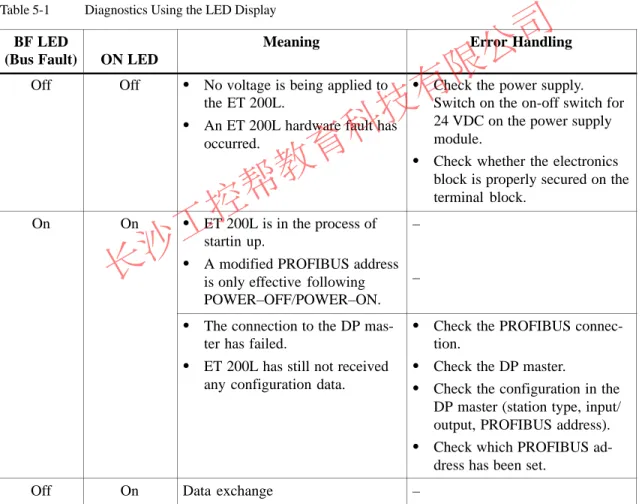

Table 5-1 Diagnostics Using the LED Display BF LED
(Bus Fault) ON LED
Meaning Error Handling
Off Off S No voltage is being applied to the ET 200L.
S An ET 200L hardware fault has occurred.
S Check the power supply.
Switch on the on-off switch for 24 VDC on the power supply module.
S Check whether the electronics block is properly secured on the terminal block.
On On S ET 200L is in the process of startin up.
S A modified PROFIBUS address is only effective following POWER–OFF/POWER–ON.
–
– S The connection to the DP mas-
ter has failed.
S ET 200L has still not received any configuration data.
S Check the PROFIBUS connec- tion.
S Check the DP master.
S Check the configuration in the DP master (station type, input/
output, PROFIBUS address).
S Check which PROFIBUS ad- dress has been set.
Off On Data exchange –
Introduction
Status Display
ET 200L LED Dis- play
长沙工控帮教育科技有限公司
5.2 Slave Diagnostics
You will find the following topics in this section:
Section Topic Page
5.2.1 Structure of the Slave Diagnosis 5-4
5.2.2 Structure of Station Statuses 1 to 3, Master Station Number and Manufacturer Identification
5-5
Diagnostics is the detection and localization of errors. The diagnostics struc- ture is laid down in IEC 61784-1:2002 Ed1 CP 3/1. ET 200L diagnostics complies with this standard. Slave diagnostics is explained in the section that follows for the ET 200L.
In Section 5.2
Definition
长沙工控帮教育科技有限公司
5.2.1 Structure of the Slave Diagnosis
The diagnostics of the ET 200L distributed I/O device comply with IEC 61784-1:2002 Ed1 CP 3/1. The slave diagnosis is explained below.
The slave diagnosis comprises 6 bytes for the ET 200L:
Byte 0 Byte 1 Byte 2
Byte 5 Byte 3 Byte 4
Station statuses 1 to 3
Master PROFIBUS address High byte
Low byte Manufacturer ID ET 200L

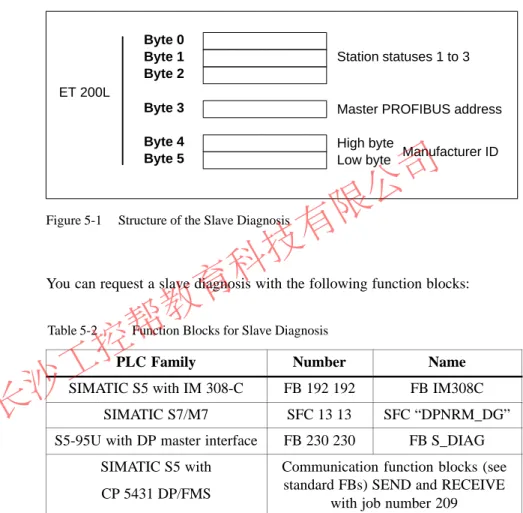

Figure 5-1 Structure of the Slave Diagnosis
You can request a slave diagnosis with the following function blocks:
Table 5-2 Function Blocks for Slave Diagnosis
PLC Family Number Name
SIMATIC S5 with IM 308-C FB 192 192 FB IM308C
SIMATIC S7/M7 SFC 13 13 SFC “DPNRM_DG”
S5-95U with DP master interface FB 230 230 FB S_DIAG SIMATIC S5 with
CP 5431 DP/FMS
Communication function blocks (see standard FBs) SEND and RECEIVE
with job number 209 Introduction
Structure of the Slave Diagnosis
Requesting a Slave Diagnosis
长沙工控帮教育科技有限公司
5.2.2 Structure of Station Statuses 1 to 3, Master Station Number and Manufacturer Identification
Station statuses 1 to 3 provide an overview of the status of a DP slave (refer to Figure 5-1, bytes 0 to 2).
Station status 1 provides information about the DP slave and is structured as follows:
Table 5-3 Structure of Station Status 1 (Byte 0)
Bit Meaning Action
0 1: The DP slave cannot be addressed by the DP master.
S Correct PROFIBUS address set on ET 200L?
S Bus connector connected?
S Voltage at DP slave?
S RS 485 repeater set correctly?
S Supply voltage ON/ OFF performed on ET 200L?
1 1: The DP slave is not yet ready to exchange data.
S Wait, because the ET 200L is just being pow- ered up.
2 1: The configuration data sent by the DP master to the DP slave do not agree with the installation of the DP slave.
S Correct station type or correct installation of the ET 200L entered in the system configura- tion software?
3 1: An external diagnosis exists. S Check the contents of the external diagnosis.
4 1: The requested function is not supported by the DP slave.
S Check the configuration.
5 1: The DP master cannot interpret the reply from the DP slave.
S Check the bus installation.
6 1: The DP slave type does not agree with the software configuration.
S Correct station type entered in the system con- figuration software?
7 1: Parameters have been assigned to the DP slave by a different DP master from that which currently has access to the DP slave.
S The bit is always 1 if you are in the process of accessing, for example, the ET 200L with the PU or another DP master.
The PROFIBUS address of the parameteriza- Definition of Sta-
tion Status
Structure of Sta- tion Status 1
长沙工控帮教育科技有限公司
Station status 2 provides additional information about the DP slave and is structured as follows:
Table 5-4 Structure of Station Status 2 (Byte 1)
Bit Meaning
0 1: Parameters have to be assigned again to the DP slave.
1 1: A diagnostic message has been issued. The DP slave cannot resume operation until the fault has been corrected (static diagnostic message).
2 1: The bit is always set to ”1” if the DP slave having this PROFIBUS address is present.
3 1: Response monitoring has been enabled for this DP slave.
4 1: The DP slave has received the ”FREEZE” control command1. 5 1: The DP slave has received the ”SYNC” control command1. 6 1: The bit is always set to ”0”.
7 1: The DP slave is disabled – that is, it has been removed from the processing in progress.
1 The bit is updated only if another diagnostic message changes too.
Station status 3 is reserved and is not relevant in as far as the diagnostics of the ET 200L distributed I/O device are concerned.
The Master PROFIBUS Address diagnostic byte stores the PROFIBUS ad- dress of the DP master which has assigned parameters to the DP slave (refer to Figure 5-1, byte 3).
The master PROFIBUS address comprises one byte with the PROFIBUS ad- dress of the DP master that assigned parameters to the DP slave and has read and write access to the DP slave.
A code is stored in the manufacturer identification that describes the type of the DP slave (refer to Figure 5-1, bytes 4 and 5).
The manufacturer identification of the DP slave comprises two bytes. You will find the manufacturer identifications of the different electronics blocks in Appendix, Table B-4.
Structure of Sta- tion Status 2
Structure of Sta- tion Status 3
Definition of the Master PROFIBUS Address
Structure of the Master PROFIBUS Address
Definition of the Manufacturer ID
Structure of the Manufacturer ID
长沙工控帮教育科技有限公司
General Technical Data
The general technical data consists of the standards and test values with which the ET 200L conforms and which it fulfills, and the test criteria by which the ET 200L distributed I/O device was tested.
Section Topic Page
6.1 Standards and Certification 6-2
6.2 Electromagnetic Compatibility 6-4
6.3 Shipping and Storage Conditions 6-6
6.4 Mechanical and Climatic Environmental Conditions 6-7 6.5 Details of Insulation Testing, Safety Class, and Degree of Protec-
tion
6-8
6.6 Rated Voltage of the ET 200L Distributed I/O Device 6-9 What Is General
Technical Data?
Contents of the Chapter
6
长沙工控帮教育科技有限公司
6.1 Standards and Certification
This chapter contains information the following for the modules and compo- nents of the ET 200L:
S The most important standards complied with by the ET 200L S The certification of the ET 200L
The ET 200L distributed I/O device meet the requirements and criteria of IEC 1131, Part 2.
The ET 200L distributed I/O device meet the requirements and criteria of IEC 61784-1:2002 Ed1 CP 3/1.
Our products fulfill the requirements and safety objectives of the following EC Directives and comply with the harmonized European standards (EN) published for stored-program controllers in the official journals of the Euro- pean Communities:
S 89/336/EEC Electromagnetic Compatibility Directive S 73/23/EEC Low Voltage Directive (for electrical equipment)
The EC Declarations of Conformity are available to the relevant authorities at the following address:
Siemens Aktiengesellschaft Bereich Automatisierungstechnik A&D AS E 14
Postfach 1963 D-92209 Amberg
The ET 200L has the following PNO certificates:
Product Name Order Number Release PNO Certificate
ET 200L 16 DI DC 24 V 6ES7 131-1BH01-0XB0 1 Z00179
ET 200L 32 DI DC 24 V 6ES7 131-1BL01-0XB0 1 Z00180
ET 200L 16 DO DC 24 V/0.5 A 6ES7 132-1BH00-0XB0 1 Z00181
ET 200L 32 DO DC 24 V/0.5 A 6ES7 132-1BL00-0XB0 1 Z00182
ET 200L 16 DI/16 DO DC 24 V/0.5 A 6ES7 133-1BL01-0XB0 1 Z00183
Introduction
IEC 1131
PROFIBUS DP
CE Marking
PNO
长沙工控帮教育科技有限公司
UL Recognition Mark
Underwriters Laboratories (UL) to Standard UL 508, File No. 116536
CSA Certification Mark
Canadian Standard Association (CSA) to Standard C22.2 No. 142, File No. LR 48323
Factory Mutual Approval Standard Class Number 3611, Class I, Division 2, Group A, B, C, D.
!
WarningThere is a risk of injury and damage to property.In potentially explosive atmospheres, there is a risk of injury to people and damage to property if you disconnect connectors when a ET 200 is in opera- tion.
Always de-energize the ET 200 in potentially explosive atmospheres before disconnecting any connectors.
UL Recognition
CSA Certification
FM Approval
长沙工控帮教育科技有限公司
6.2 Electromagnetic Compatibility
Electromagnetic compatibility is the ability of an electric device to function satisfactorily in its electromagnetic environment without interfering with this environment.
The ET 200L distributed I/O device also meets the requirements, among oth- ers, of the EMC act of the European inner market. A requirement for this is that the ET 200L distributed I/O device meets the specifications and direc- tives concerning electrical installation.
The following table shows the electromagnetic compatibility of the ET 200L distributed I/O device with regard to pulse-shaped interference.
Pulse-Shaped Interference Tested with Corresponds to Severity Electrostatic discharge
to IEC 801-2 (DIN VDE 0843, Part 2)
8 kV 4 kV
3 (air discharge) 2 (contact dis-
charge) Burst impulses in accordance with
IEC 801-4 (DIN VDE 0843, Part 4)
2 kV (supply line) 2 kV (signal line)
3
Surge in accordance with IEC 801-5 (DIN VDE 0839, Part 10) Only with lightning protection elements (refer to DP master manual).
S Assymmetrical connection 2 kV (supply line) 2 kV (signal line/data
line)
3
S Symmetrical connection 1 kV (supply line) 1 kV (signal line/data
line) Definition
Pulse-Shaped In- terference
长沙工控帮教育科技有限公司
The following table shows the electromagnetic compatibility of the ET 200L distributed I/O device with regard to sine-shaped interference.
HF Radiation to ENV 50140 (Corresponds to IEC 801-3)
Electromagnetic RF Field
RF Coupling to ENV 50141 (Corre- sponds to IEC 801-6) Amplitude-Modulated Pulse-Modulated
80 to 1000 MHz 900 MHz 5 MHz 0.15 to 80 MHz
10 V/m 10 Vrms unmodulated
80 % AM (1 kHz) 50 % ED 80 % AM (1 kHz)
200 Hz repetition fre- quency
150 W source imped- ance
Emitted interference of electromagnetic fields in accordance with EN 55011:
Limit Value Class A, Group 1 (measured at a distance of 30 m).
Frequency Emitted Interference
From 20 to 230 MHz < 30 dB (mV/m)Q From 230 to 1000 MHz < 37 dB (mV/m)Q Sine-Shaped Inter-
ference
Emission of Radio Interference
长沙工控帮教育科技有限公司
6.3 Shipping and Storage Conditions
The ET 200L distributed I/O device surpasses the requirements of IEC 1131, Part 2, with regard to shipping and storage conditions. The following details apply to modules that are shipped and stored in their original packaging.
Type of Condition Admissible Range
Free fall 1m
Temperature From – 40 _C to + 70 _C
Temperature variation 20 K/h
Air pressure From 1080 to 660 hPa (corresponds to a height of -1000 to 3500 m) Relative humidity From 5 to 95 %, without condensation Conditions
