Improved dye-sensitized solar cell with a ZnO nanotree photoanode by hydrothermal method

N A N O E X P R E S S

Open Access

Improved dye-sensitized solar cell with a ZnO

nanotree photoanode by hydrothermal method

Shou-Yi Kuo

, Jui-Fu Yang

and Fang-I Lai

Abstract

This study investigated the influence of ZnO nanostructures on dye adsorption to increase the photovoltaic conversion efficiency of solar cells. ZnO nanostructures were grown in both tree-like and nanorod (NR) arrays on an AZO/FTO film structure by using a hydrothermal method. The results were observed in detail using X-ray diffraction, field-emission scanning electron microscopy (FE-SEM), UV-visible spectrophotometry, electrochemical impedance spectroscopy, and solar simulation. The selective growth of tree-like ZnO was found to exhibit higher dye adsorption loading and conversion efficiency than ZnO NRs. The multiple‘branches’ of ‘tree-like nanostructures’ increases the surface area for higher light harvesting and dye loading while reducing charge recombination. These improvements result in a 15% enhancement in power conversion. The objective of this study is to facilitate the development of a ZnO-based dye-sensitized solar cell.

Keywords: Zinc oxide; Dye-sensitized solar cell; Nanorods; Tree-like Background

Dye-sensitized solar cells (DSSCs) have attracted much attention as the next-generation solar cell. DSSCs have been widely researched because of their low cost and high energy conversion efficiency. In a functioning DSSC, pho-toexcited electrons in the sensitizer are injected into the conduction band of a semiconductor. A charge mediator, i.e., a proper redox couple, must be added to the electro-lyte to reduce the oxidized dye. The mediator must also be renewed in the counter electrode, making the photo-electron chemical cell regenerative [1]. At present, the photoelectrochemical system of DSSC solar cells incor-porates a porous-structured wide band gap oxide semi-conductor film, typically composed of TiO2or ZnO.

The single-cell efficiency of 12.3% has persisted for nearly two decades [2]. This conversion efficiency has been lim-ited by energy damage that occurs during charge transport processes. Specifically, electrons recombine with either oxidized dye molecules or electron-accepting species in the electrolyte [3-5]. This recombination problem is even

worse in TiO2 nanocrystals because of the lack of a

depletion layer on the TiO2nanocrystallite surface, which becomes more serious as the photoelectrode film thick-ness increases [6].

In response to this issue, this study suggests ZnO-based DSSC technology as a replacement for TiO2in solar cells. Like TiO2, ZnO is a wide band gap (approximately 3.3 eV at 298 K) semiconductor with a wurtzite crystal structure. Moreover, its electron mobility is higher than that of TiO2 for 2 to 3 orders of magnitude [7]. Thus, ZnO is expected to show faster electron transport as well as a decrease in recombination loss.

However, reports show that the overall efficiency of TiO2DSSCs is far higher than that of ZnO. The highest reported efficiency of 5.2% for ZnO DSSCs is surpassed by 6.3% efficiency for TiO2thin passivation shell layers [7]. The main problem is centered on the dye adsorption process in ZnO DSSCs. The high acidity of carboxylic acid binding groups in the dyes can lead to the dissol-ution of ZnO and precipitation of dye-Zn2+ complexes. This results in a poor overall electron injection efficiency of the dye [8-10].

There are multiple approaches for increasing the effi-ciency of ZnO DSSCs. The introduction of a surface pas-sivation layer to a mesoporous ZnO framework is one possibility, but it may complicate dye adsorption issues. Alternatively, the internal surface area and morphology of

* Correspondence:[email protected]

2

Department of Photonics Engineering, Yuan-Ze University, 135 Yuan-Tung Road, Chung-Li 32003, Taiwan

3

Advanced Optoelectronic Technology Center, National Cheng-Kung University, Tainan 701, Taiwan

Full list of author information is available at the end of the article

© 2014 Kuo et al.; licensee Springer. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.

the photoanode could be changed to replace the con-ventional particulate structures. However, the diffu-sion length and the surface area are incompatible with one another. Increasing the thickness of the photoanode allows more dye molecules to be an-chored, but electron recombination becomes more likely because of the extended distance through which electrons diffuse to the TCO collector. Therefore, the structure of the charge-transporting layer should be optimized to achieve maximum efficiency while mi-nimizing charge recombination.

The insufficient surface is as of 1D nanostructures limit the performance of DSSCs to a relatively low level. Ac-cordingly, a photoanode with a highly branched network could yield greater photoconversion efficiency than 1D nanostructures because dye loading can be enriched with-out sacrificing electron transport properties [10]. In addition, the highly branched tree-shaped structure pos-sesses larger pores, creating a better transport route for electrolyte diffusion. Researchers have studied many 1D nanostructures, namely, nanowires [11-14], nanoflowers [15], nanotubes [11,16], nanosheets [17,18], nanobelts [11,16], and nanotips [19]. These nanostructures are ex-pected to significantly ameliorate the electron diffusion length in photoelectrode films. By providing a direct con-duction pathway for the fast collection of photogenerated electrons, they decrease the potentiality of charge recom-bination during interparticle percolation by replacing

ran-dom polycrystalline TiO2 nanoparticle networks with

ordered crystalline ZnO semiconductor nanowires (NWs). In the past studies, ZnO nanostructures were typically grown by chemical bath deposition (CBD) [20,21]. This paper presents a discussion on the different surface characterizations of ZnO nanostructures using X-ray diffraction (XRD), field-emission scanning electron mi-croscopy (FE-SEM), UV-visible spectrophotometry, elec-trochemical impedance spectroscopy (EIS), and solar simulation.

Methods

In this study, the schematic structures of DSSCs with ZnO nanorods and nanotrees are shown in Figure 1. First, using RF sputtering, an Al-doped ZnO (AZO) seed layer (approximately 300 nm) was deposited on a

fluorine-doped SnO2 (FTO)-coated glass with a sheet

resistance of 8 Ω/sq. The scope of the seed layer

defin-ition area was 1 cm2 on FTO substrates. These

sub-strates were used for the growth of ZnO nanorods (NRs). The ZnO nanorods were deposited using zinc nitrate (Zn(NO3)2· 6H2O) and hexamethylenetetramine (HMTA). Both mixtures were dissolved in deionized water to a concentration of 0.02 M and kept under 90°C for 9 h. After the reaction was complete, the resulting ZnO NRs were rinsed with deionized water to remove residual polymer. The NRs with an AZO film were then coated by RF sputtering, and the growth process was re-peated to create tree-like ZnO structures from the nanorods.

D-719 dye, cis-bis(isothiocyanato)bis(2,2′-bipyridyl-4,4′-dicarboxylato)ruthenium(II)bis-tetrabutylammonium (Ever-light Chemical Industrial Corp., Taipei, Taiwan), was dissolved in acetonitrile for the preparation of the 0.5 mM dye solution. Dye sensitization was conducted by soaking the ZnO photoelectrodes in D-719 dye at room temperature for 2 h. A sandwich-type configuration was employed to measure the presentation of the DSSCs. An active area of 1 cm2was assembled by using a Pt-coated FTO substrate as a counter electrode and the Pt/FTO was heated at 200°C for 30 min in air. The DSSC cell was sealed using the polymer resin to act as a spacer. The electrolyte was injected into the space between the electrodes from these two holes, and then these two holes were sealed completely by Surlyn (DuPont, Taipei, Taiwan). Results and discussion

In this study, high-density long-branched tree-like ZnO structures and NRs were grown on AZO/FTO substrates

of photoanodes to increase the optical absorption of the dye. Figure 2 shows the XRD patterns for the AZO thin film, ZnO nanorods, and tree-like ZnO nanostructures, respectively. The crystalline structure was analyzed using

XRD measurements according to a θ/2θ configuration.

According to the XRD database, all of the diffraction peaks can be indexed to the hexagonal wurtzite phase of ZnO. In principle, the XRD spectra show that the ZnO films developed without the presence of secondary

phases and groups. No Al2O3 phase was found.

More-over, the much higher relative intensity of the (002) dif-fraction peak provides evidence that the nanorods are preferentially oriented in the c-axis direction perpen-dicular to the substrate. No other ZnO phase was found. Regarding tree-like ZnO nanostructures, the presence of secondary phases and groups was observed. These se-condary phases and groups result from the thin AZO film coating on the ZnO NRs, which served as a seed layer for the tree-like nanostructures.

ZnO NRs and tree-like ZnO structures were obtained on an FTO substrate, and DSSCs were constructed, as shown in Figure 3. Figure 3a,b,c,d shows the FE-SEM images of the ZnO‘NRs’ and ‘tree-like structures’ on the FTO substrate, respectively, indicating that the ZnO NRs are well-grown on the substrates with a distinctive, clear morphology. Both the lengths of the NRs and tree-like structures are in the range of 2 to 3μm, as shown in Figure 3a,c. Figure 3a,b,c,d shows that the pillar-shaped tree-like structures form upright against the FTO sub-strate, whereas Figure 3a,c indicates that the NRs grow randomly on the FTO substrate. The eventual growth of tree-like ZnO structures or NRs was highly dependent on the preexisting textured seed layers on the FTO sub-strate. According to Greene et al., the factor causing the upright growth of ZnO NRs is the temperature during growth. In the present case, the growing temperature for

Figure 2 XRD patterns. The XRD patterns of different ZnO nanostructures.

Figure 3 Scanning electron microscopy images. SEM images of different ZnO nanostructures on FTO substrates. Side-view (a,c) and top-view (b,d) of vertically grown tree-like structures.

the FTO substrate was set to be 90°C. Accordingly, the ZnO NRs grow on the FTO substrate, as shown in Figure 3c. To synthesize the branched structures of tree-like ZnO, a second set of AZO seeds containing the previously grown ZnO NRs were sputtered. The growth procedures at the same growth conditions were repeated. Figure 3a,b shows the tree-like ZnO with a branched structure. The dye loading at an approximate wavelength of 370 and 530 nm corresponds to the absorption edge of D-719 dye. Figure 4 shows the absorptions of solutions containing 0.01 mM dye, dyes detached from the tree-like ZnO structure films (red line), and dyes detached from the ZnO nanorod films

(blue line). The solution was composed of 5 ml H2O

and 0.1 mM NaOH. The films both had an area of 1 cm2. Figure 4 enables the calculation of the dye loadings and the light absorptions at 370 and 530 nm (the dye's absorption maximum) for both NRs and tree-like films. Compared to the upstanding ZnO NRs film, the tree-like film shows an improvement in both light harvesting and dye loading. The Nyquist plots of the impedance spectra are shown in Figure 5. To characterize the ZnO/dye/ electrolyte interface characteristics, the DSSCs were at

Voc under AM 1.5 illumination by EIS measurement.

The Nyquist plots (Figure 5) show a large semicircle at low frequencies and a small semicircle at high frequencies. As shown in Figure 5, they were fitted with an equivalent circuit alike to those reported in the literature. The equivalent circuit comprisesRs(ohmic resistance),Rct1 (the Pt counter electrode), andRct2 (ZnO/dye/electrolyte interfaces):

τeff¼ 2πfð minÞ−1 ð1Þ

where τeff is the electron efficacious lifetime andfmin is

the frequency corresponding to the imaginary part mini-mum. Rct and τeff are reported in Table 1. Here, it is

shown that the interface area increases andRct2decreases

for tree-like nanostructures. The electrochemical parame-ters were evaluated by fitting the experimental data with the equivalent circuit, as summarized in Table1. TheRCT2

value for the photoelectrode containing a tree-like struc-ture (95.8Ω) is lower than that of the photoelectrode con-taining a nanorod structure (109.2 Ω), whereas the RCT1

value is almost the same. One possible cause for low-load transport resistance might be that axial charge transport in tree-like ZnO structures effectively obstructs the re-combination progress with iodine redox carriers [8].

Regarding branch-free rods, less accumulation on the electrode layer leads to poor electrolyte filling, improv-ing the recombination pathway and raisimprov-ing the charge transport resistance. The surface charge density and trap level of the ZnO layer also play an important role in de-ciding the charge transport resistance by depleting the space charge layer. The drift transport that occurs when a 1D photoanode contacts electrolyte redox carriers is detrimental to efficacious charge transport. This requires further discussion [22,12]. EIS measurement was used to obtain the Bode plots of the lifetimes displayed in Table 1. This table shows that the tree-like ZnO structure DSSCs exhibit a longer electron lifetime (τeff= 3.91 ms) than that of the NRs DSSCs (τeff= 3.28 ms). The longer lifetime implies lower recombination rate and increased electron-collection efficiency, and thus the parameter can be related to the improvement in cell efficiency.

Figure 4 Absorption spectra of DSSCs with ZnO nanostructures. Optical absorption spectra of D-719 dye-sensitized ZnO nanostructured electrodes.

Figure 5 Analysis of electrochemical impedance spectroscopy. EIS of different ZnO nanostructure electrodes. Nyquist plots are used to measure under illumination (100 mA cm−2).

Table 1 Electrochemical and photovoltaic parameters of DSSCs

Sample Voc(V) Jsc(mA/cm2) FF Rct2(Ω) τeff(ms) Eff (%)

NRs 0.661 0.699 0.397 109.2 3.23 0.203 Tree-like 0.680 0.784 0.413 95.8 3.91 0.231

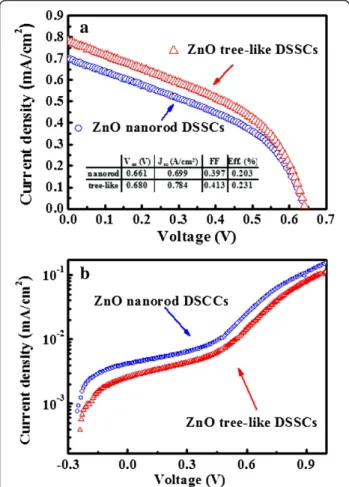

Figure 6a shows the J-V curve for the DSSCs com-posed of tree-like structures and NRs. The DSSC made of NRs yields power conversion efficiency (η) of 0.20%. The DSSC derived from tree-like nanostructures demon-strates an increased power conversion efficiency of 0.23%, and the enhancement in power conversion reaches 15%. As shown in Figure 6a, short circuit current (Jsc), open cir-cuit voltage (Voc), and fill factor (FF) are all substantially increased in the tree-like structures compared to that of the NRs. These factors all contribute to increasing power conversion efficiency. The increased Jsc in tree-like ZnO nanostructure DSSCs can be attributed to the large in-ternal surface area for dye anchoring and the effective conduction pathway provided by the highly intercon-nected network of the branched structure. Additional ran-dom multiple scattering of light within the network also possibly leads to photon localization, thereby increases the probability of light harvesting.

The Vocfor the tree-like ZnO nanostructures also in-creased compared to that of the ZnO nanorods. This higherVocis attributed to a reduction in recombination losses at ZnO/dye interfaces. The high Vocfor the

tree-like ZnO nanostructure DSSCs can be solved with the diode equation [23]: Voc¼ KT_nq   ln Imax Io   ð2Þ where theImaxand I0are the maximum current density

and dark current density, respectively, in Equation 2. This equation predicts that the suppression of the dark current density (I0) results in a higher Voc, and the

en-hancement of Jsc is almost 12%. Accordingly, Figure 6b

shows that the dark current density of DSSC with ZnO tree-like nanostructure was lower than that with ZnO nanorod. The dark current density supplies qualitative information on dye coverage on the photoelectrode sur-face [24]. The lower dark current density in the tree-like ZnO nanostructure photoelectrode is caused by efficient dye coverage on the surface of the ZnO branches, as well as proper electrolyte penetration. These factors result in low recombination damages at ZnO/dye interfaces. Fur-thermore, the Voc increase in tree-like nanostructure

DSSCs can be explained in two ways: (1) Higher dye load-ing fosters more charge injection from the dye sensitizer to the conduction band of ZnO. The result is an upward shift in the ZnO quasi-Fermi level, thus enhancing the po-tential difference between ZnO and the redox species. (2) Sufficient electrolyte pore filling in vertically branched structures leads to efficient hole scavenging at ZnO/dye interfaces, lowering the locus of recombination [25].

Although the power conversion efficiency of the present work is lower than the highest value reported in the litera-ture [6], our principal concern is on whether the tree-like nanostructure can improve on the conversion efficiency of a DSSC composed of nanorods. This study determined that a tree-like ZnO nanostructure synthesized through effortless and gentle reaction conditions is highly efficient and economically viable as a photoelectrode for DSSCs. Further work will improve the cell configuration and con-version efficiency.

Conclusions

This study prepared tree-like ZnO structures and ZnO nanorods for use as photoanodes in DSSCs. DSSCs com-posed of tree-like ZnO nanostructures were found to show greater photovoltaic performance than DSSCs con-taining nanorods. Comparatively, tree-like ZnO struc-tures exhibit a larger internal surface area for efficient dye loading and light harvesting, a greater available pore volume, reduced charge recombination, and improved interconnectivity for faster electron transport than ZnO nanorods. These improvements yield a 15% enhancement in power conversion.

Competing interests

The authors declare that they have no competing interests. Figure 6 Current-voltage characteristics. J-V measurements under

Authors’ contributions

SYK and FIL supervised the research and revised the manuscript. JFY designed and carried out the experiment and statistical analysis and participated in drafting the manuscript. All authors read and approved the manuscript.

Acknowledgements

This work was supported by the Green Technology Research Center of Chang Gung University and the National Science Council (NSC) of Taiwan under contract numbers NSC100-2815-C-155-013-E, NSC100-2112-M-182-004, and NSC101-2112-M-182-003-MY3.

Author details

1_{Department of Electronic Engineering, Chang Gung University, 259}

Wen-Hwa 1st Road, Kwei-Shan, Tao-Yuan 333, Taiwan.2Department of Photonics Engineering, Yuan-Ze University, 135 Yuan-Tung Road, Chung-Li 32003, Taiwan.3Advanced Optoelectronic Technology Center, National Cheng-Kung University, Tainan 701, Taiwan.

Received: 16 February 2014 Accepted: 22 March 2014 Published: 2 May 2014

References

1. Hsu CP, Lee KM, Huang JTW, Lin CY, Lee CH, Wang PL, Tsai SY, Ho KC: EIS analysis on low temperature fabrication of TiO2porous films for

dye-sensitized solar cells. Electrochim Acta 2008, 53:7514–7522. 2. Yella A, Lee HW, Tsao HN, Yi C, Chandiran AK, Nazeeruddin MK, Diau EW-G,

Yeh CY: Porphyrin-sensitized solar cells with cobalt (II/III)–based redox electrolyte exceed 12 percent efficiency. Science 2011, 334:629–634. 3. Nissfolk J, Fredin K, Hagfeldt A, Boschloo G: Recombination and transport

processes in dye-sensitized solar cells investigated under working conditions. J Phys Chem B 2006, 110:17715–17718.

4. Gratzel M: Solar energy conversion by dye-sensitized photovoltaic cells. Inorg Chem 2005, 44:6841_–6851.

5. Gratzel M: Conversion of sunlight to electric power by nanocrystalline dye-sensitized solar cells. J Photochem Photobiol A 2004, 164:3_–14. 6. Zhang Q, Dandeneau CS, Zhou X, Cao G: ZnO nanostructures for

dye-sensitized solar cells. Adv Mater 2009, 21:4087–1408.

7. Park K, Zhang QF, Garcia BB, Zhou XY, Jeong YH, Cao GZ: Effect of an ultrathin TiO2layer coated on submicrometer-sized ZnO nanocrystallite

aggregates by atomic layer deposition on the performance of dye-sensitized solar cells. Adv Mater 2010, 22:2329–2332.

8. Quintana M, Edvinsson T, Hagfeldt A, Boschloo G: Comparison of dye-sensitized ZnO and TiO2 solar cells: studies of charge transport and carrier lifetime. J Phys Chem C 2007, 111:1035–1041.

9. Wong DKP, Ku CH, Chen YR, Chen GR, Wu JJ: Enhancing electron collection efficiency and effective diffusion length in dye-sensitized solar cells. Chem Phys Chem 2009, 10:2698_–2702.

10. Jiang CY, Sun W, Lo GQ, Kwong DL, Wang JX: A improved dye-sensitized solar cells with a ZnO-nanoflower photoanode. Appl Phys Lett 2007, 90:263501-1–263501-3.

11. Chen G, Zheng K, Mo X, Sun D, Meng Q, Chen G: Metal-free indoline dye sensitized zinc oxide nanowires solar cell. Mater Lett 2010, 64:1336–1339. 12. Cheng H, Chiu W, Lee C, Tsai S, Hsieh W: Formation of branched ZnO

nanowires from solvothermal method and dye-sensitized solar cells applications. J Phys Chem C 2008, 112:16359–16364.

13. Law M, Greene LE, Johnson JC, Saykally R, Yang P: Nanowire dye-sensitized solar cells. Nat Mater 2005, 4:455–459.

14. Dehghan F, Asl Soleimani E, Salehi F: Synthesis and characterization of ZnO nanowires grown on different seed layers: the application for dye-sensitized solar cells. Renew Energy 2013, 60:246–255. 15. Pant HR, Park CH, Pant B, Tijing LD, Kim HY, Kim CS: Synthesis,

characterization, and photocatalytic properties of ZnO nano-flower containing TiO2NPs. Ceram Int 2012, 38:2943–2950.

16. Martinson ABF, Elam JW, Hupp JT, Pellin MJ: ZnO nanotube based dye-sensitized solar cells. Nano Lett 2007, 7:2183_–2187.

17. Kar S, Dev A, Chaudhuri S: Simple solvothermal route to synthesize ZnO nanosheets, nanonails, and well-aligned nanorod arrays. J Phys Chem B 2006, 110:17848–17853.

18. Fu M, Zhou J, Xiao QF, Li B, Zong RL, Chen W, Zhang J: ZnO nanosheets with ordered pore periodicity via colloidal crystal template assisted electrochemical deposition. Adv Mater 2006, 18:1001–1004. 19. Yang Z, Xu T, Ito Y, Welp U, Kwok WK: Enhanced electron transport in

dye-sensitized solar cells using short ZnO nanotips on a rough metal anode. J Phys Chem C 2009, 113:20521–20526.

20. Baxter JB, Walker AM, Van OK, Aydil ES: Synthesis and characterization of ZnO nanowires and their integration into dye-sensitized solar cells. Nanotechnology 2006, 17:S304–S312.

21. Kakiuchi K, Hosono E, Fujihara S: Enhanced photoelectrochemical performance of ZnO electrodes sensitized with N-719. J Photochem Photobiol A Chem 2006, 179:81–86.

22. Chiu WH, Lee CH, Cheng HM, Lin HF, Liao SC, Wu JM, Hsieh WF: Efficient electron transport in tetrapod-like ZnO metal-free dye-sensitized solar cells. Energy Environ Sci 2009, 2:694–698.

23. Schlichthorl G, Huang SY, Sprague J, Frank AJ: Band edge movement and recombination kinetics in dye-sensitized nanocrystalline TiO2solar cells:

a study by intensity modulated photovoltage spectroscopy. J Phys Chem B 1997, 101:8141–8155.

24. Ito S, Liska P, Comte P, Charvet R, Pechy P, Bach U, Mende LS, Zakeer-uddin SM, Kay A, Nazeeruddin MK, Gratzel M: Control of dark current in photo-electrochemical (TiO2/I−–I3−) and dye-sensitized solar cells. Chem Commun

2005, 34:4351–4353.

25. Sauvage F, Di Fonzo F, Li Bassi A, Casari CS, Russo V, Divitini G, Ducati C, Bottani CE, Comte P, Graetzel M: Hierarchical TiO2photoanode for

dye-sensitized solar cells. Nano Lett 2010, 10:2562–2567. doi:10.1186/1556-276X-9-206

Cite this article as: Kuo et al.: Improved dye-sensitized solar cell with a ZnO nanotree photoanode by hydrothermal method. Nanoscale Research Letters 2014 9:206.
