Effect of plasma treatment on the microstructure and electrical properties of MIM capacitors with PECVD silicon oxide and silicon nitride

Effect of plasma treatment on the microstructure and electrical

properties of MIM capacitors with PECVD silicon oxide

and silicon nitride

Received: 21 November 2005 / Accepted: 15 March 2006 / Published online: 30 December 2006

Springer Science+Business Media, LLC 2006

Abstract Metal–insulator–metal (MIM) capacitors with plasma enhanced chemical vapor deposited (PECVD) nitride exhibit trap-induced dispersive behavior and electrical hysteresis, which lead to deg-radation in capacitor linearity at low frequencies. The dominant defect was suggested to be silicon dangling bonds originated from nitrogen deficiency. Previous methods to eliminate the dispersive behavior and electrical hysteresis include use of oxide–nitride–oxide (ONO) stacks and/or plasma pre-treatment of silicon substrate before nitride deposition [Van Huylenbroeck S, Decoutere S, Venegas R, Jenei S, Winderickx G (2002) IEEE Electron Device Lett 23:191; Lau WS (1990) Jpn J Appl Phys 29:L690]. In this study, the plasma post-treatment method was employed; MIM capacitors with PECVD oxide and nitride were treated with N2O and SiH4/NH3 plasma, respectively, after deposition of the dielectric layer. No apparent change in film microstructure is observed after plasma treat-ment. Plasma post-treatment is effective in eliminating the electrical hysteresis shift of the nitride capacitors. Fourier transform infrared (FTIR) absorption spectra suggest an increase of the Si–H bond after SiH4/NH3 plasma bombardment of the nitride films. Auger depth profiling indicates a slight increase of nitrogen to silicon ratio after plasma treatment. The increase of

the Si–H bonds as well as the raise of nitrogen to silicon ratio are two possible causes for the elimination of the hysteresis shift of the plasma-treated nitride capacitors. The time dependent dielectric breakdown testing indicates a decrease in both the leakage current and the lifetime of the MIM capacitors treated with plasma. Possible dielectric degradation mechanism is explored.

Introduction

Integration of precision metal–insulator–metal (MIM) capacitors into high performance technologies has been a key building block for mixed-signal IC appli-cations. Plasma enhanced chemical vapor deposition (PECVD) has the advantage of depositing insulators in a clean processing vicinity at very low temperatures. The low temperature processing eliminates the segre-gation or redistribution of the dopants commonly occurred in conventional high temperature processes. However, the dielectric to substrate interface proper-ties and the film qualiproper-ties deteriorate from want of high temperature annealing. Plasma treatment has been used to improve the interfacial properties between the dielectric and the substrate. Chang et al. reported that fluorinated oxides fabricated with PECVD exhibited low leakage current, high breakdown field, and good reliability when subjected to CF4plasma treatment [1,

2]. Lim et al. [3] demonstrated that the mobility of a hydrogenated amorphous silicon thin film transistor (a-Si:H TFT) was improved by plasma treatment on the surface of silicon nitride (SiNx) before a-Si:H C.-C. Ho
B.-S. Chiou

Department of Electronics Engineering and Institute of Electronics, National Chiao Tung University, Hsinchu, Taiwan, P. R. China

B.-S. Chiou (&)

Innovative Packaging Research Center, National Chiao Tung University, Hsinchu, Taiwan, P. R. China e-mail: [email protected]

deposition. They attributed the mobility improvement to the decrease of the surface roughness and the rearrangement of the surface atoms of SiNxfilms. Our previous work reveals that the effect of plasma treatment on hydrogen silesquioxane (HSQ) dielectric films was multiple. The plasma bombardment broke the Si–H bonds of HSQ film and led to the formation of dangling bonds that absorbed water easily. How-ever, the simultaneous annealing and bond rearrange-ment during plasma bombardrearrange-ment provided a denser film surface that prevented further degradation of HSQ films when more plasma was applied [4].

Metal–insulator–metal (MIM) and metal– nitride–semiconductor (MNS) capacitors with PEC-VD nitride exhibit trap-induced dispersive behavior and electrical hysteresis, which lead to degradation in capacitor linearity at low frequencies, limiting the accuracy in precision analog circuits [5, 6]. The dominant defect responsible for charge trapping in silicon nitride was suggested to be silicon dangling bonds, which originate from a deficiency in nitrogen. Various methods, such as: use of a PECVD oxide– nitride–oxide (ONO) stacks and/or appropriate SiH4/ NH3plasma pre-treatment of silicon substrate before the nitride deposition to make the nitrogen to silicon ratio higher at the interfacial region have been employed to eliminate the dispersive behavior and electrical hysteresis [5, 6]. However, very few work reported on the effect of the plasma post-treatment on the electrical behaviors of the dielectric films.

In this study, MIM capacitors with PECVD oxide and nitride were treated with N2O and SiH4/NH3 plasma, respectively, after deposition of the dielectric layer. The effects of plasma post-treatment on the microstructure, the electrical behaviors, and the reli-ability of the dielectric thin films are investigated.

Experimental procedures

Four-inch diameter p-type (100) Si wafers with nominal resistivity of 1–10 W-cm were used as substrate. After standard RCA cleaning, a 100 nm SiO2film was grown on the Si substrate. A 100 nm Al films were deposited by thermal evaporation coater onto the SiO2/Si sub-strate to serve as the bottom electrode. Two dielectrics, SiO2 and SiNx, were prepared in this study. The amorphous SiO2films, deposited by the decomposition of tetraethyl orthosilicate, with 100 nm in thickness were deposited onto the bottom electrode with PECVD (Multichamber PECVD, STS-MULTIPLEX CLUS-TER SYSTEM, England) at 300 C (substrate temper-ature) and 200 W. The silicon nitride films, with a

thickness of 50 nm, were deposited with the same PECVD system using a SiH4/NH3/N2mixture. The flow rates of SiH4, NH3 and N2 were fixed at 20, 80, and 510 sccm, respectively. Before the deposition of the top electrode, some samples were subjected to plasma treatment at 300 C (substrate temperature). The SiO2 films were treated with N2O plasma (with a flow rate of 200 sccm) for 30 min, while the SiNxfilms were treated with SiH4/NH3plasma (the flow rate are 20 (SiH4) and 700 (NH3) sccm) for 30 min. Aluminum films (150 nm) were then deposited as the top electrodes.

Field emission scanning electron microscope (FE-SEM) (S-4700, Hitachi, Japan) was employed to observe the surface morphology and microstructure of the films. Atomic force microscope (AFM) (NS3a controller with D3100 stage, Veeco Instruments Inc., U.S.A.) was employed to measure the surface rough-ness. Auger electron microscope (AES) was employed to analyze elemental depth profiles. A C-V analyzer (model 590, Keithley Instruments Inc., U.S.A.) and a semiconductor parameter analyzer (HP4155B, Hewlett Packard Co., U.S.A.) were employed to measure the capacitance and the leakage current, respectively. The time to dielectric failure was defined when the current density exceeded 0.5A/cm2.

Results and discussion

Figure 1exhibits the surface morphologies of SiO2and SiNx films before and after plasma treatment. No apparent difference is observed between samples with and without plasma bombardment. However, plasma treatment increases the surface roughness of the oxide films while decreasing that of the nitride films. As shown in Fig. 2, the root-mean-square surface rough-nesses are 0.541 and 0.579 nm for the as-deposited SiO2 and SiNx, respectively, while those for the plasma-treated SiO2 and SiNx films are 0.631 and 0.293 nm, respectively. The Auger depth profiles, exhibited in Fig.3, suggest that there is no apparent difference between films with and without plasma treatment. However, the SiNx/Al interface is more diffusive than the SiO2/Al interface is.

As summarized in Table1, the capacitance densities increase from 1.02 to 1.21 fF/lm2for nitride capacitors and from 0.39 to 0.46 fF/lm2for oxide capacitors after plasma treatment. The voltage dependence of capac-itance (C), as exhibited in Fig.4, can be approximated by:

where Co is the capacitance at zero volt, A and B are the linear and quadratic coefficients of the capacitance, respectively. As shown in Table1, for nitride capaci-tors, plasma treatment increases the absolute value of the linear coefficient from 22.1 to 91.5 ppm/V, while it decreases the absolute value of the quadratic coeffi-cient from 27.9 to 9.8 ppm/V2. For oxide capacitors, the linear coefficients are 14.6 ppm/V (as-deposited) and 29.1 ppm/V (plasma-treated), and the quadratic coefficients are 13.4 ppm/V2 (as-deposited) and 4.6 ppm/V2 (plasma- treated). Also listed in Table1

are the voltage coefficients of capacitance (VCC) from previous works for comparison [5,7,8]. The sensitivity of capacitance to bias voltage, i.e., VCC, is one of the important parameters for precision analog design. The specifications demanded by analog designers in the

VCC of high precision capacitors are A < 50 ppm/V and B < 10 ppm/V [5]. There are many factors which would affect the VCC of the capacitors, including: dielectric composition, processing conditions, dielectric thickness, frequency of measurement, voltage range of measurements and so on.

Plasma treatment eliminates the electrical hysteresis shift of the nitride capacitors. No hysteresis shift in the C–V plot is observed for nitride capacitor with plasma treatment (Fig.5a), while there is a 0.91 V shift for one without plasma treatment (Fig.5b). For oxide capac-itors, no hysteresis shift in the C–V curve is observed. The hystersis phenomenon is believed to be induced by the bulk silicon nitride traps such as: silicon dangling bonds near the nitride/electrode interface [6]. Fourier-transform infrared (FTIR) absorption spectra of the

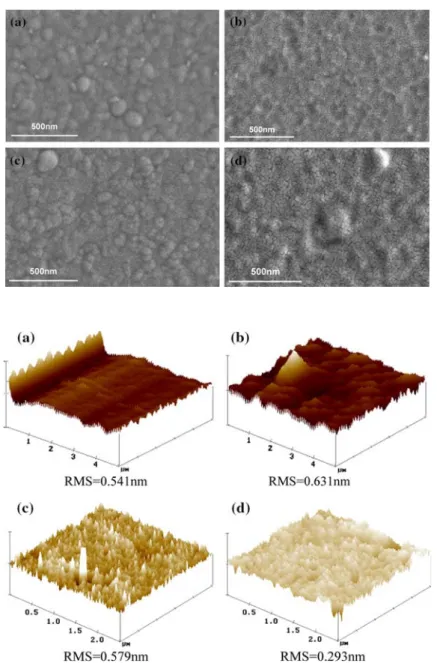

Fig. 1 Surface morphologies of (a) as-deposited SiO2; (b) plasma-treated SiO2; (c) as-deposited SiNx; and (d) plasma-treated SiNx

Fig. 2 AFM 3D images of surface morphologies and root-mean square (RMS) values of surface roughness of (a) as-deposited SiO2; (b) plasma-treated SiO2; (c) as-deposited SiNx; and (d) plasma-treated SiNx

SiNxfilms suggested an increase in absorption of Si–H bond after SiH4/NH3plasma treatment. As indicated in Fig.6, the ratio of Si–H peak (~2,160 cm–1) to Si–N peak (~890 cm–1) increases from 9% of the as-depos-ited SiNxfilms to about 16–19% of the plasma treated ones. Previous work by Huylenbroeck et al. suggests that formation of silicon–hydrogen bonds after plasma bombardment reduces the number of traps presents in the SiNxfilms [5]. Auger depth profile results indicate a slight increase of nitrogen to silicon ratio of the SiNx films after plasma treatment. It is argued that SiH4/ NH3 plasma bombardment raised the nitrogen to silicon ratio and/or formed the Si–H bond at the interface region. These are two of the possible reasons

why electrical hysteresis shift is not observed for SiH4/ NH3plasma treated SiNxfilms.

The current density (J) versus electrical field (E) curves, shown in Fig.7, indicates a decrease of the leakage current density after plasma treatment. The leakage current of the oxide capacitors drops from 1.90 · 10–7A/cm2 of the as-deposited films to 2.91 · 10–10A/cm2 of the plasma-treated ones at 1.0 MV/cm. It is argued that the incorporation of nitrogen into the oxide films after N2O plasma treatment reduces strained Si–O bonds and silicon dangling bonds, thus, consequently, reduces interface defects and improves the J–E characteristics of the SiO2 films [9]. The leakage current of the nitride

0 200 400 600 800 1000 0.0 2.0x105 4.0x105 6.0x105 8.0x105 1.0x106 1.2x106 1.4x106 t h gi e H k a e P e vit a vi r e D

Sputtering Time (sec.) O Si Al (a) 0 200 400 600 800 1000 0.0 2.0x105 4.0x105 6.0x105 8.0x105 1.0x106 1.2x106 1.4x106 t h gi e H k a e P e vit a vi r e D

Sputtering Time (sec.) O Si Al (b) 0 200 400 600 800 0.0 2.0x105 4.0x105 6.0x105 8.0x105 1.0x106 t h gi e H k a e P e vit a vi r e D Sputtering T im e (sec.) N Si Al (c) 0 200 400 600 800 0.0 2.0x105 4.0x105 6.0x105 8.0x105 1.0x106 t h gi e H k a e P e vit a vi r e D S puttering T im e (sec.) N Si Al (d)

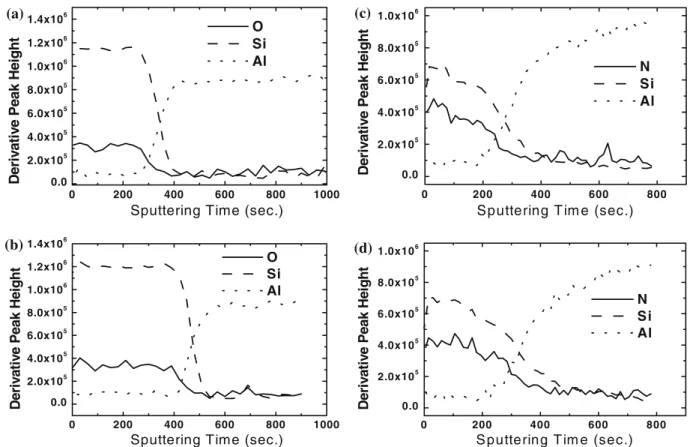

Fig. 3 Auger depth profiles of (a) as-deposited SiO2; (b) plasma-treated SiO2; (c) as-deposited SiNx; and (d) plasma-treated SiNx

Table 1 Capacitance density and voltage coefficient of capacitance, A and B*, of several nitride and oxide MIM capacitors at 100 kHz

*C = Co(1+AV+BV2). Coand C are the capacitances at 0 and V volts, respectively

Capacitance density (fF/lm2₎ Voltage range of measurement Dielectric thickness (nm) A (ppm/V) B (ppm/V2₎ Note

1.02 (as-deposited nitride) 10V to –10V 50 –22.1 27.9 This work

1.21 (plasma-treated nitride) 10V to –10V 50 91.5 –9.8

0.39 (as-deposited oxide) 10V to –10V 100 –14.6 –13.4 This work

0.46 (plasma-treated oxide) 10V to –10V 100 29.1 –4.6

1.1 (nitride) 5V to –5V 60 25.5 9.3 Ref. 1

1.2–1.35 (nitride) 5V to –5V 50 –21 to –14 5.5–8 Ref. 7

capacitors at 1.0 MV/cm reduces from 1.79 · 10–9A/cm2 (as-deposited) to 8.99 · 10–10A/cm2 (plasma-treated). Both the band gap and the barrier heights at the metal–insulator interfaces of the nitride films increase with the increase of the N content [10]. As mentioned previously, the nitrogen concentration increases after plasma treatment. Hence, the decrease of the leakage current is attributed to the reduction of the trap densities, the raise of the energy band gap and/or the increase of the barrier height. Figure8 exhibits the time (t) dependence of the current density (J) of nitride capacitors at various stress fields. The J–t curves of specimens without plasma treatment show an initial increase of the current density with time followed by a decrease of J with t before the breakdown of the dielectric, while the current density of the plasma-treated samples increases slightly before the breakdown of the dielectric. Besides, although the current density of the plasma-treated capacitors is smaller, the time to dielectric breakdown (TTDB) is shorter. Van Delden and van der Wel proposed a degradation mechanism for PECVD silicon nitride films [10]. According to the proposed model, the electron-hole recombination breaks the

weaker Si–Si and Si–H bonds to form the Si dangling bonds which are singly occupied for the neutral state (Si30). These neutral states trap charge carriers of

-10 -5 0 5 10 15 0.996 0.997 0.998 0.999 1.000 1.001 1.002 1.003 1.004 ₎ F p( ) d et a er t-a m s al p( e c n ati c a p a C ) F p( ) d eti s o p e d-s a( e c n ati c a p a C C/ C , e c n ati c a p a C d e zil a mr o N o Voltage (V) 73.68 73.76 73.84 73.92 74.00 74.08 74.16 62.10 62.16 62.22 62.28 62.34 62.40 62.46 62.52 -10 -5 0 5 10 15 0.996 0.997 0.998 0.999 1.000 1.001 1.002 1.003 1.004 ) F p( ) d eti s o p e d-s a( e c n ati c a p a C ) F p( ) d et a er t-a m s al p( e c n ati c a p a C C/ C , e c n ati c a p a C d e zil a mr o N o Voltage (V) 161.7 162.0 162.3 162.6 162.9 192.6 192.9 193.2 193.5 193.8 194.1 (a) (b)

Fig. 4 Capacitance (C) as a function of the dc voltage of (a) oxide and (b) nitride MIM capacitors with (m) and without (h) plasma treatment. The curves exhibit quadratic behavior in the voltage coefficient of capacitance (VCC). Cois the capacitance value measured at zero volt

-10 -5 0 5 10 0.996 0.997 0.998 0.999 1.000 1.001 1.002 1.003 1.004 from -10V to 10V from 10V to -10V Co / C , e c n ati c a p a C e vit al e R Voltage(V) 192.6 192.9 193.2 193.5 193.8 194.1 194.4 ) F p( e c n ati c a p a C -10 -5 0 5 10 0.996 0.997 0.998 0.999 1.000 1.001 1.002 1.003 1.004 from -10V to 10V from 10V to -10V 0.91V shift Co / C , e c n ati c a p a C e vit al e R Voltage(V) 161.4 161.7 162.0 162.3 162.6 162.9 ) F p( e c n ati c a p a C (a) (b)

Fig. 5 Capacitance (C) as a function of the dc voltage of nitride MIM capacitors (a) with and (b) without plasma treatment. Cois the capacitance value measured at zero volt

600 (0,9%) (30,16%) (45,19%) (60,17%) N-H Si-H N-H Si-N Absorbance Wavenumber (cm-1₎ 3600 3000 2400 1800 1200

Fig. 6 The FTIR absorbance spectra of silicon nitride films as a function of plasma treatment time. Data in the parenthesis (t, R) are the plasma treatment time in minutes and the peak ratio of Si–H (2,160 cm–1) to Si–N (~890 cm–1)

either sign to form Si3+and Si3–centers. The Si3+center may react with N–H to form Si–N and leave a net concentration of negatively charged Si3– centers. For

samples without plasma treatment, the initial increase of J with time (t) is due to an increase of defects in the band edges. Then, silicon dangling bonds which are occupied for the neutral states (Si30) trap electrons and thus reduce the total current, as shown in Fig.8. On the other hand, the SiH4/NH3 plasma raised the nitrogen to silicon ratio and/or formed the Si–H bond at the interface region as discussed previously. The number of the silicon dangling bond is decreased after plasma bombardment. Hence, the current density is smaller and increases slightly before breakdown. Besides, the plasma-treated samples have higher concentration of the weaker Si–H bonds which lead to the shorter lifetime (tF). Figure9 exhibits the tFas a function of stress field. The field-acceleration parameter c is, defined as [11]:

c¼  @lnðtFÞ @E



ð2Þ

Since c denotes the field dependence of the lifetime, capacitors with smaller c (i.e. those with plasma treatment) have to be operated at voltages much lower than its breakdown voltage as compared to those with larger c (i.e. without plasma treatment) [11]. The field-acceleration parameters (c) of the as-deposited and plasma-treated nitride films are 6.13 and 6.05, respec-tively. The difference in the c value is small, hence, the effect of plasma treatment on the field-acceleration parameter is not appreciable.

0.0 0.2 0.4 0.6 0.8 1.0 8.0x10-11 1.6x10-10 2.4x10-10 3.2x10-10 4.0x10-8 8.0x10-8 1.2x10-7 m c/ A( J 2 ) E (MV/cm) 0.0 0.2 0.4 0.6 0.8 1.0 1.2 5.0x10-10 1.0x10-9 1.5x10-9 2.0x10-9 2.5x10-9 3.0x10-9 m c/ A( J 2 ) E(MV/cm) (b) (a)

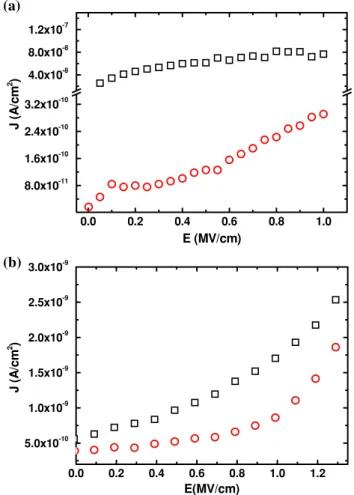

Fig. 7 Current density (J) versus electrical field (E) of as-deposited (h) and plasma-treated () (a) SiO2 and (b) SiNx MIM capacitors measured at room temperature

101 102 103 104 105 106 10-4 10-3 10-2 10-1 (c) Time (s) 10-4 10-3 10-2 10-1 (b) 10-4 10-3 10-2 10-1 (a) J (A/cm 2)

Fig. 8 Time dependence of the current density of nitride capacitors with () and without (h) plasma treatment at (a) 6.0 MV/cm; (b) 5.5 MV/cm; and (c) 5.0 MV/cm 4.5 0 2 4 6 8 10 12 14 16 18 ln(t F ) E (MV/cm) γ =6.13 γ =6.05 6.5 6.0 5.5 5.0

Fig. 9 Failure time (tF) versus electrical field (E) of nitride capacitors with () and without (h) plasma treatment. The field-acceleration parameter (c) is defined as c¼  @lnðtFÞ

@E

Conclusions

In this study, SiH4/NH3and N2O plasmas are used to bombard nitride and oxide films of MIM capacitors, respectively. No apparent difference in the surface morphology of both the SiO2 and SiNx films is observed between samples with and without plasma bombardment. The SiH4/NH3 plasma treatment elim-inates the electrical hysteresis shift of the nitride MIM capacitors. The FTIR spectra reveal an increase of Si–H bonds after plasma treatment and suggest that hydrogen atoms were introduced into the SiNxfilms to form silicon–hydrogen bonds which reduced the number of traps present in the SiNx films, and, consequently, eliminated the electrical hysteresis shift. The leakage current density of both the oxide and nitride capacitors decrease after plasma treatment. For oxide capacitors, the incorporation of nitrogen into oxide films reduces interface defects and, hence, the leakage current. For nitride capacitors, there are several possibilities for the decreased leakage current after plasma treatment, such as: the reduction of the trap densities, the raise of the energy band gap and/or the increase of the barrier height. No appreciable difference in the field-acceleration parameter is observed between specimens with and without plasma treatment.

Acknowledgements This work is sponsored by National Science Council, Taiwan, under the contract number NSC 93-2216-E-009-023.
