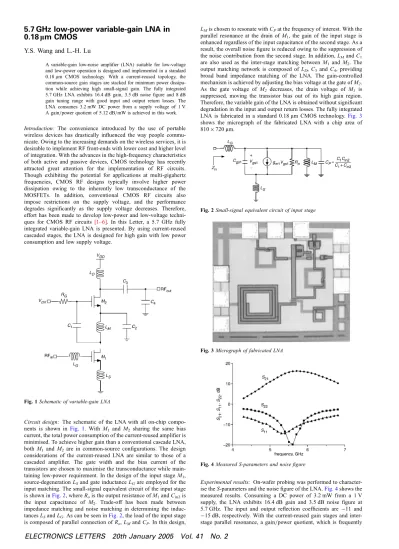

5.7 GHz low-power variable-gain LNA in
0.18 lm CMOS
Y.S. Wang and L.-H. Lu
A variable-gain low-noise amplifier (LNA) suitable for low-voltage and low-power operation is designed and implemented in a standard 0.18 mm CMOS technology. With a current-reused topology, the common-source gain stages are stacked for minimum power dissipa-tion while achieving high small-signal gain. The fully integrated 5.7 GHz LNA exhibits 16.4 dB gain, 3.5 dB noise figure and 8 dB gain tuning range with good input and output return losses. The LNA consumes 3.2 mW DC power from a supply voltage of 1 V. A gain=power quotient of 5.12 dB=mW is achieved in this work.
Introduction: The convenience introduced by the use of portable wireless devices has drastically influenced the way people commu-nicate. Owing to the increasing demands on the wireless services, it is desirable to implement RF front-ends with lower cost and higher level of integration. With the advances in the high-frequency characteristics of both active and passive devices, CMOS technology has recently attracted great attention for the implementation of RF circuits. Though exhibiting the potential for applications at multi-gigahertz frequencies, CMOS RF designs typically involve higher power dissipation owing to the inherently low transconductance of the MOSFETs. In addition, conventional CMOS RF circuits also impose restrictions on the supply voltage, and the performance degrades significantly as the supply voltage decreases. Therefore, effort has been made to develop low-power and low-voltage techni-ques for CMOS RF circuits [1–6]. In this Letter, a 5.7 GHz fully integrated variable-gain LNA is presented. By using current-reused cascaded stages, the LNA is designed for high gain with low power consumption and low supply voltage.
Fig. 1 Schematic of variable-gain LNA
Circuit design: The schematic of the LNA with all on-chip compo-nents is shown in Fig. 1. With M1 and M2 sharing the same bias
current, the total power consumption of the current-reused amplifier is minimised. To achieve higher gain than a conventional cascade LNA, both M1and M2are in common-source configurations. The design
considerations of the current-reused LNA are similar to those of a cascaded amplifier. The gate width and the bias current of the transistors are chosen to maximise the transconductance while main-taining low-power requirement. In the design of the input stage M1,
source-degeneration LSand gate inductance LGare employed for the
input matching. The small-signal equivalent circuit of the input stage is shown inFig. 2, where Rois the output resistance of M1and Cin2is
the input capacitance of M2. Trade-off has been made between
impedance matching and noise matching in determining the induc-tances LSand LG. As can be seen inFig. 2, the load of the input stage
is composed of parallel connection of Ro, LMand CP. In this design,
LMis chosen to resonate with CPat the frequency of interest. With the
parallel resonance at the drain of M1, the gain of the input stage is
enhanced regardless of the input capacitance of the second stage. As a result, the overall noise figure is reduced owing to the suppression of the noise contribution from the second stage. In addition, LMand C1
are also used as the inter-stage matching between M1and M2. The
output matching network is composed of LD, C3and C4, providing
broad band impedance matching of the LNA. The gain-controlled mechanism is achieved by adjusting the bias voltage at the gate of M2.
As the gate voltage of M2 decreases, the drain voltage of M1 is
suppressed, moving the transistor bias out of its high gain region. Therefore, the variable gain of the LNA is obtained without significant degradation in the input and output return losses. The fully integrated LNA is fabricated in a standard 0.18 mm CMOS technology.Fig. 3 shows the micrograph of the fabricated LNA with a chip area of 810 720 mm.
Fig. 2 Small-signal equivalent circuit of input stage
Fig. 3 Micrograph of fabricated LNA
Fig. 4 Measured S-parameters and noise figure
Experimental results: On-wafer probing was performed to character-ise the S-parameters and the nocharacter-ise figure of the LNA.Fig. 4shows the measured results. Consuming a DC power of 3.2 mW from a 1 V supply, the LNA exhibits 16.4 dB gain and 3.5 dB noise figure at 5.7 GHz. The input and output reflection coefficients are 11 and 15 dB, respectively. With the current-reused gain stages and inter-stage parallel resonance, a gain=power quotient, which is frequently
ELECTRONICS LETTERS
20th January 2005
Vol. 41
No. 2
used as the figure-of-merit for low-power design, of 5.12 dB=mW is achieved at 5.7 GHz in this work. The gain and noise figure of the LNA against various control voltages are shown inFig. 5. As can be seen, a gain tuning range of 8 dB is achieved with insignificant increase in the noise figure. Comparison of the LNA performance with previously published data[1–5]is summarised inTable 1.

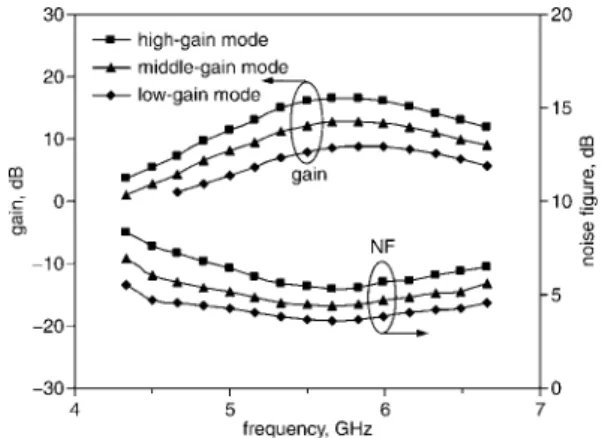

Fig. 5 Measured gain and noise figure for various control voltages
Table 1: Comparison of LNA performance with previously published data Technology Frequency (GHz) VDD (V) Gain (dB) NF (dB) Pdc (mW) Gain=Pdc (dB=mW) Ref. 0.18 mm CMOS 5.7 1.0 16.4 3.5 3.2 5.12 This work
0.35 mm SOI 1.6 0.6 6.4 2.5 1.2 5.33 [1] 90 nm CMOS 5.5 0.6 11.2 3.2 2.1 5.33 [2] 0.18 mm CMOS 5.8 1.0 13.2 2.5 22.2 0.59 [3] 0.18 mm CMOS 5.0 1.0 20.0 3.5 17.0 1.17 [4] 0.18 mm CMOS 5.7 1.8 21.4 4.4 16.2 1.32 [5]
Conclusion: A low-power variable-gain LNA with current-reused topology is designed and fabricated in a standard 0.18 mm CMOS technology. The 5.7 GHz LNA exhibits 16.4 dB gain, 3.5 dB noise figure and 8 dB gain tuning range while consuming a DC power of 3.2 mW from a 1 V supply. It demonstrates the potential of CMOS RF designs for low-power and low-voltage applications at multi-gigahertz frequencies.
#IEE 2005 1 October 2004
Electronics Letters online no: 20057230 doi: 10.1049/el:20057230
Y.S. Wang and L.-H. Lu (Department of Electrical Engineering and Graduate Institute of Electronics Engineering, National Taiwan University, Taipei 10617, Taiwan)
