代理簽章與前向預防式代理簽章之研究

學生：陳以德

指導教授：葉義雄博士

國立交通大學資訊工程系博士班

摘 要

網際網路的發達，使得政府及工商業界的文書往來，漸漸地由紙式文件， 改為利用網際網路傳遞的電子式文件；簽章部分也由傳統的印章改為電子簽 章。因應此一電子化的趨勢，世界各國紛紛制訂電子簽章法來推行電子簽章； 中華民國政府也於2001 公告自 2002 開始施行電子簽章法。 電子簽章又稱數位簽章，其發展到1996 年，Mambo 才提出代理簽章的概 念。代理簽章提供了原始簽章者，可以授權給代理簽章者代簽電子簽章的功能， 是近十年來，蓬勃發展的電子簽章應用之一。許多學者也提出增進代理簽章安 全性及不同的代理簽章演算方法來實現代理簽章。但這些方法被質疑能否實際 應用於現實生活，所以我們除了提出架構在 Quadratic Residues 上的代理簽章 外；也建議代理簽章建構在標準的簽章法，如DSA 及 ECDSA 等；並提出了建 構在DSA/ECDSA 的代理簽章法，藉由已充分討論過安全性的標準簽章法，使 代理簽章成為現實可行的簽章機制。 為了解決金鑰曝光的問題，我們在現有的代理簽章法加入前向預防式 (proactive) 的概念，而提出了 proactive secret sharing proxy signature scheme。

藉由定時更新金鑰的方式，確保了某一段時間內，簽章的安全性。proactive secret

sharing proxy signature scheme 的復原機制，更可以在某一代理簽章者的 share

單向雜湊函數經常配合簽章使用來增進簽章的效率，自從王小雲教授提出

在269的時間複雜度內可以找到單向雜湊函數SHA-160 的碰撞後；我們也分析

SHA-160 的訊息處理模式，發現 SHA-160 有衰減(Decay)的現象，所以我們提

出兩個改進SHA-160 的訊息處理模式安全性的方法。期望我們對單向雜湊函數

Studies on Proxy Signatures with/without

Proactive Property

Student：I-Te Chen

Advisor：Yi-Shiung Yeh

Department of Computer Science

College of Computer Science

National Chiao Tung University

Abstract

Due to the rapid progress of Internet, governments and enterprises change their paper-based documents to electronic ones; as well as hand-made signatures to digital signatures. The electronic signature relative regulations are established all over the world. Taiwan has also established the Electronic Signature Laws in 2001 and put into operation in 2002.

Mambo et al. are the first group who introduced the proxy signature scheme in 1996. The proxy signatures, with which the original signers can delegate their signing capability to the proxy signers, are the most popular application of digital signatures in the last decade. Lots of researchers proposed improvement or alternative mathematic base of proxy signatures without adopting Digital Signature Algorithm (DSA) or Elliptic Curve Digital Signature Algorithm (ECDSA); however, most of the proposed proxy signature schemes are not feasible in practice because their securities cannot be really proved. Therefore, we propose the proxy signature adopting DSA and ECDSA and firstly introduce Quadratic

Residues’ concepts. Our scheme keeps not only the properties of the DSA/ECDSA but also fulfills the strong requirements of proxy signatures.

To solve key exposure problem, we adopt proactive concept into proxy signature and propose proactive secret sharing proxy signature scheme. The proactive secret sharing proxy signature scheme is based on verifiable secret sharing to against the active attacker. Consequently, the proactive secret sharing proxy signature scheme, which is a group-oriented scheme, provides the functionality of proxy signers' shares renewing and recovering.

One-way hash functions are important skills to make digital signatures efficient. Wang et al. reported their method to find a collision efficiently in SHA-160 within 269 hash steps in February 2005. In fact, we can still discover the decay phenomenon with the application of a message schedule’s judgment when inspecting how SHA-160 generates message schedule actually. Therefore, we would like to introduce two SHA-160 corrections to enhance the security of SHA-160. In general, we hope our enhancement of SHA-160 and new proxy signature schemes could be used in practice.

誌 謝

感謝老師、學長、同學、學弟妹們的幫忙與支持，才使我能獲得這個

博士學位；這一份榮耀將分享給所有協助、支持我的人們。首先感謝有著

長者的風範的指導教授 - 葉義雄老師，在我碩、博士修業期間，給我學

業上的指導及生活上的輔導；其學術成就及待人處世之道，均為我表率。

其次感謝明信學長無私的協助，使我得以順利完成學位，是我畢生難得的

益友。

感謝論文口試委員呂及人教授、孫宏民教授、黃士昆教授、詹進科教

授、雷欽隆教授與蔡錫鈞教授(以上按姓氏筆劃排列)的深入指導與建議，

對於我論文之教誨，也是我往後做學問隨時需警惕的原則。

感謝中華電信研究所，提供我與研究相關的工作機會，尤其是張耿豪

經理、謝東明博士、王文正博士與景榮兄的提攜與照顧，在此誠心感謝。

我也將最多的榮耀分享給我父母、岳父母與妻子，感謝他們支持，使

我得以安心進修，完成這個學位。僅以這一點名位，聊表無限的感激。感

謝在美國的表姐及在法國的以禮幫我校稿；也感謝實驗室眾兄弟姐妹們

(不論已畢業或在學中)的鼓勵與幫助，尤其是兩宇-定宇與鎮宇給我的幫

忙；其餘無法一一表謝，在此一併致謝。

Contents

博碩士論文全文電子檔著作權授權書... III

博碩士紙本論文著作權授權書... IV

國家圖書館博碩士論文電子檔案上網授權書... V

摘 要 ... VI

ABSTRACT ... VIII

誌 謝 ... X

CONTENTS ... XI

LIST OF TABLES ...XIV

LIST OF FIGURES... XV

CHAPTER 1 INTRODUCTION ... 1

1.1

M

OTIVATION AND

R

ELATED

W

ORK

...1

1.2

O

RGANIZATION OF

D

ISSERTATION

...6

CHAPTER 2 CRYPTOGRAPHY ...7

2.1

C

RYPTOSYSTEM

...7

2.2

S

YMMETRIC

C

IPHERS

...8

2.2.1 Encryption Standard in U.S...9

2.2.2 Dynamic Extended DES ...9

2.2.3 NESSIE ...16

2.3.1 RSA Cryptosystem ...17

2.3.2 Discrete Logarithm problem ...18

2.3.3 Description of Elliptic Curves...19

2.4

O

NE WAY HASH FUNCTIONS

...24

2.4.1 Secure Hash Standard ...24

2.4.2 Analyze SHA-160 in message schedule...25

2.4.3 The First Modification scheme of SHA-160 (SHA-m1) ...27

2.4.4 The Second Trial of SHA-160...29

2.4.5 The Third Modification scheme of SHA-160 (SHA-m2)...30

CHAPTER 3 PRELIMINARIES ... 32

3.1

D

IGITAL

S

IGNATURE

...32

3.1.1 Proxy signature...33

3.1.2 Strong proxy signature...37

3.1.3 Blind signature ...38

3.1.4 Lamport’s One time signature ...40

3.2 S

ECRET

S

HARING

...41

3.2.1 Shamir (t, n) - threshold scheme ...41

3.2.2 Verifiable Secret Sharing...42

3.3

Q

UADRATIC

R

ESIDUES

...43

3.4

D

IGITAL SIGNATURE STANDARD

...44

3.4.1 DSA...44

3.4.2 ECDSA...47

CHAPTER 4 THE PROPOSED PROXY SIGNATURES ...49

4.1

P

ROXY

S

IGNATURE BASED ON

D

IGITAL

S

IGNATURE

A

LGORITHM

...49

4.1.2 Proxy Signature Based on DSA...51

4.1.3 Proxy Signature based on ECDSA ...55

4.1.4 Security analysis and comparisons ...63

4.2

P

ROXY

S

IGNATURE

B

ASED ON

QR ...69

4.2.1 Delegation by warrant proxy signature scheme based on QR...69

4.2.2 Correctness analysis of DWPS

QR

...74

4.2.3 Security requirements of DWPS

QR

...77

4.2.4 Time complexity and security analysis...79

CHAPTER 5 PROXY SIGNATURE WITH PROACTIVE PROPERTY

...81

5.1

P

ROACTIVE

S

ECRET

S

HARING

S

CHEME

...82

5.2

P

ROACTIVE

S

ECRET

S

HARING

P

ROXY

S

IGNATURE

S

CHEME

...87

5.2.1 Proxy Generation ...88

5.2.2 Proxy share update...89

5.2.3 Proxy signature generation ...89

5.2.4 Proxy signature verification ...90

5.2.5 Proxy share recovery...91

5.3

C

OMPARING TO OTHER SCHEMES

...91

CHAPTER 6 CONCLUSION ...92

6.1

C

ONCLUSION

...92

6.2

F

UTURE WORKS

...93

REFERENCES ... 95

List of Tables

Table 2.1 The similarity of new and original S-boxes. ...12

Table 2.2 Extended S-boxes. ...13

Table 2.3 Points on the Elliptic Curve E(Z

19*

) ...20

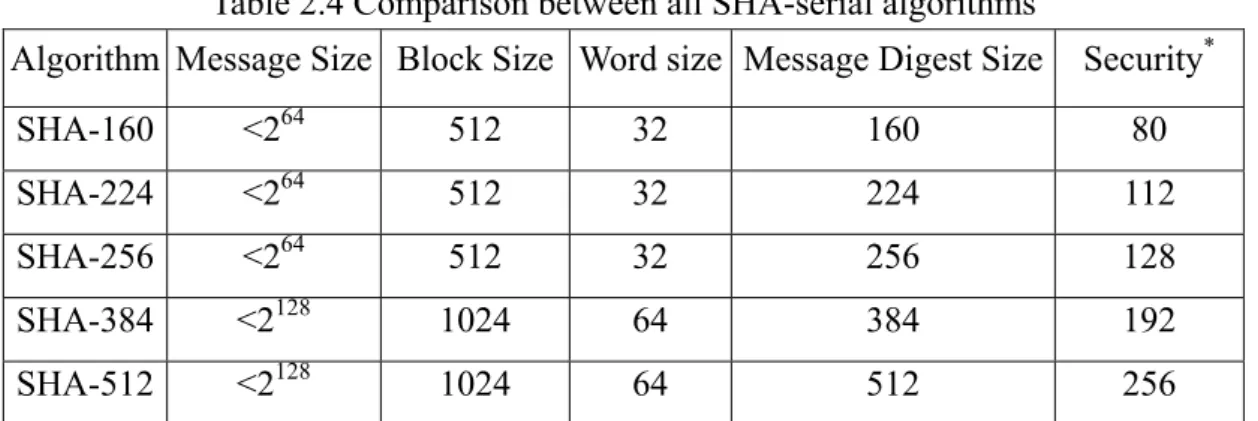

Table 2.4 Comparison between all SHA-serial algorithms ...24

Table 2.5 Different message block between SHA and SHA-160...26

Table 2.6 w

27

in SHA and in SHA-160...26

Table 2.7 Notations of proposed scheme...28

Table 2.8 Parts of experiments for choosing {t

1

, t

2

, t

3

}...28

Table 2.9 Four groups of SHA-160 on

wt = ROTLb(wt-3♁wt-8♁wt-14♁wt-16)

...30

Table 4.1 Points on the elliptic curve x

3

+ x + 4 mod 19...60

Table 4.2 The multiples of generator G...61

Table 4.3 Time complexity of the proxy signature based on

DSA/ECDSA and DSA/ECDSA ...68

Table 4.4 Differences among DSA/ECDSA, Mambo and proposed

schemes ...68

Table 4.5 Time complexity of Manbo’s and proposed scheme...80

Table 5.1 Comparing of Proactive Secrete Sharing Proxy Signature 91

List of Figures

Fig 2.1 Encryption and Decryption ...8

Fig 2.2 128-bit extended DES ... 11

Fig 2.3 One round of 128-bit extended DES... 11

Fig 2.4 P and Q are two distinct points ...21

Fig 2.5 the addition of an elliptic curve point ...21

Fig 2.6 Terms involved between SHA and SHA-160 ...27

Fig 2.7 Comparison between SHA-160 and SHA-m1 ...29

Fig 2.8 Comparison |w

i

| between SHA-160 and SHA-m2 ...31

Fig 3.1 Signature Signing Process...32

Fig 3.2 Signature Verification...33

Fig 4.1 Proxy signer initialization in PKI ...52

Fig 4.2 Delegation by warrant proxy signature scheme based on QR71

Chapter 1 Introduction

Due to the rapid progress of Internet, the evidence of possessing documents is especially important in the electronic world. The digital signature is developed to replace ordinary hand-written signatures without losing the properties of signer authenticity, data integrity and non-repudiation. Proxy signature scheme is one kind of digital signature applications. In this dissertation, we survey lots of proxy signature schemes and propose several novel proxy signature schemes. On the other hand, a one-way hash function is also an important skill to make digital signature efficient. Therefore, the security of one-way hash functions is also worth discussing in this dissertation.

1.1 Motivation and Related Work

When original signers cannot sign a document by themselves, they might delegate their signing capability to trustworthy proxy signers. For example, when the manager of a company will leave for the vacation, she/he needs to authorize her/his secretary to sign messages on behalf of her/him. To deliver manager’s private key directly to her/his secretary is dangerous, nevertheless, the traditional digital signature does not provide functionality of proxy, either.

A proxy signature scheme was introduced by Mambo et al. [MUO96] to solve the proxy problem so that the original signer could delegate her/his signing capability to proxy signer without revealing her/his secret information. However, Mambo’s scheme does not provide non-repudiation property [Zha97a][Sun99]; thus several papers propose non-repudiation proxy signature scheme [Zha97a][Sun99][HWW03][LHW98][LKK01b] which means both original and proxy signers cannot deny the signatures those are created exactly by themselves.

In addition, Mambo's proxy signature scheme is not a strong proxy signature scheme because it is not a proxy-protected signature scheme in which the original signer knows and can derive the proxy key on her/his own. On the contrary, in the proxy-protected proxy signature scheme, the original signer and proxy signer create the proxy key interactively so that the proxy signer can be protected from a malicious original signer. Hence, Lee and Kim [LK99][LKK01a][LKK01b] proposed the concept of the strong proxy signature, which defined the four requirements of the proxy signature: verifiability, strong unforgeability, strong identiability, and strong undeniability. The strong proxy signature should complete all the requirements of proxy signature.

In the first, most of proxy signatures are based on discrete logarithm problem [EIG85] including Mambo's one, so that Li, Tzeng and Hwang proposed generalization of proxy signature based on discrete logarithms [LTH03]. After that, Wu and Varadharajan proposed a proxy signature based on Chinese remainder theorem [WV99]. In 2002, Chen, Liu and Chung proposed a proxy-protected signature scheme based on elliptic curve cryptosystem [CLC02], then Hwang et al proposed generalization of proxy signature based on elliptic curves [HTT04]. Furthermore, Z. H. Shao proposed the proxy signature schemes based on factoring in 2002 [Shao02] and Qingshui Xue, Zhenfu Cao proposed "Factoring based proxy signature schemes," in 2005 [XC05]. It is desirable to design proxy signature schemes based on Quadratic Residues (QR) problem.

Fan and Lei proposed efficient blind signature scheme based on QR in 1996 [FL96] and improved their scheme in 1998 [FL98]. Therefore, by adopting Fan's signature scheme, we propose the proxy signature based on QR to provide another mathematical implement.

Unfortunately, most of the proposed proxy signature schemes prior to this date are not feasible in practice because the security of those schemes cannot be really proved without

adopting standard signature such as DSA/ECDSA. The Digital Signature Algorithm (DSA) based on ElGamal [EIG85] and Schnorr’s [Sch90] signature schemes is a useful digital signature scheme and has become a U.S. Federal Information Process Standard (FIPS 186) in August, 1991; called as the Digital Signature Standard (DSS) [NIST00]. In addition, the Elliptic Curve Digital Signature Algorithm (ECDSA), a DSA reinforced by the Elliptic curve cryptosystems (ECC), was invented in 1985 [ANSI99], which was also accepted as a FIPS standard (FIPS 186-2) in 2000 [NIST00].

To conquer those disadvantages, therefore, we are the first one who propose proxy-protected signature scheme combining standard signature DSA/ECDSA, as well as the Public key infrastructure (PKI) mechanism [AF99][BPH02][CFSMW03], which are pretty well known by their security properties to reinforce the proxy signature in order to be used in practice.

In many applications, the security is assured whenever the secret key remains unrevealed; therefore, a proxy key exposure is also a serious problem for proxy signature schemes. Chang, Lin and Yeh proposed "Forward Secure Proxy Signature Scheme" in NCS 2003 to deal with the key exposure problem [CLY03]. In forward secure proxy signature scheme, the proxy signer renews her/his proxy keys and deletes the previous proxy keys periodically. Those deleted proxy keys cannot be recovered, needless to mention being revealed. In addition, many threshold proxy signature schemes are proposed in which the k out of n threshold schemes [DF89][Zha97b][KPW97][SLH99] [HWW03]. However, those threshold proxy signature schemes may be insufficient to construct a long-live scheme with the proactive properties to reinforce security and the proxy share cannot be recovery either.

The proactive secret sharing scheme [HJKY95], which is based on Verifiable Secret Sharing [Ped91], provides strong security for a secret sharing against the active attacker.

Consequently, the proactive secret sharing scheme is a verifiable group-oriented scheme, which provides shares renewing and recovery properties. Therefore, we adopt the concept of proactive to propose a proactive secret sharing proxy signature scheme.

A proactive secret sharing proxy signature could permit the shares of designated signers, called proxy signers, being renewed periodically without changing the secret. In particular, we apply the (t, n) threshold proxy signature scheme to allow any t or more then

t signers to form a designated group from n proxy signers to sign messages on behalf of the

original signer. The proxy shares of proposed scheme are periodically renewed; therefore, it will be hurtless even when the adversary obtains the proxy shares information in some period. In our proactive secret sharing proxy signature scheme; furthermore, one proxy signer can recover her/his own share from the other t proxy shares without revealing any information about the other proxy shares. Unless more than t other proxy signers cooperate and collude, the secret share algorithm is always secure.

Proxy blind signature scheme is a variant proxy signature scheme prior to this date [TLT02][SH04][LA05]. Blind signature allows a user receiving a given message signed by the original signer without revealing any information about the message itself. By using Schnorr blind signature, Tan et al. proposed two digital proxy blind signature schemes based on DLP and ECDLP in 2002 respectively [TLT02]. Moreover, Lal and Awasthi further pointed out that Tan et al.’s proxy blind signature schemes suffer from a kind of forgery attack and proposed a more efficient proxy blind signature scheme, which means Tan et al.’s schemes do not fulfill the unforgeability and unlinkability properties. Lal and Awasthi’s scheme, however, does not satisfy the unlinkability property either. Therefore, Sun and Hsieh discuss the security of Tan and Lal's schemes in 2004 particularly [SH04].

functions are important skills to make digital signature scheme efficient. SHA-160 is one of popular one-way hash functions and the security of SHA-160 is worth discussing. In 1998, F. Chabaud and A. Joux presented a method to find collisions in Secure Hash Algorithm (SHA)[NIST02] with 261 time complexities [CJ98]. In 2004’s crypto conference and in Feb. 2005, Wang et al. [WFLY05][WY05] developed efficient methods to find collisions in MD5, as well as in SHA-160 with time complexity of 239 and 269 hash steps respectively. Furthermore, Biham and Chen [BC04] announced new analytical discoveries concerning SHA-160. Their results include a collision in a reduced-round version of SHA-160, which can be found less than 40 rounds.

Suppose the output size of one-way hash function is n-bit. According to the birthday paradox attack property [MOV96], we could expect certain collisions after trying 2n/2 possible input values. Van Oorschot and Wiener [OW94] have explained how such a brute-force attack might be implemented. That implies any cryptanalysis method with higher complexity than the birthday paradox attack will be regarded as inefficient. F. Chabaud and A. Joux find collision in SHA with 261 complexities, related to differential cryptanalysis of block ciphers [CJ98], and their method is theoretically faster than birthday paradox attack. Unfortunately, in SHA-160, their method is unable to detect collision faster than the birthday paradox attack.

In fact, we can still discover the decay phenomenon with the application of a message schedule’s judgment when inspecting how SHA-160 generates message schedule actually. Furthermore, we find a reason why move SHA to SHA-160. The more nonlinear terms are involved, the more terms in message schedule process will be effective. Therefore, we would like to introduce two SHA-160 corrections to enhance the security of SHA-160. This analysis could also be used in all SHA-serials or other one-way hash functions.

1.2 Organization of Dissertation

We describe our motivation and related work in this chapter; and then report some fundamental cryptosystem knowledge and discuss one-way hash functions in chapter 2. In chapter 3, we describe some preliminaries of digital signature, (strong) proxy signature, Quadratic Residues, secret sharing, DSA, ECDSA, etc. In chapter 4, we propose novel proxy signatures based on QR, DSA and ECDSA respectively and analyze security of proposed proxy signature schemes. And then, we proposed a proactive secret sharing proxy signature in chapter 5 to deal with key exposure and key recovery problems. Finally, we summarize a conclusion in chapter 6 and list references respectively.

Chapter 2 Cryptography

2.1 Cryptosystem

A cryptosystem can provide following properties [Sta03]: 1. Secrecy: It can prohibit the eavesdroppers from receiving plaintext. 2. Authentication: It can identify a message from its origin for the receiver and the eavesdroppers cannot disguise as someone. 3. Integrity: It can verify that a message has not been modified so that eavesdroppers can’t replace a legal message by a false one in transmission. 4. Non-repudiation: It can prove the message of the sender who may falsely deny later that he had sent the message. And a cryptosystem is composed of five basic components:

m : plaintext message space. c : ciphertext message space.

K : key space. E : Encryption. D : Decryption.

We show mathematic form and figure as follows:

e

k

E ( m ) = c For a given key

k K

∈

d

k

Fig 2.1 Encryption and Decryption

In Fig 2.1, cryptosystem uses keys ke and kd for Encryption and Decryption

respectively. Simmons [Sim79] classifies the cryptosystems as symmetric (one key) and asymmetric (two keys). In symmetric cryptosystem, also called secret-key cryptosystem, the encryption key and the decryption key are the same or can be easily determined from each other. On the other hand, in asymmetric cryptosystem, also called public-key cryptosystem, the encryption key and the decryption key are different.

In Kerckhoffs’s assumption [Ker83], the strength of a cryptographic system cannot rely on attacker’s unawareness about the cryptosystem algorithm. A secure cryptographic system must be published and unbreakable even under the most fatal attack by the world’s best cryptographers for years.

2.2 Symmetric Ciphers

There are two kinds of symmetric ciphers, stream ciphers and block ciphers. The stream ciphers encrypt plaintext one byte or one bit in one time span; one-time pad is one kind of stream ciphers. On the other hand, the block ciphers operate on fixed-length groups of bits to form the blocks.

m Encryption c Decryption

k

e

k

d

2.2.1 Encryption Standard in U.S.

FIPS (Federal Information Processing Standard) - 46: DES (Data Encryption Standard) announced by U.S. Government in 1977 has been generally used. DES is a 64-bit block cipher with the key length of 56 bits. Unfortunately, Electronic Frontier Foundation (EFF) using a special purpose "DES cracker" machine proved DES insecure in July 1998 [EFF98]. Therefore, NIST (National Institute of Standards and Technology) announced Triple DES as FIPS 46-3 to enhance original DES. Triple DES uses three keys and three executions of the DES algorithm following an encrypt-decrypt-encrypt sequence.

Triple DES with 168 bits key and 64 bits the same block size as DES is not for long-term use [Sta03]. For reasons of both efficiency and security, a larger block size is desirable. Hence, NIST began the process of replacing DES with AES (Advanced Encryption Standard) in 1997 and Rijndael was published as AES: FIPS – 197 in 2001 [NIST01]. AES uses a 128 bits block size and its key length that can be 128, 192, and 256 bits. Four different stages are used in AES: substitute bytes (S-box), shift rows, mix columns, and add round key.

2.2.2 Dynamic Extended DES

The original S-boxes of DES are important design to resist differential attack. Furthermore, Yeh and Hsu proposed the extended DES [YH02], which developed eight more new S-boxes with the same cryptographic properties as original S-boxes in DES. These 16 S-boxes are used to construct the extended DES, which double the block cipher and key size. As a result, the time complexity of differential cryptanalysis of the extended

DES is 2110. We propose an intricate extended DES that includes permutation on S-boxes. By keeping the permutation information in secret, the new version of extended DES is stronger to defeat differential and linear attacks by 20922789888000 times.

The Extended DES

The extended DES [YH02] has exactly the same data flow and concept as DES. The eight more S-boxes are used in the extended DES to double the block cipher and key size. Some modifications are necessary on P-box and key scheduling algorithms.

The extended DES encrypts a 128-bit data block with a 112-bit key. All data bits go through an initial permutation. The data bits then split into two 64-bit data blocks called as right and left data blocks. Two data blocks then go through 32 identical rounds, there is no swap of two data blocks in the last round. After the last round, two data blocks are combined into a 128-bit block. The result will be through the inverse initial permutation.

In each round, the right data block and 96-bit sub-key (Ri and Ki in Figure 2.2) are

combined by a round function called F. The output of F is then combined with the left part data block by XOR operation. The two data blocks swap in the next round.

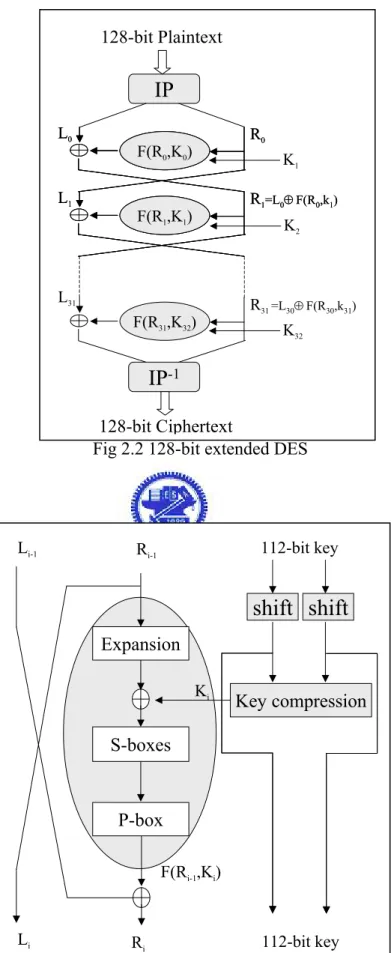

Fig 2.2 128-bit extended DES

Fig 2.3 One round of 128-bit extended DES

R31 =L30⊕ F(R30,k31) 128-bit Plaintext

IP

F(R0,K0) R0 L0 F(R0,K0) F(R0,K0) R0 L0 F(R1,K1) R1=L0⊕ F(R0,k1) L1 F(R1,K1) F(R1,K1) R1=L0⊕ F(R0,k1) L1 K1 K2 F(R31,K32) L31 K32

IP

-1 128-bit Ciphertext S-boxes P-box F(Ri-1,Ki) Ri-1 Li-1 Ri Li Ki 112-bit key

shift shift

Key compression 112-bit key Expansion

The 64-bit right data block is expanded to 96 bits by expansion permutation after combining with the 96-bit sub-key; the 96-bit data is distributed to all 16 S-boxes as input. Each S-box has 4 output bits. Therefore, 64-bit data is used in the next step where P-box is the permutation box.

Eight more new S-boxes are proposed in following tables. Table 2.1 shows the cryptographically similarity of new S-boxes and original S-boxes. They are also semi-similar. The new S-boxes are listed in Table 2.2.

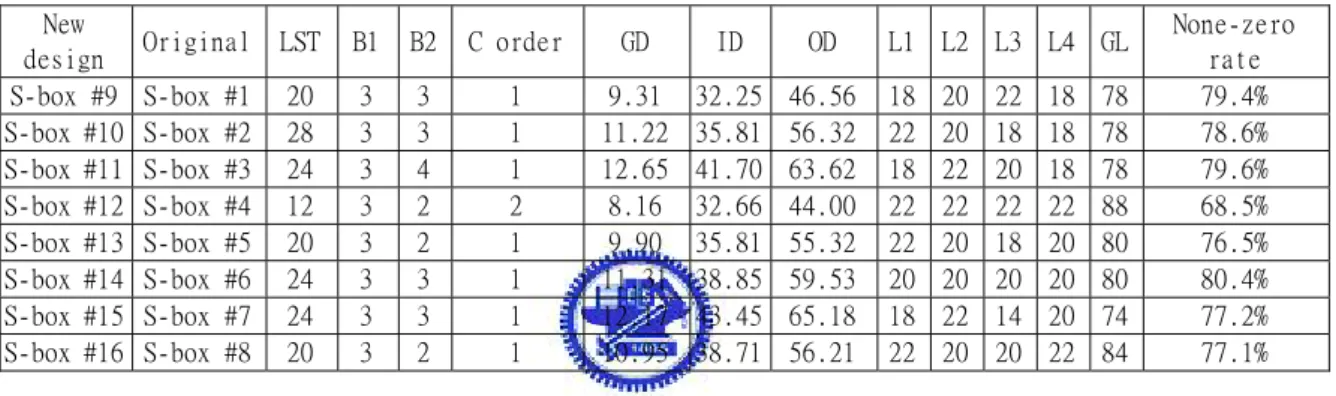

Table 2.1 The similarity of new and original S-boxes.

New

design Original LST B1 B2 C order GD ID OD L1 L2 L3 L4 GL

None-zero rate S-box #9 S-box #1 20 3 3 1 9.31 32.25 46.56 18 20 22 18 78 79.4% S-box #10 S-box #2 28 3 3 1 11.22 35.81 56.32 22 20 18 18 78 78.6% S-box #11 S-box #3 24 3 4 1 12.65 41.70 63.62 18 22 20 18 78 79.6% S-box #12 S-box #4 12 3 2 2 8.16 32.66 44.00 22 22 22 22 88 68.5% S-box #13 S-box #5 20 3 2 1 9.90 35.81 55.32 22 20 18 20 80 76.5% S-box #14 S-box #6 24 3 3 1 11.31 38.85 59.53 20 20 20 20 80 80.4% S-box #15 S-box #7 24 3 3 1 12.17 43.45 65.18 18 22 14 20 74 77.2% S-box #16 S-box #8 20 3 2 1 10.95 38.71 56.21 22 20 20 22 84 77.1%

LST: Linear structure tolerance. B1: First order 0-1 balance tolerance. B2: Second order 0-1 balance tolerance. C order: Maximum order of completeness. GD: Global SAC-map distance. ID: Input SAC-map distance OD: Output SAC-map distance Li: Nonlinearity of output bit i. GL: Global nonlinearity

Table 2.2 Extended S-boxes. 3 0 9 7 15 12 6 11 14 13 2 1 5 10 8 4 0 3 5 8 9 15 12 6 13 10 11 7 14 4 2 1 15 5 12 2 0 11 9 14 4 3 1 8 10 6 7 13 9 15 0 5 10 6 3 8 2 12 13 11 4 1 14 7 S-box #9 1 10 15 12 8 3 6 5 13 4 0 7 14 9 11 2 4 7 10 0 15 9 1 12 8 14 3 13 5 2 6 11 2 5 4 10 7 12 9 3 11 8 14 1 13 6 0 15 7 0 9 3 4 15 10 6 2 13 5 14 11 8 12 1 S-box #10 15 4 12 1 5 10 2 13 3 8 6 11 0 7 9 14 6 13 15 2 8 4 5 11 0 7 9 12 3 10 14 1 4 13 15 10 2 1 8 6 14 3 0 5 11 12 7 9 13 3 1 4 11 14 2 8 7 10 12 15 0 5 9 6 S-box #11 10 7 15 12 4 2 1 11 0 13 5 3 9 14 6 8 6 13 12 0 1 7 11 14 3 8 9 15 10 4 5 2 4 1 2 11 15 12 8 6 7 10 14 5 0 9 13 3 1 11 7 14 12 0 2 5 13 6 4 9 3 10 8 15 S-box #12 4 7 1 12 14 11 8 2 13 10 6 9 0 5 3 15 13 0 2 7 4 14 1 11 3 12 5 10 15 9 8 6 10 1 12 11 9 2 7 14 6 13 15 4 5 8 0 3 7 11 9 4 2 1 14 13 0 6 10 3 12 15 5 8 S-box #13 2 14 15 0 12 11 9 5 4 13 8 3 1 6 7 10 12 5 9 10 7 0 2 15 3 6 14 13 8 11 4 1 12 2 3 14 15 4 10 9 11 1 5 8 6 13 0 7 1 15 12 5 10 9 7 2 6 8 0 14 3 4 13 11 S-box #14 13 2 4 7 3 12 8 1 0 15 14 9 5 10 11 6 3 8 14 13 9 2 5 11 15 4 0 10 12 7 6 1 2 11 8 13 15 0 4 14 12 5 1 6 10 3 7 9 13 6 1 8 2 11 14 5 10 9 12 3 7 4 0 15 S-box #14 12 2 10 7 1 4 15 8 11 14 0 9 13 3 6 5 2 1 9 4 7 14 12 11 13 8 3 15 10 5 0 6 1 11 15 8 4 13 2 7 14 0 5 6 3 10 9 12 11 13 6 1 8 2 5 14 4 7 10 12 15 9 3 0 S-box #16 Permuted S-boxes

Extended DES has 16 fixed S-boxes, each of them is a mapping from {0, ...,63} to {0, …,15}, or formulated as S: [0...63]Æ[0...15], used in a settled order. Unfortunately, this usage is convenient for cryptanalysis. To remedy the situation, more complicated use of S-boxes should be effectuated.

The change is to rearrange the order of S-boxes in the succeeding round. In detail, a permutation mappings p: [1...16]Æ[1...16] is used to construct the new order. The ith S-box in the jth round will be equal to the p(i)th S-box in the (j-1)th round. For example, the S-boxes sequence in the former round is S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15

S16 and given the permutation as (3,9,16,2,11,7,10,8,1,12,4,14,6,13,5,15); in the next round,

the S-boxes sequence then becomes S3 S9 S16 S2 S11 S7 S10 S8 S1 S12 S4 S14 S6 S5 S15 .

By keeping the permutation information in secret, the exact usage of S-boxes is not explicit. This increases the difficulty of cryptanalysis.

Substitution Words Access

The whole S-boxes data can be filled into a table that forms as a two-dimension, 16x64, matrix. Without loss of generality, let the table be M[1...16, 1...64] and the initial S-boxes sequence be S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16. The kth word (4-bit)

of Si is placed in M[i, k]. While applying an S-boxes permutation p, the S-boxes sequence

of first encrypting round will be Sp(1) Sp(2) Sp(3) Sp(4) Sp(5) Sp(6) Sp(7) Sp(8) Sp (9) Sp (10) Sp (11)

Sp (12) Sp (13) Sp (14) Sp (15) Sp (16); that is, the kth word of the ith S-box is placed in M[p(i), k]

now. Generally, the S-boxes sequence of the jth round is:

(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16)

S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj S_pj

, where pj(i) denotes to execute the mapping p with j times such as p(p(...p(p(i))...)). It is obviously that the kth word of the ith S-box of the jth round is placed in M[pj(i), k].

According to the above derivation, we know that a word in an S-box can still be easily read from the S-boxes table while including the S-boxes permutation. The increasing calculations are just some mapping operations and never exceed 16 times of nested mapping because of the restriction of 16 rounds in extended-DES. Therefore, the new algorithm is considered as the same efficient as extended-DES. While decrypting, the same 16 S-boxes sequences in encryption are used but in reverse order. This does not increase the computing time complexity.

Permutation Materials

The adopted S-boxes permutation should be kept in secret. It can be added up some other secret information like an independent key to the system. This will increases the quantity of secret information; system will be more secure in this viewpoint. On the other hand, there turns out more secret data to be managed which may raise the burden for users.

Alternatively, the S-boxes permutation can be also derived from the key. For example, we can choose the smallest integer between A and B, which is larger than the key value and relatively prime to 16 as the multiplier. The ith value of the permutation function p, will be p(i)=(A+i*B mod 16)+1.

Security Analysis on Dynamic Extended DES

Both differential and linear attacks need to know the exact usage of S-boxes. If we can keep the permutation in secret, it will be difficult for the adversary to apply the two

attacks. The attack may guess the permutation with rare _{20922789888000 probability} 1 because 16 S-boxes can derive 16! = 20922789888000 different permutations. It is computational inefficiency to guess the right permutation.

Furthermore, if higher security is required, the permutations used in each round can be different. That is, using 16 different permutations to construct the initial S-boxes sequence, and applying them in different rounds. The probability to guess the right

permutation reduces to ₁₆ ≅ 8000 2092278988 1 214 10 34869 . 1 1 × to be computational impossible.

Dynamic Extended DES permutes the S-boxes order in the succeeding round; as a result, the usage of S-boxes becomes more confused. This change can enhance extended DES to resist differential and linear attacks. In addition, this method can be also used in

any other S-boxes. However, the permutation information should be always kept in secret; otherwise, not only the confusion effect will no more exists, but also become even favorable for the cryptanalysis.

2.2.3 NESSIE

New European Schemes for Signature, Integrity, and Encryption (NESSIE) project has launched out the next generation of cryptographic algorithms in 2000 [Nessie04]. The NESSIE portfolio of cryptographic primitives has been announced in February 2003. In block cipher scheme, MISTY1 (64-bit), AES (128-bit), Camellia (128-bit), SHACAL-2 (256-bit) are recommended algorithms. MISTY1 is similar to the block cipher KASUMI, which has been scrutinized prior to its adoption as a 3GPP standard, so many analyses for KASUMI would be also applicable to MISTY1. AES is FIPS – 197 announced by U.S. NIST; and Camellia has many similarities to the AES. SHACAL-2 is based on a one-way hash function upon SHA [NIST02] used in encryption mode. The strength of SHACAL-2 is inheritance from the extensive analysis that has been made on SHA. Although RC6 is also a secure block cipher, the NESSIE felt unable to consider RC6 [RRSY98] owing to ongoing serious Intellectual Property Rights issues.

2.3 Asymmetric Ciphers

Diffie Whitfield and Hellman introduced asymmetric ciphers in 1976 [DH76]. Asymmetric ciphers rely on one key for encryption and a different but related key for decryption; nevertheless, it is computationally infeasible to determine the decryption key given only the knowledge of the algorithm and encryption key. For example, asymmetric ciphers cryptosystem encrypting the sender’s messages by using recipient’s “public” key

and the recipient’s “private” key can decrypt the messages. RSA [RSA78], ElGamal [ElG85] and Elliptic curve [Men93][ANSI99][Han04] are most popular asymmetric cryptosystems that we describe as follows:

2.3.1 RSA Cryptosystem

Rivest, Shamir, and Adleman developed the RSA algorithm in 1977 [RSA78]; the letters RSA are the initials of their surnames. The RSA scheme makes use of factoring problem to generate key pairs described as follows:

1. Let p and q are large primes such that p ≠ q and n = pq. 2. Compute the Euler's totient function φ(n) = (p-1)(q-1).

3. Choose a integer e, where 1 < e < φ(n) and e is coprime to φ(n) i.e. gcd (e, φ(n))=1. 4. Compute d such that ed = 1 mod φ(n).

5. The public key is (e, n) and the private key is (d, n).

Euler’s theorem shows that αφ( n ) mod n =1; thus to encrypt message m, we could compute me mod n = c to obtain ciphertext c. And to decrypt ciphertext c, we could compute as follows: cd mod n = (me mod n) mod n = med mod n = m(kφ( n ) + 1 ) mod n = m1 mod n = m

We use artificially small parameters here; but we can also use OpenSSL [OpenSSL] to generate and examine key pairs. For example, let p = 101, q = 53, n = 101*53 = 5353, the message m = 4657, and choose e = 743 for public key. Via Euclidean algorithm, we could compute the private key d = 7 so that the public and the private key are (743, 5353) and (7, 5353) respectively. The encryption function is

E743(4657) = 4657743 mod 5353 = 1003

and the decryption function is:

D7(1003) = 10037 mod 5353 = 4657

Both of these computations can be done efficiently using the square-and-multiply algorithm for modular exponentiation. RSA is much slower than symmetric cryptosystems. In practice, sender typically encrypts a secret message with a symmetric algorithm, encrypts the symmetric key with RSA, and transmits both the RSA-encrypted symmetric key and the symmetrically- encrypted message to receiver.

2.3.2 Discrete Logarithm problem

Discrete logarithms are defined in group theory, which is a collection of elements together with a binary operation. A primitive root g∈ a finite group Zp*, a number x under

multiplication modulo the prime p, and gx denoting the element obtained by multiplying g itself by x times; by Fermat's little theorem, we know that for a primitive root g∈Zp*,

gp = g mod p, and the set of group is:

The discrete logarithm problem is as follows: given a primitive root g in Zp* and

another element y∈Zp*, finding an integer x such that gx = y mod p. For example, the

solution to the problem 3x = 15 (mod 17) is 6, because 36 = 729 = 15 (mod 17). If in Zn*,

where n is not a prime number, by Euler’s theorem, αφ( n ) _{mod n = 1, the set of group will}

be:

{α, α2_{, α}3_{,…, α}φ( n )_}.

The ElGamal cryptosystem [ElG85] is based on the discrete logarithm problem. For a generator (primitive root) g ∈ Zp* of order p, Alice chooses a random x from {0, … , p−1}

and computes y = gx. The values p, g, and y are the public keys and x is a private key of Alice. To encrypt a message m to Alice, we show as follows:

1. Convert m to into an element of Zp*

2. Choose a random k from {0, … , p−1} 3. Calculate c1 = gk mod p and c2 = myk mod p

4. Send the ciphertext (c1, c2) to Alice

Then, Alice can decrypt ciphertext by computing c2(c1x)-1.

c2(c1x)-1 = myk(gkx)-1 = mgx k(gkx)-1 = m mod p.

2.3.3 Description of Elliptic Curves

In general, elliptic curves take the form: y2+ axy + by = x3+ cx2+ dx + e where a, b, c,

d, and e are the real numbers satisfying to some conditions [Han04]. There are two finite fields Zp* and Z n

2

*_{. The elliptic curve E over Z}

p* and Z n

2

* _{are defined as definition 2.1}

Definition 2.1: Let a, b ∈ Zp* be constants such that 4a3+27b2 ≠ 0. An elliptic curve is the

set E of solutions (x, y) ∈ Zp*, to the equation:

y2 = x3 + ax + b (2.1) together with a special point O called the point at infinity.

Definition 2.2: Let a, b ∈Z₂n

* _{be constants such that b≠ 0. An elliptic curve is the set E}

of solutions (x, y) ∈ Z₂n

*_{, to the equation:}

y2 + xy = x3 + ax2 + b (2.2) together with a special point O called the point at infinity.

We concentrate on elliptic curves over finite fields Zp*. An example of elliptic curve

E over Zp* as following:

Let p = 19 and consider the elliptic curve E: y2 = x3 + x + 4 defined over Z19*. In this

case, a = 1 and b = 4. We have 4*13+27*42(mod 19) = 18 ≠ 0, which satisfies the condition for an elliptic group mod 19. The order of points in E(Z19*) is also 19 and all the points

and O are list as following:

Table 2.3 Points on the Elliptic Curve E(Z19*)

(0, 2) ( 6,13) (11, 4) (0,17) ( 8, 7) (11,15) (1, 5) ( 8,12) (14, 8) (1,14) (9, 1) (14,11) (5, 1) (9,18) O (5,18) (10, 8) (6, 6) (10,11)

The addition and multiplication operation in ECC are counterpart of modular multiplication and exponentiation in RSA, respectively. Let P = (x1, y1) and Q = (x2, y2)

be two points on an elliptic curve E. Then, P + Q = R, we show it as Fig 2.4 and Fig 2.5 geometrically.

Fig 2.4 P and Q are two distinct points

Fig 2.5 the addition of an elliptic curve point

First at all, we have to find the slope of PQ , where P≠Q or the tangent line of P,

where P = Q. We show as following:

1 2 1 2 x x y y − −

if P≠Q, where λ is slope of line PQ .

1 2 1 2 3 y a x +

if P = Q, where λ is tangent line of P. (2.3) λ = P Q R x y L P R x y L

The equation of line L is y = λx + v. The P = (x1, y1) and Q = (x2, y2) is on L so that:

y1 = λx1 + v and y2 = λx2 + v. We substitute y = λx + v into the equation (2.1), getting the

following:

(λx + v)2 _{= x}3 _{+ ax + b}

x3 - λ2_x2 _{+ (a-2λv)x + b –v}2 _{= 0 (2.4)}

x1 and x2 are two roots of equation (2.4), which are real. As the result, the third root,

said x3, must also be real.

(x - x1)(x – x2)(x – x3)

= x3 – (x1 + x2 + x3)x2 +(x1x2 + x2x3 + x1x3)x-x1x2x3 = 0 (2.5)

Comparing equation (2.4) and (2.5), we know that λ2 _{= x}

1 + x2 + x3. Hence, x3 = λ2 - x1 - x2 The slope λ = 1 2 1 2 x x y y − − = 1 3 1 3 x x y y − − − ; hence: y3 = λ(x1 – x3) – y1

The rules for the sum of two points and the double of one point, we summarize as follows: for all P, Q ∈ E(Zp*) [Han04]:

1. P + O = P

2. If P = (x, y), then the point (x, -y) denoted as - P and P + (- P) = O 3. Let P = (x1, y1) and Q = (x2, y2), where P≠Q, then P + Q = (x3, y3) where

x3 = λ2 - x1 - x2,

y3 = λ(x1- x3) - y1, where the slope λ shows as equation (2.2).

Elliptic curve cryptography (ECC) [Kob87] is a public-key cryptography based on the elliptic curve discrete logarithm problem (ECDLP) proposed by Neal Koblitz and Victor Miller in 1985. Given an elliptic curve E, over a Galois field GF(q), the operation “+” is defined as above paragraph and the operation “*” defined as Z×E(q) → E(q) where E(q) is rational points form (x, y), and both x and y are in GF(q). If P is some point in E(q), then we define:

2*P = P + P,

3*P = 2*P + P = P + P + P, and so on.

The ECDLP is then to determine integer k in k*P = Q, where P and Q are the given

points. For a specific base point G is selected and published for use with the curve E(q), Alice chooses a private key k as random integer and then the value P = k*G is published as the public key. To encrypt a message m to Alice, we show as follows:

1. Convert message m (where 0 ≤ m < p_k

2 ) to into an element Pm of E(q) z We append k bits at the end of the message

z Compute x = 2km + i, for i = 0, 1, …, until (

p b ax x3 + +

) = 1. 2. Choose a random integer r

3. Calculate ciphertext Cm = {rG, Pm+rP}

4. Send the ciphertext Cm to Alice

Alice can decrypt ciphertext by multiplying the first point in the pair of Alice's secret key and subtracts the result from the second point:

Pm + rP – k(rG)

= Pm + r(kG) – k(rG)

2.4 One way hash functions

A one-way hash function, h(m), operates on an arbitrary-length message m, and returns a fixed-length hash value, called digest. One-way hash functions are widely deployed in electronic mail, electronic funds transfer, software distribution, data storage, and other applications, which require the assurance of data integrity.

2.4.1 Secure Hash Standard

SHA, one kind of popular one-way hash functions, was originally applied to DSA (Digital Signature Algorithm), issued by the NIST and published as a federal information processing standard (FIPS PUB 180) in 1993; a revised version was issued as FIPS PUB 180-1 in 1995 [NIST95] and is generally referred to as SHA-160. SHA and SHA-160 operate on an arbitrary-length message as input; and then output a 160-bit digest.

FIPS 180-2 [NIST02] is announced by NIST on May 30, 2001. FIPS 180-2 is a strengthened version of the SHA-160, which offers four secure hash algorithms including SHA-160, SHA-224, SHA-256, SHA-384, and SHA-512. Table 2.4 presents the basic properties of FIPS 180-2.

Table 2.4 Comparison between all SHA-serial algorithms

Algorithm Message Size Block Size Word size Message Digest Size Security*

SHA-160 <264 512 32 160 80

SHA-224 <264 512 32 224 112

SHA-256 <264 512 32 256 128

SHA-384 <2128 1024 64 384 192

SHA-512 <2128 1024 64 512 256

Note: *In this context, “security” refers to the fact that a birthday attack on a message digest of size n produces a collision with a work factor of approximately 2n/2_.

The input of SHA and SHA-160 is processed in a 512-bit message block [NIST95]. First at all, for a 512-bit block, append padding and length after the message. The message block is transformed from 16 32-bit words (m0, m1, …, m15) to 80 32-bit words

(w0, w1, …, w79) by the following algorithm: The difference between SHA and SHA-160

is that SHA-160 rotates 1 bit left: ROTL1.

wt = mt ,0 ≤ t ≤ 15

wt = ROTL1(wt-3♁wt-8♁wt-14♁wt-16) ,16 ≤ t ≤ 79

Each of the 80 steps of the processing one 512-bit block form as:

A, B, C, D, E ← [ROTL5_{(A)+ f}

t (B,C,D)+E+wt+kt], A, ROTL30(B), C, D

Where ft defines in belowing section and the logical operators (AND, OR, NOT, XOR)

are represented by the symbols (^, ∨, ¬, ⊕). kt are constants, please refer to [NIST02].

ft (x,y,z) = Ch(x,y,z) = (x^ y)∨(¬x^ z) , 0 ≤ t ≤ 19

ft (x,y,z) = Parity(x,y,z) = x ⊕ y ⊕ z ,20 ≤ t ≤ 39

ft (x,y,z) = Maj(x,y,z) = (x^y) ∨ (x^z) ∨ (y^z) ,40 ≤ t ≤ 59

ft (x,y,z) = Parity(x,y,z) = x ⊕ y ⊕ z ,60 ≤ t ≤ 79

The output of each round becomes initial value of next round until finish whole blocks. The final output is the concatenation of A, B, C, D, E.

2.4.2 Analyze SHA-160 in message schedule

We examine the changes from SHA to SHA-160 and discover the decay phenomenon with the application of a message schedule’s judgment when inspecting how SHA-160 generates message schedule actually.

One reason from SHA to SHA-160: Firstly, we define notation xn = ROTLn mod 32 (x). The message schedule of wt of SHA-160 and SHA shall be prepared respectively as

follows:

Table 2.5 Different message block between SHA and SHA-160

SHA SHA-160

wt = mt ,0 ≤ t ≤ 15

wt = wt-3♁wt-8♁wt-14♁wt-16 ,16 ≤ t ≤ 79

wt = mt ,0 ≤ t ≤ 15

wt = ROTL1(wt-3♁wt-8♁wt-14♁wt-16) ,16 ≤ t ≤ 79

The other reason why ROTL1 _{function can upgrade the security level is the increase of}

involved terms of mt. For example, when comparing w27 in both SHA and SHA-160

(shown as follows), there are only 6 terms involved in SHA compared with 14 terms involved in SHA-160.

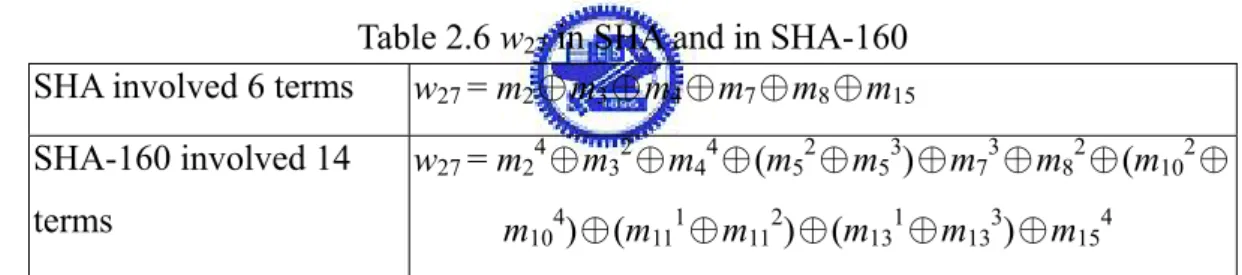

Table 2.6 w27 in SHA and in SHA-160

SHA involved 6 terms w27= m2♁m3♁m4♁m7♁m8♁m15

SHA-160 involved 14 terms

w27= m24♁m32♁m44♁(m52♁m53)♁m73♁m82♁(m102♁

m104)♁(m111♁m112)♁(m131♁m133)♁m154

W27 becomes independent of m5 in the end even though m5 has been involved twice in

SHA. But in SHA-160, m5 is involved under ROTL function thus m52 and m53 will not be

eliminated. Belowing is a figure comparing the number of terms involved in message schedules of both SHA and SHA-160. X-axis presents the index, and y-axis presents the number of terms.

Fig 2.6 Terms involved between SHA and SHA-160

Not only the paper “Differential collisions in SHA-0” shows the security level of SHA-160 is greatly higher than SHA [BC04], we also shows the terms involved in SHA-160 is much more than in SHA in Fig 2.6. Furthermore, we find the decay phenomenon in message schedule, which points out the existence of some inefficient calculations in SHA-160. If the inefficient calculations could be modified such that the decay phenomenon postpones, much more terms will be involved in later wt. Therefore,

we would like to introduce two SHA-160 corrections to enhance the security of SHA-160.

2.4.3 The First Modification scheme of SHA-160 (SHA-m1)

Firstly, we re-write the original recursive equation into a general form:

wt = mt ,0 ≤ t ≤ 15

wt = ROTL1(wt-t1♁wt-t2♁wt-t3♁wt-t4) ,16 ≤ t ≤ 79

And, we define some notations with convenience and generality. Let m(i) be an input block, i = 0, … , 15; and wj, j = 0,…,79 be the message words.

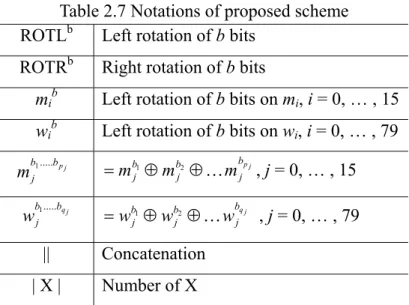

Table 2.7 Notations of proposed scheme ROTLb Left rotation of b bits

ROTRb Right rotation of b bits

mib Left rotation of b bits on mi, i = 0, … , 15

wib Left rotation of b bits on wi, i = 0, … , 79 j p b b j m1... bpj j b j b j m m m ⊕ ⊕_K = 1 2 , j = 0, … , 15 j q b b j w1... bqj j b j b j w w w ⊕ ⊕_K = 1 2 , j = 0, … , 79 || Concatenation | X | Number of X

As a result, in the original SHA-160 algorithm, (t1, t2, t3, t4) equals to (3,8,14,16)

according to following basic constraints:

a. 1 ≤ t1 ≤ t2 ≤ t3 ≤ t4 = 16 b. gcd (t1, t2, t3) = 1 There are C _⎟⎟ ⎠ ⎞ ⎜⎜ ⎝ ⎛ 3 15

= 455 possibilities to assign (t1,t2,t3), where 1 ≤ t1＜t2＜t3 ≤ 15.

We list parts of experiments in Table 2.8 and the comparison between SHA-m1 and SHA-160 in Fig 2.7. We list whole experiments of assign (t1,t2,t3) in appendix A.

According to our experiments, the best choice is (t1,t2,t3) = {1,2,11}.

Table 2.8 Parts of experiments for choosing {t1, t2, t3}

t1 t2 t3 Total terms Maximum number of involved terms in wt Average terms involved of all wt … 1 2 10 7279 175 113.4844 1 2 11 8670 212 135.2188 1 2 12 7189 182 112.0781 …

Fig 2.7 Comparison between SHA-160 and SHA-m1

SHA-m1 algorithm costs as much time as SHA-160; however, the terms involved in SHA-m1 are significantly more than in SHA-160 as shown in Fig 2.7; as well as the decay phenomenon postpones.

2.4.4 The Second Trial of SHA-160

Another viewpoint to modify SHA-160 is based on the ROTL1 function. We re-write the original equation and summarize 3 conclusions as follows:

wt = mt ,0 ≤ t ≤ 15

wt = ROTLb(wt-3♁wt-8♁wt-14♁wt-16) ,16 ≤ t ≤ 79

1. ROTLb and ROTL32-b cause the same effect;

2. The smaller gcd(32, b) is, the more involved terms will be; and

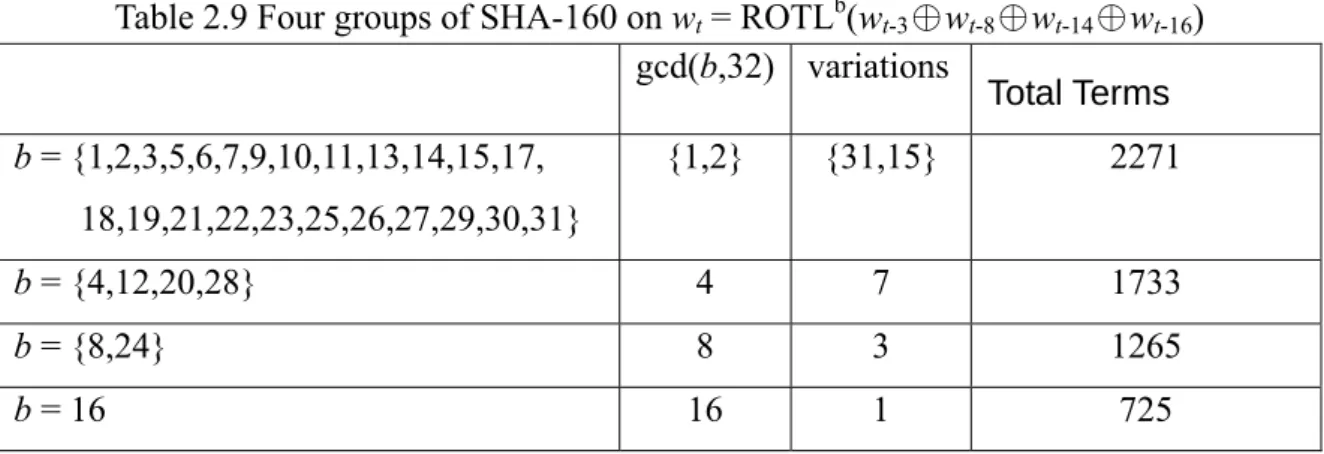

Table 2.9 Four groups of SHA-160 on wt = ROTLb(wt-3♁wt-8♁wt-14♁wt-16) gcd(b,32) variations Total Terms b = {1,2,3,5,6,7,9,10,11,13,14,15,17, 18,19,21,22,23,25,26,27,29,30,31} {1,2} {31,15} 2271 b = {4,12,20,28} 4 7 1733 b = {8,24} 8 3 1265 b = 16 16 1 725

We classify four groups as listed in Table 2.9. The original SHA-160 is one of the 24 experiments with the most terms involved. The same experiments on SHA-m1 are classified into five groups by the largest common divisor of 32 and the variable b. As a result, rotating one bit is the best choice already both in SHA-160 and SHA-m1.

2.4.5 The Third Modification scheme of SHA-160 (SHA-m2)

We re-write the wt in another form:

wt = mt ,0 ≤ t ≤ 15

wt = (wt-3)b1♁(wt-8) b2♁(wt-14) b3♁(wt-16) b4 ,16 ≤ t ≤ 79 where 0 ≤ b1, b2, b3, b4≤ 31.

Based on the results in second trial, we make one supposition that “The largest number of ' Terms involved in wt' will appear when b1, b2, b3 and b4 are all odds”. Hence, the time

complexity to determine b1, b2, b3, and b4 is reduced from 324 to 164. We conclude two

results:

1. The maximal number of ‘Terms involved in wt’ founded in 1280 experiments is 2509;

one of them is {b1, b2, b3, b4} = {1,3,9,3}.

We develop SHA-m2 by using one of the best choice {b1, b2, b3, b4}={1,3,9,3} and

show the comparison between SHA-160 and SHA-m2 as follows:

Fig 2.8 Comparison |wi| between SHA-160 and SHA-m2

In order to increase the ‘Terms involved in wt’, we develop two algorithms SHA-m1

and SHA-m2 by modifying recursive equations and the number of shift-rotated-bit of SHA-160. The more nonlinear terms are involved, the more terms of ft and

a = ROTL5(a) + ft(b,c,d) + e + Kt + wt [3]

will be effective. Because the increase of the nonlinear terms really helps to enhance the security level of original SHA-160, this analysis could also be used in all SHA-serials or other one-way hash functions. Basing on our result, we can further develop the more secure one-way hash function such as SHA-1024 or SHA-2048.

Chapter 3 Preliminaries

Cryptographic primitives are widely used in network security. We briefly describe, in this chapter, some necessary cryptographic primitives including digital signature, (strong) proxy signature, proactive secret sharing, and one-way hash functions. Based on those basic primitives, we can further enhance and improve those original primitives.

3.1 Digital Signature

The purpose of a digital signature, which is created to replace the hand-written signature in the electronic world, is to bind its identity with a piece of message. Digital signature, which is fundamental in authentication, authorization, and non-repudiation, protects two parties exchanging messages from the interception of any third party. We show the signature signing process as follows:

Fig 3.1 Signature Signing Process

Anyone can verify signature via sender's public key and compare the relationship between the signature (decrypted hash code) and hash code of message. The purpose of hash code is to increase the signature signing efficiency and we show the verification process as follows. Message Hashing Hash code Private key Signature Message Signature

Fig 3.2 Signature Verification

Bruce Schneier identifies the characteristics of a good digital signature in his book “Applied Cryptography” [Sch96] as follows:

1. The signature is unforgeable. 2. The signature is authentic. 3. The signature is not reusable. 4. The signed document is unalterable. 5. The signature cannot be repudiated.

Diffie and Hellman invented the concept of public key cryptography in 1976 [DH76]. There are two kinds of most popular public key cryptosystems; one is the RSA signature scheme [RSA78], which was the first method by encrypting the entire message or the hash code of message with the sender's private key. The other is based on the discrete logarithm problem [EIG85]. Afterward, many researches have developed alternative digital signature techniques.

3.1.1 Proxy signature

In the proxy signature scheme, the original signer (such as boss) delegates her/his signing capability to the proxy signer (such as secretary), and the proxy signer creates a digital signature on behalf of the original signer. Proxy signature schemes resemble digital signature schemes except that they involve a proxy key generation, a proxy key

Message

Signature

Message

Signature

Hashing Hash code

Public key

Hash code Compare

verification and a proxy signature-signing phase. In the proxy signature scheme, the original signer does not create a signing key by herself/himself alone. Instead, both the original signer and the proxy signer collaboratively generate the signing key.

Mambo et al. was first one that introduced the proxy signature scheme in 1996 [MUO96]. According to Mambo's scheme, there are three types of proxy signatures: full delegation, partial delegation, and delegation by warrant.

z Full delegation: In full delegation, the original signer gives hers/his private key to the proxy signer. In this case, the proxy signature created by the proxy signer is indistinguishable from the signature created by the original signer. This type is barely used for security issue.

z Partial delegation: In partial delegation, a proxy secret is derived from the original signer’s private key; and the proxy secret is given to the proxy signer in a secure way. However, the processes from the original signer’s private key to the proxy secret should be unilateral for security requirement.

z Delegated by warrant: When delegated by warrant, the proxy signer is authorized trustworthily to act on behalf of the original signer under certain conditions, such as a valid proxy signer and within the duration of delegation, etc.

Brief Description of Mambo’s scheme

We briefly describe Mambo's scheme. The participants are an original signer, a proxy signer and a verifier. The parameters, (p, q, g), are public and are defined as follows.

z p : a large prime number. z q : a prime divisor of p-1.

The basic protocol of Mambo’s scheme uses the following algorithms:

Proxy secret generation

The original signer selects a random number x as the private key, where1≤x<q. Also, the corresponding public key is y =gx mod p. Then, the original signer publishes (p, q, g, y).

Proxy key generation

The original signer executes following steps to generate proxy key and forwards proxy key to proxy signer.

Step 1. Select a random number kA∈Z_q*.

Step 2. Compute rA = g mod p. kA

Step 3. Set sA = (x+kArA) mod q.

Step 4. Forward (rA, sA) to the proxy signer in a secure manner.

Upon receiving the pair (rA, sA), the proxy signer verifies validity of (rA, sA) by

checking g A y r rA p

A

s ₌? _{⋅ mod . If the equality holds, then accepts the pair (r}

A, sA) and does

the following steps; otherwise, rejects the pair. Thus, the proxy private key is sA.

Proxy signature signing

The proxy signer can sign a message m on behalf of the original signer by creating a signature with the proxy key sA. The proxy signature is S(sA, m).

Proxy signature verification

To verify the proxy signature S(sA, m), a verifier first replaces the proxy key sA by y

and rA where gsA = y⋅r_ArA mod p, and then checks V(y,r_A,S(s_A,m),m)

?

= True.

First, the original signer creates a proxy secret sA using her/his private key and

forwards the proxy secret to a designated signer, called the proxy signer. Next, the proxy signer verifies validity of the proxy key pair (rA, sA) and then signs a message, m, and

creates a signature S(sA, m) using the proxy key sA. Finally, a verifier verifies the

validation of the proxy signature by checking V(y,r_A,S(s_A,m),m) = True. ? Mambo's proxy signature fulfill following the requirements:

(i) Verifiability: From a proxy signature, a verifier can be convinced that the original signer agrees on signing the message.

(ii) Unforgeability: The designated proxy signer can create a valid proxy signature on behalf of the original signer.

Unfortunately, Mambo's proxy signature is not a proxy-protected signature scheme in which the original signer knows how to derive the proxy key on her/his own. On the contrary, in the proxy-protected proxy signature scheme, the original signer and proxy signer creates the proxy key interactively so that the original signer cannot derive the proxy key alone. Hence, Lee and Kim [LK99][LKK01a][LKK01b] proposed the concept of the strong proxy signature.
