行政院國家科學委員會補助專題研究計畫成果報告
比例式視訊編碼技術及視訊通訊終端機技術之研究(3/3)
Research in Scalable Video Coding Techniques and Visual Communication Terminal
Technologies
計畫編號：NSC 91-2219-E-009-045
執行期限：91 年 8 月 1 日至 92 年 7 月 31 日
主持人：林大衛 交通大學電子工程學系 教授
計畫參與人員：詹益鎬、郭沛昀、陳彥福、林岳賢 交通大學電子工程學系 研究生
摘要
本計畫從事兩方面之研究：其一是比例式視訊編碼法，主要為物件域之比例式編碼
相關技術；其二是視訊通訊終端機技術，主要為國際標準視訊編解碼器之實現與相關
網際網路視訊通訊終端系統之實作。在物件域之比例式編碼方面，我們主要研究視訊
內容分割法，迄今已提出數項技術。模擬結果顯示：萃取得之物件符合人類常態知覺。
現亦在繼續研究改進視訊分割技術。在視訊通訊終端機方面，我們過去已發展了一個
以個人電腦及數位信號處理器為平台的點對點視訊編碼與傳輸系統，其中的視訊編碼
採用 H.263 標準。在本計畫中，我們繼續改進此系統之功能，並採用相似的平台進行
MPEG-4 simple profile 及 fine-granularity scalable 即時編解碼之實作。
關鍵詞：視訊分割、H.263、MPEG-4 視訊編碼、軟體即時編碼、網際網路視訊通訊終
端機
Abstract
This project conducts research in two subject areas. The first is scalable video coding,
primarily on technology related to object-oriented scalable coding; and the second is visual
communication terminal technologies, primarily the implementation of international
standard video codecs and the implementation of an internet visual communication terminal
system. In object-scalable coding, we mainly research into methods for video content
segmentation. Thus far we have proposed several segmentation techniques. Simulation
results show that the extracted objects are in accord with common sense of human
perception. We are continuing the research and improvement of video segmentation
techniques. Concerning visual communication terminal technologies, we have previously
developed a point-to-point video coding and transmission system employing personal
computers and digital signal processors as the platform. The video codec in the system
employs the H.263 standard. In this project, we have continued to improve the
functionalities of the system, and we have conducted real-time implementation of MPEG-4
simple profile and fine-granularity scalable encoders employing a similar platform.
Keywords: Video Segmentation, H.263, MPEG-4 Video Coding, Real-time Software
Coding, Internet Visual Communication Terminal
目錄 Table of Contents
一、計畫緣由與目的
1
二、結果與討論
3
A. 視訊分割
3
B. 視訊通訊終端系統實作之研究
4
三、參考文獻
6
四、圖表
7
五、計畫成果自評
10
六、附錄
11
一、計畫緣由與目的
視訊通訊領域在近數年來有兩個重要的發展方向，一是視訊壓縮與傳輸之理論與技
術上的創新與進步，二是即時及儲存式視訊通訊系統的實用化。前者除可自近數年來
相關學術期刊及會議中的論文窺其梗概，亦可由 MPEG-4 標準制定過程中所考慮的各
種壓縮與傳輸技術中見其一斑。後者在儲存式系統方面，由 VCD、DVD、及數位動
靜態攝影機等數位視訊產品的出現與風行，可得例證；在即時系統方面，則於近數年
來，已有不少桌上型視訊會議產品出現。這兩方向的發展，都與數位信號處理硬軟體
技術在近年來的迅速發展有關，使得研發人員一方面可做複雜理論與技術的演算與模
擬，另方面可將其最終之設計做有效之實現。本計畫即考慮以上兩個方向，一面研究
MPEG-4 相關視訊編碼技術，另一面從事視訊通訊終端系統實作之研究。
在 MPEG-4 相關視訊編碼技術方面，我們知道 MPEG-4 的一項重要創新，是採用
物件導向型式(object-oriented)的視訊編碼，以求能對畫面作更有彈性的編碼或組合
(composition)等處理，也就是所謂的物件比例能力(object scalability)。因此，一個很重
要的課題就是視訊區域的分割(video segmentation)，而此分割結果應該在人類常態視覺
的角度看來是有意義的(semantically meaningful)。視訊區域的分割，要考慮到物件的
運動，這是與傳統靜態影像分割的一個主要不同。因為物件的運動，一個物件在不同
的畫面中可能會改變形狀，也可能會是不完整的出現(例如：畫面的背景，在所有的圖
框中均可能被其他物件所部分遮掩)；這些情形就會影響視訊分割方法的設計與其分割
品質。視訊區域的分割，在近年來雖有不少研究，但其技術仍未臻理想，而有相當大
的改進空間。視訊分割的方法可分兩大基本途徑。其一是將視訊視為一馬可夫隨機過
程(或馬可夫隨機場，Markov random field)，以貝氏估測(Bayesian estimation)等最佳化
估計方法來做分割。此途徑一個代表性的參考文獻為[1]，其他文獻還有不少，茲不一
一列舉。其二是對畫面做直覺的運動與紋理(texture)分析，參考文獻亦多。以其可獲得
的結果而言，兩途徑之間難謂孰優孰劣，但前者一般使用疊代(iterative)計算，以直覺
分析的結果作為其初始狀況(initial condition)，並需要很高的計算量。此外，亦有將兩
途徑做某種結合者，如[2], [3]。我們過去曾對上述兩個基本途徑分別進行研究，但第
一途徑的成效未如理想(其部分結果可見[4])，第二途徑則有較佳之結果。本年之計畫
專注後者。
在視訊通訊終端系統實作之研究方面，我們研究國際標準視訊編碼法的即時軟體實
現及網路視訊通訊系統的實現，其中我們以個人電腦及裝置於其上的數位信號處理器
(DSP)插板為實現平台。好的視訊編碼法(壓縮比高而視訊品質好)的運算複雜度是很高
的。以 H.263 而論，過去數年間發表的學術論文顯示，一些較快的 DSP 及微處理器(µP)
每秒鐘約可處理十幾張至數十張 QCIF 大小的畫面之編解碼。MPEG-4 simple profile
視 訊 之 編 解 碼 速 率 亦 相 當 。 之 前 我 們 曾 使 用 個 人 電 腦 及 Texas Instruments 的
TMS320C6201 定點數位訊號處理器(裝置在 Blue Wave Systems 的 PCI/C6600 電腦插板
上)為平台，實現一個簡單的 H.263 視訊編解碼與網際網路視訊傳輸系統[5], [6]。其後
我們亦在持續改進其功能。在本年之計畫中，我們除繼續此一努力外，另採用相同之
數位訊號處理器(但改用 Innovative Integration 公司的電腦插板，因 Blue Wave Systems
已轉移事業方向)，從事 MPEG-4 simple profile 及 fine-granularity scalable (FGS)兩種視
訊編碼法的即時實現研究。
二、結果與討論
茲分二小節分別討論視訊分割與視訊通訊終端系統實作兩方面之研究。
A. 視訊分割
要達成物件比例式視訊編碼(object-scalable video coding)，一個很重要的課題就是
視訊分割，這對自然景像視訊(natural scenes)的編碼而言，尤其為然。由於 MPEG-4
標準中對於物件的定義及視訊分割的方式均無明確的規範，因此就留給研究者極大的
餘裕。如前述，我們在此專注於採用直覺的運動與紋理分析來做視訊分割。此類分割
方法，通常包括四個基本功能方塊，即紋理分析、運動分析(運動估計)、初始分割、
及區域追蹤。我們近幾年來提出了幾個分割方法，其細節頗有不同，但基本架構如是
[7]-[10]。圖一呈示我們最近提出的一個方法，其中 Edge Analysis 及 Change Detection
屬紋理分析，Forward Tracking 及 Backward Validation 用到運動分析，Mask Refinement
則完成初始分割與區域追蹤。在視訊分割的研究中，兩大議題是物件邊界的精確認定
及運算量的降低。此方法在這兩方面都有特別的設計。以下我們就概略介紹此方法。
其詳細討論可參附錄 A，該附錄為一欲發表之論文之初稿。
此方法中的 Edge Detection 目的在於較精確的找到物件的邊界位置。這是因為一般
而言，物件的邊界有較大的亮度或色彩變化。我們所用的 Edge Detection 方法為 Canny
edge detector。Change Detection 常被用來獲得移動物件的大致位置。我們所使用的
Change Detection 方法與近來若干學術論文所用的方法相似，就是透過 interframe
difference 的分析來估計視訊畫面中的攝影機雜訊大小，然後設定一個門檻值，以檢驗
interframe difference。大於此門檻值的畫面位置就算是 changed，所有算是 changed 之
像素就形成移動物件位置的一個粗估。
Forward Tracking, Backward Validation, 及 Mask Refinement 是此方法主要創新之所
在，其中又尤以 Mask Refinement 為然。Forward Tracking 是用以估計已分割出來的物
件的運動並做粗略的追蹤。由於後續的 Backward Validation 及 Mask Refinement 會更
精確的確認物件邊界的位置，所以 Forward Tracking 中的運動估計不必非常精確，也
因此可以降低其運算量。我們為此設計了一個特別的運動估計法。Forward Tracking
在跟據所估計得的運動作過初步的物件追蹤後，將其結果與 Change Detection 的結果
相結合，作為 Forward Tracking 方塊的輸出。Backward Validation 是將 Forward Tracking
的輸出中，屬於 Change Detection 的結果而不屬於初步物件運動追蹤結果的像素，做
反向運動估計，並檢測其是否屬於或鄰接於前張畫面中所分割出來的運動物件。若是，
則保留，否則刪去。Mask Refinement 的主要精神，是假設 Backward Validation 的結果
中，最外緣的 edge 像素，大多應是物件的邊界所在。透過一些 morphological 處理步
驟，我們確認這些邊界像素的位置、針對其斷裂不連續的部分做內插以連接之、並填
滿物件的內部。
實驗顯示此方法可得相當符合主觀視覺的分割結果。圖二及圖三分別呈示對
Mother and Daughter 及 Salesman 兩個影像序列進行分割的部分結果。
B. 視訊通訊終端系統實作之研究
本部分研究主要係使用個人電腦及其上裝置之數位訊號處理器插板來進行軟體視
訊編解碼器及視訊壓縮與網路傳輸終端系統之實作。本項研究分兩子題，一是既有
H.263 編解碼與傳輸系統的改進，二是 MPEG-4 軟體視訊編解碼器的實作。以下分別
討論之，但重點在第二項，因其為本部分研究之主要項目。
如前述，我們之前已經完成一個簡單的 H.263 視訊編解碼與網路傳輸系統[5], [6]。
該系統結構如圖四所示。傳輸端的個人電腦是 server，接收端的則為 client。接收端不
須數位訊號處理器，由個人電腦逕行做視聲訊的解碼與播放。傳輸端的個人電腦，其
視訊輸入經個人電腦轉交數位訊號處理器插板做編碼。本年的工作主要為系統功能的
改進。為免大幅更動系統架構導致意想不到的問題，我們沿用之前使用的數位訊號處
理器插板，即 Blue Wave Systems 的 PCI/C6600，其上裝置 Texas Instruments 的
TMS320C6201 定點數位訊號處理器二顆，工作速率為 200 MHz。但我們的視訊編碼
器僅用其中一顆。編碼方法為 H.263，但沒有配置所有的功能，使其簡化以利即時實
現。聲訊以外之系統功能，大體上可參[6]。聲訊部分，未做壓縮，僅由個人電腦將之
與壓縮後的視訊組成封包，交由網路卡透過 UDP 規約傳出。原始之實現係針對
subQCIF (128x96)之畫面，上年度已改為可處理 QCIF (176x144)畫面，本年則改進為
可處理 CIF (352x288)畫面，但編碼速率則成比例下降：subQCIF 每秒約可編 20 張畫
面，CIF 則僅 2-3 張。經分析程式，發現其資料輸出入部分可做一些改進，但對程式
加速的幫助極有限。其他改進則尚須做更多分析，才能確定其效用。不過以上經驗將
有助於新年度(下年度)之 MPEG-4 研究。
在 MPEG-4 軟體視訊編解碼器部分，我們考慮了其 simple profile 及 FGS 編碼器二
者，並分別使用一個數位訊號處理器平台(含個人電腦及數位訊號處理器插板)來實
現。所用的數位訊號處理器仍是 TMS320C6201，但插板則為 Innovative Integration 公
司的 Quatro62。該插板共裝置四顆 TMS320C6201，但我們的二種編碼器實現則各使用
二顆。以下分別討論之。
B.1. MPEG-4 Simple Profile
視訊編碼器

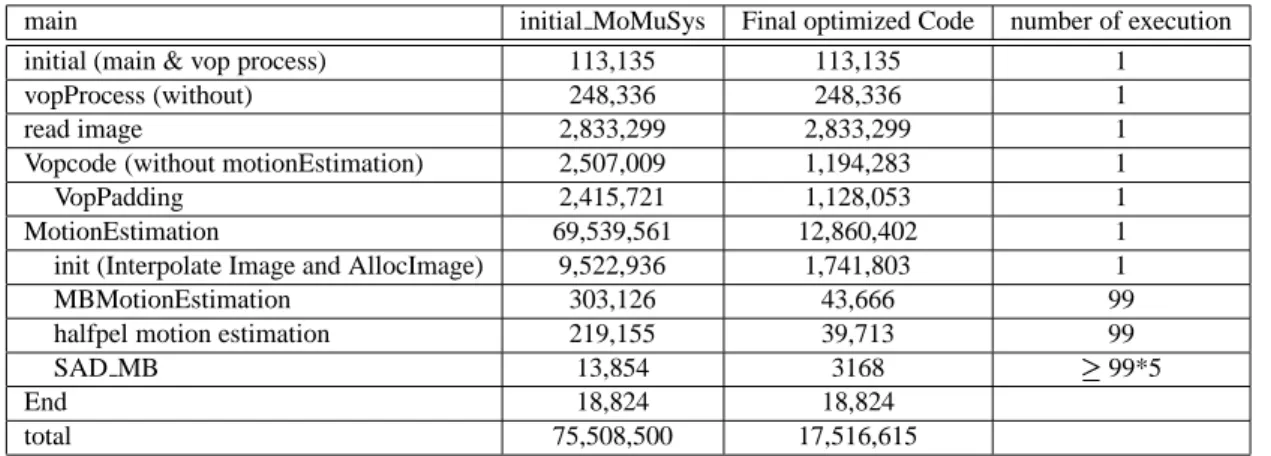

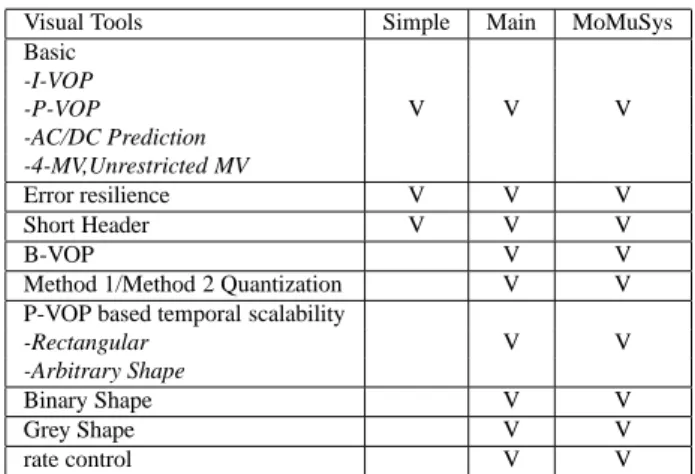

MPEG-4 simple profile 視訊編碼器的實現，係以 MoMuSys C 語言軟體為本，加以
修改以適數位訊號處理平台之用。主要工作內容可分程式縮小與程式加速兩方面，簡
述於下。詳可參附錄 B (會議論文稿)。
在程式縮小方面，由於一顆 TMS320C6201 的內建程式記憶體僅 64 KB，故若無法
縮至此大小，則會影響程式設計與執行速率。我們所用的方法有以下幾項：
1.
去除流率控制：MoMuSys 在此使用浮點運算。除去流率控制後可大幅縮小程
式並加快執行速率。
2.
使用 macros 來取代簡單的 functions。
3.
用#include 來設定控制參數，而非使用 file reading。
及一個 layer。
6.
其他如 functions 之合併、無用之函式呼叫之去除、及使用直接運算以取代對
函式庫內功能簡單之函式的呼叫。
以上除流率控制之去除外，基本上對 simple profile 功能之完整性並無影響。共減少程
式大小約 85%。最後的程式約 108 KB，可放在二顆數位訊號處理器內。
在程式加速方面，我們做了以下幾項更動：
1. DCT 與 IDCT：MoMuSys 使用浮點運算。我們改為定點運算。
2.
改用較快速的 16x16 整數位移運動估計法。
3.
改用較快速的 8x8 整數位移運動估計法。
4.
改用較快速的半點位移運動估計法。
5.
改進為半點位移運動估計而做的像素內插計算程序。
6.
改進運動估計中須做的絕對差和(SAD)計算程序。
整個運算速率的提昇可達 4 倍以上。
圖五顯示個人電腦(host)與兩顆數位訊號處理器(CPU 0 及 CPU 3)如何共同運作。實
驗顯示編碼速率約為每秒 6-8 張 QCIF 畫面，其 PSNR 值與原始程式相差不遠。
B.2. MPEG-4 FGS
視訊編碼器
MPEG-4 FGS 視訊編碼器的基本架構如圖六所示。我們採用一個既有的 H.263+編
碼器[11]為 base layer，而 enhancement layer 則使用 MoMuSys 軟體修改而得。其中 base
layer 佔一顆數位訊號處理器，而 enhancement layer 則使用另一顆；整個系統架構如圖
七所示。
我們發現，在 FGS 軟體編碼中，兩種最耗時間的運算是編好之碼的輸出與可變長
度編碼(VLC coding)。故除了系統整合外，FGS 軟體實現的主要議題在於程式加速。
其方法簡述於下，詳可參附錄 C (會議論文稿)：
1.
選擇適當的 compiler 選項。
2.
改寫程式段落，減少迴圈與指令數目。
3.
促成 software pipelining。
4.
使用 intrinsics (C 語言可呼叫之特殊函式，可有效使用數位訊號處理器資源)。
5.
將短的數據集輯(pack)在一起，使一個 load 或 store 動作可以處理數個數據。
6.
儘量將數據放在數位訊號處理器之內建記憶體，並在使用外部記憶體中之數據
之前，使用 DMA 將之先行移入內建記憶體。
7.
使用“restrict” keyword 來告知 compiler 若干變數之間的相關性，以幫助
compiler 將程式平行化而有效使用數位訊號處理器的資源。
8.
使用 macros 來取代一些簡單的 functions。
9.
儘量使用 short 型式之數據來做乘法。
實現的結果，在沒有省略任何 bitplanes 之情形下，視比較基礎之不同，約可加速
為原程式的 2.4-2.7 倍，或 6.4-7.6 倍。編碼速率約每秒 11.5-13.5 張 QCIF 畫面。若省
略最後二個 bitplanes，則速率可達每秒 17-19 張畫面。
三、參考文獻
[1] A.
M.
Tekalp,
Digital Video Processing, Prentice Hall, 1995, ch. 8.
[2] I. Patras, E. A. Hendriks, and R. L. Lagendijk, “Video segmentation by MAP labeling
of watershed segments,” IEEE Trans. Pattern Anal. Machine Intell., vol. 23, no. 3, pp.
326-332, Mar. 2001.
[3] Y. Ysaig and A. Averbuch, “Automatic segmentation of moving objects in video
sequences: a region labeling approach,” IEEE Trans. Circuits Syst. Video Technol., vol.
12, no. 7, pp. 597-612, July 2002.
[4] Y. Chou, “Video segmentation via iteratively enhanced spatial-temporal analysis,” M.S.
thesis, Dept. Electronics Engineering, National Chiao Tung University, June 2002.
[5] S.-W. Chen and D. W. Lin, “H.263 video codec implementation on a TMS320C62xx
digital signal processor,” in Proc. Workshop on Consumer Electronics, pp. 1-4, Taipei,
Oct. 1999.
[6] J.-R. Wu and D. W. Lin, “DSP-based realtime video encoding and transportation for
videoconferencing system,” in Proc. Workshop on Consumer Electronics, pp. 181-184,
Taipei, Oct. 2000.
[7] Y.-H. Jan and D. W. Lin, “A method for video segmentation based on object tracking,”
in Proc. Int. Symp. Commun., paper 10.4, Tainan, Nov. 2001.
[8] Y.-H. Jan and D. W. Lin, “Image sequence segmentation via heuristic texture analysis
and region tracking,” in SPIE vol. 4671, Visual Commun. Image Processing, pt. 2, pp.
543-551, Jan. 2002.
[9] Y.-H. Jan and D. W. Lin, “Extraction of video objects by combined motion and edge
analysis,” in Proc. IEEE Int. Symp. Circuits Syst., pp. V-677—V-680, May 2002.
[10] Y.-H. Jan and D. W. Lin, “Automatic video objects segmentation and tracking
employing tiered spatio-temporal analysis,” to appear in Proc. Int. Symp. Commun.,
Taoyuan, Dec. 2003.
[11] M.-L. Woo, “Real-time implementation of H.263+ using TI TMS320C62x,” M.S.
thesis, Dept. Electronics Engineering, National Chiao Tung University, June 2000.
四、圖表
MASK REFINEMENT FRAME MEMORY DETECTION CHANGE ANALYSIS EDGE FRAME n TRACKING BACKWARD VALIDATION INPUT VIDEO FORWARD FRAME n−1 FRAME n−p圖一：直覺分析視訊分割法之一
50 95 120圖二：對 Mother and Daughter 影像序列做分割的部分結果。頂排為原始畫面，中排為
分割出之移動前景物件，底排為畫面序號
10 20 30

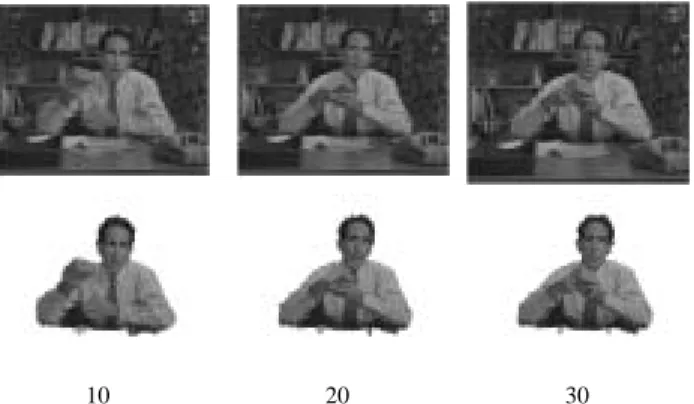

圖三：對 Salesman 影像序列做分割的部分結果。頂排為原始畫面，中排為分割出之移
動前景物件，底排為畫面序號
Receiver Adapter Adapter Video Input Audio Input PC Internet Network Network Transmitter DSP PC
圖四：H.263 視訊編解碼與網路傳輸系統架構
Start Read Image HOST CPU 0 PMotionEstimation texture coding
VOP Padding Read bitstreams End ? NO Yes End reconstructed image VOP Padding Data Initization I or P I−frame Curr image MV bitstreams CPU 3 Read Image from Camera
圖六：MPEG-4 FGS 視訊編碼器之基本架構
五、計畫成果自評
研究內容與原計畫相符程度：達成計畫名稱所揭示之研究標的，即比例式視訊編碼
技術(特別是物件比例式視訊編碼所需之視訊分割技術)及視訊通訊終端機技術(特別是
建構於數位訊號處理器上、基於主要國際視訊標準之軟體編碼器)之研究。
達成預期目標情況：本子計畫達成之貢獻形式，含技術上之創新、實驗系統之建立、
人才培育。
成果之學術與應用價值等：視訊分割方面之若干成果已發表為會議論文，並在進行
期刊與其他會議論文之撰稿與投稿。視訊終端系統實作方面之若干成果也已發表為國
內會議論文，或在投稿中；其經驗也將成為我們後續相關研究的參考。以上成果亦皆
可供相關業界參考，惟其性質可能不適合做專利申請或技術移轉之用。
綜合評估：本計畫獲得一些具有學術與應用價值的成果，並達人才培育之效。成效
良好。
六、附錄
本附錄共含三篇論文稿，如下列：
A. Y.-H. Jan and D. W. Lin, “Automatic video segmentation with novel motion analysis
and edge processing for accurate identification of object boundaries” (7 pages).
B. P.-Y. Kuo and D. W. Lin, “Real-time implementation of MPEG-4 video encoder on
digital signal processors,” to appear in Proc. Int. Symp. Commun., Taoyuan, Dec. 2003
(6 pages).
C. Y.-F. Chen and D. W. Lin, “Real-time implementation of MPEG-4
fine-granularity-scalable video encoder on digital signal processors” (6 pages).
Automatic Video Segmentation with Novel Motion Analysis and
Edge Processing for Accurate Identification of Object Boundaries
Yih-Haw Jan and David W. Lin, Senior Member, IEEE
Abstract — We consider automatic segmentation of
natural video for content-based video applications. A critical problem in this area is accurate identification of object boundaries. We present an algorithm designed to achieve this goal at reasonable complexity. The algorithm employs change detection and motion estimation to identify and approximately track deformable moving objects. The primary novelty of the algorithm consists in a function block termed mask refinement, which does morphological edge-oriented processing to delineate the object boundaries with accuracy, using the edges found from a suitable edge detector. The motion estimation is object-based. For robustness in object tracking, both forward and backward motion estimation are conducted, but the method has relatively low complexity. We present experimental results to illustrate the subjective segmentation performance of the algorithm. The required computational time for the algorithm is seen to be appropriate for real-time desktop or portable multimedia applications 1.
Index Terms — MPEG-4, object tracking, video segmentation.
I. INTRODUCTION
T
HE past ten years have witnessed phenomenal growth in the generation and consumption of digital video in consumer applications, either over the internet or by employing local devices such as digital still cameras, digital video cameras, and DVD players. The recently enacted MPEG-4 standard (which is still evolving) promises to bring additional convenience and functionalities to such digital video, and its impact is only starting to be felt.Compared to previous video coding standards, a major novelty in the MPEG-4 standard is the introduction of object-based video representation and coding which facilitate differential treatment in coding of different video objects and object-based manipulation of video contents. Many conceivable consumer applications of these capabilities would involve natural video, for example, object-based editing of home video, scene composition for interactive video games, and desktop virtual conference room—videoconferencing system that shows a composited conference room scene of participants’ images. To be able to support object-based representation and coding of natural video, one must be able
to segment the video into semantic video objects. We consider automatic video segmentation in this work. While there has been much research on this subject in the last few years, the technology is yet to be improved in performance and in complexity for expected user satisfaction.
1
This work was supported by the National Science Council of R.O.C.
Techniques for video segmentation can be divided into two basic approaches: probabilistic and heuristic. The probabilistic methods model the video as a random process and attempt to maximize a certain goodness measure in the segmentation process. An example is [1, ch. 8]. The optimization usually requires an iterative procedure and is thus computation-intensive. In contrast, the heuristic methods employ heuristic motion and texture analysis and can be designed to have lower complexity. Some probabilistic methods do probabilistic optimization only for a subset of the parameters characterizing the segmentation, leaving the others obtained through heuristic means. This way, they can have a lower complexity than fully probabilistic methods. Some examples are [2] and [3]. We consider the purely heuristic approach.
The heuristic video segmentation methods can be further divided into two main categories: those starting with an initial spatial segmentation and those starting with an initial motion-based analysis or segmentation. Either way, both spatial and temporal (motion) analyses are needed for subsequent object tracking. The proposed algorithm of this paper falls in the latter category, as our experience indicates that this approach can yield relatively good results at reasonable complexity. Before presenting the proposed algorithm, we briefly review some reported research concerning this category of methods.
Chen and Shirai [4] and Neri et al. [5] are two examples of motion-based segmentation. However, accurate identification of object boundaries is not considered and the segmented region boundaries can be quite far from actual object boundaries. Since object boundaries in an image are often characterized by high intensity variation, edges (high-gradient image sections) provide important cues to object contours. A few algorithms try to identify object boundaries by analyzing the edges found in the image regions that show significant motion [6]-[8]. Still, accurate identification of object boundaries remains an issue to be fully resolved in video segmentation. This is the case especially when the object boundaries are grossly nonconvex.
The key technological aim of this work is, therefore, novel segmentation techniques that can identify object boundaries
附錄 A
conclusion.
II. THE PROPOSED ALGORITHM
Figure 1 shows the overall structure of the proposed algorithm. Roughly speaking, semantic objects are detected initially with “change detection,” tracked in time with motion-compensated “forward tracking” and “backward validation” that allow object shape changes, and their boundaries delineated more accurately with “mask refinement.” The block “edge analysis” provides useful information for the last function. The primary novelties of the algorithm consist in the mask refinement function, as well as the motion-based forward tracking and backward validation.
In video signal analysis and segmentation, motion information is helpful for tracking of moving objects. However, conventional motion estimation methods are usually very computation-intensive and need not yield reliable motion information. As a result, one often would like to minimize its use or its complexity. By simply detecting the changed areas, change detection is a favored low-complexity mechanism to roughly identify image regions that contain moving objects [7], [8]. However, if an originally moving object comes to a standstill, change detection will lose track of the object unless a long-term memory is provided, such as in [9]. In this work, we choose to develop a low-complexity, object-based motion estimation technique for convenience of object tracking. Nevertheless, change detection is also employed to identify new moving objects and to help capture fully the possible object shape changes with time.
The edge analysis block in the algorithm employs the well-known Canny detector [10]. Below we describe the remaining functional blocks in greater detail, namely, change detection, forward tracking, backward validation, and mask refinement.
A. Change Detection
Change detection is a frequently employed technique to roughly locate the moving regions in consecutive video frames [5], [11]-[13]. It requires statistical modeling of the background noise (due at least in part to camera noise), and it typically determines whether a pixel is changed (e.g., moving) or unchanged by comparing the frame difference with a threshold calculated from the statistical model.
Let the video have stationary background. Similar to others’ work, we assume the background part of the frame difference
Fig. 1. Structure of the proposed algorithm.
2 2 2 ) , ( 2 0 2 1 ) | ) , ( ( δ σ πσ δ x y n x y H e n p = − , (1)
where denotes the null hypothesis that the pixel at location is unchanged, n is time index,
0
H
) ,
(x y δn(x,y) is the
difference at pixel ( between frames I and , and is equal to twice the camera noise variance. In slow-motion video (such as conference video), we may let p>1 to capture the moving objects more easily.
) , y
x n In− p
2 σ
For robustness, instead of making the changed-unchanged decision based on the single-pixel frame difference δn(x,y), we base our decision on its mean-square value in a window as in [11]. For independent Gaussian random variable, their mean-square value obeys a distribution. The decision threshold is parametrized on a significance level
2 χ α TH α evaluated from } | ) , ( {V x y TH H0 p α α = > (2)
where V is the mean-square frame difference in the test window, normalized by dividing it by the variance of the background noise. The background noise variance is evaluated using the method in [14]. Experimentally, we find that an observation window of size 5 or
) , (x y
5
× 7×7 and a significance level α between and lead to good results. For convenience, the set of changed pixels is denoted
.
2
10− 10−3
n
CD
By itself, change detection does not fully delineate a moving object. Normally, some background pixels will be declared as changed. On the other hand, a moving object with smooth interior may have many of its pixels declared as unchanged. In our algorithm, change detection is used, in association with motion estimation, for deformable object tracking. It is also used for initial detection of new moving objects, especially in the first two frames. The tasks of accurate boundary delineation and filling-in of object interior are relegated to the mask refinement function.
B. Forward Tracking
A main purpose of the forward tracking function in the proposed algorithm is to find the footprint of each object of the previous frame (say I ) in the current frame (say I ). Some inaccuracy is tolerated, because the subsequent backward validation and mask refinement will localize the object boundary more precisely. By integrating the footprint with change detection’s output, we can accommodate new appearance of moving objects and enhance the ability to deal with object shape changes.
1 −
n n
(a) Treated Block Macroblock Object Under Consideration Current Frame (b)
Fig. 2. Object-based motion estimation. (a) An object under consideration (shaded region) in the previous frame has moved to a different position in the current frame (dashed contour). Each small square is BW in size. (b) Illustrating the idea that motion estimation is carried out on the 3 macroblock centered at the
BW
×
3 ×
treated block.
2(a) shows that an object under consideration in frame I has moved to a different position in . The object is divided into square blocks of size BW pixels. (We have used
BW = 4 in this work.) To save computation, we first consider
all blocks on the object boundary. For each such block, we perform block-matching motion estimation for a “macroblock” of 3× 3 blocks centered at it, as illustrated in Fig. 2(b). For simplicity, we only consider translational motion. However, the motion vectors may point out of the frame as in the unrestricted motion vector (UMV) mode of the ITU-T H.263 standard. The required out-of-frame pixels are obtained by repeating the pixel values at frame boundaries. The obtained motion vector is assigned to the pixels of the treated block. We then proceed inwards from the boundary blocks until all the interior blocks are treated. In each step, we treat one “layer” of blocks that are immediately inside the blocks that were treated in the previous step. For each of these blocks, we perform macroblock-based motion estimation similar to the case of boundary blocks, but the candidate
1 − n n I BW ×
is projected forwardly onto using the motion vectors obtained above. For convenience, let O ,
1 − n I In 1 ,n− i i=1,2,3...,S,
denote the ith object in I and let denote the corresponding projected footprints. The forward-tracked mask
of each object is obtained by taking the union of and CD , retaining the largest connected set of pixels, and fill up all small isolated “holes” that may show up in the pixel map due to slight difference in the estimated motion of nearby blocks. 1 − n n n i P, i P, F n i, n PCD C. Backward Validation
Backward validation is conducted to trim each mask for better accuracy, since the forward motion estimation need not be very accurate and since CD may contain contributions from more than one object. For this, backward motion estimation from I to is performed for the pixels in PCD that are not in P . The method is similar to the forward motion estimation described above. Only those pixels whose backward motion-compensated projections lie inside or touch O are retained. As in forward tracking, if any small isolated holes show up in the trimmed , they are filled up. The resulting set of validated pixels is denoted PCD and referred to as the
rough mask. F n i PCD, n n 1 ,n− i n 1 − n I n i, F n i, F n i PCD, B i,
In typical videophone scenes, the pixels needing backward validation are relatively few. Hence the required backward motion estimation does not add exorbitant complexity.
D. Mask Refinement
Due to the nature of our change detection and motion estimation methods, the rough mask PCD may contain background pixels beyond the actual object boundary. Besides, holes may still appear in the object’s interior where there are not. The mask refinement function attempts to rectify these problems.
B n i,
Since, as noted previously, object boundaries are often characterized by high intensity variation, our mask refinement procedure does edge-based processing. For natural video, typical edge detectors (such as the Canny detector that we use) often do not obtain closed or connected contours at object boundaries. Therefore, in addition to finding the correct edges that mark object boundaries, a way to link up the edge gaps must be devised. An equivalent problem is the exact identification of the interior mask for the object.
We illustrate the procedure using the arbitrary rough mask example shown in Fig. 3(a) (the gray pixels). The mask is
completely within the rough mask. In many cases, a rough mask may enclose a half-open area. A common example is a person’s image in a videophone scene, which may show the person’s upper body butted to the bottom side of the frame and result in a rough mask that is half open in the lower side. In such cases, the following procedure is modified slightly to take care of the open side, much similar to [8]. The details are omitted.
To start, we fill in the interior of the rough mask by orthogonal scans. Specifically, a horizontal scan is performed over each row in the rough mask to fill in the space between the leftmost and the rightmost pixels. Corresponding vertical scans are performed to obtain another result. The union of the two results is taken, similar to [15]. The above closes any inner “holes,” but the obtained union map may be larger than the actual object. (For the example of Fig. 3(a), it is easily seen that this will be the case.) To cut away the overgrowth, we erode the union map from outside in, so that every outer pixel that is not in the rough mask nor an eight-connected neighbor of the rough mask is removed. This will also stop any single-pixel “cracks” on the outer side of the rough mask, but will in general cause the rough mask to grow by one pixel around. We thus further examine the outermost “slice” of pixels and remove all that are not in the original rough mask. The result, denoted FG, is a solid area enclosed by the rough mask, with single-pixel cracks filled up.
Now we consider the edge pixels in FG. (Fig. 3(b) gives an example, where the edge pixels are shown in black.) We assume that most edge pixels close to FG’s perimeter define the object boundary. The problem is to identify and connect them properly. For this, we first examine each connected horizontal and vertical line segment in FG. For each horizontal line segment, if the outermost edge pixels are close to the ends of the segment (say within several pixels of an end
space between them is filled. Call the result a row map. A similar operation is carried out vertically to result in a column map. For example, Fig. 3(c) shows the row map (black pixels) obtained from Fig. 3(b). For ease of reference, the procedure is termed “edge scan.”
(a) (b) A B 1 32 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 10 (c) (d) Fig. 3. Illustration of the mask refinement method. (a) An arbitrary example of the rough mask. (b) FG, with edge pixels in black. (c) Row map from edge-scan (black pixels). (d) Zoomed-in plot of upper-left part to illustrate some points.
The first use of the row and the column maps is to trim away some small overshoots in the FG. For this, we do a top-down scan of the row map and mark all areas that appear like caps. (In Fig. 3(c), A and B are such caps.) Experience shows that such caps often contain pixels outside the desired object and may even contain edges in the background. Thus for each cap, we examine the distance between the leftmost and the rightmost edge pixels in each line segment, from top down. If the distance is small compared to the length of the segment, say under 35%, then the line segment is deleted from both maps and the FG. This continues until we encounter a line segment wherein such distance is not small. Likewise, we conduct a bottom-up scan on the row map and process the caps on the bottom side. Corresponding left-to-right and right-to-left scans are also conducted on the column map and the caps in these directions are processed similarly. The above is termed “cap trimming” for convenience.
Next, we tighten up the footprint of FG in preparation for interpolation between the assumed boundary edges where gaps exist. (Accordingly, we shall refer to the process as “footprint tightening.”) Specifically, we take the union of the cap-trimmed row and column maps and delete from FG any pixels that are not at least eight-connected to this union. The retaining of eight-connected neighbors leaves some additional leeway in placing the interpolated edge pixels. This is illustrated in Fig. 3(d), which shows a zoomed-in plot of a part in the upper left of Fig. 3(c). In the figure, black color denotes a pixel in the cap-trimmed row map, gray color a pixel in the reduced FG but not in the row map, and white color an end-of-line pixel on whose side a valid edge is missing. The white pixel in row 7, column 1 is one that would be deleted if we did not retain the eight-connected neighbors as above. On the other hand, from Fig. 3(d) it can also been seen that, by retaining these eight-connected neighbors, for a row (resp. a column) that contains a valid edge on one side, the edge pixel may be up to two pixels away from the end pixel of the reduced FG horizontally (resp. vertically) on this side. In preparation for subsequent processing, we now delete the extraneous pixels on the outer side of the valid edge pixels. This can be achieved by examining each connected horizontal and vertical line segment in the reduced FG. If a valid edge pixel is at most two pixels inward from the end of the line, then delete the one or two pixels on the outer side of the edge pixel.
Now, to interpolate and fill in the “missing” edge pixels in boundary edge gaps, we use an iterative procedure designed on a minimum-distance principle. In each iteration, we examine the footprint-tightened FG in the horizontal and in the vertical directions alternately. In the horizontal direction,
segments in sequence and then the right side in sequence. In the vertical direction, we examine the top side of all the connected vertical line segments and then the bottom side, both also in sequence.
exists in the same column in any of the line segments above. If so, the distance with the closest of them is noted, where the distance is measured in number of pixels Cx has to step through to reach the edge pixel. However, if any pixel en route is not in the boundary-tightened FG, then that pixel is given a distance measure of 10 instead of 1. The column position of the nearest edge pixel above, say Cu, is recorded. In the same way, the nearest edge pixel below, say Cd, is found and its column position also recorded. Then the average column position between Cu and Cd is obtained, and the pixel in H at that position is denoted Cm. Now we step from Cx towards Cm and delete the pixels as we go, until we encounter an edge pixel or we reach Cm. Let this pixel where pixel deletion stops be denoted Ce. In some cases, there may not exist a valid Cu or Cd. In these cases, Cm is taken to be at the average column position between Cx and the valid Cu or Cd. If neither a valid Cu nor a valid Cd exists, then Cm is undefined and the iterative procedure skips to the next step. Ce is considered equivalent to a left edge pixel for the remaining line segments to be processed in the present iteration. If it is indeed an edge pixel, then it is considered the true left edge of the present line segment and treated as other existing left edge pixels in later iterations.
The processing at the right, top, and bottom sides is similar. The iteration continues until no more deletion of pixels is possible. For convenience in reference, the procedure will be termed “edge filling.”
As an example, consider row 7 in Fig. 3(d), which misses the left edge. The left-side processing would place the filled-in edge pixel in column 2. For rows 2, 4, 6, and 8 in Fig. 3(d), all missing the right edge, the right-side processing would place the filled-in edge pixels in column 9 for them all.
Lastly, we fine-tune the object boundary slightly. Specifically, we consider the edge-filled row and column maps. We shrink the former by one pixel on the left and on the right, and the latter on the top and on the bottom. Their intersection is taken. Pixels in the edge-filled FG that are not in the footprint of the intersection or are not eight-connected neighbors of the pixels therein are deleted. The resulting pixel mask defines the extracted object.
III. EXPERIMENTAL RESULTS
To illustrate the working and the performance of the proposed video segmentation algorithm, we present some results on the common CIF test sequences Mother and Daughter, Salesman, and Akiyo. (Experience shows that the Salesman sequence is a quite difficult sequence for video segmentation.) We first give a walk-through of some key algorithm steps. Then we present some segmentation results. And finally, we provide some data regarding algorithm speed.
(a) (b) (c)
(d) (e) (f)
(g) (h) (i)
(j) (k) (l)
(m) (n) (o) Fig. 4. Illustration of algorithm steps using frame 100 of the Mother and Daughter sequence as example. (a) Original frame 100. (b) Foreground object segmented from frame 99. (c) Change detection result
. (d) Projected footprint P of in frame 100. (e) Union of P and . (f) Largest connected pixel set in the union. (g) Final forward-tracked mask PCD . (h) Rough mask . (i) Row map from edge scan. (j) Column map from edge scan. (k) Cap-trimmed FG. (l) Footprint-tightened result. (m) Result of first iteration of edge filling. (n) Result of second iteration of edge filling. (o) Final extracted object
99 , 1 O , 1 B 100 , 1 100 CD 1,100 O1,99 F 100 , 1 100 CD100 PCD 100 , 1 O .
obtained from analyzing frames 100 and 97 (i.e., we have let p = 3). Figs. 4(d)-(g) illustrate the process of forward tracking. We have employed the well-known three-step motion estimation algorithm [16, Sec. 11.3] for the boundary blocks.
range is 7± pixels. Fig. 4(d) shows the projected footprint of frame 99’s foreground object in frame 100. Some small isolated holes have shown up due to slight difference in the estimated motion of nearby blocks, as noted before. Fig. 4(e) shows the union of and . Fig. 4(f) shows the largest connected pixel set in the union. And Fig. 4(g) shows the final forward-tracked mask PCD after filling up the small isolated holes. Fig. 4(h) shows the rough mask
after backward validation. 100 , 1 P B PCD1, 100 CD P1,100 F 100 , 1 100 100 , 1 O 30 70 117
Fig. 8. Segmented foreground object of Akiyo. Top row: original frames; middle row: segmentation results; bottom row: frame numbers.
Fig. 5. Convergence behavior of edge filling for the first frame.
The remaining pictures in Fig. 4 illustrate the process of mask refinement. Figs. 4(i) and (j) show the row map and the column map, respectively, from edge scan. Fig. 4(k) shows the cap-trimmed FG. Fig. 4(l) shows the footprint-tightened result. Fig. 4(m) and (n) show the results after the first and the second iterations of edge filling, respectively. And Fig. 4(o) shows the final extracted object .
50 95 120
Fig. 6. Segmented foreground object of Mother and Daughter. Top row: original frames; middle row: segmentation results; bottom row: frame numbers.
To further illustrate the convergence behavior of the edge filling procedure, we show in Fig. 5 the number of deleted pixels in each iteration for the first processed frame of each test sequence. Note that the procedure takes only a small number of iterations to converge.
Figs. 6, 7, and 8 show some segmentation results for the Mother and Daughter, the Salesman, and the Akiyo sequences. We see that the object boundaries are quite accurately identified.
Concerning the algorithm speed, we have used as test platform a personal computer with 1.4-GHz Pentium IV CPU. The program is not optimized. Excluding disk access time, the result is 26.9, 19.7, and 22.3 ms per frame for Mother and Daughter, Salesman, and Akiyo, respectively. A very large portion of the time is spent on forward and backward motion estimation, which amounts to 13.7, 10.6, and 11.6 ms, respectively, in the above cases. With suitable optimization of the program, it should be able to run significantly faster. Thus the algorithm is suitable for real-time desktop or portable 10 20 30
Fig. 7. Segmented foreground object of Salesman. Top row: original frames; middle row: segmentation results; bottom row: frame numbers.
IV. CONCLUSION
We presented an algorithm for automatic object extraction and tracking for nature video scenes. The algorithm makes accurate determination of boundaries of moving objects with novel edge-based morphological processing. And it can handle grossly nonconvex object shapes, which are commonplace in typical natural video. A novel, low-complexity motion estimation technique was also designed to aid robust object tracking. Experimental results show good subjective performance. The required computational time for the algorithm is also seen to be appropriate for real-time desktop or portable multimedia applications.
REFERENCES
[1] A. M. Tekalp, Digital Video Processing. Prentice Hall, 1995.
[2] I. Patras, E. A. Hendriks, and R. L. Lagendijk, “Video segmentation by MAP labeling of watershed segments,” IEEE Trans. Pattern Anal. Machine Intell., vol. 23, no. 3, pp. 326-332, Mar. 2001.
[3] Y. Tsaig and A. Averbuch, “Automatic segmentation of moving objects in video sequences: a region labeling approach,” IEEE Trans. Circuits Syst. Video Technol., vol. 12, no. 7, pp. 597-612, July 2002.
[4] H.-J. Chen and Y. Shirai, “Segmentation based on accumulative observation of apparent motion in long image sequences,” IEICE Trans. Inf. & Syst. vol. E77-D, no. 6, pp. 694-704, June 1994.
[5] A. Neri, S. Colonnese, G. Russo, and P. Talone, “Automatic moving object and background separation,” Signal Processing, vol. 66, no. 2, pp. 219-232, Apr. 1998.
[6] T. Meier and K. N. Ngan, “Segmentation and tracking of moving objects for content-based video coding,” IEE Proc.-Vis. Image Signal Process., vol. 146, no. 3, pp. 144-150, June 1999.
[7] T. Meier and K. N. Ngan, “Video segmentation for content-based coding,” IEEE Trans. Circuits Syst. Video Technol., vol. 9, no. 8, pp. 1190-1203, Dec. 1999.
[8] C. Kim and J.-N. Hwang, “Fast and automatic video object segmentation and tracking for content-based applications,” IEEE Trans. Circuits Syst. Video Technol., vol. 12, no. 2, pp. 122-129, Feb. 2002.
[9] S.-Y. Chien, S.-Y. Ma, and L.-G. Chen, “Efficient moving object segmentation algorithm using background registration technique,” IEEE Trans. Circuits Syst. Video Technol., vol. 12, no. 7, pp. 577-586, July 2002.
[10] J. Canny, “A computational approach to edge detection,” IEEE Trans. Pattern Anal. Machine Intell., vol. 8, no. 6, pp. 679-698, Nov. 1986. [11] T Aach, A. Kaup, and R. Mester, “Statistical model-based change
detection in moving video,” Signal Processing, vol. 31, no. 2, pp. 165-180, Mar. 1993.
[12] M. Kim, J. G. Choi, D. Kim, H. Lee, M. H. Lee, C. Ahn, and Y.-S. Ho, “A VOP generation tool: automatic segmentation of moving objects in image sequences based on spatio-temporal information,” IEEE Trans. Circuits Syst. Video Technol., vol. 9, no. 8, pp. 1216-1226, Dec. 1999. [13] M. Kim and J. Kim, “Moving video object segmentation using statistical
hypothesis testing,” Electron. Lett., vol. 36, no. 2, pp. 128-129, Jan. 2000.
[14] Y.-H. Jan and D. W. Lin, “Extraction of video objects by combined motion and edge analysis,” in Proc. IEEE Int. Symp. Circuits Syst., pp. V-677—V-680, May 2002.
[15] T. Meier, and K. N. Ngan, “Automatic segmentation of moving objects for video object plane generation,” IEEE Trans. Circuits Syst. Video Tehcnol., vol. 8, no. 5, pp. 525-538, Sep. 1998.
[16] Y. Q. Shi and H. Sun, Image and Video Compression for Multimedia Engineering. New York: CRC Press, 2000.
Yih-Haw Jan received the B.S. and M.S. degrees in Electrical Engineering from Chung Hua Polytechnic Institute, Hsinchu, Taiwan, ROC., in 1995 and 1997, respectively. He currently is working towards the Ph.D. degree at the Department of Electronics Engineering of National Chiao Tung University, Hsinchu, Taiwan, R.O.C. His fields of research include video segmentation and digital communication systems.
David W. Lin received the B.S. from National Chiao Tung University, Hsinchu, Taiwan, R.O.C., in 1975, and the M.S. and Ph.D. degrees from the University of Southern California, Los Angles, U.S.A., in 1979 and 1981, respectively, all in electrical engineering. He was with Bell Laboratories during 1981-1983, and with Bellcore during 1984-1990 and again during 1993-1994. Since 1990, he has been a Professor in the Department of Electronics Engineering and the Center for Telecommunications Research, National Chiao Tung University. He has conducted research in digital adaptive filtering and telephone echo cancellation, digital subscriber line and coaxial network transmission, speech and video coding, and wireless communication. His research interests include various topics in communication engineering and signal processing.
Real-Time Implementation of MPEG-4 Video Encoder on Digital Signal
Processors
Pei-Yun Kuo and David W. Lin
Department of Electronics Engineering and Center for Telecommunications Research
National Chiao Tung University
Hsinchu, Taiwan 30010, R.O.C.
E-mails: [email protected], [email protected]
Abstract
The MPEG-4 standard specified by ISO/IEC MPEG is a very efficient coding standard for multimedia data. In this work, we use digital signal processors (DSPs) to implement a real-time simple profile MPEG-4 video encoder. The plat-form employed is Innovative Integration’s Quatro62 per-sonal computer card, which houses four chips of Texas In-struments’ TMS320C6201. It turns out that we need to use two chips to obtain an efficient encoder implementa-tion. We do some trimming of the MoMuSys code to fit the program into the limited DSP on-chip memories. To speed up the execution, we modify the DCT/IDCT and the motion estimation algorithm. We also modify some pro-gram sections to help the compiler parallelize the compiled code for efficient utilization of the parallel functional units of the DSP during execution. Currently, the implementa-tion can encode about 6 QCIF frames per second, but with uneven loads between the two DSPs. Compared to the orig-inal code, the speed-up is about four times, the code size is reduced by about 80%, and the loss is in PSNR (peak signal-to-noise ratio) is less than 0.5 dB.
1. Introduction
We consider implementation of an MPEG-4 simple profile video encoder on digital signal processors. The MPEG-4 video standard was originally for coding with high effi-ciency, very low bit-rate and universal access.
Figure 1 shows the detailed structure of video objects encoder. The key elements in simple profile are motion coder, discrete cosine transformation (DCT), quantization, DC predition, and variable-length coding (VLC). The mo-tion coder consists of a momo-tion estimator, momo-tion compen-sator, previous/next VOPs Store and motion vector (MV) Predictor and Coder. It is used to reduce temporal redun-dancy. In the simple profile, the motion vectors include mo-tion vector for
macroblock and four motion vectors for
blocks, and are specified to half-pixel accuracy.
This work was supported by the National Science Council of R.O.C. under grant no. NSC 91-2219-E-009-045.
DCT Quanization Prediction & Scanning VLC Output Bitstream Input frame Motion Compensation Segmentation frame buffer Motion Estimation IDCT Shape Encoding Inverse Quanization + _
Fig. 1: Detailed structure of video objects encoder.
The purpose of DCT, quantization and DC predition is to reduce spatial redundancy for both intra and inter frames. The VLC technique reduces syntax redundancy.
The environment of DSP involves a host PC, DSP board and DSP chips on the board. The DSP chips are Texas Instruments (TI)’s TMS320C6201. The TMS320C62x is fixed-point DSP with eight operation units. The DSP board we use is Innovative Integration (II)’s Quatro6x. It is a PCI bus compatible DSP card housing four TI TMS320C62x processors in a symmetric multiprocessing relationship with high bandwidth inter-processor communication links.
The implementation is based on the code from [4]. It is a public source for MPEG-4 main profile encoding and decoding. Table 1 shows the functionalities that the Mo-MuSys software supports. However, to implement an MPEG-4 encoder on the DSP chip, the main profile appears too complicated on first attempt. Therefore, we implement the simple profile only.
The reduced MoMuSys source from [5] is a MPEG-4 source code with simple profile functions. The code size of the reduced source is decreased from 1.8 Mbytes to 740 Kbytes in CCS.
In order to implement the MPEG-4 video encoder on TMS320C62x, we reduce the code size and alter some functions to fit the limited program memory, 64 Kbytes. The altering of some functions, such as DCT/IDCT and motion estimation, also facilitates better parallelism after
Table 1: Functionalities of MoMuSys
Visual Tools Simple Main MoMuSys
Basic -I-VOP -P-VOP V V V -AC/DC Prediction -4-MV,Unrestricted MV Error resilience V V V Short Header V V V B-VOP V V
Method 1/Method 2 Quantization V V
P-VOP based temporal scalability
-Rectangular V V
-Arbitrary Shape
Binary Shape V V
Grey Shape V V
rate control V V
compilation. Therefore, with this features, we can achieve real-time performance.
In the section 2, we discribe the method of the code size reduction and code acceleration. The overall system design of the MPEG-4 encoder, which uses two DSPs working to-gether with host PC, is described in section 3. The paper also presents experimental results on the speed and the rate-distortion performance of the implementation in the section 4. Finally, sention 5 contains the conclusion.
2. MPEG-4 Video Encoder Implementation
and Optimization for DSP
2.1. Code Size Reduction
For the limited program memory, we use some methods to reduce the code size.
Remove the rate control
The rate control defined in MoMusys is composed of floating-point operations which is difficult to digital signal processor. For the code size and code speed, the rate control is removed first.
Using macros to replace simple functions
The C code in MoMuSys has many functions with just one or two instructions. Therefore, we can use the “de-fine” macros to replace the simple function.
changing method of setting control parameters The initial method of setting the control parameters is reading them from the file. we change the method to specifying their value in a *.h mode and use the instruction “#include” to include the *.h files.
Using conditional compilation to compile needed functions IDCT,141.9 Mcycles DCT,123.9 Mcycles MotionEstimation,60.0 Mcycles Interpolation others
Fig. 2: Comparison of execution time in MoMuSys.
Because the compiler knows these control parameters at the time of compilation by including the *,h file, We can use “#if”, “#else” to separate mutually exclusive function calls based on settings of control parameters. Therefore, only the needed functions would be com-piled.
Sidestepping layers and objects
In simple profile, there is just one layer and one object, hence muti-layers and muti-objects coding is not nec-essary. We rewrite some functions for just single layer and single object.
Other methods for code size reducing
Several other useful methods for code size reduction are function combination, removal of useless library function calls and replacement of library function calls by simpler operations.
Table 2 shows the summary of the code size reduction. With the techniques described above and some simple code reorganizatoin, the final code size becomes 108 Kbytes.
2.2. Code Acceleration
Figure 2 shows the comparsion of complexity (execution time) in MoMuSys with QCIF Foreman. The functions DCT, IDCT, motion estimation and interpolation occupy most of exection time. In order accelerate the encoder, we have to optimize those functions.
1. DCT and IDCT
The DCT/IDCT in MoMuSys is Fast DCT using floating-point computation which is unsuitable for fixed-point digital signal processor. In converting the floating-point DCT/IDCT to fixed-point, all the floating-point numbers are represented by 16-bit in-tegers. The SNR with integer DCT/IDCT is just a
Table 2: Summary of Code Size Reduction
method reduction percentage
Remove the rate control 257 Kbytes 34.7% Using Macros to Replace Simple Functions 123 Kbytes 16.6% Changing Method of Setting Control Parameters 26 Kbytes 3.5% Using Conditional Compilation to Compile Needed Functions 76 Kbytes 10.7% Sidestepping Layers and Objects 56 Kbytes 7.6% Other Methods for Code Size Reducing 96 Kbytes 12.1%
little worse than the floating-point case, but the inte-ger DCT/IDCT yields great improvement in timing, almost 98% timing reduction.
2. Fast
integer motion search
We use the diamond motion search as the fast algo-rithm to replace the full-search. Considering code memory and DSP character, the diamond search is a best choice for slow-moving video. When coding fast-moving video, we use the motion vector in the left-hand macroblock to estimate current motion vector. The method is as simple as the initial diamond search but faster than the initial diamond search when coding fast-moving video.
3. Fast
integer motion estimation
After searching for
motion vectors, additional search made for
vectors. Using the
mo-tion vector as the search center, the search range of
motion estimation is 2 pixels. The same as the
motion estimation, the algorithm of
mo-tion estimamo-tion change to diamond search to replace the full search.
4. Half-pel motion estimation
The half-pel motion estimation searches over the eight nearest half-pel neighbors of the best full-pel vector to find the best solution. In this part, using the algo-rithm described in [6] can be beneficial. It separate the eight nearest half-pel neighbors to the perpendicular and oblique parts. Check the perpendicular part first. If the smallest SAD is in the center, stop the functions. If not so, check the oblique parts.
5. Fast Interpolation
In half-pixel motion estimation, the half pixel values are computed using the bi-linear interpolation. Each four half pixels is combination of four integer pixels. Because each memory aceess instruction costs four cy-cles in TI’s digital signal processor, the intepolation with huge memory access is time-consuming. Because the intepolated pixel is combinated by the two or four neighboring integer pixels, the pixels in the center of the two half pixels is loaded twice. To speed up the functions, we can decrease the repeated loads,
0 20 40 60 80 100 120 140 160 M cycles
IDCT DCT MotionEstimation Interpolation others
functions
initial code revised code
Fig. 3: Comparison between initial code and revised code in time complexity.
and use the assembly instruction ’ldw’ (load word) and ’sdw’ (store word) to replace two ’ldh’ (load short) and ’sdh’ to access two neighboring short integers simula-neously.
6. Fast SAD (sum of absolute differences)
Because SAD is the main kernel of motion estimation, the speed of SAD directly influences the speed of mo-tion estimamo-tion. Using the characteristics of the DSP chip, such as software pipelining and parallel proces-sors, the speed of SAD can be increased.
Figure 3 shows the comparsion between initial code and revised code in timing. The clock cycle for IDCT/DCT is reduced from 141.8 and 123.9 Mcycles to 1.9 and 2.2275 Mcycles, which is 98.6% and 98.2% reduction. The clock cycle for motion estimation is reduced from 60.0 Mcycles to 11.1 Mcycles, which is 81.5% reduction.
3. Video Encoder Integration on DSP Board
Because the optimized code is still too big to be placed in one 64Kbytes program RAM, we separate the MPEG-4 en-coder into two parts. One, called the main part, include file IO, data initial definition and motion estimation. The other, called the texture part, does texture coding, which primarily consists of the function “VopCodeShapeMorTextInter.”Start
Read Image
HOST CPU 0
P
MotionEstimation texture coding
VOP Padding Read bitstreams End ? NO Yes End reconstructed image VOP Padding Data Initization I or P I−frame Curr image MV bitstreams CPU 3 Read Image from Camera
Fig. 4: Overall program flow on PC and DSP board.
Figure 4 shows the overall program flow on the DSP board and the host PC.The overall system employs three processors, namely, the host, DSP CPU0, and DSP CPU3. The host is only used for file IO. The input image is cap-tured by the camera and transmitted to DSP board by host PC. The output bitstreams is writen to a file by host PC. CPU0 executes the main part of MPEG-4, handling the ini-tial definitions for each video object and motion estimation. CPU3 executes texture coding for intra and inter frames.
when coding intra frames, the current image data are transferred to CPU3. After getting the image data, CPU3 can complete DCT, quantization, de-quantization,IDCT and run length coding and produce the reconstructed image and the encoded bitstream. The reconstructed image is fed to CPU0 for VOPPAdding and becomes reference frame in coding of next frame. Also, in CPU3, another VOPPadding reconstructed image.
When coding inter frames, motion estimation and motion compensation are needed. In the system, motion estimation and texture coding are executed in parallel. The Synchro-nization of CPU0 and CPU3 is achieved using messages over the FIFOLInk.
The final result, the bitstreams, are generated from both CPU0 and CPU3. Because the PCI interface control regis-ter and SRAM are only accessible from CPU0, only it can communicate with the host.Therefore, the bitstreams data must be transferred through CPU0 to the host.
4. Simulation Result
After optimization and parallelism,the function time is re-duced. In the section, we show the overall performance of MPEG-4 encoder and R-D curve between initial MoMuSys and optimization mode.
4.1. Experimental Results
4.1.1. Texture Part
Table 3 shows a breakdown of the clock cycle for QCIF coding intra frame coding. The function MB CodeCoeff implements zigzag scan and run length coding, which need many conditional branches and are difficult to reduce in op-timization. Therefore, the speed-up of the function is less. The clock cycles of other functions with loops are reduced more significantly. The total clock cycles to encode one I frame in the texture parts are approximately 19.8 Mcycles, or 0.119sec.
When encoding a P frame, motion compensation is added. This takes almost 40 Kcycles for each loops. There-fore, the total cycles in encoding on P frame in the texture part are almost 21 Mcycles, or 0.131 sec.
4.1.2. Main Part
Table 4 shows a breakdown of the clock cycle of the main part. The primary complexity of the main part is due to mo-tion estimamo-tion. Using the methods described preciously, the motion estimation is speeded up by 542.96%. The over-all speed-up of the main part is 431.43%. In the final mode, the main part costs about 17.5 Mcycles, 0.109 sec per QCIF frame with data transmission.
4.1.3. Overall system
Using the clock functions defined in “time.h” to estimate the speed of system, we obtain the results shown in Table 5. The execution time per a frame includes encoding in the main part and texture part and data transmission. Al-though the estimated execution time is only 0.13 seconds per frame, the pipelining of the two requires additional time. To sum up the performance, the resulting system can encode approximately six QCIF frames per second.
4.2. Rate-Distortion (R-D) Performance
Figures 5 and 6 show the R-D performance for the test se-quences, foreman qcif.yuv, trevor qcif.yuv, suzie qcif.yuv and akiyo qcif.yuv. The original frame rate is 30 frame/sec in each case. The intra quantization step size is 15. The in-tra period is 4. As the figures show, because change in the motion estimation and DCT, the performance of two pro-grams is about 0.3 dB decrease on the same bit-rate. Be-cause the sequence Foreman has the BeBe-cause the sequence “Foreman” has the global motion vector, using the first mo-tion estimamo-tion can got the better performance. Therefore,
Table 3: Breakdown of Clock Cycles for QCIF Intra Frame Coding
seb text initial MoMuSys Code Final optimized Code number of execution
Process Initial 4,261 4,261 1
for each loop 2,819,090 151,119 11*9
CodeMB 2,740,428 66,535 11*9 DCT 208,549 3126 11*9*6 BlockQuantH263 4,409 2086 11*9*6 BlockDequantH263 4,967 2158 11*9*6 IDCT 238,815 3750 11*9*6 doDCACpred 20,671 16671 11*9 MB CodeCoeff 57,991 47,981 11*9 total 278,734,416 15,705,870
with Data transmission 282,869,570 19,841,024
Table 4: Breakdown of Clock Cycles for Main Part in Coding of QCIF Frames
main initial MoMuSys Final optimized Code number of execution initial (main & vop process) 113,135 113,135 1
vopProcess (without) 248,336 248,336 1
read image 2,833,299 2,833,299 1
Vopcode (without motionEstimation) 2,507,009 1,194,283 1
VopPadding 2,415,721 1,128,053 1
MotionEstimation 69,539,561 12,860,402 1
init (Interpolate Image and AllocImage) 9,522,936 1,741,803 1
MBMotionEstimation 303,126 43,666 99
halfpel motion estimation 219,155 39,713 99
SAD MB 13,854 3168 99*5
End 18,824 18,824
total 75,508,500 17,516,615
Table 5: Overall Coding Speed
average time per QCIF frames (seconds)
QP akiyo qcif.yuv suzie qcif.yuv trevor qcif.yuv foreman qcif.yuv
28 0.131 0.137 0.137 0.142 24 0.131 0.137 0.137 0.143 20 0.132 0.137 0.138 0.143 16 0.132 0.138 0.140 0.146 12 0.142 0.143 0.145 0.153 8 0.145 0.149 0.151 0.158 4 0.150 0.155 0.158 0.164
