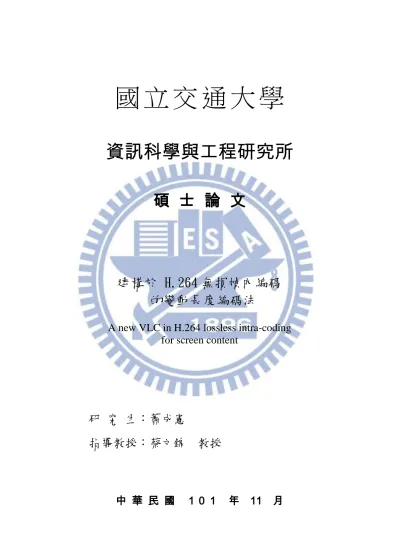

國
立
交
通
大
學
資訊科學與工程研究所
碩
士
論
文
建構於 H.264 無損幀內編碼
的變動長度編碼法
A new VLC in H.264 lossless intra-coding
for screen content
研 究 生：蕭成憲
指導教授：蔡文錦 教授
建構於 H.264 無損幀內編碼的變動長度編碼法
A new VLC in H.264 lossless intra-coding for screen content
研 究 生：蕭成憲 Student：Cheng-Hsien Hsiao
指導教授：蔡文錦 Advisor：Wen-Jiin Tsai
國 立 交 通 大 學
資 訊 科 學 與 工 程 研 究 所
碩 士 論 文
A ThesisSubmitted to Institute of Computer Science and Engineering College of Computer Science
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Computer Science
November 2012
Hsinchu, Taiwan, Republic of China
i
中文摘要
視窗內容係指經由電腦或者其他數位裝置所產生之圖像與影音，其實際應用 的例子有: 遠端桌面、桌面分享、視訊會議以及遠端教學等等。這些視窗內容通 常都包含了大量的文字與圖示部分，然而這些部分並不適合利用當前的圖像壓縮 規格以及 H.264/AVC 中的幀內編碼方式進行壓縮。 因此，於本篇論文中我們針對視窗內容中的文字部分，提出一個新的變動長 度編碼用於 H.264/AVC 無失真幀內編碼中。我們利用文字區塊之特性，基於適應 性變動長度編碼法而設計新的無失真編碼方法，並且利用位元率失真最佳化決定 區塊壓縮的模式。實驗結果顯示提出之方法相較於 H.264/AVC 編碼方式不僅能夠 降低編碼位元率，並且能夠增進編碼效率以及視覺品質。 關鍵字：視窗內容、無失真幀內編碼、變動長度編碼ii
ABSTRACT
Screen content image and video were generated by computer or other digital
devices in the real applications such as remote desktop, desktop sharing, video
conferencing, and remote education. However, screen content normally contains
numerous texts and graphic part which are not appropriate to be encoded by the
state-of-the-art image compression standards and intra frame coding in
H.264/advanced video coding (AVC).
Therefore, in this paper we proposed a new variable length coding in H.264/AVC
lossless intra-coding for text part in screen content images or videos. We utilize the
characteristics of text blocks to design the new lossless coding method based on
context adaptive variable length coding (CAVLC), and determine the block
compression mode by rate-distortion optimization (RDO) selector. Experiment results
show that, compared to H.264/AVC coding, the proposed method not only reduce the
coding bitrates, but also enhance the coding efficiency and visual quality on text
content.
iii
誌謝
在這兩年多的研究所生涯中，能完成我的碩士論文，首先最要感謝的就是我 的指導教授蔡文錦博士。在學業研究上，孜孜不倦地與我討論各種相關的議題， 點出我研究上的盲點，引導我前往正確的方向；在日常生活中，不時的關心我並 且給予我前進的力量。在此向我最敬愛的指導教授蔡文錦博士，致上最高的敬 意。 我要感謝實驗室的學長姐，吳佳穎、呂威漢、張育誠、謝寧靜、孫域晨，謝 謝你們指導我各種研究上的相關知識。另外要感謝我的同學們，黃致遠、楊巧安、 林宗翰，謝謝你們陪伴我度過這段追求知識的過程，課程上的互相砥礪，生活中 的互相打氣，讓我從你們身上獲益良多。還有謝謝學弟們，王敬嚴、林建儒、胡 振達、高彬倬，謝謝你們讓我在研究所生涯中過得更加精彩，祝福你們順利畢業。 最重要的，感謝我的家人及女友，尤其是我的父母親，在背後默默支持我， 讓我在疲憊的時候有一個溫暖的避風港，謝謝你們對我的期待及付出。 接下來就要告別學生生涯進入職場了，大家珍重。 謹以此論文獻給我的師長、家人及所有關心我的朋友們iv
CONTENT
中文摘要... i ABSTRACT ... ii 誌謝... iii CONTENT ... iv LIST OF FIGURE ... viLIST OF TABLE ... viii
Chapter 1 Introduction... 1
Chapter 2 Related Works ... 5
2.1 Lossless Intra Coding ... 5
2.2 Pixel-wise Intra Prediction [7] ... 6
2.3 Improved CAVLC (IMP_CAVLC) [8] ... 7
Chapter 3 Proposed Method ... 12
3.1 Block Classification ... 13
3.2 Text Block Analysis ... 15
3.3 VLC Table Design ... 20
v
4.1 Lossless Block Map ... 25
4.2 Bitrate Performance ... 28
4.3 Rate-Distortion Performance ... 30
Chapter 5 Conclusion ... 39
vi
LIST OF FIGURE
Figure 1-1 Two categories of block-based compression scheme ... 2
Figure 2-1 Nine prediction modes for the intra 4 × 4 prediction ... 5
Figure 2-2 (a) Block-based (b) Pixel-wise intra 4 × 4 vertical prediction ... 6
Figure 3-1 Block diagram of proposed method ... 13
Figure 3-2 Block map of lsy_coef_num over 10 ... 14
Figure 3-3 Lsy_coef_num - Avg. bitrate curves for 4 test sequences ... 15
Figure 3-4 Distribution probability of lsl_coef_num at T from 10 to 15 for 4 sequences ... 17
Figure 3-5 Distribution probability of lsl_level_cnt at T from 10 to 15 for 4 sequences ... 19
Figure 3-6 Distribution probability of zero in each scanning position ... 20
Figure 4-1 Lossless block map by RDO selector... 26
Figure 4-2 Probability of each lsy_coef_num in each sequence lossless blocks ... 28
Figure 4-3 Lsy_coef_num versus Avg. bitrate curves of each method for 4 sequences ... 30
Figure 4-4 R-D curves of each method for 4 sequences ... 32
vii
... 34
Figure 4-6 R-D curves of each method with inter coding for SlideEditing sequence 30 frames ... 35
Figure 4-7 Frame-by-frame PSNR comparison of each method ... 36
Figure 4-8 Visual quality comparison for part of SlideEditing sequence frame ... 37
viii
LIST OF TABLE
Table 2-1 CAVLC syntax elements for residual data ... 8
Table 2-2 Codeword table for numcoeff in IMP_CAVLC ... 10
Table 3-1 Proposed VLC table-1 ... 21
1
Chapter 1 Introduction
With the development of computer and network technologies, there are more and
more images and videos which mainly include screen contents in real application
scenarios such as remote desktop, desktop sharing, video conferencing, and remote
education. Screen contents normally refer to image and video which are generated by
computers or some other digital devices, and they are generally a combination of text,
graphics and natural contents For example, web pages, slides, online games, captured
screen and so on are kinds of screen contents.
Unlike natural contents, texts and graphics contents are much sharper, with high
contrast as well as more sensitive to human eyes. The state-of-the-art image
compression standards and intra frame coding in H.264/advanced video coding (AVC)
are all designed for natural contents, and these compression standards typically utilize
transform and quantization to achieve compression, but for text and graphics contents,
quantization after the transform will result in unbearable edge noise on the decoded
frames, so these compression standards are not appropriate for text and graphic
contents.
Therefore, many approaches have been proposed in the recent years to resolve
2
approaches, first segment the images or frames into non-overlapping blocks with
certain size, and then for each block, the adopted compression schemes can be
classified into two main categories as shown in Figure 1-1.
Figure 1-1 Two categories of block-based compression scheme
In Figure 1-1(a), first the block is classified into one of the two distinct block
types: text blocks or natural blocks; then according to the block types, use
corresponding coding method to encode the block. Thus, how to implement the block
classification to distinguish text blocks from natural block is the key process in this
compression scheme. In [1], a transform coefficient likelihood (TLC) scheme was
proposed, which examines the DCT coefficient values of 8 × 8 blocks for separating
the textural and graphical portions of a compound image, which. In [2], the authors
analyzed the histograms and gradients of the blocks to classify each 16 × 16 block
into one of four types: smooth, text, hybrid and picture blocks based on
3
text/graphic, picture/background blocks by computing the statistical features based on
discrete wavelet transform coefficients in the detail sub-bands of each 8 × 8 block.
In Figure 1-1(b), the block is first encoded by distinct coding methods, and then
passes through mode selector such as rate-distortion optimization (RDO) in H.264 to
choose the best result. In [4], two new lossy modes were proposed, which include
residual scalar quantization (RSQ) mode and base colors and index map (BCIM)
mode. The method in [5-6] combined gzip lossless coding technique into H.264
hybrid coding, and used macroblock as the basic coding unit. In [4-6], they all applied
RDO criterion to select the optimum mode or coder.
In fact, no matter which category the compression scheme is, the method to
encode each kind of blocks properly is the most essential part, especially for text
blocks. Typically, coding methods for text blocks can be divided into two categories:
lossy [2, 4] and lossless [3, 5, 6] coding. For lossless coding, the quality of text block
can be preserved, so there should be no noise on text edges. Therefore, how to reduce
the coding bitrates becomes the major issue for lossless coding.
Consequently, in this thesis, a new variable length coding (VLC) is proposed,
which is applied on H.264 lossless intra-coding for text blocks. To see the
performance of the proposed method, experiments have been conducted to compare
4
paper are as follows: section 2 describes related works about lossless intra-coding
method; section 3 describes our motivation and the proposed method which includes
block classification, text block analysis and VLC table design; experimental results
5
Chapter 2 Related Works
2.1 Lossless Intra Coding
Traditional H.264/AVC is designed for lossy compression, the lossless coding
capabilities are less well known. In the standard which included the so-called fidelity
range extensions (FRExt) [9], added design improvements for more efficient lossless
coding. The intra prediction utilized various predicted directions and selectable linear
combinations of neighbor pixel values to form a prediction block which consisted of
the difference data.
Figure 2-1 Nine prediction modes for the intra 4 × 4 prediction
When using lossy coding technique, the compression process consists of block
transform followed by quantization to remove spatial redundancy, and entropy coding
of the block of transformed coefficients. However, when using lossless coding
technique, the quantization which mainly cause the data loss cannot be performed,
6
compression process only consists of entropy coding of the block of difference data.
2.2 Pixel-wise Intra Prediction [7]
The H.264/AVC intra prediction is performed on variable block sizes such as
4 × 4, 8 × 8 or 16 × 16, and the block-based intra prediction utilizes the boundary
pixels of current block to be encoded and various predicted directions to form the
residual data. However, the correlation between current predicted pixel and its
neighbor pixels is closer than block boundary pixels. Thus, [7] proposed pixel-wise
intra prediction based on pixel-by-pixel differential pulse code modulation (DPCM),
performing intra prediction by neighbor pixel rather than farther block boundary
pixels as shown in Figure 2-2.
Figure 2-2 (a) Block-based (b) Pixel-wise intra 4 × 4 vertical prediction
In Figure 2-2, p0 to p15 are the block pixels to be encoded, as well as X and A to
L are the block boundary pixels which used to perform the intra prediction.
7
block-based in Figure 2-2(a) uses boundary pixel A to calculate the residuals R0, R4,
R8 and R12 as follows:
R0 = p0 – A (1)
R4 = p4 – A (2)
R8 = p8 – A (3)
R12 = p12 – A (4)
While the pixel-wise prediction in Figure 2-2(b) not uses boundary pixel A to predict all of the pixels in the column, but uses the upper pixel of each pixel to calculate the residual as follows: R0 = p0 – A (5)
R4 = p4 – p0 (6)
R8 = p8 – p4 (7)
R12 = p12 – p8 (8) Furthermore, the pixel-wise DPCM has better performance in reducing spatial
redundancy that the purpose of intra prediction, and further reduces the bitrate in
comparison with the lossless intra coding method previously included in the
H.264/AVC standard.
2.3 Improved CAVLC (IMP_CAVLC) [8]
Context-based adaptive variable length coding (CAVLC) for the H.264/AVC
standard was originally designed for lossy video coding, and as such does not yield
adequate performance for lossless video coding. [8] proposed an improved CAVLC
8 between lossy and lossless coding.
In H.264/AVC, CAVLC was designed to take advantage of several
characteristics of residual data in lossy coding:
1) After transform and quantization, sub-blocks typically contain many
zeros, especially in high-frequency regions.
2) The level of the highest nonzero coefficients tends to be as small as one.
3) The level of nonzero coefficients tends to be larger toward the
low-frequency regions.
Therefore, taking into consideration the above characteristics, CAVLC employs
the syntax elements coeff token, trailing ones sign flag, level prefix, level suffix, total
zeros, and run before to efficiently encode the residual data. The specific function of
each syntax element is described in Table 2-1.
Table 2-1 CAVLC syntax elements for residual data
However, in lossless coding, residual data do not represent quantized transform
9
predicted pixel values. Therefore, the statistical characteristics of the residual data in
lossless coding are as follows:
1) The probability of existence of a nonzero coefficient is independent of the
scanning position, and the number of nonzero coefficients is generally large,
compared with those in lossy coding.
2) The absolute value of a nonzero coefficient does not decrease as the
scanning position increases and is independent of the scanning position.
3) The occurrence probability of a trailing one is not so high; therefore, the
trailing one does not need to be treated as a special case of encoding.
Therefore, [8] modified CAVLC on the number of nonzero coefficients and level
coding. For the coding of the nonzero coefficients, [8] encoded the total number of
nonzero coefficients (numcoeff) but do not consider the number of trailing ones
(numtrailingones), and only used one VLC table which is designed according to the
10
Table 2-2 Codeword table for numcoeff in IMP_CAVLC
For the level coding, the absolute level value of each nonzero coefficient
(abs_level) is adaptively encoded by a selected VLC table from among the 7
predefined VLC tables in reverse scanning order. However, abs_level in lossless
coding is independent of the scanning position. Therefore, [8] designed an adaptive
method for VLC table selection that can decrease or increase according to the
weighted sum of previously encoded abs_level. The decision procedure for
determining the VLC table is described as follows:
Where ai and abs_leveli are the weighting coefficient and abs_level value,
respectively, where both values are related to the current scanning position i. In (11) (10) (9)
11
addition, T(abs_leveli) and lastcoeff represent the threshold value for selecting the
corresponding VLC table used to encode the next abs_level and the scanning position
12
Chapter 3 Proposed Method
There are lossless coding approaches in H.264, and some works, e.g., the method
in [8], have been proposed to improve the efficiency of lossless coding. However,
most of them are not specialized for text blocks because the characteristics of text
blocks are not taken into considerations. Moreover, for lossless coding, since reducing
coding bitrates is the most important issue, it is worth analyzing entropy coding
thoroughly for text blocks, and design a new coding scheme to have a more efficient
coding performance.
The proposed method is designed for encoding screen contents which include
texts and natural images in the same frame. Our approach expects to encode the
natural images by using traditional H.264 which is a lossy method, while encode the
texts by using a lossless coding method which performs pixel-wise intra prediction
and then encodes the residual directly using a proposed VLC without performing
transform and quantization. The block diagram of proposed method is shown in
Figure 3-1. Each 4 × 4 block is encoded respectively by a lossy H.264 encoder and
the proposed lossless method. Then a rate-distortion optimization (RDO) technique is
adopted for coding-mode (lossy or lossless) decision.
13
Figure 3-1 Block diagram of proposed method
3.1 Block Classification
There are various block classification methods based on numerous characteristics
of texts. One of the characteristics is the distribution of DCT coefficients. DCT-based
classification schemes utilize the statistics of DCT coefficients to train a classifier and
get empirical thresholds [1].
Herein, we propose a new DCT-based block classification method. Considering
that text blocks typically have many high-gradient pixels, which will result in many
nonzero high-frequency coefficients. Namely, the more nonzero DCT coefficients a
block has, the more likely it is a text block. Therefore, we utilize the number of
nonzero DCT coefficients, denoted by lsy_coef_num, to perform block classification.
For 4 × 4 blocks, the value of lsy_coef_num ranges from 0 to 16. To find out text
14
≧ 10 for QP=24 and the results are shown in Figure 3-2, where four screen-content sequences are adopted, one on each row.
Figure 3-2 Block map of lsy_coef_num over 10
For each row in Figure 3-2, the left side shows the original frame and the right
side shows the corresponding block map which includes all the blocks (marked as
black color) with lsy_coef_num ≧10 in its original frame. It is observed that most
15
perform analysis on these blocks to design our VLC.
3.2 Text Block Analysis
For lossless coding, coding bitrate directly affects the compression performance.
Figure 3-3 shows the curve of lsy_coef_num versus average bitrate for 4 test
sequences in lossy mode.
Figure 3-3 Lsy_coef_num - Avg. bitrate curves for 4 test sequences
More lsy_coef_num, more bits for the block to be encoded. After previous block
classification, the text block is distributed over the region of higher average bitrate,
and our proposed method expects to design a lossless coding approach in order to
reducing more bits for encoding text blocks. Due to our lossless coding is based on
CAVLC and pixel-wise intra prediction, thus we analyze the statistics of coefficient
and level information in lossless mode for text blocks which classified previously.
After performing pixel-wise intra prediction, the residual is directly encoded by
0 10 20 30 40 50 60 70 80 90 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A vg . bi tr at e (bi ts ) lsy_coef_num SlideEditing SlideShow ChinaSpeed BasketballDrillText
16
entropy coding, herein, we call the residual as coefficient and the residual value as
level. Then, we analyze the distribution of number of nonzero coefficients and level
values in lossless mode, and we call them as lsl_coef_num and lsl_level_cnt
respectively. Note that because of the coefficients is directly produced by pixel-wise
intra prediction, the range of the absolute level value is 0 to 255.
We observe the distribution probability of lsl_coef_num and lsl_level_cnt at
threshold T from 10 to 15 for 4 sequences, and further find out some characteristics of
coefficient block. Figure 3-4 shows the distribution probability of lsl_coef_num for
each sequence.
(a) Distribution probability of lsl_coef_num in SlideEditing sequence
0 5 10 15 20 25 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D is tr ibut ion pr obabi lit y Lsl_coef_num SlideEditing T=15 T=14 T=13 T=12 T=11 T=10
17
(b) Distribution probability of lsl_coef_num in SlideShow sequence
(c) Distribution probability of lsl_coef_num in ChinaSpeed sequence
(d) Distribution probability of lsl_coef_num in BasketballDrillText sequence
Figure 3-4 Distribution probability of lsl_coef_num at T from 10 to 15 for 4 sequences As above shown, we can obtain two characteristics. First, the distribution
0 5 10 15 20 25 30 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D is tr ibut ion pr obabi lit y Lsl_coef_num SlideShow T=15 T=14 T=13 T=12 T=11 T=10 0 5 10 15 20 25 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D is tr ibut ion pr obabi lit y Lsl_coef_num ChinaSpeed T=15 T=14 T=13 T=12 T=11 T=10 0 10 20 30 40 50 60 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D is tr ibut ion pr obabi lit y Lsl_coef_num BasketballDrillText T=15 T=14 T=13 T=12 T=11 T=10
18
probability of lsl_coef_num is similar at different threshold T for each sequence;
second, the probability of lsl_coef_num equal to 16 is much higher than others.
Following shows the distribution probability of lsl_level_cnt for each sequence
in Figure 3-5.
(a) Distribution probability of lsl_level_cnt in SlideEditing sequence
(b) Distribution probability of lsl_level_cnt in SlideShow sequence
0 5 10 15 20 25 30 35 40 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128 136 144 152 160 168 176 184 192 200 208 216 224 232 240 248 D is tr ibut ion pr obabi lit y
Absolute value of level
SlideEditing T=15 T=14 T=13 T=12 T=11 T=10 0 5 10 15 20 25 30 35 40 45 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128 136 144 152 160 168 176 184 192 200 208 216 224 232 240 248 D is tr ibut ion pr obabi lit y
Absolute value of level
SlideShow T=15 T=14 T=13 T=12 T=11 T=10
19
(c) Distribution probability of lsl_level_cnt in ChinaSpeed sequence
(d) Distribution probability of lsl_level_cnt in BasketballDrillText sequence
Figure 3-5 Distribution probability of lsl_level_cnt at T from 10 to 15 for 4 sequences According to Figure 3-5, the distribution probability of lsl_level_cnt is also
similar at different threshold T for each sequence, and less the absolute level value,
higher proportion in probability, especially 0 is most level value.
In CAVLC, zero information is encoded by run-length coding, due to the
coefficient block in lossy mode contains many zero, especially in high-frequency
regions, so the run-length coding is appropriate. However, the distribution of zero in
lossless mode is dispersing. Figure 3-6 shows the occurrence probability of zero at
0 5 10 15 20 25 30 35 40 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128 136 144 152 160 168 176 184 192 200 208 216 224 232 240 248 D is tr ibut ion pr obabi lit y
Absolute value of level
ChinaSpeed T=15 T=14 T=13 T=12 T=11 T=10 0 5 10 15 20 25 30 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128 136 144 152 160 168 176 184 192 200 208 216 224 232 240 248 D is tr ibut ion pr obabi lit y
Absolute value of level
BasketballDrillText T=15 T=14 T=13 T=12 T=11 T=10
20
each scanning position in text block. Note that the scanning order is raster scan.
Figure 3-6 Distribution probability of zero in each scanning position
As Figure 3-6 shown, the occurrence probability of zero is independent of
scanning position and obviously not centralized in high-frequency regions, thus the
run-length of zero encoding in CAVLC is not appropriate for lossless coding.
3.3 VLC Table Design
According to the analysis of text block, we obtain some characteristics of text
coefficient block to design the new entropy coding method.
Due to the occurrence probability of zero is independent of scanning position, we
do not encode the syntax total_zeros and run_before which encoded in CAVLC, we
regard zero as level coding. That is, the level normally refers to nonzero coefficients,
but in our proposed method, our level refers to all coefficients including of zero and
nonzero coefficients. Furthermore, because of no total_zeros and run_before, we also
0 5 10 15 20 25 30 35 40 45 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P robabi lit y Scanning position SlideEditing SlideShow ChinaSpeed BasketballDrillText
21
do not encode the coef_token syntax, as a result the proposed entropy coding only
contain the level coding.
CAVLC has 7 selected VLC tables to encode the level, but these tables are
designed for transform coefficients that the range of their values is extensive.
However, the range of our absolute level values is only 0 to 255 in lossless mode,
therefore the proposed method only utilize one VLC system to encode the level.
Owing to the distribution of lsl_level_cnt is similar at different threshold T, we
adopt the average distribution probability of lsl_level_cnt for 4 sequences at T equals
to 10 to design the VLC system. The principle of VLC design is that the level with
higher probability then uses shorter bits to encode, and the bits for encode level can be
divided into 3 parts: check bits (3 bits), level bits (0 to 7 bits) and sign bit (1 bit).
Table 3-1 shows the proposed VLC table including of bitstream pattern, bit length and
represented level values. Note the × in the table stands for the level bits and sign bit.
Table 3-1 Proposed VLC table-1
According to the first 3 check bits, decoder following read different bit length.
22
these level values with longer bit length is lower than that with shorter bit length. But
in Table 3-1, the zero still does not add in. Due to the zero is regarded as level coding
in our proposed method and the distribution probability of zero is much higher than
other levels, we modify the VLC table as shown in Table 3-2. We assign only 1 bit to
encode zero, and others levels add 1 bit to distinguish with zero, so the bit length for
each level is one more than in Table 3-1.
Table 3-2 Proposed VLC table-2
However, while lsl_coef_num is 16, there is no zero in the block, thus we can use
Table 3-1 to encode the blocks as well as saving more bits. Furthermore, the highest
distribution probability of lsl_coef_num is 16 and much higher than others, so we
adopt Table 3-1 to encode the blocks with 16 lsl_coef_num, and other blocks that
lsl_coef_num is less than 16 are adopt Table 3-2 to encode. Consequently, we have to
transmit a 1-bit flag for each lossless coding block to decoder for distinguishing
which table is used. According to extensive experiments, while the blocks with 16
23
24
Chapter 4 Experiment Results
In this paper, we proposed a new VLC in H.264 lossless intra-coding for
encoding text blocks. In order to verify efficiency of the proposed method, we
perform experiments on 4 test sequences of YUV420 and 8 bits per pixel format with
high-definition resolutions as follows:
SlideEditing, 1280 × 720, 300 frames. SlideShow, 1280 × 720, 500 frames. ChinaSpeed, 1024 × 768, 500 frames. BasketballDrillText, 832 × 480, 500 frames
We implement our proposed method in the H.264/AVC reference software
version JM 18.2, and encode all frames as intra frame for verify the enhanced
performance by our proposed lossless intra-coding with various OP which adopted 12
to 24. We compare our proposed method with two compression approaches. The first
one is encoding all sequence by lossy H.264/AVC, and the second one is
partial-lossless compression by improved CAVLC (IMP_CAVLC) [8] for lossless
coding and H.264/AVC for lossy coding.
Experiment results firstly show the lossless block map to indicate the lossless
25
average bitrate curve to verify whether achieving bits saving and finally show the R-D
performance and visual quality.
4.1 Lossless Block Map
The purpose of showing lossless block map is verifying that our proposed
entropy coding can precisely perform on the text blocks which classified by our block
classification, and further be selected by RDO mode selector. We use the same frames
of each sequence as in Figure 3-1 at QP is 24, and mark the lossless block as black
26
Figure 4-1 Lossless block map by RDO selector
The black blocks in the block map are selected by RDO selector to be encoded
by lossless coding. Our proposed method is designed according to the characteristics
of text block, as Figure 4-1 shown, most text contents in the frames can be exactly
selected. Due to our block classification is based on lsy_coef_num, we take extensive
experiment to verify the distribution of lsy_coef_num in lossless blocks selected by
RDO selector. Figure 4-2 shows the result for each sequence, the probability of
lsy_coef_num over 11 average possesses 81 percent, especially at lsy_coef_num is 16
27
(a) Probability of each lsy_coef_num in SlideEditing sequence lossless blocks
(b) Probability of each lsy_coef_num in SlideShow sequence lossless blocks
(c) Probability of each lsy_coef_num in ChinaSpeed sequence lossless blocks
0 5 10 15 20 25 30 35 40 45 50 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P robabi lit y lsy_coef_num SlideEditing 0 5 10 15 20 25 30 35 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P robabi lit y lsy_coef_num SlideShow 0 5 10 15 20 25 30 35 40 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P robabi lit y lsy_coef_num ChinaSpeed
28
(d) Probability of each lsy_coef_num in BasketballDrillText sequence lossless blocks
Figure 4-2 Probability of each lsy_coef_num in each sequence lossless blocks
4.2 Bitrate Performance
The purpose of our proposed method is designing a new lossless entropy coding
to achieve more bits saving than IMP_CAVLC, and our target blocks are that with
higher lsy_coef_num ones. Therefore, we take experiments to show the average bitrate
of each lsy_coef_num to verify the performance of coding bitrate. Note the QP is 24 in
here. The results of each sequence are shown in Figure 4-3.
0 5 10 15 20 25 30 35 40 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P robabi lit y lsy_coef_num BasketballDrillText
29
(a) Lsy_coef_num versus Avg. bitrate curves in SlideEditing sequence
(b) Lsy_coef_num versus Avg. bitrate curves in SlideShow sequence
(c) Lsy_coef_num versus Avg. bitrate curves in ChinaSpeed sequence
0 20 40 60 80 100 120 140 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A vg . bi tr at e (bi ts ) Lsy_coef_num SlideEditing Proposed IMP_CAVLC h.264 0 20 40 60 80 100 120 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A vg . bi tr at e (bi ts ) Lsy_coef_num SlideShow Proposed IMP_CAVLC h.264 0 20 40 60 80 100 120 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A vg . bi tr at e (bi ts ) Lsy_coef_num ChinaSpeed Proposed IMP_CAVLC h.264
30
(d) Lsy_coef_num versus Avg. bitrate curves in BasketballDrillText sequence
Figure 4-3 Lsy_coef_num versus Avg. bitrate curves of each method for 4 sequences At higher Lsy_coef_num regions, we can reduce appropriately 10 to 20 average
bits compared with IMP_CAVLC, especially at Lsy_coef_num is 16, the proposed
average bitrate is close to H.264, that means our proposed method can achieve
lossless coding with little average bits more than H.264 lossy coding at higher
Lsy_coef_num regions, even at the smaller QP value, the proposed method can
achieve fewer coding bitrate than lossy coding.
4.3 Rate-Distortion Performance
In this section, the R-D performance of each method is examined. Owing to our
proposed method is lossless entropy coding, the distortion of the blocks encoded by
our proposed method is 0, and this is also the reason why we only need to focus on
reducing coding bitrate. According to section 4-2 bitrate performance experiment
0 20 40 60 80 100 120 140 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A vg . bi tr at e (bi ts ) Lsy_coef_num BasketballDrillText Proposed IMP_CAVLC h.264
31
results, our proposed method exactly reduce more coding bitrate than IMP_CAVLC,
and further result in more blocks encoded by lossless coding and enhance the PSNR
performance. Therefore, following experiment results show the rate-distortion
performance of each method for each sequence.
(a) R-D curves in SlideEditing sequence
(b) R-D curves in SlideShow sequence
30 35 40 45 50 55 60 1.0 1.5 2.0 2.5 3.0 P SNR (dB ) Bitrate (bpp) SlideEditing Proposed IMP_CAVLC h.264 35 40 45 50 55 60 0.2 0.3 0.4 0.5 0.6 0.7 0.8 P SNR (dB ) Bitrate (bpp) SlideShow Proposed IMP_CAVLC h.264
32
(c) R-D curves in ChinaSpeed sequence
(d) R-D curves in BasketballDrillText sequence
Figure 4-4 R-D curves of each method for 4 sequences
The SlideEditing sequence is a typical screen content sequence, it contains
numerous text content in the frame, and resulting in at the same bitrate our proposed
method can achieve more than 6 to 8 dB performance improvement than H.264 as
well as 2 to 3 dB than IMP_CAVLC. For the SlideShow sequence, due to it contains
less text content and more smooth background natural content, the PSNR performance
is similar with IMP_CAVLC but 2 to 3 dB more than H.264. For the ChinaSpeed
sequence, proposed method can achieve 1 dB more than IMP_CAVLC and 2 dB more
35 37 39 41 43 45 47 49 51 53 55 0.5 1.0 1.5 2.0 2.5 3.0 P SNR (dB ) Bitrate (bpp) ChinaSpeed Proposed INP_CAVLC h.264 35 37 39 41 43 45 47 49 51 53 0 1 2 3 4 5 P SNR (dB ) Bitrate (bpp) BasketballDrillText Proposed IMP_CAVLC h.264
33
than H.264. The last BasketballDrillText sequence is close to totally natural content
sequence, the text content only appears in the bottom of frame with small proportion,
hence our proposed method and IMP_CAVLC have almost the same performance
with H.264, owing to the most blocks are selected to encode by lossy coding.
We further experiment the R-D performance by our block classification not RDO
mode selector, if the block with lsy_coef_num over 10 then using lossless coding. By
this experiment we can clearly verify the coding performance between proposed
method and IMP_CAVLC for the same lossless blocks, and further compare the
performance between compressed by RDO selector and our block classification (BC).
(a) R-D curves in SlideEditing sequence
40 42 44 46 48 50 52 54 56 58 60 1.0 1.5 2.0 2.5 3.0 P SNR (db) Bitrate (bpp) SlideEditing Proposed_RDO IMP_CAVLC_RDO Proposed_BC IMP_CAVLC_BC H.264
34
(b) R-D curves in SlideShow sequence
(c) R-D curves in ChinaSpeed sequence
(d) R-D curves in BasketballDrillText sequence
Figure 4-5 R-D curves of each method compressed by RDO and BC for 4 sequences As Figure 4-5 shown, no matter compressed by RDO or our block classification,
44 46 48 50 52 54 56 58 60 0.2 0.4 0.6 0.8 1.0 P SNR (db) Bitrate (bpp) SlideShow Proposed_RDO IMP_CAVLC_RDO Proposed_BC IMP_CAVLC_BC H.264 40 42 44 46 48 50 52 54 56 0.5 1.0 1.5 2.0 2.5 3.0 P SNR (db) Bitrate (bpp) ChinaSpeed Proposed_RDO IMP_CAVLC_RDO Proposed_BC INP_CAVLC_BC H.264 38 40 42 44 46 48 50 52 0.5 1.5 2.5 3.5 4.5 P SNR (db) Bitrate (bpp) BasketballDrillText Proposed_RDO IMP_CAVLC_RDO Proposed_BC IMP_CAVLC_BC H.264
35
the coding efficiency of proposed method is little better than IMP_CAVLC. And due
to the RDO selector can choose more lossless block than block classification by R-D
cost, the enhancement of coding performance compressed by RDO is better than by
block classification.
According to the experiment results, proposed method has great enhancement on
intra frame (I frame) coding, then we further take extensive experiment by join the
temporal correlation inter frame (P frame) coding. For the SlideEditing sequence 30
frames, the GOP of our experiment is IPPPP, and the R-D curves of each method as
shown in Figure 4-6.
Figure 4-6 R-D curves of each method with inter coding for SlideEditing sequence 30 frames
Proposed method can achieve average more than 2 to 3 dB than IMP_CAVLC
and 4 to 5 dB than H.264, that means our proposed method not only improve the
performance of intra frame coding, but influence the inter frame coding. Figure 4-7
shows the PSNR frame-by-frame, further verifying the correlation of intra frames and
40 45 50 55 60 0.2 0.3 0.4 0.5 0.6 P SNR (dB ) Bitrate (bpp) Proposed IMP_CAVLC H.264
36 inter frames
Figure 4-7 Frame-by-frame PSNR comparison of each method
Finally we show the visual quality of each method in Figure 4-8 and Figure 4-9,
due to our proposed method is lossless coding, thus we can modify the text edge noise
in H.264 lossy coding and own the original quality. The IMP_CAVLC still has several
lossy blocks around the text edge, although it is also lossless coding, but the coding
bitrate is too large to be selected by RDO mode selector.
(a) Original 42 43 43 44 44 45 45 46 46 47 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 P SNR (dB ) Frame no. Proposed IMP_CAVLC h.264
37 (b) H.264
(c) IMP_CAVLC
(d) Proposed
38 (a) H.264
(b) IMP_CAVLC
(c) Proposed
39
Chapter 5 Conclusion
In this paper, we proposed a new VLC in lossless intra-coding for screen
contents. We utilize the number of nonzero coefficients in lossy mode to perform the
block classification in order to finding out the text block, and then we analyze the
characteristics of text coefficient block in distribution of number of nonzero
coefficients and level values, moreover, the distribution probability of zero in the text
block is also in our statistic. According to the text block analysis, we design a new
VLC table to perform lossless entropy coding, and finally utilize the RDO mode
selector in H.264 to determine the compression method.
Experiment results show that the proposed method provide an appropriate block
classification method, it can exactly find out numerous text blocks in the frame.
Furthermore, proposed method achieves more bits saving for text block coding and
better PSNR improvement performance than other methods, as well as enhancement
40
Reference
[1] I. Keslassy, M. Kalman, D. Wang, and B. Girod, “Classification of compound
images based on transform coefficient likelihood,” in Proc. Int. Conf. Image
Processing, Oct 2001, vol. 1, pp. 750–753.
[2] W. Ding, D. Liu, Y. He, and F. Wu, “Block-based Fast Compression for
Compound Images,” in IEEE Int. Conf. Multimedia and Expo, July 2006, pp.
809–812.
[3] S. Ebenezer Juliet, D. Jemi Florinabel, “Efficient block prediction-based coding
of computer screen images with precise block classification,” in IET Image
Processing, June 2011, vol. 5, no. 4, pp. 306–314.
[4] C. Lan, F. Wu, G. Shi, “Compress Compound Images in H.264/MPEG-4 AVC by
Fully Exploiting Spatial Correlation,” in ISCAS IEEE Int. Symp. Circuits and
Systems, May 2009, pp. 2818–2821.
[5] S. Wang, T. Lin, “A Unified LZ and Hybrid Coding for Compound Image
Partial-Lossless Compression,” in CISP 2nd Int. Congress Image and Signal
Processing, Oct. 2009, pp. 1–5.
[6] S. Wang, T. Lin, “United Coding for Compound Image Compression,” in CISP
41
[7] Y. Lee, K. Han, S. G.J., “Improved Lossless Intra Coding for H.264/MPEG-4
AVC,” in IEEE Transactions Image Processing, Sep 2006, vol. 15, no. 9, pp.
2610–2615.
[8] J. Heo, S. Kim, and Y. Ho, “Improved CAVLC for H.264/AVC Lossless
Intra-Coding,” in IEEE Transactions Circuits and Systems for Video Technology,
Feb. 2010, vol. 20, no. 2, pp. 213–222.
[9] G. J. Sullivan, T. McMahon, T. Wiegand, and A. Luthra, Eds., Draft Text of
H.264/AVC Fidelity Range Extensions Amendment to ITU-T Rec. H.264 |
ISO/IEC 14496-10 AVC, ISO/IEC JTC1/SC29/WG11 and ITU-T Q6/SG16 Joint
Video Team document JVT-L047, Jul. 2004.
[10] X. Li and S. Lei, “Block-based segmentation and adaptive coding for visually lossless compression of scanned documents,” in Proc. Int. Conf. Image Processing, Oct. 1999, vol. I, pp. 219–223.
[11] W. Ding, Y. Lu, and F. Wu, “Enable efficient compound image compression in H.264/AVC intra coding,” in Proc. Int. Conf. Image Processing, Oct. 2007, vol. 2, pp. 337–340.
[12] Reference software of H.264/AVC, version jm18.2: downloadable at
