Computer-Aided Analysis and Design for Spoken
Dialogue Systems Based on Quantitative Simulations
Bor-shen Lin and Lin-shan Lee, Fellow, IEEE
Abstract—Corpus-based analysis and design of spoken dialogue
systems have been widely used. However, in such approaches the dialogue performance cannot be predicted before the system is on line, and the dialogue corpora need to be recollected if the system is modified or different conditions are assumed. Also, the effects of different factors, from the system’s dialogue strategies, speech recognition and understanding conditions and accuracy, to the user’s response pattern, etc., on the dialogue system performance cannot be quantitatively identified and analyzed, because they cannot be precisely controlled in different corpora.
In this paper, a complete development of computer-aided anal-ysis and design approaches for spoken dialogue systems based on quantitative simulations is presented. With this approach the var-ious performance metrics of a dialogue system can be flexibly de-fined and numerically evaluated, such that the behavior and per-formance of the dialogue system can be well predicted and effi-ciently analyzed before the implementation of the real spoken dia-logue system is completed. How the different diadia-logue performance measures vary with respect to each of the many very complicated factors, regardless of whether it is caused by an individual compo-nent, by the overall system design, or by users’ response patterns, can be separately identified, because all such factors can be pre-cisely controlled in the simulation. Several analysis examples are presented to show how the approach can be used, including selec-tion and tuning of speech understanding front end, system strategy design considering query factors and confirmation factors, and ob-jective estimates of user’s degree of satisfaction. This approach is therefore very useful for the analysis and design of spoken dialogue systems, although the online test, corpus-based analysis and user survey can always follow after the system is online.
Index Terms—Computer simulation, dialogue strategy, dialogue
system design, performance analysis, spoken dialogue.
I. INTRODUCTION
S
POKEN dialogue systems are typically developed by building a series of prototype systems, where the improve-ments from one system to the next are made by collecting a corpus of dialogues between users and the prototype to see how it performed [1]–[8]. The performance can be assessed in terms of relatively simple metrics such as number of dialogue turns or transaction success rate, or more sophisticated analysis such as confusion matrices for keywords [1]. Because the primary assessments are based on analyzing a large corpus of real human-machine dialogues, there exist some difficulties for such design approaches. One major difficulty is that the per-formance of a dialogue system cannot be estimated before the Manuscript received September 1, 2000; revised January 19, 2001. The as-sociate editor coordinating the review of this manuscript and approving it for publication was Dr. Andreas Stolcke.The authors are with the Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan, R.O.C. (e-mail: [email protected]).
Publisher Item Identifier S 1063-6676(01)05545-6.
system is on line, and very little about the dialogue performance can be known before many people get involved in the online test. Some further difficulties also occur even if the prototype system can be on line. For example, when any of the system dialogue strategies are modified, not only the whole analysis based on the previous strategy is no longer valid, but the dialogue corpus collected previously becomes useless for the analysis of new strategies because the new analysis needs to be based on new interactions. As a result, both the data collection and corpus analysis need to be repeated from the scratch after each modification, as long as the overall dialogue performance is to be analyzed. This makes the cycle for testing and modi-fying spoken dialogue systems relatively long. In addition, it is not rigorous nor reliable enough to compare the dialogue performance for different system strategies simply using the different corpora collected under different conditions, because many other factors existing in the processes of producing the corpora, such as the user’s response pattern, the slot accuracy or word error rate, cannot be precisely controlled to be exactly identical. All these difficulties are intrinsic in such design and analysis approaches based on analyzing human-machine dialogues for prototype systems.
Another well-known approach, i.e., the “Wizard of Oz” test, has been developed to assist the design and test of spoken dia-logue systems [9], [10]. This approach includes a human being in the process, and is helpful to obtain some insight into the user’s dialogue behavior or initial dialogue system performance before the prototype system is accomplished. A large corpus of spontaneous speech for the desired task can be collected in the process as well for training and evaluating the speech recogni-tion and understanding modules. However, the cost of such ap-proach is relatively high, because not only a human being is in-volved in the process, but the data collection takes time. Another approach, of course, is to gain insight into the dialogue behavior by directly observing or analyzing a corpus of human-human di-alogues without building any prototype system. How human be-ings really behave in the real world is definitely a good guide for designing spoken dialogue systems. However, human-human dialogue corpus is not always available, specially for dialogue tasks intended for new services. Also, in natural human-human dialogues many factors cannot be controlled at all, and the inter-actions within human-human dialogues are certainly quite dif-ferent from those in human-machine dialogues.
Qualitative analysis approaches based on subjective evalua-tions from user survey have also been widely used [7], [8], [11]. However, very often the data obtained in such approaches are the results of general feeling due to many relevant factors. For ex-ample, when 20% of users are not satisfied with the system, their 1063–6676/01$10.00 ©2001 IEEE
dissatisfaction may be due to many different reasons at different degrees. These analyses are helpful to some extent, but do not necessarily indicate precisely the right directions for improve-ments. Some very useful design principles obtained empirically were also proposed [12], [13]. However, human experiences are typically not precise enough, and it is thus not easy to estimate objectively and quantitatively the price paid and the gain ob-tained for each principle.
On the other hand, some dialogue analysis approaches com-pletely based on analytical or mathematical models without using any online corpus have been reported [14], [15]. Such studies are always highly desired. In some cases, such metrics as dialogue turns for different dialogue strategies can even be expressed in closed forms. However, in order to achieve analytical solutions, usually some simplifying assumptions have to be made. It is thus not easy to extend such analytical solutions to all desired cases for many complicated design options for dialogue systems.
In these discussions, it is clear that computer-aided analysis and design for spoken dialogue systems based on detailed quantitative simulations are very attractive, because much of the analysis can be performed without the corpus before the system is completed, and many of the factors such as the user’s response pattern and word error rate can be precisely controlled. The choice of different system strategies can also be made numerically. Some of such simulation methods have been previously proposed [16]–[20], and the benefits of using simulation have been discussed in great details [17], [18]. In some cases, a simulated user based on a bigram model was used to interact with a dialogue system on the intention level using some assumed data, but the effect of recognition or understanding errors was not well considered [16], [17]. In some other cases, dialogue was simulated on the text level with some deletion errors considered [18], but such simulation was performed only for a specific task of shortest route search in the literature. There was another work of simulation of dialogues on the text level even with sophisticated user patterns, but the approach seems to be specific to the particular task [19]. There was also other approach with users’ behavior based on a predefined user’s goal, but the discussions on the system’s strategies were dismissed [20]. In other words, all the prior simulation frameworks were somewhat incomplete, and more or less constrained to the specific dialogue task being studied, at least not easily extensible to other tasks. Also, in most cases, complete in-depth and systemized analysis seems to be missing yet. In this paper, one such simulation-based approach with complete analyses and discussions is presented. The basic methodologies and principles of the proposed approach are very simple, general, and generic, and therefore quite flexible and extensible to many different conditions. With this scheme, the various performance measures of a spoken dialogue system can be flexibly defined and numerically evaluated, such that the behavior and performance of the system can be estimated ap-propriately and analyzed efficiently before the implementation of prototype system is completed. How the various performance measures vary with respect to each factor, from recognition accuracy to dialogue strategies, can be individually identified in advance, because all such factors can be precisely controlled in the simulation. The quality of service or the user’s degree of
satisfaction for spoken dialogue systems can also be flexibly defined and efficiently estimated by simulation. Selection and tuning of the speech understanding front end, tradeoff among performance goals such as accuracy and efficiency, and design of system strategies in dialogue flow are all practically feasible and can be numerically determined. All these are illustrated by examples in this paper. This approach is therefore very useful for the design and analysis of spoken dialogue systems. The online test, corpus-based analysis, and user survey can always follow and be very helpful after the system is completed.
Of course, it should be pointed out here that there are natural limitations for any simulation-based approach. The simulation results can never be better than what can be said by the model that the simulation is based on. For example, in the approach pre-sented in this paper, the speech recognition and understanding er-rors are modeled by long-term statistics of slot erer-rors, which is definitely not good enough in describing some specific speech un-derstanding conditions in the real world. Over-simplified models for user behavior are also used here, which is for sure inadequate in modeling the real users. As will be shown in Section VII, finer models with more parameters are always possible, but the success of such models still rely on whether they can really describe the real situations. In other words, the key point is in fact whether the model used is good enough for the practical purposes, which is not really answered in this paper.
The rest of the paper is organized as follows. Section II describes the complete quantitative simulation approach, including statistical analysis of different parameters and performance metrics. A series of analysis examples are then given in Sections III–VI. Section III presents the selection and tuning of speech understanding front end for some performance goal. In Section IV and Section V, the design of different systems’ strategies considering query factors, confirmation factors and users’ response patterns are discussed in great detail. Section VI shows how objective estimates of the user’s degree of satisfaction can be obtained based on the proposed approach. In Section VII, some possible approaches to extend to much more complicated dialogue scenario than the simpli-fied schemes used in the examples are discussed. Section VIII finally summarizes the contributions of this paper.
II. QUANTITATIVESIMULATIONAPPROACH A. State Representation
In the proposed approach, a dialogue is modeled as the pro-cesses that a set of semantic slots is transmitted from the user to the system. The finite state machine for each semantic slot, , is first represented in a two-tuple expression, as shown in Fig. 1. The first argument denotes the state of the semantic slot as unknown , known but not yet verified , or verified , while the second argument denotes the correctness of the slot value as correct or error , and when a slot is unknown, the correctness of its value is meaningless . Assuming that there are a total of semantic slots necessary for a transaction, the overall dialogue state can therefore be represented as finite state machines, that is
With this definition, the initial state of the overall system is then
(2) while the final state is
(3) where the symbol can be either correct or error. The purpose of the dialogue is therefore to make each of the finite state ma-chines to transit from the state to the state as shown in Fig. 1, such that the overall state may transit from the ini-tial state to the final state . A successful transaction then occurs when all the semantic slots in the final state are correctly verified, i.e.,
(4) How these states actually transit is determined by the simulation scheme given below.
B. Simulation Scheme
The simulation scheme can be represented with the pseu-docodes as shown in Fig. 2. The cycle of a dialogue turn can be simulated by four segments: system’s prompt, user’s response, speech understanding, and system’s update, as shown within the for-loop in Fig. 2. In the “system’s prompt” segment, how the system decides which slots should be queried and which slots should be confirmed is simulated. In the “user’s response” segment, how the user decides to respond to the system’s prompt is simulated. The schemes simulated in these two segments are referred to as “system’s prompt strategy” and “user’s response pattern,” respectively. In the “speech understanding” segment, the slots can be considered as being transmitted from the user to the system through an unreliable channel, and the effect of speech recognition and understanding errors is simulated as transmission errors that influence the actually received slots. The model used in this segment is therefore referred to as “channel effect” in this paper. In the “system update” segment, how the system controls the state transition is simulated. The scheme simulated in this segment is referred to as “system’s update strategy” in this paper. For example, the system may decide that all slots being confirmed are verified (from to ) based on the condition that a “yes” is detected or the condition that these slots are consistent with the previously received slots. With the simulation scheme previously described, the dialogue performance is a function of four sets of parameters, the system’s prompt strategy , the user’s response pattern , the channel effect and the system’s update strategy
(5) where can be any set of metrics for dialogue performance. C. Speech Understanding or Channel Effect
Conventionally, the speech understanding errors are often measured by slot error rate [21], which includes the rates
Fig. 1. Finite state machine for each semantic slot.
Fig. 2. Pseudo codes for simulation of a dialogue.
for inserted, deleted, and substituted slots, , , and , respectively. The inserted slots are those causing mis-understanding and therefore regarded as “mismis-understanding slots” here, while the deleted slots are those lost in the slot transmission channel and regarded as “lost slots” here. In this way, each substituted slot can be considered as an inserted slot plus a deleted slot, or a misunderstanding slot plus a lost slot. The understanding error can therefore be represented by the following two parameters:
(6) where is the slot misunderstanding rate and is the slot lost rate, both including the case of substituted slots. As a result, for each slot transmitted by the user, two error events may occur. One is that the transmitted slot may be lost with probability , and the other is that some other undesired slot may be received with probability . The “channel effect” segment can there-fore be simulated using random tests defined by these two
pa-rameters and , as shown in Fig. 3. When ,
the channel is error-free and the simulation results account for the text-mode dialogue.
It should be pointed out that the real channel effect for a spoken dialogue system is a much more sophisticated random process than the simplified model as given here, depending on the sentence generation and pronunciation processes of the user and the recognition and understanding processes of the system. The characteristics of the channel effect may therefore have to do with the recognition or understanding front ends, the speakers, the speaking mode and speed, the kinds of slots, the background environments and so on. Also, the true understanding accuracy may be different for different slots. As a result, an ideal simulation for the channel effect can be very difficult, and depend on many conditions. The channel effect model proposed here in Fig. 3 is a simplified, “unbiased” model, independent of the many conditions. Of course, when any of these conditions are to be considered, more complicated models with more parameters can always be constructed in a similar way to take into account those conditions. Furthermore,
Fig. 3. Channel effect for speech understanding.
the random tests for the lost slot and misunderstanding slot in Fig. 3 can be correlated with additional correlation coefficient that may be dependent of the many conditions mentioned above sophisticatedly. For simplicity, in this paper the “uncorrelated” channel effect model proposed in Fig. 3 is used for simulation. However, if some specific correlation effect is to be investi-gated, it can be easily taken into account in Fig. 3.
D. Systems’ Strategies and Users’ Response Patterns
There are still other factors, i.e., the system’s strategies and user’s response patterns in the other three segments in Fig. 2, which may significantly influence the dialogue performance just as the channel effect. Because the goal of dialogue here is to have the finite state machines for all required semantic slots transit from the unknown state, through the known state, into the verified state, the factors in these three segments can there-fore be classified according to their major effects on the state transition. Those factors primarily influencing the state transi-tion from the unknown state to the known state are referred to as “query factors” here, while those primarily influencing the state transition from the known state to the verified state as “confirmation factors.” For example, the former includes how the system queries among those slots in the unknown state, how the user responds given the queried slots, and how the system updates the states according to the received slots, while the latter includes how the system prompts among those slots in the known state for confirmation, how the user responds given those slots to be confirmed, and how the confirmation is accom-plished based on the received slots, and so on. Although most of such factors are difficult to parameterize, it is possible to use simplified models to specify these factors. Some examples for such simplified models are presented below for illustration pur-poses, and it will be shown later on that more complicated situ-ations can always be extended from these simplified models.
For the parameter sets in (5) for the other three segments, the system’s prompt strategy , the user’s response pattern and the system’s update strategy , each set can be divided into two subsets, one for query factors and the other for confirma-tion factors. For example, the simplest model for the system’s prompt strategy may be
(7) which means all slots in the unknown state are queried [all queried (AQ)], while all slots in the known state are prompted for confirmation [all confirmed (AC)]. The former specifies the query factors, while the latter the confirmation factors. Of course this is an over-simplified model, but more sophisticated strategies can always be modeled and simulated in the same
way. Similarly for the user’s response pattern , a simplified model may be
(8) The first part means all queried slots are replied to the system [all replied (AR)], but those unknown slots not queried are not transmitted [not queried not transmitted (NQNT)]. For those slots to be confirmed, on the other hand, the second part of (8) means that a “yes” is transmitted if all correct, otherwise incor-rect slots are retransmitted with “no” [yes if corincor-rect (YC)]. For the system’s update strategy , a simplified model may be
(9) This means all queried slots in the unknown state will enter the known state if they are received [known state if received (KR)], while those slots in the known state being confirmed will enter the verified state if they are all received consistently [verified by slot consistency (VSC)]. All other slots are not updated, or system-initiative (SI).
E. Fundamental Statistical Analysis
For the simulation of each dialogue, after the four segments are iterated for enough number of times, the final state can be achieved and the dialogue terminated, as shown in Fig. 2. Var-ious characteristic parameters of the dialogue can then be ex-tracted. In the following are some examples. First, the transac-tion success flag, , which equals one if a successful trans-action is achieved and zero if not, can then be determined by checking the second argument of the finite state machines, i.e.,
to see if .
Second, the number of dialogue turns, , can be obtained in the for-loop in Fig. 2. Furthermore, the slot transmission effi-ciency, , can be defined as
(10) where is the total number of transmitted slots, and can be ob-served in the “user’s response” segment. This slot transmission efficiency indicates whether the user can transmit the slots efficiently, whose value ranges from zero to one. For example, if is 50%, this means , or each slot has to be trans-mitted twice in average in order to complete the dialogue, which may be very boring for the user.
The above example characteristic parameters, , and , are all random variables, whose samples can be extracted after each dialogue is completed. After the simulation is performed for a large number of dialogues, the mean values of these random variables, , and , can be estimated. They are, respectively, the transaction success rate, the average dialogue turns, and the average slot transmission efficiency, all very useful in analyzing the dialogue performance. In fact, not only the mean values of these random variables are obtainable, but the complete distributions of them, , , and , are available after the simulation. Many other parameters such as the variance for each random variable can also be readily estimated.

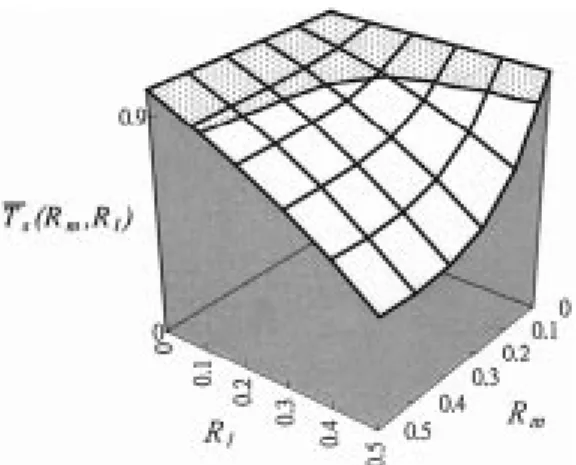

Fig. 4. Transaction success rate as a function ofR and R (dotted area:
T > 0:9).
As an example for illustration, for a dialogue system with the simplified models , , defined in (7)–(9) how the transaction success rate decreases with the degradation of the speech understanding performance is shown in Fig. 4, where the number of semantic slots, , is taken to be five, and for each pair, 100 000 dialogues were simulated. This simpli-fied dialogue system will be referred to as the “baseline system.” It can be found in Fig. 4 that, though the slot misunderstanding rate and slot lost rate both degrade the dialogue per-formance, their effects are actually different. is the source of incorrect slots, while is the source of slot retransmissions and incorrect verifications due to lost correcting slots. The more detailed variation of the transaction success rate with respect to individual and is further shown in Fig. 5(a) and (b), respectively. It can also be observed in Fig. 5(a) that when increases, the transaction success rate degrades persistently be-cause the rate of correctly received slots, , decreases. However, in Fig. 5(b), the degradation of the transaction suc-cess rate eventually saturates with increased in this simpli-fied model. This is because the system’s update strategy VSC in in (9), is more robust and less sensitive for higher mis-understanding rates, since for large the further incorrectly received slots will be identified and will not cause further perfor-mance degradation. Here the different effects of and on the transaction success rate show that the proposed quantitative simulation approach can provide more insights about the dia-logue systems. Similar simulations and analyses for other per-formance metrics can be performed in the same way.
F. Analysis with State Transition Probabilities
In addition to the fundamental statistical analysis mentioned above, here we will show that the state transition probabilities for the finite state machine shown in Fig. 1 easily obtained in the simulated dialogues can also provide very useful characteristics for the dialogue. First, the state transition probabilities can be defined as in Fig. 6(a) by five parameters, , , , , and , where is the transition probability from to , and are
those from to and , respectively, and and
from to and , respectively. Since the transitions from to itself (with probability ) and from to itself (with probability ) do not influence the accuracy
of the dialogue, the state transition diagram in Fig. 6(a) can be reduced for simplicity to Fig. 6(b) with new parameters and
(11) (12) if only the accuracy is concerned. Now a very important proba-bility can be defined
prob any slot in finally enters (13) Apparently, the higher this probability is, the lower the accuracy or transaction success rate of the dialogue will be. This probability can be obtained by the following two probabilities:
prob any slot in finally enters (14) prob any slot in finally enters (15) One can have the following relations from Fig. 6(b):
(16) (17) Equations (16) and (17) lead to the following solution:
(18) (19) and the probability is simply
(20) In (20), actually increases with the increase of both and as plotted in Fig. 7, which is also intuitively reasonable. As will be shown later on in the examples below, the increase of directly degrades the transaction success rate, and Fig. 6, (20) and the various probabilities will be very useful in analyzing dialogue systems. In fact, when all the finite state ma-chines for the semantic slots of a dialogue system are indepen-dent with the same state transition probabilities, the closed form for the transaction success rate can be easily obtained from
in (20)
(21) where is the total number of slots. However, in the “baseline system” mentioned in Section II-E, the condition of indepen-dency among the finite state machines for all slots does not hold because the state transitions for all slots to be confirmed in the strategy VSC are simultaneously decided together, and thus (21) cannot be applied.
G. Quality of Service and Operating Region
Just as in many other areas, the “quality of service” (QOS) for the spoken dialogue systems can be defined as the proba-bility that a user may acquire the service above some minimum
Fig. 5. Transaction success rate versus (a)R (R = 0:1; . . . 0:5) and (b) R (R = 0:1; . . . ; 0:5).
Fig. 6. (a) State transition diagram for semantic slot and (b) effective state transition diagram if only accuracy is concerned.
Fig. 7. P [(v; e)] as a function of p and s at c = 0:7.
acceptable criteria. For example, with the characteristic param-eters defined above, two possible metrics of QOS for spoken dialogue systems can be defined as follows:
(22) (23) The first metric , or probability of acceptable number of turns, is the probability that a user may complete the transac-tion within a predefined maximum acceptable number of dia-logue turns, . The second metric , or probability of ac-ceptable slot transmission efficiency, is the probability that a user may complete the transaction with slot transmission effi-ciency above a predefined minimum acceptable value, . Be-cause all performance metrics (including , , , , and ) are functions of the channel effect, specified by the two parameters and ; it is therefore easy to obtain these met-rics as functions defined on a plane. If some
per-formance goal is set, say where is any
performance metric and is the desired value, the region on
plane within which the desired goal can be satis-fied, referred to as the operating region here, can be directly obtained by numerical evaluation. For example, in Fig. 4 as a function of is shown, and the dotted area is the
re-gion for the goal , whose projection on the
plane, as shown more clearly in Fig. 8, is the op-erating region for the specific performance goal. In this way, it is possible to determine not only whether a speech recogni-tion/understanding front end is capable of achieving some per-formance goal, but also to what extent or in which direction this front end should be tuned or improved so as to meet the per-formance goal. Furthermore, the perper-formance goal for a spoken dialogue system can be defined flexibly as arbitrary combina-tions of several condicombina-tions for different performance metrics,
such as where
are the chosen performance metrics, and the corresponding operating region can be derived accordingly.
It should be pointed out that the concept of operating region can be applied not only to the speech understanding or channel effect segment, but in fact equally applicable to other segments in Fig. 2 including the system’s prompt strategy, the user’s re-sponse pattern, and the system’s update strategy as well, as long as the simulation models for those segments can be numeri-cally characterized by parameters like and in the case of channel effect mentioned above. When the simulation model is specified by more than two parameters, the operating region can be obtained similarly, except on a multidimensional space. Fur-thermore, many other performance metrics based on dialogue behaviors can also be used in the above analysis. For example, the users may be bored by speaking the same slots repeatedly or conversing for too many turns, and thus give up the dialogue and hang up the phone. Such events can be similarly modeled as performance metrics and analyzed by operating regions as well.

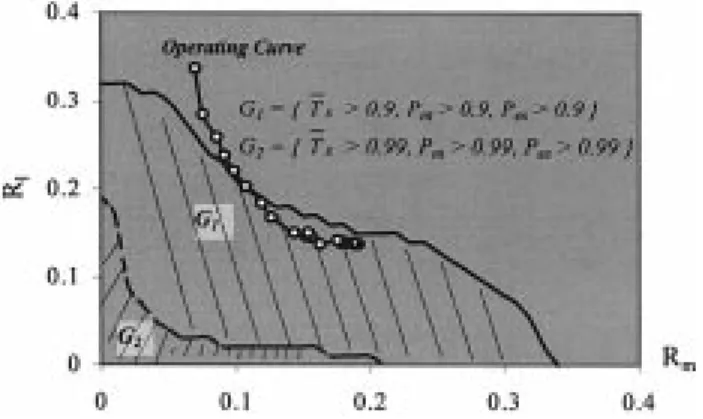

Fig. 8. Operation region for the performance goal T > 0:9 for the baseline system.
III. ANALYSISEXAMPLE1: SELECTION ANDTUNING OF SPEECHUNDERSTANDINGFRONTEND
Here, an example of dialogue analysis for selection and tuning of speech understanding front end is presented. As-sume the “baseline system” mentioned in Section II-E is considered. So total number of semantic slots is five, the simplified models for , , and as defined in (7)–(9) are used, and the channel effect is specified by . Assume the maximum acceptable number of turns, in (22), is five and the minimum acceptable slot transmission efficiency, in (23), is 0.5. Assume two sets of
perfor-mance goals: and
, where and are the probabilities for acceptable number of turns and for acceptable slot transmission efficiency as defined in (22) and (23). The operating region for the two performance goals and were then obtained numerically and shown as the left-bottom area of the respective curves in Fig. 9. As an example, taking a speech understanding front end in Man-darin Chinese with a task of train ticket reservation based on key-phrase spotting and a hierarchical tag-graph search scheme [22], the operating curve of this front end can be derived by tuning the threshold values in the key-phrase spotter and updating the spotting rates, which is also plotted in Fig. 9. It can be found that some part of the curve is within the operating region of , but some part of it is not. It is therefore possible to tune this speech understanding front end such that it can provide the desired performance goal . However, it can also be observed that it is actually impossible for this front end to achieve the performance goal in any case by simply tuning the threshold values and spotting rates. Such analysis therefore gives a very good direction for selection and tuning of speech recognition front ends for designing spoken dialogue systems.
IV. ANALYSISEXAMPLE 2: CONSIDERATIONS FOR QUERYFACTORS
As described in Section II-D, the simplified models for the query factors include the system’s prompt strategy AQ as de-fined in (7), the user’s response pattern [all replied/not queried not transmitted (AR/NQNT)] as in (8), and the system’s update strategy [known state if received/system initiative (KR/SI)] as in (9), which primarily affect the state transition from the un-known state to the un-known state. Of course a spoken dialogue system does not have to use such simplified models. How the
Fig. 9. Operating regions for different performance goals and the operating curve of an example speech understanding front end.
dialogue performance is influenced by each of these factors if more complicated models are used is considered in this section with an example, in which all other factors are the same as the “baseline system” mentioned in Section II-E with the simplified models defined in Section II-D if not specially mentioned. The considerations for the confirmation factors will be discussed in the next section.
A. System’s Prompt Strategy
When the system prompts the user with unknown slots, it may ask for all unknown slots, just as AQ in the simplified model. But the system may also ask for only a part of the unknown slots [part queried (PQ)], or only one unknown slot at a time [one queried ( )]. In Fig. 10(a)–(c), the average dialogue turns, the transaction success rates and the average slot transmission efficiency are plotted for as functions of for the example system for these three system’s prompt strategies: AQ, PQ, and . In the case of PQ, the queried slots are randomly selected. The user’s response pattern assumed is AR, or users who strictly follow system’s guidance. It can be found from Fig. 10(a)–(c) that under such user’s response pattern, prompting more unknown slots (e.g., AQ) leads to lower average dialogue turns and higher transaction success rates, but lower average slot transmission efficiency. The results of Fig. 10(a) can be easily understood. To achieve the user’s goal with fewer dialogue turns, the finite state machines for the semantic slots should transit from the unknown state to the known state as soon as possible, and the system therefore had better prompt the user with as many unknown slots as possible. The results of Fig. 10(b), on the other hand, are primarily due to the system’s prompt strategy for confirmation, AC, as defined in (7), and the system’s update strategy for confirmation, VSC, as defined in (9). When all unknown slots are prompted (AQ), they tend to enter the known state earlier, and the probability of confirming more slots at a time will be higher. With VSC, higher transaction success rate can be achieved if more slots are confirmed at a time, which will be discussed in detail in Section V-A. This is why the transaction success rate of AQ is higher in Fig. 10(b). However, there is no free lunch. As will be seen in Section V-A, for VSC the higher transaction success rate is in fact obtained at the cost of more rejections during confirmations, which inevitably degrade the average slot transmission efficiency as shown in Fig. 10(c). Of course, it
Fig. 10. (a) Average dialogue turns, (b) transaction success rates, and (c) average slot transmission efficiency forR = 0:1 plotted as functions of R for three different system’s prompt strategies: AQ, PQ, and1Q.
should be pointed out that prompting too many slots within an utterance might confuse the user (e.g., prompting four or more unknown slots at a time), and in such case the user may simply reply only a part of them. Such conditions are not considered here, though can definitely be simulated.
B. User’s Response Pattern
In Fig. 10(a), it was found that a system’s prompt strategy AQ achieves better average dialogue turns given the user’s response pattern AR. However, this is not always true for different kinds of users. Fig. 11 shows the average dialogue turns for different users’ response patterns given the system’s prompt strategy AQ and , where one replied ( ) denotes the user’s pattern that only one of the queried slots is replied, part replied (PR) de-notes that only part of the queried slots are replied, and AR (all replied) is the original user’s pattern. As can be found in Fig. 11, different behavior of the user may lead to quite different perfor-mance, approximately ranging from the curve for AR to that for . In other words, a good system’s prompt strategy (AQ) does not always lead to the desired good dialogue performance for all users. The dialogue is the interaction between two parties, the system and the user. The system may guide the user very ef-ficiently and reliably, but the user probably simply responds in his own way. The system cannot promise fewer dialogue turns one-sidedly without considering whether the user is cooperative
Fig. 11. Average dialogue turns for different users’ response patterns (AQ, R = 0:1).
or not. Figs. 10(a) and 11 show that either the system or the user may become the bottleneck of the dialogue performance. While comparing Fig. 10(a) with Fig. 11, it is interesting to find that the curve for (given AR) in Fig. 10(a) approximately coincides with the curve for (given AQ) in Fig. 11. In other words, the average dialogue turns for an inefficient system strategy with obedient users (AR) is effectively equivalent to those for efficient system’s strategy (AQ) on inactive users statis-tically. This also indicates that it is not necessarily very reli-able for corpus-based analysis approaches to compare different system strategies using different corpora collected under dif-ferent system strategies, because the user’s response is critical, but usually not precisely controlled in those approaches. On the other hand, given the results in Fig. 11, it may make better sense to obtain some dialogue system behavior for users with a given distribution, say certain percentage responding as AR, certain 1R, and so on.
C. System’s Update Strategy
The system’s update strategy certainly also influences the di-alogue performance. In general, those slots in the unknown state will transit into the known state if received (KR). If such tran-sitions are constrained to those slots queried by the system, the update strategy is SI, otherwise user-initiative (UI). Apparently, if the system queries all slots (AQ), it makes no difference for the system to adopt system-initiative strategy or user-initiative strategy. However, if the system does not query all unknown slots ( or PQ, as previously mentioned) and the user is so experienced that he might reply some slots not queried by the system, the user-initiative strategy may become more efficient. Fig. 12 shows the average dialogue turns for system-initiative strategy and user-initiative strategy, assuming one slot is queried by the system at a time ( ) and some other slots randomly chosen in addition to this slot may be replied by the user. We can see from Fig. 12 that, for inefficient system’s prompt strategy such as , smaller average dialogue turns can be achieved if the user is allowed to reply the slots out of the scope. Conven-tionally, the design of dialogue flows based on different system strategies is an art. The analysis approach proposed here is able to provide numerical solutions to such design, including selec-tion among various system strategies. Although very simple ex-amples are used here, much more complicated situations can in fact be considered in the same way.
Fig. 12. Average dialogue turns for different system’s update strategies (1Q; R = 0:1).
V. ANALYSIS EXAMPLE3: CONSIDERATIONS FOR CONFIRMATIONSTRATEGIES
In the previous section, each query factor was tuned and an-alyzed individually for the given example. In this section, dif-ferent system’s prompt strategies and update strategies for con-firmation will be considered and analyzed. In the simplified model mentioned in Section II-D, the prompt strategy used is prompting all slots in the known state simultaneously for con-firmation (AC, all confirmed) as in (7), while the update strategy used is checking the slot consistency for those slots to be con-firmed all together (VSC) as in (9). For the prompt strategy it is possible not to prompt all the slots in the known state. For example, it is possible to constrain the maximum number of si-multaneously confirmed slots to ( confirmed,
). For the update strategy, there are also various ways of controlling the state transition of the known slots. Because the purpose of confirmation is to provide more reliable transactions in dialogue, here in this section more attention will be paid to improving the transaction success rate by way of selecting ap-propriate strategies.
A. Verified by Slot Consistency
In the strategy (VSC) as in the simplified model in Sec-tion II-D, all the slots to be confirmed are regarded as a whole and enter the verified state simultaneously if no inconsistency is found. So any inconsistency in the slots to be confirmed will reject the whole confirmation completely even if some slots are consistent, thus the probability for any slot to enter the verified state will be lower compared to the case that each slot is checked individually. It is interesting to see what we can gain with this strategy. The transaction success rate for this strategy when only one slot is confirmed at a time ( ), two slots are confirmed at most at a time ( ), or all slots in the known state are confirmed together (AC), are compared in Fig. 13 as the upper three curves. It can be found in this figure that, with this VSC strategy plus the AC strategy the transaction success rate is not only the highest but much less sensitive to the increase of . To illustrate why this is the case, the state transition probabilities for VSC with AC and , respectively,
at and are further shown in Fig. 14(a) and
(b), respectively.As can be seen in this figure, for VSC with AC the transition probability from state to state, or wrong slots being incorrectly verified, can be significantly
lower (0.0651) than that for VSC with . This
makes the parameter in (12) much smaller (0.0847) in
Fig. 13. Transaction success rates for VSC and VISC(R = 0:2). Fig. 14(a) than that in Fig. 14(b) (0.2004) and is the key for better transaction success rate. This obviously arises from the extra rejections due to the strict confirmation condition in VSC previously mentioned. Of course, the transition probability from state to state is also significantly lower, 0.4819 as compared to 0.9924, also due to such rejections, which is apparently not desired. But this is not too bad if only the accuracy is concerned, because the majority of those correct slots being rejected keep at state (with probability 0.4621 as in Fig. 14(a)). All these give a relatively larger value for the parameter in (11) (0.1041 in Fig. 14(a) compared to 0.0076 in Fig. 14(b)). Because in VSC with AC in Fig. 14(a) the positive effect due to is higher than the negative effect due to (the effect due to is comparable), all these effects finally give a smaller value of (0.0342), and contribute to the transaction success rates in Fig. 13.
It is also of interest to see how the strategy VSC with AC be-haves for other performance metrics. Fig. 15(a) shows that the strategy VSC with AC achieves significantly lower average dia-logue turns than VSC with , which is intuitively reasonable. On the other hand, Fig. 15(b) shows that the better average dia-logue turns and transaction success rates for VSC with AC are in fact obtained at the price of lower slot transmission efficiency, because some slots will be transmitted repeatedly due to rejec-tions. Such trade-off among the performance metrics is similar to that in Section IV-A. Fig. 16 shows the tradeoff between transaction success rates and average slot efficiencies including other three prompt strategies, , and , where is for confirming at most known slots at a time, for and . It can be seen in Fig. 16 that, when and are fixed, alternative prompt strategies can be chosen for different design goals considering the tradeoff.
B. Verified by Individual Slot Consistency
Of course, there is another widely used confirmation strategy, referred to as “verified by individual slot consistency” (VISC) here. Instead of considering the consistency of a few slots all to-gether as in VSC, in this strategy the slot consistency is checked for each slot to be confirmed individually and the state transi-tions of these slots are separately decided. The transaction suc-cess rate for this strategy VISC with AC, , and are also plotted in Fig. 13 as the lower three curves as compared with VSC discussed previously. It should be noted that when is used VSC and VISC are the same, so they share the same curve in Fig. 13. Different from VSC, for VISC the strategy AC provides lower transaction success rates than and as in Fig. 13.

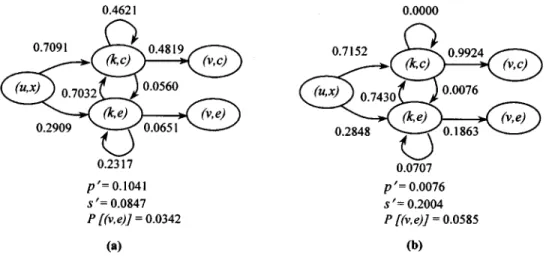

Fig. 14. Transition probabilities for (a) VSC with AC and (b) VSC with1C at R = 0:2 and R = 0:3.
Fig. 15. (a) Average dialogue turns and (b) average slot transmission efficiency for different prompt strategies for confirmation(R = 0:2).
Fig. 16. Tradeoff between transaction success rate and average slot transmission efficiency (R = 0:2 and R = 0:3).
Intuitively, for VISC the maximum number of slots to be con-firmed at a time seems not relevant to the transaction success rate, since each slot is confirmed individually. However, this is not exactly the case. In VISC, any slots prompted for confir-mation are opened for updating and thus could be corrupted by possible incorrectly received slots. If more slots are confirmed at a time, the probability that these opened slots are corrupted by incorrectly received slots will be higher, which makes the transition probability from to higher. To look into such effects, the transition probabilities obtained from the sim-ulated dialogues for VISC with AC and are further shown in Fig. 17(a) and (b), respectively. Note that Figs. 17(b) and 14(b) are the same because with strategy, VSC and VISC are the same. It can be found that, for VISC with AC (0.0705) in Fig. 17(a) is much higher than that for VISC with in Fig. 17(b) because the transition probability from to for VISC with AC is much higher, while for VISC with AC and
are very close. This makes for VISC with AC rela-tively higher (0.0721) than VISC with 1C (0.0585), which leads to lower transaction success rate for VISC with AC as shown in Fig. 13. In fact, Fig. 13 also shows that the transaction suc-cess rate for the common sense strategy VISC is not nesuc-cessarily satisfactory not only because it is lower, but because it is more sensitive to the understanding performance. That is, the trans-action success rate is less stable if varies with respect to the environment or the user. The situation is much better in the VSC strategy as discussed in the previous subsection.
C. Verified by Yes Detection
Another possible confirmation strategy may be “verified by yes detection” (VYD), i.e., the verification is completed as long as a “yes” is detected, otherwise confirmation is rejected. This strategy relies highly on the correct detection of the word “yes.” In Mandarin Chinese, the word meaning “no” is easily confused with that meaning “yes,” which may lead to incorrect verifica-tion in the VYD strategy, though such problem may not exist at all in other languages. In this VYD strategy, the probability for the error event of recognizing “no” as “yes” (denoted as here) thus seriously affects the dialogue performance, which is shown in Fig. 18. It can be found in Fig. 18 that, if is high, the detection of “yes” is not trustable at all, and it is thus better to choose VSC instead of VYD. If is moderate, e.g., 0.1, the curves for VSC and VYD intercept with each other, and the strategy with higher transaction success rate needs to be deter-mined by and . If is small, e.g., 0.05, VYD should be chosen because it is more reliable.
Fig. 17. Transition probabilities for (a) VISC with AC and (b) VISC with1C at R = 0:2 and R = 0:3.
Fig. 18. Transaction success rates for different system’s update strategies VSC and VYD with different values ofR (R = 0:05; 0:10; 0:18; R = 0:2). D. Verified by Slot and Logic Consistency
Because in the previous subsections both strategies VSC and VYD make sense, it is very natural to try to integrate the con-cepts of the two. Assume the current system prompt for confir-mation is, “Would you like to go to Taipei tomorrow?” and the user’s reply is recognized as, “No, I would like to go to Taipei tomorrow.” For VSC, because no slot inconsistency occurs, the slots, “Taipei” and “tomorrow” are therefore both verified. But such verifications are not reasonable because there is logical contradiction due to the existence of “no.” On the other hand, the user’s reply may be recognized as “Yes, I would like to go to Hsinchu tomorrow.” For VYD, the detection of “Yes” makes those slots verified, but again there is logic contradiction due to the slot inconsistency of “Hsinchu” with “Taipei.” These logic contradictions in either VSC or VYD imply possible incorrect verifications. A better strategy may be VSLC, in which both the detection of “yes” or “no” and the slot consistency are simulta-neously considered, and those utterances with logic contradic-tions are rejected. Fig. 19 shows the transaction success rates for VSC, VISC, VYD, and VSLC, respectively, with the prompt strategy AC. It can be observed in this figure that VSLC can achieve apparently the highest and the most stable transaction success rates among all strategies. Of course, the increased re-jections created by logic contradictions for VSLC is the price paid for the higher transaction success rates, which inevitably leads to higher average dialogue turns or lower slot transmission efficiency, as shown in Fig. 20(a) and (b), respectively. Again, this is the tradeoff among performance metrics and should be

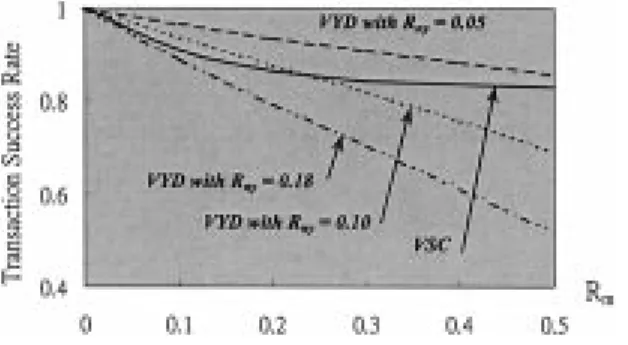

Fig. 19. Transaction success rate for VISC, VSC, VYD, and VSLC(R = 0:1; R = 0:2).
up to the designer’s choice. Also, it is interesting to see that in order to achieve higher transaction success rates, the range for tuning in Fig. 19 by selecting among update strategies is appar-ently larger than that in Fig. 16 by selecting among the prompt strategies. Also, Fig. 19 indicates that that even if the speech un-derstanding front end cannot be improved or tuned, it is still pos-sible to achieve significantly more reliable transactions through the selection of dialogue strategies.
To see how the improvement of transaction success rate for VSLC is achieved, the state transition diagram for VSLC with AC is further shown in Fig. 21. As can be found by comparing this figure with Fig. 14(a) for VSC, due to the rejections caused by logic contradictions in VSLC, the transition probability from to is now reduced from 0.0651 in Fig. 14(a) to 0.0080 here, which reduces from 0.0847 to 0.0105, while for VSC and VSLC are very close. The probability is thus significantly lower here (0.0042 as compared to 0.0342). VI. ANALYSISEXAMPLE4–OBJECTIVEESTIMATES FORUSER’S
DEGREE OFSATISFACTION
It is highly desired for dialogue system designers to have some kind of “user’s degree of satisfaction” about the system, which is usually obtained by subjective evaluations obtained from questionnaires filled up by the users. In this section, we will show how some objective metrics very similar to user’s degree of satisfaction can be obtained with the simulation ap-proach proposed here, and how these metrics can be used in
Fig. 20. (a) Average dialogue turns and (b) average slot transmission efficiency for VISC, VSC, VYD, and VSLC(R = 0:1; R = 0:2).

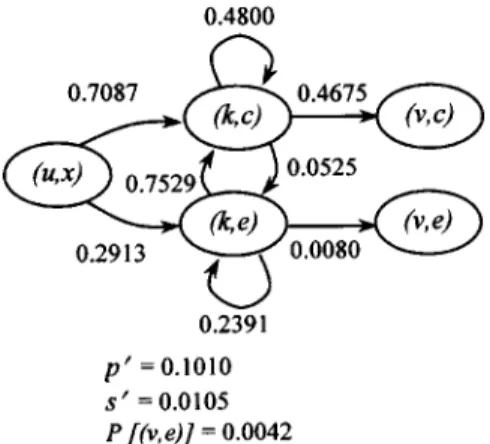

Fig. 21. Transition probabilities for VSLC with AC atR = 0:2, R = 0:3, andR = 0:1.
improving the user’s degree of satisfaction in dialogue system design.
A. Percentage of Confused Users
As discussed in Section V-A, for VSC prompting more known slots for confirmation (AC) achieves higher transaction success rates. However, the more the known slots are prompted for con-firmation, the higher the probability that some of them are in-correct will be. If more than one inin-correct slots are prompted for confirmation, the user may feel confused, and probably give up the dialogue or complain about the system. A possible metric for measuring a user’s degree of satisfaction along this direction can therefore be defined as the percentage of the dialogues in which there is at least one system’s prompt utterance for confirmation including more than one incorrect slots. This metric is referred to as “percentage of confused users” here, which can be easily observed directly from the simulated dialogues. This percentage of confused users for the “baseline system” as in Section II-E with confirmation strategy AC at different understanding perfor-mance is shown in Fig. 22(a). As can be found in this figure, the percentage of confused users increases significantly with . Therefore, reducing can be a good approach to reduce the percentage of confused users.
On the other hand, the above percentage of confused users can also be reduced by controlling the number of slots prompted for confirmation. For example, if at most two known slots can be prompted for confirmation simultaneously ( ), the proba-bility of more than one slots being incorrect will be lower when
compared with AC. But the smaller number of slots prompted for confirmation will lead to the degradation of transaction suc-cess rates, as discussed in Section V-A. Therefore, there exists a tradeoff between the transaction success rate and the percentage of confused users, which is shown in Fig. 22(b). As can be ob-served in Fig. 22(b), by reducing the number of slots to be con-firmed, the percentage of confused users can be significantly re-duced at the price of a slight degradation in transaction success rate. For example, the percentage of confused users can be re-duced from 23.79% for AC to only 6.61% for , with the trans-action success rate degraded from 93.81% for AC to 91.44% for . This is another example of achieving some desired goal by choosing system strategies.
It should be pointed out that, the percentage of confused users here is only one example of many possible metrics which can be flexibly defined to reflect the user’s degree of satisfaction and objectively estimated using the proposed approach. The oc-currence of more than one incorrect slots prompted for con-firmation is only one example “undesired event” for the users out of many other possible “undesired events.” Such “undesired events” may be identified from questionnaires filled up by the users or from the observation of the dialogue corpus. More sim-ilar metrics can be defined with such events.
B. Percentage of Satisfied Users
It is a common experience in dialogue design that high accu-racy and high efficiency very often cannot be obtained simulta-neously. One example is shown in Fig. 16, which shows higher transaction success rate and higher average slot transmission ef-ficiency are sometimes conflicting design goals. Considering the user’s degree of satisfaction, on the other hand, accuracy and efficiency are both highly desired. Along this direction, a possible metric to be objectively estimated in simulations can be defined as the percentage of dialogues in which not only cor-rect transaction is achieved, but the slot transmission efficiency in (10) is higher than some desired value, say 70%. This metric is referred to as “percentage of satisfied users” in this paper. In such a definition, both accuracy and efficiency are consid-ered simultaneously. Of course, this metric is only a simple ex-ample. More complicated definitions are certainly possible. For example, an extra condition may be 80% or more of the slots are transmitted only once in a dialogue, or something similar.
Fig. 23(a) shows the percentage of satisfied users for the “baseline system” in Section II-E but with different system’s
Fig. 22. (a) Percentage of confused users with system’s prompt strategy AC for different understanding performance(R 0:1; 0:3; 0:5) and (b) tradeoff between transaction success rate and the percentage of confused users for different confirmation strategies(R = 0:1; R = 0:2).
Fig. 23. Percentage of satisfied users for different system’s prompt strategies AC and1C (R = 0:1) when the slot transmission efficiency is required to exceed (a) 70% (b) 50% in a dialogue.
prompt strategies for confirmation, and AC, for different given . It can be seen in Fig. 23(a) that, for the percentage of satisfied users defined here, performs better than AC. The trend of the curves in Fig. 23(a) is similar to that of the curves in Fig. 15(b) where the average slot transmission efficiency (or the goal of efficiency) is the performance metric, but opposite to that of the two corresponding curves for VSC with AC and in Fig. 13 where the transaction success rate (or the goal of accuracy) is the performance metric. Because in the new metric here both goals of accuracy and efficiency are somehow included, the results here indicate that the goal for efficiency actually dominates, or the condition of slot transmis-sion efficiency being higher than 70% for each satisfied user is more stringent. It may be interesting to see what happens if in this metric the condition of slot transmission efficiency for each satisfactory dialogue is relaxed from 70% to 50%. Fig. 23(b) shows the percentages of satisfied users for AC and , respectively, for such case. We can find in this figure that when the condition for efficiency is relaxed, AC becomes slightly better when is small, and the two curves actually intercept with each other at somewhere around . Because this percentage of satisfied users is a function defined on the two-dimensional (2-D) plane , the situation in Fig. 23(b) implies that the 2-D functions for the two strategies and AC in fact intercept with each other. In other words, in such cases, neither of the two competing goals can dom-inate the performance trend, and the better system’s prompt strategy needs to be quantitatively determined by simulations for different operating points on the plane. Similar phenomena may be observed in more sophisticated situations where some metrics are defined for multiple conditions. If none of the conditions actually dominates the performance trend, the
functions for these metrics for different strategies may intercept sophisticatedly, but the selection of strategy can always be determined numerically as in Fig. 23(b).
VII. POSSIBLEEXTENSIONS FROM THESIMPLIFIEDMODEL All the previous discussions and analyses have been based on over-simplified models which may seem far from reality for practical dialogue system designers. In fact, all that can be done in this paper is to use over-simplified models to show the basic methodologies and general principles, and it will not be too dif-ficult for practical dialogue system designers to extend those methodologies and principles to many different realistic situa-tions. In this section, we will use a few examples to illustrate such extensions and show the flexibility of the proposed ap-proach.
A. State Transition Models
There can be many state transition models different from that in Fig. 1. First, in practical dialogue systems, not all slots should necessarily start with the unknown state. In some cases, assigning some slots with initial default values may make the dialogue more natural. For example, the date, the departure and destination station for a flight ticket reservation dialogue system may have initial values if the user profile is given. In such conditions, all one needs to do is to set the initial states of these slots as or instead of in the simulation, and the variations in dialogue performance due to such changes in dialogue design can be easily observed objectively in the simulation. Second, in practical dialogue systems, not all the slots necessarily always need to be confirmed. For example, confirmation may be saved for those slots with confidence
measures higher than a threshold. Fig. 24 shows an alternative topology for such case. Furthermore, in the over-simplified examples given above in this paper, the state transition rules have been assumed to be identical for all different slots. Of course, it may not be the case for many practical dialogue systems, and one does not have to do the simulation this way. In a train ticket reservation dialogue system, for example, the receipt of “3 o’clock” for the slot “time” may automatically imply “p.m.” for the slot “time-of-day” (assuming “time” and “time-of-day” are different slots) considering the knowledge in the train schedule database. Apparently the state transition models and rules of these two slots “time” and “time-of-day” should be different and dependent in this case. Such condition can certainly be simulated, except that the state transition models and rules should be precisely written according to the specific requirements or designs as in this example.
B. System’s Prompt Strategies
In these discussions, the system’s prompts are randomly gen-erated with all slots equally handled, by such rules as “con-firming at most two slots at a time.” In many practical situa-tions, however, very often deterministic rules are used in gen-erating the prompts with different slots treated differently. For example, for ticket reservation the system may ask and confirm the destination slot before the time slot. Such deterministic rules are usually implemented using some sort of script language, as shown in the example in Fig. 25(a), which is quite different from the simulation scenario described above. In fact, this is because in the implementation in Fig. 25(a) the dialogue management is tangled with the sentence generation. A minor modification as shown in Fig. 25(b) may make the dialogue management handle only the slot level interaction (e.g., which slot to confirm and which slot to query). In this way, we can separate clearly the sentence generation from dialogue management, and the prompt strategies can be easily simulated with the scenario described above, which can also be in good parallel with the operation of the real system.
C. Channel Effect
In Section II-C, the speech recognition and understanding process is modeled as a slot transmission channel with two pa-rameters and . In the simulation given in the previous sections, the event for incorrectly arrived slots and that for lost slots are simulated using two independent random tests. Of course the correlation between these two parameters may need to be considered, which can be simulated in the way given as follows.
Define and as two random variables, both of them can have only two values, 0 and 1. means receiving an in-correct slot, and means losing a slot. Let be the probability density function of the two random variables.
can have only four discrete values as follows:
(24)
Fig. 24. State transition considering confidence measures.
Fig. 25. (a) Dialogue manager tangled with sentence generation and (b) dialogue manager separated from sentence generation.
where , , , and . It is then
easy to see that
(25)
and (26)
(27) where is the covariance for the two random variables and . These above probability density function can be used to simulate the condition when and are corre-lated. and are uncorrelated when . In the tests of a real speech understanding front end, we obtained the
pa-rameters , , and
from the statistics of 2117 utterances. Table I shows the simu-lation results for the baseline schemes described previously at
, , with and 0.034 15,
re-spectively. As can be seen in this table, the simulation results for the two cases are quite close. Note the value of here may depend on the recognizer, the speakers, and many other factors. On the other hand, one can of course build other finer models for the channel effect. For example, the parameters may be different for different slots, or depend on the number of slots transmitted, with higher complexity in modeling and simulation.
D. Users’ Patterns
In the analysis examples in the above sections, fixed patterns of user’s response are assumed in the over-simplified model. Of course the real user behavior is much more complicated.
TABLE I
SIMULATIONRESULTS FOR THE BASELINE
SCHEMES ATR = 0:096 59, R = 0:2014
More complicated models can always be assumed and simulated though, as were mentioned at the end of Section IV-B
VIII. CONCLUSION
In this paper, we have presented a complete development of computer-aided analysis and design approaches for spoken di-alogue systems based on quantitative simulations. Such an ap-proach is very useful before the system implementation is com-pleted. With this approach, how the different dialogue system performance measures vary with respect to different system fac-tors and design parameters can be analyzed individually because all these factors and parameters can be precisely controlled in the simulation. Examples indicate that selection and tuning of speech understanding front end and design of complicated dia-logue strategies for given performance goals, as well as objec-tive estimation of user’s degree of satisfaction, which are always difficult problems in conventional dialogue system design, can now be performed numerically with the proposed approach. The online test, corpus-based analysis and user survey can always follow after the system is online. It should be noted that although all discussions here are based on simplified models and very general scenarios, more specific analysis and design can def-initely be performed for a specific dialogue task or system, as long as the specific conditions are given. Therefore the proposed approach not only is a powerful tool for developing spoken di-alogue systems, but can provide an important basis for further research on spoken dialogue systems.
REFERENCES
[1] M. A. Walker et al., “Evaluating spoken dialogue agents with PAR-ADISE: Two case studies,” Comput. Speech Lang., vol. 12, pp. 317–347, 1998.
[2] H. Aust and H. Ney, “Evaluating dialog systems used in the real world,” in Proc. Int. Conf. Acoustics, Speech, Signal Processing, 1998. [3] G. Hanrieder, P. Heisterkamp, and T. Brey, “Fly with the EAGLES:
Eval-uation of the “ACCeSS” spoken language dialogue system,” in Proc. Int.
Conf. Speech Language Processing, 1998.
[4] C. Kamm et al., “Evaluating spoken dialog systems for telecommunica-tion services,” in Proc. EUROSPEECH, 1997, pp. 2203–2206. [5] C. A. Lavell, M. de Calmes, and G. Perennou, “Confirmation strategies
to improve correction rates in a telephone inquiry dialog system,” in
Proc. EUROSPEECH, 1999, pp. 1399–1402.
[6] J. Sturm, E. den Os, and L. Boves, “Dialogue management in the Dutch ARISE train timetable information system,” in Proc. EUROSPEECH, 1999, pp. 1419–1422.
[7] L. Devillers and H. Bonneau-Maynard, “Evaluation of dialog strategies for a tourist information retrieval system,” in Proc. Int. Conf. Speech
Language Processing, 1998.
[8] L. Lamel and S. Bernacef et al., “User evaluation of MASK kiosk,” in
Proc. Int. Conf. Speech Language Processing, 1998, pp. 2875–2878.
[9] E. Hurley, J. Polifroni, and J. Glass, “Telephone data collection using the World Wide Web,” in Proc. Int. Conf. Speech Language Processing, 1996, pp. 1898–1901.
[10] A. Life and I. Salter et al., “Data collection for the MASK kiosk, WOz vs. prototype system,” in Proc. ICSLP, 1996, pp. 1672–1675. [11] L. J. M. Rothkrantz et al., “An appreciation study of an ASR inquiry
system,” in Proc. EUROSPEECH, 1997, pp. 1715–1718.
[12] N. O. Bernsen, H. Dybkjar, and L. Dybkjar, Designing Interactive
Speech Systems. From First Ideas to User Testing. , Germany: Springer-Verlag, 1998.
[13] S. Rosset, S. Bennacef, and L. Lamel, “Design strategies for spoken language dialogue systems,” in Proc. EUROSPEECH, 1999, pp. 1535–1538.
[14] Y. Niimi, T. Nishimoto, and Y. Kobayashi, “Analysis of interactive strategy to recover from misrecognition of utterances including multiple information items,” in Proc. EUROSPEECH, 1997, pp. 2251–2254. [15] Y. Niimi and T. Nishimoto, “Mathematical analysis of dialogue control
strategies,” in Proc. EUROSPEECH, 1999, pp. 2251–2254.
[16] W. Eckert, E. Levin, and R. Pieraccini, “User modeling for spoken di-alogue system evaluation,” in Workshop Automatic Speech Recognition
Understanding, 1997.
[17] , “Automatic evaluation of spoken dialogue systems,” AT&T Labs Res., TR98.9.1, 1998.
[18] M. Araki and S. Doshita, “Automatic Evaluation Environment for Spoken Dialogue Systems,” in Dialogue Processing in Spoken
Language Systems. Berlin, Germany: Springer-Verlag, 1998, pp. 183–194.
[19] T. Watanabe, M. Araki, and S. Doshita, “Evaluating dialogue strategies under communication errors using computer-to-computer simulation,”
IEICE Trans. Inform. Syst., vol. E81-D, no. 9, Sept. 1998.
[20] K. Scheffler and S. Young, “Probabilistic simulation of human-machine dialogues,” in Proc. Int. Conf. Acoustics, Speech, Signal Processing, 2000, pp. 1217–1220.
[21] M. Boros and W. Eckert et al., “Toward understanding spontaneous speech: Word accuracy vs. concept accuracy,” in Proc. Int. Conf. Speech
Language Processing, vol. 2, 1996, pp. 1009–1012.
[22] B. Lin, B. Chen, H. Wang, and L. Lee, “Hierarchical tag-graph search for spontaneous speech understanding in spoken dialogue systems,” in
Proc. Int. Conf. Speech Language Processing, 1998.
Bor-shen Lin was born in Taiwan in 1968. He
received the B.S. and M.S. degrees in electrical engineering from National Taiwan University (NTU), Taipei, Taiwan, R.O.C., in 1989 and 1993, respectively. He received the Ph.D. degree in electrical engineering from NTU in 2001.
He was with R&D Department, Bicom Tech-nology Corporation, Taipei, from 1993 to 1996. His research interests include speech recognition and understanding, search, evaluation methodology, performance and error analysis, dialogue modeling, and spoken dialogue system.
Lin-shan Lee (S’76–M’77–SM’88–F’93) received
the Ph.D. degree in electrical engineering from Stanford University, Stanford, CA.
He has been a Professor of electrical engineering and computer science at the National Taiwan Univer-sity, Taipei, since 1982; he was a Department Head from 1982 to 1987. He holds a joint appointment as a Research Fellow of Academia Sinica, Taipei, and was an Institute Director there from 1991 to 1997. His re-search interests include digital communications and Chinese spoken language processing. He developed several of the earliest versions of Chinese spoken language processing systems in the world, including text-to-speech system, natural language analyzer, and dictation systems.
Dr. Lee was the Guest Editor of a special issue on intelligent signal processing in communications of the IEEE JOURNAL OFSELECTEDAREAS IN COMMUNICA-TIONSin December 1994 and January 1995. He was the Vice President for Inter-national Affairs (1996 –1997) and the Awards Committee Chair (1998 –1999) of the IEEE Communications Society. He has been a member of Permanent Council of International Conference on Spoken Language Processing (ICSLP).
