Donor/Acceptor共軛高分子系統: 理論分析、合成、及元件應用(2/3)

行政院國家科學委員會專題研究計畫 期中進度報告

Donor/Acceptor 共軛高分子系統: 理論分析、合成、及元

件應用(2/3)

期中進度報告(精簡版)

中 華 民 國 96 年 05 月 24 日

行政院國家科學委員會補助專題研究計畫

□ 成 果 報 告

■ 期中進度報告

Donor/Acceptor 共軛高分子系統: 理論分析、合成、及元件應用(2/3)

計畫類別：■個別型計畫 □ 整合型計畫

計畫編號：

NSC-95-2221-E-002-154

執行期間：95 年 8 月 1 日至 96 年 7 月 31 日

計畫主持人：

陳文章

計畫參與人員：李文亞、吳文中、劉振良、鄭凱方、童宜峙、闕居振

成果報告類型(依經費核定清單規定繳交)：■精簡報告 □完整報告

本成果報告包括以下應繳交之附件：

□赴國外出差或研習心得報告一份

□赴大陸地區出差或研習心得報告一份

□國際合作研究計畫國外研究報告書一份

處理方式：除產學合作研究計畫、提升產業技術及人才培育研究計畫、

列管計畫及下列情形者外，得立即公開查詢

■

涉及專利或其他智慧財產權，■一年□二年後可公開查詢

執行單位：國立台灣大學高分子所

中 華 民 國 96 年 5 月 24 日

中文摘要

本 研 究 將 討 論 fluorene-based 、 fluorene-based donor-acceptor-donor 、 與 thiophene-based donor-acceptor 交替式共軛高分子之光電特性與元件應用。本研究成功地釐 清電子受體結構對於 fluorene-based donor-acceptor-donor 共軛高分子電子光電特性的影 響。研究成果發發現隨著電子受體強度不同，能隙會有著PFDTTP < PFDTBT < PFDDTQ <

PFTT，此順序與螢光光譜波峰和場效應電晶體電洞遷移率的趨勢相反。 而 在

thiophene-based donor-acceptor 交替式共軛高分子之研究方面，利用 Still-coupling 反應成功 地合成出低能隙thiophene(TH)- thienopyrazine(TP)共軛高分子。隨著 thiophene 與 TP 比例

改變，我們建立出其高分子光電特性與結構之間的關連性，並發現能隙會隨著 thiophene 比例增加而降低，此結果也與理論計算分析相同。其中由於 PTHTP-12C 擁有最強的分子 內電荷轉移而得到最低的能隙0.97 eV。在理論計算中，P（TH-alt-TP）的有效載子質量非 常小，因此可預見thiophene(TH)- thienopyrazine(TP)共軛高分子將可以成為極具潛力的場 效應電晶體材料。在高分子發光二極體方面，利用fluorene-based 共軛高分子摻混的方式來 研討電子受體結構與對於高分子特性的影響，並且來製備成白光發光二極體。發現FQTP1 (PF:PFQ:PFTP = 98.50:1.00:0.50, weight ratio)與 FBTTP1 (PF:PFBT:PFTP = 99.65:0.05:0.30, weight ratio)皆可達到白光，且 FBTTP1 發光效率可達到 1.89 cd/A。本年度執行本計畫共 發表9 篇 SCI 期刊論文(Langmuir (1), Adv. Funct. Mater. (1), Macromolecules (1), Macromol.

Rapid Commun. (2), J. Polym. Sci. Polym. Chem.(3), J. Polym. Sci. Polym. Phys.(1))。

關鍵詞：donor-acceptor 共軛高分子、發光二極體、薄膜電晶體。

Abstract

The optoelectronic and device characteristics of fluorene-based, fluorene-based donor-acceptor-donor and thiophene-based donor-acceptor copolymers were investigated. The experimental results suggested that the acceptor structures of fluorene based donor-acceptor-donor conjugated copolymers significantly affected on their electronic, optoelectronic, and FET characteristics. The order of the band gap is PFDTTP < PFDTBT < PFDDTQ < PFTT, which is on the reverse trend of luminescence and FET mobility. Five small band gap thiophene(TH)-thienopyrazine(TP) conjugated copolymers were successfully synthesized by Stille-coupling reaction. The polymer structures consisted of one to four thiophene rings with TP of different side group provide systematical investigation on the structure-electronic property relationship. Both experimental and theoretical results suggest that the band gaps reduce as the thiophene moiety increased. The relatively small optical (0.97 eV) and electrochemical (0.78 eV) band gaps of poly PTHTP-C12 suggest the importance of intramolecular charge transfer. The theoretical results also suggest that the poly(TH-alt-TP) could have a relatively small effective mass for field transistor applications. The relatively small

theoretical effective mass of poly(TH-alt-TP) also suggests its potential applications for field transistor applications. Our study demonstrates the tuning of the electronic properties of small band gap copolymers by the thiophene content and the resulted geometry variation. Such Polymers could be potentially used for near-infrared electronic and optoelectronic devices. For the light-emitting diodes, the effects of acceptor structures on the electronic and optoelectronic properties of conjugated polymer blend were studied. The white-emitting electroluminescence was achieved with by PF blending a relatively small amount of acceptors, such as FQTP1 (PF:PFQ:PFTP = 98.50:1.00:0.50, weight ratio) and FBTTP1 (PF:PFBT:PFTP = 99.65:0.05:0.30, weight ratio). The luminance yield and maximum external quantum efficiency of the white-light emitting diode based on the ternary blend FBTTP1 as emissive layer were 1.89 cd/A and 0.47%, respectively. 12 SCI Journal papers based on this projected have either been published or in press: (Langmuir (1), Adv. Funct. Mater. (1), Macromolecules (1), Macromol. Rapid Commun. (2), J.

Polym. Sci. Polym. Chem.(3), Macromol. Chem. Phys. (2), J. Polym. Sci. Polym. Phys.(1), J. Polym. Res. (1))。

Contents 中文摘要... 2 Abstract... 2 1. Introduction... 5 2. Objective ... 5 3. Experimental ... 5

4. Results and discussions... 7

4.1. Photophysical and electroluminescent properties of ternary fluorene-acceptor polymer blends. ... 7

4.2. Effects of Acceptors on the Electronic and Optoelectronic Properties of Fluorene Based Donor-Acceptor-Donor Copolymers... 9

4.3. Small Band Gap Conjugated Polymers Based on Thiophene-Thienopyrazine Copolymers... 12

5. Conclusions... 15

6. Reference ... 16

7、計畫結果自評 ... 27

1. Introduction

Donor-acceptor conjugated polymer systems have emerged as promising candidates for flexible organic electronic devices since their electronic and optoelectronic properties of donor-acceptor copolymers could be efficiently manipulated by controlling intramolecular charge transfer (ICT). The studied polymer systems included alternating or random copolymers, polymer blends, and multilayer in the application areas of polymer light-emitting diodes,[1-7] Field effect transistors (FET)[8-10], and photovoltaic device.[11]

Several different donor-acceptor conjugated polymers have been reported in the literature. We are particularly interested in the thiophene-acceptor, fluorene-acceptor and fluorene-donor-acceptor-donor conjugated polymers due to the judicious structural modification and flexibility on tuning the electronic and optoelectronic properties for device applications.

2. Objective

Donor-acceptor conjugated polymer can effectively increase the efficiency of device, such as polymer light-emitting diodes, field-effect transistors, and photovoltaic devices. However, there are some following problems: (1) the absence of analysis of theoretic geometries and electronic structures of copolymers; (2) the absence of studies of various donor-acceptor structures; (3) the lack of knowledge of interface of polymer blends for optoelectronic properties; (4) the lack of applications of field-effect transistor. Therefore, the aim of this project is to investigate EDOT, thiophene, fluorene-based donor-acceptor conjugated copolymers further. The goals of the second-year project are the following two parts: (1) the first part is to synthesize various donor-acceptor conjugated copolymers, and characterize their optoelectronic properties, and build the relationship between chemical structures and optoelectronic properties; (2) PLEDs and field-effect transistors are fabricated with our studied donor-acceptor copolymers.

3. Experimental

The ground-state geometries and electronic structures of the studied donor-acceptor conjugated polymers were optimized by means of the hybrid density functional theory (DFT) method treated in periodic boundary conditions (PBC) at the B3LYP level of theory (Becke-style three-Parameter Density Functional Theory using the Lee-Yang-Parr correlation functional) with the 6-31G(d) basis set performed on Gaussion03 program package. It was shown that the calculations for conjugated polymers using the hybrid B3LYP functional coupled with PBC were in excellent agreement with the experimental values.

3.2. Materials

without further purification. Ultra-anhydrous solvents used in the reactions were purchased from Tedia (Ohio, USA), Echo, and Merck without further purification unless noted.

3.3. General procedure of Polymerization

Scheme 1 is the synthesis process of thiophene, thienopyrazine, and donor-acceptor-acceptor monomers. Our studied copolymers were synthesized via a Suzuki coupling reaction or Stille coupling reaction, as shown in scheme 2.

3.4. Characterization

UV-Visible absorption and photoluminescence (PL) spectra were recorded on a Jasco model UV/VIS/NIR V-570 spectrometer and Fluorolog-3 spectrofluorometer (Jobin Yvon), respectively. Films used for the PL efficiency measurement were drop-coated from THF solution onto quartz substrates (ca. 1 wt %). PL efficiencies of polymer films on quartz substrates were measured using fluorolog 3 in combination with integrating sphere with 380 nm excitation. The refractive index and thickness of the studied polymer film were measured by the F20 Thin Film Measurement system (Filmetrics, Inc., CA, USA). The electrochemical properties of the polymer films were investigated on a Princeton Applied Research Model 273A Potentiostat/Galvanostat with a 0.1 M acetonitrile (99.5+%, Tedia) solution containing tetrabutylammonium tetrafluoroborate (TBABF4) (Fluka, >99.9%) as the electrolyte.

3.5. Device Fabrication and Testing

Polymer Light-Emitting diodes. The electroluminescent (EL) devices were fabricated on indium-tin oxide (ITO) coated glass substrate. Onto the ITO glass a layer of poly(ethylene dioxythiophene):poly(styrene sulfonate) (PEDOT:PSS), which was formed by spin-coated from its aqueous solution (Baytron P 8000, Bayer). The emissive layer was spin-coated at 1500 rpm from the corresponding p-xylene solution (1.5 wt%). Under high vacuum, a layer of Ca (10 nm) was vacuum deposited as cathode and a thick layer of Ag (100 nm) was deposited subsequently as the protecting layer. Current-Voltage characteristics were measured with a computerized Keithley 2400 source measure unit. The luminance and CIE coordinate of device were measured with Konica-Minolta Chroma Meter CS-100A. The EL spectrum of device was recorded on Fluorolog-3 spectrofluorometer (Jobin Yvon).

Thin Film Transistors. The thin film transistors were fabricated from the four fluorene alternating copolymer with a bottom-contact configuration on the p-doped silicon wafers. A thermally grown 200 nm SiO2 used as the gate dielectric with a capacitance of 17 nF/cm2.

Aluminum was used to create a common bottom-gate electrode. The source/drain regions were defined by a 10 nm thick chromium adhesion layer and a 100 nm thick gold contact electrode through a regular shadow mask, and the channel length (L) and width (W) were 25 and 1500 µm, respectively. Afterward, the substrate was modified with hexamethyldisilazne (HMDS, Fluka, 98%) as silane coupling agents. Output and transfer characteristics of the OTFT devices were

measured using Keithley 4200 semiconductor parametric analyzer. All the prepared procedures and electronic measurements were performed in ambient atmosphere.

4. Results and discussions

4.1. Photophysical and electroluminescent properties of ternary fluorene-acceptor polymer blends.

Polymer based white-light-emitting-devices (WLEDs) have been extensively studied recently due to their potential applications in low-cost lighting. Here, we investigated the potential of using the polyfluorene ternary blends to obtain the white emission. In order to obtain white emission, the emission from all of the three components is required and thus compositions of PFQ (or PFBT) and PFTP were controlled to ensure incomplete energy transfer.

The photophysical properties and electroluminescence characteristics of PF-based polymer blends with the components were investigated in this study. The chemical structures and synthesis of the studied poly(fluorene-acceptor) are shown in Scheme 2, including blue-emitting

poly[2,7-(9,9’-dihexylfluorene)] (PF), green-emitting poly[2,7-(9,9’-dihexylfluorene)-alt-5,8-quinoxaline] (PFQ), yellow-emitting

poly[2,7-(9,9’-dihexylfluorene)-alt-4,7-(2,1,3-benzothiadiazole)] (PFBT), and red-emitting poly[2,7-(9,9’-dihexylfluorene)-alt-5,7-(thieno[3,4-b]pyrazine)] (PFTP). Two kinds of ternary blends, PF/PFQ/PFTP (named as FQTP), and PF/PFBT/PFTP (named as FBTTP) were investigated to realize white-light emission by tuning the compositions of polyfluorene copolymers with blue, green (yellow), and red emission. Both the photoluminescence (PL) and electroluminescence (EL) of these PF-based polymer blends with different compositions were characterized to realize the effects of component and composition of polymer blends on the energy-transfer processes.

Figure 1 shows the PL spectra of ternary blends (a) FQTP1~6 and (b) FBTTP1~6 in solid-state films excited at the wavelength of 380 nm, of which the corresponding emission maxima (λmaxPL) are summarized in Table 1. With the addition of PFQ (or PFBT) and PFTP into

PF, energy transfers from PF to PFQ (or PFBT) and then from PFQ (or PFBT) to PFTP are observed. The extent of energy transfer is in proportional to the composition of PFQ (or PFBT) and PFTP. Therefore, tuning of PL spectra could be realized by controlling the composition of these polymer blends. In particular, simultaneous emission from all of the three components is required to obtain white emission. Through precise control of the composition of these polymer blends, incomplete energy transfer between these PF-based polymers ensures simultaneous emission from these polymers. For example, the PL spectra of FQTP6 and FBTTP6 show simultaneous emission from their components with similar intensity.

PFTP is higher than that of PFBT(0.05-0.5 wt%) in FBTTP. This indicates that the energy transfer from PFBT to PFTP is more efficient than that from PFQ to PFTP. By taking FQTP3 and FBTTP6 as an example, the PL spectra of these two ternary blends show the PFTP emission with similar intensity. However, the contents of PFBT and PFTP in FBTTP6 are much lower than those of PFQ and PFTP in FQTP3, indicating more efficient energy transfer from PFBT to PFTP. The Förster radii for the energy transfer from PFQ to PFTP and from PFBT to PFTP are 6.5 and 7.3 nm, respectively. The larger Förster radius for the energy transfer from PFBT to PFTP indicates more efficient energy transfer. This could be attributed to the better overlap between the emission of PFBT and the absorption of PFTP than that between the emission of PFQ and the absorption of PFTP, as shown in Figure 1(c). In addition, the overlap integrals for the energy transfer from PFQ to PFTP and from PFBT to PFTP are 3.7×10-12 and 7.3×10-12 M-1cm3, respectively, which also suggests more efficient energy transfer from PFBT to PFTP.

Electroluminescence of PF-based ternary blends

EL devices with the ternary blends of FQTP and FBTTP as emissive layers were fabricated with structure of ITO/PEDOT:PSS/emissive layer/Ca:Ag. Figure 2 shows the EL spectra of the devices with the ternary blends of (a) FQTP and (b) FBTTP as emissive layers, of which the emissive maxima (λmaxEL) are listed in Table 2. Although the extent of energy transfer from PF to

acceptor is in proportional to the compositions of PFQ (or PFBT) and PFTP, respectively, the EL spectra of these ternary blends are quite different from their corresponding PL spectra. It could be attributed to the differences in the recombination zone for photo- and electric excitation in EL, as described previously. The (HOMO, LUMO) levels of PF and PFTP are (-5.39, -2.44) and (-5.13, -3.33) eV, respectively. The higher HOMO level and lower LUMO level of PFTP than those of PF suggest that PFTP serves as both efficient hole and electron traps in these ternary blends. The more intense green emission from PFQ (or yellow emission from PFBT) and red emission from PFTP in EL were observed as compared to their corresponding PL spectra due to the charge trapping mechanism. Thus, the compositions of PFQ (or PFBT) and PFTP required to ensure incomplete energy transfer and simultaneous emission from all of the three components are much smaller in EL than those in PL. As a result, simultaneous emission from all the three components in EL was realized either with FQTP1 or FBTTP1. The higher composition of PFQ (or PFBT) and PFTP in the ternary blend would result in more complete energy transfer and thus emission from only PFQ (or PFBT) and/or PFTP, such as FQTP6 and FBTTP6. The CIE 1931 coordinates of these devices were measured with Konica-Minolta Chroma Meter CS-100A under the condition of maximum luminance, of which the corresponding data are summarized in Table 2. The CIE 1931 coordinates of ternary blends FQTP1 and FBTTP1 are (0.328, 0.310) and (0.320, 0.327), respectively, which are almost identical to standard white emission at (0.33, 0.33). By comparing the two white-light-emitting diodes (WLEDs) based on the ternary blends of FQTP1 and FBTTP1, the compositions of acceptors in FBTTP1 are much lower than those in

FQTP1. This could be attributed to the following three possible mechanisms. First, PFBT is a better electron trap than PFQ due to the lower LUMO level of PFBT than that of PFQ. Second, the Förster energy transfer from PFBT to PFTP is more efficient due to the better matching between the emission of PFBT and absorption of PFTP. Finally, the difference in the emissive colors of PFQ and PFBT is also important in designing the WLED.

The EL characteristics of the devices with the ternary blends as emissive layers are summarized in Table 1. The maximum luminance yield and EQE decrease with increasing content of PFTP both in the ternary blends of the FQTP and FBTTP. This is probably attributed to the low PL and EL efficiency of PFTP due to intramolecular charge transfer and heavy-atom effect as mentioned in previous section. The brightness of WLEDs based on ternary blends FQTP1 and FBTTP1 under the condition of maximum luminance yield are 326 and 1360 cd/m2, respectively. The maximum luminance yield (cd/A) and maximum EQE (%) of WLEDs based on FQTP1 and FBTTP1 are (0.45, 0.13) and (1.88, 0.47), respectively. In spite of WLEDs based on single PF copolymer or doped with phosphorescent materials,16,32 the brightness and efficiency of WLEDs based on FBTTP1 are comparable or even higher than the WLEDs based on PF-based polymer blends reported recently. The performance of WLEDs based on ternary FQTP1 and FBTTP1 shows bright and efficient white emission were achieved without dyes or phosphorescent materials involved.

4.2. Effects of Acceptors on the Electronic and Optoelectronic Properties of Fluorene Based Donor-Acceptor-Donor Copolymers

FET based Thiophene- or fluorene-based donor-acceptor conjugated polymers have been explored by several groups and us recently. The studied thiophene-acceptor conjugated polymers either exhibit p-type or ambipolar mobility. The above studies suggested that the molecular weight, morphology, and acceptor strength played important roles in the FET characteristics. High hole or electron mobility was also observed in fluorene-based conjugated polymers. However, the effects of various acceptor structures on the FET mobility of fluorene based donor-acceptor conjugated copolymers have not been fully explored yet.

In this study, four fluorene-based conjugated copolymers were synthesized to explore the effects of acceptor structures on the electronic, optoelectronic, and FET characteristics. The chemical structures and synthesis of the studied polymers are shown in Scheme 3, including poly[2,7-(9,9-dihexylfluorene)-alt-2,2’:5,2”-terthiophene] (PFTT), poly[2,7-(9,9’-dihexylfluorene)-alt-2,3–dimethyl-5,7–dithien-2–yl-quinoxaline] (PFDDTQ), poly[2,7-(9,9’-dihexylfluorene)-alt-4,7-dithien-2-yl- 2,1,3-benzothiadiazole] (PFDTBT) and poly[2,7-(9,9’-dihexylfluorene)-alt-2,3-dimethyl-5,7-dithien-2-yl-thieno[3,4-b] pyrazine] (PFDDTTP). The studied acceptors included quinoxaline (Q), 2,1,3-benzothiadiazole (BT) and

eV, respectively, which indicates the order of the acceptor strength is BT > TP > Q. Besides, the five or six-member ring of acceptor backbone allows us to investigate the effect of planarity on the properties. Therefore, the effects of acceptor strength, backbone planarity and intramolecular charge transfer on the field effect mobility as well as other photophysical properties could be realized through this study.

Electrochemical and Optoelectronic Properties. Figure 3 shows the optical absorption spectra of the studied copolymers in thin films. The absorption maximum (λmax) of PFTT,

PFDDTQ, PFDTBT, and PFDDTTP are 514, 502, 618, and 616 nm, respectively, while the absorption edges are 606, 639, 736, and 738 nm. It indicates that the optical properties could be tuned over a broad range with various acceptors. The band gaps estimated from the absorption edges are in the order of PFTT (2.05 eV) > PFDDTQ (1.94 eV) > PFDTBT (1.69 eV) > PFDDTTP (1.68 eV). The lower Eg of the three copolymers than that of PFTT suggests the

significance of the intramolecular charge transfer between the donor and acceptor. However, the slightly smaller Eg of PFDTBT than that of PFDDTTP is not consistent with the acceptor

strength (BT>TP> Q).It is probably because the BT moiety with a six-member ring has a larger torsional angle than the TP segment with a five-member ring and results in the reduction of the π-conjugation. The above result also suggests that the backbone planarity and the intramolecular charge transfer of the TP and thiophene is probably high than that of BT and thiophene. A strong acceptor could reduce the LUMO level and enhancement of intramolecular charge transfer of donor-acceptor conjugated copolymers.[3, 12] since it induces a resonance structure between a donor and a acceptor moiety, just like D-A↔D+=A-.

Figure 4 shows the photoluminescence spectra of PFTT, PFDDTQ, PFDTBT, and PFDDTTP films, with the corresponding emission maxima of 574, 620, 677, and 736 nm, respectively. The variation of emission peaks shows the same trend as that of optical band gaps. The emissive colors of PFTT, PFDDTQ, PFDTBT, and PFDDTTP are yellow, purple, orange, and red, respectively. It indicates the color tuning is practicable by intramolecular charge transfer through incorporating the acceptor moiety into the polymer backbone. The results of optical absorption and photoluminescence also suggest that both the acceptor strength and the backbone structure play important roles on the photophysical properties.

The electrochemical characteristics of the studied polymers investigated by cyclic voltammetry are shown in Figure 5 and listed in Table 2. The HOMO and LUMO levels of the PFTT are -5.08 and -3.03 eV, respectively. The HOMO levels of PFDDTQ and PFDTBT are similar to that of PFTT except PFDDTTP with a small HOMO level of -4.97 eV. However, the LUMO levels of these copolymers are smaller than that of PFTT, which are -3.23, -3.29, and -3.76 eV for PFDDTQ, PFDTBT, and PFDDTTP, respectively. It indicates that the incorporation of the acceptor moiety could increase electron affinity of the prepared copolymers as expected. The electrochemical band gap estimated from the difference between HOMO and

LUMO levels is generally similar to that of optical band gap.

Field-effect Transistor Characteristics. All the FETs fabricated from PFTT, PFDDTQ, PFDTBT, and PFDDTTP shown in Figure 6 exhibit typical p-channel transfer characteristics (drain current (Id) versus drain voltage (Vd) at various gate voltage (Vg)). In the saturation region

(Vd > Vg – Vt ), where Vt is the threshold voltage, Id can be described by Eq.(1):[8]

2 t g h o d (V V) 2L µ WC I = − (1)

Where µh is the hole mobility, W is the channel width, L is the channel length, and Co is the

capacitance of the gate insulator per unit area, respectively. The saturation region mobility of the studied polymers was calculated from the transfer characteristics of OTFTs. The hole mobilities of PFTT, PFDDTQ, PFDTBT, and PFDDTTP estimated from Figure 6 and eq.(1) are 2.35×10-6, 5.44×10-6, 4.87×10-5 and 5.52×10-5 cm2v-1s-1, respectively. Furthermore, the on-off ratio of PFTT, PFDDTQ, PFDTBT, and PFDDTTP are 1×103, 1×103, 2×104, and 5×103, respectively. As shown in Table 2, the hole mobility increases with the reduction of band gaps and LUMO levels of these polymers. The relatively smaller surface roughness (root mean square roughness (RMS): 0.48~3.35 nm) of the prepared polymer films shown in Table 2 suggest the good quality films for device applications. Hence, the trend on the hole mobility could be mostly due to the different polymer structures. The present result suggests that the mobility could be successfully enhanced by intramolecular charge transfer since it increases the double bond characteristics between a donor and an acceptor and thus leads to a effective π−conjugation length and enhanced charge transport within a single polymer chain.

The importance of polymer morphology on charge transport characteristics of OTFTs have been demonstrated extensively in the literature. The effects of solvent quality on the surface structure and OTFT characteristics were further studied by AFM and FET measurements. The FET mobilities of PFDDTTP based devices prepared from the solvents of THF and 1,2-dichlorobenzene are of 8.00×10-7 _{and 5.52×10}−5_cm2_V-1_s-1_{, respectively, with the on-off}

ratios of PFDDTTP of 6 and 5×103_{. The nearly two orders of magnitudes on the FET mobility}

of PFDDTTP FET from 1,2-dichlorobenzene solution than that from THF solution suggests the importance of solvent quality on the FET characteristic. The root-mean-square (RMS) roughness of PFDDTTP film prepared from THF and 1,2-dichlorobenzene solution is about 120.71 and 0.475 nm, respectively, as shown in the AFM images of Figure 7. The solubility of PFDDTTP and boiling point of the two solvents probably explain the above results. The aggregates shown in Figure 7(b) might make ionization potentials of polymers decrease and lead to oxygen doping. Furthermore, the low mobility of the PFDDTTP film prepared from the THF solution could be also explained by the limited boundary between the aggregates, which would make the low

degree of charge transport and result in low FET mobility. Although the FET mobility obtained in the study is similar or smaller than that of other fluorene -acceptor conjugated copolymers, it demonstrates the importance of acceptor structure and processing solvent on the FET mobility. Further enhancement on the FET mobility could be achieved by device or process optimization.

4.3. Small Band Gap Conjugated Polymers Based on Thiophene-Thienopyrazine Copolymers

We are particularly interested in the thiophene-acceptor conjugated polymers due to the judicious structural modification and flexibility on tuning the electronic and optoelectronic properties for device applications. The donor-acceptor-donor (D-A-D) copolymers of thiophene-thienopyrazine-thiophene (TH-TP-TH) were reported to have a band gap in the range of 1.10-1.60 eV, depending on the side chain of the aromatic ring. Such polymers could have high field effect mobilities, green polymeric electrochromic properties, and potential photovoltaic characteristics. However, the electronic properties of thiopehene-thienopyrazine (TH-TP) donor-acceptor (D-A) alternating copolymer have not been fully explored yet. The EDOT-TP alternating copolymers had been prepared by electrochemical polymerization and showed a relatively small band gap (1.3eV). However, the solution-processible TH-TP would be required for flexible electronic and optoelectronic devices. Besides, the fundamental understanding on the geometry and electronic structures of the thiophene-thienopyrazine copolymers with different compositions would be important for their device applications.

In this study, a joint of theoretical and experimental studies on the electronic properties of thiophene-thienopyrazine D-A alternating copolymers are reported. Five different thiophene-thienopyrazine copolymers consisted of thiophene, bithiophene, terthiophene, quaterthiophene moiety with thienopyrazine of different side groups were synthesized by the Stille coupling reaction, as shown in schemes 4. The electronic properties of the prepared copolymers were estimated by the optical absorption and cyclic voltammetry. The theoretical geometry and electronic properties were investigated by the density functional theory (DFT) at the B3LYP level and 6-31G(d) basis set. The theoretical geometry and bond length alternation of the copolymers were analyzed and correlated with their chemical structures. The effects of the copolymer composition on the theoretical electronic properties, including the HOMO level, LUMO level, band gap, and effective mass were also investigated.

The optical absorption spectra of the prepared polymers in chloroform solution and solid thin films are shown Figures 8 and 9, respectively. The corresponding optical absorption properties are summarized in Table 3. The absorption maxima (λmax) of PTHTP-C7,

PTHTP-C12, and PBTHTP are observed at 748, 774, and 610 nm, respectively. On the other hand, the λmax of PTHTP-C7, PTHTP-C12, PBTHTP, PTTHTP and PQTHTP solid films are

band gaps of 1.07, 0.97, 1.38, 1.66 and 1.78 eV. Note that the optical band gap of PBTHTP is in agreement with the similar structure prepared by chemical or electrochemical method as report in the literature (1.0 eV-1.3eV).In the case of PTHTP-C7, PTHTP-C12 and PBTHTP, the λmax of

the solid films are 42, 76 and 60 nm red-shifted compared to the corresponding solution spectra, which is probably attributed to the π-π stacking of the polymer chains in the former. The significantly higher λmax of the above copolymers than that of polythiophene indicates the

significant intramolecular charge transfer (ICT) between the electron-donating thiophene moiety and the electron-accepting thieno[3,4b]pyrazine moiety. Note that the λmax of the

non-regioregular poly (thiophene) (PHT) in chloroform and solid state films are 448 and 490 nm, respectively. The comparison of the optical absorption properties in Table 1 suggests that the λmax

increases as the thiophene moiety increases but that of the optical band gap shows a reverse trend. It indicates that geometry of the studied polymers is probably varied as thiophene content increases. The PTHTP-C7 or -C12 has the chemical structure of alternating …D-A-D-A… structure. As the thiophene moiety in the polymer structure increases, it reduces the acceptor content and results in decreasing the intramolecular charge transfer. Consequently, it enhances the bond length alternation and results in increasing optical band gap. The theoretical analysis will discuss such effects in details later.

The optical absorption of the PTHTP-C7 film exhibits a board band with the λmax at 1545

nm after doped with iodine vapor, which is significantly higher than that (790 nm) of the pristine PTHTP-C7, as shown in the insert figure of Figure 9. The conductivities of the pristine PTTP-C7 and that after I2 doping were 1.23 x 10-7 S-cm-1 and 1.95 x 10-5 S-cm-1, respectively.

The low conductivity of the doped PTHTP-C7 could be due to the low molecular weight polymer.

Electrochemical Properties

The oxidation and reduction potentials of these polymers were investigated by cyclic voltammetry. Figure 10 shows the cyclic voltammograms (CV) diagrams of PTHTP-C7, PTHTP-C12, and PBTHTP and the corresponding electrochemical properties are listed in Table 1. All three copolymers exhibit reversible oxidation but not in the case of reduction. The HOMO levels of the three studied polymers determined by CV are in the range of -4.45 ~ -4.7 eV. The LUMO levels of PTHTP-C7, PTHTP-C12, and PBTHTP are -3.25, -3.92, and -3.21, respectively. The electrochemical band gaps estimated from the gap between LUMO and HOMO are in the trends of PBTHTP (1.34 eV) > PTHTP-C7 (1.20 eV) > PTHTP-C12 (0.78 eV). Although the values of the above electrochemical band gap are not the same as those of optical band gap, the trend on the three polymers is the same. It again demonstrates the significance of thiophene contant on the electronic properties.

(TH-TP) alternating Polymers

The calculated optimized geometries and electronic properties of the studied donor-acceptor conjugated polymers without alkyl substituents are listed in Table 4. The effects of bond length alternation (BLA, δ), HOMO, LUMO and band gap (Eg) on the polymer structures are discussed

below. Hence, the theoretical results on the geometrical and electronic property of PTHTP were different from those reported previously by our group. From Table 2, all the donor-acceptor conjugated polymers show near zero dihedral angles which exhibit the fully coplanar structures. X-ray analysis involving the TP moiety also show nearly coplanar structures due to the inter-ring S-N or H-N interaction.

Figure 11 (a) and 7(b) show the optimized geometries of the PTHTP and PTTHTP, respectively. The optimum geometries of the homopolymers, PTH and PTP, are the aromatic and quinoid structures, respectively. Copolymerization of 1:1 stoichiometry donor and acceptor moiety, PTHTP, favors an aromatic structure, as evidenced by the bond length with π-delocalization within each unit. The bonds of C1-C2 (1.395Å), C2-C3 (1.395Å), C3-C4 (1.406Å)

and C4-C5 (1.406Å) of Figure 7(a) are suggested to be a double bond while those of C2-C2

(1.400Å), C3-C3 (1.426Å) and C4-C4 (1.436Å) are single bonds, resulting in the slightly

aromatic-dominant character. The relative carbon bond lengths of PTTHTP shown in Figure 11 (b) also exhibit the aromatic geometry as well. The optimized theoretical results suggest that all copolymers with different donor/acceptor fraction (1:1, PBTHTP; 2:1, PBTHTP; 3:1, PTTHTP; 4:1, PQTHTP) are preferred to be aromatic structures. PTHTP shows the smallest BLA (δD, δA)

and bridge length (LB) of all four donor-acceptor conjugated polymers due to the more efficient

π-delocalization resulted from significant intramolecular charge transfer. The BLA in PTH, PTHTP and PTP are 0.031(δD), 0.005 (δD), and 0.026 Å (δA), respectively. It suggests that the

relaxation of bond length mainly occurs in thiophene unit after incorporating the quinoid-like thienopyrazine unit since the large BLA reduction of PTHTP in comparison with that of PTH. The BLA in the thiophene moieties of PTHTP, PBTHTP, PTTHTP, and PQTHTP are 0.005, 0.016, 0.019, and 0.021 Å, respectively. It indicates that the BLA is enlarged with increasing the thiophene moiety and thus results in the aromatic-dominant structure. Furthermore, the bridge length also shows the same results. The order of the LB between the thiophene and

thienopyrazine is PTP < PTHTP < PBTHTP < PTTHTP < PQTHTP < PTH, as shown in Table 4. The enhanced inter-ring bridge length also explains the tendency of toward aromatic-like structures as increasing the thiophene fraction.

Figure 12 (a) and (b) show the calculated one-dimensional band structures along polymer chain of PTHTP and PTTHTP, respectively. All the band gap values are derived from the direct transition at k = 0 with the highest occupied band and lowest unoccupied band. The order of the obtained theoretical Eg (eV) is PTHTP (0.90) > PBTHTP (1.21) > PTTHTP (1.36) > PQTHTP

(1.45). The above theoretical band gaps are in a good agreement with those from the experimental results discussed in the optical property section. The theoretical band gap of stable

aromatic PTH and quinoid PTP from DFT//B3LYP/6-31G(d) theory shown in Table 4 is 2.07 and 1.31 eV, respectively, which are very close to the experimental band gap of 2.0 (optical)and 0.95 (electrochemical) eV. The deviation is probably attributed to the interchain interaction in polymer thin film, which is not considered for an isolated single polymer chain in our theoretical calculations. The order of band gap is in the same trend of the BLA and suggests that the BLA contributes significantly to the order of Eg. However, a slightly larger band gap of PTTHTP and

PQTHTP than PTP is mainly due to the large bond length alternation.

The electron effective mass are calculated on the upper valence band or lower conduction band, which is a good parameter for predicting the hole or electron ability. As shown in Table 4, the relatively smaller band gap and effective mass of the PTHTP compared to other polymers facilitating the π-electron delocalization make more potential applications for transparent conductor, photovoltaic devices and thin film transistors.

5. Conclusions

The optoelectronic and device characteristics of fluorene-based, fluorene-based donor-acceptor-donor and thiophene-based donor-acceptor copolymers are investigated. The chemical structures and compositions of the acceptor in the polymer blend significantly affect the energy transfer and the resulted luminescence characteristics. The ternary blends composed of PF, PFQ (or PFBT), and PFTP are also explored for the potential white light-emitting diodes(WLED). The luminance yield and maximum external quantum efficiency of the white-light emitting diode with ternary blend FBTTP1 as emissive layer are 1.89 cd/A and 0.47%, respectively. The present study suggests that the polymer blend approach is a potential approach for enhancing luminescence characteristics or color tuning in LEDs.

In this study, we have also successfully addressed the role of acceptor structures of fluorene based conjugated copolymers on their electronic, optoelectronic, and FET characteristics. The order of the band gap is PFDTTP < PFDTBT < PFDDTQ < PFTT, which is on the reverse trend of luminescence and FET mobility. The strong acceptor strength of thieno[3,4-b]pyrazine (TP) and coplanar backbone in PFDTTP probably resulted in a high intramolecular charge transfer and led to the lowest band gap and highest FET mobility among the four polymers. The present study suggested the importance of the acceptor structure on the electronic and optoelectronic properties of semiconducting polymer based devices.

Five small band gap thiophene(TH)-thienopyrazine(TP) conjugated copolymers are successfully synthesized and characterized. Both experimental and theoretical results suggest that the band gaps reduce as the thiophene moiety increased. The relatively small optical (0.97 eV) and electrochemical (0.78 eV) band gaps of poly PTHTP-C12 suggest the importance of intramolecular charge transfer. The theoretical geometry analysis indicates that the bond length alternation increases with the increasing the thiophene moiety and results in the above trend on

band gaps. The theoretical results also suggest that the poly(TH-alt-TP) could have a relatively small effective mass for field transistor applications. Our study demonstrates the tuning of the electronic properties of small band gap copolymers by the thiophene content and intramolecular charge transfer.

6. Reference

[1] Q. Hou, Y. S. Xu, W. Yang, M. Yuan, J. B. Peng, Y. Cao, Journal of Materials Chemistry 2002, 12, 2887.

[2] W. C. Wu, W. Y. Lee, W. C. Chen, Macromolecular Chemistry and Physics 2006, 207, 1131. [3] W. C. Wu, C. L. Liu, W. C. Chen, Polymer 2006, 47, 527.

[4] Q. Hou, Q. M. Zhou, Y. Zhang, W. Yang, R. Q. Yang, Y. Cao, Macromolecules 2004, 37, 6299.

[5] A. P. Kulkarni, Y. Zhu, S. A. Jenekhe, Macromolecules 2005, 38, 1553.

[6] W. C. Wu, W. Y. Lee, C. L. Pai, W. C. Chen, C. S. Tuan, J. L. Lin, Journal of Polymer

Science Part B-Polymer Physics 2007, 45, 67.

[7] P. Herguch, X. Z. Jiang, M. S. Liu, A. K. Y. Jen, Macromolecules 2002, 35, 6094.

[8] R. D. Champion, K. F. Cheng, C. L. Pai, W. C. Chen, S. A. Jenekhe, Macromolecular Rapid

Communications 2005, 26, 1835.

[9] T. Yamamoto, T. Yasuda, Y. Sakai, S. Aramaki, A. Ramaw, Macromolecular Rapid

Communications 2005, 26, 1214.

[10] Y. Zhu, R. D. Champion, S. A. Jenekhe, Macromolecules 2006, 39, 8712.

[11] F. L. Zhang, W. Mammo, L. M. Andersson, S. Admassie, M. R. Andersson, L. Inganas, S. Admassie, M. R. Andersson, O. Ingands, Advanced Materials 2006, 18, 2169.

Table 1. Photoluminescence and Electroluminescencea characteristics of Ternary blends Photoluminescence Electroluminescence Composition(wt%) FQTP- PF:PFQ:PFTP FBTTP- PF:PFBT:PFTP λmaxPL (nm) ΦPL (%) Bias (V) λmaxEL (nm) Brightness (cd/m2) Current Densityb (mA/cm2) Luminance yield (cd/A) CIE 1931 coordinates (x,y) EQE (%) FQTP1 98.50:1.00:0.50 426, 455, 474 30.1 9.5 430*, 477, 620 326 72.7 0.45 (0.328, 0.310) 0.13 FQTP2 98.00:1.00:1.00 425, 451, 472, 615* 21.4 10 493, 604 146 54.7 0.27 (0.410, 0.302) 0.08 FQTP3 97.00:1.00:5.00 421, 444, 474*, 630, 653 6.03 16 450*, 639, 655 13 29.6 0.04 (0.628, 0.291) 0.06 FQTP4 94.25:5.00:0.50 423, 478 27.5 12 482, 619 97 48.3 0.20 (0.297, 0.380) 0.08 FQTP5 94.00:5.00:1.00 424, 478, 627, 655* 19.2 12.5 489, 603 75 45.2 0.17 (0.395, 0.341) 0.07 FQTP6 90.00:5.00:5.00 423, 478, 631, 654 5.22 16.5 477, 637, 654 10 30.1 0.03 (0.580, 0.293) 0.05 FBTTP1 99.65:0.05:0.30 423, 445, 521 38.7 8 424, 446, 478, 513, 618* 1360 72.2 1.88 (0.320, 0.327) 0.47 FBTTP2 98.95:0.05:1.00 423, 445, 520, 610* 27.6 9.5 424, 449, 476, 515, 626 189 23.4 0.81 (0.502, 0.345) 0.31 FBTTP3 99.60:0.10:0.30 424, 445, 522 36.4 8 445, 520 1250 82.5 1.52 (0.322, 0.345) 0.45 FBTTP4 98.90:0.10:1.00 423, 444, 521, 610* 29.2 9.5 445, 520, 630 163 20.1 0.81 (0.476, 0.367) 0.30 FBTTP5 98.50:0.50:1.00 423, 445, 524 25.1 9.5 446*, 526, 620* 145 31.7 0.46 (0.399, 0.466) 0.38 FBTTP6 95.50:0.50:4.00 419, 442, 526, 614 7.05 14 444*, 637, 654 14 28.3 0.05 (0.617, 0.307) 0.08 a: Device structure: ITO/PEDOT:PSS/emissive layer/Ca:Ag; measured at maximum luminance yield.

b :Active area is 0.1256 cm2_.

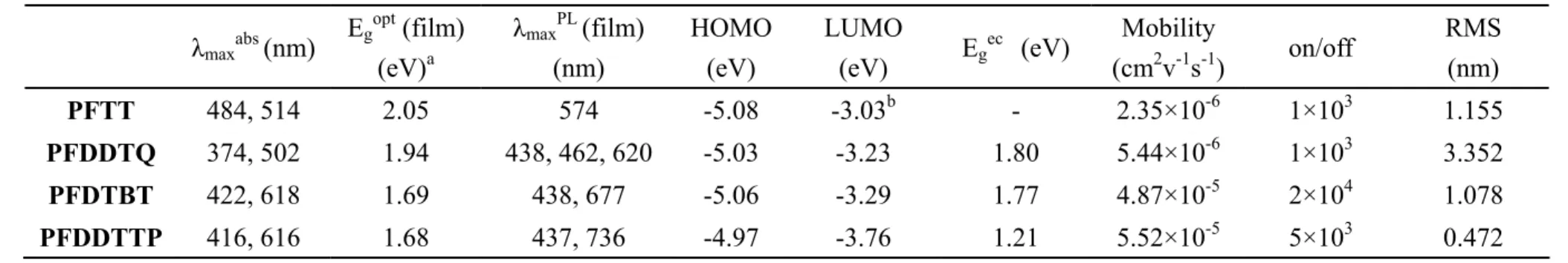

Table 2. The Electronic and Optoelectronic Properties of PFTT, PFDDTQ, PFDTBT, and PFDDTTP. λmaxabs(nm) Egopt (film) (eV)a λmaxPL(film) (nm) HOMO (eV) LUMO (eV) Eg ec _(eV) Mobility (cm2_v-1_s-1₎ on/off RMS (nm) PFTT 484, 514 2.05 574 -5.08 -3.03b - 2.35×10-6 1×103 1.155 PFDDTQ 374, 502 1.94 438, 462, 620 -5.03 -3.23 1.80 5.44×10-6 _1×103 _3.352 PFDTBT 422, 618 1.69 438, 677 -5.06 -3.29 1.77 4.87×10-5 2×104 1.078 PFDDTTP 416, 616 1.68 437, 736 -4.97 -3.76 1.21 5.52×10-5 5×103 0.472

a_{. Estimated from the absorption edge of the thin film.}

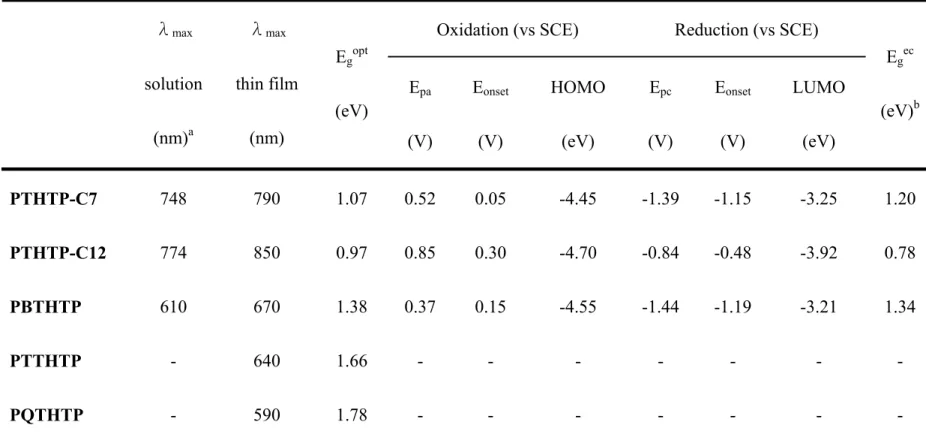

Table 3. Optical absorption and electrochemical properties of the studied polymers.

Oxidation (vs SCE) Reduction (vs SCE)

λmax solution (nm)a λmax thin film (nm) Egopt (eV) Epa (V) Eonset (V) HOMO (eV) Epc (V) Eonset (V) LUMO (eV) Egec (eV)b PTHTP-C7 748 790 1.07 0.52 0.05 -4.45 -1.39 -1.15 -3.25 1.20 PTHTP-C12 774 850 0.97 0.85 0.30 -4.70 -0.84 -0.48 -3.92 0.78 PBTHTP 610 670 1.38 0.37 0.15 -4.55 -1.44 -1.19 -3.21 1.34 PTTHTP - 640 1.66 - - - - - - - PQTHTP - 590 1.78 - - - - - - -

a _{The absorption maximum in chloroform solution.}

b _{The electrochemical band gap, E}

Table 4. Geometries and electronic properties of studied conjugated polymers Polymer LB a (Å) δD b (Å) δA b (Å) HOMO (eV) LUMO (eV) Eg (eV) Effective mass mH Effective mass mL PTH 1.441 0.031 - -4.62 -2.55 2.07 -0.150 me 0.164 me PTP 1.373 - 0.026 -4.40 -3.07 1.32 -0.154 me 0.242 me PTHTP 1.426 0.005 0.030 -4.20 -3.30 0.90 -0.100 me 0.111 me PBTHTP 1.429 0.016 0.037 -4.36 -3.15 1.21 -0.103 me 0.139 me PTTHTP 1.430 0.019 0.038 -4.42 -3.06 1.36 -0.117 me 0.165 me PQTHTP 1.431 0.021 0.039 -4.46 -3.01 1.45 -0.123 me 0.191 me

a: bridge bond length between the donor and acceptor

S 1. LDA / THF 2. (CH3)3SnCl S Sn(CH₃)₃ (H₃C)₃Sn R R R N S N Br2, AcOH N S N Br Br Zn or SOCl2/ HCl Br Br NH2 H2N Br Br N N S NH₂ H2N N N S NBS / DMF N N S Br Br RCOCOR a. Thiophene Monomer b. Acceptor Monomers R R RCOCOR R Br-BT-Br Br-TP-Br Br-Q-Br R = H or C7H15 or C12H25 N S N NSN Br Br Br2 / HCl H2N NH2 Br Br NaBH4 Br Br O O N N Bu3SnTh, PdCl2(PPh3)2 THF S S N N CH3 H3C NBS S S N N CH3 H3C Br Br c. donor-Acceptor-donor Monomers S Br Br NO2 O2N S SnBu3 S _S S NO2 O2N S Br Br fuming H2SO4 fuming HNO₃ S _S S NH2 H2N SnCl2 / HCl S _S S CH3 H3C O O N N H3C CH3 S _S S N N H3C CH3 Br Br NBS Br-DMDTQ-Br Br-DTTP-Br N S N _Bu 3SnTh, PdCl2(PPh3)2 THF NBS N S N S S N S N S S Br Br Br-DTBT-Br S S S (H3C)3Sn S Sn(CH3)3

Scheme 1. The synthesis process of the monomers of thiophene, thienopyrazine, and donor-acceptor-donor moiety.

Acceptor C6H13 C6H13 n Acceptor = N N NS N S N N Acceptor Br Br B B C6H13 C6H13 O O O O + 1. Pd(PPh3)4 / K2CO3(aq) / Toluene PFQ PFBT PFTP

2. Phenyl boronic acid /Bromobenzene

Scheme 2. Synthesis of fluorene-acceptor alternating copolymers. B B O O O O H13C6. C6H13 + SnMe3 S S S Me3Sn S S CH3 H3C Br Br N S N S S _Br Br S N N S S _Br Br H3C CH3 Pd (PPh3)4 K2CO3/ Toluene C6H13 C6H13 S S S n C6H13 C6H13 S S N N C6H13 C6H13 S S n N S N C6H13 C6H13 S S S n N N + H13C6. C6H13 Pd (PPh3)4 Toluene Br Br (a) (b) PFTh3 PFDMDTQ PFDTBT PFDTTP

Scheme 3. Synthesis of fluorene-donor-acceptor- donor alternating copolymers.

S N N R R Br Br S Sn(CH3)3 Sn(CH3)3 S S N N R R S S N N C7H15 C7H15 S S S Sn(CH3)3 Sn(CH3)3 n n S S S N N C7H15 Br Br C7H15 + S S S S N N C7H15 C7H15 n PTTHTP S S S S S N N C7H15 C7H15 n PQTHTP PBTHTP PTHTP Pd(0)_(PPh 3)4

Scheme 4. Synthetic scheme of PTTHTP and PQTHTP. 400 450 500 550 600 650 700 0.0 0.2 0.4 0.6 0.8 1.0 1.2 (a) FQTP1 _FQTP2 FQTP3 FQTP4 FQTP5 FQTP6 Normalized Int ensity Wavelength (nm)

400 450 500 550 600 650 700 0.0 0.2 0.4 0.6 0.8 1.0 (b) Normalized Intensity Wavelength (nm) FBTTP1 FBTTP2 FBTTP3 FBTTP4 FBTTP5 FBTTP6 400 450 500 550 600 650 700 750 800 0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0 PFTP PFBT PFQ Normalized Absorbanc e Normal ize d Intens ity Wavelength (nm) (c)

Figure 1. (a) Normalized PL of FQTP; (b) normalized PL of FBTTP; (c) PL spectra of PFQ and PFBT (solid lines) and UV spectra of PFTP.

400 450 500 550 600 650 700 0.0 0.2 0.4 0.6 0.8 1.0 1.2 (a) FQTP1 FQTP2 FQTP3 FQTP4 FQTP5 FQTP6 No rmalized Inten sity Wavelength (nm) 400 450 500 550 600 650 700 0.0 0.2 0.4 0.6 0.8 1.0 1.2 (b) FBTTP1 FBTTP2 FBTTP3 FBTTP4 FBTTP5 FBTTP6 Nor m al ized Intensit y Wavelength (nm)

Figure 2. Normalized EL spectra of ternary the blends using (a) FQTP and (b) FBTTP as the emissive layer.

400 600 800 0.0 0.2 0.4 0.6 0.8 1.0 N o rm al iz ed i n te nsi ty Wavelength (nm) PFTT PFDDTQ PFDTBT PFDDTTP

Figure3. Normalized UV-vis absorption spectra of PFTT, PFDDTQ, PFDTBT, and PFDDTTP thin films on glass substrate.

400 450 500 550 600 650 700 750 800 0.0 0.2 0.4 0.6 0.8 1.0 N o rm a liz e d i n te n s it y Wavelength (nm) PFTT PFDDTQ PFDTBT PFDDTTP

Figure 4 Normalized PL spectra of PFTT, PFDDTQ, PFDTBT and PFDDTTP in thin films on glass substrate.

(a) -2.0 -1.8 -1.6 -1.4 -1.2 -1.0 -0.8 -0.6 -0.4 -0.2 0.0 Current (a . U .) E vs. SCE PFDDTQ PFDTBT PFDDTTP (b) 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Cu rre n t (a .u .) E vs SCE PFTT PFDDTQ PFDTBT PFDDTTP

Figure 5. Electrochemical (a) reduction and (b) oxidation of cyclic voltammograms of PFTT, PFDDTQ, PFDTBT, and PFDDTTP films on a Pt electrode in acetonitrile solution containing TBABF4 as the electrolyte.

(a) 0 -20 -40 -60 -80 1E-12 1E-11 1E-10 1E-9 1E-8 1E-7 Drain Curr ent , - I d (A ) Gate Voltage, Vg(V) PFTT PFDDTQ PFDTBT PFDDTTP

Figure 6 The transfer characteristics of PFTT, PFDDTQ, PFDTBT and PFDDTTP at Vd =

(a)

(b)

PFDDTTP thin films obtained from various solvents: (a) 1,2-dichlorobenzene and (b) THF.

200 400 600 800 1000 1200 1400 PTHTP-C7 PTHTP-C12 PBTHTP Absorba n c e (a .u.) Wavelength (nm)

Figure 8. Optical absorption spectra of the studied copolymers in chloroform.

Figure 9. Optical absorption spectra of the studied copolymer films on quartz substrates.

1.5 1.0 0.5 0.0 -0.5 -1.0 -1.5 -2.0 PTHTP-C7 PTHTP-C12 PBTHTP I ( a .u .) E (V) 500 1000 1500 2000 2500 (e) (d) (c) (b) (a) (a) PTHTP-C7 (b) PTHTP-C12 (c) PBTHTP (d) PTTHTP (e) PQTHTP A b so rb an ce (a .u. ) Wavelength (nm) 500 1000 1500 2000 2500 PTHTP-C7 doped I2 A b sor b an ce ( a .u .) Wavelength (nm)

Figure 10.

Figure 11. DFT//B3LYP/6-31G(d) optimized bond length of (a) PTHTP (b) PTTHTP.

(a) -8 -7 -6 -5 -4 -3 -2 -1 0 1 E n

ergy Level (eV)

Wave vector (k) 0 (b) -8 -7 -6 -5 -4 -3 -2 -1 0 1 0 En er gy Le ve l ( eV ) Wave vector (k)

Figure 12. Band structures of (a) PTHTP (b) PTTHTP by DFT//B3LYP/6-31G(d) theory .

7、計畫結果自評

1. 本研究研究成果與原設定計畫目標相符

研究目標 研究成果

完成利用理論分析估算donor-acceptor共軛 高分子的性質，包括geometry (bond length, bond angle, torsion angle)、electronic structure (HOMO, LUMO, Eg, BW, effective mass)。

以Density Function Theory配合適當之Energy Basisr計算出donor-acceptor共軛高分子之最適 化幾何結構與電子結構特性。並歸納出不同 Thiophene-Thienopyrazine比例對其光電性質 之影響。 完成共軛高分子單體合成，包括thiophene 單體與一系列之acceptor單體。 利用適合之反應物與反應條件合成出適用於製 備donor-acceptor 共軛高分子之單體。 完成共軛高分子合成，包括fluorene-based copolymers 及 fluorene-based donor-acceptor-donor copolymers 及 thiophene-thienopyrazine alternating copolymers。

利用Suzuki coupling 與 Stille coupling 分別成功 合成 fluorene-based copolymer, fluorene-based donor-acceptor-donor copolymer 及 thiophene-thienopyrazine alternating copolymer。 完成共軛高分子之電化學、與光物理性質鑑 定，包括分子量、HOMO/LUMO level、band gap、與發光特色等，並建立化學結構對共 軛高分子性質的關係。 利用CV 量測電化學性質、利用 UV 與 PL 量測 光 物 理 性 質 ， 建 立 acceptor 強 度 與 含 量 對 donor-acceptor 性質（如電子結構特性、吸收與 發射波長）之關係。 完 成 元 件 之 製 備 與 性 質 量 測 ， 包 括 將 fluorene-based共聚高分子應用於高分子發 光 二 極 體 、 以 及 將 thiophene-based 與 fluorene-based donor-acceptor-donor 共 聚 高 分子應用於場效應薄膜電晶體。 將fluorene-based 共聚高分子摻混應用於高分子 發光二極體之製備，並成功製備出白光發光二 極 體 ； 成 功 合 成 出 低 能 隙 Thiophene-Thienopyrazine共聚高分子，並成功地結合理 論計算分析釐清結構與電子特性之間的關係； 成功測量出fluorene-based donor-acceptor-donor 共聚物的場效應薄膜電晶體特性，並作進一步 的分析。 8、本年度(2006/8/1 ~迄今)經由本計畫經費支持共發表 9 篇 SCI 期刊論文，目錄 如下。

(1) Y. C. Tung, W. C. Wu, and W. C. Chen,* “Morphological Transformation and

Photophysical Proeprties of Rod-Coil Poly[2,7-(9,9-dihexylfluorene)]-block-poly(acrylic acid) (PF-b-PAA) in Solution”,

Macromol. Rapid Commun., 27, 1838-1844 (2006). (2) C. C. Yang, Y. Tian, Alex

K.-Y. Jen,* and W. C. Chen,* “New Environmental-Responsive Fluorescent NIPAA Copolymer and Its Application on DNA Sensing”, J. Polym. Sci. Polym.

J. Yen, “A New Class of High Tg and Organosoluble Aromatic Poly(amine-1,3,4-oxadiazole)s Containing Donor and Acceptor Moieties for Blue Light-Emitting Materials”, Macromolecules, 39, 6036-6045.(2006) (4)W. C. Wu, W. Y. Lee, C. L. Pai, W. C. Chen*, C. S. Tuan, and J. L. Lin, “Photophysical and Electroluminescent Properties of Fluorene Based Binary and Ternary Donor-Acceptor Polymer Blends”, J. Polym. Sci. B: Polym. Phys., 45, 67-78(2007). (5). W. C. Wu, Y. Tian, C. Y. Chen, C. S. Lee, Y. J. Sheng, W. C. Chen,* and Alex K.-Y. Jen,* ”Theoretical and Experimental Studies on the Surface Structures of Conjugated Rod-Coil Block Copolymer Brushes”, Langmuir, 23, 2805-2814(2007). (6) H. Y. Lin, G. S. Liou,* W. Y. Lee,and W. C. Chen,* “ Poly(triarylamine):Synthesis, Properties, and Its Blend with Polyfluorene for White-Light Electroluminescence”, J. Polym. Sci. Polym. Chem., 45, 1727-1736 (2007). (7) C. C. Yang, Y. Tian, C. Y. Chen, Alex K.-Y. Jen* and W. C. Chen*, “A Novel Benzoxazole-containing Poly(N-isopropylacrylamide) Copolymer as Multifunctional Sensing Materials”, Macromol. Rapid Commun. 28, 894-899(2007). (8) A. Babel, Y. Zhu, K. F. Chen, W. C. Chen, and S. A. Jenekhe,* ”Morphology, High electronic Mobility, and Ambipolar Charge Transport in Binary Blend of Donor and Acceptor Conjugated Polymers”, Adv. Funct. Mater., in press (2007). (9) G. S. Liou,* Y. L. Yang, W. C. Chen, Y. L. Oliver Su, “4-Methoxy-substituted Poly(triphenylamine):A P-type Polymer with Highly Photoluminescence and Reversible Oxidative Electrochromic Characteristics”, J. Polym. Sci. Polym. Chem., in press.

參加 2007 年 American Chemical Society 233rd National Meeting & Exposition

報告人：闕居振(本計畫出國經費乃支持包括我在內 實驗室三位博士班發表論文之出國差旅費)

台大化工所/高分子所

一、參加會議過程

筆者有幸於 3/24~3/29 之間參與 American Chemical Society (ACS)所舉辦的 233rd National Meeting & Exposition。American Chemical Society 為國際上最大的 化學協會，其中共分成三十三個 technical division，並邀請許多國際學者參與討 論，包含諾貝爾獎得主 Alan J. Heeger 等等知名教授。據大會統計，參與人數高 達一萬兩千人以上，口頭與海報發表篇數也將近九千七百多篇，是國際少見的大 型會議。在筆者所參與 Polymer Chemistry Session 中，許多國內各大學亦有許多 為學者受到邀請口頭報告，並且在壁報展覽會場中，亦有許多國內研究成果發 表，充分顯示我國在高分子化學領域的研究實力。本實驗室除我之外，另有李文 亞及童宜峙發表口頭或壁報論文，題目如下:

1. Chu-Chen Chueh, Wen-Ya Lee, Kai-Fang Cheng and Wen-Chang Chen, “Synthesis and Optoelectronic Properties of Poly(quinoxaline vinylene) and Its Random Copolymer with Fluorene”.

2. Wen-Ya Lee, Kai-Fang Cheng, Then-Fu Wang, Chu-Chen Chueh, Wen-Chang Chen, Chih-Shen Tuan, and Jen-Lien Lin, “Effects of Acceptors on the Electronic and Optoelectronic Properties of Fluorene Based Donor-Acceptor-Donor Copolymers”.

3. Yi-Chih Tung, Wen-Chung Wu, Wen Chang Chen, “Morphological Transformation and Photophysical Properties of Fluorene Based Rod-Coil Copolymers in

Solution”.

二、與會心得與建議

由於筆者本身致力於高分子光電元件材料之製備與研究，因此對於 Polymer Chemistry 與 Polymer Materials: Science & Engineering 領域感到相當興趣。尤其 是 Polymer Chemistry 次領域，由於剛好是共軛高分子三十週年，因此此領域有 一專題就是 30 years of Conducting polymers，邀請了許多國內外知名學者來演 講，如聖塔芭芭拉大學的諾貝爾獎得主 Alan J. Heeger、西雅圖華盛頓大學的 Jenehke 以及研究小分子場效應電晶體的史丹福大學 Bao 等等著名教授都是本 次會議邀請的重點。共軛有機物與高分子由於是新的科學領域，因此有許多潛 力需要去發掘，為了進一步地提升有機材料於光電元件上的應用，許多學者在 此會議上提出一些新的議題激發大家的靈感。

如諾貝爾獎得主 Alan J. Heeger 發表一系列利用共軛高分子所製備成的 Light Emitting Field-Effect Transistor，此元件利用高分子之 ambipolar 特性，同時在元

件中注入電洞與電子，利用電場大小控制元件發光位置，進一步發掘共軛高分 子於業界的應用潛力。 由於 Pentacene 小分子在空氣中的穩定性不佳，而且此材料只能利用高費用 的蒸鍍機製備，在商業化上遭遇到不少困難。史丹福大學的 Bao 教授為了提升 Pentacene 的應用性，特別將 Pentacene 與各種不同的單體共聚合成高分子，以 提升其材料的可塗佈性與大氣穩定性，開創了全新的共軛分子研究領域。這方 面的研究與本實驗室所研究的主題相關，未來如何將 Pentacene 與 donor/acceptor 系統結合就是實驗室未來可以努力的方向。 國際上高分子太陽能電池的領先者 Yang Yang 教授在研發有機光電元件上有 更新的突破，他們實驗室利用 poly(3-hexyl-thiophene)/Au nanoparticles 以及 polyaniline nanofiber/tobacco mosaic virus 等等不同的 polymer/biomolecule(或是 polymer/ nanoparticle) 摻混物製備出全新的高性能有機記憶體元件，擁有很快 的資料擷取速度（< 1microsecond）。不過其中，他也提到此元件在穩定性方面 並無法與目前的記憶體元件相比，因此如何提升有機元件在這方面的穩定性是 未來可以繼續研究的課題。目前有機光電元件的研究主要在於場效應電晶體、 有機發光二極體與太陽能電池上，想要在這方面上比其他國外實驗室有更大的 突破並不是件容易的事情，但在有機記憶體元件上，國內外投入的學者並不多， 或許是一個新的契機可以去努力的。 國內在有機光電元件的研究上其實並不遜於國外學者，無論在效能與製程上 都可以達到國外研究的水準，但是要如何找到適當的研究主題切入以及要如何 研發具有原創性的研究就是需要國內學術界更加倍的努力了。 三、攜回資料

2007 American Chemical Society 233rd National Meeting & Exposition 會議論 文、摘要及相關資料

四、致謝
