Abstract:

Ag/Pd triangular nanoshells of different sizes are prepared for catalyzing electroless copper deposition. As supported by the analysis of quartz crystal microbalance and mixed potential theory, the alloy nanoshells can be successfully used as new activators and have the excellent activity for electroless copper bath. For a comparison of deposition rates with a system of triangular Ag/Pd nanoshells, the large Ag/Pd nanoshell is found to have the maximum activity toward electroless bath.

Keyword:

nanoparticle; shape; catalyst; printed circuit board; ULSI

Text:

1. Introduction:

Electroless copper deposition (ECD) is an important technology in advanced electronic circuit industries, and is used for printing circuit board [1-2] and manufacturing semiconductors [3-6]. Although the composition of the deposition bath [7-9] and the choice of ligands [10, 11] can influence the performance of an electroless process, the activation is a determinant key on the deposition rate [12] and the surface roughness of deposited layers [13]. Activation, which is a catalytic reaction, is triggered with active colloids on the surface of the substrates dipped in an electroless deposition bath. Therefore, the active catalyst plays a role as an electron carrier that supports the transfer of electrons from the reducer to the metal ions.

Metallic nanomaterials are gained of interest because of their optical [14, 15], magnetic [16] and catalytic properties [17-19]. In particular, for the catalytic reaction, metallic nanomaterials of various size [18] and shape [20] apparently alter the catalysis rate. In the early report, we have prepared spherical Pd nanoparticles and apply them as an activator for ECD [21]. This study further explores that electrochemical activity of the Ag/Pd triangular nanoshells (Ag/Pdshell) with

different sizes for catalyzing ECD bath. MPT and QCM are applied in cases of various sizes of Ag/Pdshell to compare theoretical and actual ECD kinetics. The ECD deposition rates activated by

these Ag/Pdnanoshells can thus be fairly compared.

2. Experimental:

2-1. Preparation of Ag/Pd triangular nanoshells with different sizes. The synthesis of

Ag/Pd triangular nanoshells with different sizes in aqueous solution is described below. The synthesis method of the dispersed Ag triangular nanotemplates is modified according to the seed growth method [22]. Initially, ~50 μl of a ~0.05 M silver nitrate (AgNO3) aqueous

solution was added to 10 ml of a 2.5 ×10-4 M sodium citrate aqueous solution. Then, ~25 μl of ~0.1 M NaBH4 solution was gradually added to a stirred mixed solution of sodium citrate and

AgNO3. An Ag seed solution of light yellow was then obtained. Furthermore, 100μl of ~0.05

M AgNO3 was added to 20 ml of 0.1 M hexadecyltrimethy ammonium bromide (C16TAB)

aqueous solution. 1 ml of ~ 0.1 M ascorbic acid and ~100μl of the prepared Ag seed solution was slowly dropped into the C16TAB aqueous solution. The Ag nanotemplates of middle size

were then prepared after 80 μl of 2M NaOH aqueous solution was added. If the amounts of the seed solution are changed to ~50μl and ~200μl in the synthesis pathway, the Ag nanoplates of large and small size are then obtained, respectively. Furthermore, 20 ml of the synthesized Ag triangular nanoplates solution of middle size was precipitated by centrifugation at 4,000 rpm

(4)

and redispersed using 3 ml deionized water to reduce the interaction of free C16TAB upon the

synthesis of the Ag/Pd triangular nanoshells. ~1.25 mg palladium acetate (Pd(OAc)2) was

added and slowly dissolved in 1 ml pure acetate acid to produce Pd2+_{ion solution for the}

following galvanic displacement reaction. ~50μl Pd(OAc)2 solution was added to 3 ml of

stirred solution of Ag nanotemplates with middle size at a fixed controlled temperature, 60 ℃. After 60 min, dispersed middle Ag/Pdshells were obtained. Experiment detail has been

presented elsewhere [23]. Based on the same method, the large and small Ag/Pdshell are then

obtained if large and small Ag nanoplates were used as templates in galvanic displacement reaction, respectively.

The characteristic size and microstructure of the prepared Ag/Pdshell solution, which were

dipped onto the copper grid that was covered with a carbon film and dried naturally, were observed under a high-resolution transmission electron microscope (HR-TEM; JEOL JEM-2000EX).

2-2. Electrochemical measurement. The synthesized Ag/Pd nanoshells of different sizes

were then applied as activators on ECD. The bath compositions of the ECD for quartz crystal microbalance (QCM) experiment are listed in Table 1. All electrochemical experiments were carried out in the baths controlled at 30℃and firstly bubbled with N2 gas for 15 min

prior to the measurement.

For the QCM experiment, the working electrode in ECD measurement was prepared by applying 3µl solution of the small, middle and large Ag/Pdshell uniformly on a 0.159 cm2 Au

surface of the QCM substrate, respectively. The QCM substrate was sputtered with gold on top of 100 Å titanium film from both sides and was connected to a home-build oscillator. The reference electrode (Hg/Hg2Cl2) was separated from the main solution compartment by a

Luggin capillary, which was filled with saturated KCl solution.

For linear scanning voltammetry (LSV) and mixed-potential theory analysis, the resulting small, middle and large Ag/Pdshell aqueous solutions of 3µl was uniformly dropped onto 0.07

cm2 glassy carbon electrode (GCE), respectively, and heated at 70℃ to evaporate H2O for 5

min. In order to prevent the catalyst from falling off the electrode, the glass carbon electrode was rinsed by 3 µl 5wt% Nafion solution and heated at 70℃ for 10 min. LSV measurement was carried out by using a potentiostat (Autolab PGSTAT30) incorporating a rotation disk electrode (RDE). A three-electrode cell, consisting of a GCE working electrode, a Pt counter electrode and a Hg/Hg2Cl2 reference electrode, was used for the measurement. The LSV

experiment was performed in anodic or cathodic reaction (seeing Table 1) at a scan rate of 5 mV/s and a rotation speed of working electrode of 3600 rpm.

(5)

Table 1. The composition of electroess copper deposition for analyses of linear sweep voltammetry (LSV), mixed potential theory (MPT) and quartz crystal microbalance (QCM).

Composition of electroless copper bath

MPT and LSV

QCM

Oxidation Reaction Reduction Reaction

CuSO4 0.05 mol/dm3 HCOH 0.27 mol/dm3 CuSO4 0.05 mol/dm3 HCOH 0.27 mol/dm3 EDTA 0.1 mol/dm3 EDTA 0.27 mol/dm3 EDTA 0.1 mol/dm3 pH (adjustment with NaOH) 12.3 pH (adjustment with NaOH) 12.3 pH (adjustment with NaOH) 12.3

3. Results and discussion:

When the Ag/Pd nanoshells were formed, HR-TEM was employed to measure the morphology and size of the prepared Ag/Pdshell, which are displayed on copper grids. Figure 1 presents

HR-TEM images of the prepared Ag/Pdshell of different sizes, which were prepared as description

in the experimental section. The Ag/Pdshell of small, middle and large size are detected and

shown in Figure 1A-C, respectively.

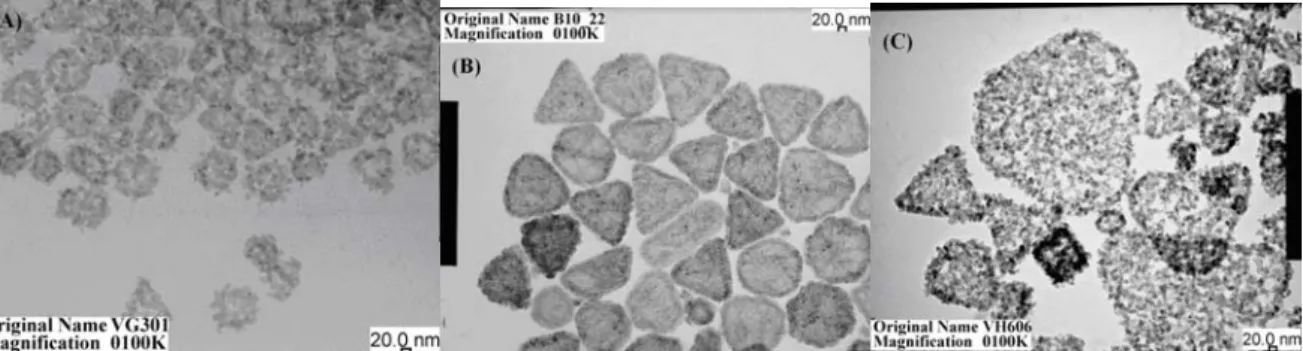

Fig 1. The Pictures of transmission electron microscope of the prepared Ag/Pd triangular

nanoshells of different sizes. (A) Small Ag/Pdshell;(B) Middle Ag/Pdshell; (C) Large Ag/Pdshell.

Based on HR-TEM results, the lengths of triangular edge on small, middle and large Ag/Pdshell are calculated and summarized in Fig. 2. The mean edge lengths upon small and

middle Ag/Pdshell are 82.8 nm and 133.28 nm, respectively, and 193.29 nm is at the large case.

This indicates that the sizes of Ag/Pd triangle nanoshells which are applied as new ECD activators can be tuned by Ag nanotemplate’s size.

(6)

small middle large 50 100 150 200 250 300 L en g th of ed ge

Triangular Ag/Pd nanoshells

Fig. 2. The statistical calculation of length of the triangular edge on the prepared Ag/Pd

nanoshells with different sizes.

Element mapping of energy dispersive X-ray spectroscopic analysis upon the prepared Ag/Pd nanoshells yields information on the composition architecture and the atomic distribution. Figure 3 presents the EDX patterns obtained by mapping element of the large Ag/Pd nanoshells, as the image of the triangular nanoshell is captured. The two signals with uniform distribution from the nanomaterials identify them as silver and palladium. The exact composition and mixed alloy of the prepared nanoshells is thus determined.

Fig 3. Element mapping pattern of EDX analysis at the hollow Ag/Pd triangular nanoshell with

(7)

As for the catalytic potential on electroless copper deposition, the activity of triangular Ag/Pd nanoshells are measured, which increase with increasing hollow nanocatalyst size of small Ag/Pdshell < middle Ag/Pdshell < large Ag/Pdshell. Theoretically, for electroless copper deposition,

the catalytic particles play roles as carriers in the path of transfer of electrons from reducing agent to copper ions in the ECD bath. The solid catalysts are thus the import factor for the kinetics. Mixed potential theory (MPT), which yields two Tafel curves of the anodic and cathodic reactions,is frequently adopted to analyze the kinetics of electroless deposition [13, 24]. The points of intersection between the anodic and cathodic tafel curves yield the deposition current and the mixed potential associated with a deposition reaction in the steady state. Furthermore, quartz crystal microgravimetry is a novel method for analyzing in-situ the observed electrochemical kinetics, based on the change in frequency of the vibration at the electrode [21]. Figure 4 presents the electrochemical current-potential curves of the Tafel equation of ECD catalyzed by small, middle and large Ag/Pdshell, which analyzed by using potentiostate.

-6 -5 -4 -3 -2 -1 0 1 1000 500 0 -500 -1000 -1500

small Ag/Pd_shell

E (

m

V

)

middle Ag/Pd_shell

log I (mA/cm2) large Ag/Pd_shell

Fig 4. Cathodic and anodic polarization curves of ECD catalyzed by the small, middle and

large Ag/Pd nanoshells in the absence of either formaldehyde or Cu2+_.

According to the mixed potential theory, the coordinates of the intersection point of anodic and cathodic curve are the deposition current (Ideposition) and the mixed potential, respectively, at

which the deposition reaction steady-stately occurs. Firstly, it can be seen that the peak current of small Ag/Pdshell < middle Ag/Pdshell < large Ag/Pdshell in the anodic I-E curve are measured and

observed. This indicates that large Ag/Pdshell has the maximum catalytic power toward the

oxidation of reducing agent. The ECD deposition rate (Rmp) by mixed potential theory can be

expressed by Faraday’s law [13] depositon

mp I

R = 181. ×

The measured results are summarized in Table 2. The Rmp on small Ag/Pdshell, middle Ag/Pdshell

and large Ag/Pdshell are about ~0.026, ~0.039 and ~0.041 μg/cm2⋅s, respectively, showing the

order of small Ag/Pdshell < middle Ag/Pdshell < large Ag/Pdshell. The large Ag/Pdshell with

lengthening edges shows the maximum activity. The activity of Ag/Pd triangle nanoshells increases with the lengthening of edge lengths. It is plausible that the edge sites of Ag/Pd nanoshells play as an important role as active sites on electroless copper bath.

(8)

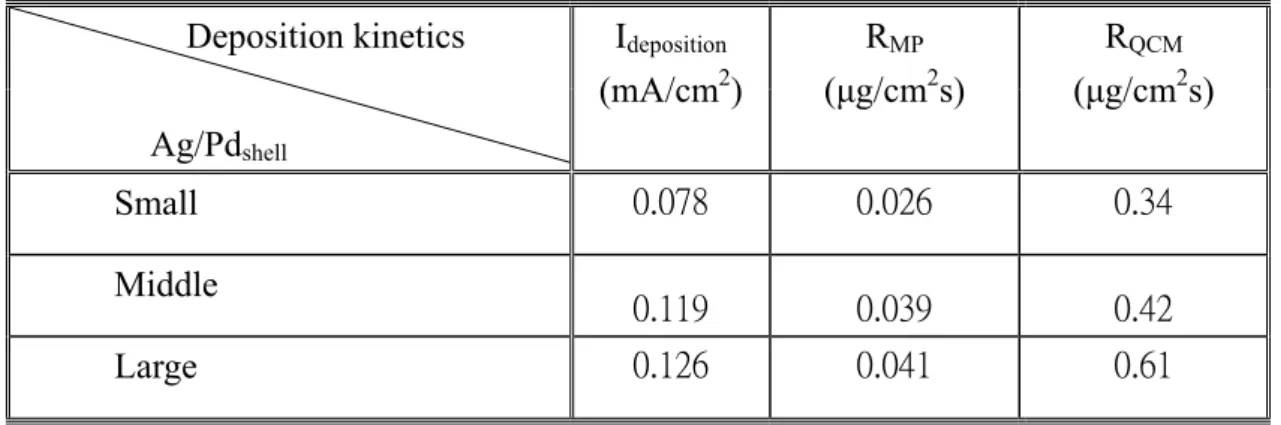

Table 2: The summary for ECD kinetics measured by MPT and QCM.

Deposition kinetics

Fig. 5 shows the results of QCM upon in-situ measuring the catalytic activity of corresponding nanoshells in the ECD bath. The results are summarized in Table 2. The induction periods, defined as the time necessary for occurring steady-state deposition, for small, middle, and large Ag/Pdshell were observed in Figure 5.

0 100 200 300 400 500 0 10 20 30 40 50

Deposition Time (Sec)

m a ss change ( μ g)

small Ag/Pd_shell middle Ag/Pd_shell

large Ag/Pd_shell

Fig 5. The in situ QCM analyses of the deposition kinetics of electroless copper deposition

catalyzed with the small, middle and large Ag/Pd nanoshells.

The deposition rates are recalculated from the electrode frequency changes according to the Sauerbrey’s equation [25]. The average deposition rate (RQCM) on small Ag/Pdshell is about ~0.34

μg/cm2_{⋅s, about ~0.42 μg/cm}2_{⋅s on middle Ag/Pd}

shell and about ~0.61 μg/cm2⋅s on large

Ag/Pdshell, as shown in Table 2. Note that the deposition rate linearly increases with increase

size of triangular alloy nanoactivators, which is consisting with the result trend analyzed by mixed potential theory. It strongly indicates again that the high activity exists in these prepared alloy nanocatalysts with a hollow structure. Additionally, according to the HR-TEM image shown in Fig. 1C, it can be seen that the edges of large Ag/Pdshells are constructed from many

particles. It is reasonable that small particles could be active center when catalyzing electroless copper bath. Ag/Pdshell Ideposition (mA/cm2) RMP (μg/cm2s) RQCM (μg/cm2s) Small 0.078 0.026 0.34 Middle 0.119 0.039 0.42 Large 0.126 0.041 0.61

(9)

4. Conclusion:

Ag/Pd triangular nanoshells of different size are successfully applied as activators for electroless copper deposition. As supported by the analysis of QCM and mixed potential theory, the activity of hollow Ag/Pd triangular nanoshells shows the order of small Ag/Pdshell < middle

Ag/Pdshell < large Ag/Pdshell on electroless copper bath. A comparison of deposition rate with a

system of triangular Ag/Pd nanoshells, the large Ag/Pdshell is found to exhibit maximum activity

toward oxidation of formaldehyde, reducing agent of ECD.

Acknowledgements

The authors would like to thank the National Science Council of the Republic of China, Taiwan, for financially supporting this research under Contract No. NSC 96-2218-E-151-001.
