Positive oxide charge-enhanced read disturb in a localized trapping storage flash memory cell

poly-silicon–oxide–nitride–oxide–silicon (SONOS) structure is

in-vestigated and reported. Our results show that positive trapped

charge in bottom oxide generated during program/erase (P/E)

cy-cles play a major role. Both gate voltage and drain voltage will

ac-celerate the threshold voltage (

) drift. Hot-carrier caused disturb

effect is more severe in a shorter gate length device at low

temper-ature. A model of positive charge-assisted electron tunneling into

a trapping nitride is proposed. Influence of channel doping on the

drift is studied. As the cell is in an “unbiased” storage mode,

tunnel detrapping of positive oxide charges is responsible for the

threshold voltage shift, which is insensitive to temperature.

Index Terms—Cycling-induced oxide charges, Flash EEPROM,

hot-carrier effect, MXVAND, NROM, PHINES, positive

charge-assisted electron tunneling, read disturb, poly-silicon–oxide–

nitride–oxide–silicon (SONOS), tunnel detrapping, threshold

voltage (

) instability.

I. I

R

ECENTLY,

localized

charge-trapping

storage,

two-bits-per-cell Flash memory technology with a

poly-silicon–oxide–nitride–oxide–silicon (SONOS) structure

has attracted much attention [1]–[6]. In addition to its simpler

fabrication process, the smaller cell size and higher packing

den-sity, the absence of drain turn-on and overerase are considered

to be the advantages over current floating-gate Flash memory

technologies [7]. Fig. 1 shows a typical SONOS memory cell,

which is an nMOSFET with an oxide–nitride–oxide (ONO)

stack as the gate dielectric. Based on this device structure,

various methods of operation have been proposed. For example,

NROM [2], multiplex virtual-grained AND (MXVAND) [3]

(hot-electron programming and hot-hole erasing) and

program-ming by hot hole injection nitride electron storage (PHINES)

[5] [hot-hole programming and Fowler–Nordheim (FN) tunnel

erasing] have been demonstrated to be promising candidates

for Flash EEPROM technology. Charge loss characteristics of

these cells have been discussed, and corresponding models

have been proposed [3], [8]–[11]. Various ONO processing

technologies [12] and alternative trapping layer materials [13]

have been investigated to further improve their charge retention.

Manuscript received June 26, 2003; revised September 25, 2000. The review of this paper was arranged by Editor S. Kimura.

W.-J. Tsai, C.-C. Yeh, and T. Wang and are with the Macronix International Company, Ltd., Hsinchu, Taiwan, R.O.C., and also with the Department of Elec-tronics Engineering, National Chiao-Tung University, Hsinchu, Taiwan, R.O.C. (e-mail: [email protected]).

N.-K. Zous, C.-C. Liu, S.-K. Cho, S. C. Pan, and C.-Y. Lu are with the Macronix International Company, Ltd., Hsinchu, Taiwan, R.O.C.

Digital Object Identifier 10.1109/TED.2003.822869

Fig. 1. Schematic representation of the cell structure and localized charge storage. Concept of reverse read is depicted by the depletion region in which the effect of injected charges is screened out.

The unique feature of two-bits-per-cell storage is due to the

localized charge injection, nonconducting property of charge

storage material, and a reverse read scheme [2]. As depicted in

Fig. 1, a drain bias (

) is necessary to read out the information

stored in bit-S. The applied

must be large enough to “screen”

out the injected charges at the drain bit (Bit-D). The read

cur-rent (or threshold voltage) is then controlled by the charge state

near the source (Bit-S), almost regardless of the charges at Bit-D.

Typically, the applied bit-line voltage at read is around 1.6 V,

which is higher than the read voltage in a floating-gate Flash

memory cell (typically around 1 V). Fig. 2 shows the threshold

voltage (

) shift of a 10-K program/erase (P/E) cycled cell

during read operation, whereas the

drift is not observed in a

noncycled cell. In the figure, the applied gate bias (

) is 2.5 V,

and the drain bias is 1.6 V. This

shift, which will degrade the

memory window and result in failure of cell operation, however,

is rarely explored [14]. The purpose of this work is to find the

dominant mechanisms that cause such erase-state

instability.

II. E

The samples used in this paper are made of an nMOSFET-like

device, with an ONO gate dielectric structure, in a virtual ground

array. The source and drain are formed by buried-diffusion

bit-lines [2]. The thickness of each ONO layer is 9 (top oxide),

6, and 7 nm. Devices with gate length from 0.5– 0.3 m and

initial threshold voltage (

) from 1.2–3 V are characterized.

The gate width is around 0.35

m. Temperature effect from

C to 85 C is studied. Channel hot-electron injection and

band-to-band tunneling-induced hot-hole injection are utilized

for programming and erasing, respectively. Read operation is

Fig. 2. Read-disturb characteristics of a fresh cell and a 10-K P/E cycled cell. L = 0:5 m and V =V =V = 2:5V; =1:6V; =0 V.

TABLE I

OPERATIONPRINCIPLES ANDBIASCONDITIONSUTILIZED

DURINGCELLOPERATIONS

achieved with a reverse read scheme. The bias conditions are

summarized in Table I. Program time is around 5 s, and erase

time is about 5 ms. With such conditions, 2-V difference

be-tween program-state and erase-state

can be obtained. Three

disturb modes are investigated for P/E cycled cells in erase state.

In the first one, gate and drain biases are applied and the source

is grounded. It is the conventional read disturb (RD) mode. The

second one has an applied gate bias, and the source and drain are

grounded. It is referred to as gate disturb (GD) mode, which is to

emulate the gate bias effect on cells sharing the same word-line

with the cell to be read. Finally, the room temperature drift (RT)

mode, in which the

drift is insensitive to temperature [10],

is the special case in which the cell is in “unbiased” storage

(without any applied bias).

III. M

P

O

C

E

R

D

Fig. 3 shows the

shift of a 10-K P/E cycled cell in a

two-phase measurement, e.g., RT and RD are measured in sequence

or vice versa. It is found that after RT (or RD), the following

RD (or RT) is reduced. This gives us a hint that RT and RD

may have the same cause, since they influence each other. It also

means that

shift due to RD is dependent on the sampled time.

Since positive oxide charge detrapping (with the coexistence

of residual negative charges in nitride) has been clarified to be

the major cause of RT [3], [10], these positive oxide charges

created during P/E cycling are considered to affect RD also. It

also explains the cycling effect on the observed erased-state

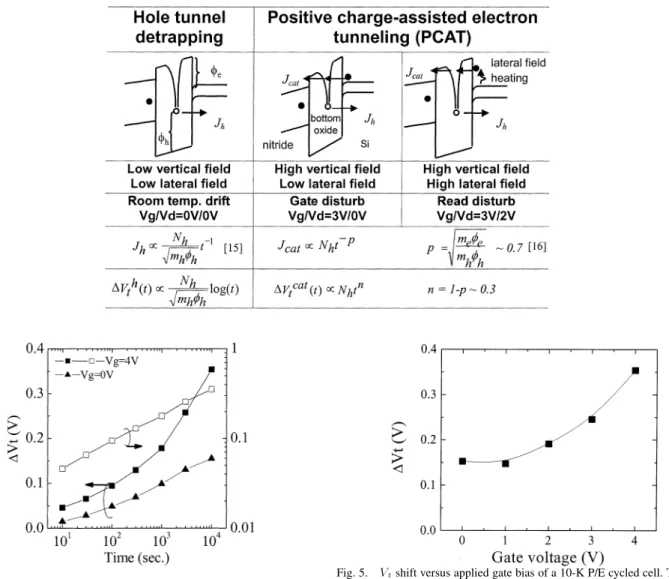

instability [3]. Table II shows the

drift models at various bias

conditions and the corresponding time evolutions. In each case,

the cycling-induced positive oxide charge plays a major role.

As the cell is stored without applied and

(RT mode), tunnel

detrapping of the cycling-generated positive oxide charges (

Fig. 3. Two-phase measurement of the temporal evolutionV shift of a 10-K P/E cycled cell. In curve (a), the cell is at RT in the first10 s and is at RD in the following10 s. The sequence is reversed in curve (b). Bias condition of RT and RD areV =V =V = 0V; 0V; 0 V and V =V =V = 3V; 1:6V; 0 V, respectively.L = 0:5 m.

in Table II) is the dominant mechanism. According to the tunnel

front model [15], this detrapping current follows a

time

de-pendence. Its

evolution would have a logarithmic time

de-pendence

accordingly.

If a sufficiently high

is applied (e.g., for cells belonging

to the same word-line of a selected-reading cell, GD mode), an

inversion layer is induced beneath the gate. The positive oxide

charges will cause the inversion electrons to tunnel into the

trap-ping nitride at such high vertical field. According to the

pos-itive charge-assisted tunneling (PCAT) model [16], this

injec-tion current (

in Table II) will follow the

law where is

the elapsed time, and p is around 0.7. The

shift, thus, has a

power-law time dependence

with

.

As for the read cell, in which the read

and

are applied

(RD mode), channel electrons will be accelerated by the lateral

field near the drain region. Both the high drain field and the

pos-itive oxide charges will enhance electron injection into nitride.

This positive oxide charge-enhanced hot-electron injection will

cause a positive

drift with the same time dependence as GD,

i.e.,

.

IV. R

D

A. Bias Dependence of Read Disturb

Fig. 4 shows the GD characteristics of a 10-K P/E cycled cell.

The applied gate bias is from

V (RT mode) to

V.

It is found that

shift shows linear dependence on log(t) at

V. This has been well modeled by hole tunnel detrapping

[15]. However, accelerated

drift, which exhibits a power-law

time dependence

, is observed at

V. It would be clear

if we show the

versus disturb time on a log-log plot, as

in-dicated by the open square and the right-axis in Fig. 4. Since

the time evolution of

drift would show a power-law time

de-pendence

if PCAT dominates, the accelerated

drift with its

unique time dependence confirms that positive charge-assisted

electron tunneling into the trapping nitride takes place at high

vertical field, in addition to hole tunnel detrapping. The

de-pendence of

is shown in Fig. 5.

Fig. 6 shows the RD characteristics of a 10-K P/E cycled cell

with

m. The drain bias is from 1.7–2.3 V, and the gate

bias is 3 V.

shift versus drain bias is shown in Fig. 7. Since the

Fig. 4. V shift versus disturb time of a 10-K P/E cycled cell at various gate biases. The drain and source are grounded andL = 0:5 m.

nitride conduction band edge is 2.1 eV above the silicon

con-duction band edge, sufficient lateral-field heating is necessary

to make the channel electrons inject into the trapping nitride, if

the vertical field is low. The drastically enhanced RD found at

high drain bias

V can be explained by the channel

hot-electron injection into the trapping nitride. In addition, the

time dependence of

drift also indicates that PCAT process

is involved. As

decreases, the hot-carrier effect is too weak to

make the electrons inject into the trapping nitride. The

shift

is then dominated by hole tunnel detrapping, which is the same

as RT (Fig. 4,

V). It is shown that for

V, the

shift due to read disturb is almost the same (Fig. 7), and

is

proportional to

(Fig. 6). Furthermore, a smaller

shift

at

V

V than at 3 V/0 V can be explained by

reduced vertical field in the former case [17].

Fig. 5. V shift versus applied gate bias of a 10-K P/E cycled cell. The drain and source are grounded, and the disturb time is10 s L = 0:5 m.

acceleration is widely used for hot-carrier lifetime

projec-tion. As shown in Fig. 8,

acceleration effect is observed at

high

. However, gate-enhanced read disturb, instead,

domi-nates at low drain bias where the hot-carrier effect is

insignif-icant. The

shift is almost independent of

in this regime

(e.g.,

V with

m). The extrapolated lifetime

based on the results at high

regime will be overestimated

if we use a low drain voltage during read operation, where the

hot-carrier effect is very weak.

B. Channel Length Scaling Effect

It is known that the hot-carrier effect will become more serious

in a short-channel device. Fig. 9 shows the RD results of three

cells with gate length (

) of 0.5, 0.4, and 0.3 m, respectively.

Increased RD is observed in a shorter gate length cell. In

addi-tion, the temporal evolution of the

shift follows a

time

Fig. 6. V shift versus disturb time of a 10-K P/E cycled cell at various drain biases.V =V = 3 V=0 V and L = 0:5 m.

Fig. 7. Read disturb-inducedV shift versus applied drain bias of a 10-K P/E cycled cell. The disturb time is10 s V =V = 3 V=0 V and L = 0:5 m.

Fig. 8. Lifetime projection byV -acceleration approach. Lifetime is defined as the disturb time resulting in aV shift of 0.2 V. V =V = 3 V=0 V and L = 0:5 m. As shown in the figure, lifetime is overestimated in the low-V regime where gate-enhanced disturb dominates.

dependence for

m, and exhibits a

time dependence

for

m. It implies that strong hot-carrier enhanced RD

dominates the

shift as the channel length is scaled down.

C. Temperature Effect

We also investigate the temperature effect on RD. It is

re-ported that hot-carrier-induced gate current injection increases

with decreasing temperature, even with a low drain bias (e.g.,

V) [18]. Fig. 10 shows that RD is almost independent of

temperature in a long-channel device

m , in which

Fig. 9. V shift versus disturb time of 1-K P/E cycled cells with different channel lengths.V =V =V = 3 V=1:6 V=0 V.

Fig. 10. Temperature effect on read disturb of 1-K P/E cycled cells. Devices with gate lengths of 0.5m, 0.4 m, and 0.3 m are characterized. The applied gate and drain biases are 3 and 1.6 V, respectively, and the disturb time is10 s.

hole tunnel detrapping dominates [so it is termed as

room-tem-perature drift (RT)]. On the other hand, enhanced RD is

ob-served at low temperature in a shorter device (

m),

where hot-carrier-enhanced degradation dominates.

D. Channel Doping Effect

Channel doping is usually used to control short-channel effect

and to improve hot-electron injection efficiency. It is reported

that GD is worse in a high-

cell [19]. RT, GD, and RD are

characterized for cells with initial threshold voltages of 1.2, 2,

and 3 V, respectively, in our study. During GD and RD

mea-surements, we use

V, which is the same gate

overdrive that conducts the same read current for each cell. The

read drain bias is 1.6 V. The results are plotted in Fig. 11.

As shown in Fig. 11, two major features are observed. First,

RT is almost the same for these three cells, while GD and RD

increase with increased

(channel doping). Second,

shift is

strongly enhanced by

in high-

cells; however, it is less

affected by

in a low-

cell. More severe RD in a

high-cell is due to a stronger hot-carrier effect, since the channel

doping concentration is higher. As tunneling detrapping of

pos-itive oxide charges is responsible for the

drift in low

ver-tical/lateral field, RT is expected to be almost the same in these

three cells (solid squares in Fig. 11). Since the same gate

over-drive implies the same inversion charge density in these cells,

we need to find out the cause that results in the enhanced GD in

a high-

cell.

Fig. 11. Initial threshold voltage versus room-temperature drift, gate disturb, and read disturb. The cells undergo 10-K P/E cycles. The bias conditions for GD and RD areV 0 V =V =V = 1:5 V=0 V=0 V and 1.5 V/1.6 V/0 V, respectively, andV = V = V = 0 V for RT. The disturb time is 10 s and L = 0:5 m.

The oxide (vertical) field can be formulated as (without

trapped charges)

in strong inversion, where

is the oxide field,

is the

equivalent oxide thickness of the ONO stack,

is the effective

channel doping concentration, and

is the potential difference

between the Fermi level (with acceptor concentration of

)

and the intrinsic Fermi level.

and

are the dielectric

con-stants of oxide and silicon, respectively. Obviously, even with

the same gate overdrive

–

, the vertical field is stronger

in a cell with higher channel doping

. The higher vertical

field will enhance the charge tunneling rate [17]. This explains

the larger

shift in a high-

cell.

V. C

RD-induced

instability is investigated in this work. It is

found that at low vertical/lateral field, tunneling detrapping of

cycling-induced positive oxide charges dominates the

shift,

which is insensitive to temperature. A hot-carrier effect (drain

field heating) dominates the

shift in a short-channel device,

especially at low temperature. Gate voltage-enhanced

drift

occurs even in a long-channel device, and it is much worse in a

high-

cell. All of the results are attributed to positive oxide

charges, which are created during P/E stress, that enhance

elec-tron injection into the trapping nitride. Process improvements

and operational optimizations have been shown effective in

sup-pressing these disturbs [20], [21].

R

[1] T. K. Chan, K. K. Young, and C. Hu, “A true single-transistor oxide-ni-tride-oxide EEPROM device,” IEEE Electron Device Lett., vol. EDL-8, pp. 93–95, 1987.

[2] B. Eitan, P. Pavan, I. Bloom, E. Aloni, A. Frommer, and D. Finzi, “NROM: a novel localized trapping, 2-bit nonvolatile memory cell,” IEEE Electron Device Lett., vol. 21, pp. 543–545, Nov. 2000. [3] W. J. Tsai, N. K. Zous, C. J. Liu, C. C. Liu, C. H. Chen, T. Wang, S.

Pan, and C.-Y. Lu, “Data retention behavior of a SONOS type two-bit storage Flash memory cell,” in IEDM Tech. Digest, 2001, pp. 719–722.

characteristics of microFlash memory (activation energy of traps in the ONO stack),” in Proc. Non-Volatile Semiconductor Memory Workshop, 2001, pp. 128–129.

[9] E. Lusky, Y. Shacham-Diamand, I. Bloom, and B. Eitan, “Electron dis-charge model of locally-trapped dis-charge in oxide-nitride-oxide (ONO) gate for NROMTM nonvolatile semiconductor memory device,” in Proc. Solid State Devices Materials Conf., 2001, pp. 534–535.

[10] W. J. Tsai, S. H. Gu, N. K. Zous, C. C. Yeh, C. C. Liu, C. H. Chen, T. Wang, S. Pan, and C.-Y. Lu, “Cause of data retention loss in a ni-tride-based localized trapping storage Flash memory cell,” in Proc. Int. Reliabil. Phys. Symp., 2002, pp. 34–38.

[11] M. Jannai, “Data retention, endurance and acceleration factors of NROM devices,” in Proc. Int. Reliabil. Phys. Symp., 2003, pp. 502–505. [12] M. Tanaka, S. Saida, Y. Mitani, I. Mizushima, and Y. Tsunashima,

“Highly reliable MONOS devices with optimized silicon nitride film having deuterium terminated charge traps,” in IEDM Tech. Digest, 2002, pp. 237–240.

[13] T. Sugizaki, M. Kobayashi, H. Minakata, M. Yamaguchi, and Y. Tamura, “New 2-bit/Tr MONOS type Flash memory using Al O as charge trap-ping layer,” in Proc. Non-Volatile Semiconductor Memory Workshop, 2003, pp. 60–61.

[14] W. J. Tsai, C. C. Yeh, N. K. Zou, C. C. Liu, S. K. Cho, C. H. Chen, T. Wang, S. Pan, and C.-Y. Lu, “Hot carrier enhanced read disturb and scaling effects in a localized trapping storage SONOS type Flash memory cell,” in Proc. Solid State Devices and Materials Conf., 2002, pp. 164–165.

[15] S. Manzini and A. Modelli, “Tunneling discharge of trapped holes in silicon dioxide,” in Insulating Films on Semiconductors. Amsterdam, The Netherlands: Elsevier, 1983, pp. 112–115.

[16] T. Wang, N. K. Zous, J. L. Lai, and C. Huang, “Hot hole Stress Induced Leakage Current (SILC) transient in tunnel oxides,” IEEE Electron De-vice Lett., vol. 19, pp. 411–413, Nov. 1998.

[17] T. Wang, N. K. Zous, and C. C. Yeh, “Role of positive trapped charge in stress-induced leakage curret for Flash EEPROM devices,” IEEE Trans. Electron Devices, vol. 49, pp. 1016–1910, Nov. 2002.

[18] D. Esseni, L. Selmi, E. Sagiorgi, R. Bez, and B. Ricco, “Temperature dependence of gate and substrate currents in the CHE crossover regime,” IEEE Electron Device Lett., vol. 16, pp. 506–508, Dec. 1995. [19] C. T. Swift, G. L. Chindalore, K. Harber, T. S. Harp, A. Holfer, C. M.

Hong, P. A. Ingersoll, C. B. Li, E. J. Prinz, and J. A. Yater, “An embedded 90 nm SONOS nonvalatile memory utilizing hot electron programming and uniform tunnel erase,” in IEDM Tech. Dig., pp. 927–930. [20] C. C. Yeh, W. J. Tsai, T. C. Lu, S. K. Cho, T. Wang, S. Pan, and C. Y.

Lu, “A modified read scheme to improve read disturb and second bit effect in a scaled MXVAND Flash memory cell,” in Proc. Non-Volatile Semiconductor Memory Workshop, 2003, pp. 44–45.

[21] T. Wang et al., “Reliability models of data retention and read-disturb in 2–bit nitride storage Flash memory cells,” in IEDM Tech. Dig., 2003, pp. 169–192.

Wen-Jer Tsai was born in Hualien, Taiwan, R.O.C.,

on April 23, 1969. He received the B.S. and M.S. degrees in electronics engineering from National Chiao-Tung University, Hsinchu, Taiwan, in 1991, and 1993, respectively, where he is currently pursuing the Ph.D degree.

He joined Macronix International Company, Ltd., Hsinchu, in 1995 as a Device Engineer. From 1995 to 2000, he worked on simulation, modeling, and de-sign of nonvolatile memory devices. Since 2000, he has been engaged in the development of device and reliability physics of nitride storage Flash memory technology. His research interests include device characterization and reliability physics of nonvolatile memory devices.

Chih-Chieh Yeh received the B.S. and M.S. degrees

in electronics engineering from National Chiao-Tung University, Hsinchu, Taiwan, R.O.C., in 1997 and 1999, respectively.

In 2001, he joined Macronix International Com-pany Ltd., Hsinchu, where he has been working on the device characterization of Flash memories.

Nian-Kai Zous received the Ph.D. degree in

elec-tronics engineering from National Chiao-Tung Uni-versity (NCTU), Hsinchu, Taiwan, R.O.C., in 2002.

He joined the Macronix International Company, Ltd., Hsinchu, in 2003, working in the Advanced Device Group of the Device Technology Division. His current research activities include the study of reliability issues in nitride storage devices.

Chen Chin Liu was born in Taiwan, R.O.C., in 1968.

He received the B.S. and M.S. degrees in electronic engineering from National Cheng-Kung University (NCKU), Tainan, Taiwan.

In 1996, he joined the Nonvolatile Memory Technology Department of Macronix International Company, Ltd., Hsinchu, Taiwan. Until 1999, he was engaged in development of 0.25-m nitride storage Flash memory technology served for 128-Mb Flash memory product.

Shih-Keng Cho received the M.S. degree in

elec-tronics engineering from National Cheng-Kung Uni-versity (NCKU), Tainan, Taiwan, R.O.C., in 1997.

He joined the Macronix International Company, Ltd., Hsinchu, Taiwan, in 1997, working in the Flash Technology Department. He is currently engaged in the development of 0.25-m nitride storage Flash memory technology served for Flash memory product.

Tahui Wang (M’86–SM’94) was born in Taoyuan,

Taiwan, R.O.C., on May 3, 1958. He received the B.S.E.E. degree from National Taiwan University, Taipei, Taiwan, in 1980 and the Ph.D. degree in electrical engineering from the University of Illinois, Urbana-Champaign, in 1985.

From 1985 to 1987, he was with Hewlett-Packard Laboratories, Palo Alto, CA, where he was engaged in the development of GaAs HEMT devices and cir-cuits. Since 1987, he has been with the Department of Electronics Engineering, National Chiao-Tung Uni-versity, Hsinchu, Taiwan, where he is currently a Professor. His research inter-ests include hot-carrier phenomena characterization and reliability physics in VLSI devices, RF CMOS devices and nonvolatile semiconductor devices.

Dr. Wang was given the Best Teacher Award by Taiwan’s Ministry of Ed-ucation. He has served as technical committee member of many international conferences, among them IEDM, IRPS, and VLSI-TSA.

Samuel C. Pan (S’83–M’87) received the B.S.

de-gree in electrical engineering from National Taiwan University, Taipei, Taiwan, R.O.C., in 1980, and the M.S. and Ph.D. degrees in electrical engineering from the University of Illinois, Urbana-Champaign, in 1984 and 1986, respectively.

From 1983 to 1986, he was a Research Assistant in the Solid State Electronics Laboratory, University of Illinois. In 1987, he joined Intel Corporation, Santa Clara, CA, as a Senior Device Physicist, working on 0.8-m Flash EPROM development and 0.6-m CMOS process development. In 1995, he became Staff Circuit Designer and worked on 0.25-m Pentium/Pro microprocessors with the focus on cache memory and PLA design. At the end of 1996, he moved back to Taiwan, and joined Macronix International Company, Ltd., Hsinchu, Taiwan, as QR Deputy Director. In 1999, he was named TD Director to lead process development for 0.18–0.15-m Flash and mask ROM memory technologies. In June 2003, he joined Taiwan Semiconductor Manufacturing Company, Ltd. (TSMC), Hsinchu, as the Director of Advanced Product Engineering. His current interests include device physics, device/Flash cell reliability, and methodologies for technology development and yield enhancement.

Dr. Pan is a member of Phi Kappa Phi and Eta Kappa Nu.

Chih-Yuan Lu (M’77–SM’84–F’94) received the

B.S. degree from National Taiwan University, Taipei, Taiwan, R.O.C., in 1972, and the M.A., M.Ph., and Ph.D. degrees from Columbia University, New York, NY, in 1974, 1975, and 1977, respectively, all in physics.

From 1978 to 1983, he was an Associate Professor and was promoted to Full Professor in National Chiao-Tung University, Hsinchu, Taiwan. In 1983, he was with North Carolina State University, Raleigh, as a Visiting Associate Professor and Adjunct Research Staff Member of the Microelectronic Center of North Carolina (MCNC), Research Triangle Park. In 1984, he joined AT&T Bell Lab-oratories, where he was engaged in very high voltage bipolar-CMOS-DMOS (BCDMOS) IC technology for telecommunication applications, CMOS DRAM technology, laser programmable redundancy, and submicron CMOS ULSI technology. He joined the Electronics Research and Service Organization, Industrial Technology Research Institute, Hsinchu, (ERSO/ITRI) in late 1989 as a Deputy General Director responsible for semiconductor and integrated circuit operation, especially the Grand Submicron Project. This project later successfully developed Taiwan’s first 8-in CMOS submicron manufacturing technology with high-density DRAM/SRAM as technology vehicles. In late 1994, he was the cofounder of Vanguard International Semiconductor Corporation, Hsinchu, which is a spinoff memory IC Company from ITRI’s Submicron Project. He was the Vice President of Operations, Vice President of Research and Development, and later President from 1994 to 1999. He brought Vanguard from a research and development laboratory to a U.S. $400 million sales company and went IPO in 1998. He is currently Chairman and CEO of Ardentec Corporation, Hsinchu, a VLSI testing service company, and also serves Macronix International Company (MXIC), Ltd., Hsinchu, as a Senior Vice President/CTO. He led MXIC’s technology development team to successfully achieve the state-of-the-art nonvolatile memory technology and embedded SoC technology, now, MXIC is the top nonvolatile semiconductor company in Taiwan. He has published more than 100 technical papers and has been granted 123 international patents. He also authored more than 30 articles in science education and R&D policy in magazines and newspapers. He served as the President of Science Monthly from 1978 to 1983.

Dr. Lu was the Executive Secretary and Managing Director of the Board and Board Director since 1998 for the Physical Society of R.O.C. from 1981 to 1984. He has been Vice-Chairman and then Chairman of IEEE Electron De-vices Society, Taipei Chapter, from 1991 to 1996, and Board Director and Su-pervisor of IEEE Section since 1996. He is a member of many honor societies, including Sigma Pi Sigma, Phi Tau Phi, and Phi Lambda. He is a life member of the American Physical Society, the Physical Society of ROC, the Chinese Institute of Engineers, and CIE-USA. He received the National Science and Technology Achievement Award from the Prime Minister of Taiwan, R.O.C., in 1994. In 1995, he was awarded the National Invention Award, and in 2002, he was awarded the most prestigious semiconductor award in Taiwan—the Pan Wen Yuan Award.
