Chapter 1.

I

NTRODUCTION

Depth estimation is an important issue in computer vision. Human can easily

perceive and interpret the 3-D scene. We wish computer can also have the same

ability to understand the 3-D scene itself. If a computer can understand 3-D

knowledge, it would be of a great help in many works, like surveillance, navigation,

and image editing. Hence, it is valuable to find some ways to get the depth

information automatically. Up to now, many techniques have been explored. In a

vision-based system, the most common and stable approach is to use binocular

knowledge. With two or more images taken from the same scene with a little

displacement of camera position, we can estimate the 3-D depth using geometric rules.

However, in most images or videos, we do not have this kind of stereoscopic

knowledge.

In the past few years, some people try to find the geometric properties in a single

image and use them to estimate the depth [1,2,3]. However, they face the common

problem: there are too few images. Usually, their approaches can only work at

specific scenes. In recent years, with the progress of computer vision techniques,

some people estimate the 3-D depth by using machine learning methods and by using

images [5,8,10]. Their works seems to work better in getting some 3-D scene

knowledge from the image. In our work, we aim to extend these learning-based

methods from images to videos and plan to include the temporal information into the

In this thesis, we propose an algorithm to estimate the relative depth of the 3-D

scene in the videos captured by a static camera. We first estimate the depth of the

background and then calculate the depth of moving objects in the video frames. We

explore the temporal knowledge which is helpful for background depth estimation.

The most valuable knowledge is the occlusion effect which can help us find the

boundaries and explore the figure/ground relationship. We use a background

subtraction method to find the moving objects, and then use statistical method to

record some useful data. By analyzing these data, we find the candidates of occluding

objects and get their boundaries. After getting the depth of the background image, we

assign depth to moving objects. Here, we use a simple tracking technique and use the

maximum/minimum depth information to obtain more reliable estimation.

The greatest challenge is that the background subtraction method cannot perform

well on complicated scenes. It often misses some pixels where the color of the

foreground object is similar to that of the background. This might cause some false

negatives in the detection of occluding objects. To obtain more stable and reliable

depth estimation, we have to design a method that is not so sensitive to the occurrence

of false negatives.

In this thesis, we first discuss some related works in Chapter 2. In Chapter 3, we

will describe how to estimate the video depth. Some experimental results are shown in

3

Chapter 2.

B

ACKGROUND

Vision-based depth estimation has been discussed for many years. Many

algorithms have been proposed. In this thesis, our system works on video sequences

from a single static camera only and do not have binocular knowledge about the scene.

In this chapter we will introduce some works about single image depth estimation. In

the first section, some relevant works about single image depth estimation will be

introduced. In the second section, we will introduce the algorithms proposed by Derek

Hoiem in detail which is most relevant to our work.

2.1. S

INGLE

I

MAGE

D

EPTH

E

STIMATION

ALGORITHMS

Depth estimation from a single image is a very difficult topic. Due to the lack of

depth knowledge, we must restrict the images to satisfying some conditions. In the

past years, depth reconstruction can be performed based on very specific settings.

Some people estimate depth using vanishing lines. In [1], Battiato classifies images as

indoor image, outdoor image with geometric elements, or outdoor image without

geometric elements. By detecting vanishing lines and using the information collected

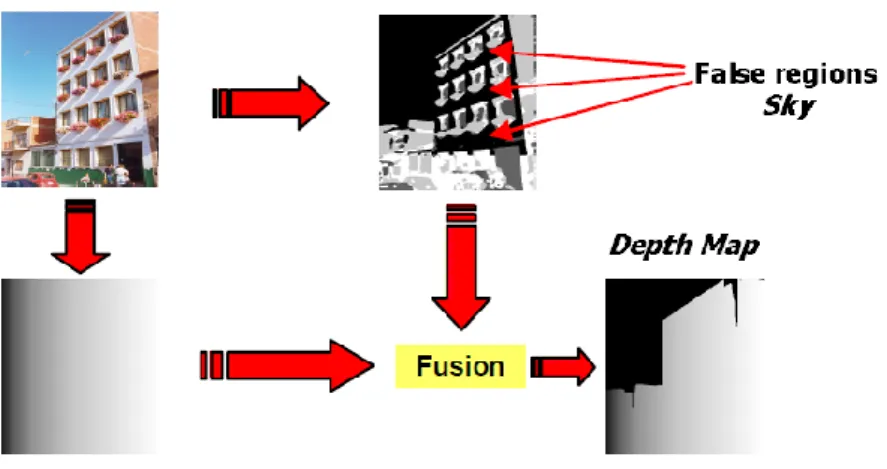

Figure 2-1 The results of Battiato’s proposed system [1]

Shape from shading and shape from texture are traditional works to do 3-D

reconstruction. They can be used to reconstruct relative depth. However, these

methods can only be performed on uniform color and/or texture images. Some other

works use known objects size to get the depth. However, there must exist some

specific objects in the image and these objects should be detected before the

estimation of depth.

To estimate depth with more images, people look for more general properties to

connect depth and image. In [4], the authors estimate the depth scale of the scene.

They analyze the Fourier transform and wavelet transform coefficients of the image

and then infer the depth scale of the scene. Their result is shown in Figure 2-2.

5

In recent years, with the progress of computer vision, people want to estimate

image depth using machine learning techniques. Two types of method appear. One is

to estimate depth from appearance features, while the other is to estimate depth by

using image segmentation and figure/ground assignment. These methods can estimate

depth in more images. In the rest of this section, we will introduce the first type of

method and will leave the second type of method to the next section.

Saxena starts to estimate depth from image features. In [5], they first divide the

image into small rectangular patches. In each patch, they get some cues from texture

variation, texture gradient, and color. The filters they used are shown in Figure 2-3.

There are two kinds of features in their algorithm. One is absolute depth feature, and

the other is relative feature. The absolute depth features are calculated from the sum

and the sum square of filter output in each patch. In their work, they assume the depth

and absolute depth features have linear relationship. That is, the depth can be roughly

estimated from the linear combination of the absolute depth features. Besides, these

parameters can be trained beforehand.

Figure 2-3 The filters used by Saxena [5]

The relative features are calculated from the difference between the histograms

of nearby patches. Because adjacent patches often have close depth, they penalizes the

difference of depth between adjacent patches if the histograms are similar. They use

MRF model to take account these two types of features. To get more global structure

of the scene, they use multiple special scales of patch size and filter size. The multiple

Figure 2-4 The multiple scale structure [5]

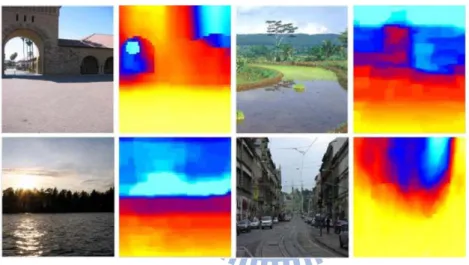

Figure 2-5 The result of Saxena’s proposed system [5]

In [6], Saxena improves the depth estimation algorithm. Instead of dividing the

image into rectangular patches, they use the superpixel segmentation algorithm [7] to

divide the image into small uniform regions. Moreover, they assume each region is a

planar surface. They want to estimate the 3-D position and orientation of each

superpixel which is called the plane parameter. Having the plane parameter means we

can get the depth of each pixel in the region. Like their previous work, they get some

image features in each superpixel and use MRF model to consider the relationship

between adjacent regions. Moreover, they consider the geometric structure between

7

Connected structure means two regions connect each other without a boundary

between them. Co-planar structure means two regions are in the same plane so there is

no edge between them. Co-linearity means two regions lie on a straight line in the 2-d

image. When two nearby regions are more similar, their plane parameter should

satisfy the geometric structure more.

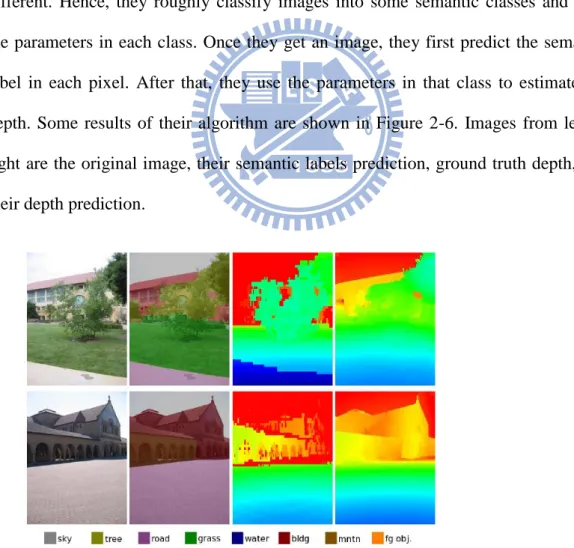

In [8], Liu performs the semantic labeling before estimating depth. They think

that directly estimating depth from image features is difficult because the relationship

between appearance properties and depth in each object is different. For example, sky

and water region have similar appearance features, but their relationships to depth are

different. Hence, they roughly classify images into some semantic classes and train

the parameters in each class. Once they get an image, they first predict the semantic

label in each pixel. After that, they use the parameters in that class to estimate the

depth. Some results of their algorithm are shown in Figure 2-6. Images from left to

right are the original image, their semantic labels prediction, ground truth depth, and

their depth prediction.

Using appearance features, depth can be roughly estimated. However, the

relationship between depth and appearance features is not so simple. Even after the

classification of the image into semantic labels, the diversity in each class is still large.

For example, there are many types of trees in the world. Different species of tree have

different size, color, and texture. If we classified the image into many labels,

classification accuracy in each label would be low. Hence, in this type of method, the

images in the dataset could not have big diversity. That is, the images in the training

data and the testing images have to be similar.

2.2. D

EPTH

E

STIMATION FROM

O

CCLUSION

R

EASONING

Depth estimation from appearance features is difficult. Even human cannot

predict depth well simply based on small-region features. In fact, we can perceive the

depth usually because we know the whole structure in the scene. Besides, we can

detect the objects in the image and get their position relationship. Hoiem proposed an

algorithm in [9] to label the image into geometric classes. They use the classification

result to find the occlusion boundaries in the image [10]. By knowing the surfaces and

boundaries, they get the depth order of the image contents. In the following

subsection, we will introduce the algorithms proposed by Hoiem.

2.2.1. S

URFACE

L

AYOUT

9

recover the rough surface layout of an outdoor image. They classify the image into

geometric labels. Each pixel belongs to either ground plane, vertical surface, or the

sky. The vertical surfaces are subdivided into planar surface facing left or right, or

center and non-planar surface which is solid or porous. One classification result is

shown in Figure 2-7. Different colors mean different main classes (ground, vertical,

sky). The marks indicate the subclass labels of vertical regions.

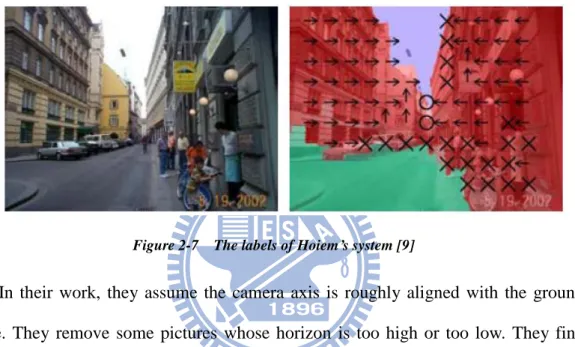

Figure 2-7 The labels of Hoiem’s system [9]

In their work, they assume the camera axis is roughly aligned with the ground

plane. They remove some pictures whose horizon is too high or too low. They find

most pixels can be represented by three main classes. Because their classification is

based on object‟s geometric orientation, it‟s possible that the same object belongs to

different classes. The subcategories provide few geometric properties but are valuable

in scene understanding. Many objects belong to the “solid” class and provide some

cues for object recognition.

Like other semantic labeling task, they need some cues to estimate the geometric

labels. In their work, they use location cues, color cues, texture cues and perspective

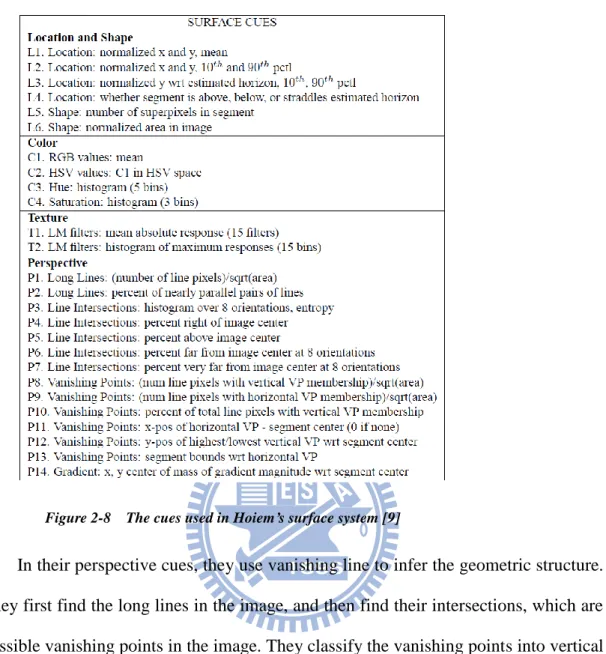

Figure 2-8 The cues used in Hoiem’s surface system [9]

In their perspective cues, they use vanishing line to infer the geometric structure.

They first find the long lines in the image, and then find their intersections, which are

possible vanishing points in the image. They classify the vanishing points into vertical

vanishing points and horizon vanishing points. When more pixels in a region

contribute to vertical (or horizon) vanishing points, the region is more likely to be a

vertical (or support) surface.

Some cues listed before need a large spatial support to get information. Hence,

how to get the appropriate region size is an issue of their work. In their algorithm,

they first segment the image into superpixels. In each superpixel, they assume the

pixel labels within it are the same. After that, they get some features in the superpixels

and some features between nearby superpixels. Their system can roughly recognize

11

they need to consider the relationship between nearby regions. Instead of using MRF

model, they merge the regions which are most likely to have the same label. This is

because some cues, such as perspective information, can be effective only when a big

region is considered. Since it may happen that two different label regions are merged,

they use multiple segmentations to avoid commitment to any particular segmentation

process. Because they don‟t know the proper segment number in each image, they use

many different segmentation numbers. One of their segmentation results is shown in

Figure 2-9.

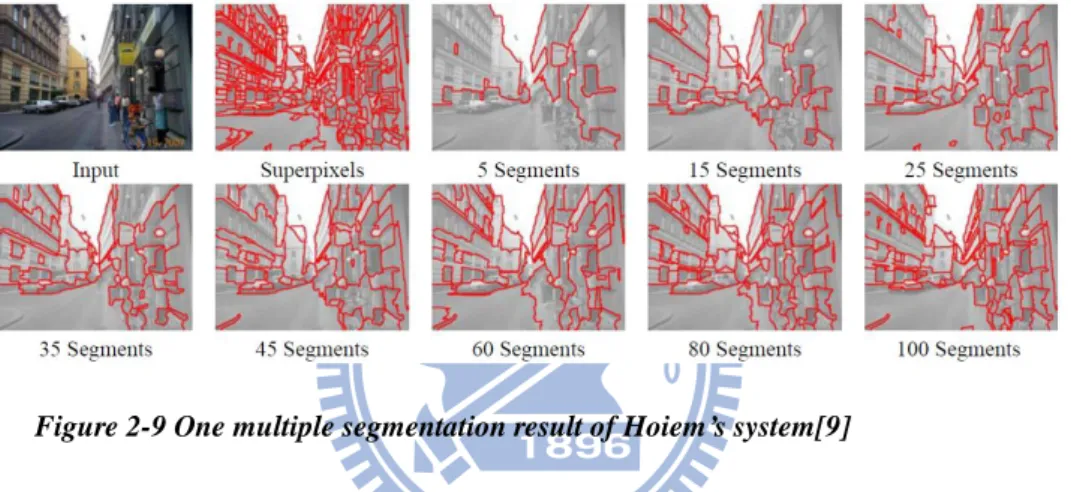

Figure 2-9 One multiple segmentation result of Hoiem’s system[9]

After multiple segmentations, they use the pre-trained parameters to predict the

label likelihood of each segment. Moreover, for each segment, they calculate the

likelihood of being homogeneous as a weighting parameter. After that, they calculate

the superpixel label likelihood by combining different segmentation results. Their

surface label and likelihood estimating result is shown in Figure 2-10.

2.2.2. O

CCLUSION

B

OUNDARY

With the help of surface layout estimation, Hoiem proposed an algorithm to

recover the occlusion boundaries and depth ordering of an image. In their work, their

goal is to segment the image into main objects and to know the figure/ground

relationship between nearby objects. Using the vertical/ground structure, they

estimate objects depth by detecting the contact points between objects and ground.

Some regions are occluded by other regions. After that, they use the figure/ground

relationship to know the max/min depth of those regions. One of their outputs is

shown in Figure 2-11. In the left picture, the region to the left of an arrow is in front

of the region to the right of the arrow.

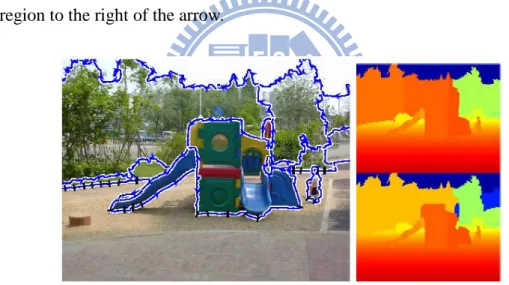

Figure 2-11 One result of Hoiem’s occlusion boundary algorithm[10]

Because objects usually are not homogenous in appearance, recovering occlusion

boundaries is a difficult work. Many objects are composed of many different

color/texture regions and thus the cues used in many segmentation algorithms are

usually not enough. In their work, they use many cues to recognize the boundaries.

The cues can be classified as boundary cues, region cues, surface layout cues, and

13

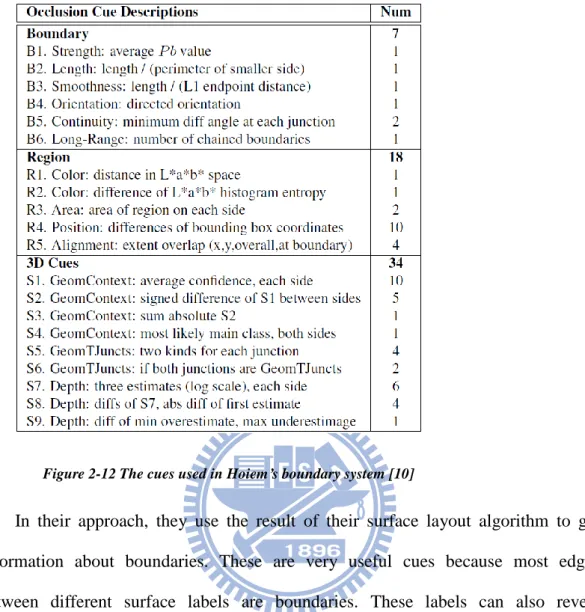

Figure 2-12 The cues used in Hoiem’s boundary system [10]

In their approach, they use the result of their surface layout algorithm to get

information about boundaries. These are very useful cues because most edges

between different surface labels are boundaries. These labels can also reveal

figure/ground knowledge. For example, solid regions are more likely to be in front of

planar surfaces. Their experiment result demonstrates the importance of these cues.

In their algorithm, they start with an over-segmentation result of the image and

then slowly remove the most unlikely edges to get the final boundaries. Their initial

segmentation is produced from the watershed segmentation process with soft

boundary map. Usually there are thousands of regions at the beginning and most

boundaries are preserved in the edges between these regions. They use the cues listed

before to predict for each edge the likelihood of being a boundary. Because many cues

need a larger special support, they use a hierarchical segmentation process. At each

unlikely edges until the boundary likelihood of all the remaining edges are up to a

given threshold. Because regions have grown up and edges have been longer, they

refine the boundary prediction and then remove the unlikely boundaries again. This

process keeps going until no new region forms. The flow chart of their system is

shown in Figure 2-13.

Figure 2-13 The flow chart of Hoiem’s occlusion boundary system[10]

In their algorithm, they need to estimate the likelihood of boundary labels. They

use a CRF (Conditional Random Field) model to enforce boundary continuity and

consistency. That is, the boundary likelihoods of connected edges are related. Hence,

they need to consider all possible labels of the image instead of estimating each

boundary confidence alone. For example, in a junction where three edges are

connected, 27 different labels can be assigned but only 5 types of labels are possible.

The valid types are shown in Figure 2-14.

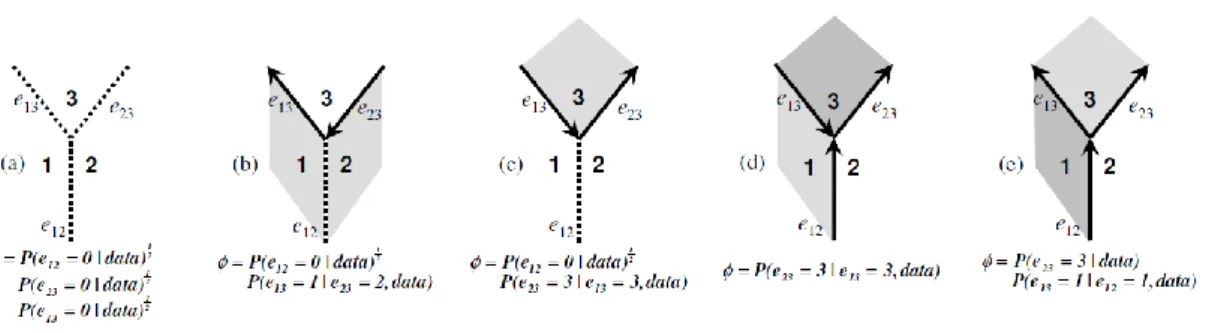

Figure 2-14 Illustration of five valid junctions [10]

In this figure, the arrow line means there is a boundary between two regions and

15

dot line means there is no boundary. The surface figure/ground relationship can also

be revealed by the colors, where a darker surface is closer to the camera. They

calculate the junction likelihood using the likelihoods of outgoing arrows and dot

lines. Usually the likelihood of an outgoing arrow is conditioned on the data of the

incoming arrow. They estimate these kinds of likelihood using some cues such as the

relative angle of two adjacent boundaries. They also consider the consistency of

surface labels, putting penalty to some cases such as there is no boundary between

different surface labels. Since the max-product inference of their model is intractable,

they use Yuille‟s algorithm to provide a soft-max likelihood. The effect of using CRF

model is shown in Figure 2-15. Small errors are corrected by the CRF model.

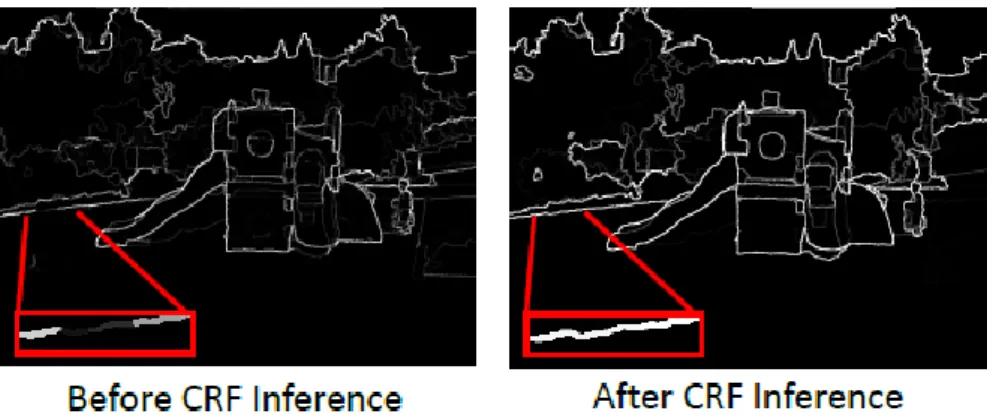

Figure 2-15 The effect of Hoiem’s CRF model [10]

Chapter 3.

P

ROPOSED

M

ETHOD

The goal of our work is to estimate the depth map of videos taken from static

cameras. Because the backgrounds in the video frames are stationary, we first estimate

the depth map of the background. Using Hoiem‟s single-image depth estimation

algorithm, we add the temporal information in it and get the depth map of the

background. After that, we get the depth of the moving objects and have the video

depth output. The flow chart of our system is shown in Figure 3-1. In this chapter, we

will introduce the detail of our system.

17

3.1. T

EMPORAL

K

NOWLEDGE

Video is composed of many images, so a way to have the video depth output is to

estimate the depth of each image using single-image depth estimation. However,

general single image depth estimation algorithms take a few minutes to process one

single frame. It would be impractical to estimate the depth frame by frame. In our

system, since the camera is static and the background is stationary, we only need to

estimate the background depth once. However, here comes a question: what temporal

knowledge can we get from the moving objects in the video to help us estimate the

background depth? In many cases, objects give little knowledge when they just pass

in front of the camera. On the contrary, when objects pass behind some obstacles in

the image, we can detect the boundaries of obstacles more easily. Figure 3-2 shows an

example. When only the background image is given, it is hard to detect the boundary

within the red circle based on boundary detection algorithm. However, when a car

passes through it, it becomes easier to find this boundary.

Figure 3-2 Left: Background image with boundary which is hard to detect.

Right: Moving object passes through the boundary.

We want to utilize moving objects to obtain temporal knowledge, but we don‟t

want to spend too much time in it. An efficient way to detect moving objects is based

process proposed in [11] and use the result to detect some boundaries in the

background image. However, current background subtraction algorithms still cannot

perform well in complex scenes. In most videos that contain complicated scenes, the

background subtraction results are unstable. In the situation that a moving object has a

color different from the background, we can see the boundary in the background

subtraction result when the moving object passes through the back of an occluding

object. However, when the color of the moving object and the background are similar,

we might detect some false boundaries even if the moving object is not occluded by

any object. Some examples are shown in Figure 3-3 and Figure 3-4.

Figure 3-3 When a car passes through the back of the tree, we can see the boundary in the background subtraction result last for a short time.

Figure 3-4 The man in the middle of the image walks in front of the tree, but we see the false boundary in the background subtraction result due to the similarity of color.

That is, short-term temporal information like motion history image (MHI) is not

enough. We need a sequence of video frames and a way to detect the possible

boundaries. An easy way to collect temporal information is to count the number of

19

subtraction result. The equation is expressed in Eq. 3-1, where Bk means the k-th

background subtraction image.

k k

S



Using this process, if there is an occluding object in the image and some moving

objects pass behind it, we may find that the accumulated count at a pixel on the

occluding object is less than that on nearby background pixels. However, the color

similarity problem still exists. We find that pixels with a dark color are more likely to

get an accumulated count that is less than the true value. This might be due to the low

contrast of the camera which makes the objects within the dark regions look similar to

the background.

Figure 3-5 shows an example of the summation of four minutes background

subtraction results. In the scene, people walk on the sidewalk and cars run on the road.

The contours of the trees can be seen in this picture which can used to infer the

boundaries. However, there is also strong contrast near the tire and the chassis of the

cars which is cause by the drawback of the background subtraction algorithm.

Figure 3-5 Left: The background image. Right: The summation of four minutes background subtraction results

Hence, how to make the system less sensitive to the drawback of the background

objects passing through each pixel and used the difference of value as boundary cues.

In fact, moving objects may pass through the occluding object from the back or from

the front side. If there is no moving object passing through the front of an occluding

object, the value counted on the pixels of the occluding object would be very small.

Hence, if we know the appearance times of moving objects passing through the back

side, we can detect the boundaries more precisely.

Although we don‟t have the depth of moving objects, we have another cue which

is relevant to the depth. That is the bottom height of the moving object. Usually the

bottom height gives the roughly object depth if the object is not severely occluded.

The steps we collect the bottom height statistics are shown in Figure 3-6. First, we use

the background subtraction method proposed by Barnich [11]. We use the

morphological opening process to clear some noisy regions in the subtraction result.

After that, we merge 10 successive frames and do the morphological closing process.

The reason for using 10 frames is that there could be a big loss of moving object

pixels in the background subtraction result. By combining the results of 10 frames, we

can fill in some of these pixels. The selection of 10 frames is due to the fact that the

period of time a moving object passes through a pixel last roughly 10 frames. Besides,

the object depth usually does not have a big change within 10 frames. After the above

processes, we eliminate small regions that are less than 100 pixels and merge some

nearby regions. At this time we get some regions and can easily get their bottom

heights. For each region we record the bottom height at all the pixels within the

21

Figure 3-6 Temporal knowledge collection steps

The recording equation can be written as Eq. 3-2. Si means the i-th statistical 2-d

data recording the number of passing objects corresponding to the bottom height i in

each pixel. Because our video size is 480 by 720, there are 480 possible bottom

heights. In Figure 3-7, we show two examples after a period of time of recording.

These two examples correspond to the bottom heights 100 and 165. The brighter

region has a bigger counting number. The label n means the n-th object in the frame.

Function h n( ) means the bottom height of the n-th object. Bk n, means the binary

image of k-th frame with the value 1 only on the pixels of the n-th object. (One

example is the last image in Figure 3-6.)





i k n

k n

S 



Figure 3-7 The statistical data of bottom height 100 and 165

heights, there might exist an occluding object in the region that has a smaller number.

Hence, we can detect the occluding object. Figure 3-8 shows an example. If we count

the number of object passing through the red and blue dot at different bottom heights,

we might have the statistical results like the right one. The red histogram means the

appearance number statistics. On the red dot, moving objects can pass through it both

on the sidewalk and the road and there are two groups in its histogram. On the other

hand, on the blue dot, only those moving objects on the road can pass through it.

When the moving objects walk on the sidewalk, they are occluded by the tree and we

don‟t see their appearance on the blue dot. In this case, the curve has only one group.

The big difference of the appearance on the height of the sidewalk gives the cue that

there is an occluding object on the blue dot.

Figure 3-8 An example of appearance number at different height of two points

After the statistical analysis, we want to find some occluding objects in the

image. A way to find the occluding objects is to predict and compare. In the prediction

step, we use a horizontal filter to predict the statistics without occlusion. In the

comparison step, we compare the predicted one with the observed one. Here we use

the total number statistics (which is equal to summing the 480 statistical data) to

explain these steps. If we count the total number of moving objects passing through red blue

23

each pixel in the scene (a) of Figure 3-9, we may get the result (b) of Figure 3-9 (the

lighter pixel has a larger number). In this image, we see the contour of the trees. We

can detect the boundaries by taking gradients, but we may detect false boundaries on

the top and the bottom of the path. Because we take the video shot on the eye level,

moving objects statistics are quite uniformly distributed on the x axis in the image if

there is no occlusion. Hence, we can do a horizontal filtering to „predict‟ the

appearance number at each pixel without occlusion. The predicted image is shown in

(c) of Figure 3-9. By comparing the difference of the observed appearance number

and the predicted one, we can find the regions where the appearance number are

shorter and are likely to be the occluding region. The detection result is shown in (d)

of Figure 3-9. The equations of filtering and comparing are written in Eq. 3-3 and Eq.

3-4. The label f is the horizontal filter. F is the predicted likelihood of occluding

regions.

Sp S f Eq. 3-3

max( , 0)

F  SpS Eq. 3-4

However, using the total number statistics usually produces many false alarms

Figure 3-9 The filtering process to find the occluding object region

We do the prediction and comparison processes separately at each bottom height

to erase the background subtraction similarity problem. We use the same predicting

filter but adjust the way of comparison. Only when the predicted number is a few

times larger than the observed number, we think that pixel is on an occluding object

and count the number of difference. The equations are written in Eq. 3-5 and Eq. 3-6.

Spi  Si f Eq. 3-5 ( , ) ( , ) ( , ) 0 i i i Sp x y S x y F x y     , ( , ) 5 ( , ) , i Sp x y S x y else  Eq. 3-6

If we perform these steps over the statistics in Figure 3-8, we would get the result

shown in Figure 3-10. The histograms from left to right are the object bottom height

histogram, predicted object bottom height histogram, and the occluded object bottom

height histogram. In this example, we can detect the tree because it occludes the

25

Figure 3-10 The histograms of two points with the prediction and comparison steps

Because moving objects do not always walk parallel to the camera, we average

the statistical result at each bottom height with nearby bottom heights and then do the

filtering separately. There exists one problem, that is, moving object is not fully

occluded by the occluding object. Its bottom is occluded but we can still see the

remaining part. In this case, the bottom height jumps from one value to another value

and makes both side have a big change at some heights. To deal with this situation, we

also consider the total number change at nearby regions. The occluding object

possibility would be suppressed if the total number change is small.

Now we have two kinds of statistics. One is the object bottom height statistics

and the other is the occluded object bottom statistics. Using these statistics, we can get

the depth range at each pixel. From the object bottom height statistics, at each point

we know the roughly depth of objects that might occlude it. Hence, we know that the

depth of this point is larger than the depth of these objects. From the occluded object

bottom height statistics, at each point we know the roughly depths of the occluded

objects. Hence, we know that the depth of this point is smaller than the depth of these

objects. Here we use the maximum 2% of object bottom height as the minimal depth

and use the minimum 2% of occluded object bottom height as the maximal depth.

Combing with the maximal depth range of ground, we get the maximal and minimal

Figure 3-11 The depth range. Left: Minimal depth. Right: Maximal depth.

In the occluded object bottom height statistics, there are 480 statistical 2-d data

recording the number of occluded objects at each bottom height. If we sum up the 480

2-d data, we can get the result image in (d) of Figure 3-12, which shows the predicted

likelihood of occluding region. The detection results using other statistics are shown

in Figure 3-12, including the image (a) that counts the total number at each pixel

(refer to Eq. 3-7), the image (b) that averages the objects bottom height passing

through each pixel (refer to Eq. 3-8), and the image (c) that combines the first two

statistics (refer to Eq. 3-9).

, k n k n S 







Statistical method using Eq. 3-7 is likely to be affected by the aforementioned

color similarity problem. Statistical method using Eq. 3-8 can deal with this color

similarity problem. However, it is likely to be affected by the noise in some regions

where objects rarely pass through. Statistical method using Eq. 3-9 is to find the

27

other two methods. The statistical method that produces Figure 3-12 (d) spends the

longest time but is the most stable one. Using this statistics, we can roughly get the

maximal depth range.

Figure 3-12 The results of occluding objects detection using different statistics

3.2. B

ACKGROUND

D

EPTH

E

STIMATION

After we collected the moving object information, we want to estimate the depth

of the background image by combing single-image cues with it. We do this work by

extending Hoiem‟s algorithm [10]. Here, let‟s review Hoiem‟s single-image depth

estimation algorithm first. To estimate the depth of an image, they need to know the

surface orientations and the boundaries in the image. They use their surface

estimation algorithm to estimate the surface orientations and use them as cues to

recover the occlusion boundaries in the image. After that, they combine the two

temporal knowledge and add it in some modules of Hoiem‟s algorithm. The flowchart

of Hoiem‟s algorithm and the modules that we have added in the temporal knowledge

are shown in Figure 3-13. In this section, we will introduce the adjustments we have

made over the flowchart.

Figure 3-13 The flowchart of Hoiem’s algorithm with some blocks adding temporal knowledge

In their work, they start with a watershed segmentation process over the image.

Although they segment the image into thousands of regions, their boundaries might be

a little displaced from the actual places. With the help of temporal knowledge, we

want to preserve the precise boundaries in the initial segmentation. Since the

watershed segmentation is based on image gradients, we make some modification

over the image gradients to adjust the segmentation result. In our statistical images ((b)

and (d) in Figure 3-9), we see the contours of the occluding objects. Taking gradient

to each single one would yield some false boundaries. Hence, we take gradients to

both of them and find their intersection. We get the image with a large value at the

pixels on the boundaries. We add this result to the original gradient and then do the

watershed segmentation. The gradient images and the segmentation results are shown

in Figure 3-14 and Figure 3-15. From the segmentation images we can see that the

29

Figure 3-14 The gradient result combining the original gradient result and the gradient of temporal statistical images

Figure 3-15 The comparison of the initial segmentation with and without using the temporal knowledge.

Having this initial segmentation, we want to get the boundary likelihoods. Beside

the cues used in Hoiem‟s algorithm, we add in the temporal cues. First we get the

statistics of each small region. The statistics include the existent part and the shorter

whether the shorter part in one region is in the existent part of another region. The

boundary likelihood is positively related to the counting numbers and is negatively

related to the region sizes. The equation can be written as below. Function p(x,y,k)

returns 1 when the segment label of pixel (x,y) is k; otherwise, it returns 0. L_{a b,} is the

estimated likelihood of two nearby regions a and b. Sk means the i-th object bottom _i

height statistics of region k. Fk means the i-th occluded object bottom height i

statistics of region k. The function g adjusts the region size weight.

, ( , , ) ( , ) i i x y Sk 





 



We calculate the likelihoods and add them to the original likelihoods to make the

boundaries more likely to be preserved. When regions merge, instead of calculating

the boundary likelihoods by using the composed edges, we calculate the statistics of

the new region by combing the statistics of the composed small regions and then

compute the boundary likelihood of nearby regions. This can prevent the situation that

the occluding and occluded regions merge across weak edges. Figure 3-16 shows an

31

Figure 3-16 (a) Initial segmentation. (b) Boundary likelihoods from single-image features. (c) Boundary likelihoods from temporal cues. (d) Boundary likelihoods using both single image cues and temporal cues.

Using the temporal cues, boundaries where objects often pass can be preserved.

Sometimes, however, occluded regions near the occluding objects have wrong surface

labels and may yield wrong segments if their color difference with respect to the

occluding objects is not big enough or their region size is too small. We check this

problem in Hoiem‟s algorithm and find there are two main reasons. One is due to the

wrong initial segmentation of the surface layout algorithm and the other is due to the

wrong spatial support in multiple segmentations.

In their surface layout algorithm, they start with superpixel segmentation and

yield hundred of regions. This segmentation is fast but not very accurate. Sometimes,

it merges different label regions into one single region. This would cause wrong

surface labels. Although the segmentation method used in their occlusion boundary

algorithm is more precise, it doesn‟t work well in the surface layout algorithm. This

might due to the randomness of multiple segmentation method used in the surface

layout algorithm. Moreover, it‟s hard to make adjustment in the superpixel

the color difference between the mean of nearby regions is smaller than the variability

in each single region. Hence, we only make adjustment in the original background

image over which we add some value in the occluding object regions to force the

separation of the occluding and occluded regions.

The wrong spatial support is caused by the merging of different label regions in

their multiple segmentation process. Usually this happens at those small occluded

regions that merge with occluding objects. We find that in these small regions, the

single region surface layout estimation often does better prediction than the value of

multiple segmentation result. Hence, we increase the weighting of the single region

surface layout estimation in those regions near the occluding objects.

The ground likelihood prediction comparison is shown in Figure 3-17. Picture (a)

shows the ground likelihood prediction of Hoiem‟s algorithm. Picture (b) shows the

ground likelihood prediction after our adjustment. The likelihoods of regions between

the trees after adjustment are more accurate. Hence, they would not be mistakenly

classified as vertical regions in the final result.

Figure 3-17 The ground likelihood comparison

After a repetition of merging process, we get the final segmentation result. We

need to assign the depth to each region. For those unconnected vertical regions which

33

enough, we think they are the same object and we calculate their depth simultaneously.

This process is due to the fact that some vertical occluded regions are separated by

some occluding objects. If we calculate their depth separately, they might get different

depth values due to the displacement of contact point with the ground. By combining

them together, the result looks more accurate.

To know the depth range in each region, besides the figure/ground relationship

used in Hoiem‟s algorithm, we have obtained the maximal and minimal depths

information in some regions by using the temporal statistics. The maximal depth is

gotten from the minimal appearance height of the shorter part in each region. The

minimal depth is get from the maximal appearance height of the existent part in each

region. We use these features to constrain the depth range of some objects and to get

better object depth estimation.

One example of background depth estimation is shown in Figure 3-18. We get

the segmentation result in (a) and estimate the depth in (b). The result of Hoiem‟s

algorithm which uses only single-image features is shown in (c) and (d). In this

picture, we get some wrong estimation results mainly on the leaves. This is due to the

fact that the upper part of the training video usually has deeper depth. Hence, it‟s still

difficult to get accurate depth estimation result in this kind of scene. However, since

we have obtained some useful depth information over some regions, such as the trunk

of the trees, based on the temporal knowledge, we can do better depth estimation over

Figure 3-18 Comparison of background depth estimation

3.3. D

EPTH OF

V

IDEO

C

ONTENTS

After we have gotten the depth of the background image, we aim to estimate the

depth of the video contents. The video used here can be the same or different from the

video we used to collect temporal knowledge. We want to fast find the moving objects

and assign them the correct depth. Hence, we use the background subtraction method

to identify the moving objects and assign them the appropriate relative depth.

To assign the right depth to moving objects, we need to know the rough positions

of them. After doing background subtraction, we apply morphology processes to clear

noisy results and to merge nearby pixels. Here we get the foreground regions and find

the bottom point of each object. However, we can‟t directly treat the bottom point as

the contact point on the ground. This is because the moving object may be occluded

by some other occluding objects, as shown in Figure 3-19. Even if the moving object

is not occluded, the instability of the background subtraction method may also cause

the bottom point to be different from the actual contact point. Hence, we need to do

35

Figure 3-19 Object’s bottom point is not always equal to the contact point on the ground

For each moving object, we know it is occluded or not by checking whether

there are vertical regions near its bottom point. Besides, we can find whether there are

objects appear around the position in the previous frame. If the object is not occluded

and we have found its depth in the previous frame, we estimate its depth based on its

bottom point and its previously estimated depth. If the object is occluded and we have

found its depth in the previous frame, we estimate its depth based on the previously

estimated depth. If the object is not occluded and we cannot find its depth in the

previous frame, we estimate its depth based on the bottom point. If the object is

occluded and we cannot find its depth in the previous frame but only know its

maximal and minimal depths. In this case, we estimate its depth by averaging the

depth of the moving objects that have passed through this region. This is because

objects usually have similar paths. Hence, we can record the depth of each pixel in

advance and propagate the recorded depth information to those objects with unknown

depth.

In our method, we do tracking by recording the bottom height, top height, and

like shape or color. When an object is occluded by an occluding object, using the

bottom height may make some mistakes. Hence, we relax the bottom height

restriction. In our tracking data, we clear the data when the object doesn‟t appear for a

period of time. This happens when some objects get fully occluded for a short time

and then appear again.

Some situations which can‟t be solved in background subtraction could affect our

result. One problem is the inter-occlusion among moving objects. In background

subtraction method, the algorithm identifies which pixels are static and which pixels

are non-static. The algorithm doesn‟t separate pixels of different objects. Hence, in

our algorithm, it is possible that different moving objects are grouped into a single

object. In this situation, the depth of the object on the back would be underestimated.

A possible way to solve this problem is to perform more accurate tracking. On the

opposite, we may get broken foreground detection result when the color of the object

is similar to that of the background. In this case, our algorithm doesn‟t perform well.

When we estimate the depth of each moving object, we need to check whether it

is deeper than its background which is an impossible case. Hence, we use the mean

background depth in this region as the upper limit. Moreover, we find that there could

be tiny holes between the occluding objects and moving objects when some moving

objects pass through the back of occluding objects. To solve this problem, after we

have gotten the depth of the moving objects, we perform some morphology processes

over these vertical background regions with shallower depth to get a proper depth

37

Chapter 4.

E

XPERIMENTAL

R

ESULTS

In this chapter, we will show and discuss our experimental results. In our

experiments, the first stage is to capture the video. To show the assistance of temporal

knowledge in our algorithm, we chose the scenes that have some occluding objects

that block moving objects behind them. To avoid some situations that might decrease

the background subtraction performance, we chose the scenes that do not have huge

luminance change and dramatically shaking trees. We took some videos in the campus.

The background images of two videos are shown in Figure 4-1. In each scene, we

took the video for about four minutes. There are about 25 objects pass through within

the period. The occluding objects in the first scene are the trees near the road. Moving

objects mainly move on the road or on the sidewalk. The occluding objects in the

second scene are the tree, the streetlamp, and the car. Moving objects move on the

road or on the two sidewalks of the road. The camera is the DCR-TRV60 digital video

camera with the frame rate of 29 frames per seconds.

Over the video, we perform background subtraction. Here, we use the ViBe

program proposed in [11]. We choose the default parameter setting to run the program.

It takes about five and half minutes to run the background subtraction algorithm over

the 4-min videos. In the result, there are some holes in the moving object regions and

there are some false alarms over the leave regions. Examples of the background

subtraction results are shown in Figure 4-2.

Figure 4-2 Some background subtraction results

Having the background subtraction result, we do the morphology processes and

collect the temporal knowledge. This step spends a lot of time because we have

thousands of frames. Even only performing the opening and closing operations would

takes a few minutes. After that, we combine the temporal knowledge with Hoiem‟s

algorithm to get the depth estimation of the background image. Here, we use a

rule-based approach to adjust the boundary likelihood. The results are shown in

39

Figure 4-3 Background depth estimation result

With the background image depth estimation, we assign depth to the moving

objects and then get the relative depth of the video contents. We compare our results

with the original single-image estimation results. Here we use Hoiem‟s algorithm to

estimate the depth of each image separately. The results are shown in Figure 4-4.

Compared with the results using Hoiem‟s method, our algorithm does better at a

few places. First, the boundaries with objects passing are more likely to be preserved.

For example, the trunks of trees in the first video have occluded some moving objects.

Their depths are better estimated. Second, we can avoid the depth discontinuity on the

background, which can be shown is the second video. The groves in the image are

separated by some occluding objects. Using our algorithm, we can treat them as

continuous objects that have continuous depth. Third, the depths of moving objects

are better estimated. In fact, using Hoiem‟s method to estimate the depth of each

to frame.

Figure 4-4 Video depth estimation result

There are some restrictions in our system. First, if there is no occluding object

that occludes some moving objects in the video, we cannot obtain some useful

temporal information for depth estimation. Second, our system is based on the result

of background subtraction. Hence, it won‟t perform well if the background

subtraction result is poor. Moreover, in our method, we do not use specific object

knowledge and we do not use complicated tracking technique. It would be better if we

can take into account more object knowledge and adopt more advanced tracking

41

Chapter 5.

C

ONCLUSIONS

In this thesis, we proposed a method to estimate the depth of videos taken from

static cameras. We accomplish this by first estimating the depth of background image

and then assigning the depth to moving objects to get the final depth estimation of the

video contents. Compared with single-image depth estimation, we concern the

temporal information offered by the moving objects and the obstacles that might

occlude the moving objects. Our algorithm can provide useful information to other

processes, like video surveillance and video synthesis. For surveillance systems, we

can know whether a moving object is occluded by the obstacle and use the

information as prior knowledge. For video synthesis, we can add some synthesized

moving objects into the video and know whether some part of the moving object

R

EFERENCES

[1] S. Battiato, S. Curti, M. L. Cascia, M. Tortora and E. Scordato, “Depth Map Generation by Image Classification”, in Proc. SPIE, Three-Dimensional Image Capture and Applications VI, 2004, vol. 5302, pp. 95-104.

[2] B. J. Super and A.C. Bovik, “Shape from Texture Using Local Spectral Moments” , IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 17, no. 4, pp. 333–343, April 1995.

[3] Y. G. Leclerc and A. F. Bobick, “The Direct Computation of Height from Shading,” IEEE Conference on Computer Vision and Pattern Recognition, pp.552-558, June 1991.

[4] A. Torralba and A. Oliva, “Depth Estimation from Image Structure”, IEEE

Transactions on Pattern Analysis and Machine Intelligence, vol. 24, no. 9, pp.

1226–1238, September 2002.

[5] A. Saxena, S. H. Chung and A. Y. Ng, “3-D Depth Reconstruction from a Single Still Image,” International Journal of Computer Vision, vol. 76, no.1, pp. 53-69, 2008.

[6] A. Saxena, M. Sun and A.Y. Ng, “Make3D: Learning 3-D Scene Structure from a Single Still Image,” IEEE Transactions on Pattern Analysis and Machine

Intelligence, vol. 31, no. 5, pp. 824–840, May 2009

[7] P. Felzenszwalb and D. Huttenlocher, “Efficient Graph-Based Image Segmentation,” International Journal of Computer Vision, vol. 59, no. 2, pp. 167–181, 2004.

[8] B. Liu, S. Gould and D. Koller,“Single Image Depth Estimation from Predicted Semantic Labels,” IEEE Conference on Computer Vision and Pattern

Recognition, pp.1253-1260, June 2010.

[9] D. Hoiem, A. A. Efros and M. Hebert,“Recovering Surface Layout from an Image,” International Journal of Computer Vision, vol. 75, no. 1, pp. 151-172, 2007.

[10] D. Hoiem and A. A. Efros,“Recovering Occlusion Boundaries from an Image,”

International Journal of Computer Vision, vol. 91, no. 3, pp. 328-346, 2011.

[11] O. Barnich and M. V. Droogenbroeck, “ViBe: A Universal Background Subtraction Algorithm for Video Sequences,” IEEE Transactions on Image
