Nanotechnology 18 (2007) 355401 (7pp) doi:10.1088/0957-4484/18/35/355401
Relaxation-induced lattice misfits and
their effects on the emission properties of
InAs quantum dots
J F Chen
1, Y Z Wang
1, C H Chiang
1, R S Hsiao
1, Y H Wu
2,
L Chang
2, J S Wang
3, T W Chi
4and J Y Chi
41Department of Electrophysics, National Chiao Tung University, Hsinchu, Taiwan, Republic of China
2Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu, Taiwan, Republic of China
3Department of Physics, Chung Yuan Christian University, Chung-Li, Taiwan, Republic of China
4Industrial Technology Research Institute (OES/ITRI), Hsinchu, Taiwan, Republic of China E-mail:[email protected]
Received 25 April 2007, in final form 10 July 2007
Published 7 August 2007
Online at
stacks.iop.org/Nano/18/355401
Abstract
Strain relaxation in InAs/InGaAs quantum dots (QDs) is shown to introduce
misfits in the QD and neighboring GaAs bottom layer. A capacitance–voltage
profiling shows an electron accumulation peak at the QD with a long
emission time, followed by additional carrier depletion caused by the misfits
in the GaAs bottom layer. The emission-time increase is explained by the
suppression of tunneling for the QD excited states due to the additional
carrier depletion. As a result, electrons are thermally activated from the QD
states to the GaAs conduction band, consistent with observed emission
energies of 0.160 and 0.068 eV which are comparable to the confinement
energies of the QD electron ground and first-excited states, respectively,
relative to the GaAs conduction band. This is in contrast to non-relaxed
samples in which emission energy of 60 meV is observed, corresponding to
the emission from the QD ground state to the first-excited state.
1. Introduction
Recently, InAs/GaAs self-assembled quantum dots (QDs) [1–5] have attracted considerable attention because of their promising technological applications [6–8] and for scientific studies [9–13]. One of the important issues is experimentally determining the electronic band structure of the QD [9–14]. Kapteyn et al [9] have proposed a two-step emission process for electrons in the QD: a thermal activation from the QD ground state to the first-excited state and then tunneling to the GaAs conduction band. This suggests a strong tunneling for electrons emitting from the QD excited states. Since the tunneling probability can be affected by varying the depletion width, introducing additional carrier depletion may suppress the tunneling process and enable the observation of the thermal emission from the QD ground state to the GaAs conduction band. Coherent QDs can be formed by partial strain
relaxation. However, when the InAs thickness is increased beyond the critical thickness (∼3 ML), the strain is relaxed by generating misfit dislocations [13]. Uchida et al [15] have observed a perfect confinement of misfit dislocations at the relaxation interface in InGaAs/GaAs heterostructures. In previous work [14], misfit dislocations were shown to be electron-trapping centers. The misfits in the bottom GaAs layer may cause carrier depletion and suppress the tunneling probability. This may significantly modify the emission properties of the QD. Therefore, in this work, the relaxation-induced misfit dislocations and their effects on the electron emission in InAs QDs are investigated by transmission electron microscopy (TEM), capacitance–voltage (C–V) profiling and deep-level-transient spectroscopy (DLTS).
The samples studied are InAs QDs capped with an InGaAs layer. With this capping layer, relaxation-induced misfit
Nanotechnology 18 (2007) 355401 J F Chen et al
dislocations are found in the QD and neighboring GaAs bottom layer. The carrier depletion caused by the misfit dislocations in the neighboring GaAs bottom layer can suppress the electron emission from the QD excited states, leading to a longer emission time and larger emission energy. Evidence of this tunneling suppression is provided by another QD sample without an InGaAs capping layer. Strain relaxation does not produce misfit dislocations in the bottom GaAs layer. Without additional carrier depletion behind the QD, the emission time remains very short.
2. Experiments
The QD structures were grown on n+-GaAs(100) substrates by solid source molecular beam epitaxy in a Riber machine. On top of a 0.3 μm thick Si-doped GaAs (6–10×1016 cm−3)
barrier layer, an InAs layer with different thickness from 2 to 3.3 ML was deposited at 490◦C to form the QDs. Then the QDs were capped with a 60 ˚A In0.15Ga0.85As layer and
a 0.2 μm thick Si-doped GaAs (6–10 ×1016 cm−3) layer
to terminate the growth. Detailed growth conditions can be found elsewhere [16]. A typical QD sheet density about 3 × 1010 cm−2 was observed by atomic force microscopy (AFM). For C–V profiling, Schottky diodes were realized by evaporating Al on the samples. The apparent-carrier concentration is obtained by converting theC–V curve using the depletion-layer approximation: N(w) = C3
A2qεε 0(dC/dV ),
where W is the width of the space-charge region and A
is the contact area. Photoluminescence (PL) measurements were carried out using a double-frequency yttrium–aluminum– garnet (YAG): Nd laser at 532 nm.
3. Measurement and results
3.1. TEM characterization of misfit dislocations
In contrast to there being no dislocations in the non-relaxed samples, misfit dislocations are observed in the relaxed InAs/InGaAs QDs samples. Figure 1(a) shows a large-scale cross-sectional TEM picture of a QD sample with a 3.3 ML thick InAs layer. The QD is relaxed since the InAs thickness exceeds the critical thickness of∼3 ML [13]. A line of QDs is visible. No threading dislocations are observed in the top GaAs layer. Figure1(b) shows the TEM picture around a dot whose contrast is similar to that of a non-relaxed dot. The shape of the dot looks more like a trapezium with a height
∼10 nm and a base width∼20 nm. Figure1(c) shows a high-resolution TEM picture around a typical dot (dashed ellipse). As a guide to the eyes, the wetting layer is indicated by a line. Figure 1(d) shows the Fourier transformed image of figure1(c). The area around the GaAs bottom layer near the QD is emphasized in figure1(e) for clarity. Several (about ten) dislocations, as indicated by loops, can be seen in the QD. No dislocations are found in the intervening GaAs region between adjacent QDs. About eight dislocations are observed in the bottom GaAs layer near the dot: two in each of the two small loops on the sides, and four in the large middle loop. From a dot density of∼3×1010cm−2observed by AFM, the total
density of the dislocations is∼5.4×1011cm−2on the average.
These dislocations do not propagate into the GaAs layers but

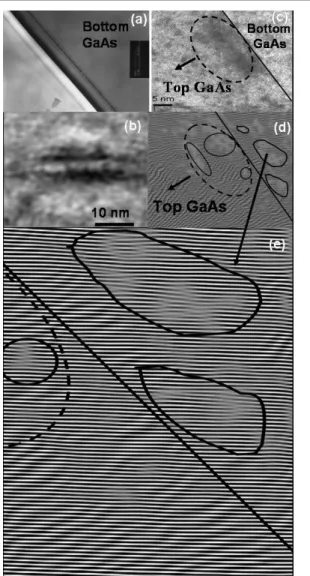

Figure 1. (a) Cross-sectional TEM picture of the 3.3 ML
InAs/InGaAs QDs sample, showing a line of QDs and no threading dislocations in the top GaAs layer. (b) The TEM image of a typical QD, showing a height∼10 nm and a base width ∼20 nm. (c) The HRTEM picture of a dot (dashed ellipse). As a guide to the eyes, the wetting layer is indicated by a line. (d) The corresponding Fourier transformed image, showing a number of misfit dislocations in the QD and in the neighboring GaAs bottom layer. (e) Part of figure (d), showing more clearly the misfit dislocations in the large middle loop in (d).
are confined near the QD lower interface. Therefore, there are misfit dislocations induced by strain relaxation, rather than threading dislocations generated from the sample surface or substrate through a gliding process. These misfit dislocations bend toward the interface. It should be noted that, besides these misfit dislocations, the sample reveals no other defects. Hence, relaxation-induced misfit dislocations are confined in the QD and neighboring GaAs bottom layer. Similar confinement of misfit dislocations was previously observed in relaxed InGaAs/GaAs heterostructures [15]. This misfit distribution, together with the fact of there being no threading dislocations in the top GaAs layer [17], suggests that strain relaxation occurs at the QD lower interface while the QD upper surface probably remains coherently strained.

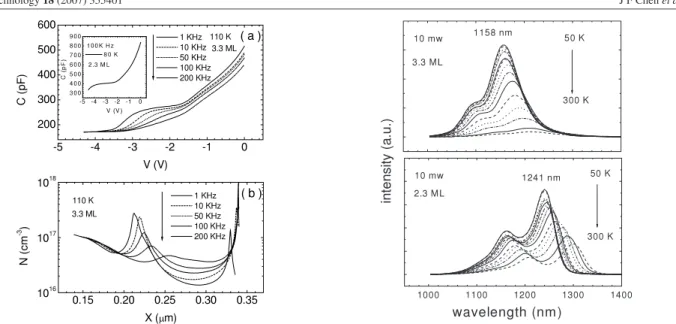

Figure 2. (a) Frequency-dependent C–V spectra and (b) converted
concentration profiles of the relaxed 3.3 ML sample, showing carrier accumulation in the dots and additional carrier depletion in the neighboring GaAs bottom layer. The peaks at 0.2 and 0.33 μm are considered as electron emission from the QD and from the traps related to the misfits, respectively. The C–V spectra of the non-relaxed 2.3 ML sample are shown in the inset of (a) for comparison.
3.2. Electron emission from a QD
The electron-emission properties of a relaxed QD can be seen from theC–V spectra measured on the 3.3 ML sample. Figures 2(a) and (b) show a C plateau (from−2 to−3 V) and its converted carrier-accumulation peak in the QD region (∼0.2 μm), respectively. The x-coordinate in figure 2(b) is defined as the distance from the sample surface. The intensity of the peak increases with decreasing temperature, characteristic of a Debye-length effect in a quantum structure. TheC plateau appears at nearly the same dc voltage as in a non-relaxed 2.3 ML QD sample (in the inset of figure2(a)), and thus it is ascribed to electron emission from the QD states. The smaller voltage width (from−2 to−3 V) for theCplateau suggests a smaller number of electrons accumulated in the relaxed QD. Hence, some electrons in the QD are depleted by traps presumably associated with the misfits in the QD. It should be noted that the carrier peak at∼0.2μm cannot be interpreted by the depopulation of the traps associated with the misfits in the QD [14]. Recently, in work on relaxed InAsSb QDs [17], the traps associated with the misfits in the QD were found to emit electrons to the GaAs conduction band with emission energy of 0.35 eV, in a way similar to the misfits in the GaAs layer. Therefore, due to its deeper energy than the QD electron ground state (about 0.18 eV), electron emission from this trap would appear at a much deeper depth than observed. From a simple band diagram simulation, a trap located at 0.2μm and at 0.35 eV below the GaAs conduction band would appear at about 0.3μm, rather than the∼0.2μm observed. Thus, the carrier peak at 0.2 μm is attributed to electron emission from the QD. As shown in figure2(b), the carrier peak at 0.2μm is followed by a large peak at around 0.33μm. Due to the long emission time, the electrons trapped
Figure 3. Temperature-dependent PL spectra of the relaxed 3.3 ML
and non-relaxed 2.3 ML samples. The QD ground state emits at 1158 nm in the relaxed sample. A relatively strong increase in the linewidth of the QD emission can be seen with increasing temperature.
on the misfits would not be modulated by an ac signal but would eventually be swept out when a dc voltage moves the Fermi level well below the related traps. Thus, the large peak at around 0.33μm is attributed to the electron emission from the misfits. Note that the linewidth of the carrier peak at 0.2μm is 0.015 μm (at 80 K) which is comparable to that of the non-relaxed sample, suggesting that strain relaxation does not severely degrade the QD. This is supported by the comparable quality for the QD PL emission between the relaxed 3.3 ML and non-relaxed 2.3 ML samples, as shown in figure3. The PL spectra of the relaxed 3.3 ML sample show a slightly broader QD ground emission at 1158 nm (at 50 K). This suggests the presence of the QD states even after strain relaxation, justifying the assignment of the peak at∼0.2μm as the emission from the QD states. From the area under this peak in figure2(b), we estimate a sheet concentration of 1×1011cm−2compared to
4×1011cm−3in the non-relaxed 2.3 ML sample. Thus, the
misfits capture some electrons in the QD but do not completely deplete them. For the estimated QD density of 3×1010cm−2
from AFM, each QD still contains about three electrons. By comparison with the density of the misfits as shown in figure1, we deduce that only a small amount of the misfits in the QD are active traps.
By comparison with non-relaxed samples, strain relax-ation markedly lengthens the emission time for the QD. This can be seen from the frequency dependence of theC disper-sion in figure2(a). This dispersion is not due to a resistance– capacitance (RC) time constant effect [18], since it is ob-served in the QD region, rather than in the top GaAs layer except the parallel shift. The RC time constant determined from capacitance–frequency measurements at−0.5 V is about 10−6 s and is nearly temperature and voltage independent. The emission time for the QD is much longer than the RC time constant. The high-C plateau of 280 pF in figure 2(a) means that the electrons at the QD can follow an ac signal at
Nanotechnology 18 (2007) 355401 J F Chen et al
Figure 4. The G/F–F spectra of the 3.3 ML sample measured at −2.6 V, corresponding to the electron emission from the QD. The
frequency corresponding to the conductance peak is taken as the carrier emission rate.
Figure 5. Arrhenius plots of the emission times in the 3.3 ML
sample obtained from the G/F–F spectra at different dc voltage. The plots at high temperatures yield emission energy from 0.068 to 0.182 eV from−2 to −3.2 V. The decreased temperature dependence at low temperatures suggests a tunneling effect.
103 Hz, but cannot at 2×105 Hz, as shown by the low-C
plateau of 180 pF. The emission rate is between the two fre-quencies. By taking the inflexion frequency as the inverse of the emission time, the emission times (at 110 K) are 10−5s at−1.9 V, 2×10−5s at−2 V, 10−4s at−2.2 V, and 10−3s at−2.4 V, respectively. This suggests an increased emission energy as the Femi level is shifted downward. Detailed emis-sion time and energy as a function of voltage are obtained from the conductance/frequency–frequency (G/F–F) spectra, as shown in figure4for−2.6 V. The conductance displays a peak at a frequency comparable to carrier emission rate. Fig-ure5shows the obtained Arrhenius plots from−2 to−3.3 V. The emission times at high temperatures can be connected by a straight line from which emission energy is obtained, which increases from 0.068 to 0.182 eV from −2 to −3.2 V. Fig-ure 5 shows a decrease in the emission energy with lower-ing temperature, suggestlower-ing some tunnellower-ing effect at low tem-peratures. Since a tunneling effect is usually observed for QDs [9–11], this decreased temperature dependence further supports the assignment of the peak at∼0.2μm as the elec-tron emission from the QD states. The highest-bound emission
Figure 6. (a) Temperature-dependent C–V spectra and (b) converted
concentration profiles at 93 K of the relaxed 3.3 ML sample, showing a splitting of the carrier-accumulation peak into two peaks with emission energies of 0.068 and 0.160 eV related to the electron emissions from the QD electron first-excited and ground states, respectively.
energy of 0.182 eV is comparable to the confinement energy of the QD electron ground state with respect to the GaAs con-duction band. Kapteyn et al [9] reported a value of 0.190 eV for the confinement energy of the InAs QD ground state for an emission at 1.12 eV which is close to our QD emission at 1.07 eV (at 50 K) in figure3. Thus, the emission energy 0.182 eV is attributed to a thermal activation from the QD elec-tron ground state to the GaAs conduction band. As regards the lowest-bound emission energy of 0.068 eV, it can be due to the depopulation of the QD first-excited state. As discussed above, from the area under the electron-accumulation peak, each QD contains about three electrons. Thus, the QD is filled up to the first-excited state and electron emission from this state can oc-cur. This is indeed the case. When the temperature is lowered below 120 K, the emissions from the QD electron ground and first-excited states are well separated, as shown in figure6(a), which shows a splitting of oneCplateau into two plateaus, as indicated by arrows. The corresponding electron-accumulation peak also splits into two well-separated peaks, as shown in fig-ure6(b), which displays the depth profile at 93 K. The peak at 0.25(0.275) μm corresponds to the QD electron first-excited (ground) state. The smaller peak height for the first-excited state is consistent with the filling of only one electron in the first-excited state, relative to two electrons in the ground state. As illustrated in figure5, tunneling is unavoidable at low tem-peratures. The emission energies for these two states are sim-ply estimated from the high-temperatureG/F–Fspectra at the voltages corresponding to the twoC plateaus in figure6(a), which are 0.068 and 0.160 eV, respectively, as indicated in fig-ure5. These two values are comparable to 0.086 and 0.177 eV calculated for QDs [19] and 0.096 and 0.190 eV experimen-tally determined by Kapteyn et al [9], and 0.060 and 0.14 eV by Brunkov et al [20] from the relative voltage positions of the 4
C plateaus. This comparability is a good indication that the emission energies of 0.160 and 0.068 eV are the confinement energies of the QD electron ground and first-excited states, re-spectively, with respect to the GaAs conduction band. Their energy difference (0.092 eV) is comparable to the energy dif-ference between the PL ground and first-excited emissions of the QD, consistent with a very small energy separation between the hole ground and first-excited states [19,20]. By subtracting the GaAs band gap of 1.50 eV from the electron ground-state energy of 0.160 eV and the ground-state PL emission energy of 1.079 eV (at 50 K), we obtain the confinement energy of the hole ground state to be 0.261 eV, a value close to that of 0.205 eV previously determined by Brunkov et al [20]. These results suggest that the observed emission processes (at high temperatures) are from the QD electron and first-excited states to the GaAs conduction band. Thus, the confinement energies of these states with respect to the GaAs conductance band are directly determined from the temperature dependence of the emission times, rather than from the relative voltage positions of theCplateaus which can be strongly affected by the sample resistance. As discussed above, the electron emission from the QD ground and first-excited states can be distinguished when the temperature is lowered to∼120 K. This feature is related to the PL linewidth of the QD ground-state emission in fig-ure3, which shows a relatively small linewidth of∼60 meV from 50 to 150 K. However, the linewidth increases strongly to
∼100 meV when the temperature is increased to 300 K. Since the energy spacing between the ground and first-excited states is only about 0.092 eV, the strongly increased linewidth of the QD ground state would cause the ground and first-excited states to be indistinguishable, consistent with the observation of a single electron-accumulation peak at high temperatures. This comparative study of the PL and the depth profile further confirms that the observed emission is related to the QD states. So far, we have compared our results with those obtained from capacitance spectroscopy. We now turn to the comparison with the reported data from optical absorption measurements. From intraband absorption, Pal et al [21] have reported an energy separation of 0.10 eV between the electron ground and first-excited states for a QD ground emission at 1.19 eV at 77 K, which is very close to our observed value of 0.092 eV. On the other hand, from intraband transmission studies, Adawi
et al [22] have observed an absorption peak with 0.113 eV due to the transition from the QD electron ground state to the second-excited state. From photocurrent studies, the same authors also reported transitions with 0.17 and 0.22 eV for the transitions from the QD electron ground state to wetting layer and to GaAs continuum states, respectively. Since the lowest-laying state in the wetting layer is at∼50 meV below the GaAs conduction band, we cannot exclude the possibility that our 0.16 eV emission is due to the transition from the electron ground to wetting layer, rather than directly to the GaAs conduction band. If this is true, the QD electron ground state is at about 0.21 eV below the GaAs conduction band edge. This value is more consistent with the analysis by Kim
et al [23] who claimed that the confinement energy for the QD electron ground state should be larger than 0.19 eV for a QD ground emission at 1.127 eV. Furthermore, based on an argument that the binding energy of the electron ground state is higher than that for the hole ground state, Raghavan et al
Figure 7. The depth profiling of a non-relaxed 2.4 ML InAs QD
sample. The carrier peak at 0.305 μm is attributed to the electrons tunneling from the QD excited states to the GaAs conduction band. The weak peak at 0.325 μm (indicated by an arrow) which shows frequency-dependent dispersion with E a= 60 meV is attributed to a thermal excitation from the QD ground state to the first-excited state.
[24] have reported a minimum binding energy of 0.21 eV for the QD electron ground state. These values are all larger than our observed value of 0.16 eV. Thus, there is a possibility that the observed emission processes by time-resolved capacitance spectroscopy is relative to the wetting layer, rather than the GaAs conduction band, leading to a reduction of about 50 meV in the confinement energy. Further investigation on the effect of the wetting layer is needed to make a more conclusive argument on this matter.
For comparison, figure7 shows a typical depth profile for a non-relaxed InAs/InGaAs QD sample with a 2.4 ML thick InAs layer. Detailed discussions on this sample can be found elsewhere [14]. The strong carrier peak at 0.305μm is attributed to the electrons tunneling [9–11] from the QD excited states to the GaAs conduction band. The emission time is too short to be resolved since no attenuation of this peak is seen up to 1 MHz at 10 K. The weak peak at 0.325μm (as indicated by an arrow) shows frequency-dependent dispersion whose emission energy is determined to be∼60 meV [14]. Since this energy is comparable to the PL energy spacing between the ground and first-excited peaks, the weak peak is attributed to a thermal excitation from the QD ground state to the excited state. After being thermally excited to the first-excited state, the electron subsequently tunnels to the GaAs conduction band, in a two-stage emission process previously described [9]. This shows a marked tunneling effect for the QD excited states in the non-relaxed QD sample.
3.3. Additional carrier depletion due to misfit dislocations
A comparison between figures2(b) and7 reveals that strain relaxation considerably lengthens the emission time for the QD. This effect can be explained by the suppression of tunneling due to the additional carrier depletion in the GaAs bottom layer near the QD. Figure2(b) shows an asymmetrical depth profile with additional carrier depletion in the bottom GaAs layer (0.25–0.32 μm). This depletion has a valley concentration of 1× 1016 cm−3, compared to that of 5×
Nanotechnology 18 (2007) 355401 J F Chen et al
Figure 8. The DLTS spectra at a rate window of 0.86 ms for the
non-relaxed 2 and 2.3 ML samples and the relaxed 3.3 ML sample. A trap at 0.35 eV is detected in the 3.3 ML sample for−1.5 V/−3 V, corresponding to the QD and neighboring GaAs bottom layer. The top GaAs layer is free of traps, as is evident from the inset, which shows no trapping signals for 0 V/−0.5 V and −0.5 V/−1.5 V. The continuous broad background signal at low temperatures is thought to be due to the electron emission from the QDs.
of the additional carrier depletion is about 0.1μm, which is more than three times broader than that in the front side of the QD. Since carriers are emitted to the bottom GaAs electrode, such a broad depletion layer in the back of the QD would significantly reduce the tunneling probability. As a result, the electrons in the QD ground state would have to be thermally activated to the GaAs conduction band. This is consistent with the observed emission energy of 0.160 eV, which is close to the energy spacing between the QD ground state and the GaAs conduction band, in contrast to the observed emission energy of 60 meV for activation from the QD ground state to the first-excited state in the non-relaxed sample.
In view of the TEM data, the misfit dislocations in the bottom GaAs layer can be the reason for the additional carrier depletion. Due to the long emission time, the related traps are revealed by the DLTS spectra as shown in figure8for a rate window of 0.86 ms. In contrast to there being no traps in the non-relaxed 2 and 2.3 ML samples, the relaxed 3.3 ML sample displays a trap around 275 K for the sweeping voltage of−1.5 V/−3 V, corresponding to the QD and neighboring GaAs bottom layer. As shown in the inset, there are no trapping signals in the spectra for 0 V/−0.5 V and −0.5 V/−1.5 V, and thus the top GaAs layer is free of traps. This misfit-related trap has emission energy (capture cross section) of 0.35 eV(5.5×10−17cm2). Note that the trap peak in figure8
is superimposed upon a continuous broad background signal at low temperatures. This broad signal may come from the electron emission from the QD states as observed in theC–V
profiling. This is supported by the absence of this signal in the non-relaxed samples, consistent with a very short emission time for the QD. The peak intensity of this misfit-related trap is found to increase and finally saturate with increasing filling pulse time. This saturation suggests an exponential function for its capacitance–time transience, as previously observed [17]. This is characteristic of isolated point defects, rather than threading dislocations which display a logarithmic function [25, 26]. This trap was previously observed at
Figure 9. The 20 K depth profile of the 2.8 ML InAsSb relaxed QD
sample, showing a weak carrier peak at the QD (indicated by QE) and drastic carrier depletion in the front of the QD. Without the additional carrier depletion in the back of the QD, the emission time for the QD is too short to be resolved even up to 105Hz at 20 K.
0.395 eV by Uchida et al [15] in relaxed InGaAs/GaAs quantum well structures. The DLTS spectra show a saturation of the peak intensity atC = 0.3 pF, which yields a sheet density about 2.5×109 cm−2 from NT = ND(C/C02)ε A,
where ND = 1× 1017 cm−3, C0 = 300 pF, area A =
5× 10−3 cm2 and permittivityε = 1.14 ×10−10 F m−1.
This concentration is approximately one order of magnitude less than the QD density and is two orders of magnitude less than the misfit density(∼2.4×1011cm−2)observed in the
bottom GaAs layer. This result suggests that only about 1% of the misfits are effective electron traps. A similar result was previously observed in relaxed InAsSb QDs [17]. This result is also consistent with the misfits in the QD which do not completely deplete the free electrons in the QD. In view of this carrier depletion, strain relaxation does not severely degrade the quality of the QD.
Convincing evidence for the tunneling-suppression model is provided by the previously reported relaxed InAsSb QD sample [17]. In this sample, without the InGaAs capping layer to relieve strain in top of the QD, strain relaxation is found to occur at the QD upper boundary, rather than at the QD bottom interface, and induce misfits in the QD and threading dislocations in the top GaAs layer. The GaAs bottom layer is free of misfits. This can be clearly seen in the TEM data in figure 1 of [17]. The carrier distribution reflects such a defect distribution. Figure 9 shows a weak quantum-emission QE peak in the QD at 0.27 μm and drastic carrier depletion in the front of the QD in the 20 K depth profile of this sample. The carrier distribution in the back of the QD is normal (with a valley concentration of 5 ×1016 cm−3), consistent with
there being no misfits in the bottom GaAs layer. Without the additional carrier depletion in the back of the QD, the QE peak displays no frequency-dependent dispersion even up to 105Hz at 20 K, suggesting an emission time that is too short to be resolved. The long emission time and the additional carrier depletion in the back of the QD should be correlated. Hence, we believe that the increased emission time in the relaxed InAs/InGaAs QD sample is due to the suppression of tunneling by the additional carrier depletion in the GaAs bottom layer 6
related to the misfits. Due to the suppression of tunneling for the QD excited states, the electrons in the QD ground and first-excited states are thermally activated to the GaAs conduction band, allowing for the determination of the QD electronic band structure.
4. Conclusions
Strain relaxation is shown to induce additional carrier depletion in the GaAs bottom layer which can lengthen the emission time from the QD. The TEM data show the misfits in the QD and neighboring GaAs bottom layer. Thus, the misfits in the GaAs bottom layer may cause additional carrier depletion which can lengthen the emission time by the suppression of tunneling. As a result, the electrons in the QD states are thermally activated to the GaAs conduction band. This can explain the observed emission energies of 0.160 and 0.068 eV which are comparable to the confinement energies of the QD ground and first-excited states, respectively, with respect to the GaAs conduction band. DLTS reveals a trap at 0.35 eV in the bottom GaAs layer, which is attributed to the misfits. Its intensity is about two orders of magnitude less than the misfit intensity, suggesting that most of the misfits are not active traps.
Acknowledgments
The authors would like to thank the National Science Council of the Republic of China, Taiwan, for financially supporting this research under Contract No. NSC-95-2112-M-009-010. This work is partially supported by MOE ATU program.
References
[1] Heinrichsdorff F, Mao M H, Kirstaedter N, Krost A and Bimberg D 1997 Appl. Phys. Lett.71 22
[2] Eaglesham D J and Cerullo M 1990 Phys. Rev. Lett.64 1943 [3] Leonard D, Pond K and Petroff P M 1994 Phys. Rev. B
50 11683
