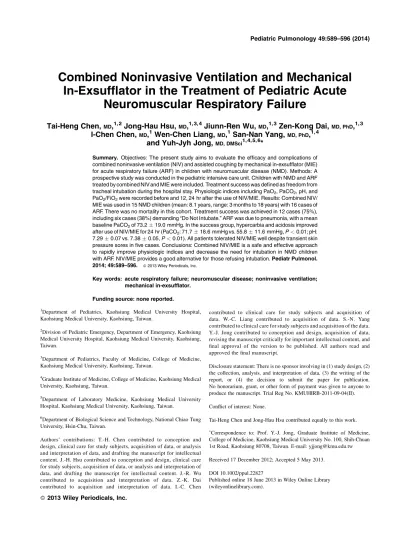

Pediatric Pulmonology 49:589–596 (2014)
Combined Noninvasive Ventilation and Mechanical
In-Exsufflator in the Treatment of Pediatric Acute
Neuromuscular Respiratory Failure
Tai-Heng Chen,MD,1,2Jong-Hau Hsu,MD,1, 3,4Jiunn-Ren Wu,MD,1,3Zen-Kong Dai, MD, PhD,1, 3 I-Chen Chen,MD,1Wen-Chen Liang, MD,1San-Nan Yang,MD, PhD,1,4
and Yuh-Jyh Jong,MD, DMSci1,4,5, 6*
Summary. Objectives: The present study aims to evaluate the efficacy and complications of combined noninvasive ventilation (NIV) and assisted coughing by mechanical in-exsufflator (MIE) for acute respiratory failure (ARF) in children with neuromuscular disease (NMD). Methods: A prospective study was conducted in the pediatric intensive care unit. Children with NMD and ARF treated by combined NIV and MIE were included. Treatment success was defined as freedom from
tracheal intubation during the hospital stay. Physiologic indices including PaO2, PaCO2, pH, and
PaO2/FiO2were recorded before and 12, 24 hr after the use of NIV/MIE. Results: Combined NIV/
MIE was used in 15 NMD children (mean: 8.1 years, range: 3 months to 18 years) with 16 cases of ARF. There was no mortality in this cohort. Treatment success was achieved in 12 cases (75%), including six cases (38%) demanding “Do Not Intubate.” ARF was due to pneumonia, with a mean
baseline PaCO2of 73.2 19.0 mmHg. In the success group, hypercarbia and acidosis improved
after use of NIV/MIE for 24 hr (PaCO2: 71.7 18.6 mmHg vs. 55.8 11.6 mmHg, P < 0.01; pH:
7.29 0.07 vs. 7.38 0.05, P < 0.01). All patients tolerated NIV/MIE well despite transient skin
pressure sores in five cases. Conclusions: Combined NIV/MIE is a safe and effective approach to rapidly improve physiologic indices and decrease the need for intubation in NMD children with ARF. NIV/MIE provides a good alternative for those refusing intubation. Pediatr Pulmonol.
2014; 49:589–596. ß 2013 Wiley Periodicals, Inc.
Key words: acute respiratory failure; neuromuscular disease; noninvasive ventilation; mechanical in-exsufflator.
Funding source: none reported. 1
Department of Pediatrics, Kaohsiung Medical University Hospital, Kaohsiung Medical University, Kaohsiung, Taiwan.
2
Division of Pediatric Emergency, Department of Emergency, Kaohsiung Medical University Hospital, Kaohsiung Medical University, Kaohsiung, Taiwan.
3
Department of Pediatrics, Faculty of Medicine, College of Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan.
4
Graduate Institute of Medicine, College of Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan.
5
Department of Laboratory Medicine, Kaohsiung Medical University Hospital, Kaohsiung Medical University, Kaohsiung, Taiwan.
6
Department of Biological Science and Technology, National Chiao Tung University, Hsin-Chu, Taiwan.
Authors’ contributions: T.-H. Chen contributed to conception and design, clinical care for study subjects, acquisition of data, or analysis and interpretation of data, and drafting the manuscript for intellectual content. J.-H. Hsu contributed to conception and design, clinical care for study subjects, acquisition of data, or analysis and interpretation of data, and drafting the manuscript for intellectual content. J.-R. Wu contributed to acquisition and interpretation of data. Z.-K. Dai contributed to acquisition and interpretation of data. I.-C. Chen
contributed to clinical care for study subjects and acquisition of data. W.-C. Liang contributed to acquisition of data. S.-N. Yang contributed to clinical care for study subjects and acquisition of the data. Y.-J. Jong contributed to conception and design, acquisition of data, revising the manuscript critically for important intellectual content, and final approval of the version to be published. All authors read and approved the final manuscript.
Disclosure statement: There is no sponsor involving in (1) study design, (2) the collection, analysis, and interpretation of data, (3) the writing of the report, or (4) the decision to submit the paper for publication. No honorarium, grant, or other form of payment was given to anyone to produce the manuscript. Trial Reg No. KMUHIRB-2011-09-04(II). Conflict of interest: None.
Tai-Heng Chen and Jong-Hau Hsu contributed equally to this work.
Correspondence to: Prof. Y.-J. Jong, Graduate Institute of Medicine,
College of Medicine, Kaohsiung Medical University No. 100, Shih-Chuan 1st Road, Kaohsiung 80708, Taiwan. E-mail: yjjong@kmu.edu.tw Received 17 December 2012; Accepted 5 May 2013.
DOI 10.1002/ppul.22827
Published online 18 June 2013 in Wiley Online Library (wileyonlinelibrary.com).
INTRODUCTION
Respiratory failure is the most common cause of death for children with chronic neuromuscular disease (NMD).1 These children are at high risk of developing fulminant or repeated chest infections, which often precipitates acute respiratory failure (ARF) requiring admission to the pediatric intensive care unit (PICU).2,3 In addition, ineffective airway clearance may further impair pulmo-nary function during infections, making neuromuscular respiratory failure the most common cause of prolonged ventilator dependency in the PICU.1,4,5 Therefore, optimal management of ARF is critical to prevent mortality and morbidity of children with NMD.
Seventy percent of pediatric NMD patients will require intubation with ARF in the PICU.2 However, such invasive approach often results in poor outcomes due to complications that can include ventilator-associated pneumonia, laryngeal edema, difficulties in extubation, and poor quality of life.6–8In addition, NMD patients or their parents often refuse intubation in the scenario of ARF.9,10 In this regard, there is emerging evidence suggesting the role of noninvasive ventilation (NIV) as a first-line approach to ARF in adult patients with NMD.11–13 However, data regarding the use of NIV as an alternative to intubation in NMD children with ARF is scarce.
In addition to NIV, recent clinical guidelines have recommended that a mechanical in-exsufflator (MIE), a device used for increasing cough flows and efficacy, be in the home care of NMD patients with impaired respiratory function.14–16 MIE effectively mobilizes and clears airway secretions, since inadequate clearance of secre-tions in NMD patients is an important cause of exacerbation of ARF even with the support of NIV.17,18 Some recent studies have indicated that, from the perspective of chronic respiratory care, the use of NIV
combined with MIE can significantly decrease the need of hospitalization and ICU admission in NMD children.19–21 However, the role of NIV combined with MIE in NMD children with ARF has not been established.
Thus, the purpose of this prospective study was to determine the feasibility and efficacy of a combined NIV/ MIE approach for NMD children with ARF.
MATERIALS AND METHODS Patients
We carried out a prospective and non-controlled study on children with NMD in a PICU of a university hospital from September 1, 2009, to July 31, 2012. The Institutional Review Board of Kaohsiung Medical University Hospital approved this study and informed consent was obtained from patients or guardians of patients.
Patients were included when they had previous diagnosis of NMD, confirmed with histopathological or/and genetic studies by an experienced pediatric neurologist (Y.-J. Jong), and when they required ventilatory support for ARF or postextubation ARF. The ARF was defined according to any of the following criteria: oxyhemoglobin saturation<90% with fractional concentration of oxygen in inspired gas (FiO2)> 0.6,
arterial blood gas (ABG) showing partial arterial oxygen (PaO2)<60 mmHg, a ratio of PaO2 to FiO2 < 300, a
partial arterial pressure of carbon dioxide (PaCO2) 50
mmHg, or clinical symptoms or signs observed by the attending intensivist leading to the decision of ventilatory support. Episodes of pneumonia were defined as1: the presence of fever or leukocytosis2; positive signs perceived by physical examination3; purulent respiratory secretions; and4new onset infiltrate or consolidation on chest X-ray (CXR). Postextubation ARF was defined as the appearance of ARF within 24 hr after extubation. The exclusion criteria for this study included1profound bulbar weakness defined as absence of cough or gag reflex, or vocal cord paralysis2; cardiopulmonary collapse3; recur-rent apnea4; un-drained pneumothorax5; multi-system failure6; a Glasgow Coma Scale score< 10; or7at-home using NIV or MIE prior to recruitment into this study.
Administration of NIV
NIV was delivered by bilevel positive airway pressure (BiPAP; Respironics, Murrysville, PA). Sedation was required for those who could not cooperate during the use of NIV. Drugs used for sedation included chloral hydrate (30–40 mg/kg q6–8h by orogastric tube or per rectal) or midazolam (0.1–0.15 mg/kg q6–8h iv bolus or 0.5– 0.8mg/kg/min iv infusion). The most optimal nasal or facial mask was chosen by a respiratory therapist and was
ABBREVIATIONS:
NIV Noninvasive ventilation
MIE Mechanical in-exsufflator
ARF Acute respiratory failure
NMD Neuromuscular disease
PICU Pediatric intensive care unit
ABG Arterial blood gas
BiPAP Bilevel positive airway pressure
IPAP Inspiratory positive airway pressure
EPAP Expiratory positive airway pressure
SB Spontaneous breathing
ST Spontaneous timed
PRISM-III Pediatric Risk of Mortality-III score
SMA Spinal muscular atrophy
DMD Duchenne muscular dystrophy
LGMD Limb-girdle muscular dystrophy
CMT Charcot–Marie–Tooth disease
MTPD Mitochondrial trifunctional protein deficiency
then gently positioned over the nasal bridge with minimal air leak. Skin damage was prevented by the application of colloid dressings (DuoDERM) on the different facial pressure points. Indication of intubation was mainly based on the attending intensivist’s clinical decision determin-ing poor tolerance and/or the progression of respiratory failure requiring endotracheal intubation (ETI).
In our PICU, the initial settings of BiPAP were1: inspiratory positive airway pressure (IPAP) 8– 10 cmH2O
2
; expiratory positive airway pressure (EPAP) 4–5 cmH2O. Subsequently, the settings of BiPAP
were rapidly adjusted within the first hour, to the point that the patient demonstrated good thoracic cage movement without paradoxical breathing. When applicable, IPAP was increased by an increment of 2 cm H2O (maximum:
25 cm H2O) to achieve an exhaled tidal volume of 5–
6 ml/kg maintaining a PaCO2 value < 55 mmHg, and
pH> 7.3 and EPAP was adjusted in a range of 4– 12 cmH2O to maintain oxyhemoglobin saturation
> 94% with a required FiO2< 0.6. All patients were
set on spontaneous breathing (SB) or spontaneous timed (ST) mode of ventilation with a programmed backup rate set at 2 breaths/min less than the estimated baseline respiratory rate.
Implementation of MIE
In our PICU, MIE (CoughAssist, Cambridge, MA) was used to facilitate the expectoration of airway secretions in patients with NMD. The MIE was used by the nurses and respiratory therapists whenever the patients’ oxyhemo-globin saturation decreased< 94%, ventilator IPAP increased, or airway secretions increased. Use of the CoughAssist machine was according to the manufac-turer’s instructions. In brief, positive inspiratory pressures were established initially at 20 cmH2O, and increased
incrementally up to 40 cmH2O, based on visual
inspec-tion of chest wall excursion and auscultainspec-tion for bilateral adequacy of air entry. Negative pressures were set at 15 cmH2O, and increased incrementally according to the
patient’s comfort and production of secretions up to 40 cmH2O. The positive-pressure breath was delivered to
the patient over 1–2 sec, while the negative exsufflation was delivered in 1–2 sec. The breaths were coordinated with the patient’s own breath rate and rhythm. Three to five breaths were delivered followed by a period of rest before continuing, for a total of three to five cycles. Manual cough augmentation such as abdominal thrust was not routinely used with MIE in our PICU due to the concern of aggravating gastroesophageal reflux, which is common in NMD and might complicate ARF.
Interfaces included a mouthpiece or a facemask. Airway suctioning was performed at the end of each cycle and as needed during each rest period. Oxyhemo-globin saturations were monitored during the initial trial
and as necessary during subsequent treatments. Supple-mental oxygen was administered through the device as necessary to maintain oxyhemoglobin saturations of 94%. Complications of NIV/MIE
Complications were recorded including CXR findings of pneumothorax or pneumomediastinum, and clinical features including gastric distension, aspiration, chest pain, or severe skin lesion on face caused by mask compression.
Data Collection and Outcome Measurement Pediatric Risk of Mortality (PRISM)-III score upon PICU admission was recorded. During the PICU stay, standard monitoring was applied in all the patients, including blood pressure, heart rate (HR), respiratory rate (RR), and transcutaneous oxyhemoglobin saturation. Results of ABG were recorded prior to and 12, 24 hr after the use of NIV/MIE.
The outcome of each ARF case was divided into two groups: success or failure. Treatment success was defined as improvement of ARF and free from ETI or tracheostomy during the PICU stay. Treatment failure was defined by the eventual requirement of ETI or persistent dependence of mechanical ventilation requiring further tracheostomy during the PICU stay.
Statistic Analysis
Quantitative continuous variables were compared between groups by using Student t-test for parametric data or non-parametric Mann–Whitney’s U-test when appropriate. Variables at different time points within the success or failure group were compared by repeated analysis of variance (ANOVA) with Tukey test for post hoc analysis. Data were presented as mean standard deviation (SD) and a P-values< 0.05 was considered significant. The statistical analysis was performed with the statistical package SPSS 15.0 for Windows (SPSS, Chicago, IL).
RESULTS
During the study period, we consecutively enrolled 15 eligible subjects (mean age: 8.1 years, range: 3 months to 18 years) with 16 cases of ARF in our PICU. The demographics and outcome of all patients are listed in Table 1. Among these patients, the diagnoses of NMD were: six spinal muscular dystrophy, two Duchenne muscular dystrophy, two congenital myopathy, one Leigh disease, one mitochondrial trifunctional protein deficien-cy (MTPD), one limb-girdle muscular dystrophy type 2I described in a previous case report,22and one Charcot– Marie–Tooth disease (CMTD) and one CMTD with demyelinating and infantile onset. Of note, five patients Combined NIV/MIE in NMD Children With ARF 591
TABLE 1— Demographic Data and Outcomes of Patients Case Age Gender T ype of NMD Cause of ARF Presentation of ARF PRISM-III DNI T ype of NIV Max. settings Duration of NIV/MIE use PICU stay (days) Outcome 1 1 16 years M DMD Pneumonia Hypercarbic, PaCO 2 : 70.7 mmHg 5 Y es BiP AP SB/ST mode 16/5 cmH 2 O 4 days 8 Success 2 1 18 years M DMD Pneumonia Hypercarbic, P aCO 2 : 102.7 mmH g 9 Y es BiP AP ST mode 22/5 cmH 2 O 5 days 8 Success 3 3 years M Congenital myopathy Pneumonia, poste xtubation ARF Hypercarbic, PaCO 2 : 68.9 mmHg 4 N o BiP AP ST mode 12/5 cmH 2 O 2 0 days 27 Success 4 3 months M SMA type 1 Pneumonia, atelectasis Hypercarbic, PaCO 2 : 62.3 mmHg 10 Y es BiP AP ST mode 14/4 cmH 2 O 4 0 days 48 Success 5 1 0 months F SMA type 1 Pneumonia, atelectasis Hypercarbic, PaCO 2 : 56.0 mmHg 4 Y es BiP AP ST mode 12/3 cmH 2 O 2 2 days 32 Success 6 1 7 years M DMD Pneumonia Hypox emic, P aO 2 : 5 0 mmHg 15 Y es BiP AP ST mode 22/5 cmH 2 O 3 2 days 40 Success 7 4 months M SMA type 1 Pneumonia Hypercarbic, PaCO 2 : 59.0 mmHg 11 Y es BiP AP ST mode 18/5 cmH 2 O 3 0 days 41 Success 8 1 7 years F LGMD 2I Pneumonia Hypercarbic, PaCO 2 : 94.0 mmHg 8 N o BiP AP SB/ST mode 20/5 cmH 2 O 8 days 15 Success 9 7 years F CMTD Pneumonia Hypercarbic, PaCO 2 : 58.0 mmHg 5 N o BiP AP ST mode 12/5 cmH 2 O 5 days 10 Success 10 7 years F SMA type 2 Pneumonia Hypercarbic, PaCO 2 : 92.0 mmHg 10 No BiP AP ST mode 14/5 cmH 2 O 7 days 12 Success 11 16 years F SMA type 2 Pneumonia Hypercarbic, PaCO 2 : 60.0 mmHg 4 N o BiP AP SB/ST mode 14/5 cmH 2 O 9 days 15 Success 12 13 years F CMTD Pneumonia Hypercarbic, PaCO 2 : 91.9 mmHg 16 No BiP AP ST mode 18/5 cmH 2 O 5 days 7 Success 13 18 years M MTPD Pneumonia Hypercarbic, PaCO 2 : 66.7 mmHg 9 N o BiP AP SB mode 12/5 cmH 2 O 1 0 hours 21 Fai lure 14 4 years M Leigh disease Pneumonia Hypercarbic, P aCO 2 : 8 5 mmHg 10 No BiP AP ST mode 20/5 cmH 2 O 1 6 hours 15 Fai lure 15 10 months F SMA type 1 Pneumonia Hypercarbic, PaCO 2 : 53.6 mmHg 3 N o BiP AP ST mode 18/5 cmH 2 O 1 8 hours 41 Fai lure 16 2 years F Congenital myopathy Pneumonia Hypercarbic, P aCO 2 : 105 mmHg 10 No BiP AP ST mode 20/5 cmH 2 O 2 6 hours 34 Fai lure NMD, neuromuscular diseases; ARF , acute respiratory failure; PRISM-III, Pediatric Risk of Mortality-III score; DNI, do not intubate; IP AP , inspir atory positi v e airway pressure; EP AP , expiratory positi ve airway pressure; DMD, Duchenne muscular dystrophy; SMA, spinal muscular atrophy; LGMD, limb-girdle muscu lar dystrophy; CMTD, Char cot–M arie–T ooth disease; MTPD, mitochondrial trifunctional protein defi cienc y; BiP AP , bile ve l positi ve airway pressure; ST , spontaneous timed; SB, spontaneous breathing; CP AP , continuous positi v e airway pressure; M, male; F , female. 1Belong to the same patient.
(six cases) had specified “Do Not Intubate” request at admission of PICU.
Among 16 ARF cases, 15 were ARF requiring immediate ventilatory support and one was postextuba-tion ARF developing 1 hr after extubapostextuba-tion. The cause of ARF was pneumonia in all episodes and two of them were complicated with atelectasis. Fifteen patients had ARF from hypercapnia and one patient from hypoxemia, with the initial mean PaCO2 of 73.2 19.0 mmHg (range:
54–105 mmHg). NIV was deployed by BiPAP in all cases. The mean duration of minimal NIV settings used in these patients was 28.1 10.3 min. The mean duration of NIV/MIE administration was 11.9 12.8 days (range: 10 hr to 40 days). The mean PICU stay was 23.4 14.1 days (range: 7–41 days). There was no mortality during this cohort study.
All patients tolerated NIV and MIE well. Sedation by chloral hydrate or midazolam was required in four patients younger than 3 years old. The initial physical indices and outcomes were comparable between patients with and without sedation (data not shown). There was no major complication such as pneumothorax or gastric distension. The most common complication was skin irritation caused by NIV interfaces, including mild erosion or irritant dermatitis of nasal bridge in five cases. All these skin lesions healed completely with supportive care during the ICU stay and did not affect the use of NIV or MIE.
Primary Outcome—Success or Failure
In this cohort, there were 12 ARF cases (75%) in success group and four cases (25%) in failure group. Baseline demographics before initiation of NIV/MIE were comparable between these two groups (Table 2).
In the success group, both hypercarbia and acidosis resolved significantly 12 hr after initiation of NIV and
MIE (Fig. 1). However, the PaO2/FiO2 ratio did not
change significantly. As shown in Figure 2, the serial changes of CXR were evident in one patient in the success group (case 5). In the failure group, the mean time from start of NIV/MIE use to intubation was 17.5 6.6 hr (range: 10–26 hr). Patients in the failure group were intubated based on the attending intensivist’s clinical impression assuming NIV failure. The reasons for intubation in these patients were: poor tolerance to the mask (case 13); repeated seizures (case 14); poor tolerance and progressive hypercapnia (PaCO2: from 53
to 72 mmHg; case 15); severe airway bleeding (case 16). At 12 hr after NIV use, three patients of this group before they were intubated had persistent hypercarbia and acidosis compared with data at baseline (pH: 7.21 0.21 vs. 7.27 0.08, P ¼ 0.67; PaCO2: 75.1 26.7 mmHg
vs. 67.2 8.0 mmHg, P ¼ 0.65). Nevertheless, all patients in the failure group (4/4) were extubated successfully during the same hospital stay with the mean duration of intubation of 22.8 8.7 days (range: 15–34 days).
To analyze factors associated with NIV failure, we compared physiologic parameters between groups and found that patients in the failure group had lower RR decrease from initial RR at 3 hr (success: 11.3 8.9 vs. failure: 5.7 7.6, P ¼ 0.02). In addition, patients in the failure group had higher RR and HR at 9 hr when compared to those in the success group (HR: 139 5.0 vs. 126.5 10.8, P ¼ 0.04; RR: 34.8 5.4 vs. 28.2 4.7, P ¼ 0.03).
All patients were discharged from the hospital without tracheostomy, with four children (five cases) free from the need of ventilatory support, eight patients requiring nocturnal use of NIV, and three infants of type I spinal muscular atrophy requiring continuous NIV/MIE support at home.
DISCUSSION
To our knowledge, this is the first study evaluating combined NIV/MIE as a first-line intervention of pediatric ARF in the ICU. Our results demonstrated that combined NIV/MIE was well tolerated and averted 75% of cases from endotracheal intubation, indicating that this is a feasible and effective approach to ARF in NMD children, even in those with no prior experience of using NIV. Another important finding of this study is that 38% of these cases were in the “Do Not Intubate” status, and all of these patients survived from this non-invasive approach, demonstrating that this is an effective strategy to prolong the survival of this subgroup of patients.
Recently, NIV and/or assisted coughing by MIE have been advocated as parts of the standard of care for chronic respiratory insufficiency for patients with NMD, such as Duchenne muscular dystrophy, spinal muscular atrophy,
TABLE 2— Baseline Characteristics Between Patients With Different Outcomes1
Success Failure P-value
Cases 12 4 — Age (y/o) 9.6 7.3 6.0 7.5 0.4 PRISM-III 8.4 4.2 8.0 3.4 0.9 HR (bpm) 141.1 16.8 138.0 15.3 0.8 RR (b/m) 30.3 8.1 33.8 11.1 0.5 MAP (mmHg) 85.1 26.8 91.7 10.2 0.6 pH 7.29 0.07 7.20 0.17 0.1 PaCO2(mmHg) 71.7 18.6 77.6 22.4 0.6 PaO2(mmHg) 98.2 43.4 112.4 40.7 0.6 PaO2/FiO2 307.9 208.1 397.9 156.2 0.4 SpO2(%) 97.0 2.5 95.3 5.3 0.4
PRISM-III, Pediatric Risk of Mortality-III score; HR, heart rate; RR, respiratory rate; MAP, mean arterial pressure.
1Values are given as the mean SD, unless otherwise indicated.
congenital muscular dystrophies and congenital myopa-thies.14–16,23A previous study evaluating this approach in adults demonstrated a similar success rate of 79.2% in averting intubation in 17 patients with NMD.24Of note, these patients were managed in the respiratory ward but not in the ICU, with milder disease severity as demonstrated by less hypercarbia than our patients (mean PaCO2: 49 mmHg vs. 72 mmHg) at the presentation of
ARF. Recently, Essouri et al.25 reported a large-scale study of 114 pediatric patients and suggested NIV as a first-line therapy for ARF in the PICU setting. However, they did not use MIE and excluded patients with excessive airway secretions.
The major rationale of using MIE during NIV application for children with NMD is that difficulty mobilizing their secretions is often present in these patients because of weakness of the bulbar, inspiratory or expiratory muscles. Even though effects of MIE have not
been previously studied in the setting of ARF, its physiologic benefits have been recently shown in both children and adults with NMD who are in the stable state.26,27 Intriguingly, a previous study showed that cough flow could be augmented by MIE in both healthy subjects and adult patients with amyotrophic lateral sclerosis.27That study also demonstrated that MIE was more effective than manual cough assistance and that the greatest improvements were in patients with the weakest coughs, suggesting its important role in the patient population of NMD. Another reason to justify the use of MIE during NIV is that, as shown in the present study, most ARF cases in patients with NMD are caused by pneumonia, with copious secretions and/or atelectasis.28 As such, a combined NIV/MIE approach can not only facilitate clearance of airway secretions at the time of chest infections but also provide positive pressure support to relieve the atelectasis. Furthermore, conventional
Fig. 1. Changes of physiologic indices over 24 hr after use of NIV/MIE in the success group.
A: PaCO2level declined significantly as early as 12 hr after treatment. B: Acidosis improved after
24 hr of treatment. C: The PaO2/FiO2ratio did not change significantly after treatment.P < 0.001.
Fig. 2. Serial changes of chest radiographs in a 10-month-old patient of type I spinal muscular atrophy with the request of “Do Not Intubate” (case 5). A: Initial chest radiograph showed severe atelectasis of the right lung caused by pneumonia. B: A significant improvement was found after the use of NIV/MIE for 24 hr with residual pneumonia and relief of atelectasis. C: A near-total resolution was shown on day 15.
management by oropharyngeal suction may be inade-quate for secretion clearance and can lead to failure of NIV treatment or even preclude the application of NIV due to the need for frequent suctioning.29,30 However, tracheal collapse may be a concern in patients younger than 6 months of age receiving MIE, even though we did not observe such complication in our patients.
Although there is high-level evidence in the literature to support the use of NIV in general pediatric patients with ARF, data regarding its use in children with NMD is scarce. To our knowledge, there is only one previous study describing the outcome of NIV use in NMD children with ARF.31 That study had only 10 patients and some had central nervous system diseases rather than true NMD. In addition, MIE was not used and the presentations of ARF in that study were mostly hypoxic rather than hypercarbic. Similar to that study, our patients with NIV failure were intubated early (within 26 hr), suggesting that early clinical improvement is critical.
Limitations of this study primarily relate to its small sample size. Nevertheless, this is the largest cohort study of ARF of NMD children in the ICU to date. Another limitation is the lack of control group in the present study. However, given there is no downside to initiate this noninvasive therapy, it is unethical to randomize these patients, especially in the DNI population. There is also a theoretical risk of aspiration, but risk benefit favors early NIV/MIE use. Additional-ly, one patient in our failure group was sedated and it is possible that this could have depressed respiratory drive and rendered NIV less effective. Lastly, the outcome may be confounded by the factor that most of intubations in this study occurred on clinical grounds rather than by objective criteria.
CONCLUSIONS
This study found that the majority of children with NMD and ARF from pneumonia were managed with NIF/ MIE and not intubated. This combination provides an effective alternative, especially for those patients that are DNI.
ACKNOWLEDGMENTS
We express our gratitude to Dr. Yi-Hsin Yang (Division of Medical Statistics, Department of Medical Research) for her invaluable suggestions.
REFERENCES
1. Panitch HB. The pathophysiology of respiratory impairment in pediatric neuromuscular diseases. Pediatrics 2009;123:S215–S218. 2. Yates K, Festa M, Gillis J, Waters K, North K. Outcome of children with neuromuscular disease admitted to paediatric intensive care. Arch Dis Child 2004;89:170–175.
3. Tzeng AC, Bach JR. Prevention of pulmonary morbidity for patients with neuromuscular disease. Chest 2000;118:1390–1396. 4. Miske LJ, Hickey EM, Kolb SM, Weiner DJ, Panitch HB. Use of the mechanical in-exsufflator in pediatric patients with neuromus-cular disease and impaired cough. Chest 2004;125:1406–1412. 5. Fraser J, Henrichsen T, Mok Q, Tasker RC. Prolonged mechanical
ventilation as a consequence of acute illness. Arch Dis Child 1998;78:253–256.
6. Stauffer JL, Olson DE, Petty TL. Complications and consequences of endotracheal intubation and tracheotomy. A prospective study of 150 critically ill adult patients. Am J Med 1981;70:65–76. 7. Konrad F, Schreiber T, Brecht-Kraus D, Georgieff M. Mucociliary
transport in ICU patients. Chest 1994;105:237–241.
8. Rivera R, Tibballs J. Complications of endotracheal intubation and mechanical ventilation in infants and children. Crit Care Med 1992;20:193–199.
9. Albert SM, Murphy PL, Del Bene ML, Rowland LP. A prospective study of preferences and actual treatment choices in ALS. Neurology 1999;53:278–283.
10. Benson RC, Hardy KA, Gildengorin G, Hsia D. International survey of physician recommendation for tracheostomy for Spinal Muscular Atrophy Type I. Pediatr Pulmonol 2012;47:606–611. 11. Vianello A, Bevilacqua M, Arcaro G, Gallan F, Serra E.
Non-invasive ventilatory approach to treatment of acute respiratory failure in neuromuscular disorders. A comparison with endotra-cheal intubation. Intensive Care Med 2000;26:384–390. 12. Vianello A, Corrado A, Arcaro G, Gallan F, Ori C, Minuzzo M,
Bevilacqua M. Mechanical insufflation-exsufflation improves outcomes for neuromuscular disease patients with respiratory tract infections. Am J Phys Med Rehabil 2005;84:83–88; discussion 89–91.
13. Rabinstein A, Wijdicks EF. BiPAP in acute respiratory failure due to myasthenic crisis may prevent intubation. Neurology 2002;59: 1647–1649.
14. Wang CH, Finkel RS, Bertini ES, Schroth M, Simonds A, Wong B, Aloysius A, Morrison L, Main M, Crawford TO, et al. Consensus statement for standard of care in spinal muscular atrophy. J Child Neurol 2007;22:1027–1049.
15. Bushby K, Finkel R, Birnkrant DJ, Case LE, Clemens PR, Cripe L, Kaul A, Kinnett K, McDonald C, Pandya S, et al. Diagnosis and management of Duchenne muscular dystrophy, part 2: imple-mentation of multidisciplinary care. Lancet Neurol 2010;9:177– 189.
16. Wang CH, Bonnemann CG, Rutkowski A, Sejersen T, Bellini J, Battista V, Florence JM, Schara U, Schuler PM, Wahbi K, et al. Consensus statement on standard of care for congenital muscular dystrophies. J Child Neurol 2010;25:1559–1581.
17. Chatwin M, Simonds AK. The addition of mechanical insufflation/ exsufflation shortens airway-clearance sessions in neuromuscular patients with chest infection. Respir Care 2009;54:1473–1479. 18. Chatwin M, Ross E, Hart N, Nickol AH, Polkey MI, Simonds AK.
Cough augmentation with mechanical insufflation/exsufflation in patients with neuromuscular weakness. Eur Respir J 2003;21: 502–508.
19. Young HK, Lowe A, Fitzgerald DA, Seton C, Waters KA, Kenny E, Hynan LS, Iannaccone ST, North KN, Ryan MM. Outcome of noninvasive ventilation in children with neuromuscular disease. Neurology 16 2007;68:198–201.
20. Simonds AK. Respiratory support for the severely handicapped child with neuromuscular disease: ethics and practicality. Semin Respir Crit Care Med 2007;28:342–354.
21. Lemoine TJ, Swoboda KJ, Bratton SL, Holubkov R, Mundorff M, Srivastava R. Spinal muscular atrophy type 1: are proactive respiratory interventions associated with longer survival? Pediatr Crit Care Med 2012;13:e161–e165.
22. Lin YC, Murakami T, Hayashi YK, Nishino I, Nonaka I, Yuo CY, Jong YJ. A novel FKRP gene mutation in a Taiwanese patient with limb-girdle muscular dystrophy 2I. Brain Dev 2007;29: 234–238.
23. Wang CH, Dowling JJ, North K, Schroth MK, Sejersen T, Shapiro F, Bellini J, Weiss H, Guillet M, Amburgey K, et al. Consensus statement on standard of care for congenital myopathies. J Child Neurol 2012;27:363–382.
24. Servera E, Sancho J, Zafra MJ, Catala A, Vergara P, Marin J. Alternatives to endotracheal intubation for patients with neuro-muscular diseases. Am J Phys Med Rehabil 2005;84:851–857. 25. Essouri S, Chevret L, Durand P, Haas V, Fauroux B, Devictor D.
Noninvasive positive pressure ventilation: five years of experience in a pediatric intensive care unit. Pediatr Crit Care Med 2006; 7:329–334.
26. Fauroux B, Guillemot N, Aubertin G, Nathan N, Labit A, Clement A, Lofaso F. Physiologic benefits of mechanical insufflation–
exsufflation in children with neuromuscular diseases. Chest 2008;133:161–168.
27. Mustfa N, Aiello M, Lyall RA, Nikoletou D, Olivieri D, Leigh PN, Davidson AC, Polkey MI, Moxham J. Cough augmentation in amyotrophic lateral sclerosis. Neurology 2003;61:1285–1287. 28. Cabrera Serrano M, Rabinstein AA. Causes and outcomes of acute
neuromuscular respiratory failure. Arch Neurol 2010;67:1089– 1094.
29. Padman R, Lawless S, Von Nessen S. Use of BiPAP by nasal mask in the treatment of respiratory insufficiency in pediatric patients: preliminary investigation. Pediatr Pulmonol 1994;17:119–123. 30. Benditt JO. Initiating noninvasive management of respiratory
insufficiency in neuromuscular disease. Pediatrics 2009;123: S236–S238.
31. Piastra M, Antonelli M, Caresta E, Chiaretti A, Polidori G, Conti G. Noninvasive ventilation in childhood acute neuromuscular respiratory failure: a pilot study. Respiration 2006;73:791–798.
