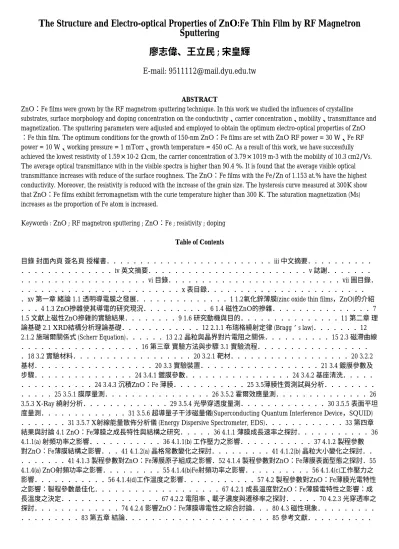

The Structure and Electro-optical Properties of ZnO:Fe Thin Film by RF Magnetron Sputtering
廖志偉、王立民 ; 宋皇輝
E-mail: [email protected]
ABSTRACT
ZnO：Fe films were grown by the RF magnetrom sputtering technique. In this work we studied the influences of crystalline
substrates, surface morphology and doping concentration on the conductivity、carrier concentration、mobility、transmittance and magnetization. The sputtering parameters were adjusted and employed to obtain the optimum electro-optical properties of ZnO
：Fe thin film. The optimum conditions for the growth of 150-nm ZnO：Fe films are set with ZnO RF power = 30 W、Fe RF power = 10 W、working pressure = 1 mTorr、growth temperature = 450 oC. As a result of this work, we have successfully achieved the lowest resistivity of 1.59×10-2 Ωcm, the carrier concentration of 3.79×1019 m-3 with the mobility of 10.3 cm2/Vs.
The average optical transmittance with in the visible spectra is higher than 90.4 %. It is found that the average visible optical transmittance increases with reduce of the surface roughness. The ZnO：Fe films with the Fe/Zn of 1.153 at.% have the highest conductivity. Moreover, the resistivity is reduced with the increase of the grain size. The hysteresis curve measured at 300K show that ZnO：Fe films exhibit ferromagnetism with the curie temperature higher than 300 K. The saturation magnetization (Ms) increases as the proportion of Fe atom is increased.
Keywords : ZnO ; RF magnetron sputtering ; ZnO：Fe ; resistivity ; doping Table of Contents
