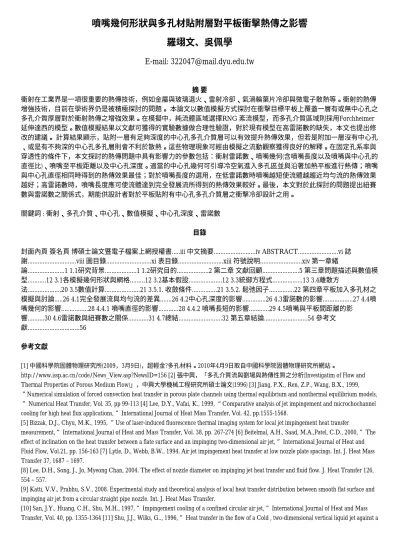

噴嘴幾何形狀與多孔材貼附層對平板衝擊熱傳之影響 羅翊文、吳佩學
E-mail: [email protected]
摘 要
衝射在工業界是一項很重要的熱傳技術，例如金屬與玻璃退火、雷射冷卻、氣渦輪葉片冷卻與微電子散熱等。衝射的熱傳 增強技術，目前在學術界仍是被積極探討的問題。 本論文以數值模擬方式探討在衝擊目標平板上覆蓋一層有或無中心孔之 多孔介質厚層對於衝射熱傳之增強效果。在模擬中，純流體區域選擇RNG 紊流模型，而多孔介質區域則採用Forchheimer 延伸達西的模型。數值模擬結果以文獻可獲得的實驗數據做合理性驗證，對於現有模型在高雷諾數的缺失，本文也提出修 改的建議。 計算結果顯示，貼附一層有足夠深度的中心孔多孔介質層可以有效提升熱傳效果，但若是附加一層沒有中心孔
、或是有不夠深的中心孔多孔層則會不利於散熱。這些物理現象可經由模擬之流動觀察獲得良好的解釋。在固定孔系率與 穿透性的條件下，本文探討的熱傳問題中具有影響力的參數包括：衝射雷諾數、噴嘴幾何(含噴嘴長度以及噴嘴與中心孔的 直徑比)、噴嘴至平板距離以及中心孔深度。適當的中心孔幾何可引導冷空氣進入多孔區並與沿著加熱平板進行熱傳；噴嘴 與中心孔直徑相同時得到的熱傳效果最佳；對於噴嘴長度的選用，在低雷諾數時噴嘴越短使流體越趨近均勻流的熱傳效果 越好；高雷諾數時，噴嘴長度應可使流體達到完全發展流所得到的熱傳效果較好。最後，本文對於此探討的問題提出紐賽 數與雷諾數之關係式，期能供設計者對於平板貼附有中心孔多孔介質層之衝擊冷卻設計之用。
關鍵詞 : 衝射、多孔介質、中心孔、數值模擬、中心孔深度、雷諾數 目錄
封面內頁 簽名頁 博碩士論文暨電子檔案上網授權書...iii 中文摘要...iv ABSTRACT...vi 誌 謝...viii 圖目錄...xi 表目錄...xiii 符號說明...xiv 第一章緒
論...1 1.1研究背景...1 1.2研究目的...2 第二章 文獻回顧...5 第三章問題描述與數值模 型...12 3.1各模擬幾何形狀與網格...12 3.2基本假設...12 3.3統御方程式...13 3.4離散方
法...20 3.5數值計算...21 3.5.1. 收斂條件...21 3.5.2. 鬆弛因子...22 第四章平板加入多孔材之 模擬與討論...26 4.1完全發展流與均勻流的差異...26 4.2中心孔深度的影響...26 4.3雷諾數的影響...27 4.4噴 嘴幾何的影響...28 4.4.1 噴嘴直徑的影響...28 4.4.2 噴嘴長短的影響...29 4.5噴嘴與平板間距離的影
響...30 4.6雷諾數與紐賽數之關係...31 4.7總結...32 第五章結論...54 參考文 獻...56
參考文獻
[1] 中國科學院固體物理研究所(2009，3月9日)，超輕金?多孔材料。2010年4月9日取自中國科學院固體物理研究所網站。
http://www.issp.ac.cn/code/News_View.asp?NewsID=156 [2] 張中興，「多孔介質流與劉場與熱傳性質之分析(Investigatim of Flow and Thermal Properties of Porous Medium Flow)」，中興大學機械工程研究所碩士論文(1996) [3] Jiang, P.X., Ren, Z.P., Wang, B.X., 1999,
”Numerical simulation of forced convection heat transfer in porous plate channels using thermal equilibrium and nonthermal equilibrium models,
” Numerical Heat Transfer, Vol. 35, pp 99-113 [4] Lee, D.Y., Vafai, K., 1999, “Comparative analysis of jet impingement and microchochannel cooling for high heat flux applications,” International Journal of Heat Mass Transfer, Vol. 42, pp.1555-1568.
[5] Bizzak, D.J., Chyu, M.K., 1995, ”Use of laser-induced fluorescence thermal imaging system for local jet impingement heat transfer
measurement,” International Journal of Heat and Mass Transfer, Vol. 38, pp. 267-274 [6] Beitelmal, A.H., Saad, M.A.,Patel, C.D., 2000,” The effect of inclination on the heat transfer between a flate surface and an impinging two-dimensional air jet,” International Journal of Heat and Fluid Flow, Vol.21, pp. 156-163 [7] Lytle, D., Webb, B.W., 1994. Air jet impingement heat transfer at low nozzle plate spacings. Int. J. Heat Mass Transfer 37, 1687–1697.
[8] Lee, D.H., Song, J., Jo, Myeong Chan, 2004. The effect of nozzle diameter on impinging jet heat transfer and fluid flow. J. Heat Transfer 126, 554–557.
[9] Katti, V.V., Prabhu, S.V., 2008. Experimental study and theoretical analysis of local heat transfer distribution between smooth flat surface and impinging air jet from a circular straight pipe nozzle. Int. J. Heat Mass Transfer.
[10] San, J.Y., Huang, C.H., Shu, M.H., 1997,” Impingement cooling of a confined circular air jet,” International Journal of Heat and Mass Transfer, Vol. 40, pp. 1355-1364 [11] Shu, J.J., Wilks, G.., 1996,” Heat transfer in the flow of a Cold , two-dimensional vertical liquid jet against a
hot,horizontal plate,” International Journal of Heat and Mass Transfer, Vol. 39,pp. 3367-3379 [12] Francis, N.D., Wepfer, W.J., 1996,” Jet impingement drying of amoist porous solid,” International Journal of Heat and MassTransfer, Vol. 39, pp. 1911-1923 [13] Jiang, P.X., Ren, Z.P., Wang, B.X., 1999,” Numerical simulationof forced convection heat transfer in porous plate channelsusing thermal equilibrium and nonthermal equilibrium models,” Numerical Heat Transfer,Vol. 35, pp. 99-113 [14] Jiang, P.X., Fan, M.H., Si, G.S., Ren, Z.P., 2001, ”Thermal-hydraufic performance of small scale micro-channeland porous media heat-exchangers,” International Journal of Heat and Mass Transfer, Vol. 44, pp.
1039-1051.
[15] Jiang, P.X., Wang, Z., Ren, Z.P., Wang, B.X., 1999,” Experimental research of fluid flow and convection heattransfer in plate channels filled with glass or metallicparticles,” Experimental Thermal and Fluid Science 20, pp.45-54 [16] 謝文政, 「具上限制板之紊流三維五噴射撞擊流場 數值模擬分析(Numerical Simulation and Analysis of Three-DimensionTurbulent Impinging Flow Field from Confined Five Jets)」, 逢甲大學機 械工程研究所碩士論文(1999)。
[17] 陳宗榮,「具橫向流之三維紊流雙噴射撞擊平板流場數值模擬與分析」中原大學機械工程研究所碩士論文(1997)。
[18] Jiang, P.X., Wang, Z., Ren, Z.P., Wang, B.X., 1999, “Experimental research of fluid flow and convection heat transfer in plate channels filled with glass or metallic particles,” Experimental Thermal and Fluid Science 20, pp.45-54.
[19] Wu, P.S., Hsieh, C.Y., Tsai, S.T., 2010, “Heat Transfer Enhancement of Jet Impingement on a Flat Plate Attached by a Porous Medium with a Center Cavity,” Defect and Diffusion Forum 297-301 (2010) pp. 427-432.
[20] Bhattacharya, A., Calmidi, V.V., Mahajan, R.L., 2002, “Thermophysiacl Properties of High Porosity Metal Foams,” International Journal of Heat and Mass Transfer, Vol. 45, pp. 1017-1031.
[21] Yang, Y.T., Hwang, M.L., 2009, “Numerical simulation of turbulent fluid flow and heat transfer characteristics in heat exchangers fitted with porous media,” International Journal of Heat and Mass Transfer, Vol. 52, pp.2956-2969.
[22] Sultan, K., DeGroot, C.T., Straatman A.G., Gallego N.C., Hangan H., 2009, “Thermal characterization of porous graphitic foam – Convection in impinging flow,” International Journal of Heat and Mass Transfer, Vol. 52, pp.4296-4301.
[23] Yakkatelli, R., Wu, Q., Fleischer, A.S., Experimental Thermal and Fluid Science (2010), article in press.
[24] Jiang, P.X., Ren, Z.P., 2001,” Numerical investigation of forced convection heat transfer in porous media using thermal non-equilibrium model,” International Journal of Heat and Fluid Flow, Vol. 22, pp. 102-110 [25] Lee, D.Y., Vafai, K., 1999,” Analytical characterization and conceptual assessment of solid and fluid temperature differentials in porous media,” International Journal of Heat and Mass Transfer, Vol.42, pp.
423-435 [26] Ould-Amer, Y., Chikh, S., Bouhadef, K., Lauriat, G., 1998,” Forced convection cooling enhancement by use of porous materials,”
Internation al Journal of Heat and Fluid Flow, Vol. 19, pp. 251-258 [27] Chen, Y.C., Chung, J.N., Wu, Y.F., 2000,” Non-Darcy mixed convection in a vertical channel filled with a porous medium,” International Journal of Heat and Mass Transfer, Vol. 43, pp.2421-2429 [28] Fu, W.S., Huang, H.C., 1997, “Thermal performances of different shape porous blocks under an impinging jet,” International Journal Heat and Mass Transfer 40 No. 10 (1997) pp. 2261-2272.
[29] Yang, J.H. and Lee, S.L., 1999,” Effect of anisotropy on transport phenomna in anisotropic porous media,” International Journal of Heat and Mass Transfer, Vol. 42, pp. 2673-2681 [30] Lee, S.L.,and Yang, J.H., 1997,” Modelling of effective thermal conductivity for a
nonhomogeneous anisotropic porous medium,” International Journal of Heat and Mass Transfer,Vol. 41, pp. 931-937 [31] Chen, C.Y., Wang, L., Kurosaki, Y., 2001,” Numerical simulations of heat transfer in porous media with effect of heterogeneities,” [32] Kim, S.J., Jang, S.P., 2002,
” Effects of Darcy number, the Prandtl number, and the Reynolds number on local thermal non-equilibrium,” International Journal of Heat and Mass Transfer, Vol. 45, pp. 3885-3896 [33] 吳佩學, 鄭豐嘉, 2004, “加裝挖中心孔多孔介質對平板衝擊熱傳增強的數值分析,” 中國機械工 程學會第二十一屆全國學術研討會論文集。
[34] 吳俊源, 2001, “多孔性電子散熱器應用於微處理器之散熱特性研究,” 中正大學機械工程研究所。
[35] 邱偉成, 2002, “電子多孔性散熱器熱傳特性之研究,” 中正大學機械工程研究所。
[36] FLUENT 6 User’s Guide Volume 1-4,Tutorial Guide Volume 1-2使用手冊
