Growth of High-Quality Ge Epitaxial Layers on Si (100)
View the table of contents for this issue, or go to the journal homepage for more 2003 Jpn. J. Appl. Phys. 42 L517
(http://iopscience.iop.org/1347-4065/42/5B/L517)
Growth of High-Quality Ge Epitaxial Layers on Si (100)
Guangli LUO, Tsung-Hsi YANG1, Edward Yi CHANG1, Chun-Yen CHANG2 and Koung-An CHAO3 Microelectronics and Information Systems Research Center, Room 414, National Chiao Tung University, Hsinchu, Taiwan 30050, R.O.C.
1Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu, Taiwan 30050, R.O.C. 2Department of Electronics Engineering, National Chiao Tung University, Hsinchu, Taiwan 30050, R.O.C.
3Department of Physics, Lund University, S-22362 Lund, Sweden
(Received January 31, 2003; accepted for publication April 3, 2003)
A method of growing high-quality epitaxial Ge layers on a Si(100) substrate is reported. In this method, a 0.8mm Si0:1Ge0:9 layer was first grown. Due to the large lattice mismatch between this layer and the Si substrate, many dislocations form near the interface and in the lower part of the Si0:1Ge0:9 layer. A 0.8mm Si0:05Ge0:95 layer and a 1.0mm top Ge layer were subsequently grown on the Si0:1Ge0:9layer. The formed interfaces of Si0:05Ge0:95/Si0:1Ge0:9and Ge/Si0:05Ge0:95can bend and terminate the upward-propagated dislocations very effectively. The in situ annealing process was also performed for each individual layer. Experimental results show that the dislocation density in the top Ge layer can be greatly reduced, and the surface is very smooth, while the total thickness of the structure is only 2.6mm. [DOI: 10.1143/JJAP.42.L517]
KEYWORDS: Ge, SiGe, UHV/CVD, dislocation, heterostructure, TEM
Heterostructures of SiGe and Ge epitaxial layers on Si substrates have attracted considerable attention due to their potential device applications and compatibility with Si-based technology. In particular, strain-relaxed SiGe and Ge layers provide a virtual substrate for the growth of high-electron-mobility structures1,2)and for the integration of III-V devices on Si.3)In addition, the integration of Ge with Si is of much importance for the application of Ge photo-detectors.4) The major problems of these relaxed layers are the high density of threading dislocations and the high surface roughness arising from the 4.2% lattice mismatch between Ge and Si. Various growth techniques and treatments have been developed to solve these problems. It has been reported that the compositionally graded buffer (CGB) layers,5) low-temperature Si buffer layers,6) compli-ant silicon-on-insulator (SOI) substrate,7) two-step proce-dure,8) and selective area growth combined with thermal cycle annealing9) can be used to grow high-quality strain-relaxed SiGe and Ge layers. Among them, the CGB layers are the most practically and widely used ones today. However, the CGB layers still have two major challenges. First, these CGB layers often suffer from a thickness of approximately 10 mm with a Ge composition ranging from zero to 1.0, which makes the integration of devices on the Si-based circuits difficult. Second, the CGB layers often exhibit a cross-hatch pattern, which makes the surfaces very rough.10)
In this letter, we report an alternative approach to obtaining a high-quality Ge layer. The total thickness of all epitaxial layers is only 2.6 mm. The threading dislocation density in the top Ge layer can be reduced to approximately 3 106cm 2. The Ge surface roughness is only 32 A. The procedure mainly involves growing three epitaxial layers (see Fig. 1). The first layer is the Si0:1Ge0:9layer, the second
is the Si0:05Ge0:95layer, and the third is the Ge layer. After
the growth of each individual layer, in situ 750C annealing
for 15 min was performed. Due to the large lattice mismatch at the interface between Si0:1Ge0:9and Si layers, many close
small islands are formed during growth at low temperatures. As growth proceeded, these islands quickly coalesced into a continuous film.11) At the same time, many dislocations
generated and interacted with each other to form closed nonpropagating loops and networks near the interface. A small portion of the dislocations that did not have the chance to pair up continued to propagate upward. A similar technique has been widely used in growing highly mis-matched heterostructures, for example, GaN on Sapphire.12) Due to the proper lattice mismatch strains at the upper interfaces of Si0:05Ge0:95/Si0:1Ge0:9 and Ge/Si0:05Ge0:95, the
upward-propagated dislocations can be bent sideward and terminated effectively. Details of the behavior of disloca-tions at the mismatched interfaces can be seen in refs. 13 and 14. Additionally, the thermal annealing process, which was performed after growing each individual layer, can further reduce dislocation density in the epitaxial layers. The mechanism of threading dislocation reduction employed in this work is shown schematically in Fig. 1.
Growth of SiGe and Ge layers was carried out using an ultra-high vacuum chemical vapor deposition (UHV/CVD) system with a base pressure of less than 2 10 8Torr.15) First, a 4-inch Si(100) substrate wafer was cleaned by 10% HF dipping and high-temperature baking at 800C in the growth chamber for 5 min. Then, a 0.8 mm Si0:1Ge0:9, a
0.8 mm Si0:05Ge0:95, and a 1.0 mm Ge layer were grown at
400C in sequence. Between successive layers, growth was
interrupted for an in situ 15 min 750C annealing.
Transmis-sion electron microscopy (TEM) was used to observe the thickness of the epitaxial layers and the dislocation distribution, and to estimate the threading dislocation density. The Ge surface morphology was analyzed by Nanoscope III atomic force microscopy (AFM) in the
Si substrate
Si
0.1Ge
0.9Si
0.05Ge
0.95Ge
Dislocations
In situ
annealing

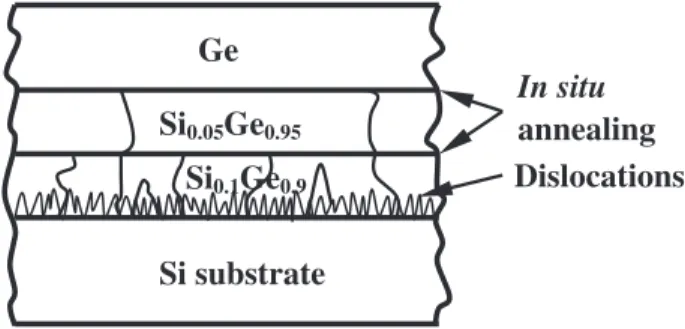

Fig. 1. Mechanism of reducing threading dislocations.
E-mail address: [email protected] Jpn. J. Appl. Phys. Vol. 42 (2003) pp.L 517–L 519 Part 2, No. 5B, 15 May 2003
#2003 The Japan Society of Applied Physics
contact mode.
Figure 2 shows the cross-sectional TEM image of the sample. There are a large number of dislocations located near the Si0:1Ge0:9/Si interface and at the lower part of the
Si0:1Ge0:9 layer. The upward propagated dislocations are
bent sideward and terminated very effectively by the Si0:05Ge0:95/Si0:1Ge0:9and Ge/Si0:05Ge0:95interfaces. Almost
no threading dislocation can propagate into the top Ge layer. The image shows that the total thickness of the three epitaxial layers is only approximately 2.6 mm, which is much smaller than that of CGB layers reported earlier. In this study, the Ge composition variation at the two strained interfaces is set at 0.05. We found that if the Ge composition variation is larger than 0.05, new dislocations will generate from the interfaces due to the relatively large lattice mismatch. On the contrary, if the Ge composition variation is less than 0.05, the mismatch strain formed at the interfaces is too small to terminate the dislocations effectively. The thickness of each SiGe layer in the sample may not be optimum. Further experiments are required to investigate the effects of changing the thickness.
A plan-view TEM image of the sample surface is shown in Fig. 3. There is no dislocation in this image. By analyzing several plan-view TEM images, the threading dislocation density is estimated to be about 3 106cm 2.
The surface roughness was measured by AFM (see Fig. 4). No cross-hatch pattern was observed. The root mean square (RMS) of the surface is only 32 A, which is also much smaller than that of the CGB layers reported earlier. This smooth surface is useful for fabrication of devices and growth of III-V materials.
In summary, we have designed a method of growing high-quality Ge epitaxial layers on a Si substrate. The method mainly involves: (1) growth of three layers consisting of a 0.8 mm Si0:1Ge0:9 layer, a 0.8 mm Si0:05Ge0:95 layer, and a
1.0 mm top Ge layer, and (2) in situ 750C annealing for
15 min performed on each individual layer. By this proce-dure, many dislocations were formed at the Si0:1Ge0:9/Si
interface and at the lower part of the Si0:1Ge0:9 layer.
Moreover, the upward propagated dislocations can be bent and terminated effectively by the interfaces of Si0:05Ge0:95/
Si0:1Ge0:9 and Ge/Si0:05Ge0:95. The top Ge layer exhibits a
low threading dislocation density and a smooth surface, while the total thickness of the epitaxial structure is relatively small. It is shown that this method is very practical for growing of high-quality Ge epitaxial layers on Si substrates.
The authors would like to thank Mr. S. L. Hsu of the National Nano Device Laboratories, Taiwan, R.O.C for the TEM sample preparation and measurements.
1) K. Ismail, F. K. LeGoues, K. L. Saenger, M. Arafa, J. O. Chu, P. M. Mooney and B. S. Meyerson: Phys. Rev. Lett. 73 (1994) 3447. 2) M. L. Lee, C. W. Leitz, Z. Cheng, A. J. Pitera, T. Langdo, M. T.
Currie, G. Taraschi and E. A. Fitzgerald: Appl. Phys. Lett. 79 (2001) 3344.
3) J. A. Carlin, S. A. Ringel, E. A. Fitzgerald, M. Bulsara and B. M. Keyes: Appl. Phys. Lett. 76 (2000) 1884.
4) L. Colace, G. Masini, F. Galluzzi, G. Assanto, G. Capellini, L. Di Gaspare, E. Palange and F. Evangelisti: Appl. Phys. Lett. 72 (1998) 3175.
5) S. B. Samavedam and E. A. Fitzgerald: J. Appl. Phys. 81 (1997) 3108. 6) C. S. Peng, H. Chen, Z. Y. Zhao, J. H. Li, D. Y. Dai, Q. Huang, J. M. Zhou, Y. H. Zhang, C. H. Tung, T. T. Sheng and J. Wang: J. Cryst. Growth 201 (1999) 530.
7) Y. H. Luo, J. L. Liu, G. Jin, J. Wan, K. L. Wang, C. D. Moore, M. S. Goorsky, C. Chih and K. N. Tu: Appl. Phys. Lett. 78 (2001) 1219. 8) A. Sakai, K. Sugimoto, T. Yamamoto, M. Okada, H. Ikeda, Y. Yasuda
and S. Zaima: Appl. Phys. Lett. 79 (2001) 3398.
9) H. C. Luan, D. R. Lim, K. K. Lee, K. M. Chen, J. G. Sandland, K. Wada and L. C. Kimerling: Appl. Phys. Lett. 75 (1999) 2909. 10) S. Yu. Shiryaev, F. Jenson and J. W. Peterson: Appl. Phys. Lett. 64 Fig. 2. Cross-sectional TEM image of the epitaxial structure.
Fig. 3. Plan-view TEM image of the top Ge layer.
Fig. 4. AFM image of the surface of the top Ge layer.
(1994) 3305.
11) P. Sheldon, B. G. Yacobi, K. M. Jones and D. J. Dunlavy: J. Appl. Phys. 58 (1985) 4186.
12) H. Amano, N. Sawaki, I. Akasaki and Y. Toyoda: Appl. Phys. Lett. 48 (1986) 353.
13) H. Beneking: Crystal Properties & Preparation 31 (1991) 21. 14) G. R. Booker, J. M. Titchmarsh, J. Fletcher, D. B. Darby, M. Hockly
and M. Al-Jassim: J. Cryst. Growth 45 (1978) 407.
15) W. C. Tsai, C. Y. Chang, T. G. Jung, T. S. Liou, G. W. Huang, T. C. Chang, L. P. Chen and H. C. Lin: Appl. Phys. Lett. 67 (1995) 1092.
