High-performance SrTiO3 MIM capacitors for analog applications

2312 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 9, SEPTEMBER 2006

High-Performance SrTiO

₃

MIM Capacitors

for Analog Applications

K. C. Chiang, Ching-Chien Huang, G. L. Chen, Wen Jauh Chen, H. L. Kao, Yung-Hsien Wu,

Albert Chin, Senior Member, IEEE, and Sean P. McAlister, Senior Member, IEEE

Abstract—TaN/SrTiO

/TaN capacitors with a capacitance

density of 28–35 fF/µm

_{have been developed by using a}

high-κ (κ = 147

−169) SrTiO

dielectric containing

nanometer-sized microcrystals (3–10 nm). A small capacitance effective

thick-ness was achieved by reducing the interfacial TaON using N

treatment on the lower TaN electrode during post-deposition

annealing. The small (92 ppm/V

) voltage coefficient of the

capac-itance and the 3

× 10

A/cm

_{leakage current at 2 V exceed the}

International Technology Roadmap for Semiconductors’

require-ments for analog capacitors at year 2018.

Index Terms—Capacitor, International Technology Roadmap

for

Semiconductors

(ITRS),

metal–insulator–metal

(MIM),

SrTiO

(STO).

I. I

A

CCORDING to the International Technology Roadmap

for Semiconductors (ITRS) [1], the capacitance density of

future metal–insulator–metal (MIM) capacitors has to increase

to help reduce chip sizes and the cost of ICs. Besides the high

capacitance density (ε

κ/t

) and the limited thermal budget

necessary for back-end integration, a low leakage current and a

small voltage dependence of the capacitance (∆C/C) are also

necessary for analog functions. To meet these requirements,

high dielectric constant (κ) materials [2]–[19] provide the

only solution, since decreasing the dielectric thickness (t

)

to increase the capacitance density degrades both the leakage

current and the ∆C/C performance. Therefore, the high-κ

dielectrics used in MIM capacitors have evolved from SiON

(κ

∼ 4 − 7) [3]–[5], Al

O

(κ = 10) [13], HfO

(κ

∼ 22)

[7]–[11], Ta

O

(κ

∼ 25) [12], [15] to Nb

O

(κ

∼ 40) [16]

or TaTiO (κ

∼ 45) [17]–[19].

Manuscript received March 8, 2006; revised June 5, 2006. This work was supported in part by the National Science Council of Taiwan, R.O.C under Grant 94-2215-E-009-062. The review of this paper was arranged by Editor V. R. Rao.

K. C. Chiang, C.-C. Huang, G. L. Chen, and A. Chin are with the Nanometer Center, Department of Electronics Engineering, National Chiao-Tung Univer-sity, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).

W. J. Chen is with the Graduate Institute of Materials Engineering, National Pingtung University of Science and Technology, Pingtung 91201, Taiwan, R.O.C.

H. L. Kao is with the Department of Electronic Engineering, Chang Gung University, Tao-Yuan 333, Taiwan, R.O.C.

Y.-H. Wu is with the Department of Engineering and System Science, National Tsing-Hua University, Hsinchu 30013, Taiwan, R.O.C.

S. P. McAlister is with the National Research Council of Canada, Ottawa, ON K1A 0R6, Canada.

Digital Object Identifier 10.1109/TED.2006.881013

SrTiO

(STO) is a potential candidate to increase the κ value

beyond 45. It has the well-known perovskite-type structure

and has a para-electric phase above 105K and a high κ value

of

∼ 300 at room temperature. It is an attractive candidate

for DRAM [20]–[24] due to the high charge storage capacity

and para-electricity (no fatigue or aging problems). To achieve

the high κ value, the STO requires heat treatment at 450

C–

500

C under an oxygen ambient for crystallization [20]–[23].

Therefore, it also requires a Pt or RuO

lower electrode [21]

to withstand the high temperature oxidation, but the high

cost and availability of noble metals pose concerns for mass

production.

To address this issue, we have fabricated STO MIM

capac-itors on a conventional TaN electrode, where a NH

plasma

treatment on the lower TaN has been used to improve the

elec-trode stability and capacitance density degradation by forming

interfacial TaON during the postdeposition anneal (PDA). We

obtained a 28-fF/µm

_{capacitance density, a small quadratic}

voltage coefficient of capacitance (α) of 92 ppm/V

_{, and low}

3

× 10

A/cm

leakage current at 2 V. This performance

meets the specifications for analog capacitors as set out by the

ITRS for the year 2018.

II. E

P

The MIM capacitors were fabricated on a 4-µm SiO

that had

been deposited on a Si wafer. The lower capacitor electrodes

were formed by depositing 0.05-µm TaN on a 1-µm Ta layer,

where the thick Ta was chosen to reduce the parasitic resistance

of the electrode and the TaN served as a barrier layer for the

STO. After patterning the lower electrode, the TaN was treated

by NH

plasma nitridation at 100 W to improve the lower

in-terface. The 43- and 55-nm STO (Sr/Ti = 1.1) dielectric layers

were then deposited using RF magnetron sputtering. This was

done using a ceramic STO target in a 4:1 Ar/O

gas mixture

at a total pressure of 10 mtorr. This was followed by 400

C–

450

C furnace annealing for 30 min to

∼ 1 h under an

oxygen ambient—for crystallization and quality improvement.

Finally, TaN/Al was deposited and patterned to form the top

capacitor electrode. Cross-sectional transmission electron

mi-croscopy (TEM) and secondary ion mass spectroscopy (SIMS)

were used to study the metal interface and dielectric

prop-erties. The fabricated MIM capacitors were characterized by

J –V and capacitance–voltage (C–V ) measurements using an

HP4156C curve tracer and HP4284A precision LCR meter,

respectively.

CHIANG et al.: HIGH-PERFORMANCE SrTiO3MIM CAPACITORS FOR ANALOG APPLICATIONS 2313

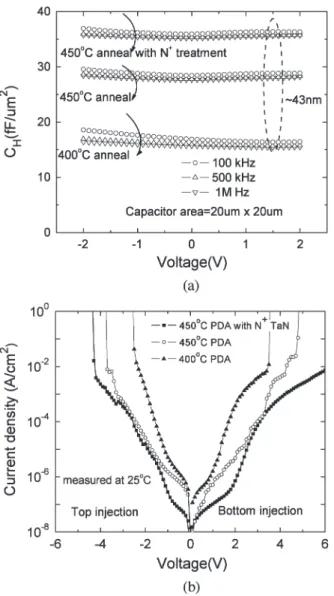

Fig. 1. (a) C–V and (b) J –V characteristics of TaN/STO/TaN MIM capaci-tors processed under various conditions. The 400◦C PDA yields a capacitance density of 17 fF/µm2_{, which increases to 28 fF/µm}2_{for a 450}◦_{C PDA and is}

better with the N+_{treatment (35 fF/µm}2_).

III. R

D

A. Electrical

J –V and C–V Characteristics

Fig. 1(a) and (b) shows the C–V and J –V characteristics of

TaN/STO/TaN capacitors, respectively, which were processed

differently. The capacitance density increased from 17 to

28 fF/µm

_{with increasing O}

2

PDA temperature and the use of

nitrogen plasma (N

_{) treatment on the TaN. At the same time,}

better frequency dispersion, lower leakage current, and higher

breakdown voltage (BV) of the MIM devices were obtained.

Application of the N

treatment on the lower TaN improved

the capacitor density from 28 to 35 fF/µm

_{and decreased the}

leakage current by nearly an order of magnitude at < 2 V.

Examination of the device performance at 125

C [Fig. 2(a)]

shows that N

treatment still improves the leakage current at

positive bias. The leakage current and the capacitance density

under various process conditions are summarized in Fig. 2(b).

The higher O

PDA temperature and N

treatment

gener-ally improve the leakage current and capacitance density of

TaN/STO/TaN capacitors.

Fig. 2. (a) J –V characteristics for the devices in Fig. 1 measured at 125◦C. (b) Comparison of the C–V and J –V characteristics of TaN/STO/TaN MIM capacitors.

Fig. 3. J –V and C–V (insert) characteristics of an STO MIM capacitor using

optimum process conditions.

To address the ITRS requirements for low leakage current

for analog capacitors (at year 2018), we also fabricated

high-performance MIM capacitors of other thicknesses. This was

done in an attempt to achieve the ITRS goals of 10 fF/µm

density, J/(C

· V ) < 7 fA/(pF · V), and α < 100 ppm/V

[1].

Fig. 3 shows the J –V characteristics of a 28-fF/µm

_density

2314 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 9, SEPTEMBER 2006

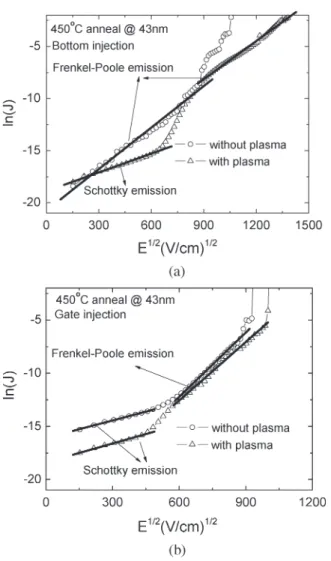

Fig. 4. Plot of ln(J ) versus E1/2_{under electron injection from the (a) bottom}

and (b) top electrode.

capacitor (inserted figure) with a 55-nm thickness fabricated

under the optimal conditions of a 450

C PDA and N

-treated

TaN. A low leakage current of 3

× 10

A/cm

at 2 V was

measured, which gives a J/(C

· V ) of 5.4 fA/(pF · V). This

meets the ITRS leakage current requirement at 2018 along with

2.8 times better capacitance density. The leakage current under

reverse bias (top electron injection) is markedly higher than

that under positive bias (injection from the lower electrode).

This may be due to the surface roughness originating from

the crystallized STO. However, crystallization is needed for the

STO to display a high κ value.

B. Current Conduction Mechanism

To investigate the large leakage current difference for

dif-ferent voltage polarities, we have plotted ln(J ) versus E

in

Fig. 4(a) and (b) for electrons injected from the bottom and

top electrodes, respectively. A linear ln(J )

−E

relation is

shown, although a strong process dependence and a different

slope are observed. The different slopes in the ln(J )

−E

plot

suggest different current conduction mechanisms. It is known

that both Schottky emission (SE) and Frenkel–Poole (FP)

Fig. 5. SIMS profile of STO/TaN with or without N+ _{treatment on the}

lower TaN.

conduction can give such a linear ln(J )

−E

_{relation with}

different slopes (γ) as indicated by [22]

J

∝ exp

γE

_{− V}

kT



(1)

γ =

e

ηπε

K



(2)

where k is Boltzmann’s constant, T is the temperature in kelvin,

e is the electron charge, ε

is the permittivity in vacuum, K

is the high-frequency dielectric constant (= n

_{, where n is}

the refractive index), and η is a constant with its value equal

to 1 or 4 for FP or SE, respectively. The different slopes

γ for the SE and FP cases arise from the different energy

barriers V

, corresponding to the work function of the

metal-electrode/dielectric in the SE case or the trap energy level in

the dielectric for the FP case. The fits to the experimental data

give slopes of 1.58

× 10

or 3.16

× 10

eV (m/V)

for

the SE or FP mechanisms, respectively, by using n = 2.4 for

STO [22], [26] in the above equations.

Following the good agreement between measured and

cal-culated data [using (1)], we investigated the dependence of

leakage current on process conditions and voltage polarity.

For electrons injected from the top TaN electrode, the current

conduction mechanism changes from SE at low electric fields

to FP at higher fields. The FP-dominated high-field conduction

arises because the trapped electrons can gain energy and be

emitted from trapped states and contribute to the leakage

cur-rent. The smaller SE current for the device with lower electrode

N

treatment is related to the smoother STO/TaN surface, as

determined by atomic force microscopy (AFM), where the STO

rms roughness improved from 11.2 to 5.9 nm. For the lower

electrode injection case, the current conduction mechanism

depends on whether the TaN electrode had the N

treatment.

For the N

-treated case, the current conduction mechanism is

the same as for top electrode injection, i.e., SE at low field,

which changes to FP at high field. However, for the lower

TaN electrode without N

_{treatment, the FP mechanism applies}

CHIANG et al.: HIGH-PERFORMANCE SrTiO3MIM CAPACITORS FOR ANALOG APPLICATIONS 2315

at both low and high fields. These results indicate a higher

trap density or deeper trap energies in STO or the STO/TaN

interfacial layer when the lower TaN electrode does not have

the N

treatment.

C. Material Characterization

We measured the SIMS depth profile of the devices to study

the origin of the improved leakage current for the N

-treated

case. As shown in Fig. 5, even under the existing background

level of SIMS system, a higher oxygen concentration can be

observed in the lower TaN layer without N

treatment. The

interfacial TaON was formed during STO oxidation annealing

but degraded the capacitance effective thickness (CET),

capac-itance density, and overall κ value. In sharp contrast, the device

with N

_{treatment on the lower TaN shows less inter-diffusion}

and a better interface. In addition, less nitrogen was found in the

STO for the treated sample. It is important to note that such an

interfacial layer is also responsible to the higher leakage current

at low field, as discussed above, and may be due to the higher

trap density from the oxygen deficiency as shown by SIMS.

This would lead to trap-assisted FP conduction.

The fabricated STO/TaN was also examined by X-ray

dif-fraction (XRD) and TEM. As shown in the XRD spectra of

Fig. 6(a), the crystalline phase of STO is dependent on the

PDA temperature and time. STO crystallization starts after

450

C PDA, and the degree of crystallization (XRD intensity)

increases with increasing PDA time. Because the κ value of

perovskite-type STO is known to increase with increasing

de-gree of crystallization, this result explains the larger capacitance

density in Fig. 1(a) at higher PDA temperature. The crystallized

STO is confirmed by the cross-sectional TEM of Fig. 6(b) and

its enlargement in Fig. 6(c). At 43-nm STO thickness, a high κ

value of 169 and improved lower STO/TaN interface, compared

with previous work [17], were found for the 35-fF/µm

_density

device (0.99 nm CET). The microcrystals, consistent with the

XRD measurements, had a grain size of 3–10 nm as indicated

in the TEM image. Such micrograined STO is essential in

producing thin consistent STO layers for devices [25].

D.

∆C/C, α, and Temperature Coefficient of the

Capacitance (TCC)

α is an important parameter of MIM capacitors for analog

ap-plications. The undesirable voltage dependence can be obtained

by fitting the measured C–V characteristics with a

second-order polynomial equation

∆C(V ) = C

(αV

+ βV )

(3)

where C

is the capacitance at 0 V, and α and β represent

the quadratic and linear voltage coefficients of capacitance,

respectively. Since the effect of the linear β term can be

com-pensated by circuit design using a differential method [27], the

α term is the main factor in the voltage dependence. Fig. 7(a)

and (b) shows the ∆C/C–V dependence on N

_treatment

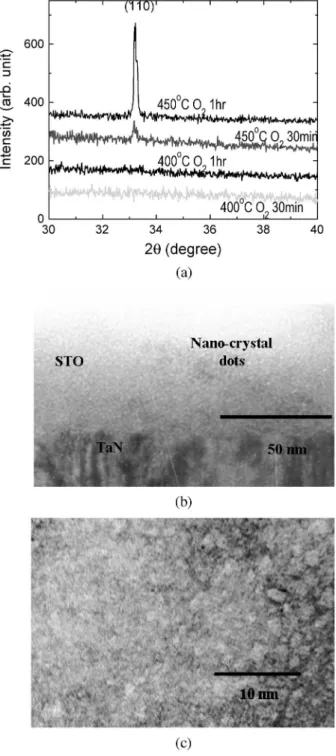

Fig. 6. (a) XRD spectra of STO after a 400◦C–450◦C O2 PDA.

Crystal-lization of STO was found at 450◦C O2PDA. (b) Cross-sectional TEM of

STO/N+_{-treated TaN with (c) an enlarged STO image.}

and capacitance density, respectively. Good fits to (3) were

obtained in all the cases and yielded α. The N

treatment can

dramatically reduce α from 1978 to 542 ppm/V

at 1 MHz. This

significantly better α is consistent with the improved leakage

current and interface properties shown above. An even better α

was measured as the STO thickness was increased, although

a trade-off of the capacitance density is needed. Under the

best conditions—450

C PDA and N

-treated lower TaN—a

small α of 92 ppm/V

was obtained in a 28-fF/µm

_capacitor.

This meets the ITRS specifications for year 2018 with nearly

2316 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 9, SEPTEMBER 2006

Fig. 7. ∆C/C–V characteristics for STO MIM capacitors and the depen-dence on (a) plasma nitridation on the lower TaN and (b) different capacitance densities of 28–49 fF/µm2_{. (c) Frequency dispersion of the 28-fF/µm}2_density

capacitor.

three times better capacitance density. The frequency dispersion

of the capacitance can have a significant impact in precision

analog circuit applications [28]. As shown in Fig. 7(c),

sig-nificantly better frequency dispersion of the capacitance was

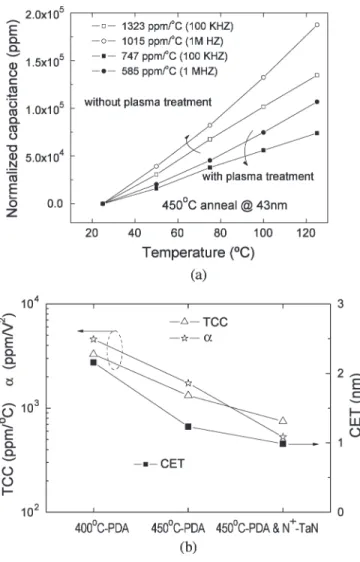

Fig. 8. (a) Temperature-dependent normalized capacitance for MIM capaci-tors with or without plasma nitridation of the lower TaN. (b) α, TCC, and CET as a function of various treated MIM capacitors.

measured for positive bias than negative bias. This is consistent

with the lower leakage current in the lower electrode injection

case and may be due to the better STO/TaN interface, as

discussed above.

Since modern ICs usually operate at elevated temperature,

TCC is important. Fig. 8(a) shows the temperature dependence

of the normalized capacitance for STO MIM capacitors with

and without plasma treatment. TCC increases with increasing

temperature but decreases with increasing frequency [7]. It is

also strongly dependent on processing conditions. As

summa-rized in Fig. 8(b), higher PDA temperatures and N

treat-ment improved the TCC characteristics. This is similar to the

α improvement, which suggests that the primary mechanism

determining the TCC is also trap related.

E. Performance Comparison

Fig. 9 shows the dependence of α as a function of CET or

the inverse capacitance density (1/C). An exponential decrease

of α with increasing CET or 1/C was observed for the Ta

O

[12], HfO

[10], Tb-doped HfO

[8], TiTaO [18], and STO

MIM capacitors. This is due to the trap-related leakage current

CHIANG et al.: HIGH-PERFORMANCE SrTiO3MIM CAPACITORS FOR ANALOG APPLICATIONS 2317

Fig. 9. ∆C/C_{−1/C plot of TaN/STO/TaN and various high-κ MIM} capac-itors. The exponential decrease with increasing 1/C is important for designing capacitors for different applications.

TABLE I

COMPARISON OFVARIOUSHIGH-κ CAPACITORS. TaN/STO/TaN CAPACITORSHOWS THEBESTPERFORMANCE, EXCEEDING

THEREQUIREMENTS OF THEITRSFOR2018

that also has an exponential dependence on CET [7]. For the

same CET or capacitance density value, the STO device has

the lowest α. This is due to the high κ value of 147–169,

which exceeds the κ

∼ 22−45 values for HfO

, Ta

O

, and

TiTaO. The α

−1/C dependence is important in choosing the

required C density and also in meeting the analog specifications

of a low α.

The important device parameters for the analog capacitors

are summarized in Table I. Among the various high-κ

capaci-tors, the TaN/STO/TaN capacitor shows the best performance,

meeting the ITRS requirements for 2018 and with 2.8 times

better capacitance density.

IV. C

Using micro-crystallized high-κ SrTiO

and a N

treatment

on the lower TaN, TaN/STO/TaN capacitors show good device

integrity along with 28-fF/µm

capacitance density, an α of

92 ppm/V

, and leakage current of 3

× 10

A/cm

at 2 V.

These data exceed the ITRS specifications for analog capacitors

for 2018 and have the advantage of simple dielectric processing

without requiring noble metal electrodes.

A

K. C. Chiang, C.-C. Huang, G. L. Chen, H. L. Kao, and

A. Chin would like to thank Prof. R. N. Kwo and M. H. Hong

of the National Tsing-Hua University.

R

[1] International Technology Roadmap for Semiconductors (ITRS), 2005. [Online]. Available: www.itrs.net

[2] C.-M. Hung, Y.-C. Ho, I.-C. Wu, and K. O, “High-Q capacitors implemented in a CMOS process for low-power wireless applications,” in Proc. IEEE MTT-S Int. Microw. Symp. Dig., 1998, pp. 505–511. [3] J. A. Babcock, S. G. Balster, A. Pinto, C. Dirnecker, P. Steinmann,

R. Jumpertz, and B. El-Kareh, “Analog characteristics of metal– insulator–metal capacitors using PECVD nitride dielectrics,” IEEE

Electron Device Lett., vol. 22, no. 5, pp. 230–232, May 2001.

[4] C. H. Ng, K. W. Chew, and S. F. Chu, “Characterization and compari-son of PECVD silicon nitride and silicon oxynitride dielectric for MIM capacitors,” IEEE Electron Device Lett., vol. 24, no. 8, pp. 506–508, Aug. 2003.

[5] L. Y. Tu, H. L. Lin, L. L. Chao, D. Wu, C. S. Tsai, C. Wang, C. F. Huang, C. H. Lin, and J. Sun, “Characterization and comparison of high-κ metal–insulator–metal (MIM) capacitors in 0.13 µm Cu BEOL for mixed-mode and RF applications,” in VLSI Symp. Tech. Dig., 2003, pp. 79–80.

[6] Z. Chen, L. Guo, M. Yu, and Y. Zhang, “A study of MIMIM on-chip capacitor using Cu/SiO2 interconnect technology,” IEEE Microw.

Wireless Compon. Lett., vol. 12, no. 7, pp. 246–248, Jul. 2002.

[7] C. Zhu, H. Hu, X. Yu, S. J. Kim, A. Chin, M. F. Li, B. J. Cho, and D. L. Kwong, “Voltage and temperature dependence of capacitance of high-k HfO2MIM capacitors: A unified understanding and prediction,”

in IEDM Tech. Dig., 2003, pp. 879–882.

[8] S. J. Kim, B. J. Cho, M.-F. Li, C. Zhu, A. Chin, and D. L. Kwong, “HfO2 and lanthanide-doped HfO2 MIM capacitors for RF/mixed IC

applications,” in VLSI Symp. Tech. Dig., 2003, pp. 77–78.

[9] S. J. Kim, B. J. Cho, S. J. Ding, M.-F. Li, M. B. Yu, C. Zhu, A. Chin, and D. L. Kwong, “Engineering of voltage nonlinearity in high-κ MIM capacitor for analog/mixed-signal ICs,” in VLSI Symp. Tech. Dig., 2004, pp. 218–219.

[10] H. Hu, S. J. Ding, H. F. Lim, C. Zhu, M. F. Li, S. J. Kim, X. F. Yu, J. H. Chen, Y. F. Yong, B. J. Cho, D. S. H. Chan, S. C. Rustagi, M. B. Yu, C. H. Tung, A. Du, D. My, P. D. Fu, A. Chin, and D. L. Kwong, “High performance HfO2−Al2O3laminate MIM capacitors by

ALD for RF and mixed signal IC applications,” in IEDM Tech. Dig., 2003, pp. 879–882.

[11] S. J. Kim, B. J. Cho, M.-F. Li, C. Zhu, A. Chin, and D. L. Kwong, “Lanthanide (Tb)-doped HfO2for high density MIM capacitors,” IEEE

Electron Device Lett., vol. 24, no. 7, pp. 442–444, Jul. 2003.

[12] T. Ishikawa, D. Kodama, Y. Matsui, M. Hiratani, T. Furusawa, and D. Hisamoto, “High-capacitance Cu/Ta2O5/Cu MIM structure for SoC

applications featuring a single-mask add-on process,” in IEDM Tech. Dig., 2002, pp. 940–942.

[13] S. B. Chen, J. H. Lai, K. T. Chan, A. Chin, J. C. Hsieh, and J. Liu, “Frequency-dependent capacitance reduction in high-κ AlTiOx

and Al2O3gate dielectrics from IF to RF frequency range,” IEEE

Elec-tron Device Lett., vol. 23, no. 4, pp. 203–205, Apr. 2002.

[14] C. H. Huang, M. Y. Yang, A. Chin, C. X. Zhu, M. F. Li, and D. L. Kwong, “High density RF MIM capacitors using High-κ AlTaOxdielectrics,” in Proc. IEEE MTT-S Int. Microw. Symp. Dig., 2003, vol. 1, pp. 507–510.

[15] M. Y. Yang, C. H. Huang, A. Chin, C. Zhu, B. J. Cho, M. F. Li, and D. L. Kwong, “Very high density RF MIM capacitors (17 fF/µm2) using high-κ Al2O3doped Ta2O5dielectrics,” IEEE Microw. Wireless Comp.

Lett., vol. 13, no. 10, pp. 431–433, Oct. 2003.

[16] S. J. Kim, B. J. Cho, M. B. Yu, M.-F. Li, Y.-Z. Xiong, C. Zhu, A. Chin, and D. L. Kwong, “High capacitance density (> 17 fF/µm2_{) Nb}

2O5—Based

MIM capacitors for future RF IC applications,” in VLSI Symp. Tech. Dig., 2005, pp. 56–57.

[17] K. C. Chiang, C. H. Lai, A. Chin, T. J. Wang, H. F. Chiu, J. R. Chen, S. P. McAlister, and C. C. Chi, “Very high density (23 fF/µm2_{) RF MIM}

capacitors using high-κ TiTaO as the dielectric,” IEEE Electron Device

Lett., vol. 26, no. 10, pp. 728–730, Oct. 2005.

[18] K. C. Chiang, A. Chin, C. H. Lai, W. J. Chen, C. F. Cheng, B. F. Hung, and C. C. Liao, “Very high-κ and high density TiTaO MIM capacitors for analog and RF applications,” in VLSI Symp. Tech. Dig., 2005, pp. 62–63.

2318 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 9, SEPTEMBER 2006

[19] K. C. Chiang, C. C. Huang, A. Chin, W. J. Chen, S. P. McAlister, H. F. Chiu, J. R. Chen, and C. C. Chi, “High-κ Ir/TiTaO/TaN capacitors suitable for analog IC applications,” IEEE Electron Device Lett., vol. 26, no. 7, pp. 504–506, Jul. 2005.

[20] J. Nakahira, M. Kiyotoshi, S. Yamazaki, M. Nakabayashi, S. Niwa, K. Tsunoda, J. Lin, A. Shimada, M. Izuha, T. Aoyama, H. Tomita, K. Eguchi, and K. Hieda, “Low temperature (< 500◦C) SrTiO3

capaci-tor process technology for embedded DRAM,” in VLSI Symp. Tech. Dig., 2000, pp. 104–105.

[21] P.-Y. Lesaicherre, S. Yamamichi, H. Yamaguchi, K. Takemura, H. Watanabe, K. Tokashiki, K. Satoh, T. Sakuma, M. Yoshida, S. Ohnishi, K. Nakajima, K. Shibahara, Y. Miyasaka, and H. Ono, “A gbit-scale DRAM stacked capacitor technology with ECR MOCVD SrTiO3 and

RIE patterned RuO2/TiN storage nodes,” in IEDM Tech. Dig., 1994,

pp. 831–834.

[22] C.-J. Peng, H. Hu, and S. B. Krupanidhi, “Electrical properties of stron-tium titanate thin films by multi-ion-beam reactive sputtering technique,”

Appl. Phys. Lett., vol. 63, no. 23, pp. 1038–1040, Aug. 1993.

[23] S. W. Jiang, Q. Y. Zhang, Y. R. Li, Y. Zhang, X. F. Sun, and B. Jiang, “Structural characteristics of SrTiO3thin films processed by rapid

thermal annealing,” J. Cryst. Growth, vol. 274, no. 3/4, pp. 500–505, Feb. 2005.

[24] S. Yamamichi, T. Sakuma, K. Takemura, and Y. Miyasaka, “SrTiO3thin

film preparation by ion beam sputtering and its dielectric properties,”

Jpn. J. Appl. Phys., vol. 30, no. 9B, pp. 2193–2196, Sep. 1991.

[25] J. L. Cousins and D. E. Kotecki, “Simulation of the variability in micro-electronic capacitors having polycrystalline dielectrics,” IEEE Electron

Device Lett., vol. 23, no. 5, pp. 267–269, May 2002.

[26] F. Gervais, Handbook of Optical Constants of Solids α, E. D. Palik, Ed. New York: Academic, 1991, p. 1035.

[27] K.-S. Tan, S. Kiriake, M. de Wit, J. W. Fattaruso, C.-Y. Tsay, W. E. Matthews, and R. K. Hester, “Error correction techniques for high-performance differential A/D converters,” IEEE J. Solid-State Circuits, vol. 25, no. 6, pp. 1318–1327, Dec. 1990.

[28] J. A. Babcock, S. G. Balster, A. Pinto, C. Dirnecker, P. Steinmann, R. Jumpertz, and B. El-Kareh, “Analog characteristics of metal– insulator–metal capacitors using PECVD nitride dielectrics,” IEEE

Electron Device Lett., vol. 22, no. 5, pp. 230–232, May 2001.

K. C. Chiang received the B.S. degree in materials

science and engineers and the M.S. degree from the National Chiao-Tung University, Hsinchu, Tai-wan, R.O.C., in 2002 and 2004, respectively. He is currently working toward the Ph.D. degree at the Department of Electronics Engineering, National Chiao-Tung University.

His current research interests include high-κ materials for CMOS gate dielectrics and metal– insulator–metal capacitor applications.

Ching-Chien Huang was born in Kaohsiung,

Taiwan, R.O.C., on October 18, 1982. He received the B.S. degree from the Electrical Engineering Department, National Sun Yat-Sen University, Kaohsiung, Taiwan, in 2004. He is currently working toward the Ph.D. degree at the Institute of Elec-tronics, National Chiao Tung University, Hsinchu, Taiwan.

His current research interests include “Si elec-tronic device technology” and “CMOS RF IC technology.”

G. L. Chen received the B.S. degree in electrical

en-gineering from the National Sun Yat-Sen University, Kaohsiung, Taiwan, R.O.C., in 2005. He is currently working toward the M.S. degree at the Department of Electronics Engineering, National Chiao-Tung Uni-versity, Hsinchu, Taiwan, R.O.C.

His current research interest is in nonvolatile ran-dom access memory.

Wen Jauh Chen was born in Kaohsiung, Taiwan,

R.O.C., on December 1, 1958. He received the B.S. degree in chemical engineering from Feng Chia Uni-versity, Taichung, Taiwan, in 1983, the M.S. degree from the Graduate Institute of Materials Engineering, National Taiwan University, Taipei, Taiwan, R.O.C., in 1985, and the Ph.D. degree from the Depart-ment of Materials Science and Engineering, National Tsing Hua University, Hsinchu, Taiwan, R.O.C., in 1991.

From 1985 to 1986, he was with the Industrial Technology Research Institute, Hsinchu. From 1998 to 1999, he was with the National Center for Electron Microscopy, Lawrence Berkeley Laboratory, Berkeley, CA. Since 1992, he has been with the Department of Materials Sci-ence and Engineering, National Formosa University, Yunlin, Taiwan, R.O.C. He is currently a Professor with the National Pingtung University of Science and Technology, Pingtung, Taiwan, R.O.C. His research interests include silicide, diffusion barriers, and electronless plating.

H. L. Kao was born in Taipei, Taiwan, R.O.C. She

received the B.S. degree in electrical engineering from Chang-Gung University, Tao-Yuan, Taiwan, R.O.C., in 1998, and the M.S. and Ph.D. degrees from the Department of Electronics Engineering, National Chiao-Tung University, Hsinchu, Taiwan, R.O.C., in 2000 and 2006, respectively.

In 2006, she joined the Department of Electronic Engineering, Chang Gung University. Her research interests include microwave and RF active devices.

Yung-Hsien Wu received the B.S. degree from the

National Tsing-Hua University, Hsinchu, Taiwan, R.O.C., in 1996, and the Ph.D. degree in electronics engineering from the National Chiao-Tung Univer-sity, Hsinchu, in 2000.

In 2000, he joined ProMOS Technologies, where he was engaged in advanced process development and assessment with major focus on DRAM and Flash memory. In 2005, he joined the Department of Engineering and System Science, National Tsing-Hua University, as an Assistant Professor. He has been granted 16 patents in his professional field in ProMOS Technologies. His current area of research interests include advanced process development for DRAM and nonvolatile memory, high-κ material for CMOS application, and Ge MOSFET fabrication and electrical characterization.

CHIANG et al.: HIGH-PERFORMANCE SrTiO3MIM CAPACITORS FOR ANALOG APPLICATIONS 2319

Albert Chin (SM’94) received the Ph.D. degree

from the Department of Electrical Engineering, University of Michigan, Ann Arbor, in 1989.

He was with AT&T-Bell Labs from 1989 to 1990, General Electric-Electronic Lab from 1990 to 1992, and the Semiconductor Process and Device Center, Texas Instruments Incorporated from 1996 to 1997. He is currently a Professor with the National Chiao Tung University (NCTU), Hsinchu, Taiwan, R.O.C., the Deputy Director of the Nanometer Center, Uni-versity System of Taiwan, NCTU, and a Visiting Pro-fessor at Si Nano Device Lab, National University of Singapore, Singapore. He has published more than 250 technical papers and presentations. His research interests include Si very large scale integration (VLSI), III–Vs, and RF devices. He invented the three-dimensional (3-D) IC integration to solve the power con-sumption and extend the VLSI scaling, Ge-on-insulator (GOI), high-κ Al2O3

and LaAlO3gate dielectrics,±5V operated metal-gate/high-κ/AlGaN/oxide

metal–oxide–nitride–oxide–semiconductor memory device, resonant cavity photo-detector, and high mobility strain-compensated HEMT, etc. His works have been cited by high-quality International Electron Device Meeting (IEDM) and VLSI symposia papers from IC fabrications, universities, and EETimes, and currently in pilot runs at IC fabrications. He also developed the very high resistivity Si using an ion implantation process, generated traps, and much improved RF device performance close to GaAs has been realized up to 100 GHz. He is now working on 3-D IC, GOI, high-κ, metal gate, RF Si, nano-CMOS, and memory technologies. He has given invited talks at the IEDM and other conferences in the U.S., Europe, Japan, Korea (i.e., Samsung Electronics), etc.

Sean P. McAlister (SM’02) was born in Durban,

South Africa. He received the M.Sc. degree from the University of Natal, Natal, South Africa, in 1968, and the Ph.D. degree in physics from Cambridge University, Cambridge, U.K., in 1971.

Following four years with Simon Fraser Univer-sity, Vancouver, BC, Canada, he joined the National Research Council (NRC) of Canada, Ottawa, ON, in 1975. He has been involved in the fields of low-temperature physics, magnetism, and semiconductor materials and devices. He is a Principal Research Officer with the Institute for Microstructural Sciences, NRC, and leads efforts in device physics. His interests are in the design, simulation, fabrication, and characterization of electronic and optoelectronic devices.
