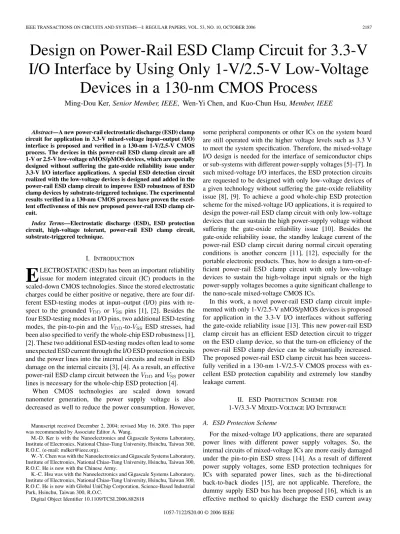

Design on Power-Rail ESD Clamp Circuit for 3.3-V
I/O Interface by Using Only 1-V/2.5-V Low-Voltage
Devices in a 130-nm CMOS Process
Ming-Dou Ker, Senior Member, IEEE, Wen-Yi Chen, and Kuo-Chun Hsu, Member, IEEE
Abstract—A new power-rail electrostatic discharge (ESD) clamp
circuit for application in 3.3-V mixed-voltage input–output (I/O) interface is proposed and verified in a 130-nm 1-V/2.5-V CMOS process. The devices in this power-rail ESD clamp circuit are all 1-V or 2.5-V low-voltage nMOS/pMOS devices, which are specially designed without suffering the gate-oxide reliability issue under 3.3-V I/O interface applications. A special ESD detection circuit realized with the low-voltage devices is designed and added in the power-rail ESD clamp circuit to improve ESD robustness of ESD clamp devices by substrate-triggered technique. The experimental results verified in a 130-nm CMOS process have proven the excel-lent effectiveness of this new proposed power-rail ESD clamp cir-cuit.
Index Terms—Electrostatic discharge (ESD), ESD protection
circuit, high-voltage tolerant, power-rail ESD clamp circuit, substrate-triggered technique.
I. INTRODUCTION
E
LECTROSTATIC (ESD) has been an important reliability issue for modern integrated circuit (IC) products in the scaled-down CMOS technologies. Since the stored electrostatic charges could be either positive or negative, there are four dif-ferent ESD-testing modes at input–output (I/O) pins with re-spect to the grounded or pins [1], [2]. Besides the four ESD-testing modes at I/O pins, two additional ESD-testing modes, the pin-to-pin and the -to- ESD stresses, had been also specified to verify the whole-chip ESD robustness [1], [2]. These two additional ESD-testing modes often lead to some unexpected ESD current through the I/O ESD protection circuits and the power lines into the internal circuits and result in ESD damage on the internal circuits [3], [4]. As a result, an effective power-rail ESD clamp circuit between the and power lines is necessary for the whole-chip ESD protection [4].When CMOS technologies are scaled down toward nanometer generation, the power supply voltage is also decreased as well to reduce the power consumption. However,
Manuscript received December 2, 2004; revised May 16, 2005. This paper was recommended by Associate Editor A. Wang.
M.-D. Ker is with the Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan 300, R.O.C. (e-mail: mdker@ieee.org).
W.-Y. Chen was with the Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan 300, R.O.C. He is now with the Chinese Army.
K.-C. Hsu was with the Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan 300, R.O.C. He is now with Global UniChip Corporation, Science-Based Industrial Park, Hsinchu, Taiwan 300, R.O.C.
Digital Object Identifier 10.1109/TCSI.2006.882818
some peripheral components or other ICs on the system board are still operated with the higher voltage levels such as 3.3 V to meet the system specification. Therefore, the mixed-voltage I/O design is needed for the interface of semiconductor chips or sub-systems with different power-supply voltages [5]–[7]. In such mixed-voltage I/O interfaces, the ESD protection circuits are requested to be designed with only low-voltage devices of a given technology without suffering the gate-oxide reliability issue [8], [9]. To achieve a good whole-chip ESD protection scheme for the mixed-voltage I/O applications, it is required to design the power-rail ESD clamp circuit with only low-voltage devices that can sustain the high power-supply voltage without suffering the gate-oxide reliability issue [10]. Besides the gate-oxide reliability issue, the standby leakage current of the power-rail ESD clamp circuit during normal circuit operating conditions is another concern [11], [12], especially for the portable electronic products. Thus, how to design a turn-on-ef-ficient power-rail ESD clamp circuit with only low-voltage devices to sustain the high-voltage input signals or the high power-supply voltages becomes a quite significant challenge to the nano-scale mixed-voltage CMOS ICs.
In this work, a novel power-rail ESD clamp circuit imple-mented with only 1-V/2.5-V nMOS/pMOS devices is proposed for application in the 3.3-V I/O interfaces without suffering the gate-oxide reliability issue [13]. This new power-rail ESD clamp circuit has an efficient ESD detection circuit to trigger on the ESD clamp device, so that the turn-on efficiency of the power-rail ESD clamp device can be substantially increased. The proposed power-rail ESD clamp circuit has been success-fully verified in a 130-nm 1-V/2.5-V CMOS process with ex-cellent ESD protection capability and extremely low standby leakage current.
II. ESD PROTECTION SCHEME FOR
1-V/3.3-V MIXED-VOLTAGEI/O INTERFACE
A. ESD Protection Scheme
For the mixed-voltage I/O applications, there are separated power lines with different power supply voltages. So, the internal circuits of mixed-voltage ICs are more easily damaged under the pin-to-pin ESD stress [14]. As a result of different power supply voltages, some ESD protection techniques for ICs with separated power lines, such as the bi-directional back-to-back diodes [15], are not applicable. Therefore, the dummy supply ESD bus has been proposed [16], which is an effective method to quickly discharge the ESD current away
Fig. 1. ESD protection schemes for mixed-voltage I/O interfaces (a) without, and (b) with, the dummy supply lineV .
from the internal circuits, especially under the pin-to-pin ESD stress.
Two modified successful whole-chip ESD protection schemes for 1-V/3.3-V mixed-voltage I/O interfaces are shown in Fig. 1(a) and (b) [16]–[19]. In Fig. 1(a), diodes D1 and D2 and the power-rail ESD clamp circuit are designed to achieve ESD protection in the I/O pad with 3.3-V input signals. The ESD current at I/O pads under positive-to- (PS mode) ESD stress is discharged through the diode D1 and the power-rail ESD clamp circuit between h and power lines. In Fig. 1(a), the extra bond pad for external 3.3-V power supply (marked as h) is optional, depending on the system specification and the circuit requirement. For circuits without external 3.3-V power supply pins, the h line shown in Fig. 1(a) can be treated as a dummy supply line and the extra bond pad is dispensable.
For chips with power-down mode operation, which is an im-portant power-saving technology in nowadays systems-on-chip (SOC) or portable devices [20], an extra dummy supply line (marked as ) is added into the chip for cooperation with the power-rail ESD clamp circuit to achieve ESD protection in the I/O pad with 3.3-V input signals, as shown in Fig. 1(b). The diode D4 between the h power line and the dummy supply line can prevent the circuit, which has entered the power-down mode, being awakened by the input signal at I/O pads. In this ESD protection scheme, the ESD current at
I/O pads under positive-to- (PS mode) ESD stress is dis-charged through the diode D1 and the power-rail ESD clamp circuit between and power lines. For positive-to-(PD mode) ESD stress on I/O pads, the ESD current can be dis-charged through the diode D1, the power-rail ESD clamp cir-cuit between and power lines, and then the parasitic diode of the power-rail ESD clamp circuit between the h and the power lines (the active clamp between l and ) to the grounded h ( l). For h-to- l ESD stress, the ESD current is discharged through the diode D4, the power-rail ESD clamp circuit between the and the power lines, and then the parasitic diode of the active clamp be-tween l and power lines.
In these successful designs, the power-rail ESD clamp cir-cuits must sustain the high-voltage (3.3-V) stress in the mixed-voltage I/O interfaces during normal circuit operating condi-tions without the gate-oxide reliability issue. About the active clamp for the internal circuits shown in Fig. 1(a) and (b), it can be realized by the traditional RC-based ESD detection circuits with 1-V devices [4].
B. Review on High-Voltage-Tolerant Power-Rail ESD Clamp Circuit
With the increasing demand for the mixed-voltage I/O inter-face circuits, several prior arts about the high-voltage-tolerant power-rail ESD clamp circuits had been reported, such as the diode string, the stacked-pMOS clamp with voltage divider, and the stacked-nMOS configuration [8]–[10], [21]–[24]. Because the forward-biased p-n junction diode can sustain quite high ESD current without the gate oxide reliability issue, the diode string with multiple stacked diodes had been developed to pro-tect the mixed-voltage I/O [24], or as the power-rail ESD clamp circuit [21]–[23]. However, the main disadvantage of using the forward-biased stacked diodes as the power-rail ESD clamp cir-cuit is the huge standby leakage current which results from the parasitic p-n-p bipolar junction transistor (BJT). The Darlington beta gain makes the leakage current of the parasitic BJTs in-crease dramatically at high operating temperature [25]. To re-duce the leakage current of the diode string, especially for ICs operating under the high temperature condition, some modified designs, such as the Cladded diode string, Boosted diode string, and Cantilever diode string, were reported in [22]. An improved design by using silicon-controlled-rectified (SCR) device to stop the leakage current through the diode string was also reported to achieve an ultra low leakage level in the high temperature con-dition [25].
Since the gate-oxide reliability issue results from the over-induced electric field across the gate–drain, gate–source, and gate–bulk terminals of MOSFET devices, the voltage divider that divides the high power-supply voltage ( ) to be or is incorporated to some of the ESD protection circuits to reduce the voltage across the gate–drain, gate–source, and gate–bulk terminals [10]. The voltage divider is useful to avoid the gate-oxide reliability issue but the divider itself provides a standby current path from the power supply to ground, causing leakage current in the order of several micron-amps. In [10], the leakage current of the stacked-pMOS ESD protection circuit under 25 C (125 C) and 3.3-V power supply voltage is roughly
Fig. 2. New proposed power-rail ESD clamp circuit with only 1-V and 2.5-V devices for operating under high-voltageV h of 3.3 V.
0.8 A (8 A), which could be still too large for most portable microelectronic products and low-power IC products.
Another well-known and widely used high-voltage-tolerant structure is the stacked-nMOS configuration [8], where the top gate of the stacked nMOS is biased at a relatively low voltage to drop the drain voltage of the bottom nMOS and to safely meet the reliability limitation during normal circuit operating condi-tions. Unfortunately, the stacked nMOS has been found to have some disadvantages of ESD protection capability, including the nonuniform turn-on behaviors, slower turn-on speed, and the lower ESD robustness. Therefore, to uniformly and quickly turn on the stacked nMOS in the mixed-voltage I/O buffers under ESD stress conditions, some ESD detection circuits are therefore developed to trigger the stacked nMOS [26], [27]. In this work, a novel low-leakage power-rail ESD clamp circuit, which contains a high-voltage tolerant ESD detection circuit to substantially increase the ESD protection efficiency of stacked nMOS, is proposed.
III. NOVELPOWER-RAILESD CLAMPCIRCUIT FOR
HIGH-VOLTAGEAPPLICATIONS
The novel power-rail ESD clamp circuit which contains ESD clamp device and ESD detection circuit is shown in Fig. 2, where the ESD clamp device is realized by a substrate-trig-gered stacked nMOS (STnMOS). The new proposed power-rail ESD clamp circuit is realized with only 1-V and 2.5-V devices to operate at 3.3-V I/O interface without the risk of gate oxide reliability. Under normal circuit operating condi-tions, the ESD detection circuit is inactive and doesn’t inter-fere with the functions of internal circuits. But, it is active to provide the substrate-triggered current to quickly trigger on the STnMOS device under ESD stress conditions. The STnMOS is formed by two stacked nMOS transistors with 2.5-V gate oxide in the 130-nm 1-V/2.5-V CMOS process. The gate of the top nMOS transistor of STnMOS is biased at l of 1 V through a resistor, and that of the bottom nMOS transistor is directly
TABLE I
DEVICEDIMENSIONS OFESD PROTECTIONCIRCUIT INTHISWORK
connected to . The voltage level at the shared diffu-sion region between the top and bottom nMOS transistors of STnMOS device will be kept at - during normal circuit operating conditions, where is the threshold voltage of the 2.5-V nMOS transistor. Therefore, the STnMOS is free from the gate-oxide reliability issue under high power-supply voltage h of 3.3 V. The ESD detection circuit is formed by Mp1, Mp2, and C of 2.5-V pMOS devices, Mn1 of 1-V nMOS device, Mn2 of 2.5-V nMOS device, and an n-well resistor R1. The se-lected device dimensions of the proposed ESD detection circuit in this work is listed in Table I.
A. Circuit Operation Under Normal Power-On Transition
When the 3.3-V h and 1-V l have been powered on, the gate of Mp1 (node 1 in Fig. 2) is biased at 3.3 V through the resistor R1, and the gate of Mp2 is biased at 1 V through the resistor R2 of 1 k . With a gate-to-source bias of 0 V, the Mp1 should be kept off. With a gate-to-source bias of 1 V, the Mn1 is turned on. So, no trigger current will be generated from the ESD detection circuit into the trigger node (node 3 in Fig. 2) of the STnMOS. The turned-on Mn1 can guarantee the off-state of STnMOS during normal circuit operating conditions. Because the gate of Mp2 is biased at l through the resistor R2, the drain voltage of Mp1 (node 2 in Fig. 2) is kept at V , where is the threshold voltage of the 2.5-V pMOS transistor. By such arrangement, all low-voltage devices in the new pro-posed power-rail ESD clamp circuit are free from the gate-oxide reliability issue under normal circuit operating conditions with h of 3.3 V in the mixed-voltage I/O interfaces. Fig. 3(a) shows the Hspice-simulated voltages on nodes of the ESD de-tection circuit. In this simulation, the h and l are, re-spectively, powered-on to 3.3 V and 1 V with a simultaneous rise time of 1 ms. The Hspice-simulated results show that the volt-ages across the gate–drain, gate–source, and gate–bulk termi-nals of every device do not exceed the process limitation. More-over, the gate voltage of pMOS Mp1 in the ESD detection circuit with the selected R1-C value can follow up the power-on tran-sition of h to turn off the pMOS Mp1.
B. Circuit Operation Under ESD Transition
When ESD transient voltage is applied to h with rel-atively grounded, the gate of Mp1 (node 1 in Fig. 2) is initially kept at a low voltage level (around 0 V) due to the RC delay of
R1 and C in the ESD detection circuit. The l node is ini-tially floating with an initial voltage level of 0 V, before the ESD
Fig. 3. Hspice simulation on the new proposed ESD detection circuit under (a) normal power-on transition with a rise time of 1 ms and (b) 0-to-7 V ESD-like transition with a rise time of 10 ns.
voltage is applied across h and . Some ESD transient voltage would be coupled to l through the parasitic capac-itance when ESD stress is zapped on h, but the R2 and the parasitic capacitance at the gates of Mn1 and Mp2 will keep the gate of Mp2 at 0 V for a long time period. So, Mp1 and Mp2 with initial gate voltages at V can be quickly turned on by the ESD energy to generate the trigger current into the trigger node (node 3 in Fig. 2) of STnMOS. As long as the base-emitter voltage of the lateral n-p-n BJT inherent in the STnMOS device is greater than its cut-in voltage of V, the STnMOS can be triggered on to discharge ESD current from h to grounded . Fig. 3(b) shows the Hspice-simulated voltages and current of the ESD detection circuit under ESD transition. A 0-to-7 V ESD-like voltage pulse with rise time of 10 ns is applied to the h to simulate the ESD transition before junction break-down on the devices. The Hspice-simulated results show that the gate voltage of Mp1 is kept low due to the time delay of R1 and C. The pMOS Mp1 and Mp2 can provide the substrate-trig-gered current larger than 60 mA within 10 ns when the 0-to-7 V transient voltage is applied to h. Simulation on the voltage of node 3 in Fig. 3(b) also verifies that the substrate bias can be achieved by the substrate-triggered current generated from the
proposed ESD detection circuit. By selecting the device dimen-sions, the substrate-triggered current can be designed to meet different applications or specifications. The time constant of R1 and C should be designed around the order of s to distin-guish the power-on transition (with a rise time of several mil-liseconds) from the ESD transition (with a rise time of several nanoseconds) [4].
If Mn1 is turned on during ESD transition by unexpected cou-pling effect to its gate through the parasitic capacitance in the layout, the base voltage of the lateral BJT could be pulled down to zero to turn off the lateral BJT in the STnMOS device. To avoid such possible condition during ESD transition, the Mn2 is added in the ESD detection circuit to keep the gate of Mn1 and Mp2 at 0 V, when the base voltage of lateral BJT in the STnMOS device is charged up by the current flowing through Mp1 and Mp2.
IV. EXPERIMENTALRESULTS
The proposed power-rail ESD clamp circuit has been de-signed and fabricated in a 130-nm 1-V/2.5-V CMOS process. The stand-alone STnMOS with the same device dimension and layout has been also fabricated in the same chip for reference. In the test structures, all the STnMOS devices are salicide-blocked whereas all the ESD detection circuits are fully salicided. The stand-alone 2.5-V STnMOS has a bipolar trigger voltage ( ) of 11.7 V and a holding voltage larger than the high power-supply voltage (3.3 V). Therefore, the stand-alone STnMOS is not a good power-rail ESD clamp device due to its high bipolar trigger voltage. In this section, the experimental results will show that the new proposed ESD detection circuit can effectively lower the and substantially increase the ESD robustness of STnMOS. Moreover, the experimental results also show that the proposed ESD detection circuit can successfully distinguish the normal power-on transition and the ESD transition. Therefore, ICs with the new proposed high-voltage-tolerant power-rail ESD clamp circuit have no risk of latch-up issue.
A. Standby Leakage Current
To save the power consumption of portable devices or low-power applications, especially chips that are driven by small batteries, the standby leakage current becomes one of major concerns [11], [12]. The measured leakage currents of the fab-ricated power-rail ESD clamp circuit under different tempera-tures are shown in Fig. 4, where the STnMOS is drawn with a device dimension (W/L) of m m. With a leakage current of nA under the temperature of 125 C, leakage cur-rent of the new proposed power-rail ESD clamp circuit is quite small as comparing to those of the prior arts. Table II summa-rizes the comparison on the leakage current between the new proposed power-rail ESD clamp circuit and the prior arts [10], [25]. In [22], diode strings were fabricated on p-substrate with epitaxial layer, which can suppress the beta gain of parasitic BJT and therefore reduce the overall leakage current of diode strings. However, epitaxy is a quite costly process step, so that most consumer IC products are not fabricated on epitaxial sub-strate if they have to compromise with their costs. Therefore, diode strings fabricated on a 0.35- m CMOS process without
Fig. 4. Leakage currents of STnMOS with or without the ESD detection circuit under different temperatures.
TABLE II
LEAKAGECURRENT OFPRIORARTS AND THENEWPROPOSEDPOWER-RAIL
ESD CLAMPCIRCUIT
epitaxial layer in [25] is compared with the proposed design of this work instead of diode strings in [22].
B. Turn-On Verification
One of the main benefits of the new proposed power-rail ESD clamp circuit is to enhance the turn-on speed of ESD clamp device (STnMOS) during ESD stress conditions. The turn-on speed of the STnMOS device with or without ESD detection circuit is measured in Fig. 5, where a voltage pulse with pulse height of 20 V and rise time of 10 ns is applied to the h. The time to clamp the 20-V voltage pulse to the holding voltage level ( V) by the stand-alone STnMOS device is about ns, as shown in Fig. 5. Moreover, the overshooting peak voltage of the stand-alone STnMOS in Fig. 5 is about V, which could be higher than the gate-oxide breakdown voltage of the low-voltage devices in the internal circuits. On the contrary, the 20-V voltage pulse can be quickly clamped by the STnMOS with ESD detec-tion circuit to a low voltage level without overshooting. This re-sult verifies that the turn-on speed of the STnMOS can be indeed improved by the proposed ESD detection circuit. The clamped voltage level will be limited by the snapback holding voltage of the STnMOS device, after the lateral n-p-n BJT in the STnMOS device is triggered on by the ESD detection circuit. From the measured voltage waveforms in Fig. 5, the excellent turn-on ef-ficiency of the new proposed power-rail ESD clamp circuit has been successfully verified. Therefore, the internal circuits can be effectively protected by the new proposed power-rail ESD clamp circuit in cooperation with the whole-chip ESD protec-tion schemes shown in Fig. 1.
Fig. 5. The clamped voltage waveforms by STnMOS with or without the ESD detection circuit under the voltage pulse stress with the pulse height of 20 V and the rise time of 10 ns.
Fig. 6. The measured substrate-triggered current generated by the ESD detec-tion circuit under 0-to-7 V voltage pulse with a rise time of 10 ns on theV h pin.
To verify the effectiveness of the ESD detection circuit in the proposed power-rail ESD clamp circuit, a measurement setup is shown in the inset of Fig. 6 to observe the substrate-triggered current. In the specially drawn testchip, the output node of a stand-alone ESD detection circuit is also connected to another pad. The substrate trigger node of a stand-alone STnMOS is connected to a pad. In the circuit board, the output node of a stand-alone ESD detection circuit is connected to the substrate trigger node of a stand-alone STnMOS by a wired line. A current probe is used to measure the transient current flowing through this wired line. With such measurement setup, the measured substrate-triggered current generated by the ESD detection cir-cuit under 0-to-7 V voltage pulse with a rise time of 10 ns on the h pin is shown in Fig. 6. The substrate-triggered cur-rent almost simultaneously appears with a peak curcur-rent of mA, when the 0-to-7 V voltage pulse is applied to h pin. So, the STnMOS with ESD detection circuit can be quickly trig-gered on to clamp the overstress ESD voltage, as the clamped voltage waveform shown in Fig. 5. After 800 ns, the voltage at the gate of the pMOS Mp1 follows up the given 0-to-7 V voltage
TABLE III
ESD ROBUSTNESS OFSTNMOS DEVICESWITH ORWITHOUT THENEW
PROPOSEDESD DETECTIONCIRCUIT
transient. Therefore, the ESD detection circuit is turned-off and the measured trigger current drops to zero. The timing for the gate voltage of Mp1 to follow up the transient voltage applied to h pin can be controlled by changing the R1 and C values and is designed to distinguish between the power-on transition and the ESD transition.
C. ESD Robustness
With sufficient substrate-triggered current, the STnMOS can be directly triggered into its holding region without snap-back switching. Therefore, the turn-on speed of the proposed power-rail ESD clamp circuit can be significantly improved to effectively protect the internal circuits with low-voltage devices and thin gate oxide [28]. Moreover, the substrate-triggered cur-rent can uniformly trigger on the STnMOS under ESD stress, so that the STnMOS with a larger device dimension results in a smaller turn-on resistance in the pulsed I–V response. To keep a lower overshooting voltage during ESD stress, the STnMOS with large enough device dimension should be chosen when the internal circuits are implemented with the low-voltage devices [28]. Table III summarizes the human-body- model (HBM) [1] ESD robustness and the machine-model (MM) [2] ESD robustness of the STnMOS devices with and without the ESD detection circuit. Measurement results have shown great improvement on ESD robustness of the STnMOS with the ESD detection circuit, as comparing with that of the stand-alone STnMOS devices. The HBM and MM ESD levels are measured by KeyTek ZapMaster and the devices are judged ESD failure if their I–V characteristic curves shift over 20% after three continuous ESD zaps at every ESD test level.
D. SCR as ESD Clamp Device
The SCR device, which is composed of cross-coupled n-p-n and p-n-p BJTs with regenerative feedback, has been found to play an important role for ESD protection in very deep sub-micron CMOS technologies. However, main concerns of the SCR device as ESD clamp device are the slow turn-on speed and the higher switching voltage ( ). The substrate-triggered technique has been reported as an effective method to lower the and to increase the turn-on speed of SCR devices [29]. Therefore, as another choice of high-voltage tolerant ESD clamp device, the ESD detection circuit in this work was applied on triggering the substrate of SCR devices. The SCR devices, both stand-alone and substrate-triggered, are in series with three diodes to increase its overall holding voltage to 3.8 V to avoid the latch-up issue [30] The TLP measured I–V
Fig. 7. TLP-measured I–V characteristics of both SCR with and without ESD detection circuit.
curves of SCR with or without the proposed ESD detection circuit are shown in Fig. 7. In Fig. 7, the stand-alone SCR has a as high as 15.9 V, which is unqualified for protecting internal circuits during ESD transition. With the proposed ESD detection circuit, the can be greatly lowered to 5.6 V. When the substrate-triggered SCR is 30 m in width, the measured It2 is A. It is increased to be greater than 6 A when the substrate-triggered SCR is 90 m in width. As a result of the lowered and the increased turn-on speed, SCR device with the proposed ESD detection circuit is also an useful power-rail ESD clamp circuit to the 3.3-V mixed-voltage I/O interfaces.
V. CONCLUSION
A new power-rail ESD clamp circuit realized with low-voltage devices for 1-V/3.3-V mixed-voltage I/O in-terface has been successfully verified in a 130-nm 1-V/2.5-V CMOS process. As comparing to the stand-alone STnMOS, the turn-on speed of the STnMOS can be effectively improved by the proposed ESD detection circuit. As well as, its HBM (MM) ESD level can be improved from 1 kV (150 V) to 3.75 kV (250 V) for the STnMOS with a device dimension (W/L) of m m. The ESD detection circuit has also shown significant help on lowering the of SCR devices. This new proposed power-rail ESD clamp circuit with the advantages of very low leakage current, fast turn-on speed, higher ESD robustness, and no gate-oxide reliability issue is an excellent ESD protection solution to the mixed-voltage I/O interface with high-voltage I/O signals.
REFERENCES
[1] ESD Test Standard for Electrostatic Discharge Sensitivity Testing:
Human Body Model (HBM)—Component Level, ESD STM5.1, ESD
Association, 2001.
[2] ESD Test Standard for Electrostatic Discharge Sensitivity Testing:
Ma-chine Model (MM)—Component Level, ESD STM5.2, ESD
Associa-tion, 1999.
[3] C. Cook and S. Daniel, “Characterization of new failure mechanisms arising from power-pin ESD stressing,” in Proc. EOS/ESD Symp., 1993, pp. 149–156.
[4] M.-D. Ker, “Whole-chip ESD protection design with efficient V -to-V ESD clamp circuits for submicron CMOS VLSI,” IEEE
[5] C.-H. Chuang and M.-D. Ker, “Design on mixed-voltage tolerant I/O interface with novel tracking circuits in a 0.13-m CMOS technology,” in Proc. IEEE Int. Symp. Circuits and Systems, 2004, pp. 577–580. [6] S.-L. Chen and M.-D. Ker, “A new output buffer for 3.3-V PCI-X
appli-cation in a 0.13-m 1/2.5-V CMOS process,” in Proc. IEEE
Asia-Pa-cific Conf. Advanced System Integrated Circuits, 2004, pp. 112–115.
[7] G. Singh and R. Salem, “High-voltage-tolerant I/O buffers with low voltage CMOS process,” IEEE J. Solid-State Circuits, vol. 34, no. 11, pp. 1512–1525, Nov. 1999.
[8] W. R. Anderson and D. B. Krakauer, “ESD protection for mixed-voltage I/O using nMOS transistors stacked in a cascode configuration,” in Proc. EOS/ESD Symp., 1998, pp. 54–62.
[9] M.-D. Ker and C.-H. Chuang, “ESD protection design for mixed-voltage CMOS I/O buffers,” IEEE J. Solid-State Circuits, vol. 37, pp. 1046–1055, 2002.
[10] T. Maloney and W. Kan, “Stacked pMOS clamps for high-voltage power supply protection,” in Proc. EOS/ESD Symp., 1999, pp. 70–77. [11] S. S. Poon and T. Maloney, “New considerations for MOSFET power
clamps,” in Proc. EOS/ESD Symp., 2002, pp. 1–5.
[12] T. Maloney, S. Poon, and L. Clark, “Methods for designing low leakage power supply clamps,” in Proc. EOS/ESD Symp., 2003, pp. 27–33. [13] M.-D. Ker and W.-Y. Chen, “Design on power-rail ESD clamp circuit
for 3.3-V I/O interface by using only 1-V/2.5-V low-voltage devices in a 130-nm CMOS process,” in Proc. IEEE Int. Reliability Physics
Symp., 2005, pp. 606–607.
[14] M.-D. Ker, C.-Y. Chang, and Y.-S. Chang, “ESD protection design to overcome internal damage on interface circuits of a CMOS IC with multiple separated power pins,” IEEE Trans. Components Packag.
Technol., vol. 27, no. 4, pp. 445–451, Sep. 2004.
[15] K. Yoshitake, “Integrated circuit having two circuit blocks therein in-dependently energized through different power supply terminals,” U.S. Patent 4855863, Aug. 1989.
[16] M.-D. Ker, H.-H. Chang, and T.-Y. Chen, “ESD buses for whole-chip ESD protection,” in Proc. IEEE Int. Symp. Circuits Syst., 1999, pp. 545–548.
[17] L. R. Avery, “ESD protection for overvoltage friendly input–output circuits,” U.S. Patent 5708550, Jan. 1998.
[18] J. Watt, “Fast turn-on silicon controlled rectifier (SCR) for electrostatic discharge (ESD) protection,” U.S. Patent 58 25 600, Oct. 1998. [19] E. R. Worley, C. T. Nguyen, R. A. Kjar, and M. R. Tennyson, “Method
and apparatus for coupling multiple independent on-chipV busses to an ESD core clamp,” U.S. Patent 56 54 862, Oct. 1996.
[20] M.-D. Ker and K.-H. Lin, “Design on ESD protection scheme for IC with power-down-mode operation,” IEEE J. Solid-State Circuits, vol. 39, no. 8, pp. 1378–1382, Aug. 2004.
[21] S. Dabral, R. Aslett, and T. Maloney, “Designing on-chip power supply coupling diodes for ESD protection and noise immunity,” in
Proc. EOS/ESD Symp., 1993, pp. 239–249.
[22] T. Maloney and S. Dabral, “Novel clamp circuits for IC power supply protection,” IEEE Trans. Components, Packag. Manufact. Technol., vol. 19, no. 2, pp. 150–161, Jul. 1996.
[23] T. Maloney, “Electrostatic discharge protection circuits using biased and terminated PNP transistor chains,” U.S. Patent 55 30 612, Jun. 1996.
[24] S. Voldman and G. Gerosa, “Mixed-voltage interface ESD protec-tion circuits for advanced microprocessors in shallow trench and LOCOS isolation CMOS technologies,” in IEDM Tech. Dig., 1994, pp. 277–280.
[25] M.-D. Ker and W.-Y. Lo, “Design on the low-leakage diode string for using in the power-rail ESD circuits in a 0.35-m silicide CMOS process,” IEEE J. Solid-State Circuits, vol. 35, no. 4, pp. 601–611, Apr. 2000.
[26] M.-D. Ker, K.-H. Lin, and C.-H. Chuang, “On-chip ESD protection de-sign with substrate-triggered technique for mixed-voltage I/O circuits in sub-quarter-micron CMOS process,” IEEE Trans. Electron Dev., vol. 51, no. 10, pp. 1628–1635, Oct. 2004.
[27] M.-D. Ker and H.-C. Hsu, “ESD protection design for mixed-voltage-tolerant I/O buffers with substrate-triggered technique,” in Proc. IEEE
Int. SOC Conf., 2003, pp. 219–222.
[28] H. Gossner, “ESD protection for the deep sub micron regime—A chal-lenge for design methodology,” in Proc. IEEE Int. Conf. VLSI Design, 2004, pp. 809–818.
[29] M.-D. Ker and K.-C. Hsu, “Latch-up free ESD protection design with complementary substrate-triggered SCR devices,” IEEE J. Solid-State
Circuits, vol. 38, no. 8, pp. 1380–1392, Aug. 2003.
[30] M. Corsi, R. Nimmo, and F. Fattori, “ESD protection of BiCMOS inte-grated circuits which need to operate in the harsh environments of au-tomotive or industrial,” in Proc. EOS/ESD Symp., 1993, pp. 209–213.
