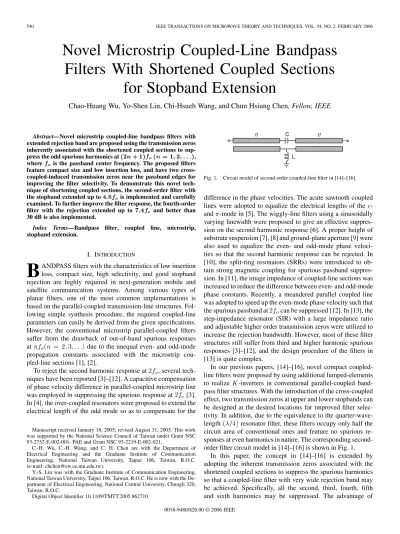

Novel Microstrip Coupled-Line Bandpass

Filters With Shortened Coupled Sections

for Stopband Extension

Chao-Huang Wu, Yo-Shen Lin, Chi-Hsueh Wang, and Chun Hsiung Chen, Fellow, IEEE

Abstract—Novel microstrip coupled-line bandpass filters with extended rejection band are proposed using the transmission zeros inherently associated with the shortened coupled sections to sup-press the odd spurious harmonics at(2 + 1) ( = 1 2 . . .), where is the passband center frequency. The proposed filters feature compact size and low insertion loss, and have two cross-coupled-induced transmission zeros near the passband edges for improving the filter selectivity. To demonstrate this novel tech-nique of shortening coupled sections, the second-order filter with the stopband extended up to4 6 is implemented and carefully examined. To further improve the filter response, the fourth-order filter with the rejection extended up to 7 4 and better than 30 dB is also implemented.

Index Terms—Bandpass filter, coupled line, microstrip, stopband extension.

I. INTRODUCTION

B

ANDPASS filters with the characteristics of low insertion loss, compact size, high selectivity, and good stopband rejection are highly required in next-generation mobile and satellite communication systems. Among various types of planar filters, one of the most common implementations is based on the parallel-coupled transmission-line structures. Fol-lowing simple synthesis procedure, the required coupled-line parameters can easily be derived from the given specifications. However, the conventional microstrip parallel-coupled filters suffer from the drawback of out-of-band spurious responses at due to the unequal even- and odd-mode propagation constants associated with the microstrip cou-pled-line sections [1], [2].

To reject the second harmonic response at , several tech-niques have been reported [3]–[12]. A capacitive compensation of phase velocity difference in parallel-coupled microstrip line was employed in suppressing the spurious response at [3]. In [4], the over-coupled resonators were proposed to extend the electrical length of the odd mode so as to compensate for the

Manuscript received January 18, 2005; revised August 31, 2005. This work was supported by the National Science Council of Taiwan under Grant NSC 93-2752-E-002-001- PAE and Grant NSC 93-2219-E-002-021.

C.-H. Wu, C.-H. Wang, and C. H. Chen are with the Department of Electrical Engineering and the Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: chchen@ew.ee.ntu.edu.tw).

Y.-S. Lin was with the Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. He is now with the De-partment of Electrical Engineering, National Central University, Chungli 320, Taiwan, R.O.C.

Digital Object Identifier 10.1109/TMTT.2005.862710

Fig. 1. Circuit model of second-order coupled-line filter in [14]–[16].

difference in the phase velocities. The acute sawtooth coupled lines were adopted to equalize the electrical lengths of the -and -mode in [5]. The wiggly-line filters using a sinusoidally varying linewidth were proposed to give an effective suppres-sion on the second harmonic response [6]. A proper height of substrate suspension [7], [8] and ground-plane aperture [9] were also used to equalize the even- and odd-mode phase veloci-ties so that the second harmonic response can be rejected. In [10], the split-ring resonators (SRRs) were introduced to ob-tain strong magnetic coupling for spurious passband suppres-sion. In [11], the image impedance of coupled-line sections was increased to reduce the difference between even- and odd-mode phase constants. Recently, a meandered parallel coupled line was adopted to speed up the even-mode phase velocity such that the spurious passband at can be suppressed [12]. In [13], the step-impedance resonator (SIR) with a large impedance ratio and adjustable higher order transmission zeros were utilized to increase the rejection bandwidth. However, most of these filter structures still suffer from third and higher harmonic spurious responses [3]–[12], and the design procedure of the filters in [13] is quite complex.

In our previous papers, [14]–[16], novel compact coupled-line filters were proposed by using additional lumped-elements to realize -inverters in conventional parallel-coupled band-pass filter structures. With the introduction of the cross-coupled effect, two transmission zeros at upper and lower stopbands can be designed at the desired locations for improved filter selec-tivity. In addition, due to the equivalence to the quarter-wave-length resonator filter, these filters occupy only half the circuit area of conventional ones and feature no spurious re-sponses at even harmonics in nature. The corresponding second-order filter circuit model in [14]–[16] is shown in Fig. 1.

In this paper, the concept in [14]–[16] is extended by adopting the inherent transmission zeros associated with the shortened coupled sections to suppress the spurious harmonics so that a coupled-line filter with very wide rejection band may be achieved. Specifically, all the second, third, fourth, fifth and sixth harmonics may be suppressed. The advantage of

Fig. 2. Circuit model of proposed second-order coupled-line filter with shortened coupled sections for extension of rejection band.

Fig. 3. Equivalent-circuit models for the proposed second-order coupled-line filter in Fig. 2 without the cross-coupling effect. (N = (Z + Z )=(Z 0 Z ), Z = (Z + Z )=2, Z = 2Z Z =(Z + Z ), J = j2=(Z 0 Z )j, n = 1; 3; K = Z tan j =2j.)

the proposed structure is that it provides effective stopband extension with a very compact circuit size.

II. SECOND-ORDERFILTER

A. Filter Structure

Shown in Fig. 2 is the circuit model of the proposed second-order coupled-line filter for stopband extension. Here, the lumped-element inductor is included to realize a -in-verter, and the cross-coupled capacitor is introduced to achieve two transmission zeros, as in [14]–[16], so that the filter performance may be improved. Compared with Fig. 1, the lengths of the coupled sections are shortened with two additional transmission-line sections included to maintain the resonators in constructing the filter.

By neglecting the series cross-coupled capacitor, i.e., , and also based on the assumption that the even- and odd-mode phase velocities are equal, the equivalent-circuit model of the filter structure in Fig. 2 for the frequencies around the passband may first be represented by the one in Fig. 3(a) [17, Sec. 5.09]. Specifically, the input open-ended coupled-line section of length in Fig. 2 may be modeled by an ideal trans-former of turn ratio

with a transmission line of characteristic impedance and a series open stub of

charac-teristic impedance at its two

ends, as shown in Fig. 3(a) [17, Sec. 5.09]. Similar modeling may also be applied to the output open-ended coupled-line section of length .

verter , as shown in Fig. 3(b) [18, Sec. 8.7], where . Besides, the shunt inductor with two transmission-line sections of characteristic impedance and length at its two sides may be equivalent

to a -inverter , as shown in Fig. 3(b)

[17, Sec. 8.03]. Thus, by combining the above processes, one may finally yield the equivalent-circuit model, as shown in Fig. 3(b).

Note that the inverters in Fig. 3(b) satisfy the conditions

and [19]. Thus, near

the center frequency and by letting the input susceptance in Fig. 3(b) equal to the susceptance given in the bandpass prototype [19, Fig. 6], one may establish a relation for deter-mining the coupled-line impedances ( ,

(1) Here, is the reference impedance, is the radian center frequency, is the 3-dB bandwidth, and is the element value of the low-pass filter prototype [17]. In order to maintain the resonators at the center frequency , the input impedance in Fig. 3(b) should satisfy the resonance

condition ( or , which implies

(2) When or at certain frequencies, the series open stubs in Fig. 3(b) are open circuited such that the trans-mission zeros may be created at those frequencies. Thus, the stub lengths ( , ) can be designed to adjust the locations of the transmission zeros.

B. Transmission Zeros

To examine the effect of the shortened coupled sections for the filter in Fig. 2, the simulated insertion loss responses of the microstrip coupled-line sections with different electrical lengths at GHz are shown in Fig. 4. For the ideal case in which the even- and odd-mode electrical lengths are equal , the response for the coupled-line section of at has an inherent transmission zero at , while that for the case of has an inherent transmission zero at . For the practical microstrip coupled line, the inherent transmission zero moves to higher frequencies due to the unequal even- and odd-mode phase constants [11]. As shown in Fig. 4, the mi-crostrip coupled-line section of would have an in-herent transmission zero at around . Therefore, by taking advantage of the inherent transmission zeros associated with the coupled-line sections, the coupled-line lengths and in

Fig. 4. Adjustment of the electrical length (atf = 2 GHz) of microstrip coupled-line section to vary the location of inherent transmission zero. (w = 2:5 mm, s = 0:5 mm, substrate dielectric constant " = 3:38, thickness = 1:32 mm.)

Fig. 5. Curves to relate the frequency of inherent transmission zero to the lengthl of microstrip coupled-line section.

Fig. 2 may properly be chosen such that these inherent trans-mission zeros fall around for suppression of the spurious passband. After and are fixed, two additional transmission lines should be added to compensate for the required electrical length of the resonator filter in Fig. 2 such that

.

The location of inherent transmission zero associated with the microstrip coupled-line section may properly be adjusted by its geometrical parameters, as illustrated in Fig. 5. Specifi-cally, Fig. 5 shows the simulated curves to relate the frequency of inherent transmission zero to the length of the coupled-line section with its spacing and width as parameters. Among these three parameters, the length of the coupled-line sec-tion has much more influence on the inherent transmission-zero frequency, therefore, it would be the major parameter to con-trol the location of the inherent transmission zero. In particular, the inherent transmission-zero frequency increases as the cou-pled-line length decreases, as described in Fig. 5, which will be used in the design of a filter for stopband extension.

The cross-coupled capacitor of the proposed filter structure in Fig. 2 is used to create a second cross-coupled path, along which the signal would cancel the one traveling along the main

Fig. 6. (a) Simulated responses of the filter circuit model (Fig. 2) for various values ofC. (b) Curves to relate the cross-coupled-induced transmission-zero frequencies to the values ofC. ( = 51:8 ,  = 35 ,  = 61:8 ,  = 25 , L = 0:22 nH, Z = 69 , Z = 39 , Z = 66:3 , Z = 39:8 .)

path at two frequencies such that two additional cross-coupled-induced transmission zeros may be created [14]–[16] for an im-provement of filter selectivity. The locations of these cross-cou-pled-induced transmission zeros may be controlled by suitably adjusting the value of cross-coupled capacitance . Fig. 6(a) shows the simulated responses of the filter circuit model in Fig. 2 for which the center frequency is designed at 2 GHz. Specif-ically, the two cross-coupled-induced transmission zeros will move toward the center frequency as the value of increases. Fig. 6(b) also shows the curves to relate the frequencies of cross-coupled-induced transmission zeros to the values of cross-cou-pled capacitance . Based on these information, one may suit-ably choose the value of so that the locations of these cross-coupled-induced transmission zeros may be adjusted for the de-sired selectivity.

C. Filter Implementation and Results

All proposed filter structures are implemented using the microstrip configuration, and are fabricated on the Rogers

RO4003c substrate ( , , and thickness

mm).

The design procedures for the proposed second-order filter (Fig. 2) may be summarized as follows. First, according to the spurious harmonic frequencies to be suppressed, the required electrical lengths ( , ) are obtained.

Fig. 7. Layout of the proposed second-order microstrip coupled-line bandpass filter with shortened coupled sections for stopband extension. (W = 2:5 mm, S = 0:5 mm, l = 17 mm, W = 3:1 mm, l = 4:4 mm, W = 2:6 mm, S = 0:55 mm, l = 18 mm, W = 3:1 mm, l = 4:4 mm, d = 1 mm, and g = 0:4 mm.)

Second, the coupled-line impedances

are determined from (1) and (2) and the given filter specifica-tions. Note that (1) is satisfied when is nearly equal to , hence, the upper 3-dB radian frequency is used in the computation.

Third, the required -inverter value in Fig. 3(b) is ob-tained based on the filter specifications through the conventional filter synthesis techniques, and from this , the value of shunt inductance may then be determined [19].

Fourth, the value of cross-coupled capacitance is also de-termined by the desired locations of two transmission zeros. Fi-nally, a fine-tuning based on an electromagnetic (EM) simulator such as HFSS is required to suitably suppress the spurious pass-band and maintain the main passpass-band performance. A filter with wider stopband and a sharper falloff at the passband edges may then be achieved.

Shown in Fig. 7 is the layout of the proposed second-order mi-crostrip coupled-line bandpass filter based on the circuit model in Fig. 2. The shunt inductor is implemented by a metal via to ground. The via-diameter is determined by the required value based on the closed-form expressions in [20]. The coupled-line sections are arranged like the modified parallel-coupled filter in [2] such that the cross-coupled capacitor can be realized by the gap-coupled capacitance between the open-ends of two coupled-line sections. In order to achieve the desired amount of cross-coupling, the two coupled-line sections are bent by an angle of 90 . Note that the coupled-line sections should be suit-ably shortened so that their inherent transmission zeros are lo-cated around .

The filter is designed with a center frequency of 2 GHz, a 3-dB bandwidth of 9.3%, according to a second-order maxi-mally flat response. The corresponding circuit parameters are

obtained as follows: , ,

, , , at 2 GHz, and

nH. The two coupled-line lengths and are made slightly different so as to improve and smooth the harmonic

re-Fig. 8. Measured and simulated results for the proposed second-order microstrip bandpass filter in Fig. 7. (a) Narrow- and (b) wide-band frequency responses.

Fig. 9. Layout of the fourth-order microstrip coupled-line bandpass filter in [16].

Fig. 10. Layout of the proposed fourth-order microstrip coupled-line bandpass filter with shortened coupled sections for stopband extension. (W = 1 mm, S = 0:3 mm, l = 16 mm, W = 3:4 mm, l = 4:4 mm, W = 1 mm, S = 0:4 mm, l = 17 mm, W = 3:4 mm, l = 4:4 mm, W = 3 mm, S = 3 mm, l = 19 mm, W = 3:4 mm, l = 0:5 mm, l = 0:8 mm, l = 1:35 mm, d = 0:7 mm, and  = 40 .)

jection. The geometrical parameters are then obtained by fine tuning in HFSS, and are given in Fig. 7.

The measured and simulated results are shown in Fig. 8. The measured center frequency is at 1.98 GHz. The minimum mea-sured insertion loss is 1.16 dB at 1.99 GHz, and the 3-dB

band-Fig. 11. Circuit model of the fourth-order coupled-line filter in Fig. 10.

Fig. 12. Equivalent-circuit model for the proposed fourth-order coupled-line filter in Fig. 11 without the cross-coupling effect. Here,(Z ; Z ), (J ; J ), and (K ; K ) are defined inFig. 3, and (Z ; J ) are defined inFig. 13.

Fig. 13. Equivalence between: (a) coupled-line section and (d) theJ-inverter with two series open stubs. (Z = (Z 0 Z )=2, Z = (Z + Z )=2, J = j sin  =Z j.)

width is 10%. The spurious responses are suppressed up to due to the use of shortened coupled-line sections, and the har-monic rejection is better than 25 dB in the measured results. Two cross-coupled-induced transmission zeros are observed at 1.51 and 2.52 GHz, as expected. Good agreement between measured and simulated results is observed, except for a slight frequency shift.

III. FOURTH-ORDERFILTER

To further improve the filter response, a novel fourth-order filter is implemented. For comparison, Fig. 9 shows the layout of the fourth-order microstrip filter discussed in [16] in which three coupled-line sections are used along with two shunt in-ductors to realize the -inverters. Based on the principle of shortening the coupled-line sections, a novel fourth-order mi-crostrip coupled-line bandpass filter with the layout shown in Fig. 10 is proposed so as to improve the stopband rejection. The corresponding circuit model is shown in Fig. 11. Two trans-mission zeros at the upper and lower stopbands would be cre-ated by the cross-coupled capacitors in Fig. 11. Similarly, the cross-coupled capacitor can be realized by the gap-coupled capacitance between the open-ends of coupled-line sections. In order to achieve the desired amount of cross-coupling, the cou-pled-line sections are bended by an angle of 40 . The lengths

of the coupled-line sections are shortened again with additional transmission-line sections included so that the harmonics may be suppressed. The third harmonic response is suppressed by ad-justing the lengths and of the coupled-line sections. Here, the lengths and are made slightly different so that the stop-band rejection may be improved and smoothed. The fifth har-monic response is suppressed by the proper choice of the length

of coupled-line sections.

By neglecting the series cross-coupled capacitors again, i.e., , the equivalent-circuit model for the proposed fourth-order coupled-line filter in Fig. 11 may be depicted in Fig. 12. As described in Section II-A, the input/output open-ended cou-pled-line sections of length and in Fig. 11 may be modeled by the -inverters ( and ) along with the series open stubs of characteristic impedances and . Besides, each shunt inductor with two transmission-line sections of characteristic impedance and length at its two sides may be equiva-lent to a -inverter ( or ). The equivalence between the interstage coupled-line section of length in Fig. 11 and the

-inverter in Fig. 12 may be demonstrated in Fig. 13. The interstage open-ended coupled-line section of length in Fig. 13(a) may be modeled by a transmission-line section of

characteristic impedance and length

with two series open stubs of characteristic impedance and length at its two ends, as shown in Fig. 13(b) [21]. Each

Fig. 14. Measured and simulated results for the proposed fourth-order microstrip bandpass filter in Fig. 10. (a) Narrow- and (b) wide-band frequency responses.

open stub of characteristic impedance and length in Fig. 13(b) is further split into two open stubs of characteristic

impedances and

, as shown in Fig. 13(c). The transmission-line section of in Fig. 13(c) is then combined with the two series stubs of to form the -inverter , as shown in

Fig. 13(d), where .

The fourth-order filter (Fig. 10) is designed with a center frequency of 2.07 GHz, 3-dB bandwidth of 10%, according to a fourth-order maximally flat response. The corresponding circuit parameters are obtained as follows: ,

, , , ,

, , , at 2 GHz,

and nH. The geometrical parameters are obtained by fine tuning in HFSS and are given in Fig. 10.

The measured and simulated results are shown in Fig. 14. The measured center frequency is at 2.03 GHz. The minimum measured insertion loss is 1.6 dB at 2.07 GHz, and the 3-dB bandwidth is 10.8%. The spurious responses are suppressed up to , and the harmonic rejection is better than 30 dB from 2.35 14.8 GHz. Here, the microstrip coupled-line of length in Fig. 11 has a higher order inherent transmission zero around 13.5 GHz such that the spurious response at is also slightly suppressed. Two cross-coupled-induced transmission zeros are found at 1.59 and 3.28 GHz, as expected. Good agreement be-tween measured and simulated results is observed, except for a slight frequency shift.

Fig. 15. Comparison of measured response for the proposed filter structure in Fig. 10 with that for the one in Fig. 9 [16] and that for the conventional parallel coupled-line filter.

To demonstrate the behavior in suppressing the spurious har-monics, Fig. 15 compares the measured response of the pro-posed filter in Fig. 10 with that of the filter structure in Fig. 9 [16] and that of the conventional parallel coupled-line filter. Note that great improvement on the spurious rejection has been achieved with almost the same circuit area. The total length of the pro-posed filter is only long, which is more compact than that of the filter in [13].

IV. CONCLUSIONS

In this paper, a class of novel microstrip coupled-line band-pass filters with shortened coupled sections to extend the rejec-tion band has been proposed and carefully examined. By using the inherent transmission zeros associated with the shortened coupled sections to suppress the spurious responses, a filter with extended rejection band can be achieved. This technique has the advantage of compact circuit size without increasing the inser-tion loss. Two microstrip coupled-line bandpass filters based on the shortened coupled sections have been implemented. Specif-ically, the second- and fourth-order bandpass filters have been designed with the rejection band extended up to and , respectively. In addition, two cross-coupled-induced transmis-sion zeros at the upper and lower stopbands have been intro-duced such that the filter selectivity may be improved. The pro-posed bandpass filters feature compact size, low loss, and are useful for applications in the communication system designs when high selectivity and good stopband rejection are required.

REFERENCES

[1] B. Easter and K. A. Merza, “Parallel-coupled-line filters for inverted-microstrip and suspended-substrate MICs,” in 11th Eur. Microw. Conf. Dig., 1981, pp. 164–167.

[2] C.-Y. Chang and T. Itoh, “A modified parallel-coupled filter structure that improves the upper stopband rejection and response symmetry,” IEEE Trans. Microw. Theory Tech., vol. 39, no. 2, pp. 310–314, Feb. 1991.

[3] I. J. Bahl, “Capacitively compensated high performance parallel coupled microstrip filters,” in IEEE MTT-S Int. Microw. Symp. Dig., 1989, pp. 679–682.

[4] A. Riddle, “High performance parallel coupled microstrip filters,” in IEEE MTT-S Int. Microw. Symp. Dig., 1988, pp. 427–430.

[5] J.-T. Kuo, W.-H. Hsu, and W.-T. Huang, “Parallel coupled microstrip filters with suppression of harmonic response,” IEEE Microw. Wireless Compon. Lett., vol. 12, no. 10, pp. 383–385, Oct. 2002.

[6] T. Lopetegi, M. A. G. Laso, J. Hernandez, M. Bacaicoa, D. Benito, M. J. Garde, M. Sorolla, and M. Guglielmi, “New microstrip ‘wiggly-line’ fil-ters with spurious passband suppression,” IEEE Trans. Microw. Theory Tech., vol. 49, no. 9, pp. 1593–1598, Sep. 2003.

[7] J.-T. Kuo and M. Jiang, “Suppression of spurious response for microstrip bandpass filters via substrate suspension,” in Asia–Pacific Microw. Conf., 2002, pp. 498–500.

[8] J.-T. Kuo, M. Jiang, and H.-J. Chang, “Design of parallel-coupled mi-crostrip filters with suppression of spurious resonances using substrate suspension,” IEEE Trans. Microw. Theory Tech., vol. 52, no. 1, pp. 83–89, Jan. 2004.

[9] M. d. C. Velazquez-Ahumada, J. Martel, and F. Medina, “Parallel cou-pled microstrip filters with ground-plane aperture for spurious band sup-pression and enhanced coupling,” IEEE Trans. Microw. Theory Tech., vol. 52, no. 3, pp. 1082–1086, Mar. 2004.

[10] J. Garcia-Garcia, F. Martin, F. Falcone, J. Bonache, I. Gil, T. Lopetegi, M. A. G. Laso, M. Sorolla, and R. Marques, “Spurious passband sup-pression in microstrip coupled line band pass filters by means of split ring resonators,” IEEE Microw. Wireless Compon. Lett., vol. 14, no. 9, pp. 416–418, Sep. 2004.

[11] J.-T. Kuo, S.-P. Chen, and M. Jiang, “Parallel-coupled microstrip filters with over-coupled end stages for suppression of spurious responses,” IEEE Microw. Wireless Compon. Lett., vol. 13, no. 10, pp. 440–442, Oct. 2003.

[12] S.-M. Wang, C.-H. Chi, M.-Y. Hsieh, and C.-Y. Chang, “Miniaturized spurious passband suppression microstrip filter using meandered parallel coupled lines,” IEEE Trans. Microw. Theory Tech., vol. 53, no. 2, pp. 747–753, Feb. 2005.

[13] J.-T. Kuo and E. Shih, “Microstrip stepped impedance resonator band-pass filter with an extended optimal rejection bandwidth,” IEEE Trans. Microw. Theory Tech., vol. 51, no. 5, pp. 1554–1559, May 2003. [14] Y.-S. Lin and C. H. Chen, “Novel balanced microstrip coupled-line

bandpass filters,” in URSI Int. Electromagn. Theory Symp., 2004, pp. 567–569.

[15] C.-H. Wang, Y.-S. Lin, and C. H. Chen, “Novel inductance-incorporated microstrip coupled-line bandpass filters with two attenuation poles,” in IEEE MTT-S Int. Microw. Symp. Dig., 2004, pp. 1979–1982.

[16] Y.-S. Lin, C.-H. Wang, C.-H. Wu, and C. H. Chen, “Novel compact parallel-coupled microstrip bandpass filters with lumped-element K-inverters,” IEEE Trans. Microw. Theory Tech., vol. 53, no. 7, pp. 2324–2328, Jul. 2005.

[17] G. L. Mattaei, L. Young, and E. M. T. Jones, Microwave Filters, Impedance-Matching Networks, and Coupling Structures. Norwood, MA: Artech House, 1980.

[18] D. M. Pozar, Microwave Engineering, 2nd ed. New York: Wiley, 1998. [19] G. L. Mattaei, “Direct-coupled, bandpass filters with =4resonators,”

in IRE Nat. Conv. Rec., 1958, pp. 98–111.

[20] A. E. Ruehli, “Inductance calculations in a complex integrated circuit environment,” IBM J. Res. Develop., vol. 16, pp. 470–481, Sep. 1972. [21] G. L. Matthaei, “Design of wide-band (and narrow-band) bandpass

mi-crowave filters on the insertion loss basis,” IRE Trans. Microw. Theory Tech., vol. MTT-8, no. 11, pp. 580–593, Nov. 1960.
