國
立
交
通
大
學
半導體材料與製程產業研發碩士專班
碩 士 論 文
高耐熱透明聚醚醯亞胺之合成及其應用於可撓式元件
界面接著性探討
High Tg, transparent BAPP-ODPA polyimide for flexible
device applications: Its synthesis, properties, and ITO/PI
adhesion improvement
研 究 生：黃少農
指導教授：呂志鵬 博士
高耐熱透明聚醚醯亞胺之合成及其應用於可撓式元件界面接著性探討 High Tg, transparent BAPP-ODPA polyimide for flexible device applications: Its
synthesis, properties, and ITO/PI adhesion improvement
研 究 生：黃少農 Student：Shao-Nung Huang 指導教授：呂志鵬 Advisor：Dr. Jihperng (Jim) Leu
國 立 交 通 大 學
半導體材料與製程產業研發碩士專班 碩 士 論 文
A Thesis
Submitted to Industrial Technology R&D Master Program on Semiconductor Materials and Processes College of Engineering
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Industrial Technology R&D Master Program on SemiconductorMaterials and Processes
February 2009
Hsinchu, Taiwan, Republic of China
高耐熱透明聚醚醯亞胺之合成及其應用於可撓式元件界面接著性探討 學生:黃少農 指導教授:呂志鵬 博士 國立交通大學半導體材料與製程產業研發碩士班
摘 要
隨著全球化跨國商務與旅遊驟增，消費者對產品之輕量性、機動性和多功能 性等需求、已經帶動新世代IC 產品組裝於軟性基板上，例如電子紙、衛星內可撓 性的太陽能電池以及行動電話和數位相機的軟性電子組件等。雖然這些可撓性軟 性基板材料具有不錯的性質，然而也有某些限制和問題急需克服，諸如過高的熱 膨脹係數(CTE)、較低的玻璃轉換溫度(Tg)、較低的加工溫度、較高的氧氣和水穿 透率、元件的老化以及其與障礙層、硬膜（hard coat）或者透明的導電層等多層結 構的黏著力(adhesion)等。 因此本論文分為兩大部分: (一) 針對可撓性軟性基板因具較低的玻璃轉換溫 度(Tg) 而 使 得 後 續 製 程 加 工 溫 度 受 到 限 制 之 問 題 ， 使 用 兩 種 高 分 子 單 體 (4,4'-oxydiphthalic anhydride，ODPA 和 2,2'-bis[4-(4-aminophenoxy)phenyl]propane， BAPP)開發具高穿透度、高玻璃轉換溫度和熱穩定性佳的聚亞醯胺薄膜，來克服可 撓式元件當前所遭遇到的問題; (二) 可撓性產品因多層結構中彼此的材料性質迥 異，如熱膨脹係數的差異，造成層與層間因黏著力不佳而發生彼此剝離的現象， 此現象導致可撓性產品使用壽命與可靠度下降。所以提昇可撓性產品結構中層與 層間的黏著性，是當前一個非常重要的課題。在本研究中利用氧氣電漿改質新穎 聚亞醯胺薄膜表面的方法，改變新穎聚亞醯胺薄膜表面之化學鍵結狀態與組成成 分，藉此提升透明導電層(氧化銦錫)與所合成之新穎聚亞醯胺兩者間的界面黏著 性，提高可撓式產品之使用壽命與可靠度。 研究結果顯示，由於因共軛而互相堆疊的苯環會吸收可見光的藍光波段，造 成聚亞醯胺薄膜呈現出黃褐顏色，但此現象也造成聚亞醯胺鏈間彼此相互吸引， 使得聚亞醯胺具有良好的物性。本研究中所選用的高分子單體BAPP 與 ODPA，它們分別具有丙烷基與醚基，藉此可以達到降低或消除苯環間電荷轉移(Charge Transfer)的現象和提升材料之可撓性，使得其所聚合成之新穎聚亞醯胺薄膜在厚度 為80um 時，其透光度可達到 98%以及 230℃和 495℃的玻璃轉換溫度和熱裂解溫 度。 在第二部份裡，本研究利用 X 射線光電子能譜(XPS)鑑定聚亞醯胺薄膜表面 的化學狀態改變。並使用四點彎曲抗折儀器(four-point bending)來量測氧化銦錫與 新穎聚亞醯胺界面黏著性。研究結果顯示，聚亞醯胺的表面經過氧氣電漿改質過
後，新穎聚亞醯胺表面的C-OH 鍵結成分大幅增加，因而提供孤對電子(lone pair)
作為載體(donor)，與氧化銦錫中的金屬原子(銦、錫)形成共軛共價鍵，而使得其與
氧化銦錫界面的黏著力由未處理時之3.01 J/m2提升至8.7 J/m2 。因而證實氧氣電
High Tg, transparent BAPP-ODPA polyimide for flexible device applications: Its synthesis, properties, and ITO/PI adhesion improvement
Student: Shao-Nung Huang Advisor: Dr. Jihperng (Jim) Leu
Industrial Technology R&D Master Program on Semiconductor Materials and Processes
National Chiao Tung University
Abstract
As the progress of globalization makes the world flat, the desire for lightweight, mobility, and versatility has energized a sleuth of new IC products mounted onto flexible substrates, such as e-paper, flexible solar cell in satellite, or key components using plastic substrate sin cell phones and digital cameras. While these materials offer many attractive features, they also impose limitations and challenges such as high CTE, lower Tg, low processing temperatures, problematic adhesion strength in the multiple film stacking (with barrier, hard coat, or conductive transparent oxides), high O2 and water permeation, and device degradation.
Thus, there are two objections in this thesis: (1) To develop a novel flexible, polyimide substrate with high Tg in order to enable higher processing temperatures for better electric performance. A novel and transparent polyimide has been synthesized by
using 4,4'-oxydiphthalic anhydride (ODPA) and 2,2'-bis[4-(4-aminophenoxy)phenyl]propane (BAPP). (2) Due to dissimilar materials
properties (E, CTE and Poisson ratio), flexible devices may induce to delaminate between layers. The behavior will decrease the lifetime of devices and low the reliability. Therefore, the adhesion of multiple-layered structure used in the typical flexible devices
is a critical reliability issue. In this thesis, oxygen plasma was used to modify the surface chemical states of BAPP-ODPA polyimide. The surface modification method had enhanced the adhesion at ITO and BAPP-ODPA polyimide interface. For purpose, it could improve the lifetime and reliability of flexible devices.
According to the research, the coloration of polyimide had higher light absorption at 400 nm due to the conjugation of benzene rings in stacked packing. However, the transparency of the BAPP-ODPA polyimide in the visible region was found to be 98 % because the ether linkage and bulky group in BAPP and ODPA monomers destroyed benzene stacking to minimize or eliminate charge transfe. Moreover, the BAPP-ODPA polyimide demonstrated superior thermal stability with Td at 495 and a glass ℃ transition temperature of 230 .℃
In the second part, the surface of BAPP-ODPA polyimide was modified by oxygen plasma and the changes of surface chemical states were characterized by X-ray Photoelectron Spectroscopy (XPS). The interfacial adhesive strength was determined by four-point bending system. According to the XPS results, the component ratio of C-OH increased in a great quantity by oxygen plasma. The adhesive strength of un-treatment polyimide/ITO was 3.01 J/m2. After oxygen plasma treatment, the interfacial adhesion had obviously increased to 8.7 J/m2. We could suggest that the adhesion of ITO/BAPP-ODPA polyimide improved with the increase of C-OH. The force of coordinate covalent bond was explained to help the improvement of interfacial adhesion. Because the oxygen element in C-OH bond provided a lone pair as donor to attract the metal elements in ITO structure (In, Sn), the interfacial adhesive strength between ITO and BAPP-ODPA polyimide had definitively improved by oxygen plasma treatment.
Acknowledgements
終於可以換我寫誌謝了，時間真的過的很快，才一轉眼已經來這間實驗室兩 年多了，首先最感謝呂志鵬老師不厭其煩的教導，沒有你的砥礪沒有今天站在這 裡的我，真的發自內心的感謝。並感謝清大廖建能教授與交大潘福民教授於口試 期間，細心且親切的指正本論文疏失缺漏之處，並提供許多寶貴意見，使本論文 更加完整。 在這兩年多的研究生活中，誠摯感謝國源學長與幸玲學姊不厭其煩的指導 我，讓對有機化學一竅不通的我，能略窺門徑。感謝NIP 實驗室同甘共苦的夥伴 們，昱涵學長、泰印學長、牧龍學長、明義學長、弘恩學長、王智學長和柏村學 長的陪伴與胡鬧，還有林宏洲實驗室的梁宗琦學長，我會記得每次熬夜奮鬥與球 場熱血的日子，以及施雅學妹、茹瑛學妹、晉誠學弟、婉婷學妹、柏政學弟及瑜 修學弟的沒幫上什麼忙，但至少帶給我歡樂。這裡真的很友善也很親切，大家都 像一家人，只是這次剛好換我離開，不過我知道這不是一個結束，因為還有你們。 最後，我要特別給我的家人與女友詩盈一個大大的擁抱，沒有你們一路默默 支持，我無法完成這篇論文，除了謝謝與感恩，沒有更美好的形容詞了，在此我 附上我最真摯的感激。Contents
摘 要...iii Abstract... v Acknowledgements...vii Contents ...viii List of Tables... x List of Figures...xii Chapter 1 Introduction... 1 1.1 Background ... 1 1.2 Overview ... 5Chapter 2 Literature Review ... 6
2.1 Introduction of Flexible Devices ... 6
2.1.1 Varieties of Flexible Substrates... 8
2.1.2 Requirements of Polymer substrates... 11
2.1.3 Synthesis of High Tg, Transparent Polyimide Substrate ... 13
2.1.3.1 Polyimide of alicyclic dianhydride and aliphatic diamine... 13
2.1.3.2 Polyimide of aliphatic diahydride and alicyclic diamine... 15
2.1.3.3 Polyimide of aromatic diahydride and diamine [37] ... 18
2.3 Methods to Improve the Reliability of Flexible Devices... 20
2.3 Analysis of thin-film interfacial strength ... 23
Chapter 3 Experimental ... 28
3.1 Sample Preparation ... 28
3.1.1 Synthesis of Polyimide ... 28
3.1.2 Plasma Surface Modification of Polyimide ... 32
3.1.3 Indium tin oxide layer deposition ... 32
3.1.4 Samples preparation for four-point bending adhesion test ... 34
3.2 Experimental Procedures ... 38
3.3 Instrumentation ... 40
3.3.2 Differential Scanning Calorimetry (DSC) ... 40
3.3.3 Thermo-Gravimetric Analysis (TGA) ... 42
3.3.4 Ultraviolet-Visible (UV-Vis) spectroscopy... 43
3.3.5 Reactive Ionic Etching (RIE)... 43
3.3.6 X-ray Photoelectron Spectroscopy (XPS) ... 44
3.3.6.1 Surface Chemical States Analysis of BAPP-ODPA Polyimide by XPS... 46
3.3.7 Four-Point Bending System... 48
Chapter 4 Results and Discussion ... 50
4.1 Synthesis and Characterization of Polyimide ... 50
4.1.1 ODPA purity... 50
4.1.2 The effects of solvent of anhydrous or hydrous DMAc for film-forming ability ... 50
4.1.3 Structural Analysis by FTIR Spectroscopy... 52
4.1.4 Transmittance in UV-Vis... 54
4.1.5 Thermal Properties of BAPP-ODPA Polyimide ... 56
4.1.5.1 The glass transition temperature (Tg) measured by differential Scanning Calorimetry (DSC)... 56
4.1.5.2 Thermo-Gravimetric Analysis (TGA) ... 57
4.2 XPS analysis of surface chemical states of BAPP-ODPA polyimide ... 59
4.3 Adhesion of ITO/Polyimide Interface ... 72
Table 4.10 The critical loads and adhesion strength of various ITO/BAPP-ODPA polyimide samples (untreated and plasma-treated) based on 5 valid measurement data ... 75
4.4 Discussion ... 76
4.4.1 Characteristic properties of BAPP-ODPA polyimide ... 76
4.4.1.1 Transparency... 76
4.4.1.2 Thermal stability... 77
4.4.1.3 Transparency vs. Thermal stability... 78
4.4.2 Surface chemical states of BAPP-ODPA polyimide... 79
4.4.3 Surface chemical states vs. interfacial adhesion ... 84
List of Tables
Table 2.1 Properties of typical polymeric films as plastic substrates. ... 12 Table 2.2 The thermal and optical properties of polyimides based on CBDA and
alicyclic dianhydride... 16 Table 2.3 Glass transition temperatures (Tg) and initial thermal decomposition
temperatures (Td) of alicyclic polyimides ... 18 Table 2.5 Values of the pull strength, surface roughness and increased chemical states in
copper/polyimides samples... 21 Table 3.1 Chemical structures and transmission of two transparent polyimides... 29 Table 3.2 Chemical structures and molecular weights of ODPA and BAPP monomers 30 Table 3.3 Experimental conditions for oxygen plasma pre-treatment of BAPP-ODPA
polyimide films ... 32 Table 3.4 Experimental parameters for ITO film deposition... 33 Table 4.1 Absorption peak positions of four types of chemical bonds. ... 52 Table 4.2 Main components and their binding energies in C 1s and O 1s XPS signals of
BAPP-ODPA polyimide... 62 Table 4.3 Experimental conditions for plasma pre-treatment surface of BAPP-ODPA
polyimides... 62 Table 4.4 Carbon 1s spectrum: binding energies and composition quantification of
untreated BAPP-ODPA polyimide film. ... 63 Table 4.5 Carbon 1s spectrum: binding energies and composition quantification of
BAPP-ODPA polyimide film modified by oxygen plasma at a RF Power of 50W.63 Table 4.6 Carbon 1s spectrum: binding energies and composition quantification of
BAPP-ODPA polyimide film modified by oxygen plasma at a RF Power of 100W. ... 64 Table 4.7 Oxygen 1s spectrum: binding energies and composition quantification of
untreated BAPP-ODPA polyimide film. ... 68 Table 4.8 Oxygen 1s spectrum: binding energies and composition quantification of
BAPP-ODPA polyimide film modified by oxygen plasma at a RF Power of 50W.68 Table 4.9 Oxygen 1s spectrum: binding energies and composition quantification of
BAPP-ODPA polyimide film modified by oxygen plasma at a RF Power of 100W. ... 68 Table 4.11 The average and standard deviation values for three different ITO/PI samples
... 76 Table 4.12 The component ratios of BAPP-ODPA polyimide surface of untreated film
Table 4.13 The component ratios of BAPP-ODPA polyimide surface of un-treat film and modified films under various conditions in oxygen 1s... 81 Table 4.14 Binding energies of typical chemical bonds. ... 82 Table 4.14 The component ratios of C-OH in C and O 1s versus adhesion strength ... 85
List of Figures
Figure 1.1 The charge transfer occurred in a traditional polyimide. Dash line indicated inter-molecular charge transfer, while solid line illustrated intra-molecular charge
transfer. ... 2
Figure 1.2 Delamination was occurred between layers due to the residual stress... 4
Figure 2.1 Global flexible display revenues forecast ... 7
Figure 2.2 Sony’s flexible, full-color OLED Display... 7
Figure 2.3 TFT/OLED were on the steel foil substrate. ... 9
Figure 2.4 Device structure of the plastic solar cell and its substrate was glass ... 10
Figure 2.5 Structure of TTFT fabricated on PET substrate ... 10
Figure 2.6 The synthesized of polyimides from aliphatic diamine and alicyclic diahydride ... 14
Figure 2.7 The synthetic of polyimides from aliphatic diahydride and alicyclic diamine ... 17

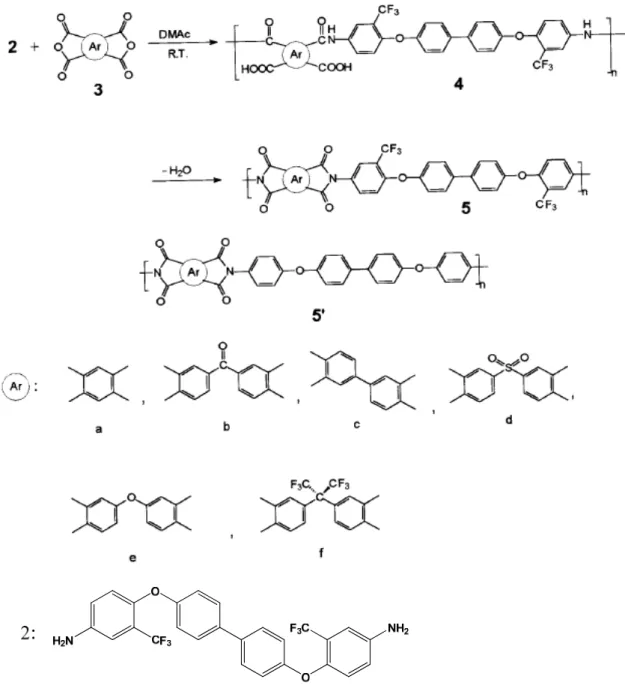

Figure 2.8 Synthesis of the fluorinated polyimides and various aromatic dianhydrides 19 Figure 2.9 Peel strength of sputtered copper to (a) unmodified and argon plasma–modified Kapton E(N) and (b) unmodified and argon plasma–modified Upilex S plotted with various duration times for argon plasma modification... 22
Figure 2.10 Effect of Ar plasma-pretreatment time of the PTFT film on the graft concentration and the T-peel adhesion strength of the ITO/GMA/PTFE assembly. ... 23
Figure 2.11 The common techniques for measuring the interfacial strength... 25
Figure 2.12 Three different fracture modes ... 25
Figure 2.13 Macroscopic adhesion of fracture ... 26
Figure 2.14 Adhesion depending on the fracture phase angle ... 27
Figure 3.1 Reaction steps in the synthesis of BAPP-ODPA polyimide... 31

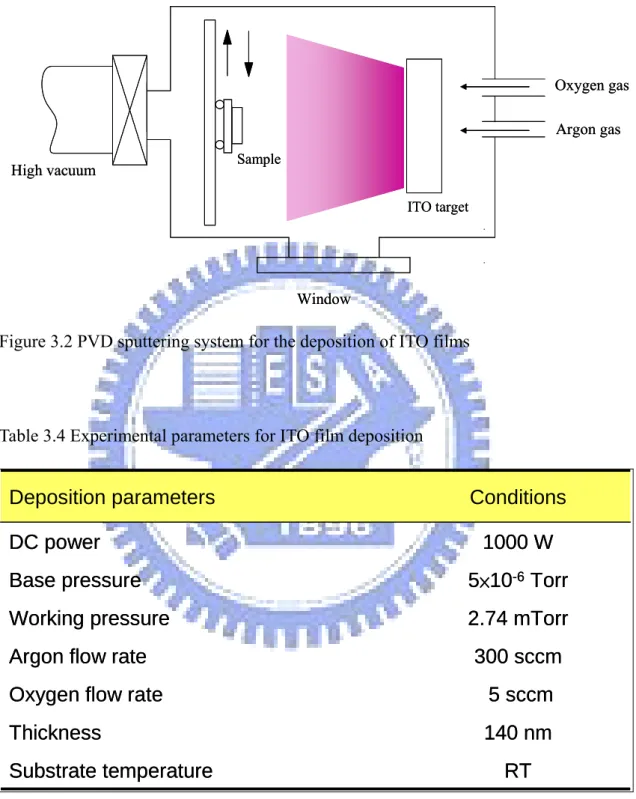

Figure 3.2 PVD sputtering system for the deposition of ITO films... 33

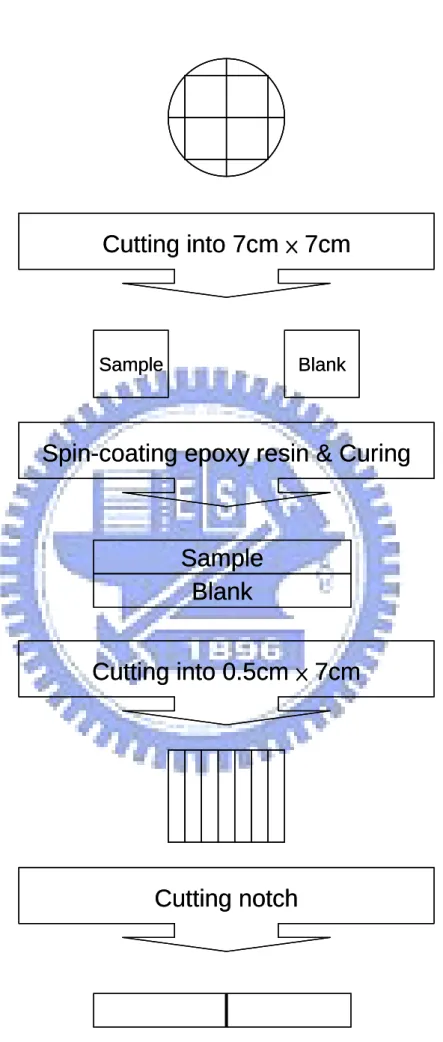

Figure 3.3 Preparation process steps of a sandwich sample for 4-point bending test .... 35
Figure 3.4 C-clamp and small clamps for fixing the sample ... 36
Figure 3.5 The stacking structure of sandwich sample for measuring the adhesion of ITO/polyimide interface... 36
Figure 3.6 (a) Schematic drawing of four-point bend test sample and (b) a typical load vs. displacement curve for four-point bend test. ... 37
Figure 3.7 Flow-chart of experimental procedures... 39
Figure 3.8 Heat Flux DSC ... 41
Figure 3.10 The principle of photoelectron generation ... 45
Figure 3.11 The XPS instrument and its principle. (Not clear to me about the principles) ... 46
Figure 3.12 The XPS Peak Fitting program ... 47

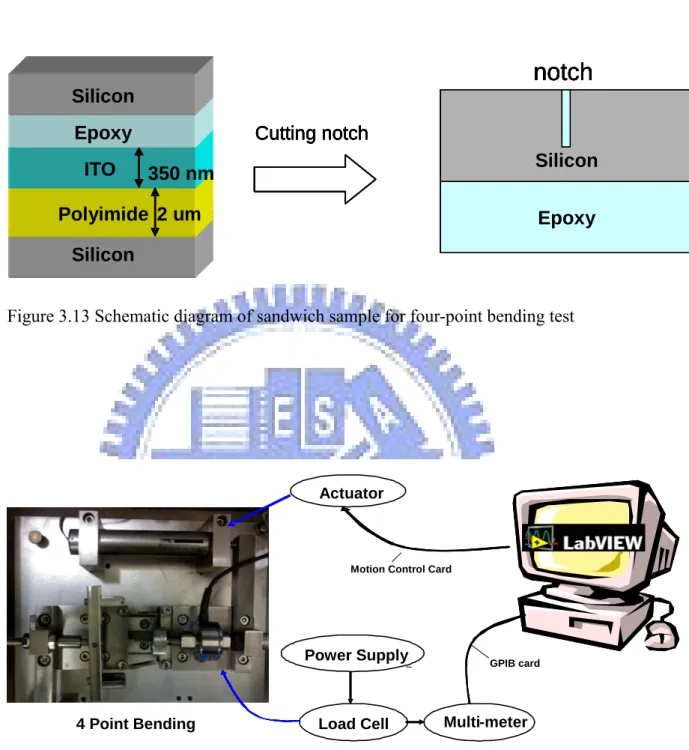

Figure 3.13 Schematic diagram of sandwich sample for four-point bending test ... 49
Figure 3.14 Schematic diagram of micro-mechanical test system ... 49
Figure 4.1 ODPA reacted easily with moisture in the atmosphere to form a dicarboxylic acid... 50
Figure 4.2 The BAPP-ODPA polyimide was brittle when a hydrous DMAc solvent was used. ... 51
Figure 4.3 The BAPP-ODPA polyimide was tough and useful when an anhydrous DMAc solvent was used. ... 51
Figure 4.4 The FT-IR spectra of BAPP-ODPA polyimides cured at low (60 oC) and high temperature (250 oC)... 53
y-axis: Absorbance (arb. unit)... 53
Figure 4.5 The BAPP-ODPA poly(amic acid) was dehydrated to form polyimide upon heating... 54
Figure 4.6 The photographs of traditional polyimide and BAPP-ODPA polyimide illustrating their difference in transmission rate ... 55
Figure 4.7 The UV-visible spectra of BAPP-ODPA and traditional polyimide films at 80 m ... 56
Figure 4.8 DSC curves of BAPP-ODPA polyimide in two heating scans. Tg was determined in 2nd heating scan at a 20 ℃/min heating/cooling rate... 57
Figure 4.9 The TGA curve of BAPP-ODPA polyimide under nitrogen at a heating rate of 20 ℃/min... 58
Figure 4.10 Binding states of the (a) carbon and (b) oxygen atoms in the repeating unit of BAPP-ODPA. ... 61
Figure 4.11 The XPS C 1s spectra of untreated BAPP-ODPA polyimide films... 65
Figure 4.12 The XPS C 1s spectra of BAPP-ODPA polyimide film plasma modified at a RF power of 50W... 66
Figure 4.13 The XPS C 1s spectra of BAPP-ODPA polyimide film plasma modified at a RF power of 100W... 67
Figure 4.14 The XPS O 1s spectra of untreated BAPP-ODPA polyimide films ... 69
Figure 4.15 The XPS O 1s spectra of BAPP-ODPA polyimide film at a RF power of 50W. ... 70
Figure 4.16 The XPS O 1s spectra of BAPP-ODPA polyimide film at a RF power of 100W. ... 71 Figure 4.17 Load-displacement graph of ITO/untreated PI sample under 4-point bending
test... 73 Figure 4.18 Surface morphology of (a) ITO (b) BAPP-ODAP polyimide thin film (c)
Epoxy resin in samples after 4-point bending test... 74 Figure 4.19 Adhesion strength values for ITO/untreated BAPP-ODPA and for
ITO/pleasma-treated BAPP-ODPA samples... 75 Figure 4.20 The different molecular structures between commercial and transparent PI.
... 77 Figure 4.20 Proposed surface reaction mechanisms in BAPP-ODPA polyimide thin
Chapter 1 Introduction
1.1 Background
Recently, flexible devices had received more attentions due to their advantages such as light weight, smaller size, high mobility, and low cost. Their applications had emerged in many new territories such as solar cell [1], flexible display, e-paper, or RFID [2] based on polymer or metal substrate. The requirements of flexible substrate typically included bendability, thermal stability, and reliability. In terms of low cost, polymeric substrate was preferred over metal foil due to its ease in fabrication based on roll-to-roll process. Among the candidate materials such as polyethylene terephthalate (PET), polyethylene naphthalate (PEN), polycarbonate (PC), polyethersulfone (PES), or polyimide (PI), PET and PEN were often used as flexible substrates for their low-cost and ease of fabrication. While these materials offer many attractive features, they also impose limitations and challenges such as high coefficient of thermal expansion (CTE), lower glass transition temperature (Tg), low processing temperatures, dubious adhesive strength in multiple films stacking (with barrier, hard coat, or conductive transparent oxides), high O2 and water permeation, and device degradation. In order to acquire excellent electric resistivity of indium tin oxide (ITO) onto flexible polymer substrate, its processing temperature typically is higher than 200℃. Thus, PET and PEN could not survive these high temperature processing steps due to their lower glass transition temperature (＜150 ℃). As a result, the development of transparent polymer substrate with high glass transition temperature and excellent thermal stability has been fervently engaged in the past few years. [3, 4]
Among all high-temperature polymers, polyimides (PI) in particular had received most attention. Typically, polyimides possessed rigidity and excellent high-temperature resistance, mechanical strength and superior electrical properties due to the chemical
structure of imide link in the molecular main chain of polyimide. [5] Therefore, polyimides could be processed and exposed in rigorous working circumstances such as high processing temperature and hard-wearing. However, traditional polyimide could not be used in the optical devices because its transmittance was low (＜60 ％). The key factors affecting the coloration of polyimide were two folds: (1) The charge of π electrons in diamine was transferred to dianhydride inter-molecularly and intra-molecularly as illustrated by Figure 1.1 and (2) It had higher light absorption at 400 nm due to the conjugation of benzene rings in stacked packing. [6] In order to fabricate colorless polyimide, one had to minimize or eliminate the benzene rings stacking and low charge transfer. [7]
Hence, one of the objectives in the thesis is to develop a colorless polyimside as substrate for flexible devices applied.
Figure 1.1 The charge transfer occurred in a traditional polyimide. Dash line indicated inter-molecular charge transfer, while solid line illustrated intra-molecular charge transfer.
On the other hand, the adhesion of multiple-layered structure used in the typical flexible devices is a critical reliability issue. V. Teixeira [8] reported that residual stress affected the integrity of PVD coatings. The stress induced the failures into device due to the effect of thermal expansion misfit. The multiple layered structures were delaminated as illustrated by Figure 1.2. According to the past research, delamination, buckling or catastrophic failure might be induced owing to mechanical integrity of the multiple layered structure with dissimilar materials properties such as Young's modulus, coefficient of thermal expansion and Poisson ratio. The behavior will decrease the lifetime and low the reliability of flexible devices. Hence, the other of objectives in the thesis is to design a method to enhancing the adhesion at moisture barrier/polymer or ITO/polymer interface in order to improve the lifetime and reliability of flexible devices.
Fig. 5. Failure modes of a thin coating under residual
stress : (a) delamination (coating under tensile stress
and “weak” interface, adherence); (c) bucking ling
(coating under compressive stress)
Fig. 5. Failure modes of a thin coating under residual
stress : (a) delamination (coating under tensile stress
and “weak” interface, adherence); (c) bucking ling
(coating under compressive stress)
1.2 Overview
This thesis was organized into five chapters. Following a concise introduction in Chapter 1, Chapter 2 reviewed the synthesis of transparent polyimide, the key factors affecting the coloration of polyimide, and methods for improving the reliability of devices. Chapter 3 described the synthesis processes of BAPP-ODPA polyimide, sample preparation, experimental procedures of the plasma treatment, instrumentation and how to calculate the interface strength. Chapter 4 described key results and discussion. Specifically, the characteristic properties of BAPP-ODPA polyimide were investigated. The correlation between surface chemical states of BAPP-ODPA polyimide and the interfacial adhesion improvement of ITO/BAPP-ODPA polyimide were examined and proposed. Then key results and conclusion of this thesis were summarized in Chapter 5.
Chapter 2 Literature Review
2.1 Introduction of Flexible Devices
With the advancement of technology, people sought for products with mobility and convenience. Flexible plastic substrates are the focus of increasing attention due to their broad, potential applications in portable devices such as cellular phones, personal digital assistants (PDAs), notebook computers, and ultra mobile personal computers (UMPC), etc., which require light weight, transportability, good impact resistance, and mechanical durability. [9] iSuppli forecasts that the total flexible display market will reach US$2.8 billion by 2013, a 35-times expansion from about US$80 million in 2007 as shown in Figure 2.1. [10] Clearly, flexible devices will be one of the next great emerging products with huge market potential. Many international corporations have invested vast resource in the R&D of flexible electronic devices for a long time. For example, Sony Corporation successfully developed a flexible, full-color OLED display as shown in Figure 2.2. [11] Although flexible devices had many advantages such as its light weight, thin thickness and small size, their broad adoption had been hindered by several issues; namely (1) low processing temperature and (2) poor thermal stability and reliability due to dissimilar materials properties (E, CTE and Poisson ratio). Hence, it is a critical issue to develop a novel flexible substrate that can overcome problems such as low Tg and low processing temperatures. Among various flexible substrates (stainless steel foil, ultrathin glass sheet, and polymer thin films), polymer substrates had received more attention because of its low cost, excellent optical characteristic, and easier production based on roll-to-roll technology.
Etch stop
Figure 2.1 Global flexible display revenues forecast
2.1.1 Varieties of Flexible Substrates
In the past few years, stainless steel foil shown in Figure 2.3 [12], ultrathin glass sheet shown in Figure 2.4 [13], and a variety of plastic polymer films as shown in Figure 2.5 [14] have been considered as possible substrate choices for flexible device. [15]
Steel foil had excellent properties as a barrier layer to overcome water and oxygen transmission, but it was hard to handle multiple bends. Due to its Tg over 900 ℃, steel foil had good thermal stability. Therefore, steel foil could sustain high processing temperature. Another problem was that the weight of stainless steel foil was too heavy to fabricate big size products because these substrates could not be conveniently conveyed.
Ultrathin glass substrates with polymer coating might be suitable for displays with good performance, but it had been limited by its flexibility in use. Moreover, glass substrates were not suitable for some specific applications such as electronic maps and smart cards. The issues of flexibility, weight, and safety were important in glass substrates because glass substrates were very brittle and could not be easily deformed. Flexible polymer substrates, for example, polyethylene terephthalate (PET) and polyethylene naphthalate (PEN), had been used for flexible devices due to their low cost, easier to produce, more robust, compact, and lighter weight than glass substrates. While they were very hopeful products, the plastic polymer substrates, however, were limited by their low processing temperature, low Tg (< 150℃) [16], high heat-induced shrinkage, high moisture and oxygen permeability, and low chemical resistance. [17] For instance, high temperature pre-deposition thermal annealing (≧200 ℃) of the transparent conducting oxide (TCO) as the transparent electrode was typically employed in the fabrication of organic light-emitting devices. But, TCO on the plastic
polymer substrate usually exhibited lower transparency, higher resistance and poorer adhesion compared to that on the glass substrate. [17] Thus, However, commercial polyimide (PI) had excellent potential to use for flexible devices because it had possession of high glass transition temperature (Tg＞250 ℃) [18], inherent toughness, mechanical strength and remarkable thermal stability. A major drawback of polyimide for the optical applications had been the poor transparency (＜60 ％) [19] in the visible light range because it had higher light absorption at 400 nm due to conjugation of benzene rings in stacked packing. [20] The approaches of improving transmittance of polyimides were to destroy the benzene rings stacking and/or to decrease the charge transfer to make them colorless [19, 20], which will be discussed further in Chapter 3. According to above the studies, the requirements of polymer substrate were lighter weight, thinner, high transparent, easily carried and good thermal stability.
Cr S/D contact (150 nm) Cr gate (150 nm) 950 nm 320 nm Pt anode (40 nm) Polymer layer (140 nm) Mg:Ag/ITO cathode (15 nm/40 nm) S. S. Foil Substrate a-SiN a-Si:H (150 nm) n+ a-Si:H (50 nm) hv
Figure 2.4 Device structure of the plastic solar cell and its substrate was glass
2.1.2 Requirements of Polymer substrates
Recently, flexible devices using polymer substrates had received a lot of attention because these flexible devices had advantages of being thinner, light weight, flexible, thermal stability and tough. Furthermore, polymer substrates provided a possibility of cost reduction since these devices were fabricated in roll-to-roll processing and printing technology. Therefore, polymer materials were the best choice as the substrates for flexible devices. Table 2.1 [21] showed the material properties such as transmittance, refractive index, glass transition temperature (Tg), coefficient of thermal expansion (CTE), and etc. of commercial films for applications as the flexible substrates. Although polycarbonate (PC) and cyclic olefin co-polymer (COC) had high light transmittance, the coefficient of thermal expansion (CTE) of these polymers and thermal stability could not meet the requirements for flexible devices. The CTE of PC and COC about 70-75 ppm/℃ was much greater than those of inorganic materials such as ITO, Si3N4, SiO2, at about 5 ppm/℃ or that of Al metal, 5 ppm/℃. [22, 23] When polymer substrate was stacked with inorganic materials such as Si3N4 as diffusion barrier or indium tin oxide as the transparent conducting electrode, or their combination in the flexible devices, large thermal stress was induced in the multi-layered structure upon thermal cycling due to their CTE mismatch in thermal expansion. Tensile stress in the deposited film may cause through-thickness microcracking while compressive stress tended to promote microcrack propagation along the interface. [24] Buckling can occur when there was a pre-existing flaw at the organic/inorganic interface and when the in-plane compressive stress exceeded a critical value. [25] Such behavior and phenomena arisen either as-deposit or upon thermal cycling may result in catastrophic failure of flexible devices. Thus, it was a critical issue to address the
thermo-mechanical integrity of the functional coated components [24] or mutli-layered structure in flexible devices.
In terms of the requirements on the thermal properties, polymer substrates had to possess excellent thermal resistance at temperature above 200℃, because they were exposed to the high temperature (> 200 ℃) during the deposition of TCO with a low resistance and high transmittance. Consequently, even though PET and PEN had superior CTE than PC and COC, they were still not preferred to be used as flexible substrates due to their lower glass transition temperatures, < 150 ℃, although a post-treatment step may improve its thermal and electric properties. In contrast, polyimide (PI) had exceptional glass transition temperature (＞300 ℃) and low coefficient of thermal expansion (< 20 ppm/℃). But it was not suitable for transparent, flexible device products due its yellowish-brown coloration and low light transmittance. (＜60 %) [19] Therefore, the first objective of this work is to develop a novel, high Tg (> 200 ℃) and transparent (transmittance > 90%) polyimide substrate for flexible device applications.
2.1.3 Synthesis of High Tg, Transparent Polyimide Substrate
Polyimides had been widely used in microelectronics industries because they had excellent thermal, mechanical, and electronic properties. [25] However, the applications of polyimides in optical devices were limited due to their color in yellow to deep brown. The main reasons causing the coloration of polyimide were the intra-molecular and inter-molecular charge transfer interactions between alternating electron-donor (diamine) and electron-acceptor (dianhydride). [26-28] In order to overcome these issues, several series of linear aromatic polyimide films had been synthesized and characterized with the objective of obtaining maximum optical transparency. The major and common method was to vary the molecular structure so as to reduce charge transfer interactions between polymer chains to lower the intensity of color in the resulting polymer films. Therefore, the strategy was to use dianhydrides of lower electron-acceptability and diamines of lower-donatability as monomers for weakening the charge transfer interactions. The high-temperature stability of polyimides was sacrificed by using alicyclic diahydride or diamine monomers due to the incorporation of less stable aliphatic segments. [29-33] In the following sections, the synthesis of polyimides based on different alicyclics and aliphatics anhydride /or amine will be reviewed.
2.1.3.1 Polyimide of alicyclic dianhydride and aliphatic diamine
M. Goyal et al. [34] synthesized aliphatic polyimides (P-XBTA) as shown in Figure 2.6, by a high-pressure polycondensation of the salt monomers, consisting of aliphatic diamines with various methylene chain lengths (x=4-12) and 3,3’,4,4’-benzophenonetetracarboxylic acid (BTA), under 200-250 MPa at 200-320 ℃. However, the salt monomers with odd numbered methylene chains were more susceptible to thermally induced cross-linking than their even-numbered counterparts.
The melting temperatures of the polyimides decreased with increasing aliphatic chain length, which can be attributed to the observed increase in susceptibility toward cross linking.
X=4-12
(P-XBTA)
(Aliphatic diamine) ＋ (Alicyclic diahydride)
X=4-12
(P-XBTA)
(Aliphatic diamine) ＋ (Alicyclic diahydride)
Figure 2.6 The synthesized of polyimides from aliphatic diamine and alicyclic diahydride
2.1.3.2 Polyimide of aliphatic diahydride and alicyclic diamine
Hideo Suzuki et al. [35] had investigated the temperature resistance and light transmission rate of polyimide films. The polyimides wrere synthesized using cyclobutane-1,2,3,4-tetracarboxylic dianhydride (CBDA) and several kinds of aromatic diamine. As indicated in Table 2.2, the films of 2, 3, 4, and 5 had a transmittance, at least 80 %, whereas the films of 6 and 7 exhibited transmittances as low as 63.9 and 48 %, respectively. These results indicated that the films based on CBDA and aromatic diamines had better transparencies than those entirely based on alicyclic monomers. It is interesting that a random polymer (5) prepared from a mixture of CBDA and benzophenone tetracarboxylic dianhydride in a 9:1 molar ratio with diaminodiphenylether shows a higher thermal stability than that of 3 while still keeping a high transmittance.

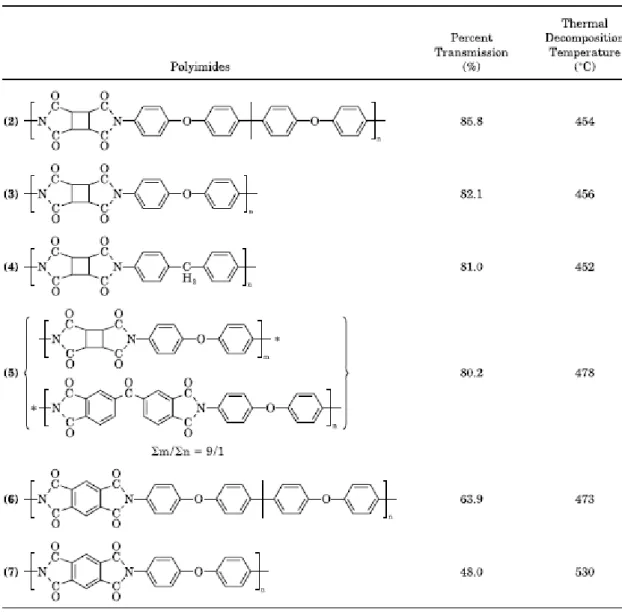

Table 2.2 The thermal and optical properties of polyimides based on CBDA and alicyclic dianhydride
The preparation of polyimides based on an alicyclic dianhydride, 3-carboxyl-methylcyclopentane-1,2,4-tricarboxylic acid dianhydride, and three conventional aromatic diamines, and the characterization of their solubility, optical properties, and thermal properties were investigated by Jie Yin et al. [36] Their synthesis processes were illustrated in Figure 2.7. It was reported that all three alicyclic polyimides exhibited low glass transition temperature (Tg: about 180 ℃). This clearly indicated that the alicyclic group possessed much higher flexibility than the aromatic
group. Furthermore, three alicyclic polyimides have almost identical glass transition temperature. This identity in Tg of polyimides based on diamines with different rigidity may also indicate that the alicyclic group in polyimides exhibits much greater flexibility and plays a deciding role in the possibility of segment motion. The UV-Vis spectra showed that PI-1, PI-2, and PI-3 were transparent compared to yellow-brownish in commercial polyimides. The absorptions of the alicyclic polyimides were quite low, not only in the visible light range (400–700 nm), but also in the near-UV range (300–400 nm). Thus, PI-1, PI-2, and PI-3 films were almost transparent and colorless.
Table 2.3 Glass transition temperatures (Tg) and initial thermal decomposition temperatures (Td) of alicyclic polyimides
2.1.3.3 Polyimide of aromatic diahydride and diamine [37]
Yang et al. [37] had investigated the organosoluble and light-colored fluorinated polyimides from 4,4 -Bis(4-amino-2-trifluoromethylphenoxy)biphenyl and various
aromatic dianhydrides. The reaction steps for the synthesis of fluorinated polyimides 5a–5f were illustrated in Figure 2.8. The Tg values of these polyimides were in the 247–313 °C range, depending on the structure of the dianhydride component and decreasing with the increasing flexibility of the polymer backbones. As expected, the polyimide (5e) obtained from ODPA showed the lowest Tg due to the presence of a flexible ether linkage between the phthalimide units, and the polyimide (5a) derived from PMDA exhibited the highest Tg due to the rigid pyromellitimide unit. In Table 2.5, the 6FDA and ODPA produced fairly transparent and almost colorless polyimide films, in contrast to other dianhydrides. These results were attributed to the reduction of the intermolecular charge-transfer complex (CTC) between alternating electron-donor (diamine) and electron-acceptor (dianhydride) moieties. The light colors of the polyimides with the 3F groups in their diamine moieties can be explained by the reduced intermolecular interactions. The bulky and electron-withdrawing 3F group in diamine 2 was effective in decreasing CTC formation between polymer chains through
steric hindrance and the inductive effect (by decreasing the electron-donating property of diamine moieties).
2.3 Methods to Improve the Reliability of Flexible Devices
The study of inorganic/organic materials interfacial adhesive strength has received considerable interest in recent years. Industrial application of such compound systems covers a wide range, from decorative coatings to microelectronics. In these applications, plasma modification is an empirically established procedure for improving the adhesion strength between the inorganic and organic materials, which is one of the key properties for the technological use of these compound systems. [38]
The influence of the surface chemistry and morphology of polymer thin films such as polyimides and poly(tetrafluoroethylene) (PTFE) on the adhesive strength had been widely investigated and discussed. Sanda et al. [39] investigated two model systems of polyimide and found that copper interacts with the ether group. Haight et al. [40] reported a complex formation between copper and the delocalized n-electrons of the polyimide, but excluded the fact that the ether group is involved in the interaction. Nakamura et al. [41] reported that oxygen plasma etching changed the chemical state of the polyimide surface. Table 2.4 showed the changes in surface chemical states. The main influence of improved adhesion was attributed to C-O bonding not surface roughness as illustrated in Table 2.5. Lin et al. [42] found that polyimide surface roughness affected its adhesion strength with copper. Figure 2.9 had demonstrated that argon plasma modification was a good method that greatly increased the strength of the adhesion of copper to polyimide.
For ITO/polymer system, Jinzhu et al. [43] found that the T-peel adhesion strength between the graft-modified PTFE and sputtered ITO increased with the graft concentration up to an optimal graft concentration. The adhesion was further enhanced by thermal post-treatment of the laminates after ITO metallization as illustrated by
Figure 2.10. The strong adhesion in the present ITO/graft-modified PTFE laminates arose from the strong interaction between the sputtered ITO and the functional groups of the graft chains, as well as the fact that the graft chains were covalently tethered on the PTFE surfaces.
Table 2.4 Measured and calculated concentration of various chemical states in C 1s spectrum.
Treatment (%)
Bonding As-received
Oxygen plasma
etching
Dipped into water after
oxygen plasma etching
C=O 13.6 5.9 5.8
C-OH 0 10.5 22.4
C-O 30.4 44.3 34.3
Table 2.5 Values of the pull strength, surface roughness and increased chemical states in copper/polyimides samples.
Oxygen plasma etching
for 3 min
Dipped into water after
oxygen plasma etching
Pull strength (MPa) 30.4 14.7
Roughness Ra (nm) 8 29
Increased chemical
component
Figure 2.9 Peel strength of sputtered copper to (a) unmodified and argon plasma–modified Kapton E(N) and (b) unmodified and argon plasma–modified Upilex S plotted with various duration times for argon plasma modification.
Figure 2.10 Effect of Ar plasma-pretreatment time of the PTFT film on the graft concentration and the T-peel adhesion strength of the ITO/GMA/PTFE assembly.
2.3 Analysis of thin-film interfacial strength
Mittal et al. [44] reported that there were about 300 techniques to measure the interfacial strength between multi-layers. Apparently, there was no single technique which would apply in every situation because different samples needed a suitable technique to obtain the correct interfacial strength. Nevertheless, the common techniques included stud pull [45], scotch tap [46], and scratch test [47] as shown in Figure 2.11. The scotch tape test could not measure a quantitative value. Meanwhile, the large plastic energy induced by stud-pull and shear test that could not measure the true adhesion at the interface. Especially for adhesion at thin film interface, traditional methods are very difficult to induce the crack at thin film interface. In contrast,
techniques such as superlayer test, four-point bending test, and nanoidentation test [48] have been widely employed to measure adhesion in recent years due to their capability of quantitative measurement. Among these adhesion tests, four-point bending test was the best choice as the technique to determine interfacial adhesive strength because it had at least two advantages:
(1) It had a fixed fracture mode and a fracture phase angle Ψ ~43°. [49]
(2) A quantitative fracture-energy value, Gc was obtained based on the sensitive value of energy release rate.
In general, there were three different fracture modes based on the different surface displacement modes including tensile mode (mode I), in-plane shearing mode (mode II) and tearing mode (mode III). The different modes had the different fracture phase angle Ψ as shown in Figure 2.12 [50] The mode-mixity can be quantified using the fracture phase angle Ψ and associated with stress intensity factor K. In this study, two test systems were loaded in two-dimensional plane under mode I and mode II fracture contributions. The fracture phase angle ranges from 0° for pure mode I fracture to 90° pure mode II fracture. The fracture phase angle can be determined by Eq. (2.1)：
⎟⎟
⎠
⎞
⎜⎜
⎝
⎛
=
Ψ
− I IIK
K
1tan
(2.1)The relationship between stress intensity factor K and energy release rate G under three fracture modes can be written as following Eq. (2.2)：
'
)
1
(
'
2 2 ' 2E
K
E
K
E
K
G
=
I+
II+
III+
υ
(2.2) where KI、KII、KIII：stress intensity factor of three fracture modesStud pull test
Scotch tap
Scratch Test
Stud pull test
Scotch tap
Scratch Test
Figure 2.11 The common techniques for measuring the interfacial strength
Ψ = 0°
Ψ = 90°
Tensile loading Shear loading
Ψ = 0° ~ 90°
Tensile + Shear
Ψ = 0°
Ψ = 90°
Tensile loading Shear loading
Ψ = 0° ~ 90°
Tensile + Shear
Figure 2.12 Three different fracture modes
Howevr, the intrinsic adhesion strength Go can be regard as the energy to rupture chemical bonds at the fracture interface. But larger changes may result in macroscopic adhesion Gc because of other energy-absorbing processes. The relationship between intrinsic adhesion Go and macroscopic adhesion Gc can be indicated by Eq. (2.3) and as shown in Figure 2.13 [51]：
Gc = (ξ + χ + ζ) Go (2. 3)
where ξ：contribution of surface creation χ：parameter of surface roughness
ζ：dissipation of plastic energy
Different fracture mode has different contribution to macroscopic adhesion as shown in Figure 2.14 [51]. Interface fracture under pure mode I fracture has the most closed macroscopic adhesion to intrinsic but large increasing is induced under mode II fracture. The increase of adhesion may be attributed to the contributions of plasticity and surface roughness.
Chapter 3 Experimental
3.1 Sample Preparation
3.1.1 Synthesis of Polyimide
Nowadays, to the common approach of synthesizing transparent polyimides was to design the molecular structures of diamine and dianhydride so as to separate the stacking of benzene structures and reduce electronic interactions between polymer chains to lower the intensity of color in the resulting polyimides films. [52]
As previously described in Chapter 2, Hasanain et. al [53] studied two kinds of polyimides; namely, ODA-BTDA polyimide and DDS-6FDA polyimide. The transmission rate of ODA-BTDA polyimide reached 80 % because the ODA had the ester linkage to decrease charge transfer and, thereby improved the transparency. In contrast, DDS-6FDA polyimide exhibited a transmission rate of 87 % because the 6FDA monomers had the bulky group (F3C-C-CF3), which decreased the stacking degree of benzene structures and increased the transparency. It was understood that ester linkage eliminated the charge transfer, while bulky group diminished the stacking degree of benzene structures. In this thesis, BAPP and ODPA monomers were chosen for the synthesis of high Tg, transparent polyimide. The BAPP monomer had alkyl group (H3C-C-C3H), whose bulky group can reduce the stacking degree of benzene structures. The ODPA monomer had ester linkage to eliminate the charge transfer. It is expected that the BAPP-ODPA polyimide could possess a high transmittance without much sacrifice of the high Tg characteristics of polyimide.

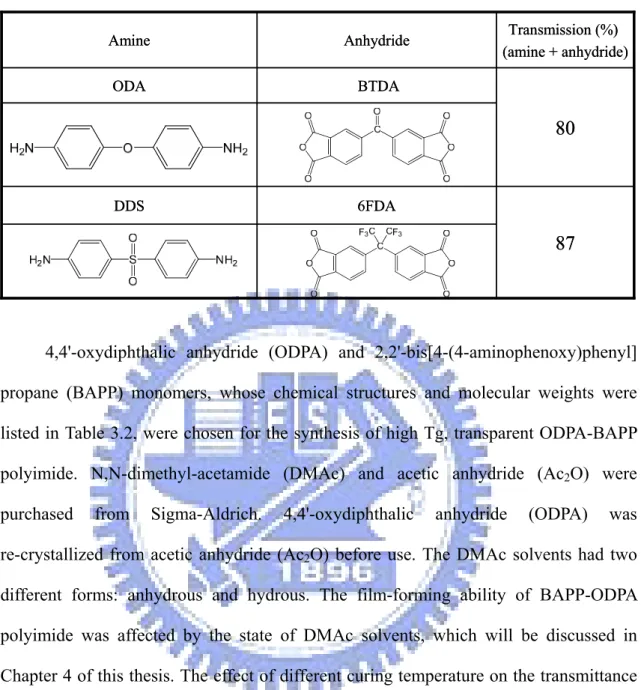

Table 3.1 Chemical structures and transmission of two transparent polyimides 6FDA BTDA Anhydride 87 DDS 80 ODA Transmission (%) (amine + anhydride) Amine 6FDA BTDA Anhydride 87 DDS 80 ODA Transmission (%) (amine + anhydride) Amine
4,4'-oxydiphthalic anhydride (ODPA) and 2,2'-bis[4-(4-aminophenoxy)phenyl] propane (BAPP) monomers, whose chemical structures and molecular weights were listed in Table 3.2, were chosen for the synthesis of high Tg, transparent ODPA-BAPP polyimide. N,N-dimethyl-acetamide (DMAc) and acetic anhydride (Ac2O) were purchased from Sigma-Aldrich. 4,4'-oxydiphthalic anhydride (ODPA) was re-crystallized from acetic anhydride (Ac2O) before use. The DMAc solvents had two different forms: anhydrous and hydrous. The film-forming ability of BAPP-ODPA polyimide was affected by the state of DMAc solvents, which will be discussed in Chapter 4 of this thesis. The effect of different curing temperature on the transmittance BAPP-ODPA polyimide will be further investigated and reported in Chapter 4.

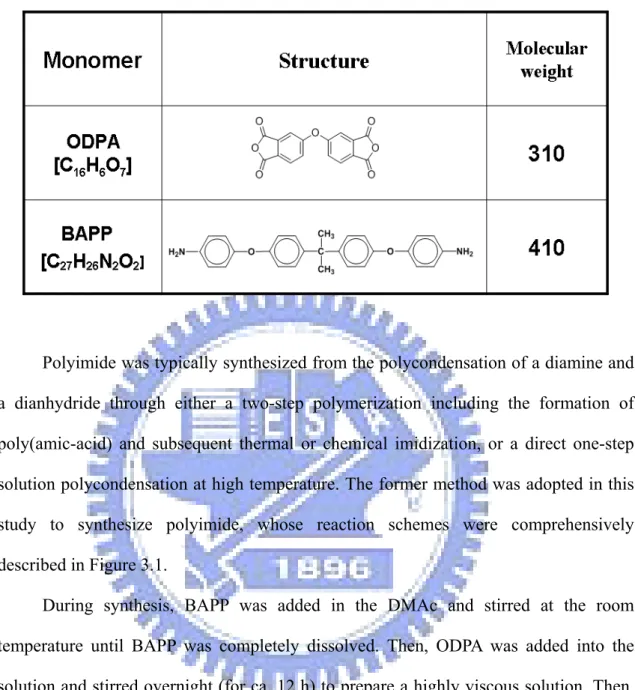

Table 3.2 Chemical structures and molecular weights of ODPA and BAPP monomers
Polyimide was typically synthesized from the polycondensation of a diamine and a dianhydride through either a two-step polymerization including the formation of poly(amic-acid) and subsequent thermal or chemical imidization, or a direct one-step solution polycondensation at high temperature. The former method was adopted in this study to synthesize polyimide, whose reaction schemes were comprehensively described in Figure 3.1.
During synthesis, BAPP was added in the DMAc and stirred at the room temperature until BAPP was completely dissolved. Then, ODPA was added into the solution and stirred overnight (for ca. 12 h) to prepare a highly viscous solution. Then, the poly(amic acid) solution was poured into a glass culture dish and heated in an oven from room temperature to 250 ℃ to form a polyimide film with a thickness of 80 μm. The synthesis of BAPP-ODPA polyimide was confirmed by FTIR analysis of BAPP-ODPA thin films prepared by spin-coating.
O N H O O C CH3 CH3 O OH O NH O N H HO O O C CH3 CH3 Solvent : DMAc Stirring time : 12hr Temperature : RT O O O O O O O O C CH3 CH3 O H2N NH2 NH2 ODPA [C16H6O7] BAPP [C27H26N2O2] Heat to dehydrate (1) (2) O N N O O O O O O C O N CH3 CH3 O O H2O H2O O N H O O C CH3 CH3 O OH O NH O N H HO O O C CH3 CH3 Solvent : DMAc Stirring time : 12hr Temperature : RT O O O O O O O O C CH3 CH3 O H2N NH2 NH2 ODPA [C16H6O7] BAPP [C27H26N2O2] Heat to dehydrate (1) (2) O N N O O O O O O C O N CH3 CH3 O O H2O H2O
3.1.2 Plasma Surface Modification of Polyimide
BAPP-ODPA polyimide films with a thickness of 2 µm were produced by spin-coating on a silicon wafer prior to the plasma surface modification. The sizes of samples were 1×1 cm2 for XPS measurements and 7×7 cm2 for ITO/ BAPP-ODPA polyimide interface adhesion test. Before plasma treatment, the samples were heated up to 100 ℃ in a oven for 1 hour in order to remove absorbed water then the surface of samples was clean by argon gas. Table 3.3 showed in detail the experimental conditions of oxygen plasma pre-treatment. In this case, reactive ion etching (RIE) [54] was as the source of plasma treatment.

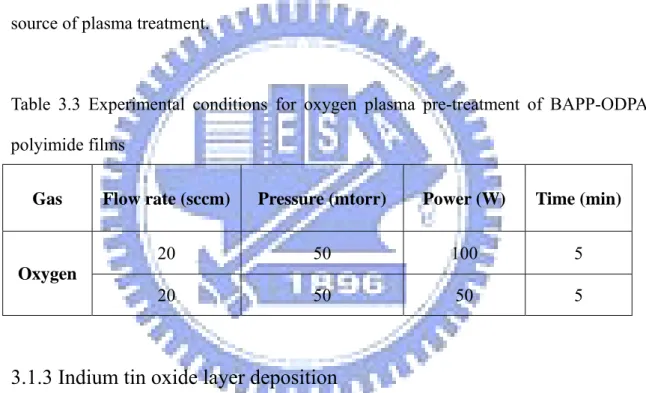

Table 3.3 Experimental conditions for oxygen plasma pre-treatment of BAPP-ODPA polyimide films
Gas Flow rate (sccm) Pressure (mtorr) Power (W) Time (min)
20 50 100 5
Oxygen
20 50 50 5
3.1.3 Indium tin oxide layer deposition
Indium tin oxide (ITO) thin films were deposited onto unheated polyimide films on silicon substrate by sputtering ceramic ITO target. The schematic diagram of the physical-vapor-deposition (PVD) sputtering system was illustrated by Figure 3.2. In general, ITO film should have (1) good optical transmission, (2) low stress in the film, (3) good thickness uniformity, and (4) low sheet resistance. The deposition parameters that affect the above characteristics of the ITO film were identified as (1) temperature of the deposition chamber, (2) total gas flow, (3) power, and (4) oxygen percentage in Ar. Table 3.4 summarized the experimental parameters the deposition of ITO film in this
study. High vacuum Window Oxygen gas Argon gas ITO target Sample High vacuum Window Oxygen gas Argon gas ITO target Sample
Figure 3.2 PVD sputtering system for the deposition of ITO films
Table 3.4 Experimental parameters for ITO film deposition
RT
Substrate temperature
140 nm
Thickness
5 sccm
Oxygen flow rate
300 sccm
Argon flow rate
2.74 mTorr
Working pressure
5×10
-6Torr
Base pressure
1000 W
DC power
Conditions
Deposition parameters
RT
Substrate temperature
140 nm
Thickness
5 sccm
Oxygen flow rate
300 sccm
Argon flow rate
2.74 mTorr
Working pressure
5×10
-6Torr
Base pressure
1000 W
DC power
Conditions
Deposition parameters
3.1.4 Samples preparation for four-point bending adhesion test
A sandwich sample was prepared as illustrated by the sequential steps shown in Figure 3.3. The epoxy resin (Epotek 375TM) was laid on the blank silicon wafer at 5000 rpm to control the thickness below 2 µm by spin-coating. A sandwich sample was clamped by using C-clamp as shown in Figure 3.4. Thick Si wafers and small clamps were used to distribute the applied force by C-clamp. The sandwich sample was then heated in an oven at 100℃ for 3 hours to make the sample and blank wafer inseparable. After the sandwich sample was cooled down to room temperature in an oven, it was cut into the size of 7 × 0.5 cm2 to fit for four-point bending test. A 400~500 µm pre-notch was created in the middle by using a diamond saw. Figure 3.5 illustrated the structure of final sample prior to four-point bending adhesion measurement. Figure 3.6 shows the typical load-displacement graph of four-point bending test. The pre-notch was extended to the interface at first, and then crack growth at the weakest interface under critical load. [55] The critical load, Pc, was obtained from the load-displacement curve. Therefore, the fracture resistance of the interface, Gc, could be calculated using Eq. 3.1.
Cutting into 7cm × 7cm
Sample Blank
Spin-coating epoxy resin & Curing
Cutting into 0.5cm × 7cm
Sample
Blank
Cutting notch
Cutting into 7cm × 7cm
Sample BlankSpin-coating epoxy resin & Curing
Cutting into 0.5cm × 7cm
Sample
Blank
Cutting notch
Figure 3.4 C-clamp and small clamps for fixing the sample Silicon Polyimide ITO 350nm 2u m Epoxy Silicon Silicon Polyimide ITO 350nm 2 um Epoxy Silicon Notch Silicon Polyimide ITO 350nm 2u m Epoxy Silicon Silicon Polyimide ITO 350nm 2 um Epoxy Silicon Notch
Figure 3.5 The stacking structure of sandwich sample for measuring the adhesion of ITO/polyimide interface.
Figure 3.6 (a) Schematic drawing of four-point bend test sample and (b) a typical load
vs. displacement curve for four-point bend test.
3 2 2 2 2
)
1
(
21
P
L
G
C Cν
−
=
16
EB
h
(3.1)where Pc：critical load
： een outer and inner load points
possion’ B： h：thickness of wafer L distance betw E：modulus of Si ν： s ratio of Si width of sample
3.2 Experimental Procedures
wn in Figure 3.7, Fourier transform infrared (FT-IR) spectra were collected
entals of analytic instrumentation such as FTIR, DSC,
As illustrated by the flow chart sho
using a Nicolet 360 FT-IR spectrometer. IR spectra was used to verify if poly(amic-acid) was completely transformed into polyimide. The glass transition temperature (Tg) and enthalpies of phase transitions were determined by differential scanning calorimetry (DSC, model: Perkin Elmer Pyris 7) at a heating and cooling rate of 20 ℃/min under nitrogen. Ultraviolet-visible (UV-Vis) spectra of the polymer films were recorded on a HP G1103A spectrophotometer. Reactive ion etching (RIE, model: AST Cire-200) was used to modify the surface chemical states of polyimide. The chemical states and composition of the polyimide thin films were investigated using x-ray photoelectron spectroscopy (XPS) (ULVAC-PHI, PHI Quantera SXM2). Interface adhesion of ITO/polyimide interface was measured by a home-built four-point bending system.
In the following section, the fundam
TGA, UV-vis, XPS, RIE, and four-point bending adhesion test would be briefly described in the following sections.
Synthesis of polyimide
Characteristic properties of polyimide
FTIR -structure DSC -Tg TGA -Td UV-vis -Transparent Surface modification of polyimide
RIE -plasma treatment
XPS
-surface chemical states
Reliability
Four points bending -interface adhesion Synthesis of polyimide
Characteristic properties of polyimide
FTIR -structure DSC -Tg TGA -Td UV-vis -Transparent Surface modification of polyimide
RIE -plasma treatment
XPS
-surface chemical states
Reliability
Four points bending -interface adhesion Figure 3.7 Flow-chart of experimental procedures.
3.3 Instrumentation
nfrared Spectroscopy (FT-IR)
spec
ry (DSC) was to measure the energy
ode of heat flux DSC is shown in Figure 3.8. There is a tempe
3.3.1 Fourier-Transform I
Fourier-Transform Infrared Spectroscopy was a measurement technique whereby tra were collected based on measurements of the temporal coherence of a radiative source, using time-domain measurements of the electromagnetic radiation or other type of radiation. Fourier transform infrared (FT-IR) spectra were collected using a Nicolet 360 FT-IR spectrometer. IR spectroscopy was employed to examine the chemical make and structural information of characteristic C-N-C imide ring. [56] The infrared spectra were collected in 500-4000 cm-1 range with a resolution of 4 cm-1.
3.3.2 Differential Scanning Calorimetry (DSC)
The principle of differential scanning calorimet
variation of the sample affected by temperature. However, there are two types of differential scanning calorimetry (DSC) according to different designed modes:
1. Heat Flux DSC [57] The designed m
rature difference (ΔT) between the sample and reference during heating or cooling due to the endothermic or exothermic reactions of the sample. Heat flux DSC measures the ΔT continuously and transforms ΔT into the energy variation (ΔQ) to show. The ΔQ inaccuracy of heat flux DSC is within ± 5%.
ΔT Heat Sample Reference ΔT Heat Sample Reference
Figure 3.8 Heat Flux DSC
. Power Compensation DSC [58]:
e of power compensation DSC. The sample and refere
2
Figure 3.9 is the designed mod
nce are put in two individual Pt-Lr heating furnaces. The furnaces have individual Pt heating wires and Pt resistance temperature detector (PRTD). Pt heating wires offers energy precisely and fast. PRTD has linear relationship between resistance (Ω) and temperature (-250℃~900℃). PRTD can measure the temperature of the sample and reference by measured Ω. There is a resistance difference (ΔΩ) between the sample and reference during heating or cooling due to the endothermic or exothermic reactions of the sample. Subsequently, Pt heating wires offer additional energy (ΔQ) fast to compensate the energy difference and make the sample and reference have the same Ω. The ΔQ inaccuracy of power compensation DSC was about ± 1%.
Sample Reference PRTD Individual Heater Sample Reference PRTD Individual Heater
Figure 3.9 Power Compensation DSC
In this thesis, DSC was employed to measure the Tg of polyimide materials. The polyim
3.3.3 Thermo-Gravimetric Analysis (TGA)
of testing that was performed on sampl
A condu
ide materials samples (5~10 mg) was placed in a Pt holder for DSC measurement using a PerkinElmer Diamond DSC in power compensation mode.The Tg was read as the midpoint of the heat capacity jump and was derived from the heating scan after heating from 50 ℃ to 350 ℃.
Thermo-gravimetric Analysis was a type
es to determine changes in weight in relation to change in temperature. Such analysis relied on a high degree of precision in three measurements: weight, temperature, and temperature change. TGA was commonly employed in research and testing to determine characteristics of materials such as polymers, to determine degradation temperatures, inorganic and organic components in materials, and solvent residues.
In the thesis, the thermal stability of the polyimide evaluated by dynamic TG cted at a heating rate of 20 ℃/min. The temperature of 5 % weight loss was defined as decomposition temperature (Td). Based on TGA measurement, the Td value
of BAPP-ODPA polyimide was determined from the heating scan up to 900 ℃.
3.3.4 Ultraviolet-Visible (UV-Vis) spectroscopy
attenu
.3.5 Reactive Ionic Etching (RIE)
ve, negative and neutral particles. When an energe
An analytical technique for the measurement of wavelength-dependent ation of ultraviolet, visible and near-infrared light and used in the detection, identification and quantification of atomic and molecular species. UV/VIS Spectrophotometry was used to determine the absorption or transmission of UV/VIS light (180 to 820 nm) by a sample. It could also be used to measure concentrations of absorbing materials based on developed calibration curves of the material. Ultraviolet-visible (UV-vis) spectra of the polymer films were recorded on a HP G1103A spectrophotometer.
3
Plasma was a collection of positi
tic electron struck a neutral reaction gas molecule, it could cause the dissociation to form free radicals, ionization, excitation and radiation. In the above mechanisms, two main types of species involved in reactive ion etching were the reactive neutral chemical species and the ions. In the dissociation process, reactive gas molecules were broken into free radicals. Free radicals were neutral atoms or collections of atoms with incomplete bonding. Because they were neutral, they were not affected by the electrical field induced in the reaction chamber and diffused to the target surface in random directions. Radicals were chemically reactive and the most important species in the plasma for the surface chemistry. On the other hand, ions were strongly affected by the electrical field induced in the chamber and were driven to the bottom powered electrode. Ions were not responsible for chemical reactions and they played a major role in etch
rate and anisotropy.
Reactive ion etching (RIE) was a plasma-based dry etching technique charac
.3.6 X-ray Photoelectron Spectroscopy (XPS)
tron Spectroscopy (XPS) was optoel
E ( 1 s ) = h ν － Ee ( 3 . 2 )
Where E: binding energy in 1s orbit
When the atomic was illu was larger than the
electro
f the polyimide thin films were terized by a combination of physical sputtering with the chemical activity of reactive species. RIE was used to generates plasma by different gas source and causes different reaction to samples. In the thesis, RIE was used to modify surface of polyimide in different treatment conditions.
3
The fundamental principle of X-ray Photoelec
ectronic effect and used X-ray beam to illuminate static solid surface that could be ionized to scatter photoelectron. We measured the kinetic energy of photoelectron and calculated the binding energy of this photoelectron that were determined the element kind and chemical states of atomic of emitted photoelectron. The binding energy of elements could be calculated by the Equation 3.2.
hν: the energy of x-ray or UV Ee: the energy of photoelectron minated by X-ray, X-ray energy
n binding energy of the inside layer L orbit, electron could be ionized to be free electron that was called photoelectron. The principle of photoelectron generation was illustrated by Figure 3.10. [59] Figure 3.11 showed the schematic diagram XPS instrumentation.[60] (Need to re-arrange your text)
investigated using XPS (ULVAC-PHI, PHI Quantera SXM2). The photoelectron emission spectra were obtained using an Al X-ray source (? eV) striking the surface of the sample. The analyzer resolution was fixed at 0.01 eV. Ar+ ion was used to remove adsorbed surface contaminants for 5 seconds before analysis. The insulating properties of these deposits caused surface charging effects, resulting in electron lines being shifted to lower kinetic energies. [61] However, the electronic-gun in the XPS could be neutralization and diminished the surface charge effets. The peak positions were calibrated with respect to the position of C 1s carbon contamination peak usually located at about 285 eV.
K L M N X-ray or UV photoelectron K L M N X-ray or UV photoelectron
Figure 3.11 The XPS instrument and its principle. (Not clear to me about the
1 Surface Chemical States Analysis of BAPP-ODPA Polyimide by
XPS
principles)
3.3.6.
The analysis of XPS spectra have been carried out using the XPS peak fitting program for WIN95/98 XPSPEAK Version 4.1 that have been created by Raymond W. M. Kwok. [62] The surface chemical states analysis of BAPP-ODPA polyimide had been illustrated by Figure 3.12. Two parameters were needed for this peak fitting software, such as the peak position assignment and the selection of distribution statistics. The Gaussian distribution was used for the calculation of each specific peak and the value of Gaussian distribution had been fixed at zero as seen in Figure 3.12 to obtain the symmetrical peaks. The full width at half maximum (FWHM) for the optimal de-convolution and the area of the peaks were calculated with the XPSPEAK 95 de-convolution software and the values of FWHM had been fixed to obtain the factual chemical states change as shown in Figure 3.12. The main algorithm used in this software is Newton’s method for optimization, while Shirley and Linear background
was employed. Only the peak position was assigned by an operator, and the same values for all other parameters were used for every XPS chart to investigate the consistent
tensity of the functional groups. in
3.3.7 Four
culated to be quantitative analysis as the interface adhesive strength.
critical energy release rate Gc under steady growth state of crack at interface.
-Point Bending System
Figure 3.13 showed the schematic diagram of sandwich sample for four-point bending test. The sandwich sample was loaded at four-points and crack was occurred at interface by the applied bending moment. Special stacks of sandwich sample were prepared for controlling the crack interface as wish. The loading condition of sandwich sample was under approximate equal stress of tensile and shears, which was mode-mixity fracture having a fracture phase angle Ψ ~43°. [49] Because the compliance of sandwich sample increased linearly with crack length, the critical energy release rate of four-point bending test could be cal
Figure 3.14 showed the micro-mechanical test system established in this study. Sandwich samples of four-point bending test were pulled by the linear motorized actuator. The displacement of load point was controlled by motion control card at range of velocity from 0.1 μm/s to 200 μm/s which had the sensitivity in 0.1 μm. The load cells with the capacities of 20N and 100N are used to measure the output of load. The test system is operated using Labview software, and the displacement and output of load are recorded. The critical load is measured to calculate the
