Dual-band multiplexer/demultiplexer with

photonic-crystal-waveguide couplers for bidirectional communications

Forest Shih-Sen Chien

a

, Sue-Cheng Cheng

b

, Yu-Ju Hsu

c,d

, Wen-Feng Hsieh

c,*

a_{Department of Physics, Tunghai University, Taichung, Taiwan} b_{Department of Physics, Chinese Culture University, Taipei, Taiwan} c

Department of Photonics Engineering and Institute of Electro-Optical Engineering, National Chiao Tung Univeristy, Ta-Hsueh Road 1001, Hsinchu 30050, Taiwan

d

Innolux Display Corp., Mauli, Taiwan

Received 17 December 2005; received in revised form 24 May 2006; accepted 26 May 2006

Abstract

An ultrashort photonic-crystal-waveguide (PCW) coupler is numerically designed for dual-band multiplexing/demultiplexing (Mux-ing/Demuxing). The PCW coupler consists of two line defects of reduced rods in a triangular lattice and Muxing/Demuxing is imple-mented by the distinction between coupling and decoupling of PCWs. Since waves tend to highly localize within the reduced rods, the backward coupling is suppressed and the eﬃciency of Muxing/Demuxing is enhanced as compared with the void-rod PCWs. The coupler is utilized to build a bidirectional system for dual-band duplex communications.

Keywords: Photonic crystal waveguides; Decoupling; Multiplexing/demultiplexing; Bidirectional communication

1. Introduction

The dual-band multiplexer/demultiplexer (Muxer/Dem-uxer) is a key component for bidirectional data traﬃcs[1,2]

applied for optical communication from the wide area net-works to the local area netnet-works. One simple and useful application, for example, is a duplex communication over a single fiber, where the data capacity is doubled without installing a new fiber. Up to date, the dual-band Muxer/ Demuxer is implemented with conventional optical compo-nents, e.g., multiple layer thin film filters, gratings, and optical couplers. The components are at the millimeter scale and technical-intensively assembled by hands. As the data capacity at the user ends dramatically increases (such as the fiber-to-the-home application), there is a

strong demand for mass production and high integration of the components of the duplexers.

Line defects in a photonic crystal (PhC) can be utilized as waveguides of electromagnetic (EM) waves, the so-called photonic crystal waveguides (PCWs)[3]. The guiding mechanism is attributed to the bandgap conﬁnement. PCWs surpass conventional waveguides with many unique features, e.g., low group velocity [4], large dispersion [5], and low transmission loss through sharp bends[6], oﬀering a potential approach to design and produce large-scale miniaturized photonic integrated circuits (PICs). The cou-pling of two PCWs gives rise to the splitting of the disper-sion of their guided modes. It is analogue to symmetrical double potential wells in quantum mechanics where the supermode, superposition of the symmetric and anti-sym-metric eigenmodes, oscillates between the wells.

Couplers are one of the most promising elements of PCWs as building blocks for PICs[7–9]. Variety of func-tional devices based on PCW couplers have been proposed recently, e.g., featuring switches[10,11], channel-drop ﬁlter

*

Corresponding author. Tel.: +886 3 5712121x56316; fax: +886 3 5716631.

E-mail address:[email protected](W.-F. Hsieh).

(2)

[12], power splitter[13], and wavelength Muxer and Dem-uxer [9,14,15], etc., representing the potential prospective of PCW couplers for photonic applications. We have pro-posed that an ultrashort dual-band Demuxer with void-rod (defects introduced by removal of rods) PCWs can be designed by the distinction between coupling and decou-pling [16]. Decoupling occurs with two parallel PCWs in triangular-lattice PhC (note that in square-lattice PhC, decoupling only occurs with void-rod PCWs when there are an odd number of rows between waveguides [17]). However, a backward coupling exists in the Demuxer, giv-ing rise to the degradation of its performance. To overcome this issue, a PCW coupler with a loop-shape arm is pro-posed. The Demuxing efficiency reaches the maximum as two branches of waves are in phase at the merging point in the loop. The discrete spacing of the PCWs imposes con-strains to the design of the loop-shape arm and increases the difficulty. In addition, the loop-shape design cannot implement a Muxer, because the coupling efficiency is poor as the wave is injected oppositely into the loop-shape arm. Recently, it has been demonstrated numerically that the properties of PCW and the coupler can be varied by tuning the radius of the partition rods or the defect rods. The cou-pling coefficient of a PhC coupler can be increased as the radius of the partition rods is reduced [7]. This feature can be applied to build ultrasmall channel interleavers and Demuxer. On the other hand, the coupling efficiency of PCWs with external lightwave circuits can be greatly improved as the PCWs consists of reduced-rod defects, since the stationary energy of EM waves in these PCWs will tend to localize in the reduced-rod defect[18]. We employ this concept of the EM wave localization to relieve the issue of the backward coupling in the PCW couplers. In this arti-cle, we discuss the cause of backward coupling in terms of energy flow in the PCWs. The energy flow is strongly per-turbed by rods at the boundaries of the coupled PCWs. As a result, it is a ‘‘turbulent’’ flow rather than a ‘‘laminar’’ one and the backward scattering occurs. The situation is greatly improved as the reduced-rod defects substitute for the void-rod defects, because the energy is highly concen-trated within the reduced rods. Consequently, the back-ward coupling is significantly suppressed regardless of the propagating direction. We numerically demonstrate a dual-band PCW Muxer/Demuxer with reduced-rod defects and propose a duplexer for bidirectional optical communi-cation that is applicable to miniaturize PICs.

2. Energy distribution in PCWs

The PCW is not an index-homogeneous device due to its intrinsic periodic dielectrics; instead, the PCW can be con-sidered as a sort of grating-assisted waveguide. The EM wave strongly interacts with wavelength-scale dielectrics, so it propagates in a manner diﬀerent from a laminar ﬂow. We consider the PhC composed of a triangular-lattice dielectric rods, where the lattice constant is K, and the radius and the dielectric constant of the rods are 0.2K

and 12. The PCW is formed by removing a row of rods (i.e., void rods). We derive the electric-energy-density (Ue), equal to dielectric constant· electric eigenﬁeld

square, of guided modes at kx= 0.35, i.e., f = 0.43, where

kx is the normalized wavevector with unit of 2p/K and f

is the normalized frequency with unit of c/K in a PCW (Fig. 1(a)) by the plane wave expansion (PWE) method

[19]. The Ueis normalized, as its integral over the

compu-tational cell is unit. The Poynting vectors tend to form energy vortices (the inset in Fig. 1(a)) around the rods along the PCW boundary [20]. The vortex becomes more signiﬁcant as the wavevector gets closer to the zone bound-ary (kx= 0.5). The energy concentrates at the rods along

the boundary, because of the presence of the vortices. Accordingly, the Ue pattern of two coupled PCWs

(Fig. 1(b)) also shows an essential amount of energy con-centrated at the partition rods between the PCWs. There-fore, the energy ﬂow is scattered while crossing the partition rods, accounting for the backward coupling.

We address the issue of the backward coupling in terms of the energy distribution. As the energy concentrated in the partition rods accounts for the scattering, the backward coupling should be reduced as the energy concentration in the partition rods is removed. To do so, we appeal to the decrease of the radius of defect rods; namely the defect is introduced by reducing the rod radius. Here, we consider the defect rod with a radius (Rd) of 0.1K (i.e., reduced

rods). The Ueof a single PCW and the coupled PCWs with

reduced-rod defects at kx= 0.4 are shown inFigs. 2(a) and

(b), and the inset inFig. 2(a) shows the Poynting vectors of the single PCW near a reduced rod. Although, a rather lit-tle difference in effective refractive indices exists between the reduced rods and the void rods, the patterns of energy densities and Poynting vectors differ significantly. The energy tends to be highly localized in the reduced rods. For the coupled PCWs separated by one row of rods, the energy density is still mainly localized at the reduced rods.

Fig. 1. Electric energy densities (Ue) of a void-rod PCW (a) and coupled

PCWs (b) in a 2D PhC. The inset in (a) is the pattern of Poynting vectors near a rod at the boundary marked by the dashed line.

(3)

From the pattern of Poynting vectors, the energy ﬂow is laminar in the reduced-rod PCW with no energy vortices.

Fig. 3 shows the remarkable contrast between electric energy densities along the centers of PCWs, where the ratio of the energy density peaks is 120, i.e., the ratio of square of ﬁeld amplitude is ampliﬁed 10·, since the dielectric con-stant = 12. In a void-rod PCW, the modulation amplitude of energy is only 30%. However, in a reduced-rod PCW the peak value of Uein the reduced rods is two orders of

mag-nitude higher than the valley value in the air region. Almost 50% of energy concentrates within the reduced rods, although the rods take only 5% of area of one unit cell. Hence, the void-rod PCW can be considered as the super-position of a perfect PhC and a line of eﬀectively ‘‘negative-dielectric-constant’’ rods. The EM wave is much less localized at the defect sites, where ‘‘negative-dielectric-constant’’ rod presents. On the other hand, the reduced rod still is a proper potential well, where the EM wave can be localized. Despite the reduced rod is smaller than one quarter of the wavelength, the energy still can be localized there. The scat-tering by the partition rods is proportioned to the overlap

integral of field intensity times the difference of dielectric constants at the boundary of the rods. The scattering by the partition rods is suppressed, because the field intensity at the partition rods is dramatically reduced (see Section3). In addition, the energy hopping between the reduced rods leads to a temporally transient scattering. Both factors account for the suppression of backward coupling. As the scattering is not significant, the grating-assisted nature of the coupler becomes negligible.

3. Coupling between reduced-rod PCWs

Two dispersion curves of the guided modes propagating in the coupled PCWs are generated due to the overlapping of the mode functions. The dispersion curves of two cou-pled reduced-rod PCWs with E-polarization, where the electric ﬁeld is parallel to the dielectric rods, shown in

Fig. 4(a) are derived by PWE. From the electric ﬁelds of the guided modes, we can identify that the ﬁelds appear as even parity at the points E1and E2, and as odd parity

at the points O1and O2(Fig. 4(b)). The situation is

identi-cal to that of void-rod PCWs, since the change of the defect radius cause the vertical shift to the dispersion curves. The dispersion curves cross each other and the frequency at the crossing point (denoted as fd) is 0.363, corresponding to

kx= 0.378. The fundamental guided mode (referred to

the mode with lowest frequency at kx= 0) has odd parity.

That conﬂicts with the conventional optical waveguide, in which fundamental guided modes are always even. Such an unusual situation can be accounted by the coupling of defects between two PCWs[21].

The even and odd guided modes propagate at diﬀerent wavevectors, ke and ko, respectively. The superposition of

these modes gives rise to beating that the energy would transfer periodically along two coupled PCWs. The cou-pling length L, deﬁned as the propagation distance for a complete energy transferring, can be expressed as

L¼ K=ð2 DkÞ; ð1Þ

where Dk is the absolute value of (ke ko) and is

dispersive.

We plot L and Dk vs. frequency f inFig. 5(a) using Eq.

(1), where Dk is obtained from dispersion curves. The Dk vanishes and L soars to inﬁnity at fd. Thus the eigenwaves

propagate with equal wavevector (ke= koor Dk = 0) and

the coupling length is inﬁnite, implying no beating (i.e., no energy transferring) between the coupled PCWs. The coupler is ‘‘decoupled’’ as it is operated at fd. Decoupling,

a special feature oﬀered by the coupled PCWs[9,16], leads to elimination of crosstalk between waveguides. Closely packed circuits can be built based on the concept of decoupling.

The other frequency fc= 0.314 has Dk = 0.1448 with

corresponding L of 3.45K. We verify the predicted L by simulating the real time evolution of the EM wave traveling through the coupled PCWs by the ﬁnite-diﬀerence

Fig. 2. Ueof a reduced-rod PCW (a) and coupled PCWs (b). The inset in

(a) is the pattern of Poynting vectors near the reduced rod marked by the dashed line. -1 0 1 0 10 20 placement (Λ) Ue (reduced rod) 0 1 2 Ue (v oid rod) reduce rod

Fig. 3. Energy densities (Ue) along the centers of a void-rod PCW

(4)

time-domain (FDTD) method[22](Fig. 5(b)). A Gaussian wave with a lateral width ofpffiffiffi3=2K is fed into the left PCW at fd and fc, respectively. The wave of fd travels without

transferring between the PCWs, indicating an inﬁnite cou-pling length. On the other hand, the wave of fc transfers

periodically through the coupler with a coupling length about 4K. Both cases are in accordance with the prediction of the PWE.

Hence we checked the backward power in coupled PCWs by FDTD. The backward power at fc traveling in

the opposite direction in the right PCW as shown in

Fig. 5(b) is 17 dB with respect to the forward power, while the backward power for coupled void-rod PCWs is 10 dB at the corresponding fc(i.e., 0.361). The backward

power is decreased by 7 dB due to introducing the reduced-rod defects. It supports our argument that the backward coupling is caused by the scattering with partition rods. Therefore, the reduced-rod PCW is a good candidate to construct a coupler with high coupling eﬃciency.

4. PCW coupler for Muxing and Demuxing

Taking advantage of the distinction between decoupling and coupling, we proposed a coupler to be utilized as an ultrashort dual-band Muxer/Demuxer. A one-by-two cou-pler composed of two reduced-rod PCWs is designed for multiplexing/demultiplexing (Muxing/Demuxing) of fd

and fc (Fig. 6). The single port is denoted as common,

and the dual ports as direct and cross, respectively. These PCWs are separated by ﬁve rows of rods. One PCW is truncated and the truncated end is bent toward the other PCW to have them coupled. The coupling region is 4K in length for the coupling of fc. The Muxing and Demuxing

simulated by the FDTD method are shown in Fig. 7. The waves of fdand fcare fed into the direct and cross ports,

respectively, and the waves are successfully multiplexed

Fig. 4. (a) The dispersion curves of the guided mode of one reduced-rod PCW (solid curve) and coupled PCWs (dot curve and dash curve). These two curves of coupled PCWs cross at frequency of 0.363 (fd) and the

wavevector diﬀerence of the frequency at 0.314 (fc) is 0.1448. (b) Electric

eigenﬁeld patterns derived by the PWE method at points E1, E2, O1, and

O2, marked in (a). 0 0.32 0.34 0.36 25 50 75 100 f (c/Λ) L (Λ ) 0.00 0.04 0.08 0.12 0.16 Δ k (a) (b)

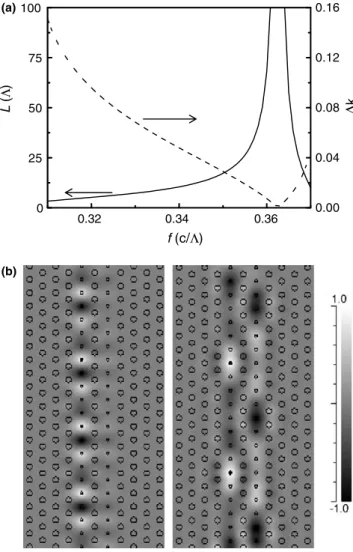

Fig. 5. (a) L and Dk as functions of frequency f, (b) the snapshots of the electric ﬁeld evolution at fd(left) and fc(right) by the FDTD method.

(5)

into the common port. As the waves are oppositely fed into the common port, they are demultiplexed into the direct and cross ports. Hence, the coupler can achieve decoupling at fdand coupling at fcbidirectionally with negligible

back-ward coupling. That is a signiﬁcant improvement for PCW couplers, since void-rod PCW couplers in our previous design[16] cannot achieve the bidirectional traﬃc.

A dual-band bidirectional system for duplex communi-cation can be built by the couplers mentioned above. These

two wavelength bands transmit at opposite directions. The system is composed of two identical couplers and one opti-cal network. The optiopti-cal network can be as simple as only a single ﬁber. The common ports of the couplers are con-nected by one ﬁber as shown in Fig. 7. The system has the dual ports on both ends; one direct (cross) port to transmit the wave of fd(fc), and the other direct (cross) port

to receive the wave accordingly. The fdand fccan

simulta-neously transmit in the opposite directions. This system can be applied for the existing optical ﬁber communication, which utilizes the transparent windows of optical ﬁbers at 1.3 and 1.5 lm wavelengths. The fd serves for 1.3 lm and

fc for 1.5 lm as K is 0.48 lm. Therefore, the coupling

region is only 1.92 lm in length, which is extremely small compared with other schemes, e.g., multiple layer thin ﬁlms, ﬁber gratings, and other planar light wave circuit devices.

The transmission spectra of demultiplexing monitored at the direct and cross ports are shown inFig. 8. At the direct port, the transmission power is completely sup-pressed at the coupling frequency around 0.321, and the power ratio of desired port to the other port reaches a max-imum of 23 dB. The coupling frequency diﬀers from fc

(=0.314) predicted by PWE. We suggest that the frequency discrepancy is due to the coupling length is not a multiple of K as our design. Since the coupling length is sensitive to frequency at this frequency range (seeFig. 5(a)), the power ratio varies rapidly with frequency. Hence, the operational bandwidth (>20 dB) is only 0.08%, corresponding to a bandwidth of 1.2 nm for the 1.5 lm wave. On the other hand, at the cross port, the transmission power is sup-pressed at the decoupling frequency 0.363, well correlative to fdpredicted by PWE, because the straight arm is nearly

identical to the decoupled PCWs. The decoupling is eﬀec-tive as long as the coupling length is much larger than the coupling region, so it is insensitive to frequency. The operational bandwidth around fd is 1.4%, covering a fc fd fc&fd common direct cross

Fig. 6. The 1· 2 reduced-rod PCW coupler for Muxing/Demuxing of fc

and fd.

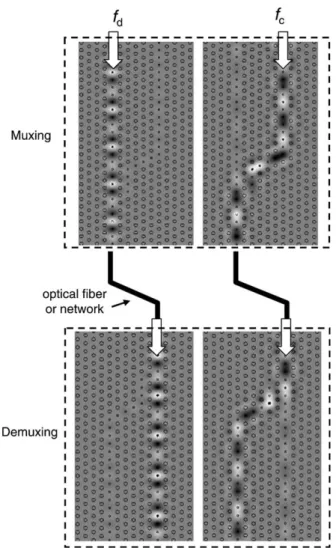

Fig. 7. Simulated Muxing and Demuxing with the coupler by the FDTD method. A dual-band bidirectional communication system can be built with the couplers at both ends, which is connected by an optical ﬁber or a network. 0.31 0.32 0.36 0.37 -60 -40 -20 0 20 40 Direct Cross Ratio Power (dB) f 0.3208 0.3212 10 20
