A Multi-Screen Cyber-Physical Game Based on Body-Area
Inertial Sensor Networks and Its Gravity Estimation Problem
Student: Yuan-Tse Chang Advisor: Prof. Yu-Chee Tseng
Department of Computer Science National Chiao Tung University, Taiwan
Abstract
Deploying body-area inertial sensor networks on human bodies to capture motions has
attracted a lot of interests recently, especially in cyber-physical video games and context aware
applications. While video games on the cyber world have been quite popular, enhancing them
with more physical inputs, such as those from inertial sensors, is becoming a new trend.
Following this trend, we develop a video game integrated with body-area inertial sensor networks
deployed on players as inputs and with multiple game screens to broaden players’ views and
provide more realistic interaction experiences. Our design simulates a multi-screen game engine
by controlling a set of game engines simultaneously. A prototype with a body-area inertial sensor
network platform, a cyber-physical game controller, and a set of game engines is demonstrated.
The demonstrated game also addresses the interaction between virtual objects and players.
Tracking human posture system based on accelerometer. One fundamental issue in such
scenarios is how to calculate the gravity, no matter when human body parts are moving or not.
Assuming multiple accelerometers being deployed on a rigid part of a human body, a recent work
proposes a data fusion method to estimate the gravity on that rigid part. However, how to find the
optimal deployment of sensors that minimizes the estimation error of the gravity is still an open
problem. In this paper, we formulate the deployment optimization problem, present deployment
guidelines, and propose some heuristics, including a virtual-force-based (VF-based) method and a
Metropolis-based search method. Experimental results are presented to verify our results.
iii
致
謝
碩士生涯轉眼即逝，在這兩年裡，無論是課業上或是生活上都有不
少收穫。在這兩年學習的過程中，特別感謝曾煜棋教授不辭辛勞的指導，
感謝吳鈞豪學長在每周的面談及撰寫論文時給予我相當多寶貴的意見。
感謝 HSCC 實驗室的同學、學長姐、學弟妹以及曾經幫助過我的人。謝
謝你們這兩年來的幫忙跟照顧。最後感謝父母親及家人在我求學過程中
給予我各方面的協助，感謝爸爸在口試前一晚上陪我做最後的演練。
台灣閩南語(漢字)
碩士生涯一目𥍉仔就過啊，佇這兩年內底，無論是學業上抑是生活
上攏學了袂少。佇這兩年學習的過程中，特別感謝曾煜棋教授的教示佮
指導，感謝吳鈞豪前輩佇逐禮拜的面會中佮寫論文時予我真濟寶貴的意
見。感謝 HSCC 實驗室的同窗、先輩、後輩佮捌共我幫助過的人，多謝
恁佇這兩年的幫忙佮照顧。最後感謝序大人佮親人佇我讀冊過程中予我
各方面的協助，感謝阿爸佇口試前一暗陪我做最後的演練。
台灣閩南語(羅馬字拼音)
Sik‐sū sing‐gâi tsit‐bak‐nih‐á tō kuè‐a, tī tse nn̄g‐nî lāi‐té，bô‐lūn‐sī
hak‐giap‐siōng iah‐sī sing‐uah‐siōng long oh‐liáu buē‐tsió. Tī tse nn̄g‐nî
hak‐sip ê kuè‐tîng‐tiong, tik‐piat kám‐siā 曾煜棋 kàu‐siū ê kà‐sī kah tsí‐tō,
kám‐siā 吳鈞豪 tsiân‐puè tī tak lé‐pài ê biān‐huē tiong kah siá lūn‐bûn sî
hōo guá tsin tsē pó‐kuì ê ì‐kiàn. Kám‐siā HSCC sit‐giām‐sik ê tông‐tshong,
sian‐puè, hiō‐puè kah kā guá pang‐tsōo kuè ê lâng, to‐siā lín tī tse nn̄g‐nî ê
pang‐bâng kah tsiàu‐kòo. Tsuè‐āu kám‐siā sī‐tuā‐lâng kah tshin‐lâng tī guá
thak‐tsheh kuè‐tîng‐tiong hōo guá kok hong‐bīn ê hiap‐tsōo. Kám‐siā a‐pah
tī kháu‐tshì tsîng tsit àm puê guá tsò tsuè‐āu ê ián‐liān.
iv
台灣客家語(漢字)
碩士生活過个當遽，在這兩年間，無論係學業還係生活上都學了恁
多。在這兩年學習的過程間，感謝曾煜棋教授个指教，感謝吳鈞豪前輩
在每擺个面談同寫論文時分 恁多建議。感謝HSCC實驗室个同窗、前
輩、後輩同幫助過 个人，感謝大家這兩年个照顧。最尾感謝爺哀同親
人在
讀書个過程間分 各方面个協助，感謝阿爸在口試前暗晡陪
做
最尾个練習。
台灣客家語(拼音-四縣腔)
Sag sii sen fad
go ge dong
ˊgiag
ˋ, cai
ia
ˋliong
ˋngien
ˇgien
ˊ, mo
ˇlun
hog ngiab song han
ˇhe
sen fad
song
du
hog
liau
ˋan
ˋdo
ˊ. Cai ia
ˋliong
ˋngien
ˇhog xib ge go cang
ˇgien
ˊ, gam
ˋqia 曾煜棋 gau su ge zii
ˋgau,
gam
ˋqia 吳鈞豪 qien
ˇbi cai mien tam
ˇtung
ˇxia
ˋlun vun
ˇsii
ˇbun
ˊngai
ˇan
ˋdo
ˊgien ngi. Gam
ˋqia HSCC siid ngiam siid
ˋtung
ˇhog, qien
ˇbi, heu
bi tung
ˇbong
ˊcu go ngai
ˇge ngin
ˇ, gam
ˋqia tai ga
ˊia
ˋliong
ˋngien
ˇgien
ˊge zeu gu. Zui mi
ˊgam
ˋqia ia
ˇoi
ˊtung
ˇqin
ˊngin
ˇcai ngai
ˇtug su
ˊge go cang
ˇgien
ˊbun
ˊngai
ˇgog
ˋfong
ˊmien ge hiab cu, gam
ˋqia a
ˊba
ˊcai kieu
ˋsii qien
ˇam bu
ˊpi
ˇngai
ˇzo zui mi
ˊge lien xib.
v
Contents
摘要 i Abstract ii 誌謝 iii Contents v List of Figures vi 1 Introduction 1 2 Related Work 23 Multi-Screen Cyber-Physical Game 3
3.1 How to play this game 3
3.2 System Architecture 4
3.2.1 Body-Area Inertial Sensor Network 5
3.2.2 Cyber-Physical Game Controller 7
3.2.3 Game Engine 9
3.3 Demonstration 11
4 Gravity Estimation Problem 13
4.1 Data fusion 14
4.2 Observation 16
4.3 Optimization Heuristics 17
4.3.1 A Virtual-Force-Based Method 17
4.3.2 A Metropolis-Based Method 19
5 Simulation and Experimental Results 20
5.1 Simulation Setup 21
5.2 Comparison of ߪଶሺܲሻ 21
5.3 Effects of More Sensors and Execution Time 22
5.4 Actual Gravity Estimation 25
List of Figures
1 An overview of our Multi-Screen Cyber-Physical Game. . . 4
2 System architecture. . . 5
3 Software architecture. . . 6
4 Inertial sensor . . . 8
5 Human body model . . . 9
6 Sensor reading to orientation . . . 10
7 Unity development screen . . . 11
8 Game screen with mouse move . . . 11

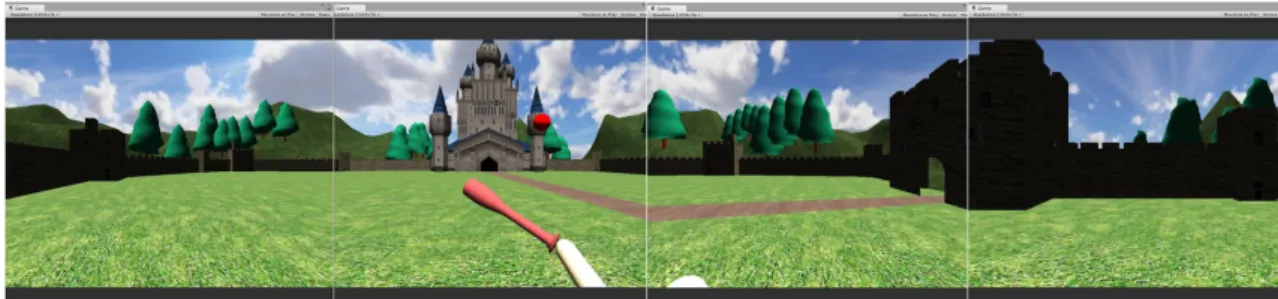

9 360◦ panorama view . . . 12
10 Player . . . 12
11 Snapshots of the game . . . 12
12 Virtual character and camera settings in Fig. 11 . . . 13

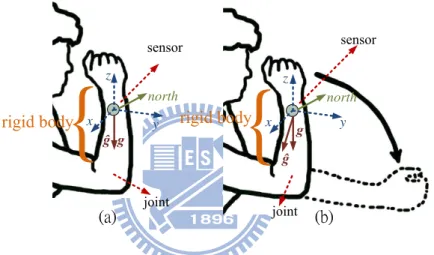

13 Gravity vector is incorrect when move. . . 13
14 The kinematical model for a rigid body . . . 15
15 The radius of a sphere effects error variances. . . 17
16 An example of iterative projection on three consecutive polygons. . . 18
17 An example of running the VF-based method by game engine Unity. . . 19
18 Adjacent grid points of a current location pi. . . 19
19 Different geometries . . . 22
20 Comparison of different geometries, origin at geometry center . . . 22
21 Comparison of different geometries, origin at geometry edge . . . 22
22 Comparison of different geometries, origin is away from the geometry edge 22 23 Effects of m sensors. . . . 23
24 Comparison of running times. . . 24
25 Three view of the box. . . 25
26 Rotating the box up and down. . . 25
27 Sensors’ locations on the box in Fig. 26. . . 26
28 Comparison of length waveforms of measured gravity vectors. . . 26
29 Comparison of five deployments. . . 27
1
Introduction
Cyber-physical systems (CPS) have attracted a lot of attention recently. Cyber system
also grows very fast in the past recent years, due to the advance of mobile computing technologies, various wireless communication and networking technologies (such as WiFi, ZigBee, Bluetooth, etc.). On the other hand, the development of Micro Electro Mechanical
Systems (MEMS) can enhance cyber systems with more physical inputs and actuators.
Traditionally, the human interface in cyber video game is keyboards and joystick. Now more and more cyber video game use more kindly human inter face to attract players attention, such as body motions captured by inertial sensors, camera, 3D depth sensor. The Nintendo Wii [1] is one example with MEMS-based inertial sensors. XBOX360 Kinect [2] use camera, 3D depth sensor to capture player’s action. Playstation Move [3] use a stick with 3-Axis Accelerometer, 3-Axis gyro , 3-Axis Magnetometer, and the stick also have a light ball on it, so the camera can capture the stick’s position. Reference [4] shows that by using MEMS-based inertial sensors and a wired network, body motions can be reconstructed through computer animation with little distortion. On the other hand, new display technologies, such as LCD, plasma, and back-projection displays, can further enrich cyber-physical games with better visual effects [5, 6].
The above advances motivate us to develop a multi-screen cyber-physical video game with physical inputs from players equipped with body-area inertial sensor network (BISN). A BISN consists of multiple accelerometers, magnetometers, and gyroscopes connected by wired/wireless links. An important usage in a BISN is to track human motions through these inertial sensors. Its applications include cyber-physical video game [7], robotic balancing [8], localization [9], sports training [10], medical care [11], and computer graph-ics [4].
A lot of works have studied how to track human postures. Basically, human motions can be tracked by estimating rotations of joints, via accelerometers, electric compasses, and/or gyroscopes [12]. Accelerometers sense the directions of the gravity, compasses sense the directions of the North, and gyroscopes estimate angular velocities. However, since a human body may continuously move, this is not an easy task.
In this paper we consider cyber-physical video game with physical inputs from players equipped with BISNs. We demonstrate our prototype of the BISN platform, the Cyber-Physical Game Controller, and the Game Engines. We develop a video game integrated
with body-area inertial sensor networks deployed on players as inputs and with multiple game screens to broaden players’ views and provide more realistic interaction experiences. We also consider a fundamental issue in a BISN, the gravity measurement problem. Regarding a human body as multiple rigid parts connected by joints, we study the de-ployment of accelerometers on one rigid part and the estimation of the gravity on that rigid part. The acceleration perceived by an accelerometer is the gravity (which is the same for all accelerometers on the rigid part) plus its own acceleration seen by an outside observer. Since the orientation of the rigid part is unknown, how to measure the gravity is a challenging problem. Given a sensor deployment, [8] shows a data fusion scheme to extract the gravity. Based on [8] we try to find the best locations of accelerometers that minimize the estimation error of the gravity. We present guidelines that can be applied to arbitrary geometries, which state that sensors should be evenly distributed over the surface of the rigid part such that the distances between any pairs of them are maximized. We show that this guideline leads to the optimal solutions for some special cases and near-optimal soultions in general. Then we propose two heuristics, called virtual-force-based
(VF-based) and Metropolis-based method. Experimental results show that both methods
perform quite well, even for complicated geometries.
The rest of paper is organized as follows. Section 3 describes about the Multi-Screen Cyber-Physical Game. Section 4 formulates the gravity estimation problem. Experimen-tal results are given in Section 5, and conclusions are drawn in Section 6.
2
Related Work
In Cyber-physical systems, which are the integrations of computational and physical pro-cesses. [13] discuss current trends in the development and use of high-confidence medical cyber-physical systems (MCPS). These trends, including increased reliance on software to deliver new functionality, wider use of network connectivity in MCPS, and demand for continuous patient monitoring. [14] explore the temporal and spatial properties of events, define a novel CPS architecture, and develop a layered spatiotemporal event model for CPS. [15] present AnySense, a network architecture that supports video communication between 3G phones and Internet hosts in cyber-physical systems. AnySense implements transcoding of video streams between the Internet and circuit-switched 3G cellular
net-works, and is transparent to 3G service providers. [16] look at modern buildings entirely as a cyber-physical energy system and examine the opportunities presented by the joint optimization of energy use by its occupants and information processing equipment.The security issue be mention in [17] [18].
Basically, human motions can be tracked by estimating rotations of joints, via ac-celerometers, electric compasses, and/or gyroscopes [12]. When structures of articulated objects are unavailable, rotations of a single node may be tracked by fusing sensing data of different modalities [9] [12] [19]. With knowledge of human body structures, [20] [21] detect incorrect estimations of rotations that are outside of reachable regions of joints, and [22] compensates linear accelerations under body movements. For human location estimation in areas of static magnetic disturbances, [23] uses four magnetometers forming an orthogonal trihedron to gain more perception of magnetic fields.
3
Multi-Screen Cyber-Physical Game
In multi-screen cyber-physical game, we put BISN on human bodies to capture motions. With BISN on human bodies, the player will have more kindly human interface than the traditional one, such as keyboard or mouse. In the game, player can use its own human posture to be the game input information. Besides, we also develop a Multi-screen video game with a 360◦ panorama view.The rest of this section is organized as follows. Subsection 3.1 describe about how to play our game. Subsection 3.2.3 briefly introduce our system from bottom to up. Subsection 3.3 demonstrate a prototype of our game system.
3.1
How to play this game
The overview of our system architecture is shown in Fig. 1. The player is surrounded by four screens. Each screen is set individually at North, East, West and South. Besides, in the game scene, each screen always captures a constant direction view. For example, the North screen always captures the North view of the game scene; the South screen always captures the South view of the game scene, and so on. In the middle of these four screen, we consider a single-player game; the player act as same as the virtual character which is in the game scene. For example, when the player raises his hand, the virtual character in
North Screen So uth Sc re en E a s t S c re e n W e s t S c re e n

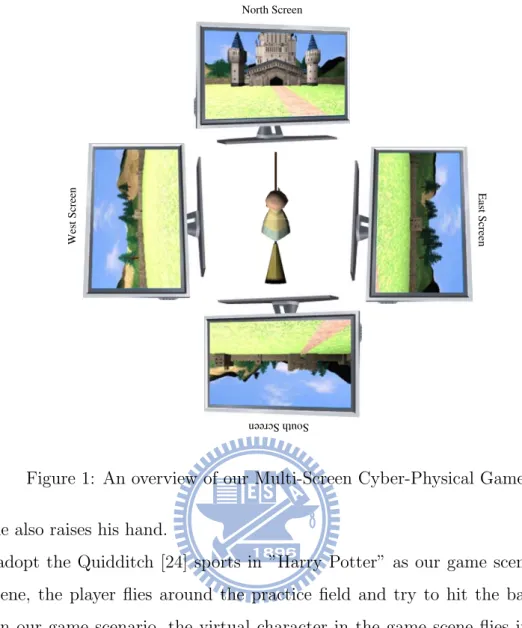

Figure 1: An overview of our Multi-Screen Cyber-Physical Game. the game also raises his hand.
We adopt the Quidditch [24] sports in ”Harry Potter” as our game scenario. In the game scene, the player flies around the practice field and try to hit the ball inside the game. In our game scenario, the virtual character in the game scene flies in a constant speed. The player use flying broom to control the flying direction and use bat to hit the ball. For example, when the player’s flying broom is directed to the North screen, the virtual character in the game scene fly to the North. For capture human body and game equipment (flying broom and the bat), we put four wireless sensors on forearm, upper arm, flying broom and bat. Each sensor consist accelerometer and magnetometer. Accelerometer senses the direction of the gravity; magnetometer senses the direction of the North.
3.2
System Architecture
Our system architecture is shown in Fig. 2. In the middle of the room, we consider a single-player game; the BISN is deployed on the player to capture its motions. The sensing data are reported to the sink by wireless transmission. The sink is connected to

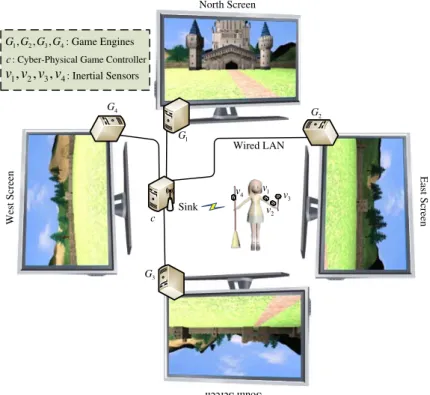

Wired LAN North Screen So uth S cre en E a s t S c re e n : Game Engines W e s t S c re e n Sink : Inertial Sensors 1 G 1, 2, 3, 4 G G G G 2 G 3 G 4 G
: Cyber-Physical Game Controller
c c 1, 2, 3, 4 v v v v 1 v 2 v 3 v 4 v
Figure 2: System architecture.
the cyber-physical game controller by USB, and the collected sensing data are processed by cyber-physical game controller and feed it four game engines G1, G2, G3, and G4 via wired LAN interfaces. We place four game engines together with their screens near the walls of the room. Each game engine are set to four camera angles (east, west, north, and south) and they together provide a 360◦ panorama view of the game scene. The software architecture is shown in Fig. 3. Below, we briefly describe each component.
3.2.1 Body-Area Inertial Sensor Network
In the wireless sensing platform, the sink and the nodes worn on the player form a BISN. The platform consists of one sink node and four inertial sensor nodes v1, v2, v3, and v4. Each node consists of some inertial sensors, a microcontroller, and a wireless transmission module. In our work, each node is equipped with a axial accelerometer and a tri-axial electronic compass. The tri-tri-axial accelerometer senses the gravity in x, y, z-axes, while the tri-axial compass senses the earth magnetic force in x, y, z-axes. Note that gravity acceleration dominates the accelerations sensed by an accelerometer. The data are reported to the sink through the ”Wireless Module”, where we runs a polling MAC to avoid collisions and to improve throughput.For the BISN platform, we adopt Jennic

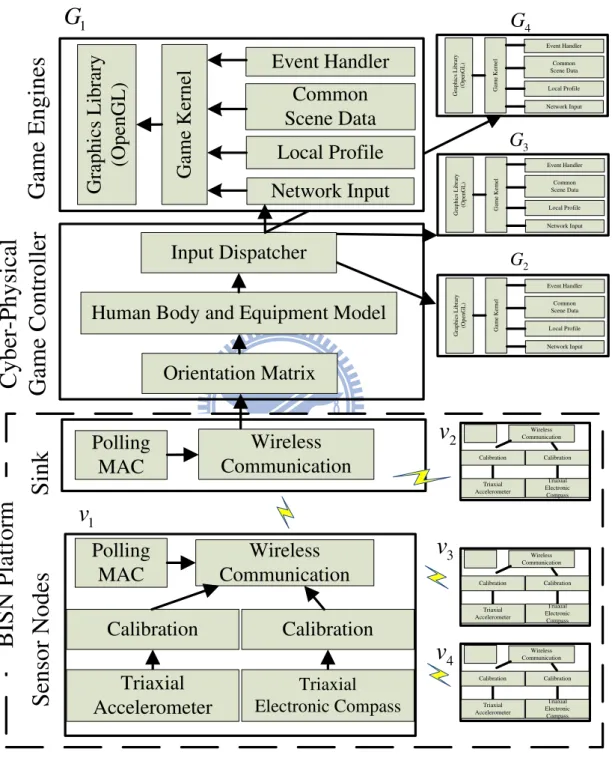

Triaxial
Accelerometer
Triaxial Electronic CompassCalibration
Calibration
S
e
n
s
o
r N
o
d
e
s
Wireless
Communication
Wireless
Communication
S
in
k
Orientation Matrix
Cyber-Physical
G
a
m
e
C
o
n
tr
o
ll
e
r
Human Body and Equipment Model
Game Engines
Input Dispatcher
1v
2v
B
IS
N
P
la
tf
o
rm
3v
4v
4G
Event Handler
Network Input
1G
Common
Scene Data
Local Profile
G
a
m
e
K
e
rn
e
l
2 GG
ra
p
h
ic
s
L
ib
ra
ry
(O
p
e
n
G
L
)
Polling
MAC
Polling
MAC
Triaxial Accelerometer Triaxial Electronic Compass Calibration Calibration Wireless Communication ... 3G
G ra p h ic s L ib ra ry (O p e n G L ) Event Handler Network Input Common Scene Data Local Profile G a m e K e rne l G ra p h ic s L ib ra ry (O p e n G L ) Event Handler Network Input Common Scene Data Local Profile G a m e K e rne l G ra p h ic s L ib ra ry (O p e n G L ) Event Handler Network Input Common Scene Data Local Profile G a m e K e rne l Triaxial Accelerometer Triaxial Electronic Compass Calibration Calibration Wireless Communication ... Triaxial Accelerometer Triaxial Electronic Compass Calibration Calibration Wireless Communication ...JN5139 [25] and OS5000 IMU sensor [26].
Nodes Each node collects the sensing data from OS5000 through the Jennic UART port.
After receive the data from the UART port, the data will store at the RAM temporary and wait for the sink to pull it. When the sink start to pull, Jennic will read the data from RAM and send it to the sink.
OS5000 sensor We use OS5000 to be our body sensor. The OS5000 family is a law cost
compasses within a tiny 1 inch square footprint. OS5000 combines 3-axis magnetic with 3-axis accelerometers providing OEM users a precise tilt compensated heading, pitch and roll information suitable for a wide range of applications. Compass units offer an ASCII interface that includes both hard-iron and soft iron compensation and simple, user-configurable data formatting. In our prototype the sampling rate is set to 20Hz, a common value for motion capturing and we use 3-axis magnetic and 3-axis accelerometers to be the sensing reading, we don’t use pitch and roll information because the pitch may not correct when pitch angle is over 70◦.
Sink Sink is one of the most important devices in the BISN. It collects all packets from other nodes and sends them to the cyber-physical game controller from RS-232. When user wants to send commands to any device, it needs to transmit through sink.
Jennic We use Jennic JN5139 to develop BISN (Fig. 4). It’s a experimental tools using
in sensor network researching. Each Jennic JN5139 consists of a micro-controller and an IEEE 802.15.4 wireless transmission module and we also use Jennic JN5139 as the sink. Our body inertial sensor is based on the Jennic JN5139 with 16MHz 32-bit RISC CPU, 96kB RAM and 192kB ROM. The Jennic JN5139 includes 4-input 12-bit ADC, 2 11-bit DAC, 2 comparators, two application timer/counters, three system timers, two UARTs, 21 GPIO, 5 SPI port to select and 2-wire serial interface.
3.2.2 Cyber-Physical Game Controller
The first part of this module converts collected sensing data into inputs of single-screen game engines. In our demonstration, the inputs include the direction of the broomstick and the player’s gestures. Given the sensing data, the ”Orientation Matrix” block
cal-Jennic JN5139
Cell-phone Battery Inertial Sensor (OS5000)

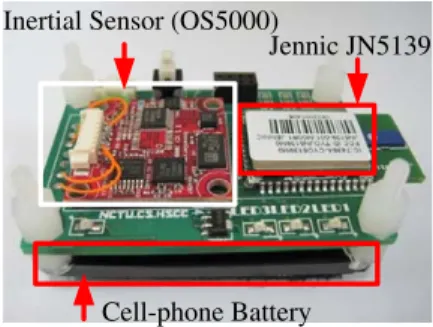

Figure 4: Inertial sensor
culates the absolute orientations of nodes with respect to the earth coordinate. The direction of broomstick can be obtained directly from its orientation matrices, and the player’s gestures are calculated from orientation matrices and a human model. The second part of this module dispatches the inputs to each single-screen game engine via a wired LAN. Note that traditional game engines and developing tools do not support multiple screens. By using this module to control the single-screen game engines, we can simulate a multi-screen game engine.
We run these game engines with the same game data, except that their cameras may have different settings. For example, the cameras may look at different directions to form a 360◦ panorama view of the game scene. Note that by feeding game engines with the same inputs, their behavior will be the same. This architectural design makes it simple to implement, and it has the potential to reuse existing games without modification.
Input Dispatcher Typical game engines do not support multiple screens. Our game
controller tries to simulate a multi-screen game engine by sending proper data, via the ”Input Dispatcher” to four game engines. In our prototype, input dispatcher sends the proper parameters such as articulation angles, game objection position to the game engines via wired LAN interfaces.
Human Body Model We regard a human body as multiple movable parts (Fig. 5),
each being a rigid body connected to another part by a rotational joint [27, 28]. Each rigid body has its own coordinate. For capture the rigid body’s tilt, the sensor is set at the rigid body. The sensor rendering the rigid bodies tilt information and we can use the tilt information to know the rigid bodies tilt in the earth coordinate through orientation matrix. In our prototype the player wears four inertial sensor nodes, one on
Figure 5: Human body model
the broomstick, one on forearm, one on upper arm, and one on the club.
Orientation Matrix As Fig. 6 sensors are putted on forearm and upper arm. Each
sensor receives the 3-axis magnetic and 3-axis accelerometer from the OS5000. When the sensor is at rest, the 3-axis accelerometer reading should consist of only gravity, and the 3-axis magnetic reading consist of magnetic which direct to the North Magnetic Pole. Due to the magnetic reading is not horizontal to the horizon; we use Gram-Schmidt process [29] to let the magnetic reading project to the horizon, so that we can know the North direction. With the North direction and gravity direction is known, we can easily find the East direction, and the ”Orientation Matrix” [27] represents the absolute orientations of all sensor nodes with respect to the earth coordinate can be found. For example, the gravity always directs to the ground. So if we know the gravity, the up direction is defined. But the accelerometer’s readings not only sense the gravity but also sense other acceleration. With the wrong acceleration reading, the Orientation Matrix may represent the wrong orientation. We define this problem as a Gravity Estimation problem. And more detail about gravity estimation problem will discuss at 4.
3.2.3 Game Engine
We adopt Unity [30] as our game engine. Unity is a game development tool which features a fully integrated editor and physics engine for rapid 3D game prototyping. Coding is an easy job in Unity. In Unity we can do many works with only use script language. Besides, any object in Unity is fully objective.
x y z North East Up magnetic reading accelerometer reading x y z x y z x y z
Figure 6: Sensor reading to orientation
through script. The ”scene” is the ”Fix part” in the game, it won’t be changed during the executing, such as lighting, game scene, decorate game object, background sound will be set to scene. In the multi-screen video game ”Camera” is an important part. Traditionally, the camera is mount to a mouse view, the screen view is moved when the player move the mouse (Fig. 8). In multi-screen video game, the camera mounts to the player and the camera always capture to a static direction. For example, if we have four screens in the room, each cameras capture view is 90◦(Fig. 9); if we have six screens, each cameras capture view is 60◦. In our prototype we use four screens.
Each game engine represents a view port to the game scene and each game engine has a ”Game Kernel”, which takes inputs from four modules. All game engines use the same game data except for the settings of cameras. Upon receiving inputs from the cyber-physical game controller, they update game status and settings of the cameras in the same way. For example, when the multi-screen controller broadcasts ”moving east” to all game engines, each game engine moves its camera one unit to the east.
The ”Common Scene Data” module describes the virtual world. The ”Common Scene Data” module describes the virtual world. It is the same for all game engines. The ”Net-work Input” module receives game inputs from the ”Cyber-Physical Game Controller” and updates the virtual world in the game. The ”Event Handler” module processes the interactions, especially collisions, between virtual objects and the player. For example, when the player hits a ball, it bounces away, and the ”Event Handler” increases the player’s score. Each game engine contains a camera, whose direction is specified by the ”Local Profile” that takes pictures for its virtual world and feeds the captured data to
Figure 7: Unity development screen

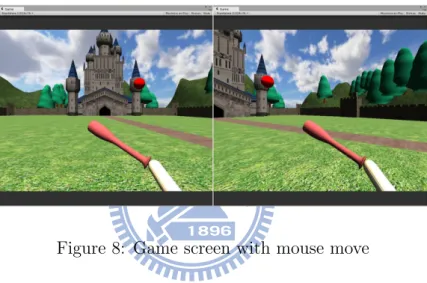

Figure 8: Game screen with mouse move
the ”Game Kernel”, which calls the ”Graphics Library” to display the results. Since we have four game engines with four cameras facing to east, west, north, and south, a 360◦ panorama view of the virtual world is provided to support better visual effect to the player.
3.3
Demonstration
We adopt the Quidditch sports in Harry Potter [24] as the game scenario to demonstrate the multi-screen cyber-physical game engine. The player Fig. 11 rides a flying broom in a practice field, and she practices to fly to the ball by her club. She flies at a constant speed and controls the broomstick to change her flying direction.
Fig. 11 shows some snapshots of the game. The player flies a short distance to the north in Fig. 11 (a), and then she turns to the west in Fig. 11 (b). We adopt Unity as our game engine, which features a fully integrated editor and a physics engine for rapid
Figure 9: 360◦ panorama view
Figure 10: Player
3D game prototyping. Fig. 12 (a) and Fig. 12 (b) show the corresponding settings of the west and the north game engines in Fig. 11 (a), respectively. The virtual character, which is controlled by the player, looks to the north in both game engines. The camera of Fig. 12 (a), whose viewing volume is illustrated by white lines, looks to the west, while the camera of Fig. 12 (b) looks to the north. Fig. 12 (c) and Fig. 12 (d) correspond to the west and the north screens in Fig. 11 (b), respectively, where both of the player and the virtual character look to the west, but the directions of the cameras remain unchanged.
Figure 12: Virtual character and camera settings in Fig. 11 x z g ƣ north y x y g ƣ north z ĩŢĪ ĩţĪ
Figure 13: Gravity vector is incorrect when move.
4
Gravity Estimation Problem
In cyber-physical systems based on IMU sensor networks (where sensors typically include accelerometers, magnetometers, and gyro), human motions are captured by sensor nodes deployed at movable parts (such as limbs) and used as physical inputs and feedbacks to the systems. Tracking human postures is done by estimating rotations of joints, which are typically derived from sensing data of accelerometers, electric compasses, and gyroscopes [12]. Accelerometers sense the directions of the gravity, compasses sense the directions of the North, and gyroscopes help to stabilize the estimation. Traditionally, each rigid body put an accelerometer to sense the gravity. As Fig. 13, assume we put an internal sensor on forearm, Fig. 13 (a) is static, Fig. 13 (b) is in move, let ˆg be the measurement
which is measure from the accelerometers and let g be the gravity, when the rigid body is rotating, the reading of accelerometer may consists gravity plus it’s on acceleration seen
by an outside observer. But in accelerometer-based tilt estimation, we only interesting in gravity.
Given a sensor deployment, [8] shows a data fusion scheme to extract the gravity based on multi-accelerometer. However, improper deployments may significantly increase estimation errors, so there is room to further optimize the deployments. At the rest of this section, we consider how to find an optimal deployment to improving the estimation accuracy of accelerometers, and thus limit our discussions to only accelerometers.
4.1
Data fusion
We are interested in tracking human postures by deploying accelerometers on a human body. One fundamental issue in such scenarios is how to calculate the gravity, no matter when the body parts are moving or not. Clearly, the gravity as being measured by each sensor is relative to its placement and angle. We regard a human body as multiple movable parts, each being a rigid body connected to another part by a rotational joint [27, 28]. Accelerometers are placed on a human body for posture tracking. The concept is shown in Fig. 5.
To formulate the gravity measurement problem, we consider one rigid body and the sensors on it, as illustrated in Fig. 14. We assume that there is an Earth-fixed coordinate system, representing views of a fixed observer, with θ = (0, 0, 0) as its origin and xθ, yθ,
and zθ as its axes. The gravity g with respect to this θ-coordinate is thus −1 Guass along
the zθaxis. Let the joint of the rigid body be at location r(t) at time t. For the rigid body,
we assume a part-fixed coordinate with respect to the joint with r(t) as its origin and xr,
yr, and zr as its axes. Therefore, for any point on the part, its coordinate with respect
to the r-coordinate remains unchanged no matter how the body moves. For any point at location p with respect to the r-coordinate, its location with respect to the θ-coordinate changes over time t and can be written as p′(t) = r(t) + R(t)p, where R(t) is the 3× 3 rotation matrix translating from (xr, yr, zr) to (xθ, yθ, zθ) [27].
Let s1, s2, . . . , sm be m accelerometers deployed on the rigid body and p1, p2, . . . , pm
be their locations with respect to the r-coordinate, respectively. Without loss of generality, we assume that these accelerometers are properly placed in the sense that their x-, y-, and z-axes are perfectly aligned to the xr, yr, and zraxes of the r-coordinate, respectively
ȧ
r
g
r(t)
sensorp
jx
șy
șz
șp
iz
rx
ry
rFigure 14: The kinematical model for a rigid body
the translation). This implies that the gravity being observed in the r-coordinate is the same as that being observed by any sensor.
Now, consider any sensor si, i = 1, 2, . . . , m. Its location in the θ-coordinate at time
t is p′i(t) = r(t) + R(t)pi (note that pi is time-invariant). Taking the second derivative of
p′i(t), we have its acceleration in the θ-coordinate: ¨
p′i(t) = ¨r(t) + ¨R(t)pi. (1)
Since si is aligned to the r-coordinate and noise should be included, the actual reading
ai(t) of si should be ai(t) = RT(t) (−¨p′i(t) + g) + ni(t). Note that both ai(t) and ni(t) are
3×1 vectors, and each element of ni(t) has a zero mean with a standard deviation σn. (For
example, when the rigid body is at rest, the reading of si should consist of only gravity,
giving ai(t) = RT(t)g + ni(t); when it falls freely, the reading should be ai(t) = ni(t).)
Below, assuming a fixed t, we will omit time information in our formulation. Plugging Eq. (1) into ai, we have
ai = RT ( −¨r − ¨Rpi+ g ) + ni = [ RT (−¨r + g) , −RTR¨ ] 1 pi +[ni ] .
Putting these m equations together, we have the equality:
A = QP + N, (2) where A = [ a1 . . . am ] ∈ ℜ3×m,
Q = [ RT (−¨r + g) , −RTR¨ ] ∈ ℜ3×4 , P = 1 . . . 1 p1 . . . pm ∈ ℜ4×m , N = [ n1 . . . nm ] ∈ ℜ3×m .
Here, A and P are known and Q is to be determined. P is called the deployment matrix of sensors s1, s2, . . . , sm.
Since ¨r ≪ g in Q, which is common for human motion, Q’s first column vector RT(−¨r + g) ≈ RTg. By estimating Q, we can determine RTg. Let ˆQ be an estimation of
Q. Following [8], a ˆQ that makes ˆQ− Q as small as possible can be found by ˆQ = AP+, where P+ is the Moore-Penrose pseudoinverse of P when m > 4 and P+ = P−1 (the
inverse of P ) when m = 4 [31]. This implies that to find ˆQ we need at least four sensors.
Since ˆQ− Q is a zero-mean vector, one needs to measure how ˆQ is close to Q. In [8], an error variance, which solely depends on the deployment matrix P , is defined:
σe2(P ) = 3σn2 4 ∑ k=1 1 ρ2 k(P ) , (3)
where ρk(P ) is the kth largest singular value of P . It is claimed that a smaller σ2e(P )
implies a more accurate ˆQ. Therefore, we formulate the deployment optimization problem
as follows: given a rigid body and m accelerometers to be deployed on the surface of the part, the goal is to find the deployment matrix P such that the error variance σe2(P ) is minimized. Note that since the 3σ2
n in Eq. (3) is a constant, we only need to focus on the
summation part.
4.2
Observation
It is natural to ask how the size of a rigid part affects the estimation errors. To observe it, we vary the radius of a sphere from 1 to 10 and measure the error variance of some fixed deployment. That is, if the location of sensor s1 is p1 on a unit sphere, it becomes 10p1
on a sphere whose radius is 10. The results are shown in Fig. 15 for two deployments. We can see that the error variances decrease as the radius grows. The slope is quite steep at the beginning, implying that small objects are more vulnerable to sensor deployments.
0 2 4 6 8 10 12 0 2 4 6 8 σe 2 (P) Sphere radius Deployment 1 Deployment 2
Figure 15: The radius of a sphere effects error variances.
4.3
Optimization Heuristics
As Fig. 15, intuitive deployments may result in poor performance. The above formulation has related the sensor deployment problem to one of finding a P that minimizes σ2
e(P ).
The problem is difficult even for simple geometries. Below, we present some observations and guidelines. Then we realize them by a virtual-force-based (VF-based) method and a Metropolis-based search method.
4.3.1 A Virtual-Force-Based Method
We present a virtual-force-based (VF-based) deployment method that can be applied to rigid bodies of arbitrary shapes. It approaches the gravity measurement problem by following the LD guideline and distributing sensor nodes according to the electronic particles distribution principle: the nearer the particles, the stronger the repelling forces
between them. This algorithm works as follows.
1. First, randomly place sensors s1, s2, . . . , sm on the surface of the rigid body. Let p1,
p2, . . . , pm be their locations, respectively.
2. For each pair of sensors si and sj, the repelling force contributed by sj on si is
defined by a 3× 1 vector fji = ( 1 ∥pi− pj∥ + β ) pi− pj ∥pi− pj∥ ,
where β is a constant speed to expedite the iterative process. In the exceptional case of pi = pj, we set fji to a unit vector of any direction. The total force contributed
by all other sensors on si is fi =
∑
j̸=ifji.
3. For each sensor si, we let it move a displacement for a period of T pushed by force
1 dc 1
d
2 d 2 d 2 dc Polygon 1 Polygon 2 Polygon 3 ip
i p' T fi 1 d T fiFigure 16: An example of iterative projection on three consecutive polygons. So the new location of si is pi+ fiT . Since this location may not be on the surface, a
projection onto the surface is needed (we will discuss how to conduct the projection below).
4. Let p(old)i and p(new)i be the previous and next locations, respectively, of si. We test
whether ∑mi=1∥p(new)i − p(old)i ∥ ≤ σth or the allowed number of iterations is reached.
If so, we terminate this algorithm; otherwise, go back to step 2.
The above algorithm follows the virtual-force discipline [32] to maximize the inter-distances among sensors and thus our LD guideline. Note that since the final locations depend on the initial locations, to avoid finding only a local minimum, we may repeat the algorithm several times with randomized initial locations.
In the above step 3, how to conduct projection needs further explanation. To be com-putationally feasible, we approximate a surface by polygons as usually done in computer graphics. Fig. 16 shows how this works. Sensor si is at location pi and is pushed by a
displacement fiT . The projection is conducted in a polygon-by-polygon fashion. First,
pi+ fiT is projected to polygon 1. Since the projected point is beyond the range of
poly-gon 1, we regard that a partial displacement d1 out of fiT has been consumed and si has
been moved a projected displacement d′i to the edge of polygon 1, i.e., p′i. A remaining displacement of fiT − di need to be applied to si, which is now at p′i. Similarly, p′i+ fiT
is project to polygon 2, we regard that a partial displacement d2 out of fiT − d1 has been
(a) initial deployment
(b) final deployment
Figure 17: An example of running the VF-based method by game engine Unity.
i
p
Figure 18: Adjacent grid points of a current location pi.
It is worth pointing out that the above iterative process is indeed supported by many 3D game engines, such as Unity [30]. Fig. 17 shows how we configure a 3D object (an arm) by polygons in Unity. Fig. 17(a) shows the initial locations of four sensors on an arm, while Fig. 17(b) shows the final locations found by Unity.
4.3.2 A Metropolis-Based Method
The Metropolis-based method follows a probabilistic search to get rid of local optimal solutions. Its cost, however, is larger search time. This is acceptable for our sensor deployment problem since once a good solution is found, it can be used repeatedly.
In this method, we partition the surface of the rigid body into mesh-like grid points. We say that two deployment matrices Pi and Pj are neighbors if they differ by exactly one
loss of generality, we assume that each grid point has eight adjacent grid points (refer to Fig. 18), which may locate on adjacent faces of the surface area. Therefore, each Pi has
up to 8m neighbors. We denote by B(Pi) the set of Pi’s neighbors. The algorithm works
as follows:
1. Begin with an arbitrary deployment matrix Pi.
2. From Pi, we choose one of its neighbors, say Pj, as the next deployment with
probability qij (discussed below). Note that
∑
∀jqij = 1.
3. Repeat step 2) for a predefined number of times, and output the best deployment (with the smallest σe2(P )) seen so far.
We design the transition probability qij according to the Metropolis’ theorem [33].
The resulting qijs should ensure: if we run the above search process long enough, each
deployment P should be visited by a mathematically stationary distribution π(P ) such that π(P ) = 1/σ 2 e(P ) C , (4) where C =∑P 1/σ2
e(P ). Note that C normalizes the distribution. By Metropolis’
theo-rem, this transition probability should be defined as
qij = 1 8mmin{1, π(Pj) π(Pi)} if Pj ∈ B(Pi), 0 if Pj ̸∈ B(Pi), 1−∑Pj̸=Piqij if Pj = Pi. (5)
Note that the actual value of C is immaterial in Eq. (5). Compared to the VF-based method, this algorithm requires much longer time to reach its stationary distribution, but it may output a better solution.
5
Simulation and Experimental Results
We have conducted simulations and real experiments to verify performance of the proposed algorithms in terms of σ2
5.1
Simulation Setup
We conduct simulations on five rigid body geometries as shown in Fig. 19. Geometry (a) is a cube with dimensions 4, 4 and 4. Geometry (b) is a rectangular box with dimensions 15 (length), 15 (width), and 30 (height). Geometry (c) is a Triangular Prism, of which the height is 30 and the bases are regular triangles with the length of each edge being 15. Geometry (d) is a cylinder, of which the height is 30 and the circle has a radius of 7.5. Geometry (e) is the graphical model of a human arm in Fig. 7. Since the locations of joints matter, for each geometry, we simulate the possible location of its joint. One is at the geometric center of the rigid body, shown by a circle ◦ in Fig. 19. Another is at one surface of the rigid body, shown by a × in Fig. 19. This case is more common in practice. The other is located outside the rigid body, which is not shown in Fig. 19. Since no previous method exists, we compare our VF-based method and our Metropolis-based method, by σ2
e(P ) and execution time.
5.2
Comparison of σ
e2(P )
First, we consider the deployment of m = 4 sensors. For the VF-based method, sensors are initially placed inside the geometries at random and then moved according to the LD guideline. The algorithm terminates when the total moving distance of sensors is smaller than σth, which is set close to zero in the simulation. The final locations of sensors are
used as the output if the method. For the Metropolis-based method, the surface of each geometry is properly partitioned into grid points. Initially, sensors are placed at the grid points at random. The algorithm moves sensors according to transitional probabilities and terminates in 200, 000 iterations. The best locations seen so far are used as the output of the method. To avoid finding only a local minimum, we repeat both method ten times with randomized initial locations.
We shows the error variance σ2
e(P ) achieved by each method. Since the location of
the joints of rigid bodies matter, we simulate three possible situations. Fig. 20 shows the results when joints are at the geometric centers of the rigid bodies (indicated by◦ in Fig. 19), and Fig. 21 shows the results when joints are on the surface of the rigid bodies (indicated by× in Fig. 19), and Fig. 22 shows the results when joints are outside the rigid bodies. Each column of the figures shows the distribution of the σ2
e(P )s output by ten
Figure 19: Different geometries
Figure 20: Comparison of different ge-ometries, origin at geometry center
Figure 21: Comparison of different ge-ometries, origin at geometry edge
Figure 22: Comparison of different ge-ometries, origin is away from the geom-etry edge
that ten executions of the VF-based method give almost the same σ2
e(P ) although the
actual location of sensors may not be the same. As can be seen from Fig. 19, the VF-based method significantly outperforms the Metropolis-VF-based method. For most cases, the VF-based method is able to give lower σe2(P )s than the Metropolis-based method, and for the rest cases, the output of the VF-based method is comparable to that of the Metropolis-based method. While Metropolis-based method requires more trials to obtain better solutions, the VF-based method is able to find good solutions in several executions and less dependent on luck.
5.3
Effects of More Sensors and Execution Time
The number m of accelerometers to be deployed on a rigid part is a trade-off between accuracy and cost. In addition to the m = 4 case, we consider different number of sensors to be deployed on the geometries in Fig. 19. The joints are at the surfaces of rigid bodies (indicated by× in Fig. 19). For each value of m, we repeat the VF-based and the
4 5 6 7 8 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 number of sensors σ 2(P)e Metropolis Virtual Force (a) 4 5 6 7 8 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 number of sensors σ 2(P)e Metropolis Virtual Force (b) 4 5 6 7 8 0.4 0.5 0.6 0.7 0.8 0.9 1 number of sensors σ 2(P)e Metropolis Virtual Force (c) 4 5 6 7 8 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 number of sensors σ 2(P)e Metropolis Virtual Force (d) 4 5 6 7 8 0.2 0.3 0.4 0.5 0.6 0.7 number of sensors σ 2(P)e Metropolis Virtual Force (e) Figure 23: Effects of m sensors.
Metropolis-based method ten times and compare them by their optimal σ2
e(P )s. Note
that comparing the σe2(P )s is more practical. For each geometry in Fig. 19, we show the comparison of both methods by σ2
e(P )s in Fig. 23 and by the execution time in Fig. 24.
The results of m = 4 in Fig. 23 is also shown in Fig. 21. For both methods, deploying more sensors significantly reduces the error variance σ2
e(P ). The relative accuracies between
the two methods are roughly the same se m is increased. The execution time of the VF-based method increases quite slowly as more sensors are used, whereas the execution time of Metropolis-based method is quite sensitive to m. The Metropolis-based method take at least 200 seconds to reach mathematical stationary distribution π(P ), whereas the VF-based method reduces the execution time by more than 1/8. The results demonstrate that the proposed LD guideline is both effective and efficient for deploying accelerometers on arbitrary geometries.
4 5 6 7 8 0 100 200 300 400 500 600 number of sensors time(sec) Metropolis Virtual Force (a) 4 5 6 7 8 0 100 200 300 400 500 600 700 800 number of sensors time(sec) Metropolis Virtual Force (b) 4 5 6 7 8 0 200 400 600 800 1000 number of sensors time(sec) Metropolis Virtual Force (c) 4 5 6 7 8 0 100 200 300 400 500 number of sensors time(sec) Metropolis Virtual Force (d) 4 5 6 7 8 0 100 200 300 400 500 600 700 800 number of sensors time(sec) Metropolis Virtual Force (e)
ĴıġŤŮ
IJĶġŤŮ ĴıġŤŮ
MRLQW
Figure 25: Three view of the box.
1 p 2 p 3 p 4 p 7 p (a) 2 p 1 p 3 p 4 p 6 p 7 p (b) Figure 26: Rotating the box up and down.
5.4
Actual Gravity Estimation
In addition to simulations, we conduct real experiments to test the accuracy of the mea-sured gravity. We make a rectangular box, deploy accelerometers on its surface, and then rotate the box physically to test the measuted gravity. As shown in Fig. 26, we consider a rigid body of a rectangular box fixed by a joint on a table. The three views of the box and the joint are shown in Fig. 25, where the joint has one rotation degree of freedom. We deploy eight accelerometers at the degree of freedom. We deploy eight accelerometers at the vertices of the box. Their coordinates are shown in Fig. 26. Note that the coordinate of the joint is defined to be (0, 0, 0). We consider two motions, one consisting of fast rota-tions repetively from Fig. 26(a) to Fig. 26(b), and the other consisting of slow rotarota-tions. The sensing data is stored at each sensor node and reported to a sink in a reliable way. We compute the measured gravity offline by a PC.
1 p 2 p p3 4 p ( 6,2,8.5) -(0,0,0) (6,2,-8.5) 5 p 6 p p7 8 p (6,28,8.5) (6,28,-8.5) ( 6,2,-8.5) -(6,2,8.5) ( 6,28,-8.5) -( 6,28,8.5)
-Figure 27: Sensors’ locations on the box in Fig. 26.
10 20 30 40 50 60 0 1000 2000 3000 time length of gravity (mg) s7 {s1, s3, s6, s8}
(a) under fast rotation of the box
10 20 30 40 50 60 600 800 1000 1200 1400 1600 time length of gravity (mg) s 7 {s1, s3, s6, s8}
(b) under slow rotation of the box Figure 28: Comparison of length waveforms of measured gravity vectors.
We first compare the accuracy of using four sensors (m = 4) with only one sensor (m = 1). The four sensors are at p1, p3, p6, and p8, the optimal locations obtained by
the VF-based method. The estimated gravity ˆg(t) at time t is the first column of its
ˆ
Q(t). We compare it with the raw sensing data of s7. Since the actual gravity RT(t)g is
unknown, we compare by the lengths of measured gravities, taking advantage of the fact that ∥RT(t)g∥ is always 1000 mg (milliguass), no matter how we rotate the box. Fig. 28
shows the length waveforms of measured gravity vectors under fast rotation (Fig. 28 (a)) and slow rotation (Fig. 28 (b)) of the box. Clearly, the gravity measured measurement by a single accelerometer is significantly disturbed by motion and noise, whereas the gravity measured by four sensors are much more accurate. This verifies the need of our multi-sensor approach.
Now, we compare different deployment by their measurement accuracy to verify the need of proper deployments. The accuracy of the measured gravity is computed as the standard deviation of measurement errors ∥ˆg(t)∥ − ∥RT(t)g∥, which intuitively is the
average distance between a length waveform similar to Fig. 28 and a flat line of 1000 mg. We call such a metric the standard error of a deployment. Below, we compare five deployments.
1 2 3 4 5 0 100 200 300 400 500 600 deployment number standard error (mg)
(a) under fast rotation of the box
1 2 3 4 5 0 50 100 150 200 deployment number standard error (mg)
(b) under slow rotation of the box Figure 29: Comparison of five deployments.
1. Using one sensor at the position p6.
2. Using four sensors at the positions p3, p4, p5, and p7.
3. Using four sensors at the positions p1, p2, p6, and p8.
4. Using four sensors at the positions p1, p3, p6, and p8.
5. Using all eight sensors.
The result are shown in Fig. 29. Deployment 1 (where m = 1) is a reference for comparing multi-sensor deployments. we show the standard errors of all one-sensor de-ployments in Fig. 30. Clearly, when m = 1, placing the sensor at p6 would be a good choice. Deployment 2 shows a situation where an improper four-sensor deployment can be worse than a proper one-sensor deployment. Deployment 3 shows the results obtained by time-consuming trials and errors for m = 4. Deployment 4 and 5 are the results ob-tained by the VF-based method for m = 4 and m = 8, respectively. The results verify the effectiveness of our VF-based method and show that it is able to find near-optimal solutions systematically, which is important for scalability.
6
Conclusions
In this paper, we develop a video game integrated with body-area inertial sensor networks, the player can interact with the video game simpler and play the video game with a 360◦ panorama view of the game scene. In the prototype of our Multi-Screen Cyber-Physical Video Game, we found a basic BISN problem, gravity estimation problem. We have investigated how to perceive gravity by deploying multiple accelerometers on a rigid part.
1 2 3 4 5 6 7 8 0 200 400 600 800 sensor ID standard error (mg)
(a) under fast rotation of the box
1 2 3 4 5 6 7 8 0 50 100 150 200 250 sensor ID standard error (mg)
(b) under slow rotation of the box Figure 30: Comparison of standard errors of one sensor deployments.
We have modeled the readings of an accelerometer in terms of the gravity and the sensor’s own acceleration seen by an outside observer. Using the pseudoinverse scheme to extract the gravity from these readings, we have formulated the deployment optimization problem as one to find a deployment that minimizes the measurement errors. We have proposed deployment guidelines and two heuristics. Experiment results also verify the effectiveness of our methods.
References
[1] Nintendo, “Wii,” http://wii.com, 2008.
[2] Microsoft, “XBOX360 Kinect,” http://www.xbox.com/zh-TW/kinect, 2011. [3] SONY, “Playstation Move,” http://asia.playstation.com/move/tw/, 2010.
[4] D. Vlasic, R. Adelsberger, G. Vannucci, J. Barnwell, M. Gross, W. Matusik, and J. Popovi´c, “Practical motion capture in everyday surroundings,” ACM Trans. on
Graphics, vol. 26, no. 3, p. 35, 2007.
[5] Panasonic, “KXP84 SERIES – Triaxial Accelerometer,” http://www.kionix.com, 2006.
[6] H. Kim and D. W. Fellner, “Interaction with hand gesture for a back-projection wall,” in Computer Graphics International Conference, 2004.
[7] C.-H. Wu, Y.-T. Chang, and Y.-C. Tseng, “Multi-screen cyber-physical video game: An integration with body-area inertial sensor networks,” in Proc. of Int’l Conf. on
[8] S. Trimpe and R. D’Andrea, “Accelerometer-based tilt estimation of a rigid body with only rotational degrees of freedom,” in Proc. of IEEE Int’l Conf. on Robotics
and Automation (ICRA), 2010.
[9] M. Sippel, A. Abduhl-Majeed, W. Kuntz, and L. Reindl, “Enhancing accuracy of an indoor radar by the implementation of a quaternion- and unscented kalman filter-based lightweight, planar, strapdown IMU,” in Proc. of the European Navigation
Conf. (ENC-GNSS), 2008.
[10] D. T. W. Fong, J. C. Y. Wong, A. H. F. Lam, R. H. W. Lam, and W. J. Li, “A wireless motion sensing system using ADXL MEMS accelerometers for sports science applications,” in Proc. of World Congress on Intelligent Control and Automation, 2004.
[11] C. M. Sadler and M. Martonosi, “Data compression algorithms for energy-constrained devices in delay tolerant networks,” in Proc. of ACM Int’l Conference on Embedded
Networked Sensor Systems (SenSys), 2006.
[12] J. K. Lee and E. J. Park, “A minimum-order kalman filter for ambulatory real-time human body orientation tracking,” in Proc. of IEEE Int’l Conf. on Robotics and
Automation (ICRA), 2009.
[13] I. Lee and O. Sokolsky, “Medical cyber physical systems.”
[14] S. G. Ying Tan, Mehmet C. Vuran, “Spatio-temporal event model for cyber-physical systems,” in 29.
[15] G. X. . W. J. . Y. D. . P. T. . M. S. . X. Liu, “Toward ubiquitous video-based cyber-physical systems.”
[16] Y. Kleissl, J. ; Agarwal, “Cyber-physical energy systems: Focus on smart buildings.” [17] R. Akella and B. M. McMillin, “Model-checking bndc properties in cyber-physical
systems,” in 33.
[18] S. . H. L. . C. K. Wang, E.K. ; Yunming Ye ; Xiaofei Xu ; Yiu, “Security issues and challenges for cyber physical system.”
[19] B. Huyghe, J. Doutreloigne, and J. Vanfleteren, “3D orientation tracking based on unscented kalman filtering of accelerometer and magnetometer data,” in IEEE
Sen-sors Applications Symposium (SAS), 2009.
[20] Z. Zhang, L. W. Wong, and J.-K. Wu, “3D upper limb motion modeling and es-timation using wearable micro-sensors,” in Proc. of Int’l Conf. on Wearable and
Implantable Body Sensor Networks (BSN), 2010.
[21] Z. Zhang, “Ubiquitous human motion capture using wearable micro-sensors,” in Proc.
of Int’l Conf. on Pervasive Comput. and Commun. (PerCom), 2009.
[22] A. D. Young, “Use of body model constraints to improve accuracy of inertial motion capture,” in Proc. of Int’l Conf. on Wearable and Implantable Body Sensor Networks
(BSN), 2010.
[23] D. Vissi´ere, A. Martin, , and N. Petit, “Using distributed magnetometers to increase IMU-based velocity estimation in perturbed areas,” in Proc. of IEEE Int’l Conf. on
Decision and Control, 2007.
[24] J. K. Rowling, “Quidditch,” http://en.wikipedia.org/wiki/Quidditch. [25] Jennic, “JN5139,” http://www.jennic.com.
[26] OceanServer, “OS5000 Family – Triaxial Accelerometer,” http://www.ocean-server.com, 2008.
[27] J. Carig, Introduction to Robotics. Prentice Hall, New Jersey, 2005.
[28] A. D. Young, “Comparison of orientation filter algorithms for realtime wireless in-ertial posture tracking,” in Proc. of Int’l Conf. on Wearable and Implantable Body
Sensor Networks (BSN), 2009.
[29] Gramvschmidt process. Wikipedia. [Online]. Available: http://en.wikipedia.org/ wiki/Gram-Schmidt process
[30] Unity – 3D Game Engine. Unity. [Online]. Available: http://unity3d.com
[31] D. R. Basu and A. Lazaridi, “Stochastic optimal control by pseudo-inverse,” The
[32] G. Wang, G. Cao, and T. F. La Porta, “Movement-assisted sensor deployment,” vol. 5, no. 6, pp. 640–652, 2006.
[33] S. Chib and E. Greenberg, “Understanding the metropolis-hastings algorithm,”
