溶膠-凝膠法應用於非揮發性奈米微晶粒記憶體元件

國 立 交 通 大 學

奈 米 科 技 研 究 所

碩 士 論 文

溶膠-凝膠法應用於非揮發性奈米微晶粒記憶體

元件

Novel Sol-Gel Derived Nonvolatile Nanocrystal

Memory Devices

研 究 生 : 蔡依蓁 Yi-Jen Tsai

學 號 : 9552503

指導教授 : 柯富祥 博士/Dr. Fu-Hsiang Ko

溶膠-凝膠法應用於非揮發性奈米微晶粒記憶體元件

Novel Sol-Gel Derived Nonvolatile Nanocrystal Memory

Devices

研 究 生：蔡依蓁 Student：Yi-Jen Tsai

指導教授：柯富祥 博士 Advisor：Dr. Fu-Hsiang Ko

國 立 交 通 大 學

奈米科技研究所

碩 士 論 文

A Thesis

Submitted to Institute of Nanotechnology College of Engineering

National Chiao Tung University in partial Fulfilledment of the requirements

for the Degree of Master

in

Nanotechnology July 2007

Acknowledgement

夢想中的交通大學，當初為了浩然圖書館而對這間學校充滿憧憬的我，順利 的在這裡取得了碩士學位。而在這兩年中扮演最關鍵的靈魂人物的人是我的指導 教授 柯富祥教授。老師以開放的態度，讓實驗室中充滿各個領域的研究人才， 互相交流而綻放美麗的火花，而也讓我的思維更加多元、視野更加寬廣。感謝電 子所雷添福教授帶領我進入半導體物理元件的領域，感謝國家奈米元件實驗室鄭 宗杰博士及李耀仁博士，以及逢甲大學電子所楊文祿教授，在實驗提供了寶貴的 方向與指導，在此由衷感謝老師們所給予的協助。 兩年的研究生活，最感謝的莫過於吳其昌學長，在忙碌的工作之餘仍然必須 陪著我們做實驗到半夜，對事總求盡善盡美的個性讓我感到欽佩，而追根究底的 性格也值得我效法與學習。游信強學長留下了一個如此具有前瞻性的題目，開啟 了我的研究方向，而過程中不遺餘力的指導讓我更快對實驗熟悉。楊紹明學長在 元件量測過程中全程陪伴與指導，讓我短時間內了解元件的量測原理及方式。俊 淇學長提供的研究資源與想法讓我們的研究更臻完美。佳典學長總是在我思維困 頓的時候給我臨門一腳的答案，讓我找到思考的方向。感謝朱銘清學長在元件製 程上的指導，讓我們第一批元件就跑出超優的特性。感謝雷添福教授實驗室的家 文學長、仕杰學長在實驗上的指導與幫助，也感謝浩恆學長、家豪學長及泰瑞學 長這兩年來為我煩悶的研究生活注入一絲溫暖。尤其感謝已畢業的坤霖、乙介、 志威、大黃，是我來到新竹後感受到的最初的溫柔。志杰、群芳、子銘、奕儂、 敬雅，在我們入學時提供的教導與幫助，讓我能夠更快的融入環境中，很想念有 你們在的日子。 我的研究過程中，最需要感謝的是我的超級戰友—劉品麟(斑馬先生)。我的 研究如果少了你，我想也不會有現在的精采，而過程中所然風雨不斷，感激你永 遠都是站在挺我的這一邊，為我打氣給我笑聲，讓我感到不寂寞。感謝實驗室裡

頭陪我一起走過同學們：美榕、宜生、皮、中書，在不同研究方向中各自努力的 我們，終於要順利畢業了！也感謝親愛的學弟妹：鄭捷、京彰、柏軒、玟菲、嘉 琦、薏卉，及兩位遠道而來的Sri、Jagan，有你們在實驗室總是充滿笑聲，實驗 室的未來要靠你們繼續努力了！當然不能忘記在 NDL 一起努力的夥伴們：秉 叡、舜博、貞志、承志、叮噹、煜勝、智超、久富、金木、登偉、伯康，來自四 面八方的我們竟可以這麼放得開，跟你們相處的時候總會笑到感覺多了好幾條魚 尾紋，這兩年來有你們將我的生活填滿笑聲，真的非常感謝你們。還有奈米所的 朋友們：欣霖(皮姐)、奕貞、昶龍、子訓、高超、新堯，即將邁入下一站的我們， 給彼此最多的祝福。感謝好友們：淑華、灝儀、秀玲、純如、藍瑛、清泰、益銘、 藝蓉、佳芬、閣倫、JOE、詠嘉、繐安、惠鈺，很開心我們不因為時空隔絕而斷 了聯繫，也因為有你們的鼓勵讓我更有勇氣面對挑戰。 最後，最要感謝的是撫養我長大的媽媽，因為有您的教導與養育，無怨無悔， 支持我走到這一刻，這些榮耀與您一起分享。以及來不及見證這一切父親，在天 上的你相信也是對我微笑著的。感謝最親愛的弟弟，以及所有給予我祝福的家 人。有你們的關心與照顧，讓我可以無後顧之憂的完成學業。感謝親愛的你—仕 強，新竹這個充滿風雨的城市，因為有你總是支持著我、陪伴著我，讓我勇敢的 面對問題、完成理想。還有許多無法提到的人，謝謝你們的關心與幫助，讓我順 利完成碩士學位。

新穎溶膠-凝膠法應用於非揮發性奈米微晶粒記

憶體元件

研 究 生：蔡依蓁 指導教授：柯富祥 博士

國立交通大學

奈米科技研究所

摘 要

本論文所探討的內容係以配製的化學溶液經由溶膠-凝膠法，來研究成長奈 米微晶粒的機制。我們以四氯化鋯、四氯化鉿及四氯化矽為溶膠-凝膠溶液之前 驅物，旋轉塗佈於晶圓上，經高溫退火後形成含有鋯及鉿之金屬矽氧化物。在本 實驗中，溫度效應及溶劑效應是影響奈米微晶粒形成的關鍵因素。此外，我們利 用溶膠-凝膠法形成之奈米微晶粒材料運用於快閃式記憶體元件中，作為電荷捕 捉層(charge trapping layer)，並探討其電性表現。實驗涵概三個主題，我們將其 內容摘要說明如後。

第一個主題，我們針對溫度效應做深入探討。實驗中發現溶膠-凝膠法旋轉 塗佈在晶圓上形成薄膜，經600 oC 高溫退火開始進入不穩定相而造成薄膜表面 開始分裂，此時具有較高的表面能(interfacial energy)。當退火溫度高達 900 oC，

溶膠-凝膠薄膜已經過相變化分裂成完全獨立之奈米微晶粒，此時可以量測得到 已達穩定態之低表面能。我們以900 oC 退火條件製作完整的記憶體元件，測試 資料保存時間為在125 oC 的量測環境下經過 106秒後只有少於25%的電荷流失。 第二個主題中，我們針對以溶膠-凝膠法製備快閃記憶體中之電荷捕捉層的 相變化機制進行討論。溶膠-凝膠薄膜經 900 oC 高溫退火後可發現電荷陷捕層產 生旋節相分離(spinodal decomposition)而形成奈米微晶粒結晶，而能否形成奈米 微晶粒的關鍵在於旋轉塗佈至晶圓上的溶膠-凝膠薄膜厚度。我們選擇兩種不同 的溶劑，包括乙醇及異丙醇(IPA)，用以調控薄膜厚度。實驗中發現在乙醇系統 中形成之奈米微晶粒呈現完全獨立、分離之形貌，然而，在異丙醇系統中形成之 奈米微晶粒卻產生具有內部相連、不完全分離的狀態。根據Seol 等人利用電腦 模擬旋節相分離的狀態，他們推測旋節相分離後的薄膜形貌與薄膜厚度及成分相 關，較薄的溶膠-凝膠薄膜經過旋節相分離能夠形成完全獨立之奈米微晶粒。由 於以乙醇為溶劑能夠得到較薄之薄膜，經旋節相分離後得到獨立之奈米微晶粒， 以此作為記憶體之電荷陷捕層具有良好的記憶體特性，包括資料保存時間久(在 25 oC 及 85 oC 量測條件下各只有少於 5%及 10%的電荷流失)，且記憶視窗可高 達10V 之大。 最後，我們利用整合有機與無機材料之溶膠-凝膠法，製造一完整的奈米微 晶粒記憶體元件，並進行電性分析。我們成功的製作出特性良好的記憶體，此記 憶體具有大的記憶視窗、資料寫入速度快、較長的資料保存時間及元件耐久力佳 等等特色。在此主題中，我們針對記憶體的可靠度做一系列的分析探討。由於此 奈米微晶粒記憶體元件具有相當大的記憶視窗，期待將來可應用於多位元晶胞之 記憶體元件。

Novel Sol-Gel Derived Nonvolatile Nanocrystal

Memory Devices

Student: Yi-Jen Tsai Advisor: Dr. Fu-Hsiang Ko

Institute of Nanotechnology

College of Engineering

National Chiao Tung University

ABSTRACT

In this thesis, the formation mechanism of nanocrystals
(NCs) from the sol-gel spin-coating method had been studied. The ZrCl4, HfCl4, and SiCl4 were used as the

sol-gel precursors to form the hafnium and zirconium silicate after high temperature annealing. We evaluated the impact of temperature and preparation solvent type for the formation of sol-gel derived nanocrystals. In addition, the performance of flash memory with the nanocrystal as the charge trapping layer was also demonstrated. The aim of this study is organized in the following.

At first section, we focused on the rapid thermal annealing temperature affected deposited sol-gel transformation. We detected the sol-gel film became unstable and perturbed at 600 °C annealing, and finally transformed into NCs at 900 °C annealing. A mechanism was proposed to explain the transformation of the sol-gel thin film. The

morphology of sol-gel thin film at 600 °C annealing was unstable and had higher interfacial energy. The nano-crystallized process at 900 °C annealing could minimize the energy. As to the memory devices, the property of retention issue (charge preservation ability after program for nanocrystals) for 900 °C annealed sample demonstrated less than 25% charge loss after 106 sec duration under 125 °C measurement condition.

Secondly, we investigated the phase separation mechanism for the charge trapping film in sol-gel derived nanocrystal memory. The nano-crystallization from spinodal phase separation was observed for sol-gel thin film at 900 oC annealing, and was strongly related to the thickness of the spin-coated thin film. We chose ethanol and IPA as the solvent in order to control the sol-gel film thickness. We found the morphology of the NCs in ethanol system existed in the isolated form, while interconnected form in IPA system. Seol et al.[1, 2] utilized computer simulation to deduce the spinodal decomposition process. They suggested the morphology of decomposed phases on initially homogeneous thin film strongly depends on the film thickness and the composition. Ethanol as preparation solvent deposited a thinner film, and formed isolated NCs after spinodal decomposition. Ethanol system sample as memory device exhibited excellent performance such as the data retention less than 5% and 10% charge loss at 25 °C and 85 °C, respectively. The ethanol system sample also demonstrated a large memory window (~10V) than IPA system (~3V).

Finally, the detailed electrical properties for the sol-gel derived NC memory were measured. The obtained flash memory exhibited excellent characteristics such as large memory window, high program speed, and superior gate/drain disturbance properties. In addition, the reliability of the memory was also evaluated in this section. The

Contents

Acknowledgment ...I Abstract (Chinese) ...III Abstract (English) ... V Contents ... VII Figure Captions & Table Lists ... X

Chapter 1: Introduction ...1

1.1 General introduction...1

1.2 Overview of nonvolatile memory devices...6

1.3 Sol-gel technology derived hybrid materials... 11

1.4 Phase separation for spinodal decomposition ...15

1.4.1 Spinodal decomposition ...15

1.4.2 Comparison with nucleation and spinodal decomposition...17

1.5 Motivation ...21

Chapter 2: Nanocrystal memory device principles and operations...23

2.1 Fundamentals of the NC memory ...23

2.2 Nanocrystal memory characteristics ...23

2.2.1 Basic program/erase principle ...23

2.2.2 Basic reliability principle: retention, endurance, and disturbance ...25

Chapter 3: Nanocrystallization and interfacial tension of charge

trapping layer ...32

3.2 Experimental ...34

3.2.1 Formation of sol-gel derived thin film/nanocrystals ...34

3.2.2 Memory device fabrication ...35

3.3 Results and discussion...36

3.3.1 RTA temperature effect of sol-gel film transformation ...36

3.3.2 Interfacial tension analysis ...37

3.3.3 Comparison of data retention ...39

3.4 Summary ...39

Chapter 4: Phase separation of charge trapping layer ...48

4.1 Introduction...48

4.2 Experimental...49

4.3 Results and discussion ...50

4.3.1 Film thickness effect of spinodal decomposition ...50

4.3.2 Phase separation mechanism of sol-gel thin film...52

4.3.3 Comparison of interconnect and discrete NC memory retention ...52

4.4 Summary...53

Chapter 5: Application of novel sol–gel spin coating method in

SONOS-type memory ...61

5.1 Introduction...61

5.2 Experimental...63

5.3 Results and discussion ...64

Chapter 6: Conclusions ...76

References ...78

List of Tables

Chapter 1

Table 1.1 The market rise for the flash memory ...4 Table 1.2 Comparison of nucleation and spinodal decomposition...20

Chapter 3

Table 3.1 The surface-free-energies (γ) of diiodomethane, water and ethylene glycol.

...39

Chapter 4

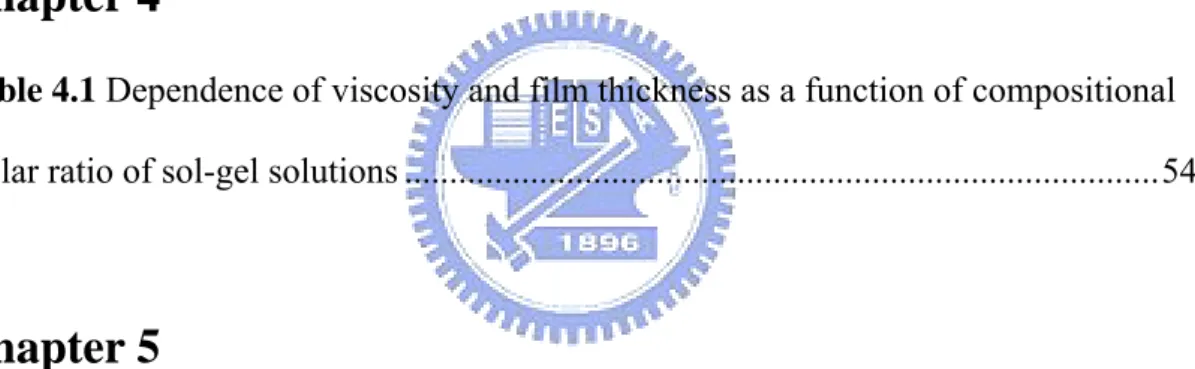

Table 4.1 Dependence of viscosity and film thickness as a function of compositional

molar ratio of sol-gel solutions ...54

Chapter 5

List of Figures

Chapter 1

Figure 1.1 Main nonvolatile memory applications. ...4

Figure 1.2 Schematic cross-section of a floating gate memory device. ...4

Figure 1.3 Non-volatile memory history. ...5

Figure 1.4 Size reduction of DRAM and Flash cell versus year. The scaling down is about a factor of 30 for ten-year duration. ...8

Figure 1.5 Schematics of floating gate and thin-film storage-based embedded nonvolatile memory bit cells. Depending on the charge stored inside the gate dielectric of a MOS field-effect transistor, the threshold voltage can be very high (off state) or so low that a read voltage applied to the polysilicon gate can turn on the transistor (on state). ...9

Figure 1.6 Operating principle of traditional NVM based on charge storage for floating gates or in nitride traps (SONOS), embedded into the gate oxide of a MOSFET. ...10

Figure 1.7 Illustration of one oxide defect can discharge the entire floating gate, whereas if localized charge is stored, only partial discharge occurs. ...10

Figure 1.8 The sol-gel process cycle. ...13

Figure 1.9 Basic steps of a typical sol–gel process. ...14

Figure 1.10 The reaction of sol-gel solution and substrate surface. ...14

Figure 1.11 The miscibility gap and the chemical spinodal. ...18

Figure 1.12 The pseudo-binary ZrO2–SiO2 phase diagram. ...19

Figure 1.13 Metastable phase diagram with the extensions of the liquid miscibility gap and spinodal (dashed line), the glass transition temperature (dotted line), and T0 curves (dash-dotted line). ...19

Chapter 2

Figure 2.1 (a) Schematic cross-section of nanocrystal memory device structure; (b)

illustration of write process: inversion- layer electron tunnels into the nanocrystal; (c) illustration of erase process: accumulation layer for hole tunneling into the

nanocrystal, electron in nanocrystal can tunnel back to the channel. ...28

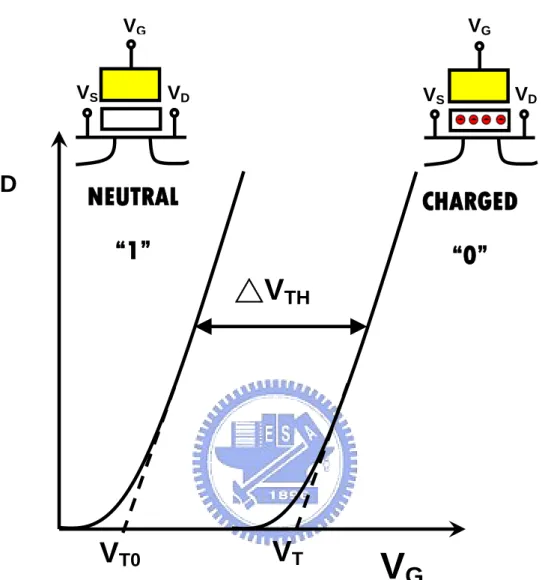

Figure 2.2 I–V curves of an FG device when there is no charge stored in the FG

(neutral) and when a negative charge is stored in the FG (charged). ...29

Figure 2.3 The procedure of hot electrons injection. ...30 Figure 2.4 The hot holes injection generated by band-to-band tunneling. ...30 Figure 2.5 Threshold voltage window closure as a function of program/erase cycles

on a single cell. ...31

Figure 2.6 The schematic illustrates the disturbance condition. Cell A is the

programming cell. Cell B and Cell C perform the gate disturb and drain disturb, respectively. ...31

Chapter 3

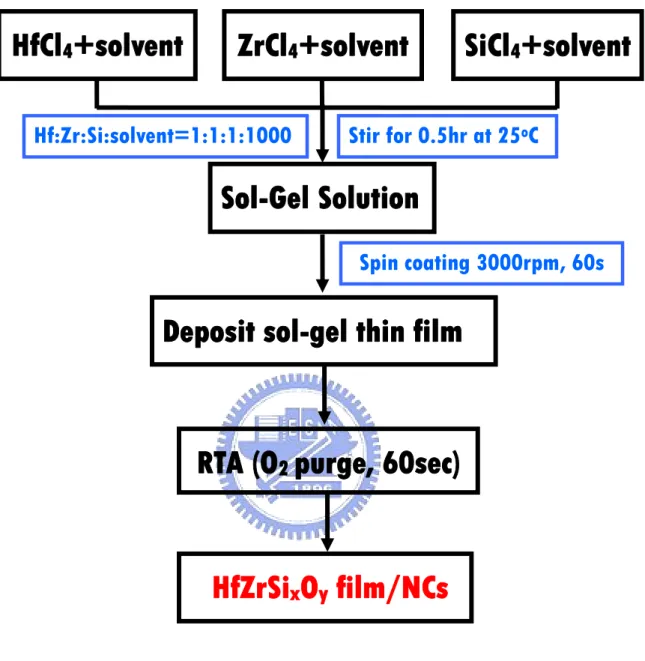

Figure 3.1 The experimental procedure flow of HfZrSixOy film/NCs preparation by

sol-gel technology. ...41

Figure 3.2 Cross-sectional TEM images of the thin film transformation with (a) 400

°C, (b) 600 °C, and (c) 900 °C annealing treatments. ...42

Figure 3.3 EDS spectrum of the sol-gel derived nanocrystal. ...43 Figure 3.4 (a) Si 2p, (b)
Zr 3d, (c) Hf 4f, and (d) O 1s XPS spectra of the sol-gel thin
films after different annealing temperatures. ...44

Figure 3.6 Transformation processes of the sol-gel thin film to NC. ...46 Figure 3.7 Retention characteristics of the NC memories annealed at (a) 600 °C, and

(b) 900 °C under respective measurement temperatures of 25 °C, 85 °C, and 125 °C. ...47

Chapter 4

Figure 4.1 The cross-sectional TEM images of the NCs transformation by (a) Ethanol

system and (b) IPA system. ...55

Figure 4.2 (a) Ethanol system, and (b) IPA system sample: elemental compositions of

the binary metal oxides NCs were estimated by energy dispersive X-ray spectroscopy (EDS). ...56

Figure 4.3 The metastable extensions of spinodal region in ZrO2–SiO2 phase diagram.

...57

Figure 4.4 Phase separation mechanism of sol-gel derived nanocrystal on (a) ethanol

system, and (b) IPA system. ...58

Figure 4.5 Retention characteristics of (a) ethanol system, and (b) IPA system derived

NC memories at measurement temperatures of 25 and 85 °C. ...59

Figure 4.6 Id-Vg curves of (a) ethanol system, and (b) IPA system derived NC

memories in the programmed state (Vd=10V, Vg=15V, 10ms). ...60

Chapter 5

Figure 5.1 Schematic diagram of the device structure for the spin coating charge

trapping film/nanocrystal memories. ...68

Figure 5.2 Cross-sectional TEM view of sol-gel derived nanocrystals. (Insert: lattice

Figure 5.3 Id-Vg curves of sol-gel derived NC memory in the programmed state

(Vd=10V, Vg=15V, 10ms). ...70

Figure 5.4 Program speed of sol-gel derived NC memory device. ...71 Figure 5.5 Erase speed of sol-gel derived NC memory device. ...71 Figure 5.6 Retention characteristics of the NC memory at 25 oC, 85 oC and 125 oC

measurements. ...72

Figure 5.7 Endurance of sol-gel derived memory device. The memory window is

about 6V after 104 P/E cycles. (Program state: Vd=10V, Vg=10V, t=10ms; erase state: Vd=10V, Vg=-6V, t=1s) ...72

Figure 5.8 Gate disturbance characteristics of sol-gel derived memory. ...73 Figure 5.9 Read disturbance characteristics of sol-gel derived memory. ...74

Chapter 1

Introduction

1.1 General introduction

Silicon technology based nonvolatile memories (NVM) possess the feature of retaining information without any consumption of power, they can maintain the function of a computer hard drive, storing a few bytes up to a few Gigabytes of code and/or data. Prominent examples of applications enabled by NVM are cellular phones, MP3 players, digital cameras, and microcontrollers.[3] (See Figure 1.1) A nonvolatile memory (NVM) device is a MOS transistor that has a source, a drain, an access or a control gate, and a floating gate. The schematic cross-section of a floating gate memory device shows in Figure 1.2. It is structurally different from a standard MOSFET in its floating gate, which is electrically isolated, or "floating".[4] Nonvolatile memories are subdivided into two main classes: floating gate and charge-trapping. The different series of nonvolatile memory families can be qualitatively compared in terms of flexibility and cost. Flexibility means the possibility to be programmed and erased many times on the system with minimal granularity (whole chip, page, byte, bit); cost means process complexity and in particular of silicon occupancy, i.e., density or, in simpler words, cell size.

is retained when the power is removed. All floating gate memories have the same generic cell structure. Floating gate devices are typically used in EPROM (Electrically Programmable Read Only Memory) and EEPROM's (Electrically Erasable and Programmable Read Only Memory). Charge-trapping devices were invented in 1967

[5] and were the first electrically alterable semiconductor devices. In charge-trapping

memory devices, charge or data is stored in the discrete nitride traps and is also retained when the power is removed. Charge-trapping devices are typically used in MNOS (Metal Nitride Oxide Silicon) [6], SNOS (Silicon Nitride Oxide Semiconductor) [7], and SONOS (Silicon Oxide Nitride Oxide Semiconductor) [8].

The semiconductor industry has experienced many changes since flash memory first appeared in the early 1980s. The growth of consumer electronics market urges the demand of flash memory and helps to make it a prominent segment within the semiconductor industry. These concerns proved the flash memory market began to grow in the early 1990s. Broadly speaking, flash memory ideally suits the consumer electronics market, because it bestows upon electronic devices two qualities that the market demands: mobility and miniaturization. Because of its small, reliable, and nonvolatile properties, numerous applications not practicable with traditional data storage technology are emerging. Flash memory brings mobility and miniaturization to electronics products, two defining features of most consumer electronics products today.[9] These concerns proved to be unfounded as the flash memory market began to grow in the early 1990s (Table 1.1).

The flash memory devices are increasing interest for portable electronic productions because of its high data retention, low cost, and low power consumption characteristics.[10, 11] The basic concepts and the functionality of a floating gate (FG)

applying an external force: the FG stores charge. However, the conventional FG-NVM suffers from charge loss problem as the feature size of the device continues to shrink.[12] A discrete nanocrystal (NC) memory was then proposed as a replacement of the conventional FG memory.[13] The NC memory is expected to preserve the trapped charge efficiently due to the discrete charge storage node, while also demonstrate excellent features such as fast program/erase speeds, low programming potentials, and high endurance.[14] The chart of non-volatile memory history shows in Figure 1.3. Thanks to this characteristic, the nonvolatile memories offer the system a different opportunity and cover a wide range of applications, from consumer and automotive to computer and communication.

Figure 1.1 Main nonvolatile memory applications.

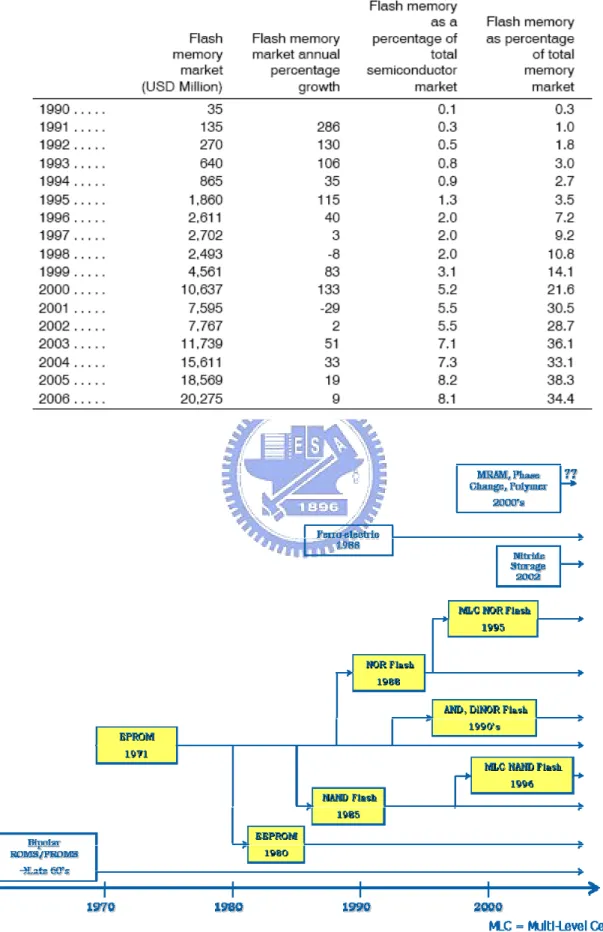

Table 1.1 The rise of the flash memory market

1.2 Overview of flash memory devices

The Flash memories were commercially introduced in the early 1990s and since that time they have been able to follow the Moore’s law, and the scaling rules imposed by the market. The cell size shrinkage of flash memory from 1992 to 2002 was shown in Figure 1.4. It turns out that the cell size decreases 30 times for each decade, closely following the scaling of the DRAM, today still considered as the reference memory technology that sets the pace to the technology node evolution.[3]

To address the scaling limitation of the insulators surrounding the floating gate, "thin film storage" (TFS) memories have been developed. Floating gate structure has been widely used for nonvolatile memory application. The schematic cross section of a floating-gate memory device is shown in Figure 1.5. Instead of using floating gates, charges are stored in a thin insulating film which contains storage sites such as traps or small silicon crystals. The charges cannot move easily from site to site, and therefore a single oxide defect does not lead to complete charge loss.[15]

The study of flash memory in the recent 30 years was focused on the charge storage layer, as shown in Figure 1.6. The nitride layer is sandwiched between a thin bottom oxide and a blocking oxide.[16] SONOS devices trap charge in a nitride layer instead of using a poly-silicon floating gate. Within the nitride layer, electrons and holes can be stored in localized traps, with negligible lateral conduction. However, SONOS-type flash memories have several drawbacks such as shallow trap energy level, erase saturation and vertical stored charge migration.[17] The programming speed and operating voltage problem can be solved by reducing the tunnel oxide thickness, while seriously degrades the retention capability of the memory[18].

structure and long-term nonvolatile was introduced. As shown in Figure 1.7, “nanocrystal” refers to a crystalline structure whose dimensions are small enough to the nanometer scale that its electronic properties begin to resemble those of an atom or molecule rather than those of the bulk crystal. Nanocrystal memories can achieve better reliability and higher bit density than conventional non-volatile memories and thus, have been drawing much attention. In a nanocrystal flash memory device, charge is stored in discrete, mutually isolated, and crystallized nanocrystals or dots. Each dot typically stores only a handful of electrons; collectively the charges stored in these dots control the channel conductivity of the memory transistor. The electrons stored in the nanocrystal directly above the defect will be affected since the nanocrystals are separated from each other by the gate oxide dielectric.[19] Given a large number of nanocrystals, the cell is immune to local defects of the tunnel oxide. Many efforts have been made to improve the performance of the NC based nonvolatile memory.[20, 21]

Figure 1.4 DRAM and Flash cell size reduction versus year. The scaling has been of

Figure 1.5 Schematics of floating gate and thin-film storage-based embedded

nonvolatile memory bit cells. Depending on the charge stored inside the gate dielectric of a MOS field-effect transistor, the threshold voltage can be very high (off state) or so low that a read voltage applied to the poly-silicon gate can turn on the transistor (on state).

Figure 1.6 Operating principle of traditional NVM based on charge storage on

floating gates or in nitride traps (SONOS), embedded into the gate oxide of a MOSFET.

Figure 1.7 Schematic showing that one oxide defect can discharge the entire floating

1.3 Sol-gel technology derived hybrid materials

The first, although incidental, observation of sol-gel process dates back to 1846. It covered the hydrolysis and poly-condensation of silicic acid under humidity, which progressed to the point of a silicate glass formation. An extension of the chemical principles involved was shown in 1969-1971, pointing out the importance of reactions of several metal alkoxides in solution under formation of metal (I)–oxygen–metal (II) bonds. This made the possibility of production of defined multi-component oxide glasses, glass-ceramics and crystalline layers. This research effort into the involved basic chemistry followed the path used in the study of reactions of metal-organic compounds.[22] Sol–gel processing has been widely used because it permits fabrication of oxide materials under mild conditions and with a wide range of adjustable experimental parameters. To give a very brief definition, a sol–gel procedure encompasses any process that involves polymerization of soluble precursor molecules to afford a polymeric material, via the intermediate formation of a colloidal sol phase. [23]

Sol-gel process contains fractal geometry and percolation theory in physics, hydrolysis and poly-condensation mechanism in chemistry, sintering and structural relaxation in ceramics, and so on. Figure1.8 illustrates the sol-gel process cycle. The sol-gel process allows synthesizing ceramic materials of high purity and homogeneity by means of preparation techniques different from the traditional process of fusion of oxides. This process occurs in liquid solution of organometallic precursors, by means of hydrolysis and condensation reactions, lead to the formation of a new phase (Sol). This method was derived from the known chemistry of reaction of a metal halide with a metal alkoxide acting as the oxygen donor. In this reaction, the condensation between M–X and M–O–R forms the M–O–M bridge with the elimination of alkyl

halide.[23, 24] Film-forming oxides are primarily Group 3 through Group 8 elements of the periodic table, such as Al, In, Si, Zr, Ti, Hf, Sn, Pb, Ta, Fe, Ni and several rare earth elements. They can exist as amorphous or (mostly) crystalline layers.[22]

Sol-gel processing can be divided into three main steps, that is, hydrolysis, condensation, and gelation (polymerization), as shown in Figure 1.9. The objective of these reactions is to generate the metal-oxygen-metal (M–O–M) bonds in the reacting solution that make up the oxide material. At hydrolysis step (hydrolysis), metal halides or metal alkoxides react with water to pass into hydroxo metals (≣M–OH) in sol-gel process. Then, two hydroxo metals (≣M–OH) reacts to an oxygen single bridge bond (–O–) between these two metal centers and an byproduct (water), which is called condensation step. Finally, gelation step proceeds continuous to condense numbers of hydroxo metals and link together to form a metal oxide network. The reaction of sol-gel solution and substrate surface are illustrated in Figure 1.10.

1.4 Phase separation for spinodal decomposition

1.4.1 Spinodal decomposition

Spinodal decomposition is a method by which a mixture of two or more materials can separate into distinct regions with different material concentrations. This method differs from nucleation in that phase separation due to spinodal decomposition occurs throughout the material. With the advent of techniques capable of producing metastable crystalline phases with a grain size in the range of 10–100 nm (examples of such processes would include rapid solidification, laser processing and mechanical milling), there is considerable interest in phase transformations in such materials.[25]

The phenomenon of phase separation in glasses was discovered a long time ago. As early as 1904, Guertler [26] observed immiscibility in alkali borate melts. In general, there are two principal mechanisms of phase separation by nucleation and growth or alternatively by spinodal decomposition. The morphology of the resulting phases is different. If we wish to study phase separation in the unstable region, we must choose systems in which it is possible to bring a homogeneous solution through the metastable region without significant phase separation. Thus we should choose a system in which phase is slow compared with the time while it takes to change the temperature of the sample. The speed of phase separation is related to the diffusion coefficient, which is small for solids and viscous liquids, such as glass forming solutions.[27]

Fick’s first law is used in steady-state diffusion, which is empirical in that it assumes that the diffusion flux is proportional to a concentration gradient. It would be more reasonable to assume that diffusion occurs in order to minimize the free energy so that the flux should be driven by a gradient of free energy:

so that

where the (positive) proportionality constant MA is known as the mobility of A; J is

the diffusion flux; D is the diffusion coefficient or diffusivity; C is the concentration. In this equation, the diffusion coefficient is related to the mobility by comparison with Fick’s first law. [28]

If then the diffusion coefficient is positive and the chemical potential gradient is along the same direction as the concentration gradient. However, if then the diffusion will occur against a concentration gradient. The diffusion coefficient will be zero when

Figure 1.11 illustrates the miscibility gap defined by curve ad which is obtained by applying the common–tangent construction. Any homogeneous solution cooled into the miscibility gap will tend to decompose into A–rich and B–rich regions with a net reduction in the free energy. The spinodal decomposition of region III is defined by the locus of the points of inflexion on the free energy diagram as a function of temperature. Homogeneous solutions which are cooled within the chemical spinodal can in principle become unstable to infinitesimal perturbations in the chemical composition, leading to the development of A–rich and B–rich regions. Note that if a homogeneous solution is cooled into the region between the chemical spinodal and the miscibility gap, then large composition fluctuations are needed before phase separation can occur; this happens by a process known as nucleation and growth. [29]

Kingon and Maria were first to explain the observed microstructures with the presence of a liquid miscibility gap in the ZrO2–SiO2 system (Figure 1.12).[30] The

system, this is the crystalline silicate. Metastable phase diagrams and phase hierarchies are used widely in rapidly solidified alloys and can be applied to amorphous materials synthesized from precursors.[31] As shown in Figure 1.13, the situation is more complicated for the ZrO2–SiO2 system (and most likely for

HfO2–SiO2) due to the presence of the liquid miscibility gap and the

thermodynamically required spinodal.

1.4.2 Comparison with nucleation and spinodal decomposition

An initially homogeneous solution develops fluctuations of chemical composition when the condition fell into the spinodal region. During nucleation and growth, there is a sharp interface between the parent and product crystals; furthermore, the precipitate at all stages of its existence has the required equilibrium composition. Spinodal decomposition involves uphill diffusion whereas diffusion is always down a concentration gradient for nucleation. The growth of nucleation type and spinodal decomposition type are illustrated in Table 1.2.[28]

Figure 1.11 The miscibility gap and the chemical spinodal.

T

Region I II III Chemical spinodal

Figure 1.12 The pseudo-binary ZrO2–SiO2 phase diagram.[31]

Figure 1.13 Metastable phase diagram with the extensions of the liquid miscibility

Table 1.2 Comparison of nucleation and spinodal decomposition

Nucleation Spinodal

decomposition

Invariance of second-phase composition with time

Continuous variation of both extremes in composition with time

Interface between phases is always same degree of sharpness during growth

Interface between phases initially is very diffuse, eventually sharpens

Tendency for random distribution of particle sizes and position in matrix

Regularity of second-phase distribution in size and position characterized by a geometric spacing

Tendency for separation of second-phase spherical particles with low connectivity

Tendency for separation of second phase, non-spherical particles with high connectivity.

1.5 Motivation

The only stored charges at the nanocrystals adjacent to the defect leak through the tunneling dielectric, compared to huge charge loss of conventional Flash memory due to the lateral charge transport. This signifies that the NC memory has the ability to alleviate the scaling limitations of conventional Flash memory as well as extended the retention time.[32] Various materials have been used to form NCs, such as silicon

[33, 34], germanium (Ge) [35] and metal [36], as the charge storage layer for

nonvolatile memories.

In this thesis, we proposed a novel sol-gel spin coating method to fabricate high-κ material combined thin film, and annealing for driving the sol-gel film transformed into NCs. The sol-gel solution provided colloidal solvents or precursor compounds when metal halides were hydrolyzed under controlled conditions in a beaker. In the sol-gel reaction, hydrolysis, condensation, and polymerization steps occurred to form metal-oxide networks in the colloid liquid. The most interesting feature of sol-gel processing in the solution was its ability to synthesize new types of materials that were known as “inorganic-organic hybrids.”[24] The film formation with sol-gel spin coating method was a simpler than ALD, PVD, or CVD technologies due to its cheaper precursors and tools. In addition, the film can be fabricated in the normal pressure environment instead of high vacuum system.

The crystallization of transferring the charge trapping thin film into the NC phase during thermal annealing was dependent on the composition of sol-gel solution, preparation solvent, and annealing temperature. The formation of coexisting hafnium silicate and zirconium silicate NC memory had been previously published.[37, 38] However, the effect of annealing temperature that controlled the formation of NC, degree of crystallization, interfacial energy, and charge retention in the sol-gel derived

memory was still unclear. The formation mechanism to explain the growth of nanocrystal was also still unclear. In the thesis, we had clarified the questionable point with physical and electrical characteristics studies.

Finally, we utilized the best NC formation condition to prepare charge trapping layer for a memory device. We expected the sol-gel derived nanocrystal memory devices with superior electrical characteristics in terms of large memory windows, high write/erase speed, long retention time, good disturbs, and excellent endurance performance.

Chapter 2

Nanocrystal Memory Device principles

and operations

2.1 Fundamentals of the NC memory

Nonvolatile memory devices based on the charge storage in discrete charge traps such as semiconductor and metal nanocrystals (NCs) have recently attracted much attention in view of their potential application for high-density nonvolatile memory (NVM) devices.[39] The use of discrete charge-trap of nanocrystals offers an advantage of preventing lateral charge movement, thereby enhances the data retention characteristic.[40] The nonvolatile metal nanocrystal memory devices were extensively investigated over semiconductor nanocrystals because of several advantages, such as stronger coupling with the conduction channel, higher density of states (transport perspectives) than semiconductor (i.e., better charge storage), and a
wide range of available work functions (faster programming speed and better data
retention).[6]

2.2 NC Memory characteristics

2.2.1 Basic program/erase principle

The basic principle of programming the memory is that electrons or holes inject into the charge trapping layer and hence cause the threshold voltage shift. Figure 2.1(a)

shows the cross-section scheme of the nanocrystal memory device. The electrons/holes from channel are injected through tunneling oxide due to the horizontal field of controlling gate to Si-substrate, and therefore trapped into the nanocrystall. Two major mechanisms has been proposed to explain the program of the flash memory, that is, Fowler-Nordheim (FN) tunneling and channel hot-electron injection (CHEI). The energy bands of the nanocrystal memory device at program and erase are illustrated in Figure 2.1(b) and 2.1(c), respectively. During the program process, a positive gate voltage is applied to inject channel inversion-layered electrons into the nanocrystals. During the erase process, a negative gate bias is applied to cause the accumulation layered holes to inject into the nanocrystal and recombine with the trapped electrons..[8] The program and erase process result in the shifting of the threshold voltage, which is proportional to the quantities of trapped charges.

Program

The CHEI mechanism is generally used in flash memories, where a lateral electric field (from drain to source) “heats” the electrons and a transversal electric field (from controlling gate to channel) injects the hot carriers through the oxide. The physical mechanism of CHEI is relatively simple depicted in Fig 2.3. An electron traveling from the source to the drain gains energy from the lateral electric field and loses energy to the lattice vibrations (acoustic and optical phonons).[41] At large drain bias, the minority carriers that flow in the channel are heated by the large electric fields occurred at the drain side of the channel and their energy distribution is shifted higher. For fields exceeding this value, electrons are no longer in equilibrium with the lattice, and their energy relative to the conduction band edge begins to

conduction band edges. For an electron to overcome this potential barrier, three conditions must hold.[42]

(1) Its kinetic energy has to be higher than the potential barrier. (2) It must be directed toward the barrier.

(3) The field in the oxide should be collecting it.

Erase

Charge-trapping memory is erased by band-to-band tunneling hot hole (BBHH) injection, under which condition the drain is positively biased and the gate negatively biased. Due to the hot hole injection mechanism, BBHH injection has the advantage of a lower voltage bias and a faster erasing speed than the FN tunneling.[42]

During the erase operation, holes are injected from the p-type substrate into the charge trapping layer valence band. These holes “trap” at the top oxide interface because of the large barrier height. Electrons may tunnel from an n+ gate into charge trapping layer and combine with the injected holes. Band-to-band tunneling process that occurs in the deeply depleted n+ surface region under gate-to-drain overlap area is another method used to erase the SONOS memory device. This mechanism is to simultaneously apply a negative voltage to the gate and a positive voltage to the drain. Then the hot holes are injected through the bottom oxide and recombine with the stored electrons. Figure 2.4 illustrates the hot holes injection generated by band-to-band tunneling process.

2.2.2 Basic reliability principle 2.2.2.1 Retention

layer must be as minimal as possible.[3] Possible causes of charge loss are: (1) defects in the tunnel oxide; (2) defects in the interpoly dielectric; (3) mobile ion contamination; and (4) detrapping of charge from insulating layers surrounding the charge-trapping layer. During the retention mode, the electrons inside the nanocrystal can not be stored in the conduction band for several reasons.[43] The generation of defects in the tunnel oxide can be divided into an extrinsic and an intrinsic one. The former is due to defects in the device structure; the latter to the physical mechanisms that are used to program and erase the cell. The electrons can subsequently detrap with time, especially at high temperature. The charge variation results in a variation of the charge-trapping layer potential and thus in cell decrease, even if no leakage has actually occurred. This apparent charge loss disappears if the process ends with a thermal treatment able to remove the trapped charge.

The retention capability of flash memories has to be checked by using accelerated tests that usually adopt screening electric fields and hostile environments at high temperature.

2.2.2.2 Endurance

Cycling is known to cause a fairly uniform wear-out of cell performance, which eventually limits Flash memory endurance.[44] As the experiment was performed applying constant pulses, the variations of program and erase threshold voltage levels are described as “program/erase threshold voltage window closure” and give a measure of the tunnel oxide aging. In particular, the reduction of the programmed threshold with cycling is due to trap generation in the oxide and to interface state generation at the drain side of the channel, which are mechanisms specific to

The initial lowering of the erase is due to a pile-up of positive charge which enhances tunneling efficiency, while the long-term increase of the erase is due to a generation of negative traps. A typical result of an endurance test on a single cell is illustrated in Figure 2.5.

2.2.2.3 Disturbance

The first failure phenomenon, “program disturbance,” often takes place under the electrical stress applied to those neighboring un-programmed cells during programming a specific cell in the array. Two types of program disturbances, gate (word-line, or WL) disturbance and drain (bit-line, or BL) disturbance need be considered.[3] In Figure 2.6, shows the schematic circuitry of the memory array. During programming cell A, gate disturbance occurs in the cell B and same for those cells connected with the same word-line because the gate stress is applied to the same word-line. During programming cell A, drain disturbance occurs in the cell C and same for those cells connected with the same bit-line because the drain stress is applied to the same bit-line. For the cell reading, the unwanted electron injection would happen while the word-line voltage and bit-line voltage are under read operation. This phenomenon would result in a significant threshold voltage shift of our selected reading cell. This is call read disturbance.

Figure 2.1 (a) Schematic cross-section of nanocrystal memory device structure; (b)

illustration of write process: inversion- layer electron tunnels into the nanocrystal; (c) illustration of erase process: accumulation layer hole tunnels into the nanocrystal, electron in nanocrystal can tunnel back to the channel.

(a)

(b)

Figure 2.2 Id–Vg curves of an FG device when there is no charge stored in the FG

(neutral) and when a negative charge is stored in the FG (charged).

V

G

I

D

VG VD VS

NEUTRAL

“1”

VG VD VS

CHARGED

“0”

V

T0

△V

TH

V

T

Figure 2.3 The procedure of hot electrons injection.

B B

Figure 2.5 Threshold voltage window closure as a function of program/erase cycles

on a single cell.

Figure 2.6 The schematic illustrates the disturb condition. Cell A is the programming

Chapter 3

Nanocrystallization and interfacial

tension of charge trapping layer

3.1 Introduction

In the recent years, the emphasis of material design has dramatically changed towards a general understanding and control of the fundamental connections between the chemistry on a molecular level and material properties on the macroscopic scale. Looking towards the 21st century, advances in information processing, communication (microelectronics), medicine etc. require miniaturized materials with superior properties and performance. “Nanotechnology”, which is essentially material science on a nanometer scale, is a subject that combines the efforts of scientists in interdisciplinary research (physicists, chemists and material scientists).

According to the International Technology Roadmap for Semiconductors, there are critical limitations for aggressively scaling the conventional nonvolatile floating-gate memories below sub-70-nm node. For conventional SONOS, erase saturation and vertical stored charge migration[45] are the major drawbacks; while for nanocrystal memories good enough charge keeping capability of the discrete storage nodes and the formation of nanocrystals with constant size, high density and

memories and nanocrystal memories have recently attracted much attention for the application in the next-generation nonvolatile memories[35, 47, 48] because of their great potential for achieving high program/erase (P/E) speed, low programming voltage and low power performance.

The conventional floating gate (FG) nonvolatile memory (NVM)[39, 49] suffers
from a charge loss problem as the feature size of the device continues to shrink.[50] A discrete nanocrystal (NC) memory was then proposed as a replacement of the conventional FG memory. The NC memory is expected efficiently to preserve the trapped charge due to the discrete charge storage node, while also demonstrate excellent features such as fast program/erase speeds, low programming potentials, and high endurance. We have proposed a sol-gel spin-coating method to fabricate the charge trapping film that can be fabricated in a normal atmospheric pressure instead of high-vacuum system. Many methods to fabricate nanocrystals (NCs) have been widely investigated recently such as physical vapor deposition (PVD), chemical vapor deposition (CVD), and ion beam synthesis. In addition to these deposition methods, a NC formation process by using sol–gel spin-coating method has been reported by our group.[38] Compare to others, the benefit of sol–gel spin-coating method is relatively cheap, simple, and can be fabricated in a normal atmospheric pressure instead of high-vacuum system. In addition, the ability to synthesize new type of materials that are known as “inorganic–organic hybrids” will induce various application of the sol–gel processing.

Sol-gel process contains fractal geometry and percolation theory in physics, hydrolysis and poly-condensation mechanism in chemistry, sintering and structural relaxation in ceramics, and so on. When sol is prepared with starting materials of molecular unit, a solid fractal network is obtained through hydrolysis and

removing inhomogeneity in materials through the control of chemical reaction concerning with inorganic polymerization.[51] Transition metal oxides are widely used in many important technological applications such as solar energy conversion, catalysis, magnetic recording, sensors, and ceramics. Yet compared to the intensive study of nanocrystals of semiconductors and metals, relatively little work has been done on the metal oxides.[24, 52]

The crystallization of transferring the charge trapping thin film into the NC phase during thermal annealing is dependent on the sol-gel composition, preparation solvent, and annealing temperature. The formation of coexisting hafnium silicate and zirconium silicate NC memory has been previously published.[37] In general, the NC formation is related to the solid phase segregation induced seeding effect.[53] However, the effect of annealing temperature that controls the formation of NC, degree of crystallization, interfacial energy, and charge retention in the sol-gel derived memory is still unclear.

3.2 Experimental

3.2.1 Formation of sol-gel derived thin film/nanocrystals

Prior to various annealing treatments, the sol-gel thin film was deposited by the spin-coating method from the precursors of zirconium tetrachloride, hafnium tetrachloride, and silicon tetrachloride. The sol-gel solution was prepared as the experiment procedure flow which was shown in Figure 3.1. The solution were synthesized by the sol-gel method using the precursors of the analytical reagent graded zirconium tetrachloride (ZrCl4, 99.5%, Aldrich, USA), hafnium tetrachloride

hydrochloric acid serving as the catalyst was added into the solution for hydrolysis and condensation. Then, we mixed ZrCl4, HfCl4, and SiCl4 solutions together for

preparing the sol-gel solution for following experiment. The concentration of molar ratio for ZrCl4, HfCl4, SiCl4, and ethanol in the sol-gel solution was 1:1:1:1000. The

mixed solution was stirred for 0.5 hr at room temperature. After well mixed, we spin coated the sol-gel solution on the silicon substrates at rotation speed of 3000 rpm for 60 sec at room temperature by using a Tokyo Electron Limited (TEL) system (Clean Track Model-MK8). Afterwards, these samples were subjected to rapid thermal annealing (RTA) treatment at various temperatures for 60 sec under an O2 ambient.

Finally, the samples were subjected to XPS, TEM, AFM, and interfacial energy analyses.

3.2.2 Memory device fabrication

The fabrication of sol-gel spin-coating NC memory was started with local oxidation of Si process on a p-type (100) silicon substrate. A 10 nm tunneling oxide film was thermally grown at 925 °C in a furnace. The sol-gel film was then formed through sol-gel spin coating and RTA process mentioned above. The 20 nm blocking oxide was deposited by plasma enhanced chemical-vapor deposition (PECVD) tetraethylorthosilicate (TEOS). Followed by a 200-nm-thick amorphous Si gate was deposited. Finally, gate pattering, source/drain (S/D) implanting, and the rest of the subsequent metal-oxide-semiconductor (MOS) processes were used to fabricate the NC-NVM devices.

3.3 Results and discussion

3.3.1 RTA temperature effect of sol-gel film transformation

The high resolution structural characterization of the NCs was carried out by the high-resolution transmission electron microscopy (HRTEM, JEOL2100F) operated at 300 kV. The cross-sectional TEM images of the sol-gel derived thin films samples that annealed at 400, 600, and 900 °C were illustrated in Figure 3.2. The sample in Figure 3.2(a) by 400 °C RTA treatment exhibited a continuous and smooth film. This observation suggested the annealing temperature at 400 °C has no effect on the film’s morphology. As to the sample annealing at 600 °C, Figure 3.2(b) revealed the morphology of thin film was discontinuous and uneven. If the annealing temperature was elevated to 900 °C, the film illustrated in Figure 3.2(c) was complete transferred into isolated NCs. Each crystal size of the TEM image was estimated to be 6–10 nm. Literature had proposed the spinodal decomposition effect[31] to explain the annealing effect for formation of zirconium silicate. We inferred that the darker NCs in Figure 3.2(c) were formed from the high–molecular–weight hafnium silicate, and the bright NCs were from the low–molecular–weight zirconium silicate.[37] Figure 3.3 shows the elemental composition of the binary metal oxides NCs which were estimated by energy dispersive X-ray spectroscopy (EDS).

The nature of the chemical bonding for the transformation of thin film into NC was characterized by using x-ray photoelectron spectroscopy (XPS) analysis. Figure 3.4 provided a comparison of the XPS results for (a) Si 2p, (b) Zr 3d, (c) Hf 4f, and
(d) O 1s bonding for samples annealed at different temperatures. Figure 3.4(a) showed the increasing of binding energy of Si 2p from 100.40 eV (400 °C RTA) to 100.95 eV (900 °C RTA) with various annealing temperature. This observation related to the

and Hf 4f shown in Figs. 3.4(b) and (c) exhibited the shifting to the higher energies upon increasing the annealing temperature. This observation suggested that the oxygen atoms of Zr–O and Hf–O bonds reacted with their nearby Si atoms, forming hafnium and zirconium silicate.[54] As to the O 1s spectra in Figure 3.4(d), each peak can be deconvoluted into two peaks, i.e., the higher and lower energy peaks, which were respectively attributed to the SiO2 and metal-rich silicate.[6] If the annealing

temperature was increased, the intensity ratio of lower energy peak to higher energy peak was increased. This result indicated the hafnium and zirconium silicates were toward the bonding of metal-rich silicate. This finding was also consistent with the observation of Hf 4f and Zr 3d spectra.

3.3.2 Interfacial tension analysis

Figure 3.5 showed the interfacial tension (interfacial energy per unit area) of the hafnium and zirconium silicates as a function of annealing temperature. The surface free energy was evaluated using van Oss and Good’s three-liquid acid-base method. According to this approach (refer to equation (1)), the surface free energy of a solid, γs,

can be calculated from a combination of three factors:

(1)

Where γLW is the Liftshitz/van der Waals component, γsAB is the acid-base component,

γ+ is the Lewis acid component, and γ－

is the Lewis base component. Values of γsLW,

γs+, and γs－ can be calculated from equation (2) after measuring the liquid-solid

contact angles (θ) of these three characterizing liquids.

In equation (2), γL is the surface tension of the liquid, and subscripts S and L

refer to solid and liquid, respectively. Diiodomethane was selected as the apolar liquid, and water and ethylene glycol were selected as the polar liquid pair. The surface

of the thin films follow similar trends to those observed for the advancing contact angles.

(2)

As Figure 3.5 depicted, the interfacial energy of sol-gel spin coated film that abruptly increases from 400 °C to 600 °C annealing, and then slightly decreases from 600 °C to 1050 °C. The advancing contact angle of the polymer surface was measured by using Krüss GH-100 goniometer with deionized water, ethylene glycol, and diiodomethane as the standard solution to measure the surface free energy of the sol-gel film. The sol-gel thin film is thermodynamically not stable due to their high surface energy, therefore it nucleate whereby it is stabilized with the surface energy decrease.

As Figure 3.2 (a) mentioned, the surface at 400 °C RTA is still smooth and possesses the lowest energy. The surface morphology of 600 °C RTA sample is rough in Figure 3.2 (b), implying that the surface is unstable and in higher energy state. At 900 °C RTA, the interfacial energy is decreased in comparison with 600 °C RTA due to the formation of NCs. We proposed a model in Figure 3.6 to describe the observed transformation phenomenon on the sol-gel spin-coating film. The sol-gel film is continuous and smooth as deposited and retains the same morphology at 400 °C annealing. It becomes unstable at 600 °C annealing, and phase separation is then observed in order to reduce the surface energy. Upon 900 °C annealing, the sol-gel film reaches a stable state due to the formation of NCs.

Table 3.1 The surface-free-energies (γ) of diiodomethane, water and ethylene glycol.

3.3.3 Comparison of data retention

The sol-gel derived NC was used as the charge trapping that purposed in the nonvolatile nanocrystal memory (NVM) device. Figures 3.7 (a) and (b) illustrated the retention characteristics for the devices annealed at 600 °C and 900 °C, respectively. For both 600 oC and 900 oC samples at 25 °C measurement, the retention times can be extrapolated up to 106 sec for only about 5% charge loss, while less then 10% charge loss at 85 °C measurement. As the testing temperature increased to 125 °C, a significant charge loss at 106 sec was observed for the 600 °C annealed sample, while the 900 °C annealed sample still retained its good characteristic for retention time of 105 sec with less then 20% charge loss. The result explained the importance of NC formation for the NVM. The NC discretely dispersed in the charge trapping layer, which alleviated the charge loss problem when defects existed in the thin tunneling oxide and immunized to stress induced leakage current (SILC) effect.

3.4 Summary

In conclusion, we discussed the morphology of sol-gel derived charge tapping layer with different annealing temperatures. The XPS characterization indicated the annealing treatment under oxygen ambient can activate the formation of metal silicates (i.e., hafnium silicate and zirconium silicate). Together with the TEM images

and interfacial energies, we proposed a mechanism to explain the process of sol-gel thin film transformation into NCs. We observed the 400 °C RTA treatment had no effect on the thin film, while 600 °C and 900 °C anneals affected the film’s phase separation. The film during phase separation exhibited higher interfacial energy (600

o_{C RTA) and after transformation to NCs can minimize the interfacial energy (900} o_C

RTA). The sol-gel derived NCs successfully played an important role of charge trapping purposed in NC memory device. The 900 °C annealed sample demonstrated the satisfactory retention characteristic than the 600 °C annealed sample due to the NC formation. The large Vth shift of the 900 °C annealed sample was potential for

Figure 3.1 The experimental procedure flow of HfZrSixOy film/NCs preparation by

sol-gel technique.

HfCl

4

+solvent

ZrCl

4

+solvent

SiCl

4

+solvent

Sol-Gel Solution

Deposit sol-gel thin film

RTA (O

2

purge, 60sec)

Spin coating 3000rpm, 60s

HfZrSi

x

O

y

film/NCs

Stir for 0.5hr at 25

o

_C

Figure 3.4 (a)
Si 2p, (b)
Zr 3d, (c) Hf 4f, and (d) O 1s XPS spectra of the sol-gel
thin films after different annealing temperatures.

Figure 3.5 Interfacial tension of the sol-gel thin film as a function of annealing

10

0

10

1

10

2

10

3

10

4

10

5

10

20

30

40

50

60

70

80

90

100

V

th

shift (%)

Time (sec)

25

o

C

85

o

C

125

o

C

10

0

10

1

10

2

10

3

10

4

10

5

10

20

30

40

50

60

70

80

90

100

V

th

shift (%)

Time (sec)

25

o

C

85

o

C

125

o

C

Figure 3.7 Retention characteristics of the NC memories annealed at (a) 600 °C, and (b)

900 °C under respective measurement temperatures of 25 °C, 85 °C, and 125 °C.

(b)

(a)

Chapter 4

Phase separation of charge trapping

layers

4.1 Introduction

Spinodal decomposition takes place through spontaneous reaction of compositional fluctuations when a homogeneous phase becomes unstable under annealing.[55] The mechanism of spinodal decomposition induces the film transformation into interconnected or discrete morphology. The morphology of decomposed phases depends on the film thickness and the composition.[1, 2] The nanocrystal memory can keep the trapped charge tightly to avoid the charge loss problem in conventional thin film memory.[56-58] As to the sol-gel-derived nonvolatile memory devices using nanocrystals (NCs) as charge storage layers,[38, 59] the formation mechanism of growing nanocrystals is still unclear.

The spinodal decomposition occurred in the charge trapping thin film into the nanocrystal phase during thermal annealing is related to the sol-gel solution composition, annealing temperature and preparation solvent. The electric performance of coexisting hafnium silicate and zirconium silicate nanocrystal memory has published previously.[37] However, the effect of preparation solvent that affect the formation of

solvent constraint on the nanocrystal evolution. We demonstrated the assumption of preparation solvent effect nanocrystal formation, isolation degree, and electric property in this thesis.

The sol-gel solution is prepared by well dispersion of precursors in the solvent. Prior to form the solid thin film, the sol-gel spin-coating film needs a suitable baking condition.[60] The solvent property plays an important role on deciding the sol-gel film thickness due to the dispersion condition and the viscosity. The different film thicknesses will vary the growing mechanism of phase separation of annealed nanocrystal due to spinodal decomposition. In this study, we control the prepared precursor concentration in order to investigate the solvent effect and film thickness with respect to crystal morphology, charge retention and memory window.

4.2 Experimental

The precursors utilized for the preparation of ZrHfSixOy sol-gel solution were

zirconium tetrachloride (ZrCl4, 99.5%, Aldrich), hafnium tetrachloride (HfCl4, 99.5%,

Aldrich), and silicon tetrachloride (SiCl4, 99.5%, Aldrich), all of analytical reagent

grade. Ethanol and isopropanol (IPA) were utilized as the solvents to dissolve the precursors to fabricate the starting sol-gel solution. Hydrochloric acid (HCl) was added to the solution as a catalyst because acid-catalyzed gels are therefore aggregates of very small ultimate particles. The molar ratio for ZrCl4: HfCl4:SiCl4:solvent in the

sol-gel solutions were 1:1:1:100, 1:1:1:500 and 1:1:1:1000. The solution after preparation was stirred for 0.5 hr for well mixing. We used Brookfield viscometer to measure the viscosity of different concentration sol-gel solutions at 20 °C.

After well mixed, spin coating the sol-gel solution (the concentration molar ratio of ZrCl4: HfCl4: SiCl4: solvent = 1:1:1:1000) onto the p-type (100) silicon substrates.

spin coated sol-gel film by rotation speed 3000 rpm for 60sec. After thin film deposition, these samples were subjected to rapid thermal annealing (RTA) at 900 oC for 60 sec in O2 ambient to form NCs.

The fabrication of sol-gel spin-coating NC memory was fabricated on a p-type silicon (100) wafer. After a standard RCA process, 10-nm-thick tunnel oxide was thermally grown by a dry oxidation process in a furnace. Subsequently, the sol-gel film was deposited and through RTA process to solidify. To form NCs, the post deposition annealing treatment with temperatures of 900 °C in O2 ambient was

performed. The 20 nm blocking oxide was deposited by Plasma Enhanced Chemical Vapor Deposition (PECVD), followed by deposition of a 200-nm-thick poly-Si gate. After the PECVD TEOS deposition, the TEOS oxide was dentified in a N2 ambient by

annealing at 900 °C for 30 sec. Finally, gate patterning, source/drain implanting, and the remaining steps complete the gate stack formation of the NC memory devices.

4.3 Results and discussion

4.3.1 Film thickness effect of spinodal decomposition

Determination of viscosity was a well-defined and straightforward procedure using the Brookfield viscometer. The viscosity of various sol-gel solutions were listed in Table 4.1. The composition of ZrCl4: HfCl4: SiCl4: IPA = 1:1:1:500 or 1:1:1:100 led

to the precipitation effect, and the sol-gel film was not obtained. The solution became more viscous as if the amount of ethanol solvent decreased. The sol-gel solution prepared in ethanol solvent exhibited a lower viscosity of 1.15cP. In contrast, the sol-gel solution prepared in IPA solvent exhibited a larger viscosity of 2.45cP. Principles of physical chemistry dictated that in dilute solutions, where solute
