Abstract
In the footsteps illusion (Anstis, 2001), motion speeds up at high contrasts and slows
down at low contrasts, coming to a complete halt at equiluminance. Such speed
change has been attributed to low-level contrast-dependent mechanisms, with motion
signals completely absent at equiluminance. However, a seemingly similar illusion
that also shows the “stopping” illusion, the fan illusion, has been shown to be affected
by attention (Yeh, Chiu, & Hsiao, 2007). To link the footsteps illusions with the fan
illusion, we demonstrated that in the presence and absence of motion signals, both the
footsteps and fan illusions are similarly affected by contrast (Experiment 1and 2), but
in ways that are inconsistent with previous explanations (Howe, Thompson, Anstis,
Sagreiya, & Livingstone, 2006). In Experiment 3, we further showed that
manipulation of attentive tracking influenced illusion strength. We conclude that both
contrast-dependent motion perception and attentive tracking determine perceived
speed in the two illusions.
Keywords: contrast, motion, tracking, footsteps illusion, fan illusion, attention, occlusion, perceived speed.
!
!
Table of Contents
Introduction ... 1
Experiment 1. Effect of Contrast ... 7
Experiment 2. Effects of Surface Segregation and Deletion/Accretion Cues!""""""""""""""""""!12
Experiment 3. Effect of Distracter Interference!""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""!21
General Discussion ... 25
References ... 30
#!
!
List of Figures
Figure 1. ... 35
Figure 2. ... 36
Figure 3 ... 37
Figure 4 ... 38
Figure 5 ... 39
Figure 6 ... 40
Figure 7 ... 41
1
Introduction
Anstis (2001) discovered a “footsteps illusion,” in which a bar moving steadily
across a field of black-and-white background stripes is perceived to momentarily
speed up at high contrast, slow down at low contrast, and stop at equiluminance, with
the effect being strongest in an observer’s peripheral vision. Thus, aligned black and
white bars appear to stop and go in alternation on the background stripes, creating an
illusion of walking footsteps (see Figure 1a or browse
http://epa.psy.ntu.edu.tw/EPA/demo/Chiu-Yeh-09 for all demonstrations and figures
in this study).
Explanations of the footsteps illusion involve low-level, pre-attentive
mechanisms because it has been well established that perceived speed appears to slow
down at low contrasts (Thompson, 1982; Stone & Thompson, 1992; Blakemore &
Snowden, 1999, 2000). The contrast-ratio theory explains the perceived speed
differences of the bar in the footsteps illusion by changes in contrast at its leading and
trailing edges (Anstis, 2001). Following Thompson’s (1982) model, Anstis (2004)
proposes multiple contrast-sensitive speed-tuned units as a possible neuro-mechanism.
Furthermore, Howe, Thompson, Anstis, Sagreiya, and Livingstone (2006) showed
that perceived speed of the bar is also determined by the contrast-modulated motion
signals of the top and bottom edges of the bar and the edges of the background stripes.
2
Because these theories assume that motion signals determine motion perception, when
the bars appear to halt during equiluminance, it is suggested that this is due to the lack
of motion signals required for motion perception (Anstis, 2001).
In real life, motion signals often transiently disappear out of sight during blinks,
eye-saccades, object occlusions, or changes in the lighting of one’s environment.
Nevertheless, they do not consequently “go out of existence.” Occluded objects can
be amodally integrated (Flombaum, Scholl, & Santos, 2009; Yantis, 1995) and
perceived as persisting through time. For example, the distance of occluded dots
moving at a constant rate can be accurately extrapolated (Ehrenstein, 2003) and
pre-occlusion trajectory paths are incorporated into both one’s predictions of an
occluded-object’s location and one’s eye-tracking paths (Mrotek & Soechting, 2007).
In addition, neurophysiological (Olson, Gatenby, Leung, Skudlarski, & Gore, 2004;
Shuwairi, Curtis, & Johnson, 2007) and behavioral (Hespos, Gredeback, von Hofsten,
& Spelke, in press) evidences support that both infants and adults can “keep briefly
occluded objects in mind,” which has been shown to be a mental computation that is
both ontologically and phylogenetically primitive (Cheries, Mitroff, Wynn, & Scholl,
2009). When the conditions for amodal integration are disrupted, objects viewed prior
to and after an occlusion are interpreted as two distinct objects instead of one
(Flombaum et al., 2009).
3
The perception of occlusion events requires representations of depth between the
occluding and occluded objects (Yantis, 1995) and also the representation of object
spatiotemporal continuity during occlusion. Displays in multiple object tracking
(MOT) paradigms (Pylyshyn & Storm, 1988), similar to those in the footsteps illusion,
are 2-D in nature. Therefore, an observer must first represent the depth relations
between the occluding and occluded objects for objects to be tracked behind occluders.
It has been shown that both binocular disparity and presence of T-junctions can
improve MOT (Viswanathan & Mingolla, 1998).
Even if depth information is present, local spatiotemporal information is still
required for the disappearing and appearing object to be interpreted as moving
smoothly during occlusion. When objects gradually decrease and subsequently
increase in size along a fixed contour, they provide the deletion and accretion cues
necessary to indicate the occurrence of an occlusion event. Deletion cues allow the
perceptual system to infer the presence of objects behind a surface instead of
representing them as going out of existence (Scholl & Feigenson, 2004) and accretion
cues enable object onsets to be interpreted as the disocclusion of pre-existing objects
instead of an abrupt appearance of something new (Holcombe, 2003). The presence of
deletion or accretion cues has been shown to be necessary for tracking (Bower, 1974)
while the lack of such cues has been shown to impair MOT (Scholl & Pylyshyn,
4 1999).
In the footsteps illusion, when the moving bar and the stationary stripes are
equiluminant, the surfaces are not segregated. Therefore, instead of perceiving the
connection and subsequent disconnection of a moving surface to a stationary surface
as a moving object disappearing and subsequently reappearing behind a stationary
object, an observer might interpret it as two surfaces that merge into one. Furthermore,
merged surfaces make it difficult for an observer to discern the fixed contours that are
required for deletion and accretion cues (Scholl & Pylyshyn, 1999). Because the bar
spans the width of two stripes, it provides an observer with the perception that it is
either moving or stopping rather than gradually decreasing and increasing in size due
to its moving behind the occluder. This might make it more difficult for an observer to
track the movement. Taking the above concerns into account, an alternative
explanation of the complete halt during equiluminance in the footsteps illusion is that
the impairment of tracking is due to the lack of surface segregation and
deletion/accretion cues.
Attentional resources are also required for the maintenance of an object’s
representations behind occluders. During MOT, occluded objects appear to acquire
more attentional resources than visible targets and distracters, because the probes on
the surfaces of any occluders that occlude either the targets or the distracters are
5
detected quicker (Flombaum, Scholl, & Pylyshyn, 2008). Hespos et al. (in press)
discovered that predictive reaching of invisible objects is more difficult when the
invisible objects are occluded rather than hidden by darkness. They suggest that while
objects in darkness merely lack visibility, occluded objects compete with their
occluders for attention, which results in a deterioration of performance. These
findings suggest that an observer’s attentional resources might be a primary
requirement for maintaining object persistence during occlusion.
In fact, attention has been shown to be involved in a similar illusion called the
“fan illusion,” first reported by Petter in 1956 (Kanizsa, 1979). When a fan that
rotates at a constant speed is superimposed over a stationary fan, the rotating fan
appears to “pause-and-go” for a split second as the two fans overlap and separate
(Figure 1b). The fan illusion is stronger at slower speeds (longer occlusion duration),
with the addition of more leaves (higher perceptual load), and during the presence of
visual and auditory distracters (Yeh, Chiu, & Hsiao, 2007).
These attention effects in the fan illusion suggest that attentive tracking might be
involved in the illusion. Consistent with the findings of Yeh et al. (2007), tracking
involves a limited attentional resource pool in which the upper speed limit for
successful MOT linearly decreases with the number of targets (Alvarez & Franconeri,
2007). Furthermore, tracking performance deteriorates with longer occluding
6
durations as effortful attention deteriorates with time (Oksama & Hyona, 2004).
There are many similarities between the footsteps illusion and the fan illusion at
both the phenomenal and stimuli levels. Phenomenally, the moving bars and fan
leaves appear to stop whenever their moving edges overlap with the stationary stripes
or a motionless fan. On the stimuli level, both illusions lack surface segregation
between the equiluminant moving and the stationary stimuli. It is entirely possible
that the two illusions share common mechanisms.
If the fan illusion shares common mechanisms with the footsteps illusion, then
during the presence of motion signals, contrast manipulation should affect the strength
of the fan illusion just like that in the footsteps illusion. Furthermore, if impairment of
attentive tracking causes both illusions, motion perception should be smoother after
the addition of surface segregation and deletion or accretion cues that facilitate
tracking; on the contrary, motion perception begins to decrease after the escalation of
attention interference by means of longer occlusion durations and the addition of
visual distracters.
7
Experiment 1: Effect of contrast
In the footsteps illusion, as the moving bar “stops” whenever its two moving
edges overlap with the stationary stripes, the footsteps illusion is a kind of ‘”static
capture” in which the stationary stripes dominate motion of the bar. Anstis (2001)
found that the perceived speed of the moving bar is determined by changes in contrast
at its leading and trailing edges, with a mid-grey bar (luminance half of black and
white) producing the weakest illusions.
On the other hand, Howe et al. (2006) devised a “motion-capture” variation of
the footsteps illusion in which a stationary bar appears to move in the direction of
moving stripes. When the front and back edges of the black stationary bar overlap
black moving stripes, the motion signals from the stripes dominate and “capture” the
motion of the bar. According to Howe et al. (2006), this variation also has consistent
effects with changes in contrast. If the fan illusion and footsteps illusion share
common mechanisms, then a motion capture variation analogous to the motion
capture versions of the footsteps illusion could be created by rotating the originally
stationary fan and stopping the originally rotating fan.
In the footsteps illusion, the leading and trailing edges of the moving bar
simultaneously transverse stripes of the same color. We thus devised an analogous fan
8

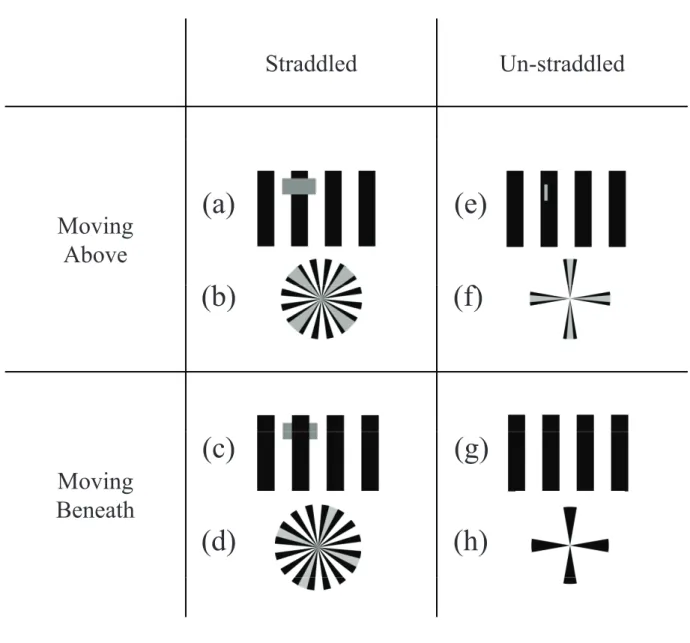

display in which one of the original 4-leaf fans was substituted by radial stripes,
namely, a 16-leaf fan. Thus, the rotating leaves of the moving 4-leaf fan in this
experiment spun two black stripes (Figure 2b), similar to the way the bars straddled
two stripes in the footsteps illusion (Figure 2a) (named “straddled” hereafter).
We predicted that by manipulating the luminance of a fan/bar, illusion strength
would vary with contrast in both the fan and footsteps illusions. Low-contrast
fans/bars would produce stronger illusions than mid-contrast fans/bars in both static
capture (Experiment 1A) and motion capture (Experiment 1B) variations.
Stimuli
All displays were projected onto white projector screens. The stimuli were
constructed by Macromedia Flash 8 and ran as .swf flash files on Windows XP
IBM-compatible computers.
In Experiment 1A, for the footsteps illusion, the moving bar (12% screen width x
8% screen height) moved at a constant speed of 13% screen width/sec. from left to
right across background stripes. The background stripes consisted of four and a half
cycles with each stripe extended 6% screen width x 36% screen height, spaced 6%
screen width between, aligned to the upper right corner of the screen. Participants
were asked to fixate at a red cross (8% screen width x 10% screen height) aligned to
the lower left corner of the screen.
9
In the fan illusion, the display consisted of two overlapping fans (radius 57%
screen width) centered on the screen. In the static capture variation, a 4-leaf fan
rotated at a constant speed (0.55 arc/sec, rotating clockwise) above radial stripes (i.e.,
the 16-leaf fan). The width of each leaf was 20 arc degrees for the 4-leaf fan (spaced
90 arc degrees) while those of the 16-leaf fan were 10 arc degrees (spaced 12.5 arc
degrees).
In Experiment 1B, the configurations of the two fans in the motion capture
variation of the fan illusion are the same as those in Experiment 1A, but reversed in
motion, with the 16-leaf fan rotating beneath the 4-leaf fan.
Contrast was manipulated by changing the grey-scale shade of the bar/ 4-leaf fan
from Middle Contrast (light grey, RGB 192) to Low Contrast (dark grey, RGB 64). In
a dimly-lit lab chamber, the light grey bar’s luminance (49.57 cd/m2) was near the
mid-point of the black (0.21 cd/m2) and white (92.38 cd/m2) stripes. Therefore, the
leading or trailing edges of the light grey bar had similar contrast values on both black
(Weber contrast = -0.996; Lblack-Lgrey/Lgrey, Anstis (2001)) and white (Weber contrast
= 0.863) stripes. On the other hand, the dark grey bar’s luminance (5.50 cd/m2) was
closer to those of the black bar. Therefore, the leading or trailing edges of the dark
grey bar had lower contrast values on black (Weber contrast = -0.961) than on white
(Weber contrast = 15.796) stripes.
10 Participants
A class with 39 high school students from the Affiliated Senior High School of
National Taiwan Normal University (ages 15-16) participated in Experiment 1A and
Experiment 1B on separate days in return for small gifts.
Procedure
Before the experiment, we confirmed that all participants could perceive the
standard static and motion capture illusions from the demonstrations. A footsteps
display (Figure 2a) and two black straddled fan displays (one static capture variation,
the other motion capture variation) (Figure 2b) were defined as having the strongest
illusion strengths.
The displays were presented to the whole class, with each student viewing the
stimuli from different directions and distances. Illusions in Experiment 1A and 2B
were together randomly blocked by illusion type with each individual condition
randomly mixed within the blocks. Participants were asked to rate the illusion
strength of each display on a 7-point Liker’s scale ( “7” defined by the demonstrations
as having the strongest illusion effects) by circling the chosen number on a paper form.
The experimenter manually advanced to the next display after confirming that all
participants have answered.
11 Results and discussions
In Experiment 1A, four participants did not complete the rating form and were
thus excluded from further analysis. The static capture variation was consistently
stronger for the Low Contrast moving bar/fan of the footsteps illusion (F(1,34) =
112.12, MSE = 2.19, p < .0001) (Figure 3a) and the fan illusion (F(1,34) = 27.83, MSE
= 2.10, p < .0001) (Figure 3b), compared to the weaker illusions (smoother motion
perception) at Middle Contrast for both illusions.
In Experiment 1B, six participants did not complete the rating forms and were
excluded from the results. Consistent with Experiment 1A, the Low Contrast
stationary 4-leaf fan’s motion was more “captured” by the moving stripes than those
of the Middle Contrast fans (F(1,32) = 28.15, MSE = 60.14, p < .0000) (Figure 3c).
This result showed that contrast affects motion perception the same way in the
fan illusion as in the footsteps illusion. As the stimuli were perceived by the students
from varying viewing conditions, the luminance of the grey bars differed for each
participant. Thus the results represented averaged luminance values.
12
Experiment 2: Effects of Surface Segregation and Deletion/Accretion Cues
In this experiment, surface segregation and deletion/accretion cues were added to
examine whether the “stopping” static capture illusion at equiluminance was, in
addition to the lack of motion signals, also caused by the lack of such conditions for
amodal integration,. As perception of occlusion events rely both on the representation
of depth and spatiotemporal continuity, we predicted that segregating occluding and
occluded object surfaces and adding deletion/accretion cues would aid attentive
tracking and enable smoother motion perception in the absence of motion signals.
In the footsteps and fan illusions, there are no motion signals when the leading or
trailing edges overlap with equilumimant stationary stripes. To keep this lack of
motion signals constant even after changing the segregating the surfaces of the
moving bar/fan and stationary stripes, the depth orders of the stripes and bar/fan were
reversed in this experiment. In the footsteps illusion, the black bar now moved
beneath the black stripes (Figure 2c) whereas in the fan illusion, the moving fan
rotated under the stationary fan (Figure 2d). This way, the surfaces of the occluding
stripes and the moving bar/fan could be differentiated while the motion signals of the
bar/fan were kept invisible via occlusion.
13
We then examined the effects of contrast-induced surface segregation and
deletion/accretion cues on the two illusions. In the original fan illusion (Figure 1b),
the rotating fan-leaves are smaller than the larger stationary fan-leaves and could thus
gradually disappear, go out of sight, and then slowly re-emerge from behind the

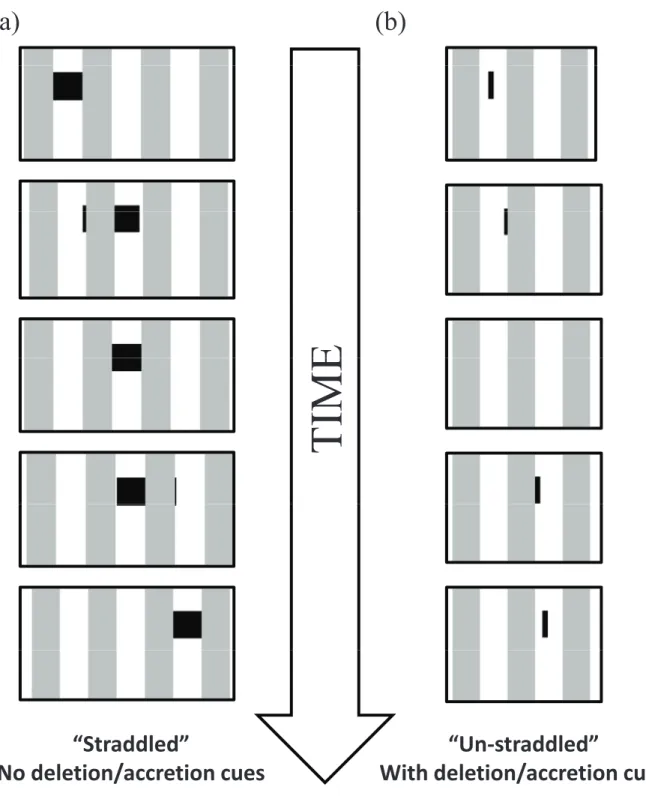

stationary leaves. However, in the footsteps illusion (Figure 1a), the straddled moving
bars would never gradually disappear or reappear (Figure 4a). Therefore, only when
the moving fan/bar is smaller than the stripe widths would there be deletion/accretion
cues for the perception of gradual disappearance and re-appearance (Figure 4b) in
both illusions (hereafter called “un-straddled” versions).
For fair comparison, we compared the effects of contrast-induced surface
segregation between straddled (Figure 2c, 2d) and un-straddled (Figure 2g, 2h)
versions of the footsteps and fan illusions. We predicted that as the un-straddled
moving bar/fan disappear and reappear in ways indicating a single persisting object
(Figure 4b), both contrast-induced surface segregation and deletion/accretion cues
would contribute to perception of an occlusion event. However, the moving bar/fan in
the straddled versions do not have deletion and accretion cues even with
contrast-induced segregated surfaces (Figure 4a), and thus illusion strength would still
be strong regardless of surface segregation.
In addition to rating, the un-straddled fan illusion was also tested with a 2-forced
14
choice (2-AFC) staircase procedure. Because ratings are possibly subject to shifts in
judgment criteria, we adopted the 2-AFC staircase procedure developed by Yeh et al.
(2007) to ensure the reliability of the rating results. The procedure was used to
measure how the “stopping” fan illusion strength changes under different conditions.
Yeh et al. (2007) discovered that stronger illusions require faster rotating speeds for
the fans to be perceived as rotating smoothly. Therefore, the speed under which the
presence of the “stopping” illusion is perceived in half of the trials (point of subjective
equivalence, PSE) can be measured and compared: the higher the PSE, the stronger
the illusion.
Stimuli
After reversing the depth orders of the moving fan/bar and stationary stripes,
Experiment 2A compared the straddled and un-straddled versions of the reversed
footsteps illusion (Figure 2c, 2g) while Experiment 2B compared those of the
reversed fan illusion (Figure 2d, 2h).
The straddled configurations of both the footsteps and fan illusions were the
same as Experiment 1, except reversed in depth. In the footsteps illusion, to control
possible attention capture of sudden motion onsets in the footsteps settings of
Experiment 1, the stripes in Experiment 2 now spanned the whole width of the screen
and participants were asked to fixate the same red cross aligned to the bottom center
15 of the screen.
In the un-straddled displays of the footsteps illusion, the moving bars were
shrunk to 1/10 (0.6% screen width) of the original width. In the fan illusion, two
4-leaf fans, with the rotating fan-leaves (10 arc degrees width) half the size of the
stationary ones (20 arc degrees width), were used for the un-straddled displays.
The 2-AFC staircase experiments were conducted in a dimly-lit laboratory
chamber. Stimuli were controlled by a personal computer and presented on a color
cathode-ray tube (CRT) monitor (ViewSonic G90f+ color monitor, 18” viewable
diagonal, 70 Hz). The staircase procedures were programmed using C++ and OpenGL.
Participants sat at a 57 cm viewing distance from the screen, with a chin rest
stabilizing their heads. The height of the chin rest was adjusted to a comfortable
position for each participant.
The same grey-scale shades in Experiment 1 were used. In the rating procedure,
the moving bars/fans were always black, and the occluding stripes were Middle
Contrast, Low Contrast or Equiluminant (black) for the footsteps illusion and Middle
and Low Contrast for the fan illusion, providing different degrees of contrast-induced
surface segregation. In the staircase procedure, the luminance of the stationary
occluders in the staircase procedures were white (thus “Invisible”) (92.38 cd/m2),
16
Middle Contrast (49.57 cd/m2), Low Contrast (5.50 cd/m2), and Equiluminant (0.21
cd/m2), and all moving fans/bars were Black (0.21 cd/m2).
Participants
In Experiment 2A, the participants were the same as Experiment 1. In
Experiment 2B, another class of 35 high school students from the same school
participated in the rating procedure. Twenty-four college students and non-student
observers (estimated ages 18-55) participated in the 2-AFC staircase procedures in
return for a small fee or course credit.
Procedure
The rating procedures were the same as in Experiment 1. For the 2-AFC staircase
procedure, the initial speed of the staircase procedure was set at 139.86 deg/sec and
changes made with 41.96 deg/sec steps. After four reversing points, the speed was set
at the average of the last two reversing points and 13.99 deg/sec steps. Upon obtaining
six reversing points, the PSE was averaged from the last four reversing points. Four
data points were obtained and averaged for each condition. All conditions within each
experiment were blocked and Latin-Square counterbalanced.
After demonstrating a black “smooth” fan (a single-leaf rotating fan, with the
single leaf 3/4 arc degree width of a stationary leaf) and a black “stopping” fan
17
(Figure 1b, the standard fan illusion, with the rotating leaves 1/2 arc degree width of
stationary leaves ) with the same rotation speed, participants were instructed to choose
either “smooth” (by pressing the “z” key) or “stopping” (by pressing the “/” key)
while fixating the center of each fan display. They were instructed to answer only
after the fan rotated more than 90 degrees. After obtaining each data point, they were
asked to take a self-paced rest and requested to take a 2-minute rest before the next
condition began.
Results and discussions
In Experiment 2A, two participants did not complete the footsteps illusion forms
and were thus excluded from further analysis. The un-straddled versions were
significantly weaker than the straddled versions (F(1,36) = 88.83, MSE = 355.68, p
< .0000), consistent with Howe et al.’s (2006) results that smaller bars had weaker

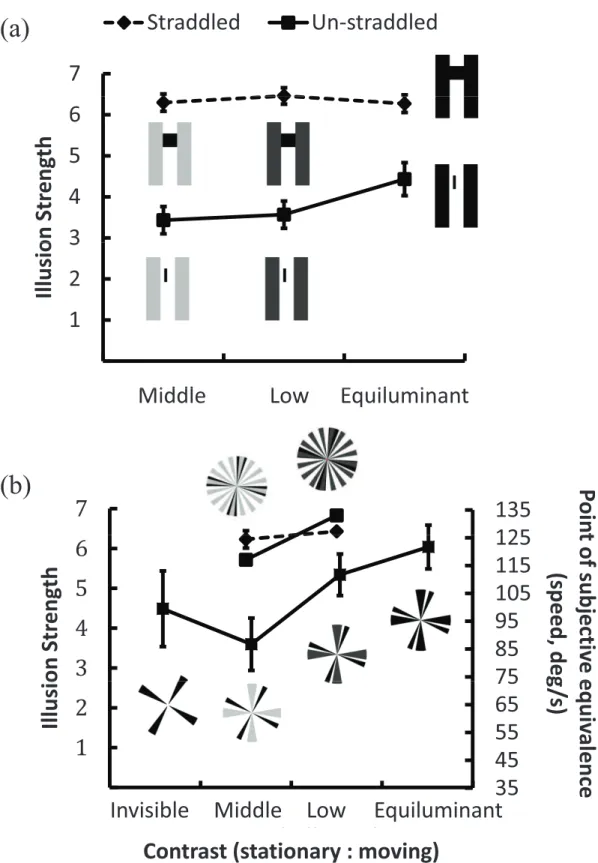

illusions than larger bars. Overall, there were no main effects of stationary : moving
bar contrast (F(1,36) = 2.82, MSE = 4.60, p = .0663), but as predicted, contrast
interacted with the straddled/un-straddled configurations (F(2, 72) = 3.97, MSE = 6.68,
p < .05). Only the un-straddled configurations had stronger “stopping” illusions with
decrease of contrast (F(2, 144) = 6.57, MSE = 10.89, p < .005) while the straddled
illusions remained the same regardless of contrast (F(2,144) = 0.23, MSE = 0.39, p =
0.792). For the un-straddled versions, the increase of illusion strength linearly
18
correlated with decrease in contrast (F(1, 144) = 11.16, MSE = 18.50, p < .051)
(Figure 5a).
In Experiment 2B, although the rating data showed no differences between
illusion strengths of the straddled and un-straddled versions in the fan illusion (F(1,34)
= 0.05, MSE = 0.11, p = .8262), there was interaction between contrast and
straddled/un-straddled configurations (F(1,34) = 7.28, MSE = 7.31, p < .05). The main
effect of contrast (F(1,34) = 9.11, MSE = 15.11, p < .005) originated from the
significant decrease of illusion strength in the un-straddled versions with change in
contrast (F(1,66) = 16.31, MSE = 21.73, p = .0001), while there was no difference
between the straddled versions (F(1,66) = 1.68, MSE = 2.80, p = .2018) (Figure 5b,
left axel).
Results for the fan illusion were further backed up with decrease in PSE (F(3, 23)
= 7.69, MSE = 715.8, p < .0005) with the White occluder (“invisible” occluders)
condition significantly weaker than Equiluminant (p < .05), while Middle Contrast
was weaker than both Low Contrast (p < .05) and Equiluminant (p < .01) fans (Figure
5b, right axel). It seemed odd at first that invisible occluders would have stronger
illusion strength than Middle Contrast ones, since Scholl and Pylyshyn (1999) have
shown that tracking performance with invisible occluder contours is equivalent to
those with visible ones. However, there is the possibility that as the shape of the
19
invisible occluders cannot be seen, the 4 leaves of the fan might be perceived as
individually disappearing along each of their own occluders at the beginning of
occlusion. When the 4 leaves re-emerge from the occluders, the strong Gestaltian
cross configuration would again group them as a single fan. Some participants
reported that the display seemed like two different 4-leaf fans jumping in alternation.
This ambiguity explains the higher variation (SE = 13.61) compared to other
conditions.
Overall, Experiment 2 showed that surface segregation improved only the
un-straddled versions where deletion/accretion cues were present for both footsteps
and fan illusions. This is in contradiction with the low-level explanations of the
footsteps illusion. If motion perception is just determined by presence of motion
signals, then as long as there is occlusion of the moving edges, neither surface
segregation nor the presence of occlusion cues would affect illusion strength.
Furthermore, according to Howe et al. (2006), the contributions of stationary signals
from the background edges are consistent in both straddled and un-straddled versions
while the signals from all other edges are kept constant, thus there should be no
difference between the two versions. Therefore, the difference indicates that
additional factors caused the change in illusion strength. We thus propose that
20
contrast changes help segregate the occluding and occluded surfaces, with attentive
tracking activated only for those fan/bars that have deletion/accretion cues.
21
Experiment 3: Effect of Distracter Interference
If surface segregation and deletion/accretion cues can cause smoother motion
perception in the static capture footsteps and fan illusions by enabling attentive
tracking, interference of tracking could then increase the “stopping” motion
perception. In Experiment 3A, we tested if attentive tracking was involved in both the
fan and footsteps illusions by increasing the overlap durations of the moving fan/bar
and stationary stripes in un-straddled fans and footsteps, predicting stronger “stopping”
illusions for longer durations. In Experiment 3B, a distracter was added to both a
Middle Contrast and a black fan display (the Middle Contrast and Equiluminant fan
display in Experiment 2B, see Figure 5b). If, as proposed in Experiment 2, the
smoother motion of the Middle Contrast fan was due to attentive tracking, then adding
distracters should regain illusion strength. On the other hand, if illusion strengths were
purely determined by contrast-dependent mechanisms, then interference should have
no effects.
Stimuli
In Experiment 3A, stimuli were displayed on a light-emitting diode (LED)
monitors (1024 X 768, 15” viewable diagonal, 60Hz / 1024 X 768, 12” viewable
diagonal, 50 Hz). In Experiment 3B, the same lab chamber and apparatus in
Experiment 2B was used.
22
In Experiment 3A, the widths of the stationary stripes were manipulated to 1, 1.3,
2 or 4 times the size of the moving bar/fan. Therefore, in the footsteps illusion, the
moving bar was 6% screen width while the stripe widths were 6%, 8%, 12% or 24%
screen widths. In the fan illusion, the moving fan was 15 arc degrees width while the
stripe widths were 15, 20, 30, 60 arc degrees. The space between the stationary stripes
was kept constant at 30 arc degrees for the fan illusion and 6% screen width for the
footsteps illusion.
In Experiment 3B, interference was introduced by adding a 50 ms visual
distracter (a red dot) at the center of Middle Contrast and Equiluminant fans whenever
the midpoint of each rotating leaf aligned to a stationary leaf. Control stimuli were the
same fan displays without visual distracter interference.
Participants
Eight college students participated in Experiment 3A, and twenty-four college
students participated in Experiment 3B in return for course credits or a small amount
of fee.
Procedure
In Experiment 3A, the same rating procedure as in Experiment 1 was used. In
Experiment 3B, the four conditions (two contrast conditions (Middle and
23
Equiluminant) x two interference conditions (with or without visual distracter)) were
Latin-square counterbalanced across participants, and the same 2-AFC staircase
procedures as in Experiment 2B was used.
Results and discussions

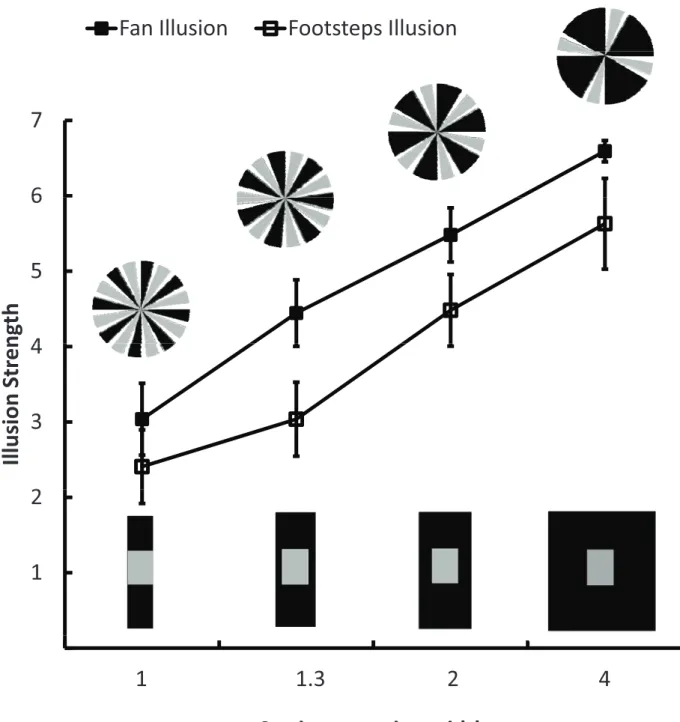

In Experiment 3A, longer overlap durations resulted in stronger illusion strengths
(F(3,7)=25.90, MSE = 0.45, p < .0001; F(3,7) = 17.56, MSE = 0.60, p < .0001, for fan
and footsteps illusions, respectively) with significant linear trends between duration
and illusion strength for both illusions (F(1,7) = 76.91, MSE = 34.85, p < .0001; F(1,7)
= 50.80, MSE = 30.33, p < .0001, for fan and footsteps illusions, respectively). In the
fan illusion, when the moving fan passed a fan-leaf of the same width, the illusion
was significantly weaker than 1.33 the size (p < .05) and even weaker than those
twice or four times its size (ps < .01). Fans passing behind occluders 1.33 its size
were also significantly weaker than the two larger sizes (ps < .01). In the footsteps
illusion, when stationary stripes were twice and four times the size of the moving
objects, the illusion was significantly stronger than when they were equal (ps < .01)
or 1.33 in size (p < .05, p < .01, respectively, for the two sizes) (Figure 6).
In Experiment 3B, as in Experiment 2B, illusion strength was weaker for the
Middle Contrast than Equiluminant fans (the main effect of contrast: F(1,23) = 14.77,
MSE = 27432.58, p < .001). However, the addition of interference increased illusion
24
strength for both Middle Contrast and Equiluminant fans (the main effect of distracter:
F(1,23) = 13.77, MSE = 5596.07, p < .005) (Figure 7). As there was no interaction
between contrast and interference (F(1,23) = 0.36, MSE = 882.04; p = .57), this
indicates that the illusion strength decreased by the presence of contrast-defined
surface segregation in the Middle Contrast conditions could be linearly increased with
distracter interference.
25
General Discussion
In Experiment 1 and 2, we demonstrated that contrast affected both the footsteps
and fan illusions in the same way regardless if motion signals at the leading or trailing
edges were present (Experiment 1A) or absent (Experiment 2). Furthermore, a motion
capture variation of the fan illusion analogous to that of the footsteps illusion (Howe
et al., 2006) also varied with contrast as predicted (Experiment 1B). These results are
consistent with Anstis’s (2001) and Howe et al’s (2006) explanations of the footsteps
illusion.
However, according to Howe et al.’s (2006) model, straddled and un-straddled
versions of the static motion footsteps illusion should be affected by the change in
contrast of background stripes in the same way. Contrary to this prediction, in the
absence of motion signals from the leading and trailing edges of the moving bar, only
the un-straddled versions of the footsteps and fan illusion had decreased illusion
strength at higher stripe contrasts while the straddled versions remained the same
(Experiment 2). This result indicates that something more is involved in determining
illusion strength other than the contrasts of the edges.
A critical difference between the two versions is the presence of
deletion/accretion cues in the un-straddled versions revealed by contrast-induced
surface segregation of the occluding stripes and occluded bars/fans. The manner
26
objects disappear and subsequently reappear indicate both the presence of an occluder
and the spatiotemporal continuity of the moving objects. Spatiotemporal continuity
has often been regarded as a necessary or even sufficient condition for object
persistence (Scholl, 2007). During occlusion, mid-level representations of objects (the
object files, Treisman, 1992) are maintained by spatiotemporal continuity (Cheries et
al., 2009; also see Flombaum, et al., 2009, for a review) and representation of
spatiotemporal continuity is sufficient for representing identical objects even after
complete feature change during occlusion (the tunnel effect, Michotte, 1991). The
primate brain might have been hard-wired to realistically represent the way objects
move according to physical laws, even when they are occluded (Scholl, 2007).
Human and nonhuman primates prioritize spatiotemporal continuity when
tracking objects (Flombaum et. al., 2009). We propose that (1) the cause of the static
capture illusion was the lack of conditions for tracking and (2) attentive tracking aids
in smoother motion perception. This was supported by Experiment 2 and 3. In
Experiment 2, the presence of depth (surface segregation) and deletion/accretion cues
(in the un-straddled fans) resulted in smoother motion perception. In Experiment 3A,
longer overlapping durations taxing attentional resources further increased the static
capture of equiluminant fans and footsteps displays. In Experiment 3B, interfering
distracters caused the smoother mid-contrast fan in Experiment 2 to “stop.”
27
There may be more factors influencing attentive tracking, such as the importance
of object history to the object updating process (Moore, Mordkoff, & Enns, 2007). In
the straddled versions, the moving fans/bars are never completely in view, but in the
un-straddled versions, they are entirely exposed before disappearing completely.
Therefore, the smoother motion perception in the latter might also be caused by better
attentive tracking with longer viewing histories.
Attentive tracking can explain the difference in illusion strength in the straddled
and un-straddled footsteps illusions, while Howe et al.’s (2006) explanation would
lead to somewhat odd implications. Howe et al. (2006) explain the stronger illusion
for the straddled version with larger contrast-weighted stationary signals from the top
and bottom edges of the moving bar. However, when the moving bar and stationary
stripes were equiluminant, even though there were no motion signals when all leading
and trailing edges overlap with the stripes, the illusion strength was still different for
the two versions (Experiment 2). We explain the stronger illusion of the straddled
version by impairment of attentive tracking, but according to Howe et al. (2006), this
is because the stationary signals of the top and bottom edges of the straddled bar have
made the already stationary display become even more stationary!
Furthermore, motion capture has been shown to be dependent on whether the
stationary and moving objects are represented on the same surface (Cavanagh, 1992;
28
Culham & Cavanagh, 1994; Ramachandran & Anstis, 1986). Therefore, the effect of
contrast manipulation in Experiment 1B could also be caused by the segregation of
surfaces that decreases motion capture. As other motion capture stimuli have been
shown to be modulated by attentive tracking (Cavanagh, 1992; Culham & Cavanagh,
1994), the motion capture variation of the footsteps and fan illusions might also share
common mechanisms related to attentive tracking.
Previous studies in the footsteps illusion have overlooked attention as a factor
influencing perceived motion. Anstis (2001, 2004) mentioned that the footsteps
illusion is stronger in the observer’s peripheral vision. Sunaga, Sato, Arikado, and
Jomoto (2008) demonstrated that in the footsteps illusion, low frequency samplings of
a static contrast-induced mis-alignment illusion contributed largely to the alternating
mis-alignments of the black and white moving bars. As high-spatial-frequency
information is less sensitive in peripheral vision, they concluded that this was the
main cause of the illusion. However, Intriligator and Cavanagh (2001) found that the
resolution of attention scales with larger eccentricity and is coarser in the upper visual
field and along the radial lines from fixation. Therefore, attention and eccentricity
may be confounded in these findings. As this study shows that attentional modulation
can affect and may be the cause of the footsteps and fan illusions, the role of attention
can be a future line of investigation for footsteps and other contrast-dependent motion
29 illusions.
30
References
Alvarez, G. A., & Franconeri, S. L. (2007). How many objects can you track?:
Evidence for a resource-limited attentive tracking mechanism. Journal of
Vision, 7, 1-10.
Anstis, S. (2001). Footsteps and inchworms: Illusions show that contrast affects
apparent speed. Perception, 30, 785-794.
Anstis, S. (2004). Factors affecting footsteps: contrast can change the apparent speed,
amplitude and direction of motion. Vision Research, 44, 2171-2178.
Blakemore, M. R., & Snowden, R. J. (1999). The effect of contrast upon perceived
speed: a general phenomenon? Perception, 28, 33-48.
Blakemore, M. R., & Snowden, R. J. (2000). Textured backgrounds alter perceived
speed. Vision Research, 40, 629-638.
Bower, T. G. R. (1974). Development of infancy. San Francisco, CA: W.H. Freeman.
Cavanagh, P. (1992). Attention-based motion perception. Science, 257, 1563-1565.
Cheries, E. W., Mitroff, S. R., Wynn, K., & Scholl, B. J. (2009). Do the same
principles constrain persisting object representations in infant cognition and
adult perception?: the cases of continuity and cohesion. In B. Hood & L.
Santos (Eds.), The origins of object knowledge. Oxford: Oxford University
Press.
31
Culham, J. C., & Cavanagh, P. (1994). Motion capture of luminance stimuli by
equiluminous color gratings and by attentive tracking. Vision Research, 34,
2701-2706.
Ehrenstein, W. H. (2003). Basics of seeing motion. Arquivos Brasileiros de
Oftalmologia, 66, 44-52.
Flombaum, J. I., Scholl, B. J., & Pylyshyn, Z. (2008). Attentional resources in visual
tracking through occlusion: The high-beams effect. Cognition, 107, 904-931.
Flombaum, J. I., Scholl, B. J., & Santos, L. R. (2009). Spatiotemporal priority as a
fundamental principle of object persistence. In B. Hood & L. Santos (Eds.),
The Origins of Object Knowledge. Oxford: Oxford University Press.
Hespos, S., Gredeback, G., von Hofsten, C., & Spelke, E. (in press). Occlusion is hard:
Comparing predictive reaching for visible and hidden objects in infants and
adults. Cognitive Science.
Holcombe, A. O. (2003). Occlusion cues resolve sudden onsets into morphing or line
motion, disocclusion, and sudden materialization. Journal of Vision, 3,
562-572.
Howe, P., Thompson, P., Anstis, S., Sagreiya, H., & Livingstone, M. (2006).
Explaining the footsteps, bellydancer, Wenceslas, and kickback illusions.
Journal of Vision, 6, 1396-1405.
32
Intriligator, J., & Cavanagh, P. (2001). The spatial resolution of visual attention.
Cognitive Psychology, 43, 171-216.
Kahneman, D., Treisman, A., & Gibbs, B. (1992). The reviewing of object files:
object-specific integration of information. Cognitive Psychology, 24, 175-219.
Kanizsa, G. (1979). Organization in vision: Essays on Gestalt perception: Praeger
Publishers.
Moore, C. M., Mordkoff, J. T., & Enns, J. T. (2007). The path of least persistence:
Object status mediates visual updating. Vision Research, 47, 1624-1630.
Mrotek, L. A., & Soechting, J. F. (2007). Predicting curvilinear target motion through
an occlusion. Experimental Brain Research, 178, 99-114.
Oksama, L., & Hyona, J. (2004). Is multiple object tracking carried out automatically
by an early vision mechanism independent of higher-order cognition? An
individual difference approach. Visual Cognition, 11, 631-671.
Olson, I. R., Gatenby, J. C., Leung, H.-C., Skudlarski, P., & Gore, J. C. (2004).
Neuronal representation of occluded objects in the human brain.
Neuropsychologia, 42, 95-104.
Pylyshyn, Z. & Storm, R. W. (1988). Tracking multiple independent targets: evidence
for a parallel tracking mechanism. Spatial Vision, 3, 179-197.
33
Ramachandran, V. S., & Anstis, S. (1986). The perception of apparent motion.
Scientific American, 254, 102-109.
Scholl, B. J. (2007). Object persistence in philosophy and psychology. Mind and
Language, 22, 563-591.
Scholl, B. J., & Feigenson, L. (2004). When out of sight is out of mind: perceiving
object persistence through occlusion vs. implosion. Journal of Vision, 4, 26.
Scholl, B. J. & Pylyshyn, Z. (1999). Tracking multiple items through occlusion: clues
to visual objecthood. Cognitive Psychology, 38, 259-290.
Shuwairi, S. M., Curtis, C. E., & Johnson, S. P. (2007). Neural substrates of dynamic
object occlusion. Journal of Cognitive Neuroscience, 19, 1275-1285.
Stone, L., & Thompson, P. (1992). Human speed perception is contrast dependent.
Vision Research, 32, 1535-1549.
Sunaga, S., Sato, M., Arikado, N., & Jomoto, H. (2008). A static geometrical illusion
contributes largely to the footsteps illusion. Perception, 37, 902-914.
Thompson, P. (1982). Perceived rate of movement depends on contrast. Vision
Research, 22, 377-380.
Viswanathan, L., & Mingolla, E. (1998). Attention in depth: disparity and occlusion
cues facilitate multi-element visual tracking. Technical Report
CAS/CNS-TR-98-012.
34
Yantis, S. (1995). Perceived continuity of occluded visual objects Psychological
Science, 6, 182-186.
Yeh, S.-L., Chiu, C.-H., & Hsiao, C.-H. (2007). The Gestaltist's error revisited with
sound. Journal of Vision, 8, 175.
(a)
(b)
Figure 1. The standard footsteps illusion consists of black and white bars that appear to
stop-and-go when moving across black-and-white stripes (a). In the standard fan illusion, a smaller rotating fan also appears to stop-and-go when superimposed with a stationary
35 fan (b).
Straddled Un-straddled
Moving Above
(a)
(b)
(e)
(f)
(b) (f)
Moving Beneath
(c)
(d)
(g)
(h)
Figure 2. The moving fans/bars overlay multiple stripes in the straddled versions (a)-(d)
but are smaller in width than a single stripe in the un-straddled versions (e)-(h). Moving edges are visible when the fans/bars move above the stripes (a), (b), (e), (f) and occluded
36 when beneath the stripes (c), (d), (g), (h).
6
(a) 7
Static Capture3 4 5 6
o n S tr e n g th
0 1 Il lu si o 2
L Middl
6 7
6 7
Light Grey Dark Grey
(b)
Low Middle
(c)
Motion Capture Static Capture2 3 4 5
u si o n S tr e n g th
2 3 4 5
0 1 2
Light Grey Dark Grey
Il lu
0 1 2
Light Grey Dark Grey Low
Middle Middle Low
C t t
Figure 3. The results of Experiment 1. When the leading and trailing edges of the “static
capture” illusion bar (a), fan (b) and “motion capture” illusion fan (c) were lower in contrast compared to the black stripes, the illusion strength was stronger than when their
Contrast
luminance were at the mid-point of black and white. All error bars in this study show two standard errors.
37
(b) (a)
E T IM E
“Straddled”
No deletion/accretion cues
“Un!straddled”
With deletion/accretion cues
Figure 4. The stripes are shown in grey for demonstration purpose. When the moving
edges are straddled upon two different stripes, the leading and trailing edges are always simultaneously visible or invisible (a). When they are smaller than the stripes, they gradually disappear behind (deletion cues) and reemerge from (accretion cues) the occluding stripes (b).
38
7
Straddled Un!straddled
(a)3 4 5 6
o n S tr e n g th
0 1 2 3
Il lu si o
E il i t L
Middl
125 135
P o in t
Light Grey Dark Grey Black
(b)
Equiluminant Low
Middle
75 85 95 105 115 125 (s p e e d , d e g t o f s u b je ct iv e e
!
"
#
$
o n S tr e n g th
35 45 55 65
75 g /s ) e quiv a lence
%
&
'
Black Dark Grey Light Grey White
Il lu si o
Equiluminant Low
Middle Invisible
Figure 5. The results of Experiment 2. Dashed lines represent the straddled versions and solid
lines represent the un-straddled versions. Contrast manipulation of the stationary stripes/fans only affected the illusion strength of un-straddled footsteps (a) and fan (b) displays. The fan
y g y
Contrast (stationary : moving)
illusion conditions (b, left) were replicated with a 2-AFC staircase procedure (b, right) and consistent results were obtained.
39
Fan Illusion Footsteps Illusion
6 7
4 5 6
n g th
2 3 4
Il lu si o n S tr e n
1 2
0
1.50 2.00 3.00 6.00
Stationary stripe width
(times the size of the moving fan/bar width)
1 1.3 2 4
Figure 6. The results of Experiment 3A.The moving fan and bar are shown in grey here,
but both are black in the experiment. The longer the width of the stationary stripes, the longer the moving stimuli stayed invisible. This caused an increase in illusion strength, possibly due to deterioration of attentive tracking.
40
No Interference With Interference
155 175
n ce
115 135
e ct iv e E q u iv a le n sp e e d , d e g /s )
55 75 95
P o in t o f S u b je (r o ta ti n g
35
Light Grey Black
Contrast (stationary : moving)
Equiluminant Middle
Figure 7. The results of Experiment 3B. Illusion strength was weaker with lower stationary fan contrasts, but stronger after addition of a visual distracter interference.
Contrast (stationary : moving)
41
