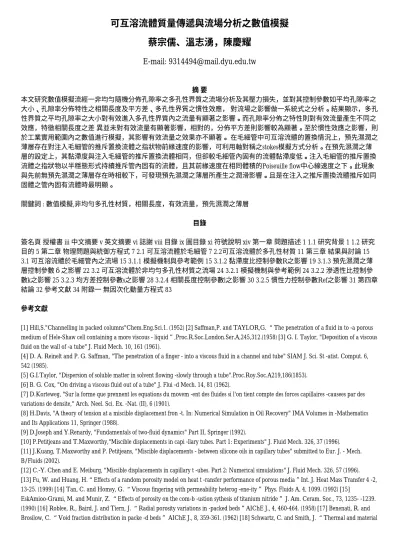

可互溶流體質量傳遞與流場分析之數值模擬 蔡宗儒、溫志湧，陳慶耀
E-mail: [email protected]
摘 要
本文研究數值模擬流經一非均勻隨機分佈孔隙率之多孔性界質之流場分析及其壓力損失，並對其控制參數如平均孔隙率之 大小、孔隙率分佈特性之相關長度及平方差、多孔性界質之慣性效應， 對流場之影響做一系統式之分析。結果顯示，多孔 性界質之平均孔隙率之大小對有效進入多孔性界質內之流量有顯著之影響。而孔隙率分佈之特性則對有效流量產生不同之 效應，特徵相關長度之差 異並未對有效流量有顯著影響，相對的，分佈平方差則影響較為顯著。至於慣性效應之影響，則 於工業實用範圍內之數值進行模擬，其影響有效流量之效果亦不顯著。 在毛細管中可互溶流體的置換情況上，預先濕潤之 薄層存在對注入毛細管的推斥置換流體之指狀物前緣速度的影響，可利用軸對稱之stokes模擬方式分析。在預先濕潤之薄 層的設定上，其黏滯度與注入毛細管的推斥置換流體相同，但卻較毛細管內固有的流體黏滯度低。注入毛細管的推斥置換 流體之指狀物以半穩態形式持續推斥管內固有的流體，且其前緣速度在相同體積的Poiseuille flow中心線速度之下。此現象 與先前無預先濕潤之薄層存在時相較下，可發現預先濕潤之薄層所產生之潤滑影響。且是在注入之推斥置換流體推斥如同 固體之管內固有流體時最明顯。
關鍵詞 : 數值模擬,非均勻多孔性材質，相關長度，有效流量，預先濕潤之薄層 目錄
簽名頁 授權書 iii 中文摘要 v 英文摘要 vi 誌謝 viii 目錄 ix 圖目錄 xi 符號說明 xiv 第一章 問題描述 1 1.1 研究背景 1 1.2 研究 目的 5 第二章 物理問題與統御方程式 7 2.1 可互溶流體於毛細管 7 2.2可互溶流體於多孔性材質 11 第三章 結果與討論 15 3.1 可互溶流體於毛細管內之流場 15 3.1.1 模擬機制與參考範例 15 3.1.2 黏滯度比控制參數R之影響 19 3.1.3 預先濕潤之薄 層控制參數δ之影響 22 3.2 可互溶流體於非均勻多孔性材質之流場 24 3.2.1 模擬機制與參考範例 24 3.2.2 滲透性比控制參 數k之影響 25 3.2.3 均方差控制參數s之影響 28 3.2.4 相關長度控制參數l之影響 30 3.2.5 慣性力控制參數Ref之影響 31 第四章 結論 32 參考文獻 34 附錄一 無因次化動量方程式 83
參考文獻
[1] Hill,S."Channelling in packed columns"Chem.Eng.Sci.1. (1952) [2] Saffman,P. and TAYLOR,G. “The penetration of a fluid in to -a porous medium of Hele-Shaw cell containing a more viscous - liquid”,Proc.R.Soc.London.Ser.A,245,312.(1958) [3] G. I. Taylor, "Deposition of a viscous fluid on the wall of -a tube" J. Fluid Mech. 10, 161 (1961).
[4] D. A. Reinelt and P. G. Saffman, "The penetration of a finger - into a viscous fluid in a channel and tube" SIAM J. Sci. St -atist. Comput. 6, 542 (1985).
[5] G.I.Taylor, "Dispersion of soluble matter in solvent flowing -slowly through a tube".Proc.Roy.Soc.A219,186(1853).
[6] B. G. Cox, "On driving a viscous fluid out of a tube" J. Flui -d Mech. 14, 81 (1962).
[7] D.Korteweg, "Sur la forme que prennent les equations du movem -ent des fluides si l'on tient compte des forces capillaires -causees par des variations de densite," Arch. Neel. Sci. Ex. -Nat. (II), 6 (1901).
[8] H.Davis, "A theory of tension at a miscible displacement fron -t. In: Numerical Simulation in Oil Recovery" IMA Volumes in -Mathematics and Its Applications 11, Springer (1988).
[9] D.Joseph and Y.Renardy, "Fundamentals of two-fluid dynamics" Part II, Springer (1992).
[10] P.Petitjeans and T.Maxworthy,"Miscible displacements in capi -llary tubes. Part 1: Experiments" J. Fluid Mech. 326, 37 (1996).
[11] J.Kuang, T.Maxworthy and P. Petitjeans, "Miscible displacements - between silicone oils in capillary tubes" submitted to Eur. J. - Mech.
B/Fluids (2002).
[12] C.-Y. Chen and E. Meiburg, "Miscible displacements in capillary t -ubes. Part 2: Numerical simulations" J. Fluid Mech. 326, 57 (1996).
[13] Fu, W. and Huang, H.“Effects of a random porosity model on heat t -ransfer performance of porous media”Int. J. Heat Mass Transfer 4 -2, 13-25. (1999) [14] Tan, C. and Homsy, G. “Viscous fingering with permeability heterog -ene-ity” Phys. Fluids A, 4, 1099. (1992) [15]
EskAmioo-Grami, M. and Munir, Z. “Effects of porosity on the com-b -ustion sythesis of titanium nitride” J. Am. Ceram. Soc., 73, 1235- -1239.
(1990) [16] Roblee, R., Baird, J. and Tiern, J. “Radial porosity variations in -packed beds”AIChE J., 4, 460-464. (1958) [17] Benenati, R. and Brosilow, C. “Void fraction distribution in packe -d beds” AIChE J., 8, 359-361. (1962) [18] Schwartz, C. and Smith, J. “Thermal and material
transport in non- -isothermal packed beds” AIChE J., 15, 597-604.(1952) [19] Schwartz, C. and Bischoff, K. “Flow distribution in packed -beds.Industrial and Engineering Chemistry”45, 1209- 1218.( 1969) [20] Poirier, D.“Permeability for ow of interdendritic liquid in colum -nar-dendritic alloys”Metallurgical Transaction, 18B,245- 255.(1987) [21] Cheng, P., Chowdhury, A. and Hsu, C.“Forced convection in packed -tubes and channels with variable porosity and thermal dispersion ef -fects”In: S.Kakac et al. (Eds.). Convective Heat Mass Transfer in - Porous Media, 625-653.( 1991) [22] Sinha, S., Sundararajan, T. and Garg, V.”A variable property analysi -s of alloy solidifcation using the anisotropic porous medium approac -h”Int. J. Heat Mass Transfer. 35,1865- 2877.(1992) [23] Yoo, H. and Viskanta, R.”Effect of anisotropic permeability on the tr -ansport process during solidification of a binary mixture” Int. J. H -eat Mass Transfer 35, 2335-2346.( 1992) [24] Lee, S. and Yang, J.
”Modelling of effective thermal conductivity for -a nonhomogeneous anisotropic porous medium ”Int. J. Heat Mass Transf -er 41,931-937.(1998) [25] Yang, J. and Lee, S.”Effect of anisotropy on transport phenomena in an -isotropic porous media”Int. J. Heat Mass Transfer 42,
2673-2681.(1999) [26] Homsy, G.”Viscous fingering in porous media.”Ann. Rev. Fluid Mech.19, - 271.(1987) [27] Yortsos, Y.”Instabilities in displacement processes in porous media” -J.Phys. Condens. Matter 2, SA443.19(1990) [28] Chen, C.-Y., Wang, L., and Kurosaki, Y.”Numerical simulations of heat t -ransfer in porous media with the effect of Heterogeneities”JSME int -ernational Journal, B, 45, 315.(2002) [29] Camhi, E., Meiburg, E. and Rutth, M.” Miscible rectilinear displace-m -ents with gravity override”Part 2: Heterogeneous porous media. J. Flui -d Mech.
420, 225.(2000) [30] Chen, C.-Y. and Meiburg, E.”a Miscible porous media displacements in t -he quarter five-spot configuration”Part 1: The homogeneous case. J. -Fluid Mech. 371, 233.(1998) [31] Chen, C.-Y. and Meiburg, E.” Miscible porous media displacements in the -quarter five-spot con_guration”Part 2: Effect of heterogeneities. J.Fl -uid Mech. 371, 269.(1998b) [32] Shinozuka, M. and Jen, C.”Digital simulation of random processes and it -s applications” J. Sound Vib. 25, 111.(1972) [33] Rutth, M. and Meiburg, E.”Miscible rectilinear displacements with gravi -ty override”Part 1: Homogeneous porous medium. J. Fluid Mech. 420,22 -5.(2000) [34] Meiburg, E. and Chen, C.-Y.”High-Accuracy Implicit Finite Difference Si -mulations of Homogeneous and Heterogeneous Miscible Porous Media Flows” -SPE J. June 5, 2.(2000) [35] Chiu, W.”Study of heat transfer characteristics of electronic porous hea -t sink” Master thesis, National Chung-ChengUniversity, Taiwan.17(2002) [36] F.B.Bretherton, "The motion of long bubbles in tubes".J.Fluid Mech.10,1 -66 (1961) [37] C.-Y. Chen and E. Meiburg, "Miscible
displacements in capillary tubes: In -fluence of Korteweg stresses and divergence effects," Phys. Fluids. 14, 2 -052 (2002).
[38] C. A. J. Fletcher, Computational Techniques for Fluid Dynamics, Vol. 1, Sp ringer (1988).
