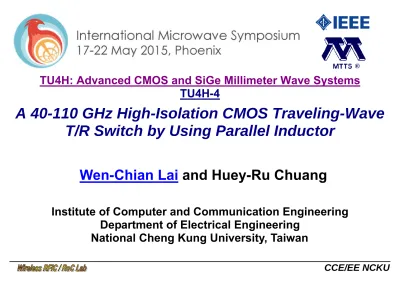

A 40-110 GHz High-Isolation CMOS Traveling-Wave T/R Switch by Using Parallel Inductor

(1)

CCE/EE NCKU

TU4H: Advanced CMOS and SiGe Millimeter Wave Systems

TU4H-4

A 40-110 GHz High-Isolation CMOS Traveling-Wave

T/R Switch by Using Parallel Inductor

Wen-Chian Lai

and Huey-Ru Chuang

Institute of Computer and Communication Engineering

Department of Electrical Engineering

(2)

IMS2015

1 TU4H-4

Outline

 Motivation and introduction

 MMW CMOS T/R switch: design procedure

(in 90-nm CMOS)

 Simulation & measurement results

 Performance comparison

 Conclusion

 References

(3)

IMS2015

2 TU4H-4

Outline

 Motivation and introduction

 MMW CMOS T/R switch: design procedure

(in 90-nm CMOS)

 Simulation & measurement results

 Performance comparison

 Conclusion

 References

(4)

IMS2015

3 TU4H-4

Motivation and introduction



Application for millimeter-wave



57-64 GHz unlicensed band for

wireless personal area network

(WPAN)

wireless video area network

(WVAN)



77 GHz bands for automotive radar

Automotive cruise control (ACC),

Collision warning (CW),

Anti-collision

(AC) and Lane change assist(LCA)



For 94 GHz applications

MMW imaging radar for concealed

weapons detection

[1]

Medical imaging

applications [2][3]

Imaging

and

gesture recognition

[4]

(5)

IMS2015

4 TU4H-4

Motivation and introduction



T/R switch in MMW RF transceiver:



T/R switch

connects

antenna

,

PA

and

LNA



Design considerations:

 Low insertion loss



Reduce burden of the gain on

LNA or PA

 High isolation



Reduce

leakage signal

from the transmitter

 High power handling



High IP

1dB

:

avoid power saturation

(6)

IMS2015

5 TU4H-4

Outline

 Motivation and introduction

 MMW CMOS T/R switch: design procedure

(in 90-nm CMOS)

 Simulation & measurement results

 Performance comparison

 Conclusion

 References

(7)

IMS2015

6 TU4H-4

MMW CMOS T/R switch: design procedure

 Broadband CMOS MMW high-isolation T/R switch schematic



Shunt inductor:

improve isolation



Traveling-wave concept:

increase operation bandwidth



Body floating:

reduce insertion loss



Matching network:

improve return loss

Parallel inductor Tx Ant. Output matching Rx Output matching Input matching Vc Vc Vc1 Vc1 Vc Vc1 M2 M1 M3 M5 M6 M4

(8)

IMS2015

7 TU4H-4

MMW CMOS T/R switch: design procedure

 Trade off in traveling-wave SPST switch design[5]:



Switch off (MOS transistors in triode region):

MOS transistors are equivalent to

resistors

 more traveling-wave SPST stages



isolation

↑

(Appendix)



Switch on (MOS transistors in cut off region):

MOS transistors are equivalent to

capacitance

 more traveling-wave SPST stages



insertion loss

↑

[5] K.-Y. Lin, W.-H. Tu, P.-Y. Chen, H.-Y. Chang, H. Wang, and R.-B. Wu, “Millimeter-wave MMIC passive HEMT switches using traveling-wave concept,” IEEE Trans. Microw. Theory Tech., vol. 52, no. 8, pp. 1798–1808, Aug. 2004.

(9)

IMS2015

8 TU4H-4

MMW CMOS T/R switch: design procedure



Series T/R switch with parallel-inductors:



The

LC tank

equivalent to a high impedance:

reduce leakage signal (high isolation)



narrow-band response



By adopting traveling-wave stage after the series switch:



more traveling-wave SPST stages



isolation & bandwidth

↑

Traveling-wave SPST Traveling-wave SPST

For high-isolation

operation

(10)

IMS2015

9 MMW CMOS T/R switch: design procedure



SPDT switch design and operation:

 Parallel-shunt inductor is chosen as 154 pH @ 109 GHz

 For insertion loss and isolation, traveling-wave stage is chosen n=2

40 50 60 70 80 90 100 110 Frequency (GHz) -6 -5.5 -5 -4.5 -4 -3.5 -3 -2.5 -2 -I n s e rt io n l o s s

Single resonated switch

Resonated switch with traveling wave,n=1 Resonated switch with traveling wave,n=2 Resonated switch with traveling wave,n=3 Resonated switch with traveling wave,n=4

40 50 60 70 80 90 100 110 Frequency (GHz) -70 -60 -50 -40 -30 -20 -10 0 -I s o la ti o n ( d B )

(11)

IMS2015

10 TU4H-4

0 0.2 0.5 1 2 5 10 180 170 160 150 140 130 120 110 100 90 ₈₀ 70 60 50 40 30 20 10 0 -1 0 -2 0 -3 0 -40 -50 -60 -70 -80 -90 -10 0 -11 0 -12 0 -1 30 -1 40 -1 50 -1 60 -1 70

Step 1(no matching circuit) Step2 (Add series transmission line) Step3 (Add shunt-open stub) Step 4 (Add pad)

Ant. return loss from 40 to 110 GHz

0 0.2 0.5 1 2 5 10 180 170 160 150 140 130 120 110 100 90 ₈₀ 70 60 50 40 30 20 10 0 -1 0 -2 0 -3 0 -40 -50 -60 -70 -80 -90 -10 0 -11 0 -12 0 -1 30 -1 40 -1 50 -1 60 -1 70

Step 1 (No matching circuit) Step 2 (Add series transmission line) Step 3 (Add shunt-open stub) Step 4 (Add pad)

Output return loss from 40 to 110 GHz

MMW CMOS T/R switch: design procedure



Matching networks:

 40 -110 GHz:

return loss > 10 dB.

40 50 60 70 80 90 100 110 Frequency (GHz) -40 -35 -30 -25 -20 -15 -10 M ag n it u d e (d B )

-Ant. return loss with matching -Output return loss with mathcing

(12)

IMS2015

11 TU4H-4

TSMC 90-nm CMOS technology

 The designed T/R switch is fabricated

with TSMC 90-nm CMOS technology

 A multi-layer structure (1P9M)



To achieve low conductor loss

 The signal path and matching elements are

arranged

on

M9

(thick top metal)



To prevent currents from injecting into the

lossy

substrate

 The ground plane is placed at

the bottom metal (M1)

(13)

IMS2015

12 TU4H-4

Chip layout & micrograph

A 40-110 GHz High-Isolation CMOS Traveling-Wave T/R Switch

by Using Parallel Inductor

(14)

IMS2015

13 TU4H-4

Outline

 Motivation and introduction

 MMW CMOS T/R switch: design procedure

(in 90-nm CMOS)

 Simulation & measurement results

 Performance comparison

 Conclusion

(15)

IMS2015

14 TU4H-4

Simulation & measurement results: (1)

40 50 60 70 80 90 100 110 Frequency (GHz) -35 -30 -25 -20 -15 -10 -5 0 -R et u rn a n d in se rt io n l o ss ( d B ) Simu._Insertion loss Simu._Return loss Meas._Insertion loss Meas._Return loss 40 50 60 70 80 90 100 110 Frequency (GHz) -60 -50 -40 -30 -20 -10 0 - T x to R x is o la ti o n ( d B ) Simu. Meas.

Frequency range: 40 – 110 GHz

Simu.

Return loss: > 10 dB

Insertion loss: < 4 dB

Isolation > 21 dB

Meas.

Return loss: > 10 dB

Insertion loss: < 4 dB

Isolation > 20 dB

(56 dB @ 109 GHz)

(16)

IMS2015

15 TU4H-4

Simulation & measurement results: (2)

-10 -5 0 5 10 15 Input power (dBm) -7 -6 -5 -4 -3 -2 -I n se rt io n lo ss ( d B ) At 94 GHz Simu. Meas. -15 -10 -5 0 5 10 15 Input power (dBm) -60 -50 -40 -30 -20 -10 0 - T x to R x is o la ti o n ( d B ) 94 GHz Simu. Meas.

Frequency at 94 GHz

Simu.

IP

1dB

@ 94 GHz

= 12 dBm

Isolation = 40 dB @ 15 dBm

Meas.

IP

1dB

@ 94 GHz

= 10 dBm

Isolation = 34.2 @ 15 dBm

(17)

IMS2015

16 TU4H-4

Outline

 Motivation and introduction

 MMW CMOS T/R switch: design procedure

(in 90-nm CMOS)

 Simulation & measurement results

 Performance comparison

 Conclusion

(18)

IMS2015

17 TU4H-4

Performance comparison

A 40-110 GHz High-Isolation CMOS Traveling-Wave T/R Switch

by Using Parallel Inductor

Reference

_{MWCL 2007}[ 6 ] _{MWCL 2010} [ 7 ] _{MWCL 2012}[ 8 ] _{MWCL 2014}[ 9 ]

This work

Process

90-nm COMS 90-nm COMS 45-nm COMS _SOI 0.13-m SiGe 90-nm CMOS

Switch Topology

SPDT

Design Approach

Traveling wave _{line integrated}Transmission Double shunt Double shunt Traveling wave

Frequency range (GHz)

50 – 94 60 – 110 140 - 220 96 – 163 40–110 _60–110

Return loss (dB)

> 10 > 15 > 10 > 10 > 10 _{> 10}

Insertion loss (dB)

< 3.4 3 – 4 3-5 _{3.5 @ 94 GHz}2.6 - 3 < 4 _{< 4}

Isolation (dB)

_{(30 @ 94 GHz)}> 27 _{(27 @ 94 GHz)}> 25 > 20 > 23.5 > 20 > 27 56 @ 109 GHz

Input P

1dB

(dBm)

_{@ 77 GHz}15 _{@ 75 GHz}10.5 --- 17 @ 94 GHz _{@ 94 GHz}10

Chip size / Core size

(19)

IMS2015

18 TU4H-4

Conclusion

 A 40-110 GHz High-Isolation CMOS Traveling-Wave T/R

Switch by Using Parallel Inductor is fabricated in 90-nm

CMOS technology.



Chip size / Core size: 0.27 / 0.11 mm

2



Measured insertion loss less than 4 dB @ 40-110 GHz and 3 dB @ 94 GHz



Measured Tx-Rx isolation better than 20 dB @ 40-110 GHz, 56 dB @ 109 GHz

 Wide bandwidth and high isolation can be achieved by

traveling-wave topology with parallel inductors.



The designed 40-110 GHz traveling-wave T/R switch has

(20)

IMS2015

19 TU4H-4

References

[1] Weapon detection [online]. Available: http://www.nist.gov/mml/mmsd/security_technologies/dietimage.cfm

[2] A. Arbabian, “A 90 GHz hybrid switching pulsed-transmitter for medical imaging,” IEEE J. Solid-State Circuits, vol. 45,

pp. 2667–2681, Dec. 2010.

[3] Breast cancer screening [online]. Available: http://www.telegraph.co.uk/women/womens-life/9642860/

Breast-cancer-screening-saves-lives-thats-no-lie.html

[4] A. Arbabian, “A 94 GHz mm-wave-to-baseband pulsed-radar transceiver with applications in imaging and gesture

recognition,” IEEE J. Solid-State Circuits, vol. 48, pp. 1055–1071, App. 2010.

[5] K.-Y. Lin, W.-H. Tu, P.-Y. Chen, H.-Y. Chang, H. Wang, and R.-B. Wu, “Millimeter-wave MMIC passive HEMT

switches using traveling-wave concept,” IEEE Trans. Microw. Theory Tech., vol. 52, no. 8, pp. 1798–1808, Aug. 2004.

[6] S. F. Chao, H. Wang, C.-Y. Su, and J. G. J. Chern, “A 50 to 94-GHz CMOS SPDT switch using traveling-wave concept,”

IEEE Microw. Wireless Compon. Lett., vol. 17, no. 2, pp. 130–132, Feb. 2007

[7] R.-B. Lai, J.-J. Kuo, and H. Wang, “A 60–110 GHz transmission-line integrated SPDT switch in 90 nm CMOS

technology,” IEEE Microw. Wireless Compon. Lett., vol. 20, no. 2, pp. 85–87, Feb. 2010

[8] M. Uzunkol and G. M. Rebeiz, “140-220 GHz SPST and SPDT switches in 45 nm CMOS SOI,” IEEE Microw. Wireless

Compon. Lett., vol. 22, no. 8, pp. 412-414, Aug. 2012

[9] C. Ulusoy, et al., “A low-loss and high isolation D-Band SPDT switch utilizing deep-saturated SiGe HBTs ,” IEEE

Microw. Wireless Compon. Lett., vol. 24, no. 6, pp. 400-402, Jun. 2014.

[10] C. –S. Kuo, H. –C. Kuo, H. –R. Chuang, C. -Y Chen and T. –H. Huang “A High-Isolation 60GHz CMOS Transmit/Receive Switch,” in IEEE Radio Freq. Integr. Circuits Symp. Dig., Jun. 2011, pp. 1–4.

[11] M. Uzunkol, and G. M. Rebeiz, “A low-loss 50–70 GHz SPDT switch in 90 nm CMOS,” IEEE J. Solid-State Circuits,

vol. 45, no. 10, pp. 2003–2007, Oct. 2010.

[12] F.-J. Huang, and K. O, “A 0.5-μm CMOS T/R switch for 900-MHz wireless applications,” IEEE J. Solid-State Circuits,

(21)

IMS2015

20 TU4H-4

Thank you for your

attention
