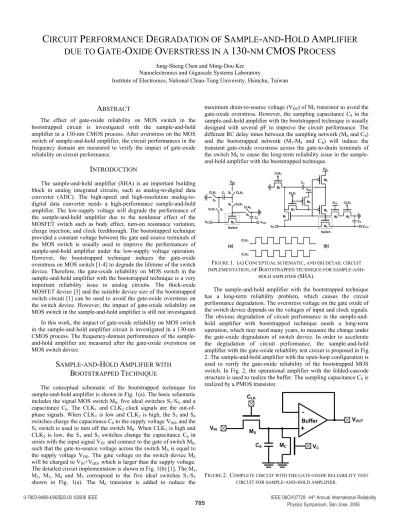

Circuit performance degradation of sample-and-hold amplifier due to gate-oxide overstress in a 130-nm CMOS process

C

IRCUIT

P

ERFORMANCE

D

EGRADATION OF

S

AMPLE

-

AND

-H

OLD

A

MPLIFIER

DUE TO

G

ATE

-O

XIDE

O

VERSTRESS IN A

130-

NM

CMOS

P

ROCESS

Jung-Sheng Chen and Ming-Dou Ker Nanoelectronics and Gigascale Systems Laboratory

Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan

A

The effect of gate-oxide reliability on MOS switch in the bootstrapped circuit is investigated with the sample-and-hold amplifier in a 130-nm CMOS process. After overstress on the MOS switch of sample-and-hold amplifier, the circuit performances in the frequency domain are measured to verify the impact of gate-oxide reliability on circuit performance.

I

The sample-and-hold amplifier (SHA) is an important building block in analog integrated circuits, such as analog-to-digital data converter (ADC). The high-speed and high-resolution analog-to-digital data converter needs a high-performance sample-and-hold amplifier. The low-supply voltage will degrade the performance of the sample-and-hold amplifier due to the nonlinear effect of the MOSFET switch such as body effect, turn-on resistance variation, charge injection, and clock feedthrough. The bootstrapped technique provided a constant voltage between the gate and source terminals of the MOS switch is usually used to improve the performances of sample-and-hold amplifier under the low-supply voltage operation. However, the bootstrapped technique induces the gate-oxide overstress on MOS switch [1-4] to degrade the lifetime of the switch device. Therefore, the gate-oxide reliability on MOS switch in the sample-and-hold amplifier with the bootstrapped technique is a very important reliability issue in analog circuits. The thick-oxide MOSFET device [3] and the suitable device size of the bootstrapped switch circuit [1] can be used to avoid the gate-oxide overstress on the switch device. However, the impact of gate-oxide reliability on MOS switch in the sample-and-hold amplifier is still not investigated. In this work, the impact of gate-oxide reliability on MOS switch in the sample-and-hold amplifier circuit is investigated in a 130-nm CMOS process. The frequency-domain performances of the sample-and-hold amplifier are measured after the gate-oxide overstress on MOS switch device.

S

-

-H

A

B

T

The conceptual schematic of the bootstrapped technique for sample-and-hold amplifier is shown in Fig. 1(a). The basic schematic includes the signal MOS switch MS, five ideal switches S1-S5, and a

capacitance Cb. The CLK1 and CLK2 clock signals are the

out-of-phase signals. When CLK1 is low and CLK2 is high, the S3 and S4

switches charge the capacitance Cb to the supply voltage VDD,and the

S5 switch is used to turn off the switch MS. When CLK1 is high and

CLK2 is low, the S1 and S2 switches change the capacitance Cb in

series with the input signal VIN and connect to the gate of switch MS,

such that the gate-to-source voltage across the switch MS is equal to

the supply voltage VDD. The gate voltage on the switch device MS

will be charged to VIN+VDD, which is larger than the supply voltage.

The detailed circuit implementation is shown in Fig. 1(b) [1]. The M1,

M2, M3, M4 and M5 correspond to the five ideal switches S1-S5

shown in Fig. 1(a). The M6 transistor is added to reduce the

maximum drain-to-source voltage (VDS) of M5 transistor to avoid the

gate-oxide overstress. However, the sampling capacitance CS in the

sample-and-hold amplifier with the bootstrapped technique is usually designed with several pF to improve the circuit performance. The different RC delay times between the sampling network (MS and CS)

and the bootstrapped network (M1-M8 and Cb) will induce the

transient gate-oxide overstress across the gate-to-drain terminals of the switch MS to cause the long-term reliability issue in the

sample-and-hold amplifier with the bootstrapped technique.

FIGURE 1. (A)CONCEPTUAL SCHEMATIC, AND (B) DETAIL CIRCUIT IMPLEMENTATION, OF BOOTSTRAPPED TECHNIQUE FOR SAMPLE-AND

-HOLD AMPLIFIER (SHA).

The sample-and-hold amplifier with the bootstrapped technique has a long-term reliability problem, which causes the circuit performance degradation. The overstress voltage on the gate oxide of the switch device depends on the voltages of input and clock signals. The obvious degradation of circuit performance in the sample-and-hold amplifier with bootstrapped technique needs a long-term operation, which may need many years, to measure the change under the gate-oxide degradation of switch device. In order to accelerate the degradation of circuit performance, the sample-and-hold amplifier with the gate-oxide reliability test circuit is proposed in Fig. 2. The sample-and-hold amplifier with the open-loop configuration is used to verify the gate-oxide reliability of the bootstrapped MOS switch. In Fig. 2, the operational amplifier with the folded-cascode structure is used to realize the buffer. The sampling capacitance CS is

realized by a PMOS transistor.

FIGURE 2. COMPLETE CIRCUIT WITH THE GATE-OXIDE RELIABILITY TEST CIRCUIT FOR SAMPLE-AND-HOLD AMPLIFIER.
