國 立 交 通 大 學
電子工程學系電子研究所
碩士論文
利用熱氧化法製備氧化銅薄膜於電阻式轉態記
憶體之研究
Resistive switching characteristics of the
thermal-oxidized CuO memory films
研究生：黃志文
指導教授：曾俊元 教授
利用熱氧化法製備氧化銅薄膜於電阻式轉態記憶體之研究
Resistive switching characteristics of the thermal-oxidized CuO
memory films
研究生：黃志文 Student：Chih-Wen Huang
指導教授：曾俊元 教授 Advisor：Prof. Tseung-Yuen Tseng
國立交通大學
電子工程學系電子研究所碩士班
碩士論文
A Thesis
Submitted to Department of Electronics Engineering and Institute of Electronics college of Electrical and computer Engineering
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Electronics Engineering
July 2009
Hsinchu, Taiwan, Republic of China
利用熱氧化法製備氧化銅薄膜於電阻式轉態記
憶體之研究
學生：黃志文 指導教授：曾俊元 教授
國立交通大學電子工程學系電子研究所碩士班
摘要
近年來，由於非揮發性記憶體的應用與發展受到矚目，加上快閃記憶體的微 縮極限，有關新世代非揮發性記憶體的發展呈現百家爭鳴的情形。其中，電阻式 非揮發性記憶元件具有低功率消耗、高密度、高操作速度、高耐久性、微縮能力 高及非破壞性資料讀取等優點，使其成為新世代非揮發性記憶元件的熱門人選。 而研究氧化銅這個材料的原因之一，是因為氧化銅在標準先進半導體 CMOS 製程技術中有銅導線製程做為元件之間的連接，所以氧化銅和 CMOS 製程具有很 高的相容性。其次的原因是因為 NiO 做為電阻式記憶體被廣為研究，而 Ni 和 Cu 在元素週期表相鄰。進而想研究 CuO 這個氧化物材料是否有做為新一帶電阻式記 憶體的潛力。這篇論文中，著重電阻轉態特性的研究與探討，其內容可分為兩大 部份，包含不同限流和不同停止電壓對轉態特性的影響。藉由這兩個不同的量測 方式探討導電細絲在薄膜內轉態的情況以及介面對轉態特性的影響，進而提出轉 態之模型解釋實驗觀察到的現象。另外藉由不同的限流可以控制低電阻態的電阻 值；而以鈦做為上電極，電阻轉態由原本無極性變為有極性狀態使轉態次數增 加，並可藉由不同的停止電壓可以控制高電阻態的電阻值，在應用方面可以做為 多重位元儲存記憶體的潛力。Resistive switching characteristics of the
thermal-oxidized CuO memory films
Student: Chih-Wen Huang Advisor: Prof. Tseung-Yuen Tseng
Department of Electronics Engineering and Institute of Electronics
National Chiao Tung University
Abstract
Recently, since nonvolatile memories acquire a lot of attention and flash memories are faced with the scale limit issue, the extensive studies have been carried out to discover the next generation nonvolatile memory. The resistive switching random access memories (RRAMs) having the strengths of low power consumption, and high-density integration, high speed, high endurance, nondestructive read as one of the next-generation nonvolatile memory candidates.
One reason is that the fabrication of Cu-oxide based RRAM has great advantages of full compatibility with Cu interconnection process in state-of-art complementary metal oxide semiconductor CMOS technology, promising easy integration with current semiconductor processing technology. The other reason is the material, NiO, has been studied widely. Thus, we want to investigate the potential of the material, CuO, to become resistive switching memory. In this thesis, the resistive switching characteristics are investigated, and the research can be categorized into two parts, the current compliance influence and the stop voltage influence resistive switching characteristics. By means of these two kind measures, we investigate the filament
transform in the resistive switching layer, when resistive switching occurs. We propose a model to explain the phenomenon, which was observed in experiment. The resistance of ON-state was controlled by current compliance. The polarity of resistive switching changed to bipolar switching by using Ti top electrode, and the resistance of OFF-state was controlled by stop voltage. In application, Ti/CuO/Pt device has a potential for nonvolatile multiple-valued memory device.
誌 謝
兩年前的這個時候，我還是懵懵懂懂的新生。時光飛逝，歲月如梭，如今碩 士論文已經完成，也意味著人生下一個階段的開始；這兩年碩士生活受過很多人 的幫忙，也經歷了很多的事情，讓我覺得能在這裡除了感到受益良多也有許許多 多的回憶。 首先要特別感謝我的指導教授曾俊元教授提供良好完善的實驗環境和設 備，使這篇論文能順利完成。也要謝謝侯拓宏老師在實驗上給的建議，以及胡教 授在百忙之中抽空擔任我的口試委員，指出學生論文中的缺失，本篇論文更加完 整。 其次，要感謝王聖裕學長在實驗上的幫忙。接著要感謝胖胖在實驗設備上以 及其它的幫助。還要感謝小岱哥教我ＡＩＣ以及和我討論實驗。從從在畢業這段 期間也幫了我不少的忙。也要謝謝猛男和錡哥學長在實驗上給的寶貴意見。 此外也要感謝之前畢業的學長海哥和翁翁帶我們做實驗。還有同一屆的同學 們；神奇的小爆（認識一堆女生）、個性很酷的桃子（其實很有喜感）、阿賢、超 會模仿葉葉、黑黑和大頭，有你們在實驗室，讓苦悶的研究生活增添不少歡笑。 還有謝謝學弟們布丁、小煒、震撼在實驗上或一些雜事上的幫忙。 在我的研究生活中還有很多人值得我感謝的人。阿尼機（是個有情有義的傢 伙）、侑廷（一開始騙我說不讀博班傢伙）、介銘（話不多）、耀鋒（嘴巴很鋒利）、 信淵（超級高手），還有老同學阿順、大姊，已經畢業的塞哥以及室友阿諾在忙 碌得一天後還有人可以聊天。在羽球場上也認識許許多多的朋友，謝謝你們和我 打球。當然還有我弟鵬達，我快要比你厲害了。最後我要感謝我最親愛的家人，我的父母一直支持我完成我的學業，我要感 謝我父親黃聖財先生的支持。也要感謝我的母親張月娥女士一直默默的為家裡犧 牲付出。沒有你們的支持我完成不了這個學業。 有些人有些事三言兩語說不盡，不過都在我的記憶當中。最後我想說，如果 沒有你們大家的幫助也不會成就今天的我。謹以此論文獻給大家，感謝各位陪我 走過這些日子也謝謝大家的幫助。 黃志文 謹識 風城 2009 年
Contents
CHINESE ABSTRACT ... I ABSTRACT ... II ACKNOWLEDGEMENT ... IV CONTENTS ... VI TABLE CAPTIONS ... X FIGURE CAPTIONS ... XI CHAPTER 1 INTRODUCTION ... 11.1 Introduction to non-volatile memory ... 1
1.1.1 Flash ... 2
1.1.2 MRAM ... 4
1.1.3 FeRAM ... 5
1.1.4 PCRAM ... 7
1.1.5 RRAM ... 7
1.2 Resistive random access memory ... 8
1.2.1 Structure and fabrication ... 8
1.2.2 Material classification ... 9
1.2.3 Operation and circuit realization ... 11
1.3 Conducting mechanisms in oxides ... 12
1.3.1 Ohmic conduction ... 13
1.3.2 Space charge limited current ... 13
1.3.3 Thermionic emission & Drift-Diffusion current ... 14
1.3.4 Frenkel-Poole emission ... 16
1.4.1 Thermal effect ... 17
1.4.2 Electronic effect ... 18
1.4.2.1 Schottky barrier modulation ... 18
1.4.2.2 Charge trapping and detraping model ... 19
1.4.2.3 Mott transition ... 20
1.4.3 Ionic effect ... 22
1.4.3.1 Solid-state electrolyte (SSE) ... 22
1.4.3.2 Oxygen vacancies migration ... 23
CHAPTER 2 EXPERIMENT DETAILS ... 36
2.1 Sample fabrication ... 36
2.1.1 Standard RCA clean ... 36
2.1.2 Growth of SiO2 ... 37
2.1.3 Deposition of bottom electrode ... 38
2.1.4 Preparation of resistive switching layer ... 38
2.1.5 Deposition of top electrodes ... 39
2.1.5.1 Shadow mask ... 40
2.1.5.2 Lithography ... 40
2.2 Resistive switching layer growing equipments ... 40
2.2.1 DC sputter system ... 41
2.2.2 Thermal oxidation furnace ... 42
2.3 Analyses and measurements ... 42
2.3.1 X-ray diffraction (XRD) ... 42
2.3.2 Transmission electron microscopy (TEM) ... 44
2.3.3 Secondary ion mass spectroscopy (SIMS) ... 45
2.3.5 Electrical measurements ... 46
2.3.5.1 Bistable resistive switching ... 46
2.3.5.2 Endurance ... 47
2.3.5.3 Retention ... 47
2.3.5.4 Stress ... 47
CHAPTER 3 RESULTS AND DISCUSSION ... 51
3.1 CuO film with different thermal oxidation condition ... 51
3.1.1 Electrical properties ... 51
3.1.2 Material analyses ... 52
3.2 Compare different top electrodes ... 52
3.2.4 Size effect ... 55
3.2.5 Endurance ... 55
3.2.5 Retention ... 55
3.2.5 Stress ... 56
3.3 Different current compliance ... 56
3.3.1 Measurement of different current compliance ... 56
3.3.2 Discussion of current compliance ... 57
3.3.3 Relation between temperature and current ... 59
3.4 Different stop voltage ... 60
3.4.1 Measurement of different stop voltage ... 60
3.4.2 Discussion of different stop voltage ... 61
3.5 Possible resistive switching model ... 63
3.6 Multi-level application ... 64
CHAPTER 4 CONCLUSION ... 106
4.2 Future work ... 107
Table captions
Table 1.1. Comparison of various memories………...25 Table 1.2. List of preparation methods of resistance switching layer………..25
Figure captions

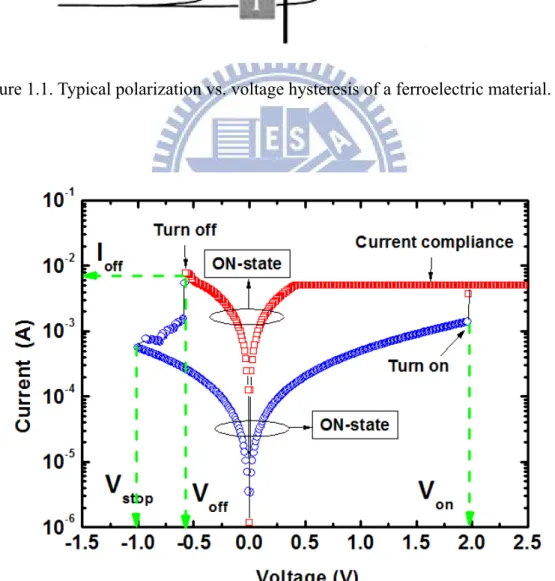

Figure 1.1. Typical polarization vs. voltage hysteresis of a ferroelectric material. [82]……...………...26 Figure 1.2. Typical I-V curves of RRAM switching in voltage sweeping mode……….26 Figure 1.3. (a) Nonpolar (unipolar) switching (b) Bipolar switching. [98]..………...27 Figure 1.4. Switching dynamics monitored with programming and reading pulses. Pulse waveforms
and transition for (a) switch on and (b) switch off. [33]………...27 Figure 1.5. Conceptual schematic of 1D1R structure. [40]……….28 Figure 1.6. Cross-sectional schematic and basic circuit diagram of 1T1R structure. [24]………..28 Figure 1.7. (a) Generalized cross-point structure with memory and switching elements. (b) Reading
interference without switch elements. (c) Rectified reading operation with switch elements. [40]……….…..29 Figure 1.8. (a) Threshold switching of a Pt/VO2/Pt switch element and (b) Bistable resistance switching demonstrated for a Pt/NiO/Pt memory element. [91]...………...29 Figure 1.9. Programming characteristics of combined oxide switch and oxide memory elements.

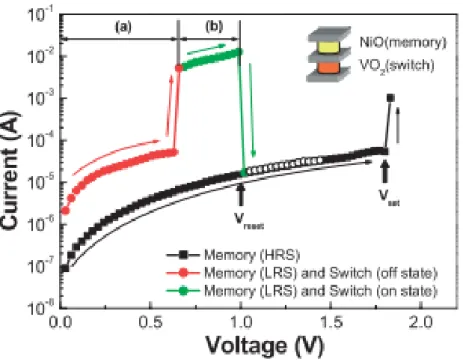

[91]………...30 Figure 1.10. (a)The Schottky effect. (b)The Frenkel-Poole effect. [30]...……….………..30 Figure 1.12. Band diagram with the conditions of interface states for on state (LRS) and off state (HRS),

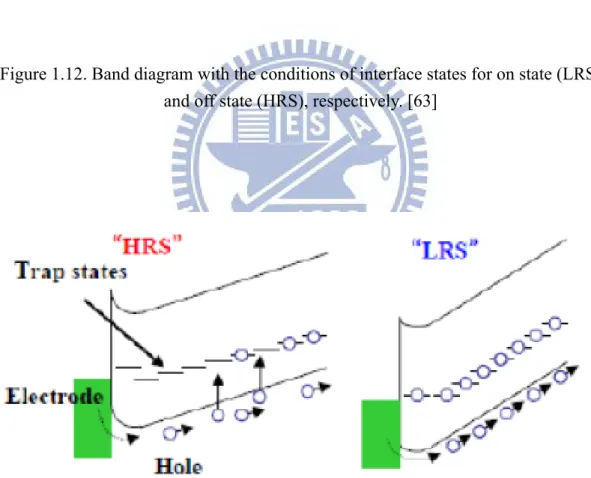

respectively. [63]………..31 Figure 1.13. Band diagram with the condition of bulk traps for on state (LRS) and off state (HRS),
respectively. [63]………..31 Figure 1.14. I-V characteristics of a Ag/La0.7Ca0.3MnO3 /Pt heterostructure (a) The set process (b)
The reset process. [84]……….…32 Figure 1.15. Metal-insulator phase diagram based on the Hubbard model in the plane of U/t and filling
(filling-control MIT) and the BC-MIT (bandwidth-control MIT). [92]...………....32
Figure 1.16. Schematic illustration of energy levels for (a) a Mott-Hubbard insulator and (b) a charge-transfer insulator generated by the d-site interaction effect. [92]……….33

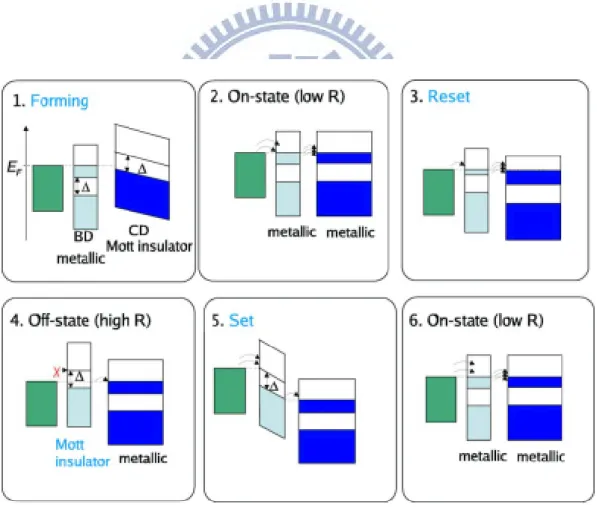

Figure 1.17. The interface Mott transition, Schematic steps of the unipolar resistive switching process. [95]………...33
Figure 1.18. The set and reset process of the Solid-state electrolyte (SSE). The green ball represent Ag+ ion, the grey ball represent Ag atom. The red arrow represent the direct of the ion……....34
Figure 1.19. Schematic pictures of high- and low-resistive state of the specimen. [28]……….34

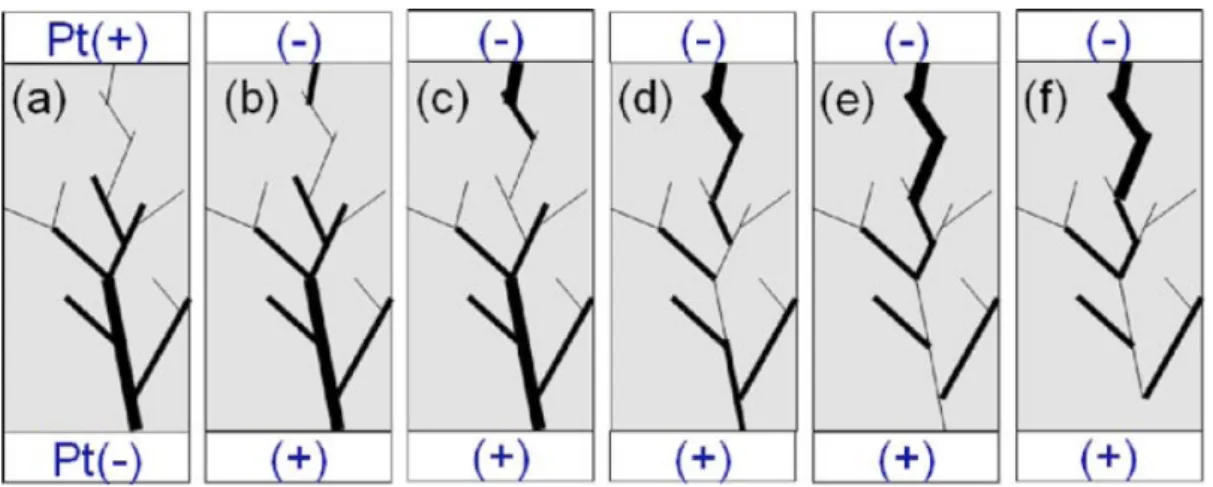

Figure 1.20. Schematic diagram for switching from on state to off state. (a) On state formed by positive bias on TE. [(b)-(e)] Nucleation and propagation of a filament when negative bias is applied on TE. (f) Off state is attained. [23]………35
Figure 1.21. Infrared thermal micrograph of the memory cell with a current of 5 mA at a voltage of ~30 V applied. In the color scale, blue and red represent room and elevated temperatures, respectively. [78]……….…….35
Figure 2.1. Sample structure……….……...49
Figure 2.2. Experiment flow……….…...49
Figure 2.3. Sketch of DC sputter system components………...50
Figure 2.4. Sketch of thermal oxidation furnace system component………...50
Figure 3.1. The frame of experimental results and discussion………...66
Figure 3.2. The yield and endurance of oxidation condition……….…..66
Figure 3.3. XRD results of device with oxidation condition 400oC-60min, and 500oC-60min…….….67
Figure 3.4. SIMS result of oxidation condition 400oC, 15min………....67
Figure 3.5. SIMS result of oxidation condition 400oC, 60min………....68

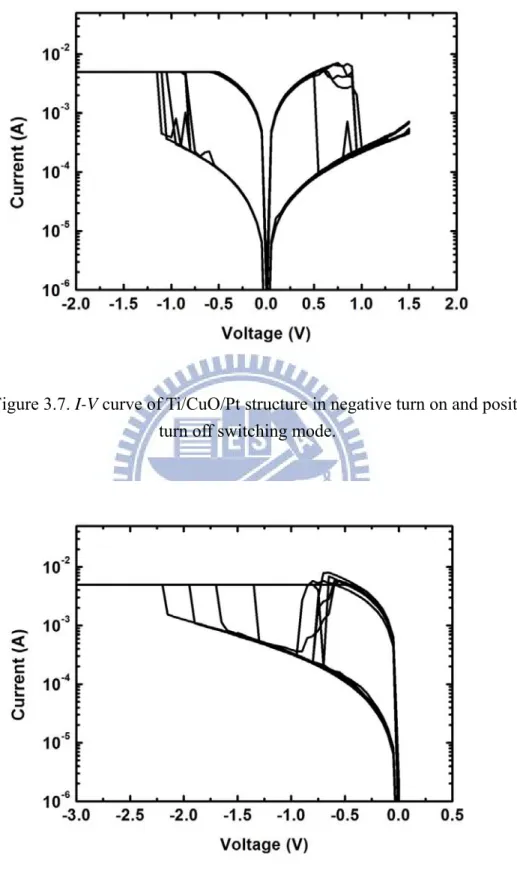

Figure 3.6. I-V curve of Ti/CuO/Pt structure in positive turn on and negative turn off switching mode………...68 Figure 3.7. I-V curve of Ti/CuO/Pt structure in negative turnon and positive turnoff switching
mode………...69 Figure3.8. I-V curve of Ti/CuO/Pt structure in negative turn on and negative turn off switching

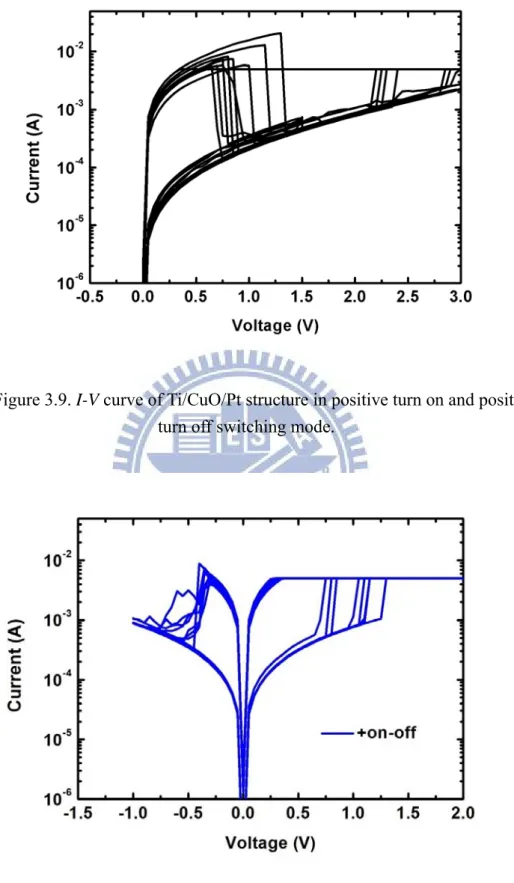

mode………...69 Figure 3.9. I-V curve of Ti/CuO/Pt structure in positive turn on and positive turn off switching
mode………...70 Figure 3.10. I-V curve of Pt/CuO/Pt structure in positive turn on and negative turn off switching

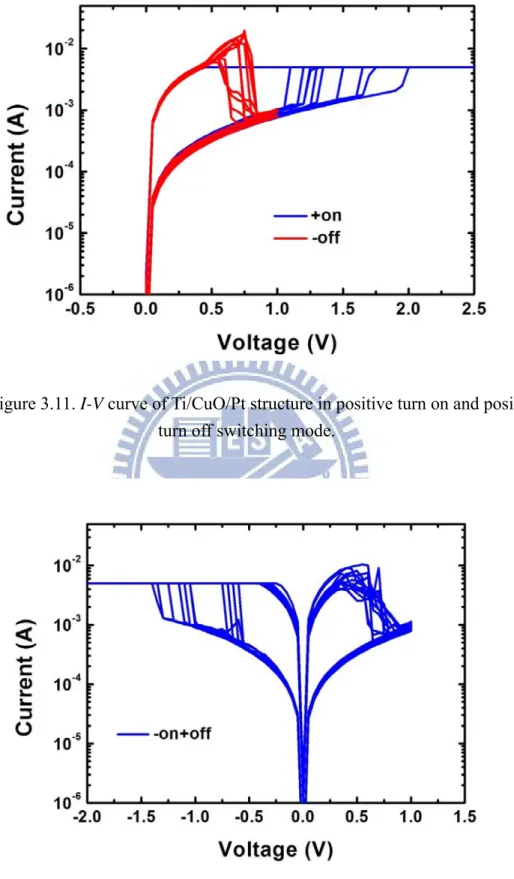

mode………...70 Figure 3.11. I-V curve of Ti/CuO/Pt structure in positive turn on and positive turn off switching
mode………...71 Figure 3.12. I-V curve of Pt/CuO/Pt structure in negative turn on and positive turn off switching

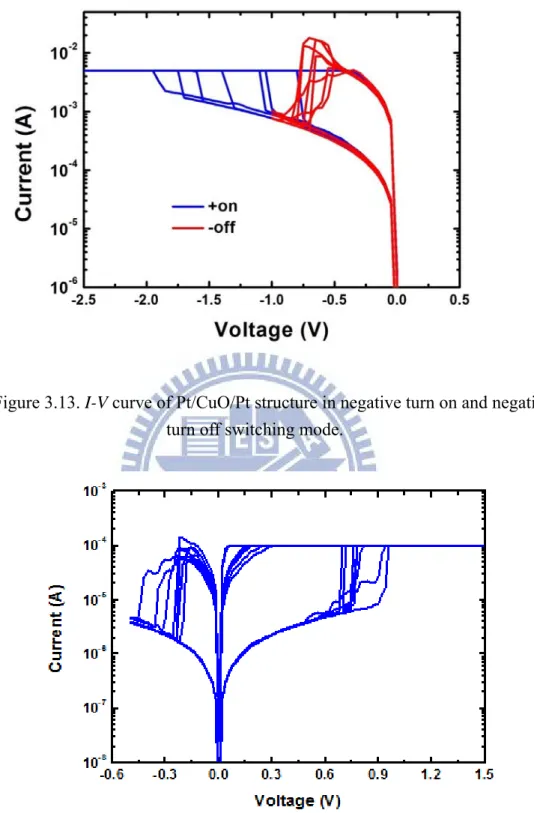

mode………...…..71 Figure 3.13. I-V curve of Pt/CuO/Pt structure in negative turn on and negative turn off switching

mode………...72 Figure 3.14. I-V curve of W-probe/CuO/Pt structure in positive turn on and negative turn off
switching mode………72 Figure 3.15. I-V curve of W-probe/CuO/Pt structure in positive turn on and positive turn off switching
mode……….73 Figure 3.16. I-V curve of W-probe/CuO/Pt structure in negative turn on and positive turn off switching
mode……….73 Figure 3.17. I-V curve of W-probe/CuO/Pt structure in negative turn on and negative turn off switching
mode……….74 Figure 3.18. I-V curve of W-probe/CuO/Pt structure and Ti/CuO/Pt structure………74 Figure 3.19. Current fitting of Ohmic conduction in turn-on process at the positive bias region for Pt
top electrode……….75 Figure 3.20. Current fitting of Ohmic conduction in turn off process at the negative bias region for Pt
Figure 3.21. I-V curves were well fitted by the formula of Poole–Frenkel emission model with Pt top
electrode………...76
Figure 3.22. Current fitting of Ohmic conduction in turn-on process at the positive bias region for Ti top electrode……….76
Figure 3.23. Current fitting of Ohmic conduction in turn off process at the negative bias region for Ti top electrode……….77
Figure 3.24. I-V curves were well fitted by the formula of Poole–Frenkel emission model with Ti top electrode………...77
Figure 3.25. The on/off ratio of various voltage bias………..78
Figure 3.26. I-V curve of Ti/CuO/Pt structure with top electrode area 10um*10um………..78
Figure 3.27. I-V curve of Ti/CuO/Pt structure with top electrode diameter 150um……….79
Figure 3.28. I-V curve of Ti/CuO/Pt structure with top electrode diameter 250um……….79
Figure 3.29. I-V curve of Ti/CuO/Pt structure with top electrode diameter 350um……….80
Figure 3.30. Statistics plot of ON-state and OFF-state current density at various area of top electrode………...80
Figure 3.31. I-V curves of the 50th, 250th, and 500th cycles switched………...81
Figure 3.32. Switching cycles for turn-on voltage and turn-off voltage………...81
Figure 3.33. Ti/CuO/Pt devices of switching cycles for resistance at 0.2V of ON-State and OFF-state……...82
Figure 3.34. Pt/CuO/Pt devices of switching cycles for resistance at 0.2V of ON-State and OFF-state………..82
Figure 3.35. W-probe/CuO/Pt devices of switching cycles for resistance at 0.2V of ON-State and OFF-state………...83
Figure 3.36. Plot of retention characteristics of ON and OFF-states………...83
Figure 3.37. Stress characteristics of ON and OFF-states under 0.2V with Ti top electrode…………..84
Figure 3.39. Stress characteristics of ON and OFF-states under 0.2V with Ni top electrode………...85
Figure 3.40. I-V curve were measured with a current compliance 1mA……….85
Figure 3.41. I-V curve were measured with a current compliance 3mA……….86
Figure 3.42. I-V curve were measured with a current compliance 5mA……….86
Figure 3.43. I-V curve were measured with a current compliance 10mA………87
Figure 3.44. I-V curve were measured with a current compliance 20mA………87
Figure 3.45. I-V curve were measured with a current compliance 30mA………88
Figure 3.46. I-V curve were measured with a current compliance 40mA………88
Figure 3.47. I-V curve were measured with a current compliance 50mA………89
Figure 3.48. Statistics plot of ON-current and OFF-current at -0.2V with different current compliance………...89
Figure 3.49. Statistics plot of turn off voltage at with different current compliance………...90
Figure 3.50. Statistics plot of turn off current with different current compliance………...90
Figure 3.51. Statistics plot of turn off power at with different current compliance………...91
Figure 3.52. Turn off process with different temperature………....91
Figure 3.53. ON-state conductivity of measurement at various temperatures……….92
Figure 3.54. OFF-state conductivity of measurement at various temperatures………...92
Figure 3.55. Double log I-V curve of turn on process at RT and 150oC………..93
Figure 3.56. Double log I-V curve of turn off process at RT and 150oC………..93
Figure 3.57. Ti/CuO/Pt structure has bipolar switching and intermediate resistance state (IRS)…..…..94
Figure 3.58. Ti/CuO/Pt device be set stop voltage at -0.75V and -2V in a switching cycle………..…..94
Figure 3.59. Ti/CuO/Pt device be set stop voltage at -0.8V and -2V in a switching cycle………...95
Figure 3.60. Ti/CuO/Pt device be set stop voltage at -1V and -2V in a switching cycle…………..…...95
Figure 3.61. I-V curve of stop voltage be set at -0.8V……….96
Figure 3.64. I-V curve of stop voltage be set at -2V………....97
Figure 3.65. Statistics plot of current at -0.2V of ON-state and OFF-state with various stop voltage....98
Figure 3.66. Mechanism of turn off process without transition region………....98
Figure 3.67. Mechanism of turn off process with transition region……….99
Figure 3.68. Mechanism of turn off process with transition region different current compliance……..99
Figure 3.69. I-V curve in turn off process with current compliance 5mA……….100
Figure 3.70. I-V curve in turn off process with current compliance 10mA………...100
Figure 3.71. I-V curve in turn off process with current compliance 20mA………...101
Figure 3.72. I-V curve in turn off process with current compliance 30mA………...101
Figure 3.73. Stress characteristics of intermediate resistance state………102
Figure 3.74. The detail resistive switching mode………..103
Figure 3.75. I-V curve of Ti/CuO/Pt device with different current compliance………...104
Figure 3.76. I-V curve of Ti/CuO/Pt device with different stop voltage………....104
Figure 3.77. Stress characteristics of ON-state of multi-level with Ti/CuO/Pt structure………...105
Chapter 1
Introduction
1.1 Introduction to non-volatile memory
Memory can be split into two main categories: volatile and nonvolatile. Volatile memory loses any data as soon as the system is turned off; it requires constant power to remain viable. Most types of random access memory (RAM) fall into this category. Nonvolatile memory does not lose its data when the system or device is turned off. The nonvolatile memory (NVM) would keep the stored information under any conditions without power supply for Non-volatile memory is computer memory that can retain the stored information even when not powered. Examples of non-volatile memory include read-only memory, flash memory, most types of magnetic computer storage devices (e.g. hard disks, floppy disks, and magnetic tape), optical discs, and early computer storage methods such as paper tape and punch cards.a long time. The first NVM is the floating-gate nonvolatile memory, invented by S. M. Sze and D. Kahng in 1967. NVMs have been widely used in the portable devices recently, such as flash memory devices, cell phones, digital cameras, mp3 players, and personal digital assistants. A perfect NVM should have the properties including low operation voltage, simple structure, low power consumption, non-destructive readout, high operation speed, long retention time, high endurance, and small cell size. There have been many sorts of nonvolatile memories invented so far, such as flash memory, erasable programmable read only memory (EPROM), electrically erasable programmable read only memory (EEPROM), phase-change memory (PCRAM), ferroelectric random
access memory (FeRAM), magnetoresistive random access memory (MRAM), and resistance random access memory (RRAM). Nowadays, flash memory is the mainstream among the NVMs
The following is focused on the next generation nonvolatile memories, including MRAM, FeRAM and RRAM. Flash memories are also introduced.
1.1.1 Flash
Flash memory is a form of nonvolatile computer memory that can be electrically erased and reprogrammed, invented by Gerard Dixon.
Flash memory stores information in an array of floating gate transistors, called “cells”, each of which traditionally stores one bit of information. The latest flash memory devices, sometimes referred to as multi-level cell devices, can store more than 1 bit per cell, by using more than two levels of electrical charge, placed on the floating gate of a cell. General write times for common flash memory devices are on the order of 1 ms, about 100 times the typical 10 ns read time.
NOR flash, each cell looks similar to a standard MOSFET, is expected that it has two gates instead of just one. One gate is the control gate (CG) like in other MOS transistors, but the second is a floating gate (FG) that is insulated all around by an oxide layer. The FG is between the CG and the substrate. Because the FG is isolated by its insulating oxide layer, any electrons placed on it get trapped there and thus store the information. When electrons are on the FG, they modify (partially cancel out) the electrical field coming from the CG, which further modifies the threshold voltage (Vt) of the cell. Thus, when the cell is “read” by placing a specific voltage on the CG, electrical current will either flow or not flow, depending on the Vt of the cell, which is
controlled by the number of electrons on the FG. This presence or absence of current is sensed and translated into 1’s and 0’s, reproducing the stored data. In a multi-level cell device, which stores more than 1 bit of information per cell, the amount of current flow will be sensed, rather than simply detecting presence of absence of current, in order to determine the number of electrons stored on the FG. A NOR flash cell is programmed (set to a specified data value) by starting up electrons flowing from the source to the drain, then a large voltage placed on the CG provides a strong enough electrical field to suck them up onto the FG, a process called hot-electron injection. To erase (reset to all 1’s, in preparation for reprogramming) a NOR flash cell, a large voltage differential is placed between the CG and source, which pulls the electrons off through quantum tunneling. In single-voltage devices (virtually all chips available today), this high voltage is generated by an on-chip charge pump. Most modern NOR flash memory components are divided into erase segments, usually called either blocks of sectors. All of the memory cells in a block must be erased at the same time. NOR programming, however, can generally be performed one byte of word at a time.
NAND flash uses tunnel injection for writing and tunnel release for erasing. NAND flash memory forms the core of the removable USB interface storage devices known as USB flash drives.
As manufacturers increase the density of flash devices, individual cells shrink and the number of electrons in any cell becomes very small. Coupling between adjacent floating gates can change the cell write characteristics. New designs, such as charge trap flash, attempt to provide better isolation between adjacent cells.
Furthermore, following the device scaling, the tunneling oxide will be shrunken, which then leads to large leakage current, therefore the retention time of flash memory will be reduced due to the device scaling.
1.1.2 MRAM
Magnetoresistive random access memory (MRAM) has been in development since the 1990’s unlike conventional RAM chip technologies, data is not stored as electric charge of current flows, but by magnetic storage elements. The elements are formed from two ferromagnetic plates, each of which can hold a magnetic field, separated by a thin insulating layer. One of the two plates is a permanent magnet set to a particular polarity, the other’s field will change to match that of an external field. A memory device is built from a grid of such cells.
Reading is accomplished by measuring the electrical resistance of the cell. A particular cell is selected by powering an associated transistor, which switched current from a supply line through the cell to ground. Due to the magnetic tunnel effect, the electrical resistance of the cell changes due to the orientation of the fields in the two plates. By measuring the resulting current, the resistance inside any particular cell can be determined, and from this the polarity of the writable plate. Typically is the two plates have the same polarity this is considered to mean “0”, while if the two plates are of opposite polarity the resistance will be higher and this means “1”.
Data is written to the cells using a variety of means. In the simplest, each cell lies between a pair of write lines arranged at right angles to each other, above and below the cell. When current is passed through them, an induced magnetic field is created at the junction, which the writable plate picks up. This pattern of operation is similar to
core memory, a system commonly used in the 1960s. This approach requires a fairly substantial current to generate the field, however, which makes it less interesting for low power uses, one of MRAM’s disadvantages. Additionally, as the device is scaled down in size, there comes a time when the induced field overlaps adjacent cells over a small area, leading to potential false writes. This problem, the half-select (or write disturb) problem, appears to set a fairly large size for this type of cell. One experimental solution to this problem was to use circular domains written and read using the giant magnetoresistive effect, but it appears this line of research is no longer active.
1.1.3 FeRAM
Ferroelectric random access memory (FeRAM) is currently one of several advanced nonvolatile memory technologies that are attempting to gain acceptance as an alternative to flash by avoiding its key weaknesses, high program and erase voltages, slow programming speed, write-erase endurance that is limited to ~105 cycles. Compared to its primary competitors among the new NVRAM technologies, MRAM and PRAM, FeRAM is more mature with volume production at Fujitsu beginning in 1999. FeRAMs at 1-Mbit densities were available in high volume in 2006 form both Fujitsu and Ramtron. Limited volume production of a 4-Mbit MRAM began at Freescale semiconductor in July 2006, wile PRAM has not yet entered volume production at any manufacturer. However, none of the new NVM comes close to offering neither the high storage densities nor the low cost per storage bit of flash memory. FeRAM is competitive in specialized niche applications where its properties (low write voltage, fast write speed, and much greater write-erase endurance) give it a compelling advantage over flash memory.
A ferroelectric material has a nonlinear relationship between the applied electrical field and the apparent stored charge. Specifically, the ferroelectric characteristic has the form of a hysteresis loop, which is very similar in shape to the hysteresis loop of ferromagnetic materials. The dielectric constant of a ferroelectric is typically much higher that that of a linear dielectric because of the effects of semi-permanent electric dipoles formed in the crystal structure of the ferroelectric material. When an external electrical field is applied across a dielectric, the dipoles tend to align themselves with the field direction, produced by small shifts in the positions of atoms and shifts in the distributions of electronic charge in the crystal structure. After the charge is removed, the dipoles retain their polarization state. Typically binary 0’s and 1’s are stored as one of two possible electrical polarizations in each data storage cell. For example, in Fig. 1.1 a “1” is encoded using the negative remnant polarization (-P) and a “0” using the positive one (+P).
Operationally FeRAM is similar to DRAM. Writing is accomplished by applying a field across the ferroelectric layer by charging the plates on either side of it, forcing the atoms inside into the “up” or “down” orientation (depending on the polarity of the charge), thereby storing a “1” or “0”. Reading is somewhat different than in DRAM. Instead of draining the (non-existent) charge, the transistor forces the cell into a particular state, say”0”. If the cell already held a “0”, nothing will happen in the output lines, whereas if the cell held a “1” the re-orientation of the atoms in the film will cause a brief pulse of current in the output (as they push electrons out of the metal on the “down” side). The presence of this pulse means the cell held a “1”. Note that, like DRAM, reading in FeRAM is a destructive process, and requires the cell to be re-written after reading.
1.1.4 PCRAM
Phase-change memory (also known as PCM, PRAM, PCRAM, Ovonic Unified Memory, Chalcogenide RAM and C-RAM) is a type of non-volatile computer memory. PRAM uses the unique behavior of chalcogenide glass, which can be “switched” between two states, crystalline and amorphous, with the application of heat. Recent versions can achieve two additional distinct states, effectively doubling its storage capacity. PCM cell can be constructed in a number of different ways, but there are two notable methods. In one method, diodes are used as selection elements instead of transistors
This cuts down on cost, since a diode is smaller and cheaper than a transistor. Taking this one degree further, Macronix pioneered cross-point PCM, which is composed simply of a self-aligned chalcogenide cell sandwiched between the address lines (that is, with no transistor or diode selection element). In this manner, the chalcogenide itself serves as the rectifying element so the low-resistance crystalline state is never used. Instead, the cell is manipulated between distinct amorphic states. This type of cell is very low cost since it only requires two masking steps. The greatest challenge for phase-change memory has been the requirement of high programming current density (>107 A/cm2, compared to 105-106 A/cm2 for a typical transistor or diode) in the active volume.
1.1.5 RRAM
Resistive random access memory (RRAM) is another candidate for the next generation nonvolatile memory devices. Further introduction on RRAM is in the next section.
1.2 Resistive random access memory
RRAMs make good use of the resistance changes as different memory states. By electrical field or current effects, the conductivity of the memory layer can be switched between high and low resistance reproducibly. The different resistance states stands for different digital states as a memory device. The strengths of RRAM are the high cell density array, high operation speed, low power consumption, high endurance and lower scale limit. Furthermore, RRAMs have the features of nonvolatility, long retention time, and non-destructive readout. In this section, the properties are discussed in view of the structure, fabrication, material classification, operation and circuit realization. By Table 1.1, RRAM have great potential for replacing the flash memory and will become mainstream memory in the future.
1.2.1 Structure and fabrication
The basic structure for RRAM is made up of only metal-insulator-metal, MIM, which can be further integrated into 1D1R (a diode and a resistor), 1T1R (a transistor and a resistor) structures (discussed later), or 1S1R (a switching and a resistor). The top and bottom electrodes could be metals or conducting transition metal oxides, the choice of which has impacts on the resistive switching properties because of their different crystallinities, work functions and the ability of Gibbs free energy. The adhesion and among layers should be considered as well. If high temperature process is needed, the thermal stress problem should be considered. The main character of resistive switching is the insulator layer sandwiched between the electrodes. The insulator for the MIM structure actually may be not really insulating, but also semiconducting, depending on the constitution and stoichiometry. As a result, the
insulator would be called “resistance switching layer” in the following sections. Usual deposition method of resistance switching layer are many and various, including radio-frequency (RF) magnetron sputtering, reactive sputtering, e-beam evaporation, spin coating (sol-gel), thermal oxidation, metal-organic chemical vapor deposition (MOCVD), pulsed laser deposition (PLD), atomic layer deposition (ALD), plasma-enhanced atomic layer deposition (PEALD), and melt-grown by FZ method, as listed in Table 1.2. Among them, the sputtering has lower cost and wide application but poor film uniformity; e-beam evaporation and spin coating has low process cost but poor film quality as well; thermal oxidation are suitable for high reactive metal like Ni, Ti or Cu to form metal oxides and inexpensive; MOCVD, PLD, ALD, and PEALD are able to produce high quality film with good step coverage but expensive; the FZ method is able to fabricate perfect crystals with exact component proportion but not practical in semiconductor fabrication process. The different quality deposited by different methods has connection with the resistive switching characteristics.
1.2.2 Material classification
The resistive switching phenomena have been found in many materials. The research mainstream is focused on several groups, including binary oxides, perovskite oxides, manganites, and other alloy or polymers.
The binary oxides adopted in RRAM application, such as CuxO [1-16], TiO2 [17-32], NiO [23-53], ZrO2 [17-26] Al2O3 [66-68], HfO2 [69,70], Fe2O3 [71], ZnO [72,73] and MoOx [74], are candidates or have been widely used in other field of CMOS devices. Thus the compatibility with modern CMOS process would not be a problem. Moreover, this material group of binary oxides has simpler element
Another extensively studied material group is (Ba,Sr)(Zr,Ti)O3, BSZT. It has been studied as a role of the high-k dielectric for a long time [75]. Many BSZT in RRAM are doped with V [76], Cr [77,78], etc. Dopants are prone to occupy sites of intrinsic oxygen vacancies, and thus restrain the formation of them [76]. Because of the more components and the more complicated chemical environment, the control of the component proportion is not as easy as that of binary oxides.
The manganites discussed in RRAM usually represent the carrier-doped manganites with perovskite structure, R1-xAxMnO3, where R and A are rare-earth and alkaline-earth ions, respectively [79-84]. They are not classified in the above perovskite system here because of their unique characteristics of conducting ferromagnets below a Curie temperature [79]. Manganites with perovskite structures exhibit a magnetoresistive response that is many orders of magnitude larger than that found for other materials, beside the electrical resistive switching behaviors. It is the epitaxial samples that are generally prepared by PLD [81,83] or floating-zone melt-growth method [79] to obtain the precise element proportion and physical properties. For the same reason of perovskite oxides, the future for manganites in RRAM is not so promising.
The other materials such as chalcogenide (GeSbTe) [85], sulfides (e.g. Cd1-xZnxS [86]), and organic materials including Rose Bengal sodium salt (RB) [87], copperphthalocyanine (CuPc) [88], 2-amino-4,5-imidazole dicarbonitrile (AIDCN) [88] and so on, have been investigated for RRAM application. The chalcogenide material has been drawing many attentions recently due to Intel’s support, while the others are newly introduced to semiconductor processes. Besides, many organic polymers tend to degrade easily. Chalcogenide seems a more practical candidate in
this group of materials.
1.2.3 Operation and circuit realization
Basic operation of bistable resistive switching in a single cell can be achieved by DC sweep or pulse switching methods. Fig. 1.2 shows a typical I-V plot under DC sweep operation. Assuming the resistance state is first held in off state (high resistance state), the current suddenly increases as the DC bias sweeps toward positive direction and on state (low resistance state) is reached, which is defined as a process of “switch on” or “set” as indicated in the figure. The voltage where the current suddenly increase is the switch-on voltage. Then a negative voltage bias is applied to switch back to off state with a substantially current drop at the switch-off voltage, as indicated by the “reset” or “switch off” in the figure. It should be noted that this operation requiring different voltage polarities to switch on and off, whether positive on/negative off or positive off/negative on, is called bipolar operation. As for the unipolar operation, either polarity can be applied to switch on or off depending on the present memory state. On the basis of I–V characteristics, the switching behaviors can be classified into two types: unipolar (nonpolar) and bipolar, for which typical I–V curves are shown in Figs. 1.3a and 1.3b, respectively For the data reading operation, the bias should not exceed the range indicated as “read” in the figure to prevent memory state modification. Fig. 1.2 does not show the forming process required to initiate the resistive switching properties of as-deposited oxide films. The forming process is similar to soft oxide breakdown, leading to the conducting paths (filaments) composed of clusters of point defects. To unify and clarify the terms of operation parameters in the following text, the “switch on” and “switch off” would be used to describe the switching operation instead of “set” and “reset”; “Vset”, “Vreset”, “Ron”
and “off-state resistance”.
In the real circuits, it is the pulse switching that is the practical operation method for its fast operation speed and lower power consumption. The waveforms of switching on and off are shown in Fig. 1.4(a) and (b) respectively. The pulse heights and widths for switch on and off must strike a balance, in which the larger the pulse heights are, the shorter the pulse widths are needed. The reading pulses with small pulse heights are designed not to modify the memory states. This non-destructive readout property can be examined by the stress test, in which memory device samples are stressed by a small voltage bias for a long period and the details are described in chapter 2.
For the memory cell array, 1D1R, 1S1R, 1T1R structure as show in Fig. 1.5-9 must be used to prevent misreading as shown in Fig. 1.7. I. G. Baek et al. [33] reported that if a cell is in off state and its neighboring cells are in on state, it will be misread as on state because of the leakage current path around its neighboring cells. Therefore a rectifying element is required for each cell in an array to confine the current paths. The minimum sizes for 1D1R and 1T1R structures are 4F2 and 6F2 respectively, which meet the requirement for high density arrays.
1.3 Conducting mechanisms in oxides
Based on conductivity, transition metal oxides could be insulator, semiconductor or metal depending on the composition of the oxide materials. Hence the conducting mechanisms may vary because of their different physics and chemistry. The most discussed materials in RRAM application generally belong to insulator or
semiconductor according to the constitution and stoichiometry, and the electron conduction mechanisms mostly involved are Ohmic conduction, space charge limited current, Schottky emission, and Frenkel-Poole emission. Furthermore, it is the current fitting procedure that gives insight into the conduction mechanisms.
1.3.1 Ohmic conduction
Ohmic conduction takes place when the injected carrier density is far less than the thermally-generated carrier density. Generally, it applies to the condition of low electric field region in which thermally-generated carriers are dominant in conduction. The current-voltage characteristics follow Ohm’s law that the current passing through a resistor from one terminal to the other is proportional to the voltage drop across the two points. In addition, the temperature effect is also described in Ohmic conduction behavior. Due to the electron and phonon scattering effects, the conductivity rises with increasing temperature for conduction in semiconductor, while with decreasing temperature for metal conduction. The following is the expression for Ohmic conduction: J aVexp -c T ⎛ ⎞ = ⎜ ⎟ ⎝ ⎠
where a and c are constants respectively, and V the applied voltage.
1.3.2 Space charge limited current
The mechanism of space charge limited current (SCLC) is attributed to defects and usually exists in the dielectric stressed by high electric fields. After charge injection from an electrode, the space charge may form if the charge carriers are trapped and distributed over a region of area without being neutralized. The further flow of charge carriers would be impeded by this space charge region. It should be
noted that the injected carriers are mostly electrons. As for conductive media, the trapped carriers are able to be neutralized or screened rapidly; therefore the space charge region would not form.
The complete trapped controlled SCLC mechanism is composed of two stages [24], trap-unfilled SCLC and trap-filled SCLC, both can be written as the following expression: 2 0 3 9 1 8 r V J L θ ε ε μ θ ⎛ ⎞ = ⎜⎝ + ⎟⎠
where J is the current density, θ is the ratio of free electron to trapped electron, NC is the effective density of states in the conductive band, Nt is the number of emptied electron traps, ε0 is the permittivity of free space, εr is the static dielectric constant, μ is the electron mobility, V is the applied voltage and L is the film thickness. At first stage, the traps are not filled with charges and the formula can be rewritten with θ <<1 as the following: 2 0 3 9 8 r V J L θ ε ε μ =
As the voltage increases, the majority of traps are occupied by the injected carriers, and the current-voltage characteristics can be again rewritten with θ >>1:
2 0 3 9 8 r V J L ε ε μ =
1.3.3 Thermionic emission & Drift-Diffusion current
Schottky emission is mainly attributed to the Schottky contact of the metal-insulator interface. For the carriers to transport, they must jump across the barrier height of one of the interfaces, travel through the dielectric film, and eventually reach the other side. It is the thermionic emission that enables the carriers
(mostly electrons) to overcome the interface barrier height. Therefore temperature is the key factor that energetic carriers (hot carriers) are easier to jump across the barrier. Crowell and Sze discussed the metal-semiconductor contact by using a thermionic emission-diffusion theory with two parameters, recombination velocity νR and effective diffusion velocity νD []
…………..(1.3.3.1)
where J is the current density, Φb the Schottky barrier height, ε0 is the permittivity of free space, εr is dynamic dielectric constant, E is electric field, q is electronic charge, and k is Boltzmann constant. The recombination velocity νR and diffusion velocity νD are given by, respectively
where A* denotes Richardson constant, μ is mobility.
If vD vR, Eq. 1.3.3.1 is dominated by the recombination velocity νR and is identical with the conventional Schottky equation, The formula of Schottky emission is expressed as below:[89] 2exp - ( -q b qE/ 4 r 0 J A T kT φ πε ε ∗ ⎛ ⎞ = ⎜⎜ ⎟⎟ ⎝ ⎠
If vD vR, Eq. 1.3.3.1 is dominated by νD and becomes the modified Schottky equation as:[89]
(
/ 4 0)
exp 1 / B r C R R D q q qN J kT φ πε ε υ υ υ ⎡− − Ε ⎤ ⎢ ⎥ = ⎢ ⎥ + ⎣ ⎦ 2 R C A T qN υ = ∗ D υ = Εμ1.3.4 Frenkel-Poole emission
Frenkel-Poole emission is pretty much similar to Schottky emission mechanism. The main differences are that Frenkel-Poole emission describes the process for carriers to overcome the barriers resulted from the defect states in the dielectric material, and the barrier lowering is twice as large as that in Schottky emission mechanism. This is because trapped charge is fixed not like image charge in the metal. Temperature is also crucial for this carrier transportation process, while electric field plays a more important role in this mechanism than in Schottky emission, which suggests that field effects have greater impact on defect-related behavior. The current-voltage relationship can be written as the following formula:
exp - ( -q t qE/ r 0 J qnE kT φ πε ε γ ⎛ ⎞ = ⎜⎜ ⎟⎟ ⎝ ⎠
where n is carrier concentration, E is electric field, Φt the trap level, and other parameters are the same as those in Schottky emission. When γ =1 is called Normal Poole-Frenkel effect. This case is suit for compensation
semiconductor. For N-type semiconductor, the electron concertration is
( ) exp 2 C D D A C A E E N N n N N kT ⎛ − ⎞ ⎡ − ⎤ ≈⎜ ⎟ ⎢− ⎥ ⎣ ⎦ ⎝ ⎠ .
When γ =2 is called Modified Poole-Frenkel effect. This case is suit for complete ionization semiconductor. The γ =2 is due to the carrier concentration of the complete ionization semiconductor. For N-type semiconductor, the electron
concertration is exp ( ) 2 2 C D A D E E N N n kT − ⎡ ⎤ ≈ ⎢− ⎥ ⎣ ⎦ .
(
/ 4 0)
exp B r C q q J qN kT ϕ πε ε μ ⎡⎢− − Ε ⎤⎥ = Ε ⎢ ⎥ ⎣ ⎦It is worth nothing that there are difference in exponent term between the Thermionic emission and Frenkel-Poole emission. Although the restoring in both effect is due Coulomb interaction between the escaping electron and positive charge is fixed for Frenkel-Poole emission but mobile with Thermionic emission, as Fig 1.10 illustrates.[30]
1.4 Models of resistive switching mechanisms
The switching mechanism of RRAM can be classified according to whether the dominant contribution comes from a thermal effect, an electronic effect, or an ionic effect. The electronic effects have three model to explain switching mechanism, respectively, Schottky barrier modulation, Carrier trapping and detrapping relation with SCLC and Metal-insulator transition. The ionic effects have two class model, one is Solid-state electrolyte (SSE), another is Oxygen vacancies migration. Each model may be applied for some combinations of electrodes and oxide materials. Many models, however, are derived by indirect observation or electrical measurements. Consequently, the switching mechanisms are still under debate due to the lack of direct evidence.
1.4.1 Thermal effect
A typical resistive switching based on a thermal effect shows a unipolar (independent polarity) characteristic. It is initiated by a voltage-induced partial dielectric breakdown in which the material in a discharge filament is modified by Joule heating. Because of the compliance current, only a weak conductive filament with a controlled resistance is formed.
This filament may be composed of the electrode metal diffused into the insulator, decomposed insulator material such as sub-oxides. During the reset transition, this conductive filament is again disrupted thermally because of high power density, similar to a traditional household fuse but on the nanoscale. Hence, we refer to this mechanism as the fuse–antifuse type. One candidate out of many is NiO. Recently, the filamentary nature of the conductive path in the ON state has been confirmed for NiO and TiO2. Cells based on Pt/NiO/Pt thin films have been successfully integrated into CMOS (complementary metal oxide semiconductor) technology to demonstrate non-volatile memory operation. A critical parameter for this unipolar switching effect seems to be the value of the compliance current. In fact, it has recently been demonstrated that a TiO2 thin film shows bipolar switching, and that this can be changed to unipolar switching characteristics by setting the compliance current to a larger value.[90]
1.4.2 Electronic effect
The electronic effect can be class to trapping type and electron correlation type. The former is resistive switching by trapping and setrapping at interface to modulate schottky barrier profile, or trapping electrons to change current magnitude. The latter is switching by changing electrons Coulomb repulsion.
1.4.2.1 Schottky barrier modulation
A Schottky contact is formed at the interface of low work function metal
and p-type semiconductor, and high work function metal and n-type semiconductor, respectively. The barrier height determines the conductivity in these systems and can be modulated by interface states, which are charged (discharged) after the injection (ejection) of electrons. It is this interface state pinning effect that modifies the Fermi
level position and the barrier height, and consequently controls the resistive switching properties.
The switching behavior can be understood by a model for the interface considering the Schottky contact with charge-trapping interface states. This mechanism is below interface effect. The mechanism of the resistance switching was explained by the change of the Schottky barrier width at interface caused by a polarity alternation of a space charge. In the forming process, the possible cause is the electrochemical migration of oxygen atoms.
Sawa et al [83] propose interface-state-induced band bending picture, and Ti electrode is a getter for oxygen. The high density of the interface states induced by the oxygen vacancies may cause a large degree of the band bending at interface. However, the electrode of the almost same work function, have not resistive switching property.
1.4.2.2 Charge trapping and detraping model
The charge trapping and detraping model is wide-spreading especially in the material system of manganites [54-58] and perovskite oxides [70-73]. It is also applied to some binary oxides such as ZrO2 [21,23,24] and CuxO [1-5]. This model can be further classified into two types in accordance with the distribution of traps, the interface-controlled and the bulk-controlled. The schematics for both mechanisms are illustrated in Fig. 1.12 and 1.13 respectively [63].
For interface-controlled trapping and detraping model, the Schottky barrier and the interface state at the interface of the electrodes and the oxide are discussed in 1.4.2.1. On the other hand, the bulk-controlled trapping and detraping model is ruled
common case is traping and detraping carrier with SCLC as showing Fig 1.14. When the defect states are empty, the carriers are captured by these trapping centers and make little contribution to current conduction. After all the states are occupied, the carriers would be free to drift through the oxide. Besides, the occupied defect states create an internal field that increases the bend banding (voltage drop) across the film, and further reduces the barrier height near the interface. Hence the resistance change is dominated in the bulk defect states. Generally the resistance ratio in samples of the bulk-controlled model is usually larger than that of interface-models because of greater conductivity difference between conducting (on) and insulating (off) states.
One of the major differences between trap and ionic effect is observed in current-voltage characteristics. There are two manners to distinguish from these mechanisms. First, the change of current magnitude is relatively smooth at Von and Voff in the trap-model predominant samples compared to those of ionic effect. This would be attributed to the different nature of gradual trapping/detraping and abrupt conducting path formation/rupture processes respectively. Second, the drap model with SCLC have self-compliance phenomenon, but ionic effect to form filament does not. It should be noted that even the similar materials have different possible mechanisms because of the slight difference in the preparation process or chemical and physical properties, such as Cr:SrZrO3 reported in [66] (filament) and [70] (trap), and ZrO2 in [26] (filament) and [21] (trap), etc.
1.4.2.3 Mott transition
A Mott transition is a metal-insulator transition in transition metal oxide. It is an example where the theory of the Landau liquid does not apply anymore. Due to electric field screening the potential energy becomes much sharper (exponentially)
peaked around the equilibrium position of the atom and electrons become localized and can no longer conduct a current. Mott transition arise strongly correlated electron system (SCES)—a group of materials in which the effect of Coulomb repulsion is large. A prototype of theoretical understanding for the transition between the Mott insulator and metals was achieved by using simplified lattice fermion models, in particular, in the celebrated Hubbard model (Anderson,1959; Hubbard, 1963, 1964a, 1964b; Kanamori, 1963). The Hubbard model considers only electrons in a single band. Its Hamiltonian in a second-quantized form is given by
,
(
i j i j)
i i i j iH
t
a a
a a
U
n n
+ + ∧ ∧ ∧ ∧ ∧ ∧ ∧ ↑ ↑ ↓ ↓ ↑ ↓=
∑
+
+
∑
where the creation (annihilation) of the single-band electron at site I with spin σ is denoted by † ( )
i i
aσ aσ with niσ being the number operator niσ ≡ai†σ(aiσ).
Metal-insulator phase diagram is based on the Hubbard model. The shaded area is in principle metallic but under the strong influence of the metal-insulator transition, in which carriers are easily localized by extrinsic forces such as randomness and electron-lattice coupling. Two routes for the MIT are shown: the filling-control MIT and the bandwidth-control MIT. As shown in Fig. 1.15.
This type of transition-metal oxide in which εd-εp is assumed to be larger than Udd is called a Mott-Hubbard-type compound. Because of Udd<|εd-εp |, the charge gap in the Mott insulating phase is mainly determined by Udd. In contrast, if |εd-εp | is smaller than Udd, the charge excitation in the Mott insulating phase is mainly
mainly occupies the oxygen p s band. The difference between these two cases is schematically illustrated in Fig.1.16.
Figure 3.. H. Inoue et.al propose a mechanism for unipolar resistance switching in metal-insulator-metal sandwich structures. The commutation from the high to low resistance state and back can be achieved with successive voltage sweeps of the same polarity. Electronic correlation effects at the metal-insulator interface are found to play a key role to produce a resistive commutation effect in qualitative agreement with recent experimental reports on binary transition metal oxide based sandwich structures. [93-95]
1.4.3 Ionic effect
1.4.3.1 Solid-state electrolyte (SSE)
Solid-state electrolyte (SSE) is an emerging technology in RRAM technology. As implied by the name, the solid-state electrolyte provides a medium for metal ions to flow without being involved with any oxide breakdowns or the change in the medium structure. The basic structure for SSE RRAM is also metal-insulator-metal, MIM, with the top electrode of a more reactive metal, the insulator of an SSE, and the bottom electrode of a stable inert metal. As shown in Fig. 1.17, with a positive bias applied on the top metal, the oxidized reactive ions would penetrate into the SSE film, forming a conducting bridge and reach low resistance on-state. In the switching off process, the same or reverse bias polarity can be applied by the mechanism of Joule heating or electrochemical reaction, depending on the magnitude of switching voltages and currents and the strength of conducting bridge [49]. Due to the nature of ion diffusion, many of the concepts are common as mentioned in the filamentary model.
The main concern for this type of RRAM is the choice of ion/SSE medium combination, in which the combinations of Cu/SiO2 [49], Cu/WO3 [74], Cu/Ta2O5 [75], Cu/GdOx [76], Ag/chalcogenide [77], and Ag/TiO2 [78] have been proposed. The ion mobility in the medium is an essential property for switching speed [49]; the fast ion transport media, however, have potential problems in terms of retention because the conducting ion paths having been formed may be ruptured easily by the fluctuation of thermal or electrical effects [76]. Therefore the SSE of dual layer has been introduced, as shown in Fig. 1.18. The first layer provides a fast transport medium for the ions and is an ion activated layer of an ion source; the second layer is very thin and the ions have lower mobility in it, which improve the switching speed and the retention concern.
1.4.3.2 Oxygen vacancies migration
The oxygen deficient region (filaments) of a film is much more conducting than the stoichiometric region irrespective of whatever the defect type is. Generally the mobility of oxygen ions in binary oxides is much higher than metal ions, and the formation of the filaments could be induced by the rejection of O2- ions [21,31]. During the filament formation process, it is the electrical field effect that takes an essential part, because the insulating parts among the filaments are stressed by the highest electrical field accompanied with point discharge effect. As for the filament rupture, it is the current-induced effect that rules the process in which Joule heating effect resulting from the current flow through the tiny filaments generates heat and raises temperature up to hundreds of degree Celsius at the local spot [68,69], providing enough energy for oxygen ions to reflow and making the conductive regions of non-stoichiometry return to insulator to rupture the filaments. Due to the
(Von, Voff, Ron and Roff) are inevitable. Well-designed structures may improve these variations, as proposed by I. G. Baek et al. [28] and D. C. Kim et al. [30], that the size shrinking of cell area and the improvement at the interface between the electrodes and oxide film help confine the numbers and location of the filaments respectively, as shown in Fig. 1.8 and 1.9, and hence reduce the variation of switching on/off parameters.
Recently, the concept of tree-shaped filament structure has been proposed [20,23]. The breakdown paths (filaments) are formed in a dielectric when the carriers are injected from a local point at the electrode interface. The initial cross-sectional area of the path for the carrier conduction is quite narrow, but with the propagation of the filaments the cross section largely increases by an increasing number of secondary formed paths. Therefore the region near the cathode might contain filaments with a larger conductivity compared to the region near the anode [20]. To be more specific, it is very likely that the filament is thick at the cathode and thin at the anode if merely considering a single filament, which matters in terms of conductivity and has impact on Joule heating effect. It is at the thinnest part of a filament near the anode that most thermal energy accumulates and the filament formation and rupture occur. Experiments reported by K. M. Kim et al. show that only 3 ~ 10 nm of the filaments near the anode dominates the switching [23], and the schematics are shown in Fig. 1.20. Other experiment using infrared thermal microscopy gives further evidence for this model [78]. The infrared thermal micrograph of a Cr:SrTiO3 single crytal is shown in Fig. 1.21, which depicts the confinement of the current path during 5-mA current load and a hot spot near the anode electrode, confirming that in the anode region the heat energy accumulates and the filament is probably thinner compared to that in the cathode region.
Table 1.Comparison of various memories
Figure 1.1. Typical polarization vs. voltage hysteresis of a ferroelectric material. [82]
Figure 1.3. (a) Nonpolar (unipolar) switching (b) Bipolar switching. [98]
Figure 1.4. Switching dynamics monitored with programming and reading pulses. Pulse waveforms and transition for (a) switch on and (b) switch off. [33]
Figure 1.5. Conceptual schematic of 1D1R structure. [40]
Figure 1.6. Cross-sectional schematic and basic circuit diagram of 1T1R structure. [24]
Figure 1.7. (a) Generalized cross-point structure with memory and switching elements. (b) Reading interference without switch elements. (c) Rectified reading
operation with switch elements. [40]
Figure 1.8. (a) Threshold switching of a Pt/VO2/Pt switch element and (b) Bistable resistance switching demonstrated for a Pt/NiO/Pt memory element. [91]
Figure 1.9. Programming characteristics of combined oxide switch and oxide memory elements. [91]
Figure 1.12. Band diagram with the conditions of interface states for on state (LRS) and off state (HRS), respectively. [63]
Figure 1.13. Band diagram with the condition of bulk traps for on state (LRS) and off state (HRS), respectively. [63]
Figure 1.14. I-V characteristics of a Ag/La0.7Ca0.3MnO3 /Pt heterostructure (a) The set process (b) The reset process. [84]
Figure 1.15. Metal-insulator phase diagram based on the Hubbard model in the plane of U/t and filling n. Two routes for the MIT (metal-insulator transition) are shown: the
Figure 1.16. Schematic illustration of energy levels for (a) a Mott-Hubbard insulator and (b) a charge-transfer insulator generated by the d-site interaction effect. [92]
Figure 1.17.The interface Mott transition, Schematic steps of the unipolar resistive switching process. [95]
Figure 1.18. The set and reset process of the Solid-state electrolyte (SSE). The green ball represent Ag+ ion, the grey ball represent Ag atom. The red arrow represent the direct of the ion.
Figure 1.20. Schematic diagram for switching from on state to off state. (a) On state formed by positive bias on TE. [(b)-(e)] Nucleation and propagation of a filament
when negative bias is applied on TE. (f) Off state is attained. [23]
Figure 1.21. Infrared thermal micrograph of the memory cell with a current of 5 mA at a voltage of ~30 V applied. In the color scale, blue and red represent room and
Chapter 2
Experiment details
2.1 Sample fabrication
The structure of the samples studied in this study is depicted in Fig. 2.1. After standard RCA clean procedure, a 100-nm-thick SiO2 was grown on 4-inch Si. The bottom electrode, a 20-nm Ti followed by an 80-nm Pt, was deposited by e-beam evaporation on SiO2 at room temperature. Then, the resistance switching layer was prepared with 2 steps. First a 300nm thick Cu layer was deposited on Pt/TiSiO2/Si substrates by DC sputtering. Subsequently, the CuO film was grown by thermal oxidation of Cu layer. Finally, top electrodes were deposited also by e-beam evaporation and patterned by shadow masks. The process flow is depicted in Fig. 2.2, and all the details in each process are stated below.
2.1.1 Standard RCA clean
The bare Si wafers must be cleaned before further process. The RCA clean is the industry standard for removing contaminants from wafers, and the main steps are narrated as the following. The wafers were submerged in Caro’s acid (also called SPM), a solution of 3:1 H2SO4:H2O2, for 10 min at around 80oC to remove organic contaminants from the surface of wafer, then in 1:100 HF:H2O (diluted HF, DHF) to etch chemical oxide produced in the previous step. The following steps were standard clean 1 (SC1) and standard clean 2 (SC2), in which the wafers were soaked in a solution with 1:4:20 NH4OH:H2O2:H2O and 1:1:6 HCl:H2O2:H2O, respectively, both
for 10 min at around 80oC to eliminate particles and metallic contamination. Finally, the wafers were dipped in DHF again to remove the chemical oxide grown in the previous standard clean steps. It should be noted that each step was separated by DI water rinse for 5 min.
The mechanism for Caro’s acid to remove organic contaminants comes from its strong capability of dehydrating and oxidizing organic compound containing C-H bonding. As for SC1, the surface of Si wafer is oxidized by H2O2 into a thin SiO2 layer, the footing layer for particles and in the meantime etched by NH4OH. The particles attached on the surface would be removed as SiO2 layer on the surface finally vanishes. The following SC2 step further takes IA and IIA metal ions away, in which chlorides resulting from the combination of IA, IIA and Cl- would dissolve in water and thus the metal ions are eliminated. On the other hand, IIIA metal ions such as Al would be reactive with NH4OH in SC1 and generates AlOH3 which later forms chlorides in SC2. Hence, to remove particles and metal ions effectively, the sequential order of SC1 and SC2 cannot be reversed.
2.1.2 Growth of SiO
2After RCA clean, 4-in-boron-doped Si wafers were sent into a furnace immediately for thermal oxidation, in which SiO2 was grown at 950oC for 30 min in O2 and H2 atmosphere. The SiO2 layer playing a role of insulating layer avoiding current leakage from the Si substrate was expected to be 200 nm in thickness.
According to different mechanisms, there are two types of thermal oxidation, dry and wet oxidation. The former is oxidized in O2 ambient, in which oxygen ions are combined with Si atoms to form SiO2. The diffusion barrier for oxygen ions moving
