Hole injection-reduced hot carrier degradation in n-channel
metal-oxide-semiconductor field-effect-transistors
with high-k gate dielectric
Jyun-Yu Tsai,1Ting-Chang Chang,1,2Wen-Hung Lo,1Ching-En Chen,3Szu-Han Ho,3 Hua-Mao Chen,4Ya-Hsiang Tai,4Osbert Cheng,5and Cheng-Tung Huang5
1
Department of Physics, National Sun Yat-Sen University, Kaohsiung, Taiwan
2
Advanced Optoelectronics Technology Center, National Cheng Kung University, Taiwan
3
Department of Electronics Engineering, National Chiao Tung University, Hsinchu, Taiwan
4
Department of Photonics & Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu, Taiwan
5
Device Department, United Microelectronics Corporation, Tainan Science Park, Taiwan
(Received 16 November 2012; accepted 29 January 2013; published online 22 February 2013) This work finds a significant difference in degradation under hot carrier stress (HCS) due to additional hole injection in n-channel metal-oxide-semiconductor field-effect-transistors with high-k gate dielectric. A comparison performed on degradation of input/output (I/O) and standard performance (SP) devices showed that performance degradation of the I/O device is worse than the SP device under HCS. For the SP device, both channel-electrons and hot holes can inject into gate dielectric, in which hole acts to diminish the stress field. However, I/O device shows only electron injection. The proposed model is confirmed by gate induced drain leakage current and simulation tool.VC 2013 American Institute of Physics. [http://dx.doi.org/10.1063/1.4791676]
The continuous scaling-down of metal oxide semiconduc-tor field effect transissemiconduc-tors (MOSFETs) is driving conventional SiO2-based dielectric to only a few atomic layers thick, leading
to excessive gate leakage current and reliability issues.1 To solve the leakage current problem, a high-k material is utilized as gate insulator to reduce both tunneling gate leakage and power consumption in complementary MOS circuits.2–4 Fur-thermore, the high-k/metal gate can be integrated with silicon on insulator techniques.5–8 Additionally, charge trapping in high-k gate stacks remains a key reliability issue, since it causes the threshold voltage (Vth) shift and drive current
degra-dation9–12due to the filling of pre-existing traps in the high-k dielectric layer.13–15In addition, charge trapping effect is found to have great impact on hot carrier stress (HCS)-induced device instability since carriers tend to be injected into the high-k layer.16,17HC injection is a critical issue for submicron transis-tors since devices encounter higher lateral electric field and this issue is even more severe in high-k/metal gate MOSFETs. However, most studies mainly focus on investigating the influ-ences of channel lengths, stress voltages, high k materials, and temperature effect to analyze n-MOSFET characteristics under HCS.18–20There are only few studies to investigate the effect of interfacial layer (IL) thickness on HCS-induced degradation in n-MOSFETs, even less for high-k/metal gate devices. Since the mechanism of that thicker IL has a more significant degra-dation than thinner IL device under HCS not been discussed extensively, and, therefore, we are interested to investigate this unusual behavior in high k metal gate n-MOSFETs. In this work, we utilize the three characteristics, namely, transconduc-tance (Gm), drain current (ID), and subthreshold swing (SS) to
illustrate the degree of degradation. The I/O device shows more significant degradation than the standard performance (SP) device under identical impact ionization conditions. This unusual phenomenon can be explained by the gate induced drain leakage (GIDL) current, which demonstrates that channel
hot electron or hot hole trapping near the drain side acts to enlarge or reduce the channel carrier kinetic energy under HCS, respectively. In addition, the simulation tool Integrated Systems Engineering-Technology Computer Aided Design (ISE-TCAD) is used to support the model that we propose in this work.
TiN/HfO2n-MOSFETs with an IL thickness of 10 and
30 A˚ were studied in this paper as an element of high-performance 28-nm CMOS technology. Both devices were fabricated using a conventional self-aligned transistor which progressed to the gate-first process. The process parameter (S/D implants, halo/LDD implants, activate temperature, thin films thickness) of I/O and SP devices was only an IL thickness that has significant difference, others almost use the same process parameter. For gate-first process devices, high quality thermal oxides with different thicknesses of 10 and 30 A˚ were grown on a (100) Si substrate as an IL oxide layer. After standard cleaning procedures, 30 A˚ of HfO2film
was sequentially deposited by atomic layer deposition. Next, 10 nm of TiN film was deposited by radio frequency physical vapor deposition, followed by poly-Si deposition as a low re-sistance gate electrode. The activation of source/drain and poly-Si gate was performed at 1025C. The channel and source/drain doping concentrations of I/O and SP devices were about 1 1018cm3 and 1 1021cm3, respectively. In this study, the dimensions of the devices were width (W)/ length (L)¼ 10/1 lm. The devices with IL thickness of 10 and 30 A˚ were subjected to the maximum substrate current (IB,max) during HCS conditions while at 3 V and 3.1 V drain
voltage (VD), respectively. The stress was briefly interrupted
to measure the drain current-gate voltage (ID-VG) to extract
Vth, Gm, ID, and SS. In the gate-to-drain capacitance (CGD)
measurement, a high capacitance measurement was applied to the gate electrode, and drain electrodes were connected to a low capacitance measurement with frequency¼ 2 MHz,
and GIDL current was measured at VG¼ 0.5 V and
VD¼ 2.4 V. All experimental curves were measured using an
Agilent B1500 semiconductor parameter analyzer.
Figures1(a)and1(b)show the ID-VGand corresponding
Gm-VGat the linear region measurement after HCS for high
k/metal gate n-MOSFETs for the I/O and SP devices. Stress condition was selected at the identical IB,maxfor both
devi-ces. It can be seen that ID, Gm, and SS degrade under HCS
in both devices. This is attributed to channel electrons that are accelerated by lateral electric field, producing impact ionization which generates interface states (Nit) near the
drain side.21 Accordingly, the insets of Figs.1(a) and1(b)
show the CGDmeasurement before and after HCS. There is a
shift which indicates that damages are located at the drain side after HCS. Also, the direction of shift is rightward to demonstrate a crucial behavior in all the devices that of channel electron injection in the gate dielectric near the drain side.22 However, both performance degradation and CGDshift in the I/O device are more significant than those in
the SP device.
Additionally, the degradation of ID, Gm, and SS versus
stress time was extracted for SP and I/O devices, as shown in Fig.2. Obviously, the characteristic of the I/O device dis-plays more significant degradation under HCS. This phe-nomenon is unlike conventional I/O devices. Generally, I/O
devices have thicker gate oxides that correspond to better reliability during operation. Due to this, these devices can retain good signal propagation. However, the experiment result shows this undesired degradation behavior for I/O devices under HCS. To clarify this degradation behavior, we use GIDL current to confirm carrier injection.
Figures 3(a) and 3(b) show ID-VG and corresponding
IB-VGat VD¼ 2.4 V for I/O and SP devices. It can be seen that

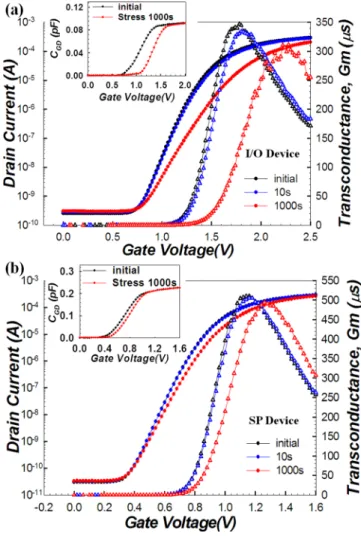

FIG. 1. ID-VGand corresponding Gm-VGat linear region measurement after
HCS for high k/metal gate n-MOSFETs for (a) I/O and (b) SP devices. Insets show the CGDmeasurement after HCS.
FIG. 3. ID-VGand corresponding IB-VGmeasurement showing GIDL
cur-rent varying with stress time at VD¼ 2.4 V for (a) I/O and (b) SP devices.
Insets show (a) electron trapping decrease (b) hole trapping increase in band-to-band tunneling distance.
FIG. 2. The degradation of ID, Gm, and SS versus stress time extracted for
SP and I/O devices under HCS.
IB and/or ID under off-state (VG< 0) (i.e., GIDL current)
shows contrary trends in I/O and SP devices after HCS. For the I/O device, GIDL current increases as stress time increases, indicating that electrons inject into the gate dielectric near the drain side and decreases the band-to-band tunneling distance, as shown in the inset of Fig.3(a).23This is consistent with the previous studies which indicate lucky electron trapping in the oxide near the drain side for n-MOSFETs.24However, GIDL current shows hole trapping within the high-k layer for SP de-vice under HCS. Combining this result and CGDbehavior
indi-cates that the lower degradation of the SP device under HCS can be attributed to hole injection.
In further detail, the mechanism of degradation for both devices results from impact-induced mobility degradation, further decreasing IDand Gm. Additionally, channel electron
injection produces a rise in barrier height, leading to Vth
shift. According to this, the electron injection-induced bar-rier height rise increases the potential difference between gate and drain (VGD), as shown in Fig. 4(a). The negative
charge induced by electron trapping makes the channel energy bands bend upward near the drain side, which enhan-ces the electric field and electron kinetic energy. Under sig-nificant depletion due to the HC condition, channel electrons can still influence the rise in barrier height, gaining much ki-netic energy and resulting in aggravated HC degradation.
Nevertheless, performance degradation of the SP device under HCS is lower than in the I/O device. The inset of Fig.
3(b)shows that hole trapping increases the band-to-band tun-neling distance. This is because stress VGDinduces an
elec-tric field towards the gate, which can make positive carriers (holes) tend to move toward the gate, resulting in hole trap-ping. Unlike this SP device, it is difficult for hole injection to occur in I/O devices due to heavier effective mass and thicker gate oxide, even though the electric field in the gate-drain overlap is in the direction of the gate. Therefore, we would like to propose that hole trapping can counteract the electron injection-enhanced electric field. As Fig. 4(b)
shows, the trapped hole could form a buffer region at the depletion region (near drain side) to reduce the electron field, in turn reducing electron kinetic energy and capability for impact ionization.
ISE-TCAD simulation provides additional support for our claim. Fig.5shows the lateral electric field with higher
VD for channel electron injection and for both electron and
hole injections. We define SiO2/Si interface as 1 lm along
vertical direction (Y-axis) as a reference point. The extrac-tion of electric field was selected at a posiextrac-tion 10 nm below channel surface (i.e., Y¼ 0.99 lm), deeper than the inversion layer. Two conditions are considered: (1) electron injection within regions A and B and (2) electron and hole injection at regions A and B, respectively, as shown in the inset of Fig.
5. It can be found that even far from the channel surface, the influence of carrier injection can still vary the electric field within the depletion region. For electron injection, stress electric field can be indeed enhanced. However, when elec-tron and hole both inject into gate dielectric, the stress field becomes weaker than during only electron injection. Conse-quently, the result of this simulation demonstrates the behav-ior we proposed, indicating hole injection near the drain side can reduce stress electric field during HCS.
It has been generally thought that MOSFETs with thicker ILs can obtain good reliability but at a sacrifice to performance. However, the opposite seems supported in our experiment. ID, Gm, and SS for the I/O device are worse than
for the SP device under identical HCS conditions. This is because thinner IL more easily traps holes and these trapped holes form a buffer region at the depletion region (near the drain side) to reduce the electron field, in turn reducing the capability for impact ionization. Therefore, the hole injection reduced hot carrier degradation model was proposed to illus-trate the unusual phenomenon.
