Layout design to minimize voltage-dependent
variation on input capacitance of an analog ESD
protection circuit
$
Ming-Dou Ker*, Tung-Yang Chen
Integrated Circuits a Systems Laboratory, Institute of Electronics, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan 300, ROC
Received 8 December 2000; received in revised form 5 March 2001; accepted 25 March 2001
Abstract
A design model to find the optimized device dimensions and layout spacings on the input ESD clamp devices is developed in this work to keep the total input capacitance almost constant, even if the analog signal has a varying input voltage. An analog ESD protection circuit has been designed to solve ESD protection challenge on the analog pins for high-frequency applications. The device dimension (W =L) of ESD protection device connected to the I/O pad can be reduced to only 50 mm/0.5 mm in a 0.35-mm silicided CMOS process, but it can sustain HBM (MM) ESD level up to 6 kV (400 V). With such a smaller device dimension, the input capacitance of this analog ESD protection circuit can be significantly reduced to only B0.4 pF for high-frequency applications. This input capacitance can be further reduced if the ESD protection devices are designed with smaller device dimensions. Moreover, by using the optimized layout design to draw the layout of ESD protection NMOS and PMOS devices, the voltage-dependent variation on input capacitance of this analog ESD protection circuit can be kept below 1% under an input voltage swing of 1 V. With such almost constant input capacitance, the nonlinear distortion causing by on-chip ESD protection circuit can be minimized for high-precision applications. r 2002 Elsevier Science B.V. All rights reserved.
Keywords:ESD; Analog circuit; Input capacitance
$
This work was supported by the National Science Council (NSC), Taiwan, ROC, under the Grant NSC-89-2215-E-009-103.
*Corresponding author.
E-mail address: [email protected] (M.-D. Ker).
0304-3886/02/$ - see front matter r 2002 Elsevier Science B.V. All rights reserved. PII: S 0 3 0 4 - 3 8 8 6 ( 0 1 ) 0 0 1 5 4 - 1
1. Introduction
Electrostatic discharge (ESD) has become the main reliability concern on semiconductor products, especially in the scaled-down CMOS technologies [1,2]. Due to low breakdown voltage of the thinner gate oxide in deep-submicron CMOS technologies, efficient on-chip ESD protection circuit should be designed and placed on each pad to clamp the overstress voltage across internal circuits. The conventional input ESD protection circuit with two-stage protection scheme for digital input pins often has a series resistor connected between the primary ESD protection stage and the secondary ESD protection stage. But the large series resistance and the large junction capacitance in ESD clamp devices cause a long RC delay to the input signals, it is not suitable for analog pins, especially for the high-frequency applications [3–5]. For current-mode or RF input signals, the series resistance between the input pad and internal circuits is forbidden. Therefore, the traditional two-stage ESD protection design is no longer suitable for such analog input pins.
For some high-precision analog circuits, the input capacitance of an analog input pin including ESD protection circuit and a bond pad is required as constant as possible. A major distortion in analog circuits, especially in the single-ended input implementations, comes from the voltage-dependent nonlinear input capacitance of ESD clamp devices connected to the analog input pin. The typical degradation on analog circuit performance due to the nonlinear input capacitance of ESD clamp devices had been reported in [6], where the input capacitance was varying from 4 to 2 pF due to the input voltage increasing from 0 to 2 V. Such nonlinear input capacitance caused an increase on the harmonic distortion in an analog-to-digital converter (ADC), and degraded precision of the ADC from 14-bit to become only 10-bit. Thus for high-precision analog applications, the input capacitance generated from ESD clamp devices on the input pad needs to be kept as constant as possible.
Recently, a turn-on efficient ESD protection circuit has been proposed to protect the high-frequency analog I/O pin, which is re-drawn in Fig. 1 [7]. This analog ESD protection circuit can sustain HBM (MM) ESD stress of up to 6 kV (400 V) in a 0.35-mm silicided CMOS process, but has a very small input capacitance of onlyB0.4 pF for high-frequency applications. The circuit operations and experimental results of this analog ESD protection circuit will be briefly summarized in Section 2. In this paper, a design model to further optimize the device dimensions and layout spacings of this analog ESD protection circuit is developed to keep the input capacitance almost constant for more high-precision applications [8]. From the calculation results, the voltage-dependent variation on input capacitance of this analog ESD protection circuit can be designed below 1% while the analog input signal has a voltage swing of 1 V.
2. Analog ESD protection circuit

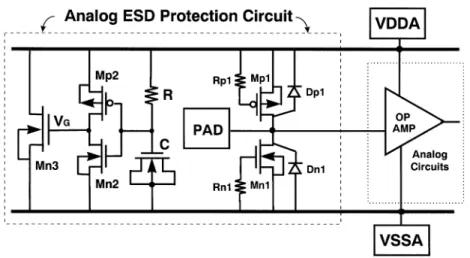

The analog ESD protection circuit is shown in Fig. 1, where Dp1 (Dn1) is the parasitic junction diode in drain region of Mp1 (Mn1) device. In order to reduce input capacitance on the analog pin, Mn1 and Mp1 are both designed with smaller device dimensions (W =L) of only 50 mm/0.5 mm [7]. The human-body-model (HBM) [9,10] ESD level of a stand-alone NMOS with a device dimension of 50 mm/0.5 mm is less than 500 V in the 0.35-mm silicided CMOS process, while the NMOS is zapped in the PS-mode (positive to VSS) ESD stress. But, such a small NMOS can sustain an HBM ESD level of greater than 6000 V in the same 0.35-mm silicided CMOS process, while the NMOS is zapped in the NS-mode (negative to VSS) ESD stress. In the PS-mode (NS-PS-mode) ESD stress, the NMOS is operated in its drain junction reverse-breakdown (forward-bias) condition to discharge ESD current. Therefore, an NMOS has quite different ESD levels between the PS-mode and NS-mode ESD stresses. Of course, a stand-alone PMOS with a small device dimension also has a high ESD level in the PD-mode (positive to VDD) ESD stress, but has a much low ESD level in the ND-mode (negative to VDD) ESD stress.
To avoid the small-dimension Mn1 and Mp1 into the drain-breakdown condition under PS-mode or ND-mode ESD stresses to result in a much low ESD level, a turn-on efficient power-rail ESD clamp circuit is co-cturn-onstructed into this analog ESD protection circuit to increase the overall ESD level. In Fig. 1, the RC-based ESD detection circuit [11,12] is used to trigger on Mn3 device, when the pad is zapped under PS-mode or ND-mode ESD stresses. The ESD current paths along this analog ESD protection circuit are illustrated by the dashed lines in Figs. 2(a) and (b), respectively, when the analog pin is zapped in the PS-mode and pin-to-pin ESD stresses. In Fig. 2(b), the pin-to-pin ESD stress across the two input pins of a differential input stage can be transferred across the VDDA and VSSA power lines. Mn3 connected between VDDA and VSSA power lines are turned on by the RC-based ESD detection circuit to conduct ESD current from VDDA to VSSA. Finally, ESD current flows out the chip from VSSA power line to the grounded pad through the forward-biased diode Dn4 in Mn4. With suitable design on the RC-based ESD
detection circuit to quickly turn on Mn3, the pin-to-pin ESD stress can be effectively discharged away from the gate oxide of the differential input stage. Because Mn1 and Mp1 in this analog ESD protection circuit are not operated in the drain-breakdown condition, ESD current is discharged through the forward-biased drain diode Dp1 in Mp1 (Dn1 in Mn1) and the turned-on Mn3. So, Mn3 is especially designed with a larger device dimension (typically, W =L ¼1800 mm/0.5 mm) to sustain a high ESD level. Although the large-dimension Mn3 has a large junction capacitance, this

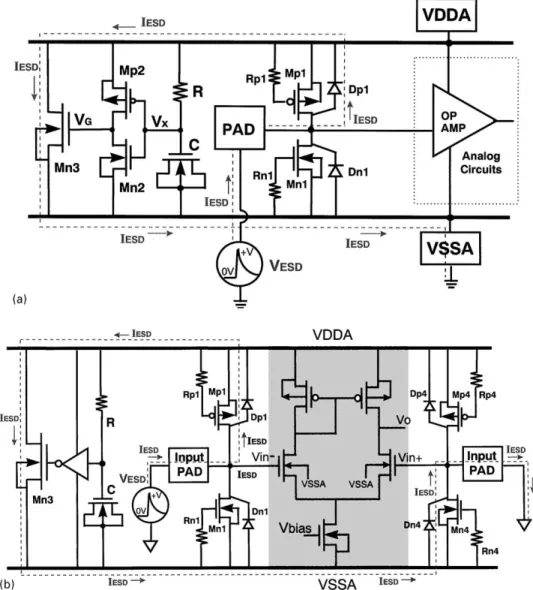

Fig. 2. The ESD current path along the analog ESD protection circuit when the analog pin is zapped in (a) the PS-mode, and (b) the pin-to-pin, ESD stresses.
capacitance does not contribute to the analog pad. Therefore, the analog pin can sustain a much higher ESD level but only with a very small input capacitance.
The spacing from drain contact to poly gate in both Mn1 and Mp1 is drawn as 3.4 mm, whereas the spacing at source side is drawn as 1.55 mm. With device dimension of 50 mm/0.5 mm in both Mn1 and Mp1, the input capacitance of this analog ESD protection circuit is varying from 0.37 to 0.4 pF when the input voltage increases from 0 to 3 V. But, the input capacitance of a grounded gate NMOS (ggNMOS) with a device dimension of 400 mm/0.5 mm varies from 1.83 to 1.12 pF, when the input voltage increases from 0 V to 3 V for an IC with 3 V VDD power supply.
This analog ESD protection circuit had been practically fabricated in a 0.35-mm silicided CMOS process with an operational amplifier as its input circuit. Both the inverting and non-inverting input pins are protected by this analog ESD protection circuit. The silicide-blocking layer is also drawn on the devices Mn1, Mp1, and Mn3 to improve their ESD robustness, but without using the additional ESD-implantation process. The test results of the maximum sustaining ESD voltage under different pin combinations are summarized in Table 1, which includes the analog pin-to-pin ESD stress. The failure criterion is defined as the leakage current at the pad exceeds 1 mA under 5 V voltage bias after any ESD zapping. As shown in Table 1, this analog ESD protection circuit can successfully provide analog pins with HBM (MM) ESD level of 6000 V (400 V) in all ESD-stress conditions.
To verify turn-on efficiency of this analog ESD protection circuit during the pin-to-pin ESD stress, a voltage pulse generated from a pulse generator (hp 8118 A) is applied to the inverting pin of an operational amplifier, whereas the non-inverting pin of this operational amplifier is relatively grounded and both the VDDA and VSSA pins are floating. The experimental setup to monitor turn-on efficiency under the positive pin-to-pin ESD stress is shown in Fig. 3(a). The measured voltage waveform under the positive pin-to-pin ESD stress is shown in Fig. 3(b). The original voltage pulse generated from pulse generator has a pulse height of 8 V and a pulse width of 200 ns. The 8 V voltage pulse has a rise time aroundB10 ns, which is similar to the rise time (5–15 ns) of an HBM ESD pulse. The drain breakdown voltage of NMOS Mn1 in the 0.35-mm silicide CMOS process without additional ESD implantation is 8.5 V. Therefore, the voltage pulse with a pulse height of 8 V does not cause drain breakdown on Mn1 in the analog ESD protection circuit.
Table 1
ESD level of the analog ESD protection circuit in human-body-model (HBM) and machine-model (MM) ESD stresses under different pin combinations
Pin combination in ESD test
PS-mode NS-mode PD-mode ND-mode Pin-to-pin
HBM (V) 6000 @8000 7000 @7000 6000
By applying such a voltage pulse to the analog pin, the turn-on efficiency of this analog ESD protection circuit can be clearly verified. While such a positive voltage pulse is applied to the analog pin as that shown in Fig. 3(a), it is clamped by the analog ESD protection circuit and the degraded voltage waveform is shown in Fig. 3(b). The pulse generator has a limited output current capability. The voltage pulse will be degraded if the analog ESD protection circuit is turned on, because the pulse generator cannot deliver enough current to sustain the voltage on the pad. The

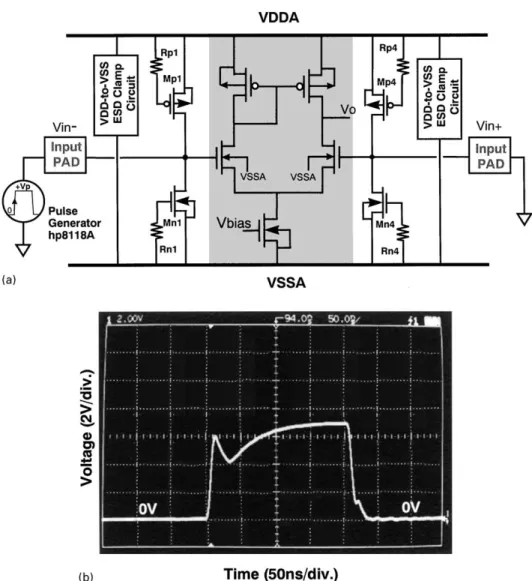

Fig. 3. (a) The experimental setup to verify turn-on efficiency of the analog ESD protection circuit during the positive pin-to-pin ESD stress condition. (b) The degraded voltage waveform when an 8 V voltage pulse is applied to the inverting input pin under the pin-to-pin ESD stress condition.
degraded voltage waveform proves that this analog ESD protection circuit can be actually turned on to clamp overstress voltage during the pin-to-pin ESD stress.
The turn-on efficiency of this analog ESD protection circuit during the ND-mode ESD stress is also verified with the experimental setup shown in Fig. 4(a). While the negative voltage pulse with a pulse height of@8 V and a pulse width of 200 ns is applied to the analog input pin under ND-mode ESD stress condition, it is clamped by the analog ESD protection circuit and the degraded voltage waveform on the pad

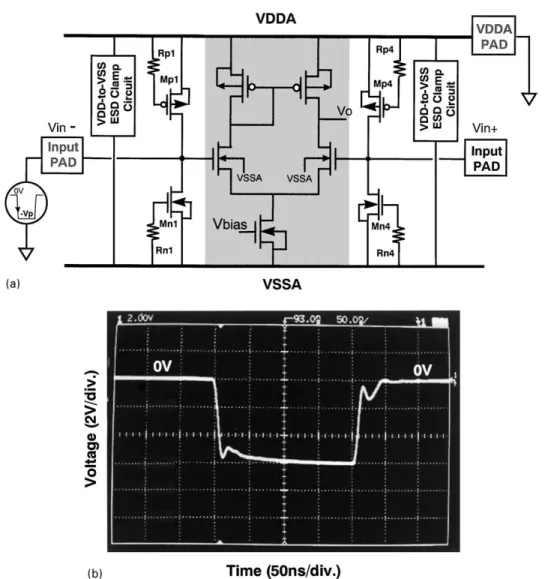

Fig. 4. (a) The experimental setup to verify turn-on efficiency of the analog ESD protection circuit during the ND-mode ESD stress. (b) The degraded voltage waveform when the negative (@8 V) voltage pulse is applied to the inverting input pin under the ND-mode ESD stress condition.
is shown in Fig. 4(b). This has practically verified the turn-on effectiveness of this analog ESD protection circuit.
From experimental verification, the positive or negative voltage pulses are really clamped by this analog ESD protection circuit. Mn1 and Mp1 in this analog ESD protection circuit are operated in diode forward-based condition, rather than the drain breakdown condition, therefore it can sustain a much high ESD level even if Mn1 and Mp1 only have much smaller device dimensions. With such smaller device dimensions in Mn1 and Mp1, the total junction capacitance connected to the input pad can be actually reduced for high-frequency applications.
3. Layout design on the input capacitance
For high-precision and high-frequency analog applications, the input capacitance generated from ESD protection devices needs to be kept not only small enough but also as constant as possible. In this Section, the input capacitance of this analog ESD protection circuit is calculated. A design model to optimize device dimensions and layout spacings on the ESD protection devices is developed to keep the input capacitance almost constant.
3.1. Calculation on the input capacitance
The main nonlinear source on the input capacitance comes from voltage-dependent junction capacitance at the drain regions of Mn1 and Mp1 in the analog ESD protection circuit. Such a drain junction capacitance increases while the magnitude of reverse-biased voltage across the junction decreases. The total input capacitance looking into the pad with this analog ESD protection circuit can be calculated as:
Cin¼ CPADþ Cnþ Cp; ð1Þ
where CPAD is the parasitic capacitance of the bond pad. A bond pad structure formed by different metal layers and different layout area results in different parasitic capacitance to the substrate. Typically, a bond pad with a pad size of 96 96 mm2 and four metal layers in a 0.35-mm CMOS process has a parasitic capacitance of B0.67 pF. This bond pad capacitance can be further reduced, if the pad size is drawn smaller. Cp (Cn) is the drain capacitance of Mp1 (Mn1), which includes junction capacitance and the drain-to-gate overlapped capacitance. The drain junction capacitance of NMOS or PMOS is strongly voltage-dependent. When the signal voltage level on the input pad increases, the drain junction capacitance of Mn1 decreases but the drain junction capacitance of Mp1 increases. On the contrary, the drain junction capacitance of Mn1 increases but the drain junction capacitance of Mp1 decreases, when the signal voltage level on the input pad decreases. With complementary structure on ESD clamp devices, the total input capacitance can be kept almost constant if suitable device dimensions and layout spacings are selected to draw Mn1 and Mp1 devices.
The ESD protection NMOS and PMOS are generally drawn in the multi-finger structure with central drain to save total layout area in the I/O cells. The three-dimension structure of a single-finger NMOS (or PMOS) device is shown in Fig. 5(a), whereas the layout top view with the specified layout spacings is shown in Fig. 5(b). An MOS device with multi-finger structure can be realized by combining such single-finger structures with sharing drain and source regions between every two adjacent fingers. The finger length of a single poly finger is defined as G, which is also the channel width of the finger-type MOS device. The spacing from the center of drain contact to the edge of lightly-doped drain region is marked as X, which will be used in the following equations to calculate junction capacitance for the drain bottom plane. The clearance between the poly gate and the drain contact is marked

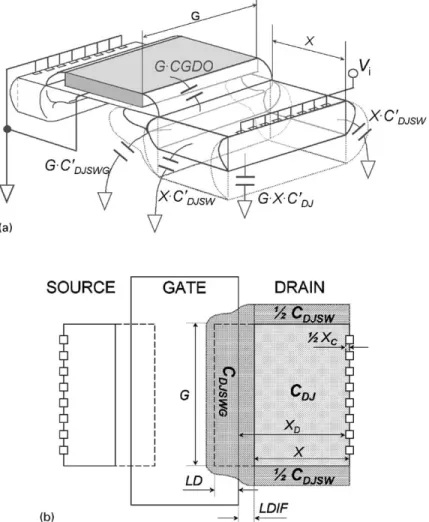

Fig. 5. (a) The three-dimension structure of a single-finger MOS device. (b) The corresponding layout top view of a single-finger MOS device with specified layout spacings.
as XD, and the width of drain contact is marked as XC. Therefore, the spacing X defined in Fig. 5 can be written as
X ¼ XDþ
1
2XC@LDIF; ð2Þ
where LDIF is the length of the lightly-doped drain diffusion adjacent to the gate. This LDIF is an extracted device parameter and given in the SPICE parameters of a CMOS process.
The drain region of MOS device with a single poly finger, which is shown in Fig. 5, has three different junction capacitances (CDJ, CDJSW, and CDJSWG) and one drain-to-gate overlapped capacitance (CGD). The equation of each capacitance is listed as [13]: CGD¼ CGDO G; ð3Þ CDJ ¼ G X CDJ0 ; ð4Þ CDJSW ¼ 2X C0DJSW; ð5Þ CDJSWG¼ G C0DJSWG; ð6Þ where C0DJ ¼ CJ 1 þVR PB @MJ F=m2; ð7Þ C0DJSW ¼ CJSW 1 þ VSW PBSW @MJSW F=m; ð8Þ C0DJSWG¼ CJSWG 1 þ VSWG PBSWG @MJSWG F=m: ð9Þ C0
DJ is the junction capacitance per unit area of the drain bottom plane. CDJSW0 and C0
DJSWG are the junction capacitance per unit length of the drain region at the
sidewall with field oxide and the sidewall with poly gate, respectively. The SPICE parameters used to calculate the capacitance of NMOS and PMOS devices in a 0.35-mm silicided CMOS process are summarized in Table 2 [14].
Substituting above equations into Eq. (1) with relative device parameters for Mn1 and Mp1, the total input capacitance Cinof the analog ESD protection circuit can be
expressed as Cin¼ CPADþ kn GnCGDOnþ GnXnCJn 1 þ Vi PBn @MJn ( þ GnCJSWGn 1 þ Vi PBSWGn @MJSWGn þ 2XnCJSWn 1 þ Vi PBSWn @MJSWn) þ kp GpCGDOpþ GpXpCJp 1 þ VDD@Vi PBp @MJp ( þ GpCJSWGp 1 þ VDD@Vi PBSWGp @MJSWGp þ 2XpCJSWp 1 þ VDD@Vi PBSWp @MJSWp) ; ð10Þ
where kn ðkpÞ is the finger number of the poly gate in the multi-finger Mn1 (Mp1) layout; Gn ðGpÞ is the finger length of the poly gate in the multi-finger Mn1 (Mp1) layout; Xn ðXpÞ is the layout spacing from the drain contact to the poly gate, defined in Eq. (2), in the multi-finger Mn1 (Mp1) layout; and Viis input voltage level on the pad.
3.2. Layout design to minimize capacitance variation
When layout spacings in Mn1 and Mp1 are modified, the total input capacitance of the analog ESD protection circuit can be adjusted. Based on Eq. (10), the desired layout parameters to minimize variation on the voltage-dependent input capacitance can be obtained. The partial differential equation of (10) on the input voltage is
Table 2
SPICEparameters on the drain capacitance of NMOS and PMOS devices in a 0.35-mm silicided CMOS process
NMOS PMOS
CGDO 2.79e-10 F/m 2.31e-10 F/m
CJ 1.01893e-3 F/m2 1.46829e-3 F/m2 CJSW 3.057956e-10 F/m 4.173308e-10 F/m CJSWG 1.524314e-10 F/m 1.013197e-10 F/m MJ 0.3075043 0.5464087 MJSW 0.1929617 0.3948903 MJSWG 0.1929617 0.3948903 PB 0.6944474 V 0.9191281 V PBSW 0.6944494 V 0.9191281 V PBSWG 0.6944494 V 0.9191281 V
derived as qCin qVi ¼ kn @MJnGnXn CJn PBn 1 þ Vi PBn @MJn@1 ( @MJSWGnGn CJSWGn PBSWGn 1 þ Vi PBSWGn @MJSWGn@1 @2MJSWnXn CJSWn PBSWn 1 þ Vi PBSWn @MJSWn@1) þ kp MJpGpXp CJp PBp 1 þVDD@Vi PBp @MJp@1 ( þ MJSWGpGp CJSWGp PBSWGp 1 þVDD@Vi PBSWGp @MJSWGp@1 þ 2MJSWpXp CJSWp PBSWp 1 þVDD@Vi PBSWp @MJSWp@1) : ð11Þ
If the value of Eq. (11) were equal to zero, the input capacitance would be independent to the input voltage level. Unfortunately, the layout parameters (Kn, Kp, Gn, Gp, Xn, and Xp) on Mn1 and Mp1 devices with the specified SPICE parameters in a 0.35-mm silicided CMOS process cannot keep this qCin=qVi always zero, while the input signal has a voltage swing from 0 V to VDD (3 V).
In analog applications, the analog input signal generally has a common reference voltage, indicated as Vcomin this paper. For symmetrical analog input signals with a maximum amplitude of DV, the minimum (Vmin) and maximum (Vmax) voltage level of analog input signals can be written as
Vmin¼ Vcom@DV; ð12Þ
and
Vmax¼ Vcomþ DV: ð13Þ
According to the mean value theorem [15], if input capacitances at the voltage levels of Vmin and Vmaxare kept the same, the condition of qCin=qVi¼ 0 is located within this analog input voltage range. Therefore, the input capacitance can have a minimized variation within the analog input voltage range between Vmin and Vmax. Substituting Vmin and Vmaxinto Eq. (10), the condition of CinðVmaxÞ ¼ CinðVminÞ to keep the minimum variation on input capacitance can be obtained as
knfaGnXnþ bGnþ 2gXng ¼ kpZGpXpþ yGpþ 2kXp; ð14Þ where a ¼ CJn 1 þ Vmin PBn @MJn @ 1 þVmax PBn @MJn " # ; ð15Þ
b ¼ CJSWGn 1 þ Vmin PBSWGn @MJSWGn @ 1 þ Vmax PBSWGn @MJSWGn " # ; ð16Þ g ¼ CJSWn 1 þ Vmin PBSWn @MJSWn @ 1 þ Vmax PBSWn @MJSWn " # ; ð17Þ Z ¼ CJp 1 þ VDD@Vmax PBp @MJp @ 1 þVDD@Vmin PBp @MJp " # ; ð18Þ y ¼ CJSWGp 1 þ VDD@Vmax PBSWGp @MJSWGp @ 1 þVDD@Vmin PBSWGp @MJSWGp " # ; ð19Þ k ¼ CJSWp 1 þ VDD@Vmax PBSWp @MJSWp @ 1 þVDD@Vmin PBSWp @MJSWp " # : ð20Þ By applying the device parameters of Mn1 and Mp1 summarized in Table 2 into Eqs. (14)–(20), the condition to keep the input capacitance with minimum varia-tion under the voltage levels of VDD¼ 3 V, Vcom¼ 1:5 V, and DV ¼ 0:5 V can be found as kn1:02951510@4GnXnþ 1:09867410@11Gnþ 2:20407210@11Xn ¼ kp 2:01120510@4GpXpþ 1:15634610@11Gpþ 4:76293010@11Xp : ð21Þ Therefore, if the layout parameters (Kn, Kp, Gn, Gp, Xn, and Xp) on the multi-finger Mn1 and Mp1 devices are correctly chosen to meet the condition in Eq. (21), the minimum variation on input capacitance of this analog ESD protection circuit can be achieved within the desired input voltage range. This implies that only choosing suitable device dimensions and layout spacings in the multi-finger Mn1 and Mp1 devices can minimize the variation on input capacitance of ESD protection circuit. This is quite useful to design this analog ESD protection circuit with an almost-constant input capacitance for high-precision analog applications in a given CMOS process. 3.3. Calculation results
Now, if kp¼ kn¼ 2 and Gp¼ Gn¼ 25 mm are chosen with the voltage levels of VDD ¼ 3 V, Vcom¼ 1:5 V, and DV ¼ 0:5 V, the relation between layout spacings of Xn and Xpto meet the condition of Eq. (21) is calculated in Fig. 6(a), where Xn is found to be linearly dependent on Xp. Based on this condition with the specified layout parameters, the relation between the total input capacitance (without including CPAD) and the input voltage level is calculated from Eq. (10) and shown in Fig. 6(b). The simulation results from HSPICE on the total input capacitance (without including CPAD) of the analog ESD protection circuit are also included in
Fig. 6(b) to verify the accuracy of the derived design model. The model calculated results agree very well to the HSPICE simulated results in Fig. 6(b) under many sets of different layout parameters, where each set of different layout parameters meets the condition of Eq. (21). As shown in Fig. 6(b), if the layout parameters Xnand Xp

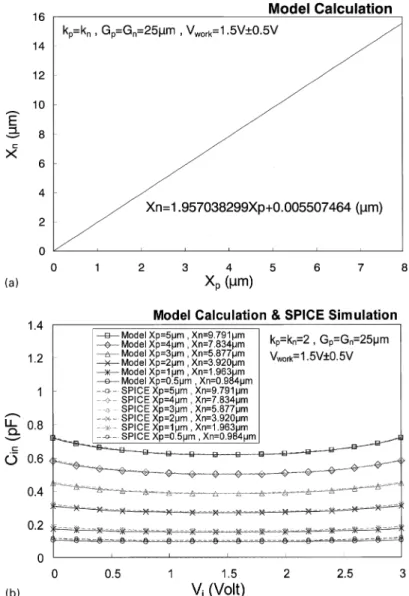

Fig. 6. (a) The relation between layout parameters Xnand Xpto meet the condition in Eq. (21) with the
analog common reference voltage biased at 1.5 V. (b) The relation between the total input capacitance and the input voltage level under different layout parameters Xnand Xp. (c) The relation between the variation
percentage on the input capacitance and the input voltage level under different layout parameters Xnand
Xp. (d) The relation between the calculated qCin=qVi value and the input voltage level under different
are chosen with smaller values, the analog ESD protection circuit also has a smaller input capacitance. Besides, the analog ESD protection circuit has the smallest input capacitance, when the input voltage level is biased at the analog common reference voltage Vcom. The percentage of variation on the input capacitance in Fig. 6(b) with respect to the smallest input capacitance at Vcom¼ 1:5 V under different layout parameters are calculated and drawn as a function of input voltage in Fig. 6(c). If the layout parameters Xn and Xp are chosen with smaller values, the analog ESD protection circuit also has a smaller variation percentage on its input capacitance. Based on such layout parameters found by Eq. (21), the relation between the partial differential value of qCin=qVicalculated from Eq. (11) and the input voltage is shown
in Fig. 6(d). The qCin=qVihas a value of zero when the input voltage level just biased at the Vcom of 1.5 V. Within the desired analog input voltage range of 1–2 V, the variation percentage on input capacitance is found within 1% in the work region shown in Fig. 6(c). With such a small 1% variation on the input capacitance, this analog ESD protection circuit is very suitable for high-frequency and high-precision analog applications.
In Fig. 6(a)–(d), the input capacitance is calculated with the analog common reference voltage (Vcom) chosen at 1.5 V, which is equal to the half of 3 V VDD. If analog input signals have different common reference voltages, the input capacitance with minimum variation within the desired input voltage range can be still found from above equations. For example, if the voltage levels of VDD¼ 3 V, Vcom¼ 1:0 V, and DV ¼ 0:5 V are chosen with kp¼ kn¼ 2 and Gp¼ Gn¼ 25 mm, the relation
between Xn and Xp to sustain the condition of Eq. (14) becomes
Xn¼ 1:01604 Xp20:04261968. Based on this condition, the relation between the input capacitance and the input voltage level is calculated in Fig. 7(a), and the variation percentage on input capacitance (without including CPAD) is shown in Fig. 7(b) under many sets of layout parameters. Because the analog common reference voltage (Vcom) is chosen at 1.0 V in Fig. 7, the input capacitance has the smallest capacitance when the input voltage level is biased at 1 V. Within the desired analog input voltage range of 0.5–1.5 V, the variation percentage on input capacitance is also within 1% in the work region shown in Fig. 7(b).
On the contrary, if the analog common reference voltage (Vcom) is chosen at 2.0 V for analog applications with a higher input voltage level, the relation between Xnand Xpto sustain the condition of Eq. (14) becomes Xn¼ 3:75596 Xpþ 0:09672 with the other parameters of VDD¼ 3 V, DV ¼ 0:5 V, kp¼ kn¼ 2, and Gp¼ Gn¼ 25 mm. Based on this condition, the relation between the input capacitance (without including the CPAD) and the input voltage level is calculated in Fig. 8(a), and the variation percentage on input capacitance is shown in Fig. 8(b) under many sets of layout parameters. Because the analog common reference voltage (Vcom) is chosen at 2.0 V in Fig. 8, the input capacitance has the smallest capacitance when the input voltage level is biased at 2 V. Within the desired analog input voltage range of 1.5– 2.5 V, the variation percentage of the input capacitance is also within 1% in the work region shown in Fig. 8(b). This has shown the flexibility of the derived design model to find suitable layout parameters for minimizing the voltage-dependent variation on input capacitance of the analog ESD protection circuit.
The calculated results in Figs. 6–8 are all based on the same layout parameters of kp¼ kn¼ 2 and Gp¼ Gn¼ 25 mm but with different layout parameters of Xn and Xp. The layout parameter of Xn ðXpÞ has been defined in Eq. (2) and Fig. 5 for Mn1 (Mp1) in the analog ESD protection circuit. For the most general analog applications with the analog common reference voltage (Vcom) biased at VDD=2 (=1.5 V), the relation between Xnand Xphas been shown in Fig. 6(a), where Xn is almost two times of Xp to meet the condition in Eq. (21). For example, if Xp is chosen at 4 mm, the corresponding Xn must be drawn about 8.07 mm. With such a wider Xn, the layout area of Mn1 is increased but the W=L of Mn1 still keeps the same, as comparing to the original layout design with the same Xnand Xp.
If the finger number (kn) of Mn1 is increased from 2 to 4, the ratio between Xnand Xpcan be found at around 1.0 under the condition of Gp¼ Gn. Moreover, the total device dimension ðW =LÞ of Mn1 can be increased when the finger number (kn) of Mn1 is increased from 2 to 4. The relation between the Xn=Xp ratio and the finger length Gp (Gn) to meet the condition of Eq. (21) is further calculated in Fig. 9(a), where the other parameters are VDD¼ 3 V, Vcom¼ 1:5 V, DV ¼ 0:5 V, kp¼ 2, and kn¼ 4. In Fig. 9(a), the Xn=Xpratio is kept around 1 with only slight variation (from

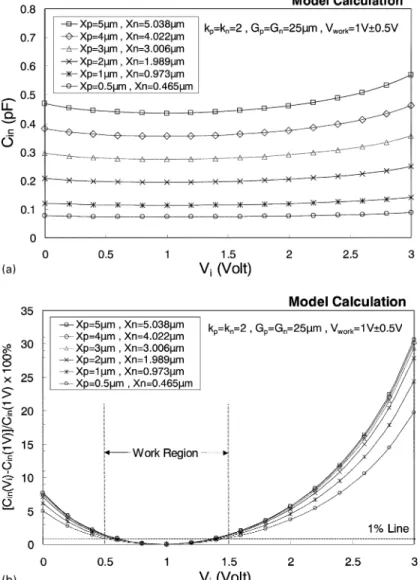

Fig. 7. The relations between (a) the total input capacitance, and (b) the variation percentage on the input capacitance, of the analog ESD protection circuit and the input voltage level under different layout parameters Xnand Xp, which meet the condition in Eq. (14) with an analog common reference voltage

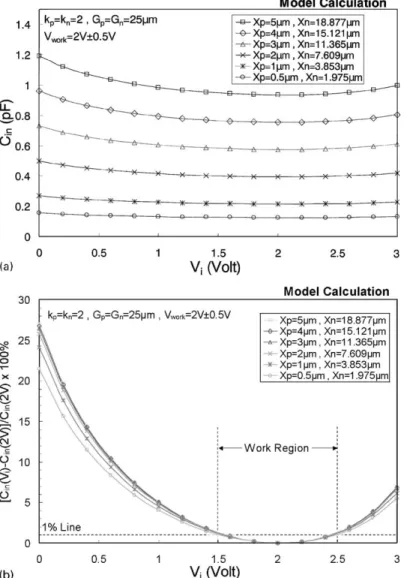

Fig. 8. The relations between (a) the total input capacitance, and (b) the variation percentage on the input capacitance, of the analog ESD protection circuit and the input voltage level under different layout parameters Xnand Xp, which meet the condition in Eq. (14) with an analog common reference voltage
biased at 2.0 V.
—————————————————————————————————————————————"
Fig. 9. (a) The relation between the ratio of Xn=Xpand the finger lengths Gnand Gpto meet the condition
in Eq. (21) with kp¼ 2, kn¼ 4, and Vwork¼ 1:570:5 V. (b) The relation between the total input
capacitance of the analog ESD protection circuit and the input voltage level under different layout parameters Gnand Gp. (c) The relation between the variation percentage on the input capacitance and the
1.06 to 0.95), even if the finger length Gp ðGnÞ of Mp1 (Mn1) has a wide-range variation from 0.1 to 1000 mm in the 0.35-mm silicided CMOS process. Based on the chosen layout parameters, the relation between input capacitance and input voltage level is calculated in Fig. 9(b), and the variation percentage on input capacitance is shown in Fig. 9(c) under different sets of layout parameters Gpand Gn. The variation percentage on input capacitance under different layout parameters Gp and Gn is almost the same, as that shown in Fig. 9(c). Within the chosen Vwork¼ 1:5 V70:5 V, the variation percentage on input capacitance is still kept below 1%.
From above detailed calculations and analyses on the input capacitance, the derived design model to find suitable layout parameters for minimizing the input capacitance variation can help the analog ESD protection circuit to be well realized in general CMOS processes. The input capacitances calculated and shown in Figs. 6–9 only include the junction capacitances of ESD protection NMOS and PMOS in the analog ESD protection circuit. The bond pad capacitance (CPAD) with a wide metal plate to the substrate is essentially a constant capacitor. This bond pad capacitance (CPAD) can be further reduced 50% by a low-C layout design [16]. In the silicon-on-insulator (SOI) CMOS process, ESD protection diodes can be stacked from the pad to VDD and VSS to further reduce the total input junction capacitance. By using the same concept of this design model, the optimized layout for the stacked SOI diodes can be found to further minimize the voltage-dependent variation on input capacitance of ESD protection circuits for more high-precision and high-frequency applications.
If the pure junction diodes are used in this analog ESD protection circuit to replace Mn1 and Mp1 devices, similar calculation as that shown in this design model can be also derived to find the optimized layout for minimizing variation on the voltage-dependent input capacitance. The design model described in this paper has been derived under the layout condition of Mn1 and Mp1 devices having even number of poly gate fingers. If Mn1 and Mp1 devices are drawn with an odd number of total poly gate fingers, an additional sidewall junction capacitance (G C0DJSW) should be added into the capacitance equation in Eq. (10) with some modification. But, such a layout style of ESD protection NMOS having an odd number of total poly gate fingers is not recommended in IC products, because the parasitic device interaction between the unguarded drain diffusion and a nearby N+ diffusion often causes some unexpected ESD damages to lower the overall ESD level [17].
4. Conclusion
An analog ESD protection circuit with a very low and almost constant input capacitance, high ESD level, but no series resistance, has been successfully designed and verified in a 0.35-mm silicided CMOS process. The ESD test results and turn-on verifications have shown that this analog ESD protection circuit can effectively protect the analog circuits, especially the differential input stage under the pin-to-pin ESD stress condition. A design model to optimize the device dimensions and layout spacings of ESD protection devices has been clearly developed to keep the input
capacitance as constant as possible in general CMOS processes. If analog input signals have different common reference voltages, this design model can still find suitable device dimensions and layout spacings on ESD protection devices to keep the input capacitance with minimum variation during the desired input voltage range. This has shown the flexibility of the derived model for minimizing voltage-dependent variation on input capacitance of the ESD protection circuit. With suitable layout parameters on the input ESD clamp devices, the variation of total input capacitance of the analog ESD protection circuit can be designed below 1% while the analog input signal has an input voltage swing of 1 V. With a much small and almost constant input capacitance, this analog ESD protection circuit is very suitable for current-mode, high-frequency, and high-precision circuit applications with high enough ESD reliability.
References
[1] C. Duvvury, A. Amerasekera, ESD: A pervasive reliability concern for IC technologies, Proceedings of the IEEE 81 (1993) 690–702.
[2] J.E. Vinson, J.J. Liou, Electrostatic discharge in semiconductor devices: an overview, Proceedings of the IEEE 86 (1998) 399–418.
[3] C. Richier, P. Salome, G. Mabboux, I. Zaza, A. Juge, P. Mortini, Investigation on different ESD protection strategies devoted to 3.3 V RF applications (2 GHz) in a 0.18 mm CMOS process, Proceedings of the EOS/ESD Symposium, 2000, pp. 251–259.
[4] B. Kleveland, T.J. Maloney, I. Morgan, L. Madden, T.H. Lee, S.S. Wong, Distributed ESD protection for high-speed integrated circuits, IEEE Electron Device Letters 21 (2000) 390–392. [5] P. Leroux, J. Janssens, M. Steyaert, A 0.8 dB NF ESD-protected 9 mW CMOS LNA, Digest of IEEE
International Solid-State Circuits Conference, 2001, pp. 410–411.
[6] I.E. Opris, Bootstrapped pad protection structure, IEEE J. Solid-State Circuits 33 (1998) 300–301. [7] M.-D. Ker, T.-Y. Chen, C.-Y. Wu, H.-H. Chang, ESD protection design on analog pin with very low
input capacitance for high-frequency or current-mode applications, IEEE J. Solid-State Circuits 35 (2000) 1194–1199.
[8] M.-D. Ker, T.-Y. Chen, C.-Y. Wu, H.-H. Chang, Design and analysis of the on-chip ESD protection circuit with a constant input capacitance for high-precision analog applications, Proceedings of the IEEE International Symposium on Circuits and Systems, Vol. 5, 2000, pp. 61–64.
[9] ESD Association Standard Test Method for Electrostatic Discharge Sensitivity Testing: Human Body ModelFComponent Level, ESD STM5.1, ESD Association, New York, 1998.
[10] Electrostatic Discharge (ESD) Sensitivity TestingFHuman Body Model (HBM), test method A114-A, EIA/JEDEC Standard, Electronic Industries Association, 1997.
[11] R. Merrill, E. Issaq, ESD design methodology, Proceedings of the EOS/ESD Symposium, 1993, pp. 233–237.
[12] M.-D. Ker, Whole-chip ESD protection design with efficient VDD-to-VSS ESD clamp circuit for submicron CMOS VLSI, IEEE Trans. Electron Devices 46 (1999) 173–183.
[13] Star-Hspice Manual: Chapter 15FIntroducing MOSFET, Avant!, 1998.
[14] TSMC 0.35 mm Logic Silicide (SPQM, 3.3 V) SPICE Models, TSMC Doc. No. TA-1095-6002, Ver. 2.2, 1998.
[15] W. Fulks, Advanced CalculusFAn Introduction to Analysis, 3rd Edition, Wiley, New York, 1978. [16] M.-D. Ker, H.-C. Jiang, C.-Y. Chang, Design of low-capacitance bond pad for high-frequency I/O applications in CMOS integrated circuits, Proceedings of the IEEE International ASIC/SOC Conference, 2000, pp. 293–296.
[17] S. Sinha, H. Swaminathan, G. Kadamati, C. Duvvury, An automated tool for detecting ESD design errors, Proceedings of the EOS/ESD Symposium, 1998, pp. 208–217.
