transistors with improved surface morphology and low contact resistance
Yu-Sheng Chiu,a)Tai-Ming Lin,a)and Hong-Quan Nguyen
Department of Materials Science and Engineering, National Chiao Tung University, 1001 Ta-Hsueh Rd., Hsinchu 300, Taiwan
Yu-Chen Weng
Institute of Lighting and Energy Photonics, College of Photonics, National Chiao Tung University, Tainan 71150, Taiwan
Chi-Lang Nguyen, Yueh-Chin Lin, Hung-Wei Yu, and Edward Yi Changb)
Department of Materials Science and Engineering, National Chiao Tung University, 1001 Ta-Hsueh Rd., Hsinchu 300, Taiwan
Ching-Ting Lee
Department of Electrical Engineering, National Cheng-Kung University, 1, University Road, Tainan 701, Taiwan
(Received 31 July 2013; accepted 27 December 2013; published 16 January 2014)
Optimizing surface morphology of ohmic contacts on GaN high electron mobility transistors continues to be a challenge in the GaN electronics industry. In this study, a variety of metal schemes were tested under various annealing conditions to obtain contacts with optimal qualities. A Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal scheme demonstrated the lowest contact resistance (Rc)
and a smooth surface morphology, and the mechanisms were investigated by materials analysis. A Ti/Al/Ti/Ni/Au metal scheme with optimized Ti and Ni thicknesses can result in formation of a larger proportion of Al-Ni intermetallics and a continuous TiN interlayer, which results in smooth surface and low Rc.VC 2014 American Vacuum Society. [http://dx.doi.org/10.1116/1.4862165]
I. INTRODUCTION
AlGaN/GaN high electron mobility transistors (HEMTs) exhibit excellent device performance because of their inher-ent material properties. Ohmic contacts on AlGaN/GaN HEMTs play an important role in the DC and RF perform-ance of the devices by contributing to higher current density, lower on-resistance, and less resistive heating. In order to improve device performance, ohmic contacts should meet the requirements of low contact resistance (Rc), high thermal
and electrical stability, and smooth surface morphology. Ohmic contacts with low Rc have been achieved by using
Ti/Al-based metal schemes with high temperature rapid ther-mal annealing (RTA). Ti/Al/Ni/Au, Ti/Al/Mo/Au, and Ti/Al/Ti/Au metal schemes have been successful developed with low Rc.1–3 The possible mechanisms ohmic contacts
with low Rc involve the interfacial reaction of the Ti/Al
bilayer with the AlGaN/GaN epitaxy structure. Three possi-ble mechanisms—low Schottky barrier, tunneling, and spike formation—have been proposed based on the formation of nitrides (TiN, TixAlN, or AlN) at the metal-GaN
interface.4–6Experimental results suggest that spike forma-tion and tunneling are the mechanisms that account for ohmic contacts with lower Rc.
Low contact resistance (Rc) ohmic contacts on
AlGaN/GaN HEMTs usually exhibit unfavorable surface morphology, which affects the process yield of the devices. After high temperature annealing, interdiffusion of ohmic
contact metals results in bumpy surfaces. Several mecha-nisms have been proposed to explain this phenomenon. For example, melting and balling up of Al during RTA results in the formation of Al-Au intermetallics, which have been viewed as causes of such problematic surface morphology. Although barrier layers such as Ni, Pt, Mo, and Ti have been applied in an attempt to block the diffusion of Al and Au, most have been found ineffective.7,8A possible mechanism for the rough surface morphology on a conventional Ti/Al/Ni/Au metal scheme has been proposed by Gong et al.9Nonuniform precipitation of AlNi in the AlAu matrix is believed to account for the formation of the excessively rough surface of ohmic contacts on AlGaN/GaN HEMTs.
Several approaches have been tried to improve surface morphology of ohmic contacts on AlGaN/GaN HEMTs. Using a Au-free metal scheme, Ti/Al/Cr/Mo/Au metal scheme, or metal schemes with a thicker Ni layer, research-ers have demonstrated a high success rate of forming ohmic contacts on AlGaN/GaN HEMTs with smooth surface mor-phologies, even at high annealing temperatures.10–12 The thicknesses of individual metal layers have significant influ-ence on the interface reaction and surface morphology of the ohmic contacts on AlGaN/GaN HEMT.13 For instance, the Ti/Al ratio and Ni/Au ratio have been shown to have influ-ence on Rc and surface morphology.12,13 Furthermore, the
Ti/Al/Ti/Ni/Au metal scheme has been used to demonstrate more favorable ohmic behavior compared to a Ti/Al/Ni/Au metal scheme after insertion of a 10-nm Ti interlayer.14 However, there has not been a detailed study of surface mor-phology and formation mechanism for the Ti/Al/Ti/Ni/Au metal scheme. In this work, various metal schemes based on
a)Yu-Sheng Chiu and Tai-Ming Lin contributed equally to this work. b)Author to whom correspondence should be addressed; electronic mail:
Ti, Al, Ni, and Au were designed and tested to achieve ohmic contacts with smooth surface morphology and low Rc.
The metal schemes were also analyzed by atomic force microscope (AFM) and transmission electron microscopy (TEM) to determine a possible formation mechanism.
II. EXPERIMENTAL METHODS
Ohmic contacts were fabricated on an AlGaN/GaN HEMT epistructure grown on 6-in. Si (111) with an AlN nucleation layer, 3-lm GaN buffer layer, and 20-nm Al0.25Ga0.75N barrier layer. The wafers were first cleaned in
acetone (ACE) and isopropyl alcohol (IPA) for 5 min to remove organic contamination, and native oxides were removed after soaking in buffer oxide etchant (BOE) for 5 min. Mesa isolation was performed using a dry etch pro-cess by inductively coupled plasma (ICP) reactor with Cl2
plasma in Ar ambient for 3 min and 20 s. Ohmic regions were then defined by a lithography process. Before metalli-zation, the wafers were soaked in 10% HCl solution to remove native oxides. Then, metal schemes listed in TableI
were deposited by e-gun evaporator. After lift-off of metals, the wafers were annealed (RTA) at different temperatures (800, 830, 850, 870, and 900C) for 35 s in N2ambient. A
conventional Ti/Al/Ni/Au (20/120/25/100 nm) ohmic contact with a thinner barrier layer also was fabricated for compari-son, and the Rc was measured to be 0.52 X mm on this
wafer.15
Rc of different metal schemes were measured by
trans-mission line method (TLM) with gap spacing of 3, 5, 10, 20, and 36 lm. Surface morphology was examined for a
10 10 lm2 area of each metal scheme by Veeco D-3100
AFM and the images of conventional Ti/Al/Ni/Au (20/120/25/100 nm), Ti/Al/Ni/Au (20/120/100/50 nm), and Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal schemes were composed from Nanoscope software. To investigate the mechanisms for surface morphology and Rc improvement,
cross-section TEM images and scanning-mode TEM images (STEMs) were obtained by electron dispersive x-ray spec-troscopy (EDS). Line-scans were analyzed by JEM-2100F FETEM for Ti/Al/Ni/Au (20/120/100/50 nm) and Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal schemes.
III. RESULTS AND DISCUSSION
Contact resistances (Rc) for each metal scheme listed in
TableIare measured. Figure1shows Rcvalues for the
differ-ent metal schemes after annealing at various temperatures. Measurements showed that the Ti/Al/Ti/Au (20/120/100/ 50 nm) samples annealed at 800 and 830C exhibited Schottky behavior, so their Rc were not measurable. The
TABLEI. Metal schemes designed in this study (nm).
Ti Al Ti Ni Au
20 120 0 100 50
20 120 20 80 50
20 120 40 60 50
20 120 100 0 50
FIG. 1. (Color online) Contact resistance (Rc) of different metal schemes in TableIafter annealing at various temperatures.
FIG. 2. (Color online) Surface roughness (Rrms) of different metal schemes in TableIafter annealing at different temperatures.
FIG. 3. (Color online) TLM measurement results for the different metal schemes annealed at 870C for 35 s and the conventional ohmic contact annealed at 800C for 60 s. Resistance at zero gap distance was derived by linear fitting.
011216-2 Chiu et al.: Ti/Al/Ti/Ni/Au ohmic contacts on AlGaN/GaN high electron mobility transistors 011216-2
lowest Rc for each metal scheme tended to decrease as the
proportion of Ti interlayer increased. When the Ti/Ni barrier layer had a thickness of 40/60 nm, the lowest Rcvalue (0.28
X mm) was achieved, using the Ti/Al/Ti/Ni/Au (20/120/40/ 60/50 nm) annealed at 870C. For the other metal schemes, Rcvalues between 0.5 and 1 X mm were obtained following
annealing at different temperatures. Surface roughness of each metal scheme after annealing at the various temperatures is shown in Fig.2. As shown in Figs.1and2, metal schemes with smoother surface morphology often resulted in higher Rc
(>2 X mm). On the other hand, metal schemes with Rc< 1 X
mm often resulted in rougher surface morphology. As stated above, Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) annealed at 870C for 35 s demonstrated the lowest Rc of the metal
schemes in this study, and also showed improved surface mor-phology compared to conventional ohmic contacts. Although the Ti/Al/Ti/Au (20/120/100/50 nm) metal scheme also showed a low Rc(0.5 X mm) after annealing at 900C for
35 s, irregular patterns were found on the surface, as also observed by Mohammed et al.8To investigate the effects of Ti and Ni barrier layer thickness, the Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) and Ti/Al/Ni/Au (20/120/100/50 nm) samples annealed at 870C for 35 s samples were selected for further analysis. Figure3presents the TLM data for the differ-ent metal schemes annealed at 870C for 35 s, and the data for the conventional ohmic contact annealed at 800C for 60 s also is plotted for reference. Resistance at zero gap distance was derived by linear fitting of the other five points. The TLM data clearly demonstrate the excellent ohmic characteristic of the Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) scheme after annealing at 870C for 35 s.
FIG. 4. (Color online) AFM scans of (a) conventional ohmic contact (Ti/Al/Ni/Au (20/120/25/100 nm), (b) Ti/Al/Ni/Au (20/120/100/50 nm), and (c) Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal schemes after RTA at 870C for 35 s. The R
rmsvalues of images with scan size of 10 10 lm2are shown in the figures.
FIG. 5. Cross-section TEM images of (a) Ti/Al/Ti/Ni/Au (20/120/40/ 60/50 nm) and (b) Ti/Al/Ni/Au (20/120/100/50 nm) metal schemes after annealing at 870C for 35 s.
Figure4shows the comparison between the surface mor-phologies of the optimized Ti/Al/Ti/Ni/Au (20/120/40/60/ 50 nm), conventional Ti/Al/Ni/Au (20/120/25/100 nm), and Ti/Al/Ni/Au (20/120/100/50 nm) metal schemes. The conven-tional Ti/Al/Ni/Au ohmic contact has the roughest surface morphology with rms roughness (Rrms) of 118.3 nm, and the
Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal scheme shows significant improvement in surface morphology with Rrms
of 27.6 nm. The Rrms of Ti/Al/Ni/Au (20/120/100/
50 nm) metal scheme was measured as 34.5 nm. In Fig.4, it is
evident that metal schemes with total barrier layer thicknesses of 100 nm are more likely to form ohmic contact with surfaces that are smoother than the conventional one, which has a bar-rier thickness of only 25 nm. A possible mechanism for these smoother surface morphologies on metal schemes with thicker barrier layers will be discussed in the following paragraphs.
TEM analysis of optimized Ti/Al/Ti/Ni/Au (20/120/40/ 60/50 nm) and Ti/Al/Ni/Au (20/120/100/50 nm) metal schemes are shown in Figs. 5 and6. Figures 5(a) and 5(b)
show the TEM cross-section images of the Ti/Al/Ti/

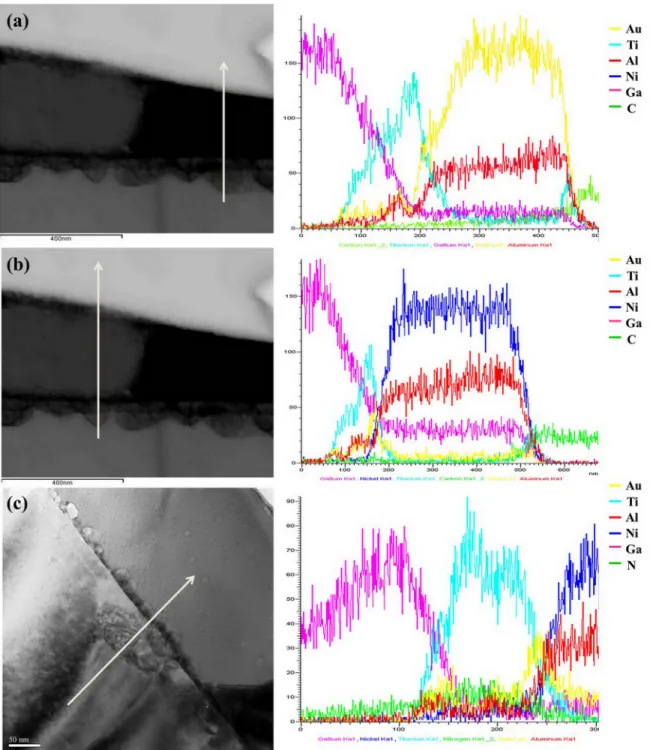

FIG. 6. (Color online) STEM images of (a) Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal scheme after RTA at 870C for 35 s with EDS line-scan result across the dark region on metal contact (as the arrow shows) and (b) Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal scheme after RTA at 870C for 35 s with EDS line-scan result across the bright region on metal contact (as the arrow shows). TEM image of (c) Ti/Al/Ni/Au (20/120/100/50 nm) metal scheme after RTA at 870C for 35 s and its corresponding EDS line-scan result (as the arrow shows).
011216-4 Chiu et al.: Ti/Al/Ti/Ni/Au ohmic contacts on AlGaN/GaN high electron mobility transistors 011216-4
Ni/Au (20/120/40/60/50 nm) and Ti/Al/Ni/Au (20/120/100/ 50 nm) samples, respectively. The EDS analysis results in Fig.6confirm that the bright grains are mainly composed of Al and Ni, and the dark regions are mainly composed of Al and Au. Ti and Au were detected at the metal–GaN interface in both metal schemes, so the TiN spikes surrounded by Au may form at the interface, as has been previously reported.5,6 Based on the TEM analysis, it is likely that the bumpy areas in the AFM image are bright grains composed of Al and Ni not related to the study or other Ti, Al, Ni, and Au-based metal schemes. From Figs.5(a)and5(b), the main difference between Ti/Al/Ni/Au (20/120/100/50 nm) and Ti/Al/Ti/ Ni/Au (20/120/40/60/50 nm) is the form of TiN at the inter-face. TiN spikes can be observed at the metal-GaN interface of both metal schemes. When these spikes form, they create a direct contact path to the 2DEG and are more effective at forming low-Rcohmic contacts than the thin layered TiN.6
However, there is another continuous TiN layer of20 nm thickness between metal contacts and the TiN spikes in the Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm) metal scheme. Moreover, a higher Ni ratio in the Ti/Al/Ni/Au (20/120/100/50 nm) metal scheme facilitates the formation of Al-Ni grains, resulting in a higher density of bumps on the surface.
The TEM images in this study [Figs.5(a)and5(b)] show improvement in surface morphology compare with conven-tional Ti/Al/Ni/Au metal schemes reported before1,6,9 although the so-called “barrier layer” disintegrates and reacts with Al regardless of the barrier layer thickness. Different forms of Al-Ni grain precipitates were found after annealing. While Ni composition increased, large-sized Al-Ni grains precipitated adjacent to Al-Au grains with similar size rather than precipitating randomly in the Al-Au matrix. As a conse-quence, bumps on the surfaces of ohmic contacts with higher Ni composition had more reproducible heights than the con-ventional ohmic contacts, as revealed in the AFM and cross-section TEM images [Figs.4–5(b)].
Both Ti/Al/Ni/Au (20/120/100/50 nm) and Ti/Al/Ti/ Ni/Au (20/120/40/60/50 nm) metal schemes demonstrated smoother surface morphology than conventional ohmic con-tacts, but the Ti/Al/Ni/Au (20/120/100/50 nm) metal scheme had a higher Rc than the Ti/Al/Ti/Ni/Au (20/120/40/
60/50 nm). The different interface reactions observed in cross-section TEM images may account for the difference. As in the conventional Ti/Al/Ni/Au interface reaction, TiN spikes that are considered to make direct contact paths with 2DEG locally protrude through the AlGaN layer.16 However, the Ti/Al/Ni/Au (20/120/100/50 nm) metal scheme exhibited a higher Rc than the conventional Ti/Al/Ni/Au
ohmic contacts. This is attributed to the formation of a higher proportion of Al-Ni inter-metallics, which have been reported in a previous study17 to be more electrically resis-tive than the Al-Au intermetallics after annealing in the Ti/Al/Ni/Au (20/120/100/50 nm) metal scheme.17 In other words, a higher percentage of Al-Ni intermetallics forming after annealing can improve the contact’s surface morphol-ogy, at the cost of raising the Rc.Although highly resistive
Al-Ni intermetallics are bulk of the Ti/Al/Ti/Ni/Au
(20/120/40/60/50 nm) metal scheme after annealing, the metal scheme still demonstrated excellent ohmic characteris-tics. This may be due to the interface reactions, which form a continuous TiN layer of 20 nm thickness in addition to the TiN spikes. The formation of this thick and continuous TiN layer is related to the insertion of a 40-nm Ti interlayer that consumes the AlGaN layer, such that the formation of TiN is not limited to local protrusions but also forms a con-necting stripe at the interface. Formation of this TiN layer possibly results in lower Rc than the Ti/Al/Ni/Au
(20/120/100/50 nm) metal scheme because of higher concen-tration of nitrogen vacancies generated due to the consump-tion of the AlGaN layer and consequent facilitaconsump-tion of the tunneling mechanism. Moreover, with the Ti interlayer lying between the Al and Ni layers, a smaller proportion of Al-Ni intermetallics was observed in Ti/Al/Ti/Ni/Au (20/120/40/ 60/50 nm) than in Ti/Al/Ni/Au (20/120/100/50 nm). The Ti interlayer may be blocking interdiffusion between the Al and Ni layers in this case.
IV. CONCLUSIONS
In summary, the most promising metal scheme we tested was Ti/Al/Ti/Ni/Au (20/120/40/60/50 nm), for which we achieved a low Rcof 0.28 X mm with improved surface
mor-phology (Rrms 27.6 nm) after annealing at 870C for 35 s.
Metal schemes with thicker barrier layers effectively reduced surface roughness. Larger Al-Ni intermetallics were observed alongside Al-Au intermetallics after annealing instead of small Al-Ni precipitates randomly distributed in the matrix of the metal contact, which may contribute to smoother surfaces with lower Rc. However, as the proportion of the Ni layer
increased, formation of excess Al-Ni intermetallics resulted in rougher surfaces and higher Rc.Consequently, it is necessary
to optimize Ti and Ni layer thicknesses within the metal scheme to keep surface morphology smooth and reduce Rc,by
controlling the proportion of more resistive Al-Ni intermetal-lics in the film and facilitating the tunneling mechanism through a thick nitride at the interface.
