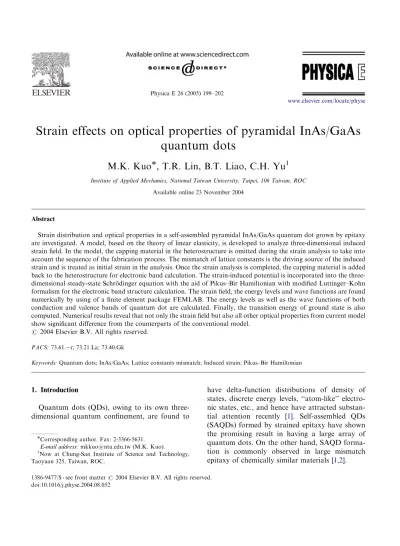

Physica E 26 (2005) 199–202

Strain effects on optical properties of pyramidal InAs/GaAs

quantum dots

M.K. Kuo



, T.R. Lin, B.T. Liao, C.H. Yu

1 Institute of Applied Mechanics, National Taiwan University, Taipei, 106 Taiwan, ROC

Available online 23 November 2004

Abstract

Strain distribution and optical properties in a self-assembled pyramidal InAs/GaAs quantum dot grown by epitaxy are investigated. A model, based on the theory of linear elasticity, is developed to analyze three-dimensional induced strain field. In the model, the capping material in the heterostructure is omitted during the strain analysis to take into account the sequence of the fabrication process. The mismatch of lattice constants is the driving source of the induced strain and is treated as initial strain in the analysis. Once the strain analysis is completed, the capping material is added back to the heterostructure for electronic band calculation. The strain-induced potential is incorporated into the three-dimensional steady-state Schro¨dinger equation with the aid of Pikus–Bir Hamiltonian with modified Luttinger–Kohn formalism for the electronic band structure calculation. The strain field, the energy levels and wave functions are found numerically by using of a finite element package FEMLAB. The energy levels as well as the wave functions of both conduction and valence bands of quantum dot are calculated. Finally, the transition energy of ground state is also computed. Numerical results reveal that not only the strain field but also all other optical properties from current model show significant difference from the counterparts of the conventional model.

r2004 Elsevier B.V. All rights reserved.

PACS: 73.61.r; 73.21.La; 73.40.Gk

Keywords: Quantum dots; InAs/GaAs; Lattice constants mismatch; Induced strain; Pikus–Bir Hamiltonian

1. Introduction

Quantum dots (QDs), owing to its own three-dimensional quantum confinement, are found to

have delta-function distributions of density of states, discrete energy levels, ‘‘atom-like’’ electro-nic states, etc., and hence have attracted substan-tial attention recently [1]. Self-assembled QDs (SAQDs) formed by strained epitaxy have shown the promising result in having a large array of quantum dots. On the other hand, SAQD forma-tion is commonly observed in large mismatch epitaxy of chemically similar materials[1,2].

ARTICLE IN PRESS

www.elsevier.com/locate/physe

1386-9477/$ - see front matter r 2004 Elsevier B.V. All rights reserved. doi:10.1016/j.physe.2004.08.052

Corresponding author. Fax: 2-3366-5631. E-mail address: [email protected] (M.K. Kuo).

1Now at Chung-San Institute of Science and Technology,

(2)

Strain fields inside quantum-dot hetrostructures strongly affect the electronic properties and hence the optoelectronic properties in the vicinity of dots

[3]. To understand the strain effects on optical properties of quantum dots, determination of the induced strain field in the dots and the surround-ing matrix is necessary. Finite element analysis has been used to investigate the strain field in the quantum dot[4–6].

A single square-based pyramidal self-assembled InAs quantum dot buried in GaAs matrix is considered in the article as depicted inFig. 1. The InAs is grown a thin wetting layer on (0 0 1) GaAs substrate during heteroepitaxy, followed by co-herent island formation. Finally, the quantum-dot island is subsequently covered by additional deposition of substrate materials.

2. Strain field

Epitaxially grown SAQD heterostructures often consist of several materials with different lattice constants. It gives rise to strain fields in a quantum-dot nanostructure, and affects the opti-cal properties of the quantum dots [6]. In-plane lattice, mismatch parameter is usually defined as ð0Þxx¼ ð0Þyy¼asad

ad

; (1)

where as and ad are the lattice constants of the substrate and the dot materials, respectively, i.e.,

GaAs and InAs, and they will be taken as 0.565 and 0.605 nm, respectively, in the numerical computation of this article.

Notice that, the mismatch of lattice constants will induce further elastic deformation in the whole nanostructure system, namely, in both the sub-strate and the quantum-dot island. Thus the lattice mismatch parameter defined in Eq. (1) is not the only strain in the quantum-dot island. It will instead be treated as in-plane initial strain in the latter finite element analysis.

The out-of-plane initial strain, on the other hand, has never yet been as conclusive as its in-plane counterparts. It is a common belief that the in-plane initial strain in the epitaxy process will certainly accomplish with out-of-plane strain. In the article, the out-of-plane initial strain is taken as if it were strained elastically and in plane-stress state, which leads to

ð0Þzz¼  2C12 C11

ð0Þxx: (2)

Here both GaAs and InAs are treated as cubic materials with three independent elastic moduli each, namely, C11, C12, and C44.

In the article, parameters e0’s are regarded as the initial normal strains in the x, y, and z directions in the latter finite element calculation. These initial strains in the wetting layer and the quantum-dot island will further induce the strain field in a SAQD system.

According to the theory of linear elasticity, the relationship among stresses sij, total strains ekl, and initial strains can be expressed as

sij¼Cijkl½kl ð0Þkl; i; j; k; l ¼ x; y; z; (3) where Cijkl is the elastic moduli, and e0 is the normal initial strain described in Eqs. (1) and (2). The wetting layer grows on the substrate during the quantum-dot fabrication process, and then further embedded in the capping material after quantum-dot island formation, as shown inFig. 1. Since the capping material is deposited after the quantum-dot island has been formed, it should have never experience the deformation of quantum dot in the self-assembled process. Hence, the capping material is not included in the strain analysis.

ARTICLE IN PRESS

H B GaAs GaAs InAs b b h x y z wetting layer: thickness d InAs H B (a) (b)

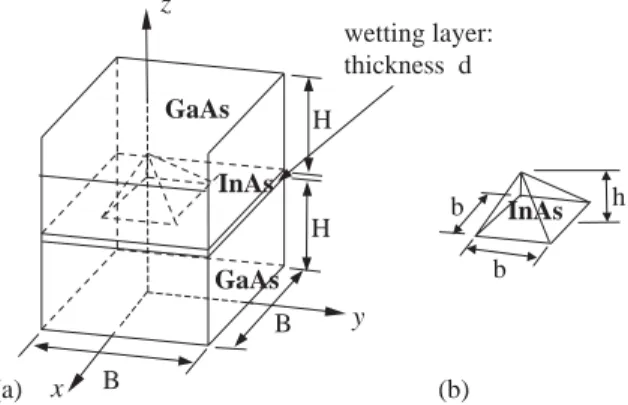

Fig. 1. Geometry of the quantum-dot system. (a) InAs/GaAs QD heterostructure, and (b) InAs quantum-dot island, where B=H=30 nm, d=0.5 nm, b=12 nm, and h=6 nm.

M.K. Kuo et al. / Physica E 26 (2005) 199–202 200

(3)

In the stage of strain analysis, the quantum-dot heterostructure system is considered to consist of only quantum dot, wetting layer and substrate but not capping material. The mismatch of lattice constants of the heterostructure is the driving source for the induced strain. Once the strain analysis has been completed, the capping layer is then added into the system as if it is deposited after quantum-dot formation.

The adding of capping material is only for the purpose of solving the Schro¨dinger equation to obtain the electronic structure of the nanostruc-ture system. This proposed model partially takes the sequence of fabrication process into account as compared to the conventional model where the capping material is considered as a body with other materials.

Figs. 2 and 3show the normal strain xxandzz; respectively, along the z-axis in quantum-dot nanostructures. It is not surprising that these strain components are discontinuous at the inter-face of the wetting layer and the substrate (i.e. InAs/GaAs interface).

Notice that, as seen from the figures, the strain filed xx inside the dot is compressive while xx is tensile. These reflect the fact that the lattice constant of InAs is larger than that of GaAs. From Figs. 2–3, it is easy to conclude that strain distributions obtained from the conventional and proposed models lead to significant difference.

3. Optical properties

For strained quantum-dot nanostructures, the confinement potential can be written as a sum of energy offsets of the conduction band (or valence band), Vband, and the strain-induced potential, Vstrain, as

V ð~rÞ ¼ Vbandð~rÞ þ Vstrainð~rÞ: (4) Since strain effects induce an extra potential field, it then alters the band structure and optical properties of the quantum-dot system. In spite of inhomogeneous distribution of induced strain (as depicted inFigs. 2–3), the Pikus–Bir Hamiltonian and the Luttinger–Kohn model [4] together with the computed strain field are employed as usual as an approximation to analyze strain-induced po-tentials in quantum dots.

The strain-induced potential along the z-axis is superimposed to energy band of bulk materials, as shown inFig. 4. It is found that the strain effects on potentials of both the conduction and valence bands are non-negligible and non-uniform, espe-cially, in the wetting layer and the quantum-dot regions.

Based on the computed energy and the com-puted wave function spectrum, the energy of interband optical transitions can readily be ob-tained. The calculated transition energies are in the

ARTICLE IN PRESS

0 20 40 60 z (nm) -0.06 -0.04 εxx -0.02 0 0.02 Conventional model Proposed Model InAs/GaAs interface

Fig. 2. Strain component xxalong the z-axis.

0 20 40 60 z (nm) 0 0.02 0.04 εzz 0.06

0.08 Conventional ModelProposed Model

InAs/GaAs interface

Fig. 3. Strain component zzalong the z-axis.

(4)

range from 1.482 to 0.916 eV, which corresponds to 836–1353 nm in the optical wavelength spec-trum as shown in Fig. 4. It shows that the wavelengths based on the strain fields from the proposed model differ significantly from their counterparts through the conventional model, especially for the cases of longer wavelength. It suggests that the proposed model of strain analysis might be necessary for the future optical analysis and applications.

4. Conclusions

In this article, a novel model based on the theory of linear elasticity with the aid of finite element analysis has been proposed to investigate the strain field as well as strain effects on optoelectronic properties of the pyramidal InAs/GaAs quantum-dot structures. In order to take into account the

sequence of fabrication process the strain field in the heterostructure system without capping mate-rial was analyzed. The numerical results of the strain field from the proposed model have shown significant difference from the conventional model where the sequence of fabrication process was omitted.

The calculated strain field has also been used as an input for the electronic band structure calcula-tion. The computed wavelengths of the optical transition energies ranged from 836 to 1353 nm. In the meantime, the wavelengths based on the strain fields from the proposed strain analysis have also differed significantly from the counterparts of the conventional strain analysis model. Hence the proposed strain analysis is necessary for the future optical analysis and applications.

Acknowledgement

This work is carried out in the course of research sponsored by the National Science Council of Taiwan under Grant NSC92-2212-E-002-072.

References

[1] D. Bimberg, M. Grundmann, N.N. Ledentsov, Quantum Dot Heterostructures, Wiley, New York, 1999.

[2] P. Harrison, Quantum Wells, Wires and Dots: Theoretical and Computational Physics, Wiley, New York, 2000. [3] G.E. Pikus, G.L. Bir, Sov. Phys. Solid State 1 (1960) 1502. [4] G. Muralidharan, Jpn. J. Appl. Phys. 39 (2000) L658. [5] H.T. Johnson, L.B. Freund, C.D. Akyu¨z, A. Zaslavsky, J.

Appl. Phys. 84 (1998) 3714.

[6] L.B. Freund, H.T. Johnson, J. Mech. Phys. Solids 38 (2001) 1045.

ARTICLE IN PRESS

800 1000 1200 1400 800 1000 1200 1400 (a) (b)

Fig. 4. The wavelengths of optical transition energies from 836 to 1353 nm via (a) the conventional model and (b) the proposed model.

M.K. Kuo et al. / Physica E 26 (2005) 199–202 202
