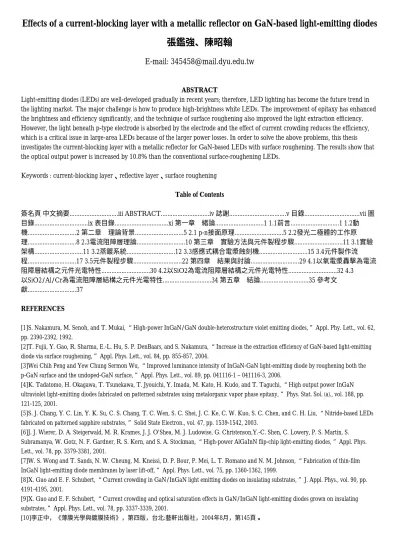

Effects of a current-blocking layer with a metallic reflector on GaN-based light-emitting diodes 張鑑強、陳昭翰
E-mail: [email protected]
ABSTRACT
Light-emitting diodes (LEDs) are well-developed gradually in recent years; therefore, LED lighting has become the future trend in the lighting market. The major challenge is how to produce high-brightness white LEDs. The improvement of epitaxy has enhanced the brightness and efficiency significantly, and the technique of surface roughening also improved the light extraction efficiency.
However, the light beneath p-type electrode is absorbed by the electrode and the effect of current crowding reduces the efficiency, which is a critical issue in large-area LEDs because of the larger power losses. In order to solve the above problems, this thesis investigates the current-blocking layer with a metallic reflector for GaN-based LEDs with surface roughening. The results show that the optical output power is increased by 10.8% than the conventional surface-roughening LEDs.
Keywords : current-blocking layer、reflective layer、surface roughening Table of Contents
簽名頁 中文摘要...iii ABSTRACT...iv 誌謝...v 目錄...vii 圖 目錄...ix 表目錄...xi 第一章 緒論...1 1.1前言...1 1.2動 機...2 第二章 理論背景...5 2.1 p-n接面原理...5 2.2發光二極體的工作原 理...8 2.3電流阻障層理論...10 第三章 實驗方法與元件製程步驟...11 3.1實驗 架構...11 3.2蒸鍍系統...12 3.3感應式耦合電漿蝕刻機...15 3.4元件製作流 程...17 3.5元件製程步驟...22 第四章 結果與討論...29 4.1以氧電漿轟擊為電流 阻障層結構之元件光電特性...30 4.2以SiO2為電流阻障層結構之元件光電特性...32 4.3
以SiO2/Al/Cr為電流阻障層結構之元件光電特性...34 第五章 結論...35 參考文 獻...37
REFERENCES
[1]S. Nakamura, M. Senoh, and T. Mukai, “High-power InGaN/GaN double-heterostructure violet emitting diodes,” Appl. Phy. Lett., vol. 62, pp. 2390-2392, 1992.
[2]T. Fujii, Y. Gao, R. Sharma, E.-L. Hu, S. P. DenBaars, and S. Nakamura, “Increase in the extraction efficiency of GaN-based light-emitting diode via surface roughening,” Appl. Phys. Lett., vol. 84, pp. 855-857, 2004.
[3]Wei Chih Peng and Yew Chung Sermon Wu, “Improved luminance intensity of InGaN-GaN light-emitting diode by roughening both the p-GaN surface and the undoped-GaN surface,” Appl. Phys. Lett., vol. 89, pp. 041116-1–041116-3, 2006.
[4]K. Tadatomo, H. Okagawa, T. Tsunekawa, T. Jyouichi, Y. Imada, M. Kato, H. Kudo, and T. Taguchi, “High output power InGaN ultraviolet light-emitting diodes fabricated on patterned substrates using metalorganic vapor phase epitaxy,” Phys. Stat. Sol. (a)., vol. 188, pp.
121-125, 2001.
[5]S. J. Chang, Y. C. Lin, Y. K. Su, C. S. Chang, T. C. Wen, S. C. Shei, J. C. Ke, C. W. Kuo, S. C. Chen, and C. H. Liu, “Nitride-based LEDs fabricated on patterned sapphire substrates,” Solid State Electron., vol. 47, pp. 1539-1542, 2003.
[6]J. J. Wierer, D. A. Steigerwald, M. R. Krames, J. J. O'Shea, M. J. Ludowise, G. Christenson,Y.-C. Shen, C. Lowery, P. S. Martin, S.
Subramanya, W. Gotz, N. F. Gardner, R. S. Kern, and S. A. Stockman, “High-power AlGaInN flip-chip light-emitting diodes,” Appl. Phys.
Lett., vol. 78, pp. 3379-3381, 2001.
[7]W. S. Wong and T. Sands, N. W. Cheung, M. Kneissi, D. P. Bour, P. Mei, L. T. Romano and N. M. Johnson, “Fabrication of thin-film InGaN light-emitting diode membranes by laser lift-off,” Appl. Phys. Lett., vol. 75, pp. 1360-1362, 1999.
[8]X. Guo and E. F. Schubert, “Current crowding in GaN/InGaN light emitting diodes on insulating substrates,” J. Appl. Phys., vol. 90, pp.
4191-4195, 2001.
[9]X. Guo and E. F. Schubert, “Current crowding and optical saturation effects in GaN/InGaN light-emitting diodes grown on insulating substrates,” Appl. Phys. Lett., vol. 78, pp. 3337-3339, 2001.
[10]李正中，《薄膜光學與鍍膜技術》，第四版，台北:藝軒出版社，2004年8月，第145頁。
[11]C. Huh, J. M. Lee, D. J. Kim, and S. J. Park, “Improvement in Light-Output Efficiency of InGaN/GaN Multiple-Quantum Well Light-Emitting Diodes by Current Blocking Layer,” J. Appl. Phys., vol. 92, no. 5, pp. 2248-2250, September 2002.
[12]J. Yan, M. J. Kappers, Z. H. Barber, C. J. Humphreys, “Effects of oxygen plasma treatment s on the formation of ohmic contacts to GaN,”
Appl. Surf. Sci., vol. 234, pp. 328-332, 2004.
