(1)

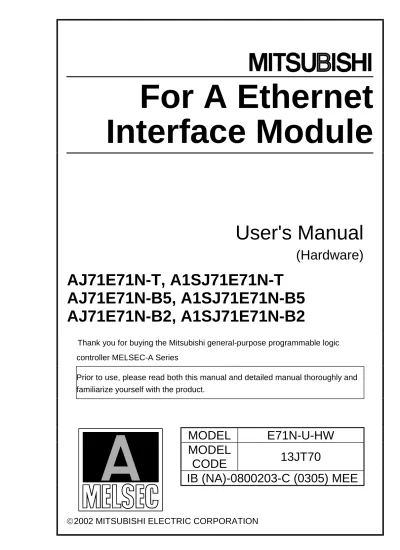

For A Ethernet Interface Module

User's Manual

(Hardware)

AJ71E71N-T, A1SJ71E71N-T AJ71E71N-B5, A1SJ71E71N-B5 AJ71E71N-B2, A1SJ71E71N-B2

Thank you for buying the Mitsubishi general-purpose programmable logic controller MELSEC-A Series

Prior to use, please read both this manual and detailed manual thoroughly and familiarize yourself with the product.

MODEL E71N-U-HW MODEL

CODE 13JT70

IB (NA)-0800203-C (0305) MEE

2002 MITSUBISHI ELECTRIC CORPORATION

(2)

DANGER

CAUTION

z SAFETY PRECAUTIONS z

(Always read before starting use)

When using Mitsubishi equipment, thoroughly read this manual and the associated manuals introduced in the manual. Also pay careful attention to safety and handle the module

properly.

These precautions apply only to the installation of Mitsubishi equipment and the wiring with the external device. Refer to the user's manual of the CPU module to be used for a

description of the PLC system safety precautions.

These SAFETY PRECAUTIONS classify the safety precautions into two categories:

"DANGER" and "CAUTION".

Procedures which may lead to a dangerous condition and cause death or serious injury if not carried out properly.

Procedures which may lead to a dangerous condition and cause superficial to medium injury, or physical damage only, if not carried out properly.

Depending on circumstances, procedures indicated by

CAUTION

may also be linked to serious results.

In any case, it is important to follow the directions for usage.

Store this manual in a safe place so that you can take it out and read it whenever necessary.

Always forward it to the end user.

(3)

[DESIGN PRECAUTIONS]

CAUTION

z When laying the control wire or communication cable, do not bundle with or place near main circuit or power line.

Keep them at least 100 mm (3.94 in.) away from such cables.

Noise may cause erroneous operation.

[INSTALLATION PRECAUTIONS]

CAUTION

z Use the PLC in the environment given in the general specifications section of the user's manual to be used. Using the PLC outside the range of the general specifications may result in electric shock, fire, or erroneous operation or may damage or degrade the product.

z Install so that the tabs at the bottom of the module fit securely into the base unit

mounting holes. (The AnS series module shall be fastened by screws in the base unit at the specified torque.)

Not installing the module correctly could result in erroneous operation, damage, or pieces of the product falling.

z Tighten the screw within the range of specified torque.

If the screws are loose, it may result in fallout, short circuits or malfunction.

Tightening the screws to far may cause damage to the screw and/or the module, resulting in fallout, short circuits or malfunction.

z Make sure to switch all phases of the external power supply off before mounting or removing the module.

If you do not switch off the external power supply, it will cause electric shock or damage to the product.

z Do not touch the electronic parts or the module conducting area directly.

It may cause erroneous operation or failure.

(4)

[WIRING PRECAUTIONS]

CAUTION

z Perform correct pressure-displacement, crimp-contact or soldering for external wire connections using the tools specified by the manufactures. Incorrect connection may cause short circuits, fire or malfunction.

z Attach connector to the module securely.

z Be sure to fix communication cables or power supply cables leading from the module by placing them in the duct or clamping them. Cables not placed in the duct or without clamping may hang or shift, alllowing them to be accidentally pulled, which may cause a module malfunction and cable damage.

z Tighten the screw within the range of specified torque.

If the screws are loose, it may result in short circuits or malfunction.

Tightening the screws to far may cause damage to the screw and/or the module, resulting in fallout, short circuits or malfunction.

z Do not grab on the cable when removing the communication cable connected to the module.

When removing the cable with a connector, hold the connector on the side that is connected to the module.

When removing the cable connected to the terminal block, first loosen the screws on the part that is connected to the terminal block.

Pulling the cable that is still connected to the module may cause a malfunction or damage to the module or cable.

z Solder coaxial cable connectors properly.

Insufficient soldering may cause malfunction.

z Be sure that cuttings, wire chips, or other foreign matter do not enter the module.

Foreign matter may start a fire or cause an accident or erroneous operation.

(5)

Revisions

The manual number is given on the bottom left of the back cover.

Print Date Manual Number Revision

Jan., 2002 IB(NA)-0800203-A First printing May, 2003 IB(NA)-0800203-B Correction

Chapter 2, Chapter 4 May, 2003 IB(NA)-0800203-C Additional model

AJ71E71N-T, A1SJ71E71N-T, AJ71E71N-B5, A1SJ71E71N-B5

Deleted model

AJ71E71N-B5T, A1SJ71E71N-B5T

This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

 2002 MITSUBISHI ELECTRIC CORPORATION

(6)

1. Overview

This manual explains how to install the following Ethernet interface modules (abbreviated as E71 hereafter) for A series PLC CPU and how to wire them with external devices.

After unpacking E71, verify that the following parts are contained.

Model name Product name No. of items

AJ71E71N-T AJ71E71N-T type Ethernet Interface Module 1 AJ71E71N-B5 AJ71E71N-B5 type Ethernet Interface Module 1 AJ71E71N-B2 type Ethernet Interface Module 1 AJ71E71N-B2

F type Connector (A6RCON-F) 1

A1SJ71E71N-T A1SJ71E71N-T type Ethernet Interface Module 1 A1SJ71E71N-B5 A1SJ71E71N-B5 type Ethernet Interface Module 1 A1SJ71E71N-B2 type Ethernet Interface Module 1 A1SJ71E71N-B2

F type Connector (A6RCON-F) 1

(9)

2. Performance Specifications

The performance specifications of E71 is shown below. See CPU module user's manual to be used for E71 general specifications.

Specifications AJ71E71N-T A1SJ71E71N-T Item

10BASE-T Data transmission

speed 10 Mbps

Communication mode Half-duplex

Transmission method Base band

Maximum distance

between nodes —

Maximum segment

length 100 m (328.08 ft.) ( 1)

Maximum number of

nodes/connection Cascade connection is a maximum 4 stages Transmission

specifications

Minimum node interval —

Number of allowable simultaneously open connectors

8 connections

Fixed buffer 1 k word × 8

Transmission data storage memory

Random access buffer 3 k word × 2

Number of remote nodes that can be communicated in a single initial processing

No restrictions

Number of occupied I/O points 32 points/1 slot (I/O assignments: special 32 points) 5 V DC internal current consumption AJ71E71N-T : 0.55A

A1SJ71E71N-T : 0.56A

Connector Modular jack (RJ45)

Connection cable Un-shield twisted pair cable (UTP category 3 (4, 5)) 12 V DC external power supply

capacity (for transceiver) —

External dimensions

AJ71E71N-T:

250 (9.84) (H) × 37.5 (1.48) (W) × 106 (4.17) (D) [mm (in.)]

A1SJ71E71N-T:

130 (5.12) (H) × 34.5 (1.36) (W) × 94 (3.70) (D) [mm (in.)]

y All do not include the protruded section on the front surface.

Waight AJ71E71N-T : 0.30 kg (0.66Ib.)

A1SJ71E71N-T : 0.17 kg (0.37Ib.)

(10)

Specifications AJ71E71N-B5

A1SJ71E71N-B5

AJ71E71N-B2 A1SJ71E71N-B2 Item

10BASE5 10BASE2

Data transmission

speed 10 Mbps

Communication mode Half-duplex

Transmission method Base band

Maximum distance

between nodes 2500 m (8202.10 ft.) 925 m (3034.77 ft.) Maximum segment

length 500 m (1640.42 ft.) 185 m (606.96 ft.)

Maximum number of

nodes/connection 100 nodes per segment 30 nodes per segment Transmission

specifications

Minimum node interval 2.5 m (8.20 ft.) 0.5 m (1.64 ft.) Number of allowable

simultaneously open connectors

8 connections

Fixed buffer 1 k word × 8

Transmission data storage memory

Random access buffer 3 k word × 2

Number of remote nodes that can be communicated in a single initial processing

No restrictions

Number of occupied I/O points 32 points/1 slot (I/O assignments: special 32 points) 5 V DC internal current consumption AJ71E71N-B5 : 0.55A

A1SJ71E71N-B5 : 0.57A

AJ71E71N-B2 : 0.67A A1SJ71E71N-B2 : 0.66A

Connector D-sub connector

(Male 15-pin) BCN connector

Connection cable AUI cable

(Twisted pair cable)

Coaxial cable (RG58A/U, RG58C/U) 12 V DC external power supply

capacity (for transceiver) ( 2) —

External dimensions

AJ71E71N-B5, AJ71E71N-B2:

250 (9.84) (H) × 37.5 (1.48) (W) × 106 (4.17) (D) [mm (in.)]

A1SJ71E71N-B5, A1SJ71E71N-B2:

130 (5.12) (H) × 34.5 (1.36) (W) × 94 (3.70) (D) [mm (in.)]

y All do not include the protruded section on the front surface.

Waight

AJ71E71N-B5:

0.33 kg (0.73Ib.) A1SJ71E71N-B5:

0.19 kg (0.42Ib.)

AJ71E71N-B2:

0.35 kg (0.77Ib.) A1SJ71E71N-B2:

0.20 kg (0.44Ib.) 1 Length between hub and node.

2 It is required to use the one that satisfies the specifications of the transceiver and the AUI cable. Also, for the AJ71E71N-B5, the voltage drop (Max. 0.8V) must be taken into

(11)

Notes (1) Each item in the transmission specifications gives supplementary explanation.

• When connected by 10BASE2, 10BASE5 Segment length

Segment length

Node

Node Node

Node Node Transceiver

Terminator

Repe- ater

Maximum distance between nodes

Repe- ater

Segment length

• When connected by 10BASE-T

Maximum 100 m (328.08 ft.)

Maximum 100 m (328.08 ft.) E71

Hub

Cascade connection is a maximum of 4 stages

(2) Hardware specifications for E71 are based on IEEE802.3.

(12)

3. Settings and Names of Each Part

RUN BUF1 BUF2 BUF3 BUF4 BUF5 BUF6BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

AJ71E71N-B5

10BASE5 EXT.PW

(FG) EXT.PW

ON SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 MODE 0:ONLINE 1:OFFLINE 2:TEST1 3:TEST2 4:TEST3

4 BC

9DF

135

78 0

AJ71E71N-T

10BASE-T RUN BUF1

BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

ON MODE 0:ONLINE 1:OFFLINE 2:TEST1 3:TEST2 4:TEST3

4 C AB

9DEF

78561230

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

AJ71E71N-B5 AJ71E71N-B2 AJ71E71N-T

1)

2) 3)

8) 1)

2) 3)

5) 6)

7) 1)

2) 3) 4)

RUN BUF1 BUF2 BUF3 BUF4 BUF5 BUF6BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

AJ71E71N-B2

ON SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

MODE 0:ONLINE 1:OFFLINE 2:TEST1 3:TEST2 4:TEST3

4 BC

9DF

135

78 0

OFF

A1SJ71E71N-B5 EXT.PW 10BASE5

MODE

A1SJ71E71N-B5

SW.ERR.BSY COM.ERR.

CPU R/W TEST ERR.TEST RDY RUN BUF1

BUF2 BUF3BUF4 BUF5 BUF6BUF7 BUF8

0:ONLINE 1:OFFLINE 2:TEST1 3:TEST2 4:TEST3

4 BC

9ADEF

123

8756 0

A1SJ71E71N-B5 A1SJ71E71N-B2

A1SJ71E71N-T 10BASE-T

A1SJ71E71N-T

BSY SW.ERR.

COM.ERR.

BUF2BUF3 BUF4 BUF5 BUF6BUF7 BUF8

4 BC

9ADEF

123

8756 0

A1SJ71E71N-T

1)

2) 3)

8) 1)

2)

7)

6) 1)

2) 4)

A1SJ71E71N-B2 SW2 SW3 SW4 SW5 SW6 SW7

OFF ON MODE

08

F

7

E 6

D 5 C

4 B 3 A

2

9 1

A1SJ71E71N-B2

SW.ERR.BSY COM.ERR.

BUF2 BUF3BUF4 BUF5 BUF6BUF7 BUF8

SW8 SW1

3)

OFF ON

A A

Side view indicated by arrow A

For the A1SJ71E71N-T or A1SJ71E71N-B5

(13)

No. Designation Contents

1) Display LED Refer to (1)

2) Operation mode setting switch Refer to (2) 3) Exchange condition setting

switch Refer to (3)

4) 10BASE-T connector (RJ45) Connector for connecting the E71 to the 10BASE-T.

5) External power supply indicator lamp

Lamp for verifying if power is being supplied to the transceiver.

ON: Power supplying OFF: Power not supplied 6) External power supply

terminal

Power source terminals for power source supply to the transceiver.

AJ71E71N-B5 : 14.08 V to 15.75 V A1SJ71E71N-B5: 13.28 V to 15.75 V 7) AUI cable connector

Connector for connecting the E71 to the 10BASE5.

(For connection of 10BASE5-use AUI cable (transceiver cable))

8) 10BASE2 connector Connector for connecting the E71 to the 10BASE2.

(1) Display LED display contents

Display LED Display contents When lamp is lit Lamp is not lit

RUN Normal operation display Normal Error

RDY Exchange ready end display Starts flashing when On-line Operations begin

BSY Exchange processing executing display

Turns on when exchange processing with remote node is being executed.

SW.ERR. (For system) — —

COM.ERR. Exchange error detection display Exchange error Normal CPU R/W Exchange processing executing

with PLC CPU display Exchanging Not exchanging

BUF1 to BUF8

Display of communication line connection status of connection No.n corresponding to BUFn.

Open completed Closed status TEST Self diagnostic executing display Self diagnosis

executing

Self diagnosis completed TEST ERR. Self diagnosis results display Error Normal

(14)

Remark

The order of the display LEDs is shown below.

RUN RDY BSY SW.ERR.

COM.ERR.

CPU R/W

BUF1 BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8

TEST TEST ERR.

RUN RDY BSY SW.ERR.

COM.ERR.

TEST TEST ERR.

CPU R/W

BUF1 BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8 AJ71E71N-T,AJ71E71N-B5,

AJ71E71N-B2

A1SJ71E71N-T,A1SJ71E71N-B5, A1SJ71E71N-B2

(2) Operation mode setting switch setting

Set the E71 operation mode. (Usually set to on-line) Operation mode

setting switch

Setting number

Setting

designation Setting contents

0 On-line Performs exchange with remote node in the normal operation mode.

1 Off-line Disconnects the local station from the network.

2 Test 1 Performs a self diagnosis test using a self loopback test.

3 Test 2 Performs a RAM test.

4 Test 3 Performs a ROM test.

C

4 B

3 A

2

9 1

8 0

7

F 6

E

5 D

5 to F Usage not impossible

(This is set at "0 (on-line) " at the time of shipping from factory.)

(15)

(3) Communications exchange condition setting switch setting Set the conditions for data communication with other nodes.

Communications exchange condition

setting switch

Switch Setting

designation Setting contents

Selects the line processing when the TCP ULP time out error occurrence. ( 1) OFF Close the circuit.

SW1

Line processing selection during TCP timeout error

ON Do not close the circuit.

Selects the type of data code for

exchanging data with the remote node.

OFF Conducts exchange in binary code.

SW2 Data code setting

ON Conducts exchange in ASCII code.

SW3 to SW6

— Usage not possible (Fixed to OFF)

Selects whether to approve or forbid data arriving from the remote node when a PLC CPU is running.

OFF Writing prohibited.

SW7 CPU exchange timing setting

ON Writing approved.

Selects the initial processing starts up timing. ( 2)

OFF

Quick start (starts without a delay time)---Set when one network is used for the entire configuration.

OFF ON SW1

SW2 SW3 SW4 SW5 SW6 SW7 SW8

SW8 Initial timing setting

ON

Normal start (start after a delay of 20 seconds)---Use when the entire configurations is made up of

multiple networks.

(This is set at "OFF" at the time of shipping from factory.) 1 Set to OFF for normal use.

When a TCP ULP time out error (error code: 9059H) occurs due to data transfer from remote node while this switch is set to ON, run the close and open operations with the sequence program.

2 Set to OFF for normal use.

(16)

4. Loading and Installation

The following is explanations of the handling precautions and installation environment which is common to modules when handling E71 from unpacking to installation.

For the details of loading and installation of the module, refer to User's Manual of CPU module to be used.

4.1 Handling Precautions

The following is an explanation of handling precautions of the module.

(1) Because the case of the module is made of resin, be careful not to drop it or expose it to strong impact.

(2) Always make sure to touch the grounded metal to discharge the electricity charged in the body, etc., before touching the module.

Failure to do so may cause a failure or malfunctions of the module.

(3) Execute tightening of the module's installation screws within the range indicated below.

Screw position Tightening torque range

External power supply terminal screw ( 1)

AJ71E71N-B5 : 98 to 137 N⋅cm (M4 screw) A1SJ71E71N-B5 : 40 N⋅cm (M2.5 screw)

Module fixing screw 78 to 118 N⋅cm (M4 screw)

1: This terminal is used as an external power input terminal for supplying power to the transceiver when being connected to a 10BASE5.

4.2 Installation Environment

Refer to User's Manual of CPU module to be used.

(17)

5. Connection to a Network

The following is an explanation of the connection method of the E71 to the 10BASE-T, 10BASE5 or the 10BASE2.

Point

(1) Installation procedures of the network require sufficient safety measures. For the execution of such operations as terminal processing of connection cable, trunk line cable etc., please consult with a trained professional.

(2) When the customer's products match the EMC instructions and the low voltage instructions for connecting E71, use the method in (4) below to install the ferrite core.

(3) When there is a communication error caused by high frequency noise due to the installation environment, take the following steps.

• The ferrite core can be installed using the steps in (4) below.

• When communicating with TCP/IP, increase the count of communication retries.

• When connecting to 10BASE-T, use an unshield twisted pair cable (UTP category 5).

• When connecting to 10BASE2, use a double shielded coaxial cable.

Shield

• When connecting to 10BASE5 or 10BASE2, ground the shield of the coaxial cable at both the local station and companion connected device. (Ground at a place near the connector.)

(4) Below are the steps for installing the ferrite core based on connection to the 10BASE5 network.

Please install the ferrite core ( 1) on the side of the E71 or external devices / the AUI cables transceiver.

1 It is possible to use a TDK Corporation style ZCAT 2032-0930.

E71

Ferrite core

AUI cable Coaxial cable for 10BASE5

Transceiver (For 10BASE5 connection)

(5) When using A1SJ71E71N-B5, when the FG signal is regulated on the side of the external power supply of the original power supply for the transceiver, ground the FG signal at the original power supply.

(18)

5.1 Connecting to the 10BASE-T (AJ71E71N-T, A1SJ71E71N-T)

For AJ71E71N-T

1) Connect the twisted pair cable and the hub.

2) Connect the twisted pair cable to the E71.

5.2 Connecting to the 10BASE5 (AJ71E71N-B5, A1SJ71E71N-B5)

Supply power for transceiver

AUI Cable A

B

Retainer For AJ71E71N-B5

<Connection procedure> ( 1)

1) Slide the retainer toward the direction A as shown in the figure.

2) Push in the AUI cable connector all the way.

3) Slide the retainer toward the direction B as shown in the figure.

4) Confirm that the AUI cable is locked.

5) Supply power to the transceiver ( 2).

(Refer to 2 in Chapter 2)

1 Connect the AUI cable while the power to the module mounting station is turned off.

2 Use a transceiver with a function that is generally called SQETEST or heart beat (a transceiver function that emits signals to notify whether the transceiver is operating normally at the end of communication).

5.3 Connecting to the 10BASE2 (AJ71E71N-B2, A1SJ71E71N-B2)

[2]

[1]

For AJ71E71N-B2

<Connection procedure> ( 2)

1) Push in the connector by aligning the groove [1] and tab [2] as shown in the figure.

2) While pushing in the connector, rotate it clockwise by a 1/4 turn.

3) Turn until the connector locks.

4) Confirm that the connector is locked.

(19)

6. External Dimensions

(1) AJ71E71N-T

AJ71E71N-T

10BASE-T RUN BUF1

BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

ON MODE 0:ONLINE 1:OFFLINE 2:TEST1 3:TEST2 4:TEST3

4

C B

9

D F

13

578 0

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

4.2 106

250 (9.84)

37.5 R1

( 1)

(Unit:mm(in.))

(0.17) (4.17) (1.48)

1 When connecting the twisted pair cable, make the bend radius (R1: scale value) in the vicinity of the connector to (cable outside diameter × 4) or more.

(2) AJ71E71N-B5

RUN BUF1 BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

AJ71E71N-B5

10BASE5 EXT.PW

(FG) EXT.PW

4

C A9BDEF

123

5678 0

106

250 (9.84)

14

4.2 37.5

R2 ( 2)

(Unit:mm(in.)) (4.17) (0.55)

(0.17) (1.48)

2 When connecting the AUI cable, make the bend radius (R2: scale value) in the vicinity of the connector to (cable outside diameter × 4) or more.

(20)

(3) AJ71E71N-B2

RUN BUF1 BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8 RDY BSY SW.ERR.

COM.ERR.

CPU R/W

TEST TEST ERR.

AJ71E71N-B2

4

C

8 0

OFF

106

250 (9.84)

4.2 37.5

56

(Unit:mm(in.)) (4.17)

(0.17) (1.48)

(2.20)

(4) A1SJ71E71N-T

A1SJ71E71N-T 10BASE-T

A1SJ71E71N-T

SW.ERR.BSY COM.ERR.

CPU R/W TEST ERR.TEST

RDYRUN BUF1 BUF2 BUF3BUF4 BUF5BUF6 BUF7 BUF8

4 C AB

9 DEF

1235

67

8 0

R1 ( 3)

94

6.5 34.5

OFF ON

130 (5.12)

(Unit:mm(in.)) (3.70)

(0.26) (1.36)

3 When connecting the twisted pair cable, make the bend radius (R1: scale value) in the

(21)

(5) A1SJ71E71N-B5

34.5

OFF ON

94 6.5

130 (5.12)

7.5

A1SJ71E71N-B5 EXT.PW 10BASE5

MODE

A1SJ71E71N-B5

BSY SW.ERR.

COM.ERR.

CPU R/W TEST ERR.TEST RDY

RUN BUF1

BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8

4 BC

9ADEF

123

8756 0

R2 ( 4)

(Unit:mm(in.)) (1.36)

(3.70)

(0.26) (0.30)

4 When connecting the AUI cable, make the bend radius (R2: scale value) in the vicinity of the connector to (cable outside diameter × 4) or more.

(6) A1SJ71E71N-B2

34.5 94

6.5

130 (5.12)

A1SJ71E71N-B2 SW2 SW3 SW4 SW5 SW6 SW7

OFF ON MODE

08 F

7

E 6

D 5 C

4 B 3 A

2 9

1

A1SJ71E71N-B2

BSY SW.ERR.

COM.ERR.

CPU R/W TEST ERR.

TEST RDY RUN BUF1

BUF2 BUF3 BUF4 BUF5 BUF6 BUF7 BUF8

SW8 SW1

56

(Unit:mm(in.)) (1.36)

(3.70) (0.26)

(2.20)

Ethernet is the registered trademark of XEROX CO., LTD.

10BASE2 is the formal way to say Cheapernet.

There is no registered trademark for Cheapernet.

(22)

Warranty

Mitsubishi will not be held liable for damage caused by factors found not to be the cause of Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products;

damage, secondary damage, accident compensation caused by special factors

unpredictable by Mitsubishi; damages to products other than Mitsubishi products; and to other duties.

For safe use

y This product has been manufactured as a general-purpose part for general industries, and has not been designed or manufactured to be incorporated in a device or system used in purposes related to human life.

y Before using the product for special purposes such as nuclear power, electric power, aerospace, medicine or passenger movement vehicles, consult with Mitsubishi.

y This product has been manufactured under strict quality control. However, when installing the product where major accidents or losses could occur if the product fails, install

appropriate backup or failsafe functions in the system.

U.S.A Mitsubishi Electric Automation Inc.

500 Corporate Woods Parkway Vernon Hills, IL 60061

Tel : +1-847-478-2100

Brazil MELCO-TEC Rep. Com.e Assessoria Tecnica Ltda.

AV. Paulista 1471, Conj. 308, Sao Paulo City, Sao Paulo State,

Brazil

Tel : +55-11-283-2423

Germany Mitsubishi Electric Europe B.V. German

Branch

Gothaer Strasse 8 D-40880 Ratingen,

GERMANY

Tel : +49-2102-486-0

U.K Mitsubishi Electric Europe B.V. UK

Branch

Travellers Lane, Hatfield, Herts., AL10

8XB,UK

Tel : +44-1707-276100

Italy Mitsubishi Electric Europe B.V. Italian

Branch

Centro Dir. Colleoni, Pal. Perseo-Ingr.2 Via Paracelso 12, 20041 Agrate B., Milano, Italy

Tel : +39-039-6053344

Spain Mitsubishi Electric Europe B.V. Spanish

Branch

Carretera de Rubi 76-80 08190 - Sant Cugat del Valles, Barcelona, Spain

Tel : +34-93-565-3131

France Mitsubishi Electric Europe B.V. French

Branch

25 Boulevard des Bouvets, F-92741 Nanterre Cedex, France

TEL: +33-1-5568-5568 South Africa Circuit Breaker Industries LTD.

Hong Kong Ryoden Automation Ltd.

10th Floor, Manulife Tower, 169 Electric Road, North Point, HongKong

Tel : +852-2887-8870

China Ryoden Automation Shanghai Ltd.

3F Block5 Building Automation

Instrumentation Plaza 103 Cao Bao Rd.

Shanghai 200233 China Tel : +86-21-6475-3228 Taiwan Setsuyo Enterprise Co., Ltd.

6F., No.105 Wu-Kung 3rd.RD, Wu-Ku Hsiang, Taipei Hsine, Taiwan

Tel : +886-2-2299-2499

Korea HAN NEUNG TECHNO CO.,LTD.

1F Dong Seo Game Channel Bldg., 660-11, Deungchon-dong Kangsec-ku, Seoul, Korea

Tel : +82-2-3660-9552

Singapore Mitsubishi Electric Asia Pte, Ltd.

307 ALEXANDRA ROAD #05-01/02, MITSUBISHI ELECTRIC BUILDING SINGAPORE 159943

Tel : +65-6473-2308 Thailand F. A. Tech Co.,Ltd.

898/28,29,30 S.V.City Building,Office Tower 2,Floor 17-18 Rama 3 Road,

Bangkpongpang, Yannawa, Bangkok 10120

Tel : +66-2-682-6522

Indonesia P.T. Autoteknindo SUMBER MAKMUR Jl. Muara Karang Selatan Block A Utara No.1 Kav. No.11 Kawasan Industri/

Pergudangan Jakarta - Utara 14440 Tel : +62-21-663-0833

India Messung Systems Put,Ltd.

Electronic Sadan NO:111 Unit No15, M.I.D.C BHOSARI,PUNE-411026 Tel : +91-20-712-2807

Australia Mitsubishi Electric Australia Pty. Ltd.

Country/Region Sales office/Tel Country/Region Sales office/Tel

三菱A1SJ71E71N-B2手册A1SJ71E71N-B2用户手册_广州菱控

For A Ethernet Interface Module

User's Manual

(Hardware)

AJ71E71N-T, A1SJ71E71N-T AJ71E71N-B5, A1SJ71E71N-B5 AJ71E71N-B2, A1SJ71E71N-B2

MODEL E71N-U-HW MODEL

CODE 13JT70

IB (NA)-0800203-C (0305) MEE

DANGER

CAUTION

z SAFETY PRECAUTIONS z

CAUTION

[DESIGN PRECAUTIONS]

CAUTION

[INSTALLATION PRECAUTIONS]

CAUTION

[WIRING PRECAUTIONS]

CAUTION

Revisions

CONTENTS

1. Overview

2. Performance Specifications

3. Settings and Names of Each Part

4. Loading and Installation

5. Connection to a Network

6. External Dimensions
