Application of Field-Induced Source/Drain Schottky Metal-Oxide-Semiconductor to Fin-Like
Body Field-Effect Transistor
View the table of contents for this issue, or go to the journal homepage for more 2002 Jpn. J. Appl. Phys. 41 L626
(http://iopscience.iop.org/1347-4065/41/6A/L626)
Jpn. J. Appl. Phys. Vol. 41 (2002) pp.L626–L628 Part 2, No. 6A, 1 June 2002
c
2002 The Japan Society of Applied Physics
Application of Field-Induced Source/Drain Schottky Metal-Oxide-Semiconductor
to Fin-Like Body Field-Effect Transistor
Horng-Chih LIN1, Meng-Fan WANG2, Fu-Ju HOU1, Jan-Tsai LIU1, Tiao-Yuan HUANG1,2and Simon M. SZE1
1National Nano Device Laboratories, 1001-1 Ta-Hsueh Rd., Hsin-Chu, Taiwan, R.O.C. 2Institute of Electronics, National Chiao-Tung University, Hsin-Chu, Taiwan, R.O.C.
(Received March 4, 2002; revised manuscript received March 21, 2002; accepted for publication April 13, 2002)
A novel Schottky barrier silicon-on-insulator (SOI) metal-oxide-semiconductor field effect transistor (MOSFET) device was proposed and demonstrated. The new device features a silicide source/drain and field-induced source/drain (S/D) extensions. Excellent ambipolar performance with a near-ideal sub-threshold slope (∼ 60 mV/decade) and high on-/off-state current ratio (comparable to or higher than 109) is realized, for the first time, on a single device. These encouraging results suggest that the
new device may be suitable for some niche applications requiring simple and low-temperature processing of complementary
metal-oxide-semiconductor (CMOS)-like devices. [DOI: 10.1143/JJAP.41.L626]
KEYWORDS: Schottky barrier, ambipolar, silicon-on-insulator (SOI), silicide, electrical junction
A Schottky barrier metal-oxide-semiconductor (SB-MOS) transistor1) has been proposed for future nanoscale device
applications.2) The device features more simple and low-temperature processing compared to conventional MOS tran-sistors, by employing metal silicide, in lieu of a heavily-doped region, as the source/drain (S/D). However, the SB-MOS tran-sistor fabricated on bulk silicon wafer using the conventional self-aligned structure, i.e., gate and S/D separated by oxide sidewall spacers, suffers from an intolerably high leakage rent at the Schottky junction. For example, an on/off cur-rent ratio as low as 30 for SB-MOS devices with a chan-nel length of 40 nm was previously reported.3)To reduce the
deleterious leakage current, SB-MOS transistors were fabri-cated on silicon-on-insulator (SOI) wafers.4–8)Significant
im-provements of device characteristics in terms of reduced off-state leakage and low sub-threshold slope have been demon-strated.4)
Another approach to reducing the leakage current in SB-MOS transistor is the use of a field-induced junction.9) The device features a metal field-plate (or sub-gate) lying over the offset channel region near the drain. When a suitable fixed voltage is applied to the sub-gate, an electrical junction is in-duced in the offset channel. We have demonstrated that such a structure is very effective in suppressing the field emission of carriers from the drain junction to the channel10, 11)
dur-ing the off-state operation, so that the off-state leakage be-comes almost independent of the bias between the gate and the drain.9–11)Moreover, depending on the polarity of the
sub-gate bias, unique ambipolar operation capability is realized. This approach was first demonstrated on poly-Si thin-film transistors (TFTs).9–12)More recently, ambipolar SB SOI
de-vices with a channel length of 1.4µm have also been re-ported.12)An excellent on-/off-state current ratio (> 107) was achieved. In this work, we present the ambipolar characteris-tics of a new SB MOS device with field-induced source/drain (S/D) extensions on three sides of the conduction channel. An extremely high on-/off-state current ratio (> 108) and nearly ideal sub-threshold slope (60 mV/decade) for both n- and p-channel operations are demonstrated, for the first time, in a single device.
Figure 1 shows the key process flow and device structure. E-beam lithography was employed for device patterning. Six-inch p-Si separation by implanted oxygen (SIMOX) wafers

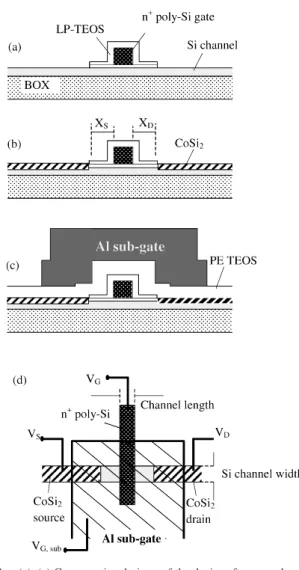

Fig. 1. (a)–(c) Cross-sectional views of the device after some key process steps, and (d) top view of the device’s central portion.
with background doping of approximately 5×1015cm−3were
used as the starting substrates. The active Si device layer was thinned to 80 nm by thermal oxidation. After device island (including S/D contact and Si channel regions) patterning, gate oxide (2.2 nm) and in situ doped n+ poly-Si (150 nm) films were deposited. Gate electrodes were then defined and patterned using plasma etching with high poly-Si/oxide etch selectivity (> 100). An low pressure tetra-ethyl-ortho-silicate
Jpn. J. Appl. Phys. Vol. 41 (2002) Pt. 2, No. 6A H.-C. LINet al. L627
Si
Channel
Gate
Contact
region
Fig. 2. SEM image of a fabricated device with three fins before silicide step (Fig. 1(a)).
(LP-TEOS) (20 nm) layer was then deposited and etched to define the offset (i.e., source/drain extension) regions (Fig. 1(a)). A Co silicide process was subsequently applied to form CoSi2 in the S/D regions (Fig. 1(b)). Next, a 40-nm-thick
plasma-enhanced TEOS layer was deposited, followed by contact hole and Al pad/sub-gate formation (Fig. 1(c)). It is worth noting that no implantation step was used in the pro-cess. The top view of the device’s central portion is shown in Fig. 1(d). A scanning electron microscope (SEM) image of a fabricated sample is shown in Fig. 2. The offset length on both source and drain sides (XSand XDin Fig. 1(b)) of the devices
reported here is fixed at 100 nm, and the spacing between the gate and the S/D contact region was 2µm (Fig. 1(b)).
Note that, as the channel width is scaled down to less than 100 nm, the new device becomes similar to the double-gate FinFET reported previously.13) In fact, the new device
actu-ally has a triple-gate structure,14) i.e., both the top and
side-wall surfaces of the Si film underneath the main gate serve as a conduction channel, since no hard mask was employed on the Si channel. As a result, the effective channel width should be the sum of the Si channel width (Fig. 1(d)) and twice of the Si thickness (80 nm).
Figure 3 depicts the ambipolar sub-threshold and output characteristics of devices with channel length L = 470 nm. The Si channel width is 50 nm in Fig. 3(a) and 2µm in Fig. 3(b), respectively. VG. subis fixed at 7.5 V for n-channel
opera-tion, and−7.5 V for p-channel operation. The sub-gate biases were chosen to be high enough to realize a sufficient on/off current ratio, and low enough not to jeopardize the underlying dielectric reliability. When a high sub-gate bias is applied, the tunneling barrier width at the source junction is significantly reduced,15)as is the contact resistance of the Schottky
junc-tion. As a result, the on current will be significantly increased. It was also found that the sub-threshold slope is not signifi-cantly affected if the applied sub-gate bias is sufficiently large (data not shown), consistent with results of a previous study16) which investigated the effect of sub-gate bias on the opera-tion of an n-channel MOSFET. This indicates that the elec-trical junctions induced by the sub-gate become part of the source/drain during device operation. More detailed results regarding the effect of sub-gate bias on the device operation
Gate Voltage (V)
-2 -1 0 1
Drain Current (A/micron)
10-15 10-14 10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 10-5 10-4 10-3 -2 -1 0 1
Drain Current (A/micron)
10-15 10-14 10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 10-5 10-4 10-3 Gate Voltage (V) VD = 0.1 V VD = -0.1 V L = 470 nm Si channel width = 50 nm VD = 1.5 V VD = -1.5 V (a) VD = 0.1 V VD = -0.1 V VD = 1.5 V VD = -1.5 V (b) L = 470 nm Si channel width = 2 m
Fig. 3. Ambipolar sub-threshold characteristics of SB FinFET devices with channel width of (a) 50 nm, and (b) 2µm. |VG. sub| is fixed at 7.5 V.
will be reported elsewhere.17)
Our experimental results show that an extremely high on/off current ratio (comparable to or higher than 109) could be achieved in the new devices. For the device with a Si chan-nel width of 50 nm, the sub-threshold slope is 60.6 mV/decade for n-channel operation, and 60.8 mV/decade for p-channel operation. These values are close to the ideal case, e.g., 60 mV/decade. To the best of our knowledge, such superior ambipolar characteristics on a single device have never been achieved before.
When the Si channel width is increased to 2µm, as shown in Fig. 3(b), the sub-threshold slope increases to around 66 and 67 mV/decade for n- and p-channel modes, respectively. In addition, the drain-induced barrier lowering (DIBL) ef-fect (∼ 40 mV) becomes apparent. This trend is further high-lighted in Fig. 4, in which the sub-threshold slope is shown as a function of channel width. It can be seen that the sub-threshold slope increases with the Si channel width, consis-tent with the trend previously reported for MOS FinFET de-vices.13) This indicates that when the Si channel is scaled down to the nanometer regime, the ultrathin body of the
de-L628 Jpn. J. Appl. Phys. Vol. 41 (2002) Pt. 2, No. 6A H.-C. LINet al. Si Channel Width (nm) 100 1000 SS (mV/dec.) 50 55 60 65 70 75 80 n-type, VD = 0.1 V n-type, VD = 1.5 V p-type, VD = -0.1 V p-type, VD =-1.5 V
L = 470 nm
Fig. 4. Sub-threshold slope (SS) as a function of the fin width.
vice effectively prevents the S/D punch-through.
It should be noted that the on currents shown in Fig. 3 are not high, primarily due to the use of Co silicide which has a high barrier height for both electrons and holes. Optimum sili-cide materials with low barrier height, e.g., ErSi for n-channel and PtSi for p-channel operation,4, 8)could further enhance the performance of each specific operation mode. IDcould also
be further improved by reducing the offset length (Fig. 1(b)) and the spacing between the gate and the S/D contact region (Fig. 2).
The proposed Schottky-Barrier SOI device is very simple in terms of fabrication and requires no implantation or associ-ated annealing steps. Also, it is capable of bi-channel opera-tion, which is unique, noteworthy, and greatly simplifies com-plementary metal-oxide-semiconductor (CMOS) integration.
Excellent device performance in terms of a near-ideal sub-threshold slope and high on/off current ratio (comparable to or higher than 109) is demonstrated, suggesting that such a de-vice is potentially useful for a number of CMOS-like dede-vice applications.
This work was supported by the National Science Coun-cil of ROC under contract No. NSC91-2721-2317-200. The authors are grateful to Dr. F.-H. Ko, Dr. G.-W. Huang, and Dr. H.-L. Chen for their technical assistance during the course of this study.
1) M. P. Lepselter and S. M. Sze: Proc. IEEE 56 (1968) 1400.
2) J. R. Tucker, C. Wang and P. A. Carney: Appl. Phys. Lett. 65 (1994) 618.
3) C. Wang, J. P. Snyder and J. R. Tucker: Appl. Phys. Lett. 74 (1999) 1174. 4) J. Kedzierski, P. Xuan, E. H. Anderson, J. Bokor, T. J. King and C. Hu:
IEDM Tech. Dig. (2000) p. 57.
5) M. Nishisaka and T. Asano: Jpn. J. Appl. Phys. 37 (1998) 1295. 6) W. Saitoh, A. Itoh, S. Yamagami and M. Asada: Jpn. J. Appl. Phys. 38
(1999) 6226.
7) M. Nishisaka, Y. Ochiai and T. Asano: 56th Annual Device Research Conf. Dig., Virginia, 1998, p. 72.
8) M. Nishisaka and T. Asano: Jpn. J. Appl. Phys. 37 (1998) 1295. 9) H. C. Lin, C. Y. Lin, K. L. Yeh, R. G. Huang, M. F. Wang, C. M. Yu,
T. Y. Huang and S. M. Sze: IEDM Tech. Dig. (2000) p. 857. 10) H. C. Lin, K. L. Yeh, R. G. Huang, C. Y. Lin and T. Y. Huang: IEEE
Electron Device Lett. 22 (2001) 179.
11) H. C. Lin, K. L. Yeh, R. G. Huang, T. Y. Huang and S. M. Sze: IEEE Trans. Electron Devices 49 (2002) 264.
12) K. L. Yeh, H. C. Lin, R. G. Huang, R. W. Tsai and T. Y. Huang: Appl. Phys. Lett. 79 (2001) 635.
13) D. Hisamoto, W. C. Lee, H. Takeuchi, K. Asano, C. Kuo, E. Anderson, T. J. King, J. Bokor and C. Hu: IEEE Trans. Electron Devices 47 (2000) 2320.
14) J.-P. Colinge: SOI Technology: Materials to VLSI (Kluwer Academic Publishers, Boston, 1997) 2nd ed.
15) B. Winstead and U. Ravaioli: IEEE Trans. Electron Devices 47 (2000) 1241.
16) H. Noda, F. Murai and S. Kimura: IEDM Tech. Dig. (1993) p. 123. 17) H. C. Lin, M. F. Wang, F. J. Ho, J. T. Liu, F. H. Ko, H. L. Chen, G. W.
Huang, Y. Li, T. Y. Huang and S. M. Sze: to be published in the 60th Annual Device Research Conf. Dig., Santa Barbara, 2002.
