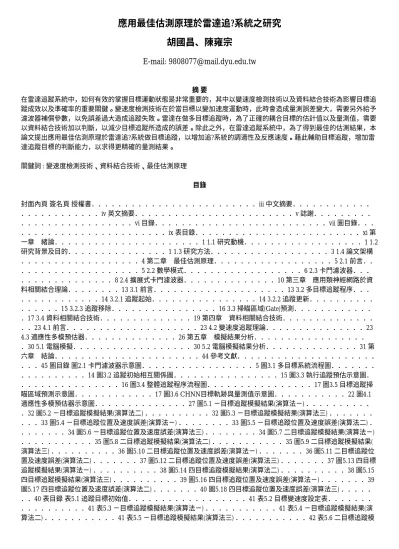

應用最佳估測原理於雷達追?系統之研究 胡國昌、陳雍宗
E-mail: [email protected]
摘 要
在雷達追蹤系統中，如何有效的掌握目標運動狀態是非常重要的，其中以變速度檢測技術以及資料結合技術為影響目標追 蹤成效以及準確率的重要關鍵。變速度檢測技術在於當目標以變加速度運動時，此時會造成量測誤差變大，需要另外給予 濾波器補償參數，以免誤差過大造成追蹤失敗。雷達在做多目標追蹤時，為了正確的耦合目標的估計值以及量測值，需要 以資料結合技術加以判斷，以減少目標追蹤所造成的誤差。除此之外，在雷達追蹤系統中，為了得到最佳的估測結果，本 論文提出應用最佳估測原理於雷達追?系統做目標追蹤，以增加追?系統的調適性及反應速度。藉此輔助目標追蹤，增加雷 達追蹤目標的判斷能力，以求得更精確的量測結果。
關鍵詞 : 變速度檢測技術、資料結合技術、最佳估測原理 目錄
