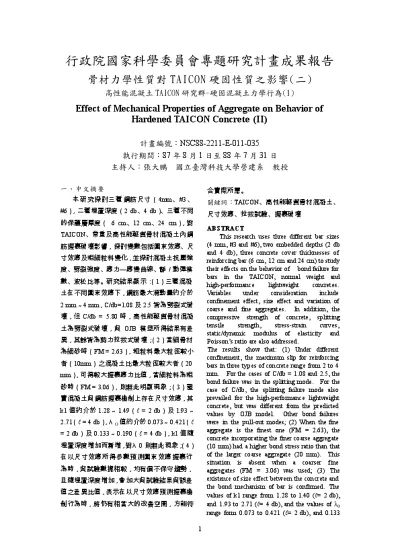

高性能混凝土TAICON研究群---硬固混凝土力學行為(III)---子計畫II：骨材力學性質對TAICON硬固性質之影響(II)

(1)

Effect of Mechanical Properties of Aggregate on Behavior of Hardened TAICON Concrete (II)

NSC88-2211-E-011-035

!87 " 8 # 1 $% 88 " 7 # 31 $

&'()+ ,-./01234 56

4mm #3

#6 2 db 4 db

6 cm 12 cm 24 cm

TAICON !"#$%&'()*

+,-./012345678 789:;<1=>'()?@A

BCA 8DE81FG HIJKL 2 MNOPQRSTUV1'(

)W5678X YZ[J\]^_

2 mm ~ 4 mm C/db=1.08 2.5 `aBCb- .c C/db = 5.80 d !"#$%&'(

)aBCb-.e OJB LfghRSij klm`anDopb-.q2r:%&

a:sdFM = 2.639;<YZ;tuv w10mmx'()OYZ;tuZw20 mm yhuZ+,8DOzr:;<a9 sdFM = 3.06{|}~Tq3

'()e +,W78l k1 z]^_ 1.28 ~ 1.49l = 2 db 1.93 ~ 2.71 l = 4 db _O z]^_ 0.073 ~ 0.421l

= 2 db 0.133 ~ 0.190l = 4 dbk1 z

0 {|}q 4

W78gh25678+,

ade2ui

ZeRSej zxjkOzUW78+,

ad irZ¡¢£¤¥"¦

§¨g©Q

TAICON !"#$%&'() 78 op +,-.

ABSTRACT

This research uses three dif fer ent bar sizes (4 mm, #3 and #6), two embedded depths (2 db and 4 db), three concrete cov er thicknesses o f rein for cing bar (6 cm, 12 cm and 24 cm) to study their e f fe cts on the behavior o f bond failure for bars in the TAICON, normal weight and high-per fo rmanc e lightweight concret es.

Variables und er conside ration include con finement e f f ect, size ef f ect and variation of coars e and fine agg regat es. In addition, the compressive strength of conc rete, splitting tensile strength, stress-strain curv es, static/dynamic modulus of elasticity and Poisson’s ratio are also addressed.

The results show that: (1) Under dif fe rent

con finement, the maximum slip for reinfo rcing

bars in three typ es o f con cret e rang e from 2 to 4

mm. For the cases of C/db = 1.08 and 2.5, the

bond failure was in the splitting mode. For the

case o f C/db, the splitting failure mode also

prevailed fo r the high-per fo rmanc e lightweight

concr ete, but was dif f er ent from the pr edicted

values by OJB model. Other bond failures

were in the pull-out modes; (2) When the fine

aggreg ate is the finest one (FM = 2.63), the

concr ete incorpor ating the finer co arse aggreg ate

(10 mm) had a higher bond stress ratio than that

of the larger co arse agg regat e (20 mm). This

situation is absent when a coa rser f ine

aggreg ates (FM = 3.06) was used; (3) The

existence o f siz e e f f ect betw een the con cr ete and

the bond mechanism of bar is con firmed. The

values of k1 range f rom 1.28 to 1.40 ( l= 2 db),

and 1.93 to 2.71 ( l= 4 db), and the values of λ ₀

range form 0.073 to 0.421 ( l= 2 db), and 0.133

(2)

to 0.190 ( l= 4 db). The values increases with the increas e o f the depth of embedd edment; (4) Compared with the experimental data, the predicted bond strength with confinement e f f ect using the parameters obtained from the size-e f f e ct law was on the unconservative side.

Besides, the deviation increases with the increas e of the embeddedment depths. This indicates that there still needs a considerable rese arch e f fo rt in the area o f size ef fe ct law to predict the bond mechanism of reinfo rcing bar be for e the law can be adopted to the practical application.

Keywords: TAICON, high-per forman ce lightweight concrete, pull-out test, bond failure

ª«'()¬®W¯°%&x'§

± ² ³ ´ µ ¶ · i A ' ( ) High-strength concreteHSC¸¹º»

µ¶·i !"'() High-Performance concr ete HPC¼Q !"'()½i A ¾J! ¿À! ÁÂ1eÁÃ ÄÅÆQÇ¹¹ÈeÉÊ'()Y ZjkËÌwZ\ÍÎÏÐÑPozzolanic materials &<ÐÒ<Ó½iÔeÕÖ!

×ÅÆØÙ_ÏÐÑ&<Ú¿

À!iTÛÜ QHPC ²³¸ÝÓÞ

ßàØáÉÆâã¸Ýä§åæ)Ôç

!"'()Q

è*éêëìííîÎÉÊAï ÁAx'()ª« AHSC

Aííð Qñè*òwóô(õö÷Ü

¼ TAICON øùúû«"üýÜþè*' ()&<$eé)=QïA

Taicon !"'()fc’ = 4000 ~ 5000 psi

8¦§X©V¯° i 15 psi A

x7q¯°Î\Á_ 300 kg/m ³ qø«

220 20 mmq¾ 500 100 mmq45

Z_ 200 mmq¾W 400 mm qW/C 0.42qÏÐÑ&< 30 a{x

'()QÙ TAICON ¸¹ º«"d¿À! ü! éÐ!

ÕÖ! !x©Q

¶HPC !"#$îÎ_

ë%Û HPC #ùßàe¸Ý$#

î Î _& ' ( D ) * Q TAICON +,-¸¼x'()?@A

u./aÁã0l"½i HPC g½iD ò!$1Ì234QÙ_ e'()¤x +,a '()ïx¸Ý5

xZvirx/0¸Ý5xZv6

/0 e'()¤x+,D¸ÝQ7

W TAICON '()x+,ae¸Ý5

a'()R)ax89:Q

;Î¥<ghx2=i|W Bazant Pòwg¸78>1?>@É ùABWCD78d +,8D1

=EFO'()G*X1=HÐa I8Î_JdxCKLMQ

3-1

¯°Vå°NOÉf¯°¦§ CNS 61 O ÉfMPQ¯°x8Q

9%&V

a%&:ÍÎZRxST, YZ;t Dmax = 12.7 mm 3U%&78ÇÕð V WXYZ[@O \¯H ]^

V_P`±a!$Q

(b) #$%&:#$%&+bc!d) ef ag8<hRi¹jÇÍÎ%&

ahRfaè*ikQ

:%&VÍÎZRxlmsnÕWX Y Z@e9%&x`±a!$Q Ò<VåopqrD¸osgtx F uvwQ xTVïyzgtx¯{xT|Q A}~Vz(Hi Con)x G fA}~Q

1. '()FO12

MAaÇ'()V'()

!"#$'() TAICONFOV (1) '()Q

(2) !"#$%&'()Q

(3) TAICON '()V*V

(a) TAICON '()Q

(3)

(b) F2_10 e F2_20 '()V TAICON F Oc:sFM = 2.63

9%&10 mm 20 mm·Q (c) F3_20 '()V TAICON '()FO

c9sFM = 3.06

9%&20 mm·Q

(d) B2 B3 '()V TAICON FO

9sFM=3.06.Q

lï F2 F3 B2 B3 a9:%&Ç

¹'()Dò!$a/0 2. d¤12V

-!$\!$«a 7 28 90 120 lP«Q

3. opV (1) '()FO12V

opx'()FOe'()D ò`!$FOQ

(2 op12V (a) 78V

'()78ÍÎ

LlMa 66 1212 24

24 cm, g8 {a 4mm #3 10 mm #620 mm Ú

{a t2 db

t4 db«a 28 lQ (b) 5678V

'()5678,ÍÎ

Ma 612 1212 2424 cm,g

8 {`a#6Q Ú{

a t2 db t4 db«a 28 lQ

(c) 9:%&5678V

9%&10 mm 20 mm

e:%&FM = 3.06 FM = 2.63

b'()] +,D/

0ÍÎ`a 1212

g8 a#6 Ú¹

t2 dbe t4 db «a 28 lQ

x1¥<XV 1. OV

x&<34¯° vwxTM ASTM C188 Q

2. 9%&O\¯HV

M ASTM C127 C128 CNS 488 487

Q

3. 9:%&V_V

M ASTM C33 ;t¡¢

:L2Q

4. 9:%&]^\V

M ASTM C29 CNS 1166 CNS 1163

Q

5. 9:%&Z]^V

M CNS 1163£;<]^x¤<¥

;Î9 :%&vwx'§\

xZ]^¦¼'§O§e]^x¨

+FG@hYZZ]^Y©%

&uF>ª«l¬HQ 6. '()!$:

(1) :

M ASTM C143 CNS1176£'()®

¤<¥Q (2) ?@A:

M ASTM C39 CNS 1232£'()

?@Ax¤<¥q

a 1020 cm xQ (3) BCAV

M ASTM C496 a 1020 cm xQ

(4) K!L2MNO\:

M ASTM C469 1^ª\

¯°±°1^Ù²<³´/

200T µ"d¶·¸ ¯°1

^ ±°1^P²<hHxK!

L2 MNO8D81FGQ (5) JK!L2:

M ASTM C215 C1239 ;Î

¹è C.N.S zgtx ERUDITE öº

(4)

»H¼\x½°¾°

öº»HÕbª«hJxK!L 2MNOQ

(6) op

opVopgîÎ¼¿

aÀ SHIMADZA zgikQlYZ Áa 1000 KNÁÂ5yì 20 50 200 400 500 1000 KN PÃ³

ÄÅ1=YvÆza 1/2000,_É ÇÈÉ´/(close-loop system)Q 7. op

ÍÎx] op<Q

ãC ASTM C234-91A x+,D

¥ < lÁ Ê H Ëð 1.27 mm/min 0.05 in/minaÌÍW

[J\Îq 0.254 mm xÌd¤*Ï ÐÆ 15 ÑÆ2@Î-.

aÒQ [J\{¡Ù¿*Ó³

¿Ô³ÕÓ W()ýÏYØÖ 5 1\(] 55 cm)[}×"

hÎØL[J\Q

[1]

!

1. !"#$%&'()l?@A JK!

L2 JMNOÏ 120 ldiÙÁQ 2. '()JK!L2IHK!L2xO

z^_ 1.61~2.14 ¤q !"#$%&'(

)a 1.51 ~ 2.00Q'()Oz«

ÚÛq !"#$%&'()ni}

cÏ 90 l«d{þ Ï 120 ldÜÝÏÞQ

3. 5678x+,De[J\¢xßHz

1vYZ[J\^_ 2 mm~4 mm ¤QÎ OJB Lbdà|á 56ghRSe¨u°Q 4. #6 2db dTAICON W d=6cm

12cmâ _'()Ó l=4db

d=12cm Ø7./ ACI +,b

TAICON +,Adð_Q

5. W5678ï OJB Lf+,A

dr l = 2db dZÓ`i

crÏ 4db d{iÓÈ

!"#$%&g¼zY

QTAICON ghze¨z

u Q

6. W5678ï9%&YZ;t 10 mm x TAICON '()O 20 mm yhuZ+,D z+,8DOzqÏ_9%&a 10mm x ./'(){|}~T¸Q 7. TAICON u½ã! !"#$%&'()

Ñx'(){uä!e78 ghRSZÓÈ`Q k1 0 z

FO'()åæ|É¨+Wc k1 zi#

a§çO]W 164~212 Q 8 78RSe OJB LfOud

C/db=5.8 a§r l = 2 db dQr l = 4 db d TAICIN '()'()

#1 #2 e !"#$%&'()#1~#6

cñ¨éê#1 #2 ÐÎ7 è !"#$%&'()gRS

Q

9. Wï78gh2éÚb ïê¨+,8DOze5678 ghzOu`iÁ78

78Î_¨éêaêd ir zh¡¢£¤¥"¦§ØLg©Q

" #$

1 dghTAICONC '()Ëð

0 1 2 3 4 5 6 7 8 9 10 Interface slip (mm) 0

10 20 30 40 50

Pullout f or ce (kN )

w =60 mm

w=120 m m w=240 m m

Bar #6

(5)

xAëzyCDìíKQ 2.TAICON e !"'()`ivwîï

îª«AÙÁðñRSTU 56 l?@

Ae 28 lu irZ¹5£

¤ðñ OJB Lba§?@Ae+

,8DËiL¨+W7 28 lop

RSã0â"·l5«ØL+,

a irê_ëò

d"ó 56 zl«ajÇA BljkaQ

3. W e'() a78 dëò%&YZ;te tOz ñ ôWÉÂ5*ghRS×"½r·

!Qa§Ù_9%&YZ

;te tuZlRS"õa ö¡1 tZvF§9%&;

tyhu©RSQ

4. 78b¨'()+,a deRSu irZ¡¢

£¤zhÐ@ÉùQ

1. %&'()TAICON '() +,-.

a*(+,-./01234!5(199967 89:;1<=

!

>?@ABCDE

FGHIJKLMNO2d _b P

QR STUV CDWXYZO[

^?

P

\]^V_` abc Vd[

^?

eKHIJfe ghiO [

^?

P

550 a a

w

w 2d

_b

,4d

_b

units: mm

w a

size A B C

240 120 60

120 60 30 d

_b

= bar diameter

log ( V u /C 1 ) _LEF

M S tre ng th criter ion

k

1

=2.711 λ

₀

=0.176

2 1

size-e

ffect law

-2 .0 -1 .6 -1 .2 -0 .8 -0 .4 0 .0 0 .4 lo g d/d 0

-0 .3 -0 .2 -0 .1 0 .0 0 .1 0 .2 0 .3 0 .4 0 .5 0 .6

k

1

=1.358 λ

0

=0.206

1 2 3 4 5 6

C /d

_b

0 2 4 6 8 1 0 1 2

V

u

/(fc')

0.5

C/d

b

=1.07

C/d

b

=2.65

C/d

b

=5.8

TAIC ON

db/ld = 1/2

Steel bar #6

Size ef fect formula

Exper iment al dat a

高性能混凝土TAICON研究群---硬固混凝土力學行為(III)---子計畫II：骨材力學性質對TAICON硬固性質之影響(II)

 

  

   

Effect of Mechanical Properties of Aggregate on Behavior of Hardened TAICON Concrete (II)

NSC88-2211-E-011-035

 !87 " 8 # 1 $% 88 " 7 # 31 $

&'()*+ ,-./01*234 56



 4mm #3

#6  2 db 4 db 

 6 cm 12 cm 24 cm

TAICON  !"#$%&'()*

+,-./012345678 789:;<1=>'()?@A

 BCA 8DE81FG HIJKL 2 MNOPQRSTUV 1'(

)W5678X YZ[J\]^_

2 mm ~ 4 mm C/db=1.08  2.5 `aBCb- .c C/db = 5.80 d !"#$%&'(

)aBCb-.e OJB LfghRSij klm`anDopb-.q 2r:%&

a:sd FM = 2.639;<YZ;tuv w 10mmx'()OYZ;tuZw 20 mm yhuZ+,8DOzr:;<a9 sd FM = 3.06{|}~Tq 3

'()e +, W 78l k1 z]^_ 1.28 ~ 1.49 l = 2 db 1.93 ~ 2.71 l = 4 db O z]^_ 0.073 ~ 0.421 l

= 2 db  0.133 ~ 0.190 l = 4 dbk1 z

 0 {|}q 4

W 78gh25678+,

ade2ui

ZeRSej zxjkOzUW 78+,

ad irZ¡¢£¤¥"¦

§¨g©Q

 TAICON !"#$%&'() 78 op +,-.

ABSTRACT

The results show that: (1) Under dif fe rent

con finement, the maximum slip for reinfo rcing

bars in three typ es o f con cret e rang e from 2 to 4

mm. For the cases of C/db = 1.08 and 2.5, the

bond failure was in the splitting mode. For the

case o f C/db, the splitting failure mode also

prevailed fo r the high-per fo rmanc e lightweight

concr ete, but was dif f er ent from the pr edicted

values by OJB model. Other bond failures

were in the pull-out modes; (2) When the fine

aggreg ate is the finest one (FM = 2.63), the

concr ete incorpor ating the finer co arse aggreg ate

(10 mm) had a higher bond stress ratio than that

of the larger co arse agg regat e (20 mm). This

situation is absent when a coa rser f ine

aggreg ates (FM = 3.06) was used; (3) The

existence o f siz e e f f ect betw een the con cr ete and

the bond mechanism of bar is con firmed. The

values of k1 range f rom 1.28 to 1.40 ( l= 2 db),

and 1.93 to 2.71 ( l= 4 db), and the values of λ 0

range form 0.073 to 0.421 ( l= 2 db), and 0.133

to 0.190 ( l= 4 db). The values increases with the increas e o f the depth of embedd edment; (4) Compared with the experimental data, the predicted bond strength with confinement e f f ect using the parameters obtained from the size-e f f e ct law was on the unconservative side.

Besides, the deviation increases with the increas e of the embeddedment depths. This indicates that there still needs a considerable rese arch e f fo rt in the area o f size ef fe ct law to predict the bond mechanism of reinfo rcing bar be for e the law can be adopted to the practical application.

Keywords: TAICON, high-per forman ce lightweight concrete, pull-out test, bond failure 

ª«'()¬­®W¯°%&x'§

± ² ³  ´ µ ¶ · i A  ' ( ) High-strength concreteHSC¸¹º»

µ¶·i !"'() High-Performance concr ete HPC¼Q !"'()½i A ¾J! ¿À! ÁÂ1eÁÃ ÄÅÆQÇ¹¹ÈeÉÊ'()Y ZjkËÌwZ\ÍÎÏÐÑ Pozzolanic materials &<ÐÒ<Ó½iÔeÕÖ!

×ÅÆØÙ_ÏÐÑ&<Ú¿

À!iTÛÜ QHPC ²³¸ÝÓÞ

ßàØáÉÆâã¸Ýä§åæ)Ôç

 !"'()Q

è*éêëìííîÎÉÊA ï ÁAx'()ª« A HSC

Aííð Qñè*òwóô(õö÷Ü

¼ TAICON øùúû«"üýÜþè*' ()&<$eé)=QïA

Taicon !"'() fc’ = 4000 ~ 5000 psi

8¦§X©V¯° i 15 psi A

 x7 q¯°Î\Á_ 300 kg/m 3 qø«

 220 20 mmq ¾ 500 100 mmq45 

 Z_ 200 mmq ¾W 400 mm  qW/C  0.42qÏÐÑ&< 30 a{x

'()QÙ TAICON ¸¹ º«"d¿À! ü! éÐ!

ÕÖ! !x©Q

¶HPC !"#$îÎ_ 

ë%Û HPC #ùßàe¸Ý$#

 î Î _& ' (  D ) * Q  TAICON +,-¸¼x'()?@A

u./aÁã0l"½i HPC g½iD ò!$1Ì234QÙ_ e'()¤x +,a '()ïx¸Ý5

xZvirx/0¸Ý5xZv6

/0 e'()¤x+,D¸ÝQ7

W TAICON '()x+,ae¸Ý5

a'()R)ax89:Q

;Î¥<ghx2=i|W Bazant Pòwg¸ 78>1?>@É ùABWCD 78d +,8D1

=EFO'()G*X1=HÐa I8Î_JdxCKLMQ

NSC88-2211-E-011-035

!87 " 8 # 1 $% 88 " 7 # 31 $

&'()+ ,-./01234 56

4mm #3

#6 2 db 4 db

6 cm 12 cm 24 cm

TAICON !"#$%&'()*

+,-./012345678 789:;<1=>'()?@A

BCA 8DE81FG HIJKL 2 MNOPQRSTUV1'(

)W5678X YZ[J\]^_

2 mm ~ 4 mm C/db=1.08 2.5 `aBCb- .c C/db = 5.80 d !"#$%&'(

)aBCb-.e OJB LfghRSij klm`anDopb-.q2r:%&

a:sdFM = 2.639;<YZ;tuv w10mmx'()OYZ;tuZw20 mm yhuZ+,8DOzr:;<a9 sdFM = 3.06{|}~Tq3

'()e +,W78l k1 z]^_ 1.28 ~ 1.49l = 2 db 1.93 ~ 2.71 l = 4 db _O z]^_ 0.073 ~ 0.421l

= 2 db 0.133 ~ 0.190l = 4 dbk1 z

0 {|}q 4

W78gh25678+,

ade2ui

ZeRSej zxjkOzUW78+,

ad irZ¡¢£¤¥"¦

§¨g©Q

TAICON !"#$%&'() 78 op +,-.

and 1.93 to 2.71 ( l= 4 db), and the values of λ ₀

Keywords: TAICON, high-per forman ce lightweight concrete, pull-out test, bond failure

ª«'()¬®W¯°%&x'§

± ² ³ ´ µ ¶ · i A ' ( ) High-strength concreteHSC¸¹º»

µ¶·i !"'() High-Performance concr ete HPC¼Q !"'()½i A ¾J! ¿À! ÁÂ1eÁÃ ÄÅÆQÇ¹¹ÈeÉÊ'()Y ZjkËÌwZ\ÍÎÏÐÑPozzolanic materials &<ÐÒ<Ó½iÔeÕÖ!

×ÅÆØÙ_ÏÐÑ&<Ú¿

À!iTÛÜ QHPC ²³¸ÝÓÞ

ßàØáÉÆâã¸Ýä§åæ)Ôç

!"'()Q

è*éêëìííîÎÉÊAï ÁAx'()ª« AHSC

Aííð Qñè*òwóô(õö÷Ü

¼ TAICON øùúû«"üýÜþè*' ()&<$eé)=QïA

Taicon !"'()fc’ = 4000 ~ 5000 psi

8¦§X©V¯° i 15 psi A

x7q¯°Î\Á_ 300 kg/m ³ qø«

220 20 mmq¾ 500 100 mmq45

Z_ 200 mmq¾W 400 mm qW/C 0.42qÏÐÑ&< 30 a{x

'()QÙ TAICON ¸¹ º«"d¿À! ü! éÐ!

ÕÖ! !x©Q

¶HPC !"#$îÎ_

ë%Û HPC #ùßàe¸Ý$#

î Î _& ' ( D ) * Q TAICON +,-¸¼x'()?@A

u./aÁã0l"½i HPC g½iD ò!$1Ì234QÙ_ e'()¤x +,a '()ïx¸Ý5

xZvirx/0¸Ý5xZv6

/0 e'()¤x+,D¸ÝQ7

W TAICON '()x+,ae¸Ý5

a'()R)ax89:Q

;Î¥<ghx2=i|W Bazant Pòwg¸78>1?>@É ùABWCD78d +,8D1

=EFO'()G*X1=HÐa I8Î_JdxCKLMQ

3-1

¯°Vå°NOÉf¯°¦§ CNS 61 O ÉfMPQ¯°x8Q

a%&:ÍÎZRxST, YZ;t Dmax = 12.7 mm 3U%&78ÇÕð V WXYZ[@O \¯H ]^

V_P`±a!$Q

(b) #$%&:#$%&+bc!d) ef ag8<hRi¹jÇÍÎ%&

ahRfaè*ikQ

:%&VÍÎZRxlmsnÕWX Y Z@e9%&x`±a!$Q Ò<VåopqrD¸osgtx F uvwQ xTVïyzgtx¯{xT|Q A}~Vz(Hi Con)x G fA}~Q

1. '()FO12

MAaÇ'()V'()

!"#$'() TAICONFOV (1) '()Q

(3) TAICON '()V*V

(b) F2_10 e F2_20 '()V TAICON F Oc:sFM = 2.63

9%&10 mm 20 mm·Q (c) F3_20 '()V TAICON '()FO

c9sFM = 3.06

9%&20 mm·Q

(d) B2 B3 '()V TAICON FO

9sFM=3.06.Q

lï F2 F3 B2 B3 a9:%&Ç

¹'()Dò!$a/0 2. d¤12V

-!$\!$«a 7 28 90 120 lP«Q

3. opV (1) '()FO12V

opx'()FOe'()D ò`!$FOQ

(2 op12V (a) 78V

'()78ÍÎ

LlMa 66 1212 24

24 cm, g8 {a 4mm #3 10 mm #620 mm Ú

{a t2 db

t4 db«a 28 lQ (b) 5678V

'()5678,ÍÎ
