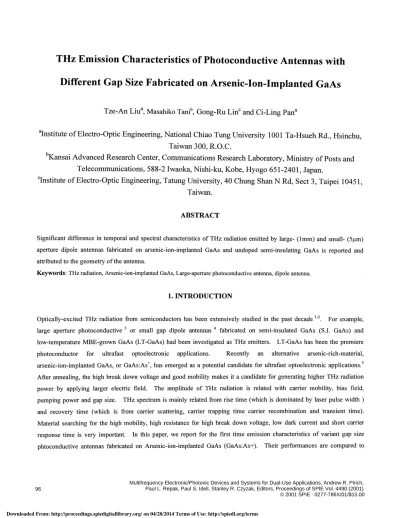

THz emission characteristics of photoconductive antennas with different gap size fabricated on arsenic-ion-implanted GaAs

THz Emission Characteristics of Photoconductive Antennas with

Different Gap Size Fabricated on Arsenic-Ion-Implanted GaAs

Tze-An Lju', Masahiko Tani', Gong-Ru Ljfl' and Ci-Ling Pane'

alnstitute of Electro-Optic Engineering, National Chiao Tung University 1 001 Ta-Hsueh Rd., Hsinchu,

Taiwan 300, R.O.C.

bKansai Advanced Research Center, Communications Research Laboratory, Ministry of Posts and

Telecommunications, 588-2 Iwaoka, Nishi-ku, Kobe, Hyogo 65 1-2401

,

Japan.

Clnstitute of Electro-Optic Engineering, Tatung University, 40 Chung Shan N Rd, Sect 3

,

Taipei

10451,

Taiwan.

ABSTRACT

Significant difference in temporal and spectral characteristics of THz radiation emitted by large- (1mm) and small- (5jim) aperture dipole antennas fabricated on arsenic-ion-implanted GaAs and undoped semi-insulating GaAs is reported and attributed to the geometry ofthe antenna.

Keywords: THz radiation, Arsenic-ion-implanted GaAs, Large-aperture photoconductive antenna, dipole antenna.

1. INTRODUCTION

Optically-excited THz radiation from semiconductors has been extensively studied in the past decade 12 For example,

large aperture photoconductive or small gap dipole antennas fabricated on semi-insulated GaAs (SI. GaAs) and low-temperature MBE-grown GaAs (LT-GaAs) had been investigated as THz emitters. LT-GaAs has been the premiere photoconductor for ultrafast optoelectronic applications.

Recently an

alternative arsenic-rich-material, arsenic-ion-implanted GaAs, or GaAs:As, has emerged as a potential candidate for ultrafast optoelectronic applications.5 After annealing, the high break down voltage and good mobility makes it a candidate for generating higher THz radiation

power by applying larger electric field. The amplitude of THz radiation is related with carrier mobility, bias field,

pumping power and gap size. THz spectrum is mainly related from rise time (which is dominated by laser pulse width)

and recovery time (which is from carrier scattering, carrier trapping time carrier recombination and transient time).

Material searching for the high mobility, high resistance for high break down voltage, low dark current and short carrier

response time is very important. In this paper, we report for the first time emission characteristics of variant gap size

those ofsimilar devices made ofS. I. GaAs.

2. EXPERIMENTAL

In a first series of experiments, we study the characteristics of large-aperture photoconductive antennas (LAPA) of gap sizes of 0.7mm and 0.8mm fabricated on GaAs:As. The devices studied include single-energy (200 KeV) implanted GaAs:As at dosages of 1016 and 1015 ions/cm2 and furnace annealed at 600°C with 30mm processing. These were operated at bias voltages of 200V and 3 1OV, respectively. LAPA's were also fabricated on multiple-energy-implanted (50, 100, 200keV) GaAs:As+ at a dosage of iO' ions/cm2,( also with furnace annealed at 600°C with 30mm processing) a gap size of 0.7mm

and operated at a bias voltage of 310V. SI-GaAs-based LAPA with 0.5mm gap and biased at 75V was used for

comparison. The antenna consists two coplanar strip lines with Au metallic coating layers of 300nm. For the break down voltage measurement with fabricated to the CPW structure with gap size of 2Oum, although the dark current of GaAs:As+ is comparable with S.I. GaAs of about sub nA in low bias voltage, the break down voltage of 240V is higher than the SI. GaAs of 60V with about 4 times larger. Figure 1 shows the transient reflectance changes (ARIR) for the samples. It was performed by a pump-probe system using wavelength of 840nm and pulse width of l5Ofs laser pulses produced from a mode-locked Ti:sapphire laser. From the carrier lifetime measurement, the comparison with SI. GaAs is shown in fig. 1. By fitting multiple exponentials to the photoreflectance decay curves, the carrier lifetime of multi-GaAs:As+ and SI. GaAs is estimated to around ips and l5Ops.

Optically-excited THz signals were collimated and focused onto the EO sensor of ZnTe with thickness of 1 .5mm by a pair

of paraboloidal mirrors. Since the THz radiation was collected by parabolic mirrors in this experiment, the temporal

resolution would be limited by group velocity mismatch between the optical probe beam and THz radiation6 The LAPAs were excited by average power of 300 mW and pulse width of l3Ofs Ti : sapphire laser. The wavelength and repetition rate are respectively 785nm and 87MHz. The ZnTe crystal for EO detection is 1 .5mm in thickness.

In a second series of experiments, the gap size of small gap dipole antennas (SGDA) is about 5im. The samples are fabricated on 5.1.-GaAs or multiple-energy-implanted (50, 100, 200keV) GaAs:As at a dosage of 1015 ions/cm2 with furnace annealed at 600°C with 30mm processing. The devices are operated at a bias voltage of 1OV. The pumping

source is a commercial Ti:sapphire oscillator with average power of 5mW at repetition rate of 82MHz with pulse width of 8Ofs and wavelength of 780nm. Photoconductive detection with dipole antenna fabricated in annealed LT-GaAs with gap size of 5tm was used in this series of experiments.

from the LAPA's are all around 0.4 THz and the spectral widths are about 0.8 THz. The temporal waveforms are all

symmetric bipolar. The emission characteristics of LAPA's fabricated on S. I. GaAs and GaAs:As are quite similar. The THz radiation waveform by LAPA with different gap spacing had been previously studied by G. Rodriguez et al . _Bipolar waveform can be explained from space charge screening of the bias field, but the larger gap spacing (larger than 5mm) will diminishes the effect. Although waveforms are all symmetric bipolar, there are still not so obviously different between these two kind of materials even with the variant Arsenic ion implantation situation. The probably reason is that: the skin depth of pumping laser is about 800nm, which is larger than the depth of As ion implantation region(1OOnm). Besides that, the bias field maybe has a large part of electric field penetrate into the perpendicular direction than the transverse one in the large aperture photoconductive antenna.

The THz waveform and the corresponding spectrum emitted by the dipole antenna fabricated on multi-energy implanted GaAs:As, biased at 1 OV and an optical excitation power of 5mWare shown in Fig. 3 . Asymmetricunipolar waveform is shown in S.I. GaAs. However, it changed to the bipolar in our GaAs:As+ material and reminiscent ofthat devices made on LT GaAs.4 The pronounced negative peak is attributed to the fast carrier trap time of GaAs:As. In Fig. 3(b), we note that the center frequency in GaAs:As+ fabricated antenna has shifted from 0.7 THz to 0.9 THz compared to SI. GaAs one while the band width is around 1 .2 THz. As in the small gap situation, the electric field will have larger component in the transverse direction which will mostly effect the As ion implanted region. The obviously difference between large gap and small gap antenna can be explained by this reason.

Fig. 4 shows the THz radiation waveform with different gap size photoconductive antennas fabricated in (a) SI. GaAs

and (b) GaAs: As+. Although the detection scheme is different, the waveform in S.I. GaAs is significantly different

between these two devices.

4. CONCLUSION

In summary, we have compared the THz emission characteristics of large-aperture photoconductive antennas and small-gap dipole antennas fabricated on multi-energy implanted GaAs:As and S. I. GaAs, for the first time to our knowledge. For the small-gap antenna, the distinction is apparent. This is, however, not the case for large-aperture photoconductive antennas, of which the performance is dominated mostly by the characteristics of the bulk SI. GaAs

substrate. Further improvement with blocking layer of electric field between bulk GaAs and implanted region in LAPA should increase the effect of generating THz radation from GaAs:As+.

REFERENCES

1 . X. -C. Zhang and D. H. Auston, "Optoelectronic measurement of semiconductor surfaces and interfaces with

femtosecond optics," J. Appi. Phys., vol. 71, pp. 326-338, 1992.

2. P. C. M. Planken, M. C. Nuss, W. H. Knox, D. A. B. Miller and K. W. Goossen, "1Hz pulses fron the creation of

polarized electron-hole pairs in biased quantum wells," App!. Phys. Lett., vol. 61, pp 2009-2011, 1992.

3. S. G. Park, A. M. Weiner, M. R. Melloch, C. W. Siders, J. L. W. Siders and A. J. Taylor, "High-power narrow-band terahertz generation using large-aperture phtoconductors," IEEE!. I Quantum. Electron., vol. 35, pp. 1257 —1268, 1999. 4. M. Tani, S. Matsuura, K. Sakai, and S. Nakashima, "Emission characteristics of photoconductive antennas based on

low-temperature-grown GaAS and semi-insulating GaAs," App! Opts., vol. 36, pp. 7853-7859, 1997.

5. F. Ganikhanov, G. -R. Lin, W. C. Chen, C. S. Chang and C. -L. Pan, "Subpicosecond carrier lifetimes in

arsenic-ion-implanted GaAs," App!. Phys. Lett., vol. 67, pp. 3465-3467, 1995.

6. Y. Cai, I. Brener, J. Lopata, J. Wynn, L. Pfeiffer, J. B. Stark, Q.Wu, X. C. Zhang and J. F. Federici, "Coherent terahertz radiation detection: Direct comparison between free-space electro-optic sampling and antenna detection," I App!. Phys., vol. 73, pp. 444-446, 1998.

7. G. Rodriguez and A.J. Taylor, "Screening of the bias field in terahertz generation from photoconductors," Opt. Lett., vol.

2l,pp.

1046-1048, 1996.

FIGURE

CAPTIONS

Fig. 1 Transient photoreflectance changes for SI. GaAs(solid circle) and multi-GaAs:As(open circle).

Fig.2 (a) THz radiation pulses from large aperture (mm order) photconductive antenna fabricated on multi-implant GaAs:As+ (solid curve) with variant implant energy and S.I.GaAs (dashed curve).(b) Fourier-transformed amplitude spectrum of (a)

Fig.3 (a) THz radiation pulses from small gap (—jtm order) photconductive antenna fabricated on multi-implant GaAs:As+ (solid curve) and S.I.GaAs (dashed curve).(b) Fourier-transformed amplitude spectrum of(a)

1.0

— 0.8

0.6

D

0.4

a) N

E0.2

0

z

0.0 -0.2

Fig.1 Transient photoreflectance changes for SI. GaAs(solid circle) and multi-GaAs:As(open circle).

0

5

10 15

20

12 1.0 08 Q6 02 -02 06 4-08 I—1.0 I I I I I I -4 -3 -2 -1 0 1 2 3 4 5

(a

Fig.2(a) THzradiation_{pulses from large aperture (—nim order) photconductive antenna fabricated on multi-implant GaAs:As+ (solid}

curve) with variant implant energy and SI. GaAs (dashed curve).(b) Fourier-transformed amplitude spectnom of (a)

-4 -3 -2 -1

°ffic()

2 3

'

00 1.0

I

_{-3 -2 1}

_°ffin()

_{2 3 4} 00 SI 05

_10--çj15

20 25 i 1O51cUIUJ 05 10Fca4.BW(1I-)1.5 20 25 25

1.0

a)

- 0.5

0

E 0.0

N

I -0.5

F--1.0

0

0.10 0.08 0.06 w 004 E 0.02 0.00 0

Fig.3(a) THz radiation pulses from small gap (—.tm order) photconductive antenna fabricated on multi-implant GaAs:As+ (solid curve) and S.I.GaAs (dashed curve).(b) Fourier-transformed amplitude spectrum of(a)

2

4

6 8

Time delay (ps)

Frequency (THz)

05 as -c 00 E -0.5 0.5 as •c 00 E

.05

1.0 -1.0 1.0

—g=5un 0.1. GaAs, 1O'ions/cm, 150,200keV

-1 ' 0 ' 1 ' 2 ' 3 ' 4 Time delay (ps)

—g5m GaAs:As+, 10'ions/cm, 150,200keV

E

-2 -1 0 1 2 3 4 5

Frequency (THz) -1.0

Time delay (ps)
