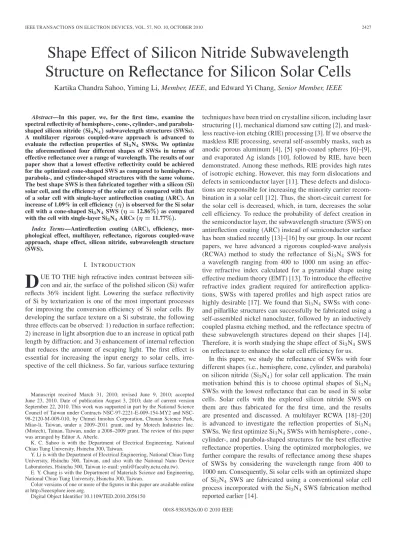

Shape Effect of Silicon Nitride Subwavelength
Structure on Reflectance for Silicon Solar Cells
Kartika Chandra Sahoo, Yiming Li, Member, IEEE, and Edward Yi Chang, Senior Member, IEEE
Abstract—In this paper, we, for the first time, examine the spectral reflectivity of hemisphere-, cone-, cylinder-, and parabola-shaped silicon nitride (Si3N4) subwavelength structures (SWSs).
A multilayer rigorous coupled-wave approach is advanced to evaluate the reflection properties of Si3N4 SWSs. We optimize
the aforementioned four different shapes of SWSs in terms of effective reflectance over a range of wavelength. The results of our paper show that a lowest effective reflectivity could be achieved for the optimized cone-shaped SWS as compared to hemisphere-, parabola-, and cylinder-shaped structures with the same volume. The best shape SWS is then fabricated together with a silicon (Si) solar cell, and the efficiency of the solar cell is compared with that of a solar cell with single-layer antireflection coating (ARC). An increase of 1.09% in cell efficiency (η) is observed for the Si solar cell with a cone-shaped Si3N4 SWS (η = 12.86%) as compared
with the cell with single-layer Si3N4ARCs (η = 11.77%).
Index Terms—Antireflection coating (ARC), efficiency, mor-phological effect, multilayer, reflectance, rigorous coupled-wave approach, shape effect, silicon nitride, subwavelength structure (SWS).
I. INTRODUCTION
D
UE TO THE high refractive index contrast between sili-con and air, the surface of the polished silisili-con (Si) wafer reflects 36% incident light. Lowering the surface reflectivity of Si by texturization is one of the most important processes for improving the conversion efficiency of Si solar cells. By developing the surface texture on a Si substrate, the following three effects can be observed: 1) reduction in surface reflection; 2) increase in light absorption due to an increase in optical path length by diffraction; and 3) enhancement of internal reflection that reduces the amount of escaping light. The first effect is essential for increasing the input energy to solar cells, irre-spective of the cell thickness. So far, various surface texturingManuscript received March 31, 2010; revised June 9, 2010; accepted June 23, 2010. Date of publication August 3, 2010; date of current version September 22, 2010. This work was supported in part by the National Science Council of Taiwan under Contracts 97-2221-E-009-154-MY2 and NSC-98-2120-M-009-010, by Chimei Innolux Corporation, Chunan Science Park, Miao-li, Taiwan, under a 2009–2011 grant, and by Motech Industries Inc. (Motech), Tainan, Taiwan, under a 2008–2009 grant. The review of this paper was arranged by Editor A. Aberle.
K. C. Sahoo is with the Department of Electrical Engineering, National Chiao Tung University, Hsinchu 300, Taiwan.
Y. Li is with the Department of Electrical Engineering, National Chiao Tung University, Hsinchu 300, Taiwan, and also with the National Nano Device Laboratories, Hsinchu 300, Taiwan (e-mail: [email protected]).
E. Y. Chang is with the Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu 300, Taiwan.
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TED.2010.2056150
techniques have been tried on crystalline silicon, including laser structuring [1], mechanical diamond saw cutting [2], and mask-less reactive-ion etching (RIE) processing [3]. If we observe the maskless RIE processing, several self-assembly masks, such as anodic porous aluminum [4], [5] spin-coated spheres [6]–[9], and evaporated Ag islands [10], followed by RIE, have been demonstrated. Among these methods, RIE provides high rates of isotropic etching. However, this may form dislocations and defects in semiconductor layer [11]. These defects and disloca-tions are responsible for increasing the minority carrier recom-bination in a solar cell [12]. Thus, the short-circuit current for the solar cell is decreased, which, in turn, decreases the solar cell efficiency. To reduce the probability of defect creation in the semiconductor layer, the subwavelength structure (SWS) on antireflection coating (ARC) instead of semiconductor surface has been studied recently [13]–[16] by our group. In our recent papers, we have advanced a rigorous coupled-wave analysis (RCWA) method to study the reflectance of Si3N4 SWS for
a wavelength ranging from 400 to 1000 nm using an effec-tive refraceffec-tive index calculated for a pyramidal shape using effective medium theory (EMT) [13]. To introduce the effective refractive index gradient required for antireflection applica-tions, SWSs with tapered profiles and high aspect ratios are highly desirable [17]. We found that Si3N4SWSs with
cone-and pillarlike structures can successfully be fabricated using a self-assembled nickel nanocluster, followed by an inductively coupled plasma etching method, and the reflectance spectra of these subwavelength structures depend on their shapes [14]. Therefore, it is worth studying the shape effect of Si3N4SWS
on reflectance to enhance the solar cell efficiency for us. In this paper, we study the reflectance of SWSs with four different shapes (i.e., hemisphere, cone, cylinder, and parabola) on silicon nitride (Si3N4) for solar cell application. The main
motivation behind this is to choose optimal shapes of Si3N4
SWSs with the lowest reflectance that can be used in Si solar cells. Solar cells with the explored silicon nitride SWS on them are thus fabricated for the first time, and the results are presented and discussed. A multilayer RCWA [18]–[20] is advanced to investigate the reflection properties of Si3N4
SWSs. We first optimize Si3N4SWSs with hemisphere-, cone-,
cylinder-, and parabola-shaped structures for the best effective reflectance properties. Using the optimized morphologies, we further compare the results of reflectance among these shapes of SWSs by considering the wavelength range from 400 to 1000 nm. Consequently, Si solar cells with an optimized shape of Si3N4 SWS are fabricated using a conventional solar cell
process incorporated with the Si3N4 SWS fabrication method
reported earlier [14]. 0018-9383/$26.00 © 2010 IEEE
2428 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 57, NO. 10, OCTOBER 2010
Fig. 1. Schematic of the SWS studied in this paper, where h is the height and
s is the nonetched part of SWS with (a) hemisphere-, (b) cone-, (c) cylinder-,
and (d) parabola-shaped structures.
This paper is organized as follows. In Section II, we brief the procedure of RCWA for the simulated SWS structures, including the adopted material parameters, and discuss the simulation results. In Section III, we show the procedure for fabrication of Si solar cells, followed by the fabrication results. Finally, we draw conclusions and suggest future work.
II. CALCULATIONMETHOD ANDRESULTS
We study the SWS structure with four different shapes, as shown in Fig. 1, for the reflectance property with respect to wavelength. We choose these shapes because all shapes are of cylindrical symmetry with the same base radius. The height of Si3N4SWS is h, and the thickness of the nonetched Si3N4layer
is s. Both of these parameters are the key designing parameters for reflectance optimization. We use RCWA [13] to study the diffractive structure and its reflectance property, where EMT [21]–[23] is adopted to calculate the effective refractive in-dex for each partitioned uniform homogeneous layer. We first divide the SWS structure into several horizontal layers with equal thickness, and for each discrete position zl along the z-direction, EMT implies that the effective refractive index n(zl) of each layer is approximated by (1), shown at the bottom
of the page, where f (zl) is the fraction of Si3N4 contained
in each layer given by f (zl) = (πr2l/ √
3D2), with r
l being
calculated according to the shape of SWS [24]. The rl for
hemisphere-, parabola-, cone-, and cylinder-shaped SWSs are given by the following equations, respectively:
rl= r2− (z l+ r− h)2 (2) rl= r 1−zl h (3) rl= r 1−zl h (4) rl= r. (5)
Notably, nSiN= n + ik is the complex refractive index of
Si3N4, where i =
√
−1; n and k are optical constants; and nair= 1 is the refractive index of air. Only the real part of
the refractive index of Si3N4 is considered in our simulation
because it is a weakly absorbing material above 400 nm [25]. With the calculated effective refractive index n(zl) for each
layer, we can calculate the reflectance of the entire structure including a layer for the nonetched Si3N4 with respect to
the different wavelengths [13]. Here, the incident angle θ of sunlight is assumed to be normal to the plane (i.e., θ = 0◦), and only TE polarization is considered here for the calculation of reflectance [26].
Instead of considering the reflectance for a certain wave-length, an effective reflectance is computed for the structures over a range of the wavelength of incident sunlight. By taking s and h as varying factors, we calculate the effective reflectance Reff [27] for the wavelength λ varying from λl= 400 nm
to λu= 1000 nm and compare it with Si3N4 SWS. Reff is
evaluated by Reff = λu λl R(λ)SI(λ) E(λ) dλ λu λl SI(λ) E(λ)dλ (6)
where SI(λ) is spectral irradiance given by ATMG173 AM1.5G reference [28], E(λ) is the photon energy, and R(λ) is the calculated reflection. The “s” and “h” factors are varied for the studied structures to achieve the lowest effective reflectance, and the optimization results are shown in Fig. 2. The reflectance spectra of the optimized structures are compared in Fig. 3. The lowest effective reflectance of 1.93% is observed for the optimized parabola-shaped SWS as compared to the results of hemisphere-, cone-, and cylinder-shaped structures.
Comparison of the reflectance spectra of the four shapes, as shown in Fig. 3, may not be correct as the volumes of the different shapes are different. For this reason, we keep
n(zl) =
[1− f(zl) + f (zl)n2SiN] [f (zl) + (1− f(zl)) n2SiN] + n2SiN
2 [f (zl) + (1− f(zl)) n2SiN]
Fig. 2. Contour plot of the effective reflectance for the wavelength varying from 400 to 1000 nm; the plot is as a function of h and s for Si3N4SWS for
(a) hemisphere-, (b) parabola-, (c) cone-, and (d) cylinder-shaped structures.
Fig. 3. Comparison of the reflectance spectra among the optimized Si3N4
structures for the wavelength varying from 400 to 1000 nm.
Fig. 4. Plot of the effective reflectance with volume for four different Si3N4
2430 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 57, NO. 10, OCTOBER 2010
Fig. 5. Si3N4SWS solar cell process flow. (a) Emitter process. (b) SWS process. (c) Postprocess.
Fig. 6. Scanning electron microscope image of Si3N4nanocone structures. (a) Top view. (b) Cross-sectional view.
the volume constant for all the shapes and vary the height of SWS to see the effect on reflectance. Note that when we change the SWS height, the thickness of the nonetched Si3N4
SWS is kept constant at 70 nm. The effective reflectances of the hemisphere-, cone-, cylinder-, and parabola-shaped Si3N4
SWSs with different volumes are shown in Fig. 4. For the volume varying from 5× 104to 1× 106nm3, we find that the
cone-shaped SWS has the lowest effective reflectance and that the cylinder-shaped SWS has the highest effective reflectance as compared to other shapes.
III. SAMPLEFABRICATION ANDCHARACTERIZATION Based on our observation in our simulation, we fabricate a Si solar cell with Si3N4nanocone structures for the first time. The
flowchart of the fabrication process for a solar cell with silicon nitride SWS is shown in Fig. 5. First, a p-type silicon wafer is cleaned with H2SO4/H2O2and then followed by chemical
polishing to remove the surface damage. Then, the emitter is formed by phosphorous diffusion by supplying phosphorous
trichloride oxide (POCl3) to the silicon wafer. In this process,
p-type silicon wafer is loaded into a quartz boat, which was slowly moved into the middle of a fused quartz tube in a resistance-heated horizontal furnace. The furnace temperature for the diffusion was held at about 900 ◦C. Nitrogen is used as a carrier gas. During the diffusion process, the following reactions take place to form a phosphor silicate glass (PSG):
4POCl3+ 3O2→ 2P2O5+ 6Cl2
2P2O5+ 5Si→ 4P + 5SiO2. (7)
When a PSG is deposited on the silicon substrate, phosphorus starts to diffuse into the bulk, and the emitter is formed. Then, the PSG is removed by dipping the wafer in a 10% buffered HF solution for about 1 min. Then, the silicon nitride cone-shaped structures are formed on the front surface of the solar cell using the fabrication process reported in [15], which is briefly described in Fig. 5. The scanning electron microscope image of the fabricated nanocone structure is shown in Fig. 6. After
Fig. 7. Schematic and photographic images of the fabricated silicon solar cells with (a) Si3N4SLAR (light blue color due to without SWS) (b) and Si3N4SWS
(dark blue due to SWS). For both samples, the doping level of 0.5-μm-thick n-type Si is 1015/cm3and is 1017/cm3for p-type Si, where the substrate resistivity
is 1 Ω· cm.
TABLE I
MEASUREDSOLARCELLI–V DATA FORSILICONNITRIDESLARANDSILICONNITRIDESWSs. THEDIFFERENCE OFELECTRICALCHARACTERISTICS
ISALSOTABULATED, WHEREIrevIS THELEAKAGECURRENT. THEp-TYPEMULTICRYSTALLINESi WAFERWITH ARESISTIVITY OF1 Ω· cm
AND ATHICKNESS OF200 μm ISCLEANEDWITHH2SO4/H2O2AND THENFOLLOWED BYCHEMICALPOLISHING TOREMOVE THE
SURFACEDAMAGE. WHEN APSG ISDEPOSITED ON THESi SUBSTRATE, PHOSPHORUSSTARTS TODIFFUSEINTO THEBULK,
AND THEEMITTERISFORMEDWITH AJUNCTIONDEPTH OF0.6 μm. THEAREAIS1 cm2
the SWS process, the postprocessing of the cell is done, which includes electrode formation by the standard screen-printing method and the cell characterization to get the open-circuit voltage (VOC), short-circuit current density (JSC), efficiency
(η), and fill factor (FF) under AM1.5G conditions. The Ag and silver–aluminum (Ag/Al) contacts on the front (F) and back (B) surfaces of the cells, respectively, are made by screen printing, followed by sintering at 650 ◦C–750 ◦C for a few minutes. For the sintering process, the screen-printed wafers are placed vertically in a fused silica boat in the FFBBFFBB configuration. This boat is then placed in the hot zone of the sintering furnace for a few minutes in order to carry out the sintering in zero air or equivalent N2/O2ambient.
The schematic and the photographic images of the fabricated solar cell with single-layer antireflection (SLAR) and cone-shaped Si3N4SWSs are shown in Fig. 7(a) and (b), respectively.
The color of the solar cell with Si3N4SWS is dark blue as
com-pared with the solar cell without SWS, which is similar to the case of single-crystalline silicon without and with etching re-ported in [29]. The measured data of current–voltage (I–V ) of the fabricated sample are tabulated in Table I, where the fabri-cated Si solar cell with silicon nitride SWS and the Si solar cell with SLAR coating are compared in Table I. It is observed that the VOCvalue of the SWS solar cell is decreased by 0.001 V
as compared to that of the SLAR solar cell. Also, the FF of the
SWS solar cell is decreased by 0.04% as compared to that of the SLAR solar cell. However, the JSCand efficiency of SWS
have been improved by 2.9 mA/cm2 and 1.09% as compared to that of the SLAR solar cell. The decrease of FF suggests that there must be some insufficient electrical contact, which is also confirmed by the high reverse current of the SWS solar cell compared to that of the SLAR solar cell. Thus, there is a need to improve the fabrication process, specifically for the postprocess steps of Fig. 5. The increase in efficiency by 1.09% for the SWS solar cell has been achieved compared to that of the silicon solar cell with SLAR. We expect that the efficiency can be further improved more if the electrode formation step could be improved for the Si solar cell with silicon nitride SWS.
IV. CONCLUSION
In this paper, we have compared four different designed silicon nitride SWSs. Using the results of rigorous coupled-wave analysis simulation for the hemisphere-, cone-, cylinder-, and parabola-shaped silicon nitride SWSs, the ratio of silicon nitride SWS height to the nontextured part of silicon nitride has been optimized. The reflectance results for the optimized SWSs have been compared in terms of effective reflectivity. The cone-shaped silicon nitride SWS has been observed to be best suited for a solar cell as compared to the results
2432 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 57, NO. 10, OCTOBER 2010
of hemisphere-, cylinder-, and parabola-shaped silicon nitride SWSs. A silicon solar cell with a cone-shaped silicon nitride SWS has been fabricated successfully, and the results show the clear increase of 1.09% in efficiency as compared with a solar cell with silicon nitride SLAR. In addition, there is a need to improve the electrical contact process for a silicon nitride SWS to further increase the efficiency, as seen from the measurement. We expect that the efficiency can be improved more if the postprocess steps of the silicon solar cell with a silicon nitride SWS can be improved significantly.
ACKNOWLEDGMENT
K. C. Sahoo would like to thank for the sample fabrication and characterization from MOTECH.
REFERENCES
[1] S. Narayanan, “High efficiency polycrystalline silicon solar cell,” Ph.D. dissertation, Univ. New South Wales, Sydney, Australia, May, 1989. [2] P. Path, G. Wileke, E. Bucher, J. Szlufcic, R. M. Murti, K. DeClercq,
J. Nijs, and R. Mertens, “Mechanical wafer engineering for high efficiency solar cells: An investigation of the induced surface damage,” in Proc. 24th
IEEE Photovoltaic Spec. Conf., 1994, pp. 1347–1350.
[3] S. H. Zaidi, D. S. Ruby, and J. M. Gee, “Characterization of random reactive ion etched–textured silicon solar cells,” IEEE Trans. Electron
Devices, vol. 48, no. 6, pp. 1200–1206, Jun. 2001.
[4] Y. Kanamori, K. Hane, H. Sai, and H. Yugami, “100 nm period silicon an-tireflection structures fabricated using a porous alumina membrane mask,”
Appl. Phys. Lett., vol. 78, no. 2, pp. 142–144, Jan. 2001.
[5] H. Sai, H. Fujii, K. Arafune, Y. Ohshita, M. Yamaguchi, Y. Kanamori, and H. Yugami, “Antireflective subwavelength structures on crystalline Si fabricated using directly formed anodic porous alumina masks,” Appl.
Phys. Lett., vol. 88, no. 20, pp. 201 116-1–201 116-3, May 2006.
[6] C. H. Sun, W. L. Min, N. C. Linn, P. Jiang, and B. Jiang, “Templated fabrication of large area subwavelength antireflection gratings on silicon,”
Appl. Phys. Lett., vol. 91, no. 23, pp. 231 105-1–231 105-3, Dec. 2007.
[7] C. H. Sun, P. Jiang, and B. Jiang, “Broadband moth-eye antireflection coatings on silicon,” Appl. Phys. Lett., vol. 92, no. 6, pp. 061 112-1– 061 112-3, Feb. 2008.
[8] C. H. Sun, A. Gonzalez, N. C. Linn, P. Jiang, and B. Jiang, “Bioinspired broadband antireflection coatings on GaSb,” Appl. Phys. Lett., vol. 92, no. 14, pp. 141 109-1–141 109-3, Apr. 2008.
[9] W. L. Min, A. P. Betancourt, P. Jiang, and B. Jiang, “Templated bio-mimetic multifunctional coatings,” Appl. Phys. Lett., vol. 92, no. 5, pp. 051 107-1–051 107-3, Feb. 2008.
[10] S. Wang, X. Z. Yu, and H. T. Fan, “Simple lithographic approach for subwavelength structure antireflection,” Appl. Phys. Lett., vol. 91, no. 6, pp. 061 105-1–061 105-3, Aug. 2007.
[11] G. Kumaravelu, M. M. Alkaisi, A. Bittar, D. Macdonald, and J. Zhao, “Damage studies in dry etched textured silicon surfaces,” Curr. Appl.
Phys., vol. 4, no. 2–4, pp. 108–110, Apr. 2004.
[12] B. L. Sopori, Y. Zhang, and R. Reedy, “H diffusion for impurity and defect passivation: A physical model for solar cell processing,” in Proc. 29th
IEEE PV Spec. Conf., May 20–24, 2002, pp. 1–5.
[13] K. C. Sahoo, Y. Li, and E. Y. Chang, “Numerical calculation of reflectance of sub-wavelength structures on silicon nitride for solar cell application,”
Comput. Phys. Commun., vol. 180, no. 10, pp. 1721–1729, Oct. 2009.
[14] K. C. Sahoo, M. K. Lin, E. Y. Chang, Y. Y. Lu, C. C. Chen, J. H. Huang, and C. W. Chang, “Fabrication of antireflective sub-wavelength structures on silicon nitride using nano cluster mask for solar cell application,”
Nanoscale Res. Lett., vol. 4, no. 7, pp. 680–683, Jul. 2009.
[15] K. C. Sahoo, M. K. Lin, E. Y. Chang, T. B. Tinh, Y. Li, and J. H. Huang, “Silicon nitride nanopillars and nanocones formed by nickel nanoclusters and inductively coupled plasma etching for solar cell application,” Jpn. J.
Appl. Phys., vol. 48, no. 12, pp. 126 508-1–126 508-4, Dec. 2009.
[16] K. C. Sahoo, Y. Li, M.-K. Lin, E. Y. Chang, and J.-H. Huang, “Design and fabrication of sub-wavelength structure on silicon nitride for solar cell application,” in Proc. IEEE 9th Nanotechnol. Conf., Geneoa, Italy, 2009, pp. 127–130.
[17] S. J. Wilson and M. C. Hutley, “The optical properties of ‘moth eye’ anti-reflection surfaces,” Opt. Acta, vol. 29, no. 7, pp. 993–1009, Jul. 1982.
[18] M. G. Moharam and T. K. Gaylord, “Rigorous coupled-wave analysis of planar-grating diffraction,” J. Opt. Soc. Amer., vol. 71, no. 7, pp. 811–818, Jul. 1981.
[19] M. G. Moharam and T. K. Gaylord, “Rigorous coupled-wave analysis of metallic surface-relief gratings,” J. Opt. Soc. Amer. A, Opt. Image Sci., vol. 3, no. 11, pp. 1780–1787, Nov. 1986.
[20] M. G. Moharam and D. A. Pommet, “Formulation for stable and efficient implementation of the rigorous coupled-wave analysis of binary gratings,”
J. Opt. Soc. Amer. A, Opt. Image Sci., vol. 12, no. 5, pp. 1077–1086,
May 1995.
[21] L. Lalanne and M. Hutley, Artificial Media Optical
Properties-Subwavelength Scale. New York: Marcel Dekker, 2003.
[22] P. Yeh, Optical Waves in Layered Media. New York: Wiley, 1991. [23] D. A. G. Bruggeman, “Dielectric constant and conductivity of mixtures of
isotropic materials,” Ann. Phys., vol. 24, pp. 636–679, 1935.
[24] M. E. Motamedi, W. H. Southwell, and W. J. Gunning, “Antireflection surfaces in silicon using binary optics technology,” Appl. Opt., vol. 31, no. 22, pp. 4371–4376, 1992.
[25] J. Zhao and M. A. Green, “Optimized anti-reflection coatings for high-efficiency silicon solar cells,” IEEE Trans. Electron Devices, vol. 38, no. 8, pp. 1925–1934, Aug. 1991.
[26] K. L. Chopra and S. R. Das, Thin Film Solar Cells. New York: Plenum, 1983.
[27] D. N. Wright, E. S. Marstein, and A. Holt, “Acidic texturing of mul-ticrystalline silicon wafers,” in Proc. 31st IEEE Photovoltiac Spec. Conf., Orlando, FL, 2005, pp. 1237–1240.
[28] [Online]. Available: http://rredc.nrel.gov/solar/spectra/am1.5/ASTMG173. html
[29] K. Nishioka, S. Horita, and K. Ohdaria, “Anti-reflection sub-wavelength structure of silicon surface formed by wet process using catalysis of single nano-sized gold particle,” Sol. Energy Mater. Sol. Cells, vol. 92, no. 8, pp. 919–922, Aug. 2008.
Kartika Chandra Sahoo received the B.S. degree
in physics and the M.S. degree in electronics from Berhampur University, Berhampur, India, in 1998 and 2000, respectively, and the Ph.D. degree from the Department of Materials Science and Engineering, National Chiao Tung University (NCTU), Hsinchu, Taiwan, in 2009.
He is currently a Postdoctoral Fellow in the Par-allel and Scientific Computing Laboratory, Depart-ment of Electrical Engineering, NCTU. His research interests include solar cell devices, advanced semi-conductor devices, nanotechnology, semisemi-conductor device simulation: model and programming, and TCAD simulation of CMOS and HEMT devices.
Yiming Li (M’02) received the B.S. degree in
ap-plied mathematics and electronics engineering, the M.S. degree in applied mathematics, and the Ph.D. degree in electronics from National Chiao Tung Uni-versity (NCTU), Hsinchu, Taiwan, in 1996, 1998, and 2001, respectively.
In 2001, he joined the National Nano Device Laboratories (NDL), Hsinchu, as an Associate Re-searcher and the Microelectronics and Information Systems Research Center (MISRC), NCTU, as a Research Assistant Professor, where he has been engaged in the field of computational science and engineering, particularly in modeling, simulation, and optimization of nanoelectronics and very large scale integration (VLSI) circuits. In the fall of 2002, he was a Visiting Assis-tant Professor with the Department of Electrical and Computer Engineering, University of Massachusetts, Amherst. From 2003 to 2004, he was a Research Consultant with the System on a Chip (SoC) Technology Center, Industrial Technology Research Institute, Hsinchu. From 2003 to 2005, he was the Head of the Departments of Nanodevice and Computational Nanoelectronics, NDL, and during the fall of 2004, he became a Research Associate Professor with MISRC. From the fall of 2005 to the fall of 2008, he was an Associate Professor with the Department of Communication Engineering, NCTU, where he is currently a Full Professor with the Department of Electrical Engineering, is the Deputy Director of the Modeling and Simulation Center, and conducts the Parallel and Scientific Computing Laboratory. He is also the Deputy Director General of NDL. His current research areas include computational electronics and electromagnetics, the physics of semiconductor nanostructures, transport simulation and model parameter extraction for semiconductor and photonic devices, computer-aided-design theory and technology, biomedical and energy-harvesting device simulation, parallel and scientific computing, and optimization methodology. He has authored or coauthored over 150 research papers appearing in international book chapters, journals, and conferences. He has served as a Reviewer, Guest Associate Editor, Guest Editor, Associate Editor, and Editor for more than 30 international journals.
Dr. Li is a member of Phi Tau Phi and is included in Who’s Who in the World. He was the recipient of the 2002 Research Fellowship Award presented by the Pan Wen-Yuan Foundation, Taiwan, and the 2006 Outstanding Young Electrical Engineer Award from the Chinese Institute of Electrical Engineering, Taiwan. He has served as an active Reviewer for seven IEEE journals. He has also organized and served on several international conferences and was an Editor for the proceedings of international conferences.
Edward Yi Chang (S’85–M’85–SM’04) received
the B.S. degree from the Department of Materials Science and Engineering, National Tsing Hua Uni-versity, Hsinchu, Taiwan, in 1977, and the Ph.D. de-gree from the Department of Materials Science and Engineering, University of Minnesota, Minneapolis, in 1985.
He was with Unisys Corporation GaAs Compo-nent Group, Eagan, MN, from 1985 to 1988 and with the Comsat Labs Microelectronic Group from 1988 to 1992. He worked on GaAs MMIC programs on both groups. He was with National Chiao Tung University (NCTU), Hsinchu, in 1992. In 1994, he helped set up the first GaAs MMIC production line in Taiwan and became the President of Hexawave, Inc., Hsinchu, in 1995. He returned to the teaching position at NCTU in 1999 and is currently the Associate Dean of Engineering College. His research interests include new device and process technologies for compound semiconductor RFICs for wireless communication, III-V/Si integration for post CMOS application, and GaN Devices for RF and power applications.
Dr. Chang is a senior member and a Distinguished Lecturer of the IEEE Electron Devices Society.
